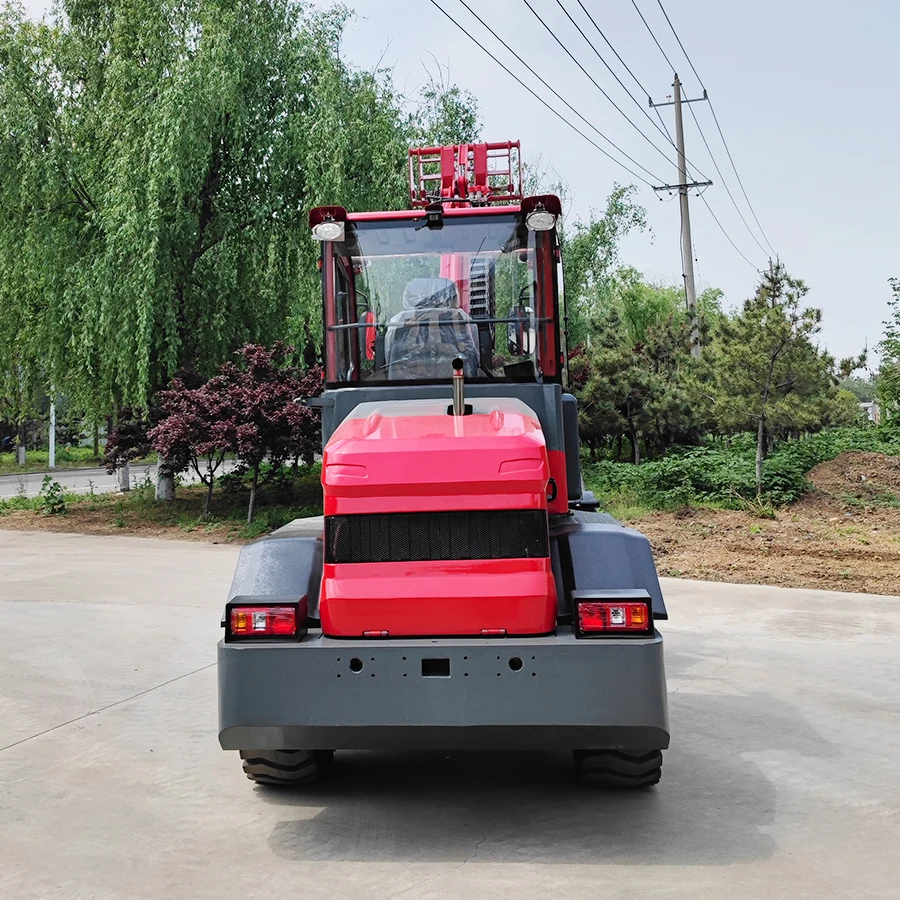

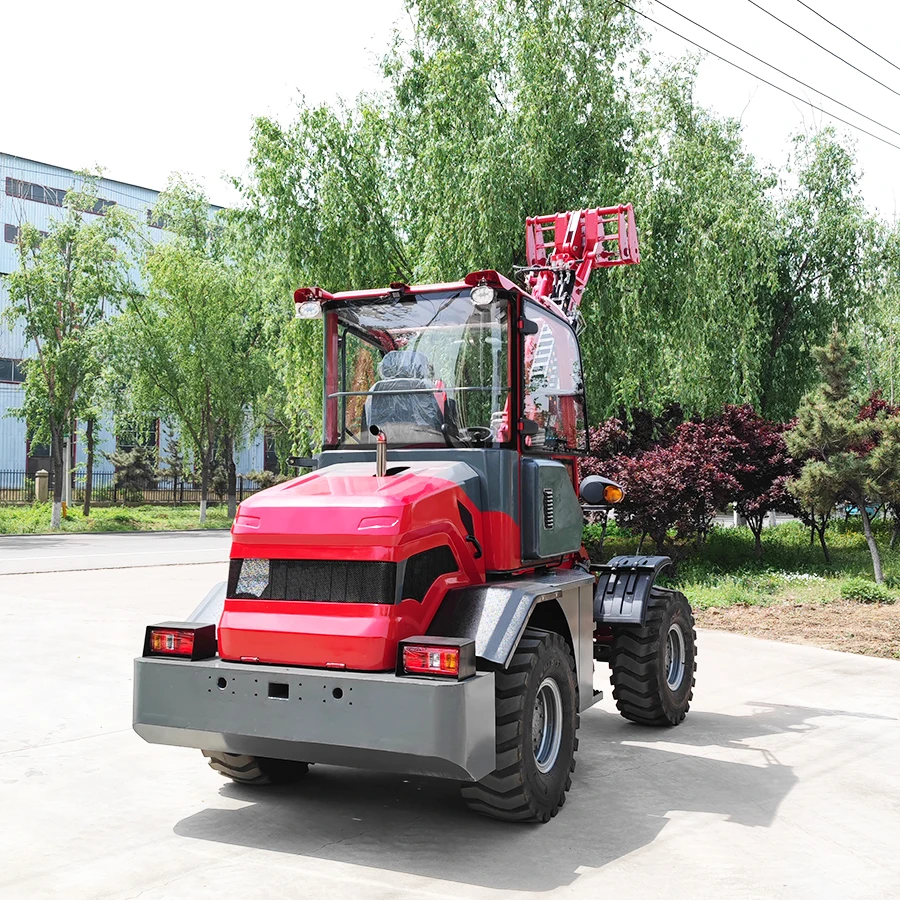

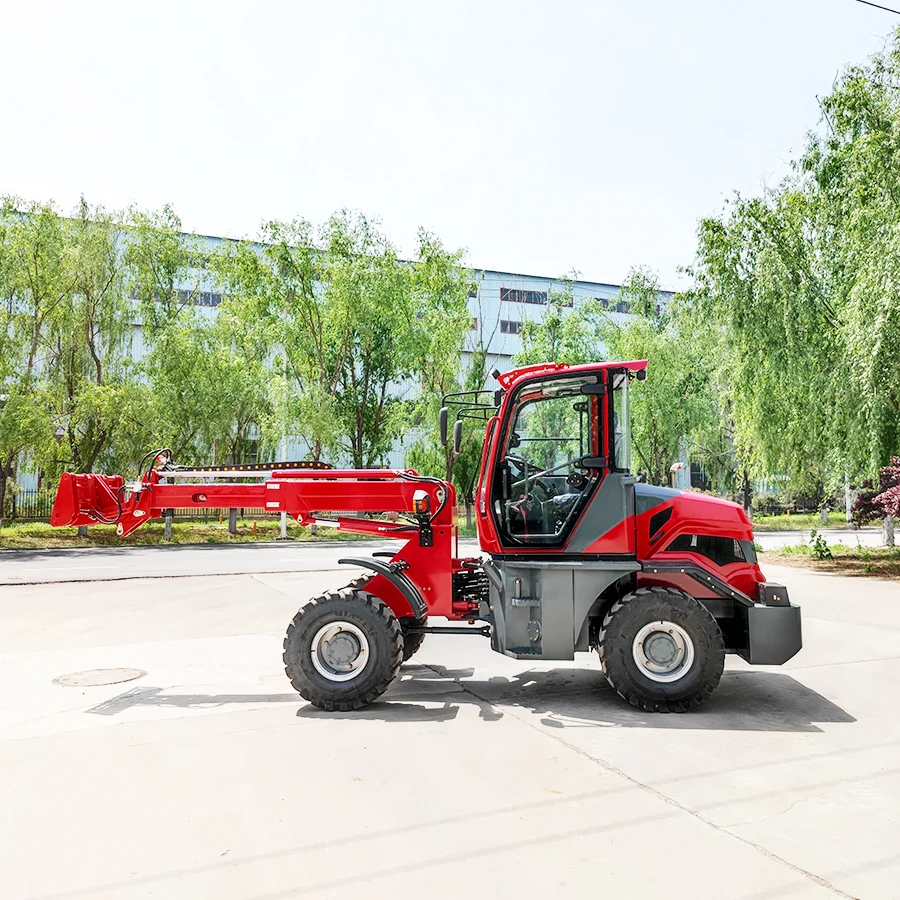

Taian Brand Telescopic Wheel Loader Articulated Mini Front End Wheel Loader TL1500

Product Overview

Description

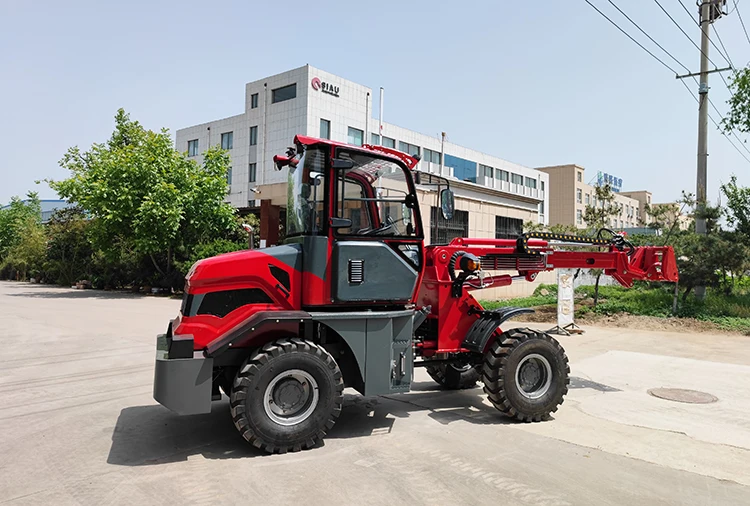

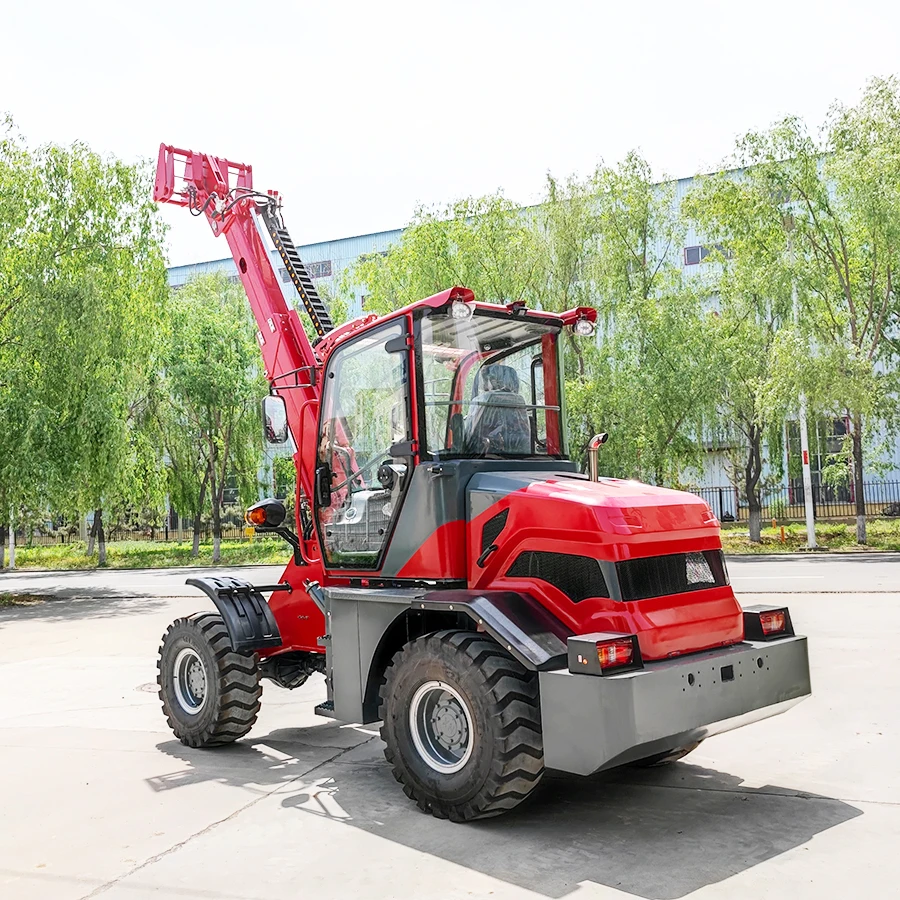

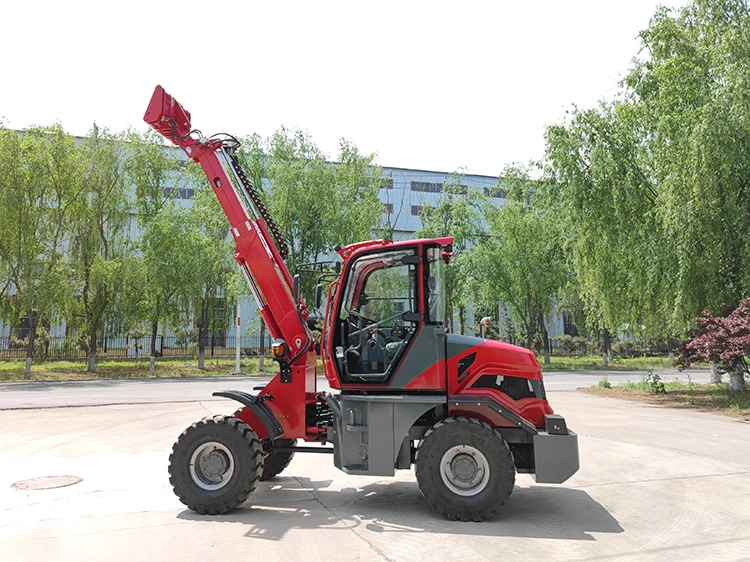

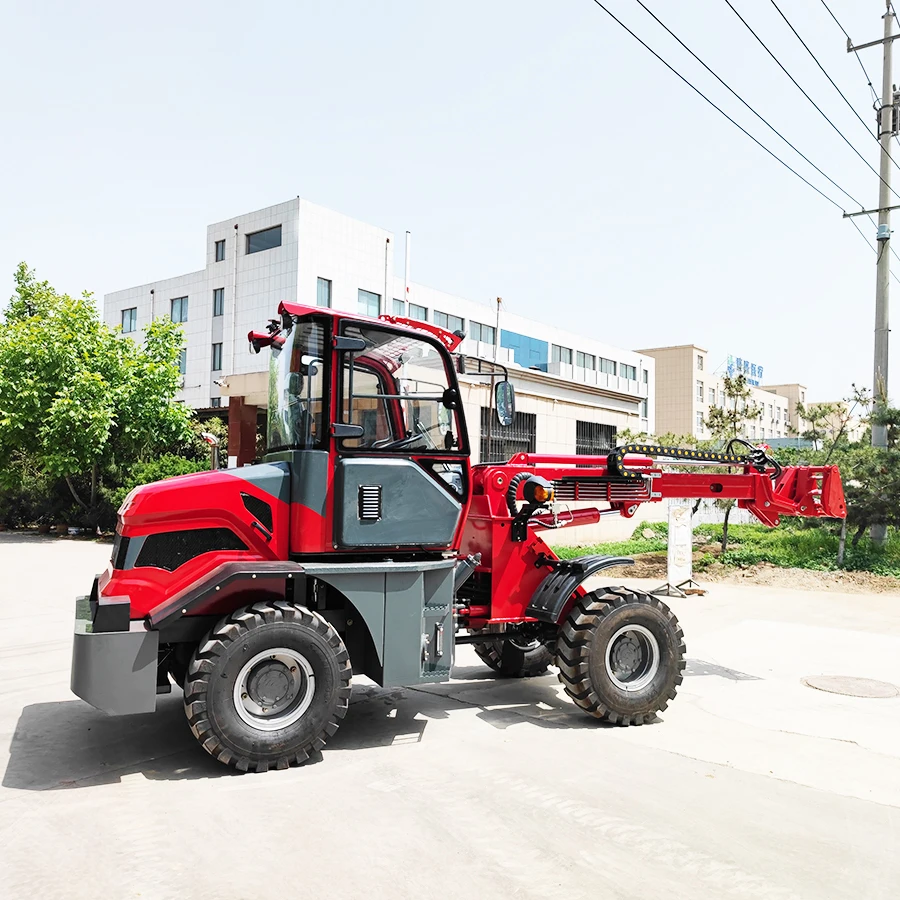

 Taian Brand Telescopic Wheel Loader Articulated Mini Front End Wheel Loader TL1500





Overall Dimensions		4390mm*1870mm*2720mm
Brake System	Service Brake	Four Wheel Disk Brake
	Parking Brake	Hand Operate
	Braking Type	Air Braking
	Axle	With hub reducer
Tire Model		20.5-16, 12ply
Max. Lifting Height		4500mm
Rated Load		1500kgs -1800kgs
Max. Speed		17km/h
Transmission System		Hydraulic Converter+Drive Shaft+Axles
Wheel base		2400mm
Min Turning Radius		4950mm
Track		1345mm
Weight		4360kg
System Pressure		20Mpa
Working Hydraulic Oil Flow		104L/min
Walking Hydraulic Oil Flow		48L/min
Max. Height to the Pin		4200mm

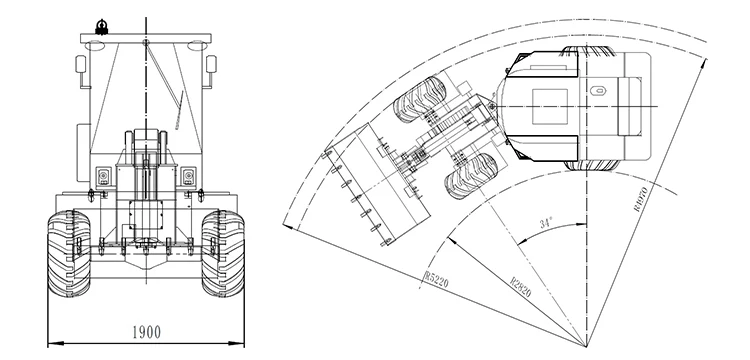

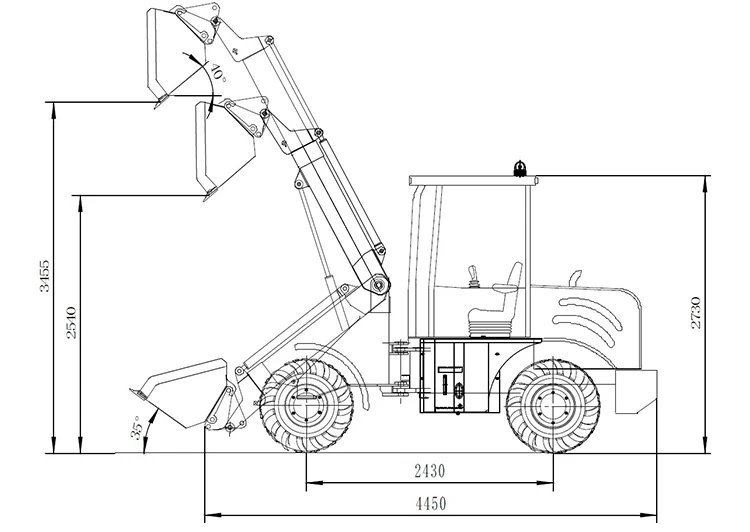

TL1500 Wheel Loader Dimensions:



 TL1500 Wheel Loader Advantage:

1.The telescopic boom which can reach 4.5m greatly increase its working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability
3.The seals, valve & joystick are famous oversea products which guarantee that it's a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Quick coupling system, joystick and buttons makes the operating easy and convenient

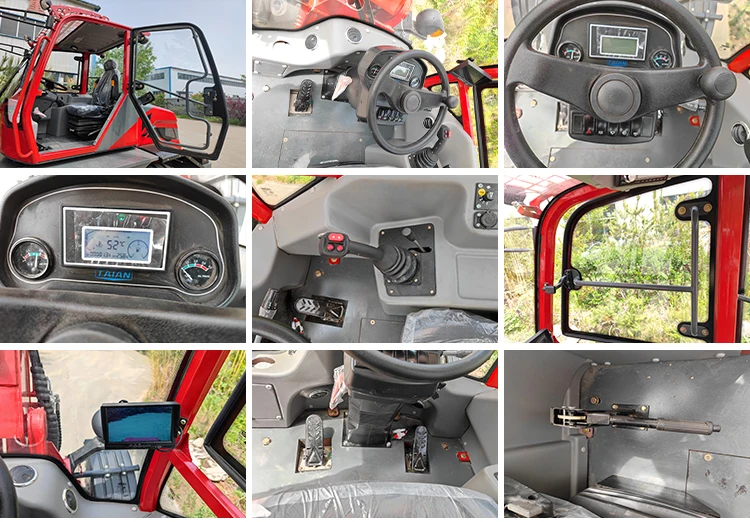

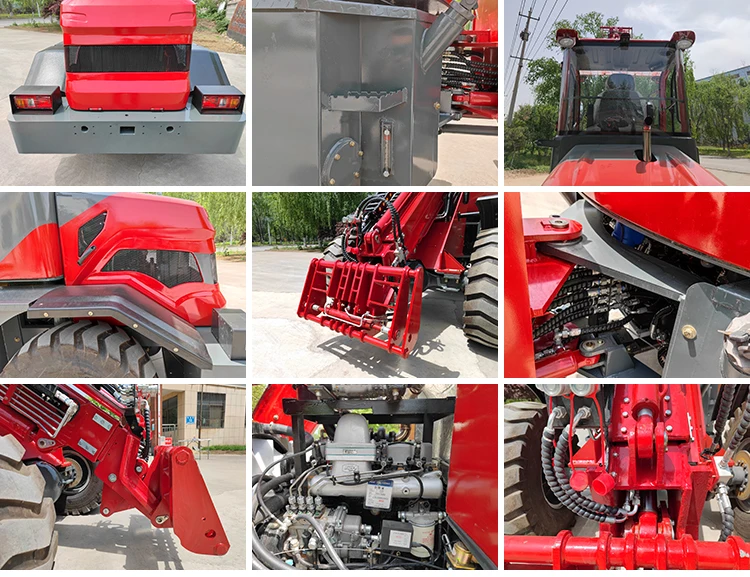

TL1500 Wheel Loader Detail:

Our Services:

♦ Professtional and detailed answer to any of customer's questions.

♦  Strict QC and in time delivery.

♦  Offer all relative material for customer to know and better use the machine.

♦  Periodically after service follow up, offer any necessary support if needed.

♦  For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

♦  The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

♦  The repairation or replacement for the parts should not exceed the warranty period.

♦  The warranty is valid on the condition of all the terms listed in the contract was observed.





1.Payment: 30% T/T in advance, 70% T/T against the copy of B/L, or L/C at sight.

2.Delivery time: Within 30 days after receiving the deposit, or the original L/C.

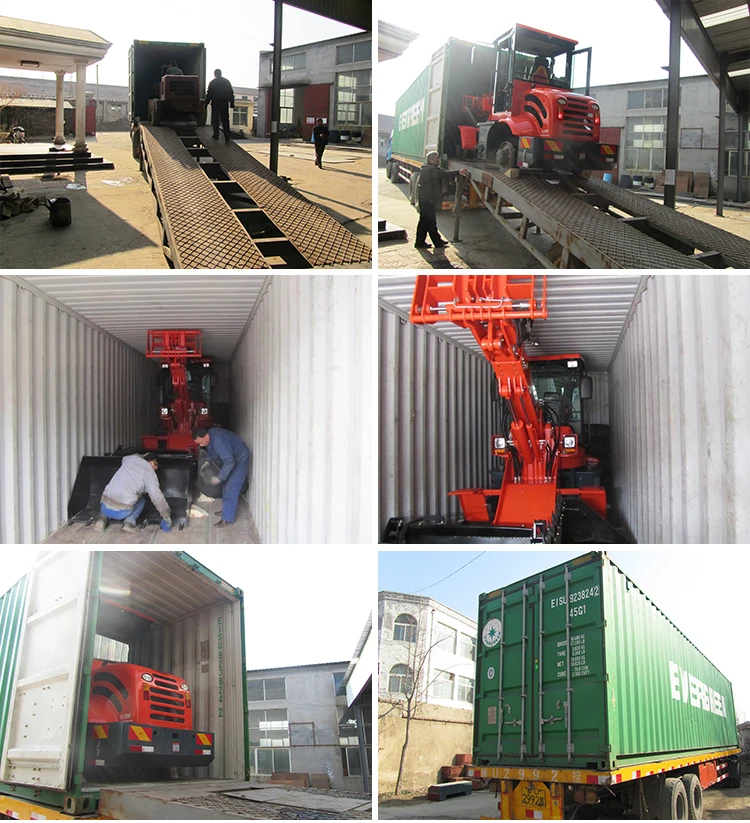

3.Packing: 1 set/20’GP; 3 sets/40’HQ.













Our Partners:



Participate In The Exhibition:





Q: Why choose us?
A: We are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed.
    We has advanced production technology and management team, and we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment cheaper and security.

Q: What’s the warranty of the products?
A: For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
