Double Wire Fence / Twin Wire Fence Detail:

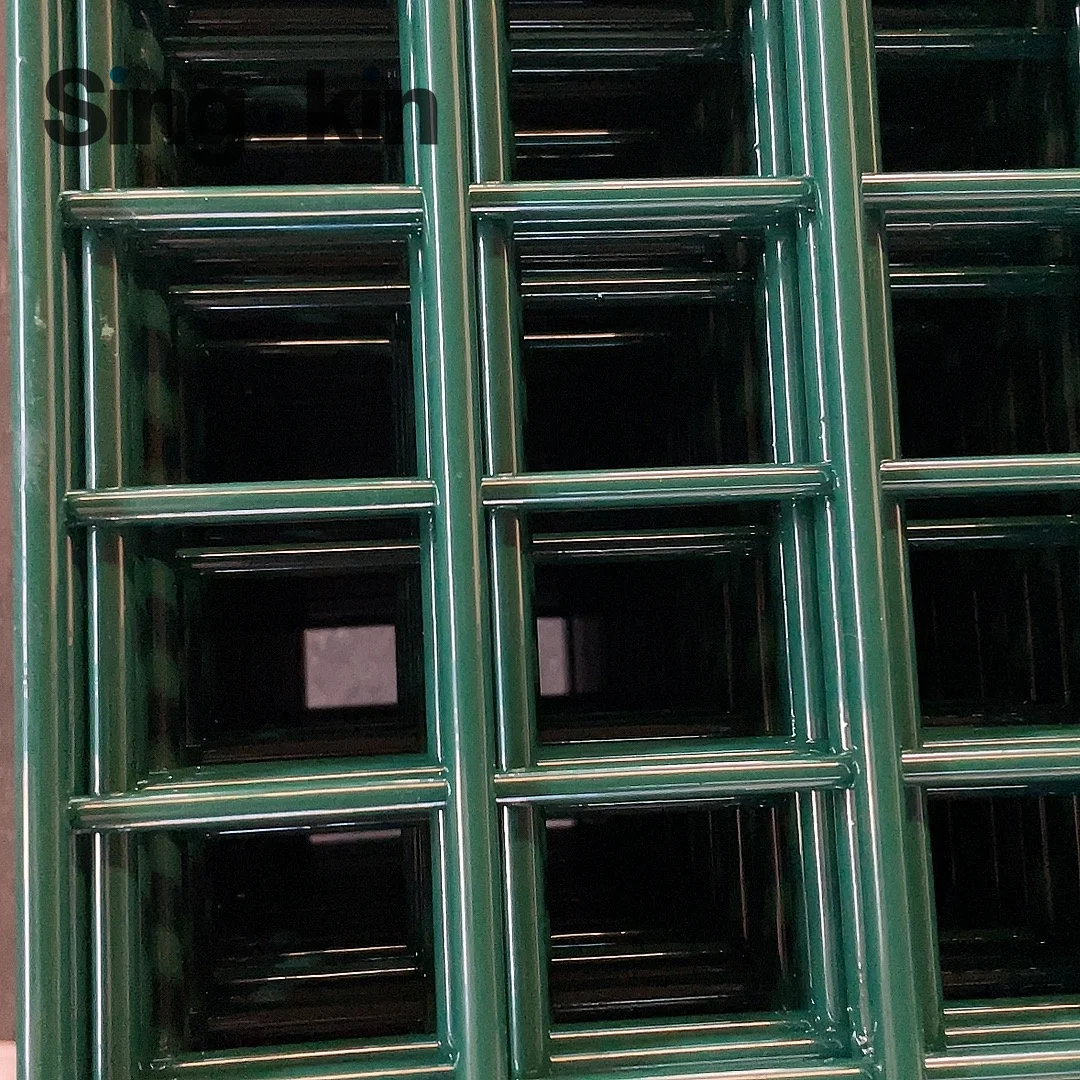

Double wire fence, also known as twin wire fence, is a kind of specially designed welded wire fence with double horizontal wires welded to single vertical wire. Its unique structure makes it stronger and more durable than single wire fence.

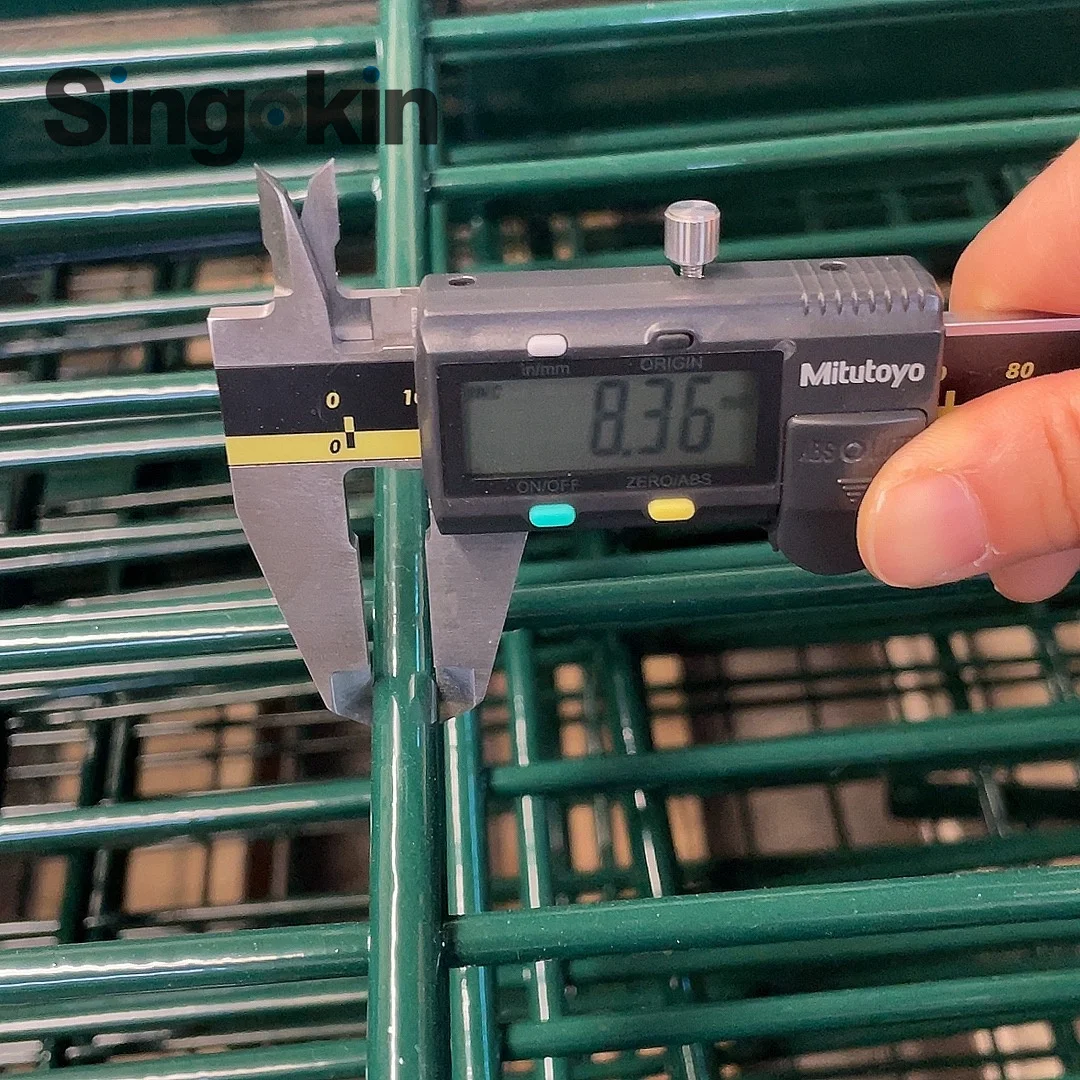

Our double wire fence is made of high quality carbon steel wires with a diameter of 4/3/4 mm, 4/4/4 mm,5/4/5 mm, 6/5/6 mm or 8/6/8 mm. Typically, our double wire fence cannot come with folds because of its vertical wire is too strong for bending.
Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life.
Our double wire fence is made of high quality carbon steel wires with a diameter of 4/3/4 mm, 4/4/4 mm,5/4/5 mm, 6/5/6 mm or 8/6/8 mm. Typically, our double wire fence cannot come with folds because of its vertical wire is too strong for bending.
Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life.

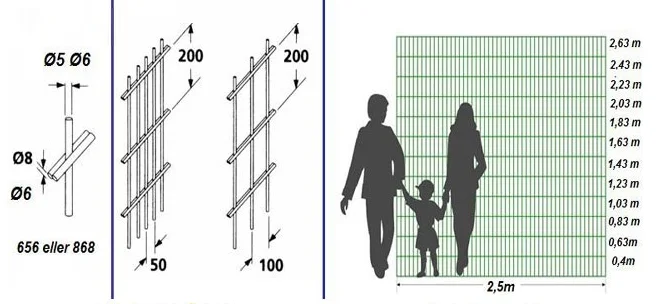

Specification
Double Wire Fence / Twin Wire Fence | ||
A. Height | 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm | |
B. Width | 2000 mm, 2500 mm, 3000 mm | |

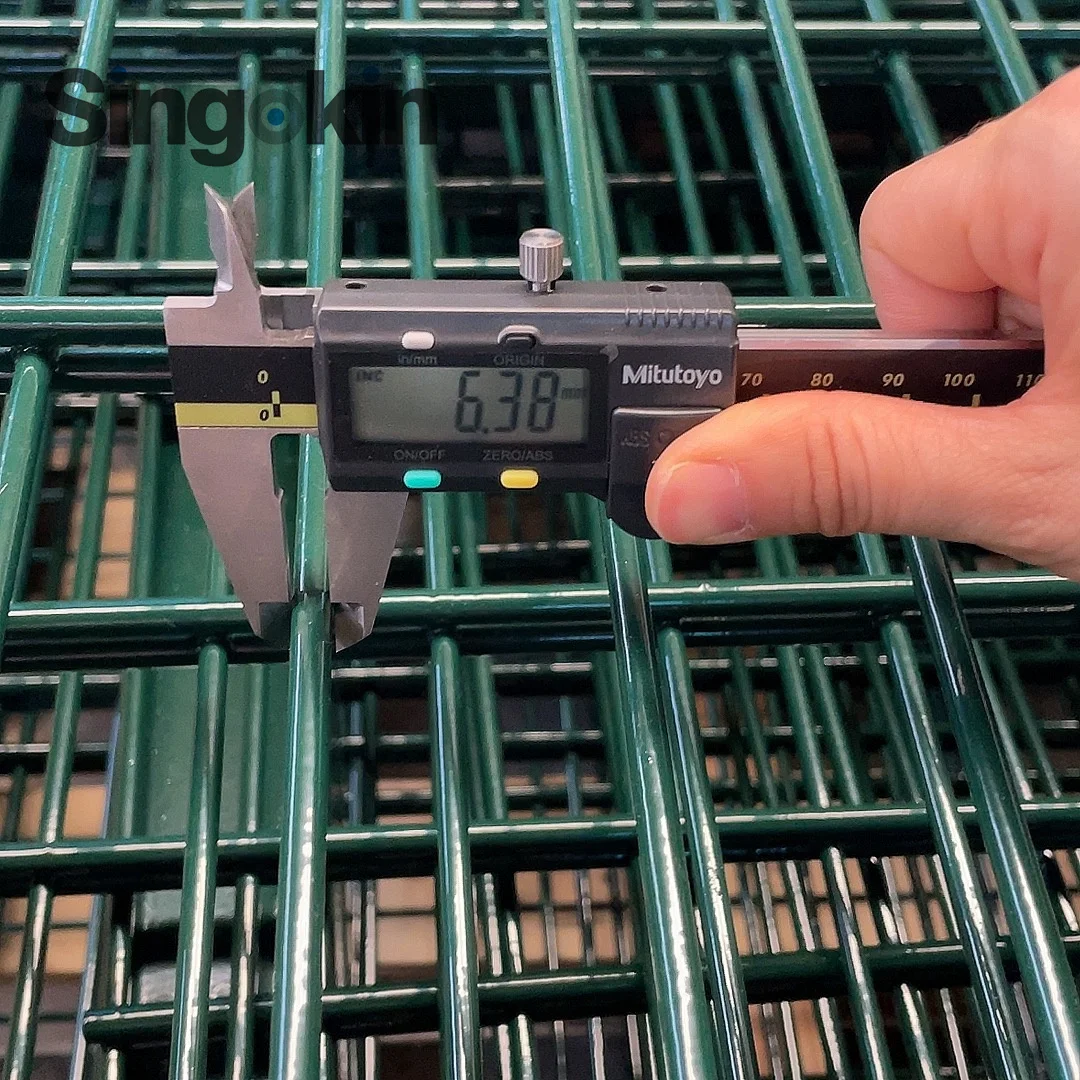

C. Wire Dia. | 4/3/4 mm, 4/4/4 mm, 5/4/5 mm, 6/5/6 mm, 8/6/8 mm | |
D. Hole size | 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm | |
E. Clamp | metal clamp, flat bar. | |
F. Post | * Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); * Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm); * Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm) | |
G. Post cap | metal cap / anti-UV plastic cap | |
Double Wire Fence / Twin Wire Fence Top Edge:
According to the shape of its top edges, our double wire fence can be divided into two types as shown below.
Flat Top
Arch Top

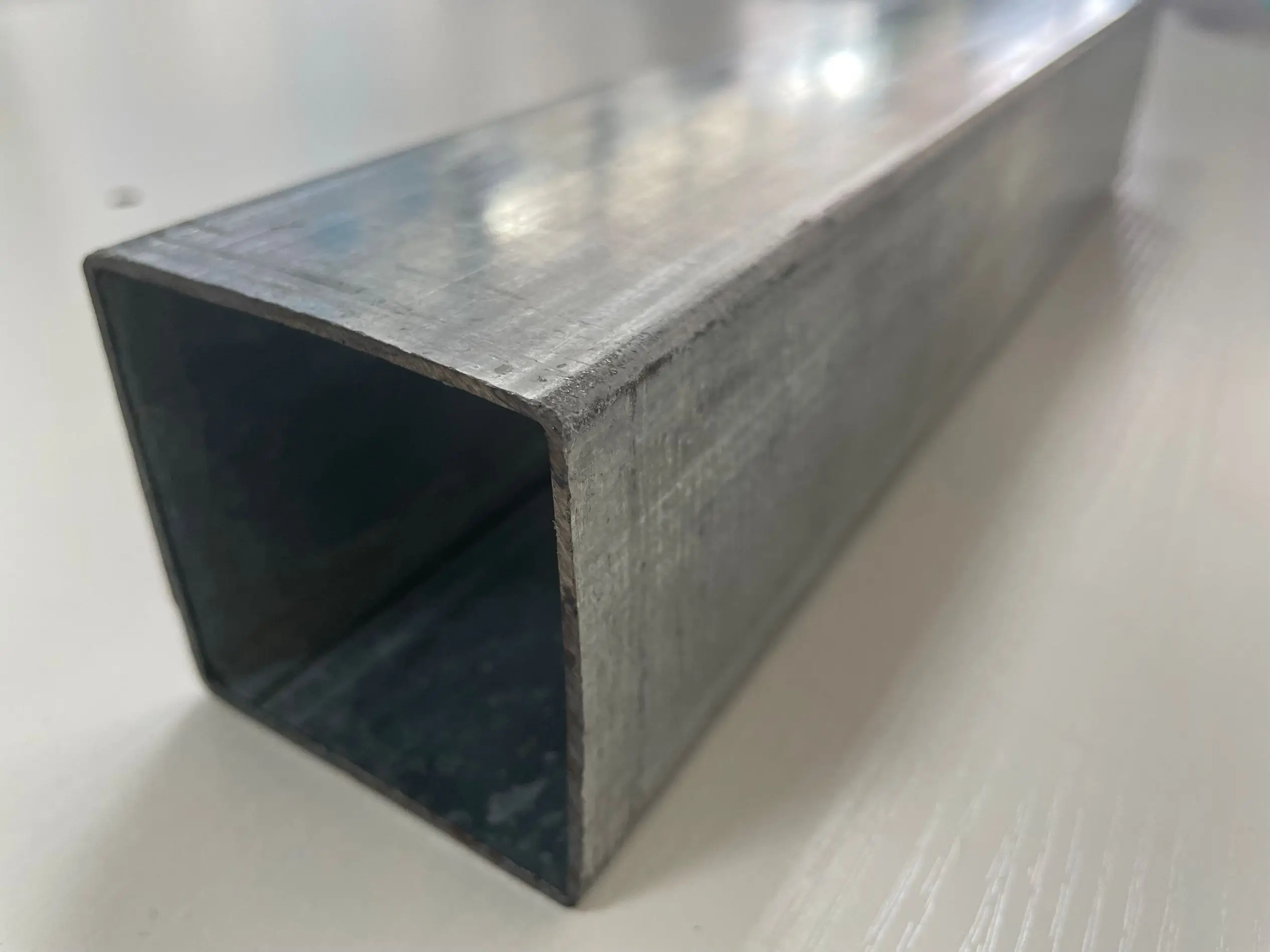

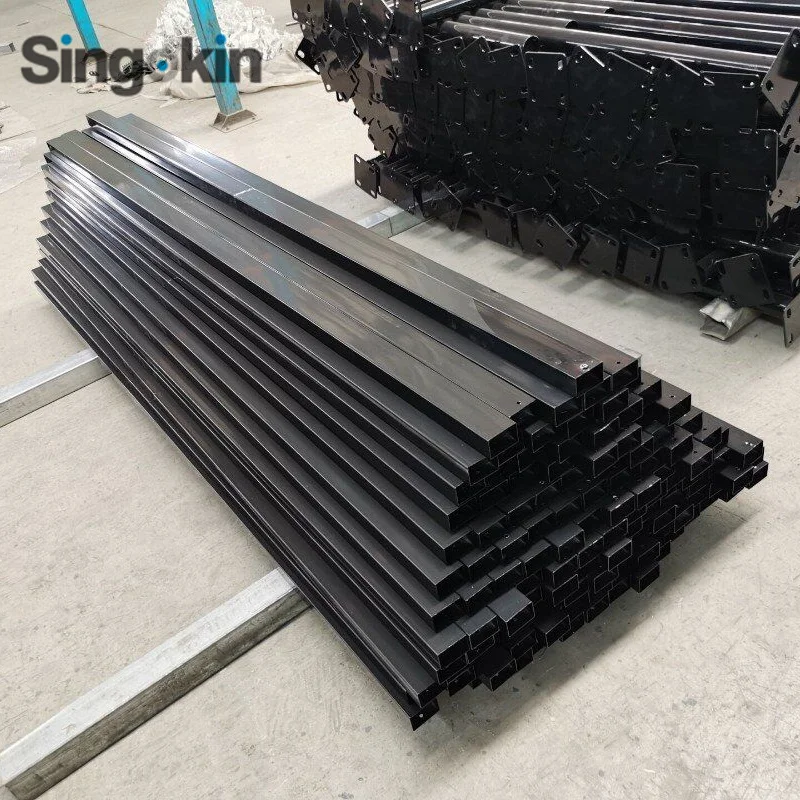

Double Wire Fence / Twin Wire Fence Post

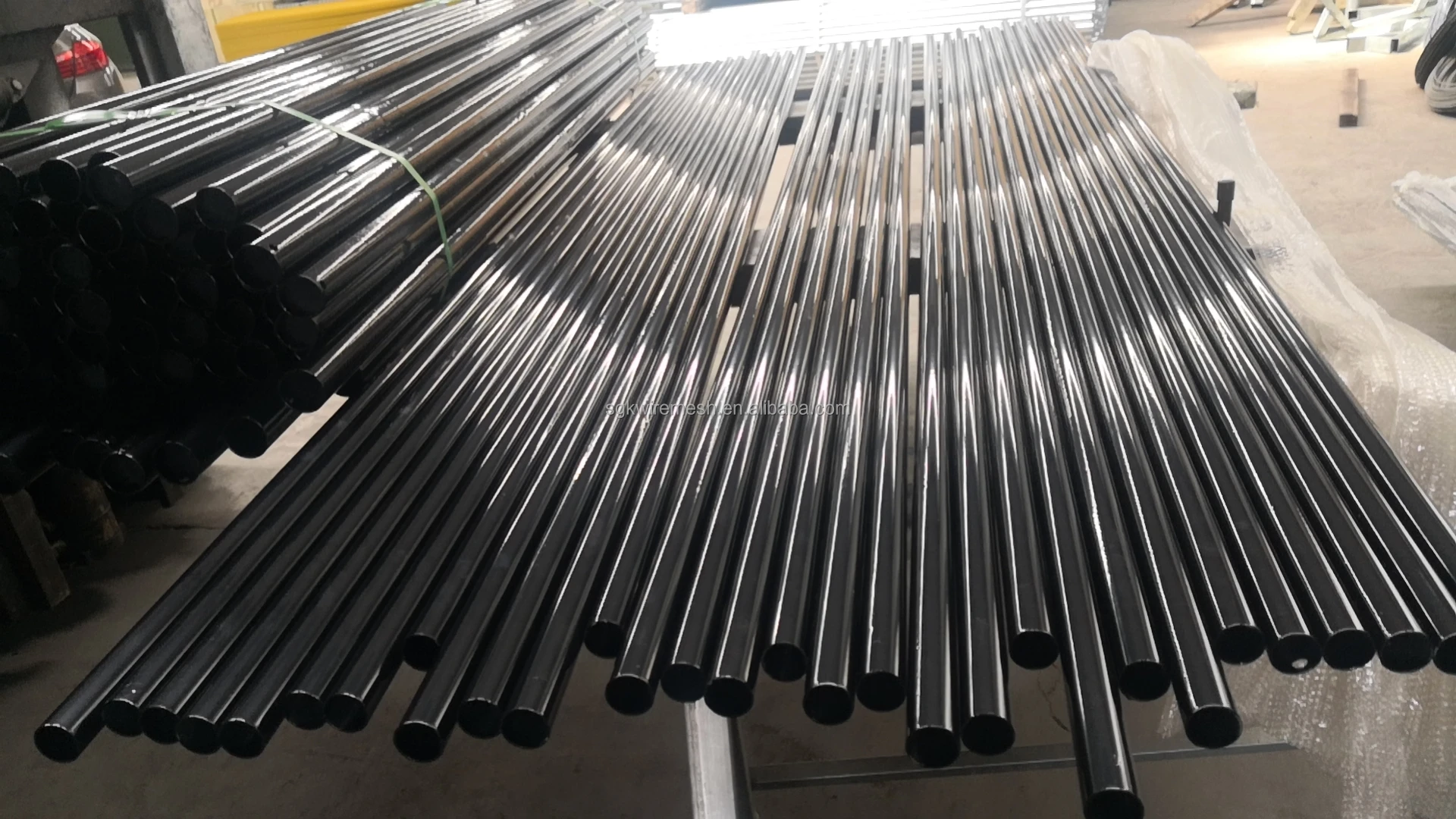

Generally Double Wire Fence post: round post, square post and rectangle post
Installation Instructions

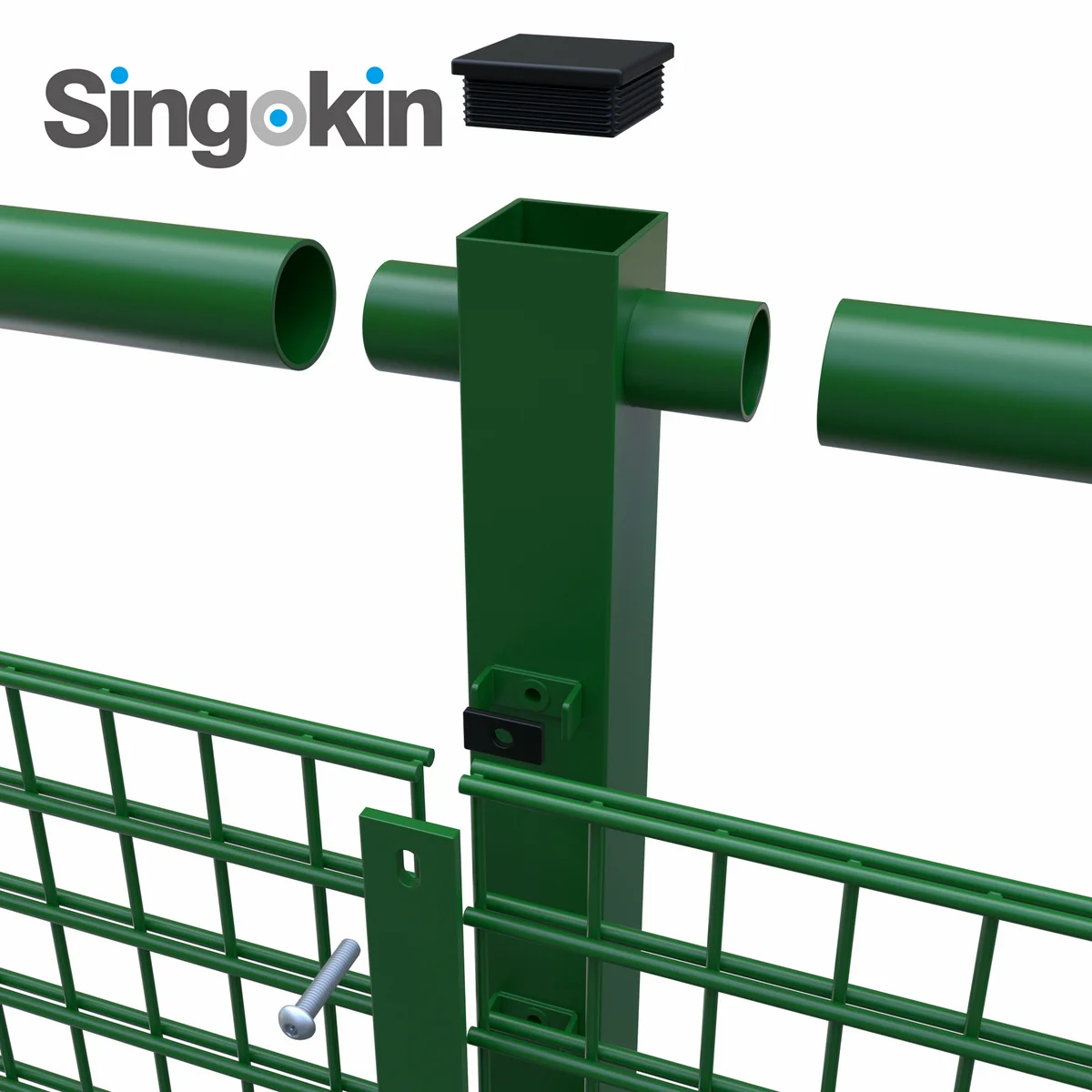

The main components and connection methods of our double wire fence are as shown below.

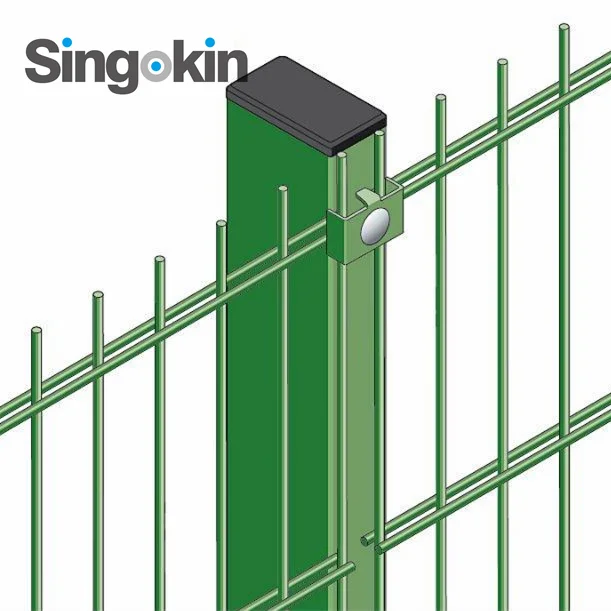

Spider Clips Connection
I Post Connection
Clamp bar Connection
Round Clamp Connection
U Bolt Connection

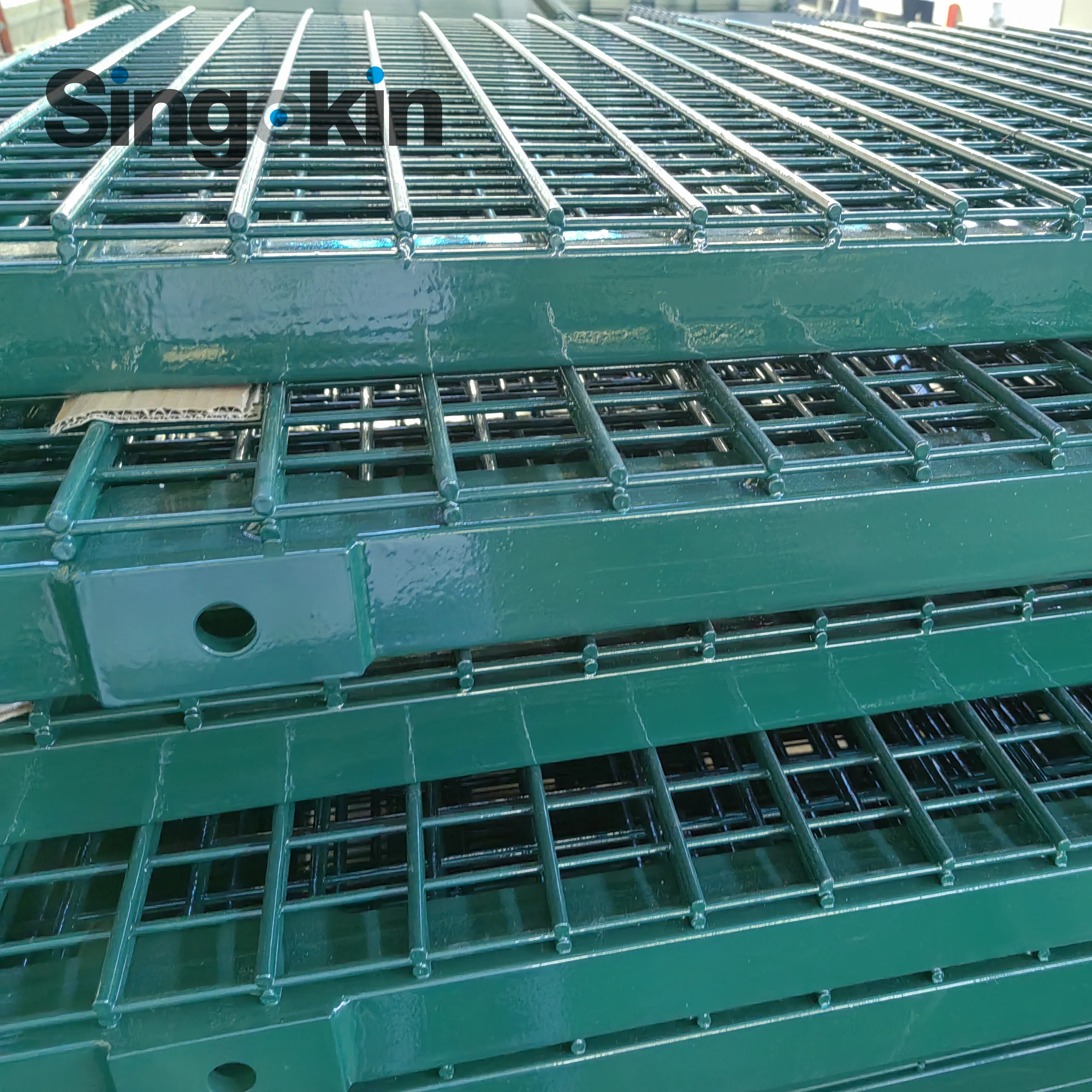

Double Wire Fence With Frame
Accessories

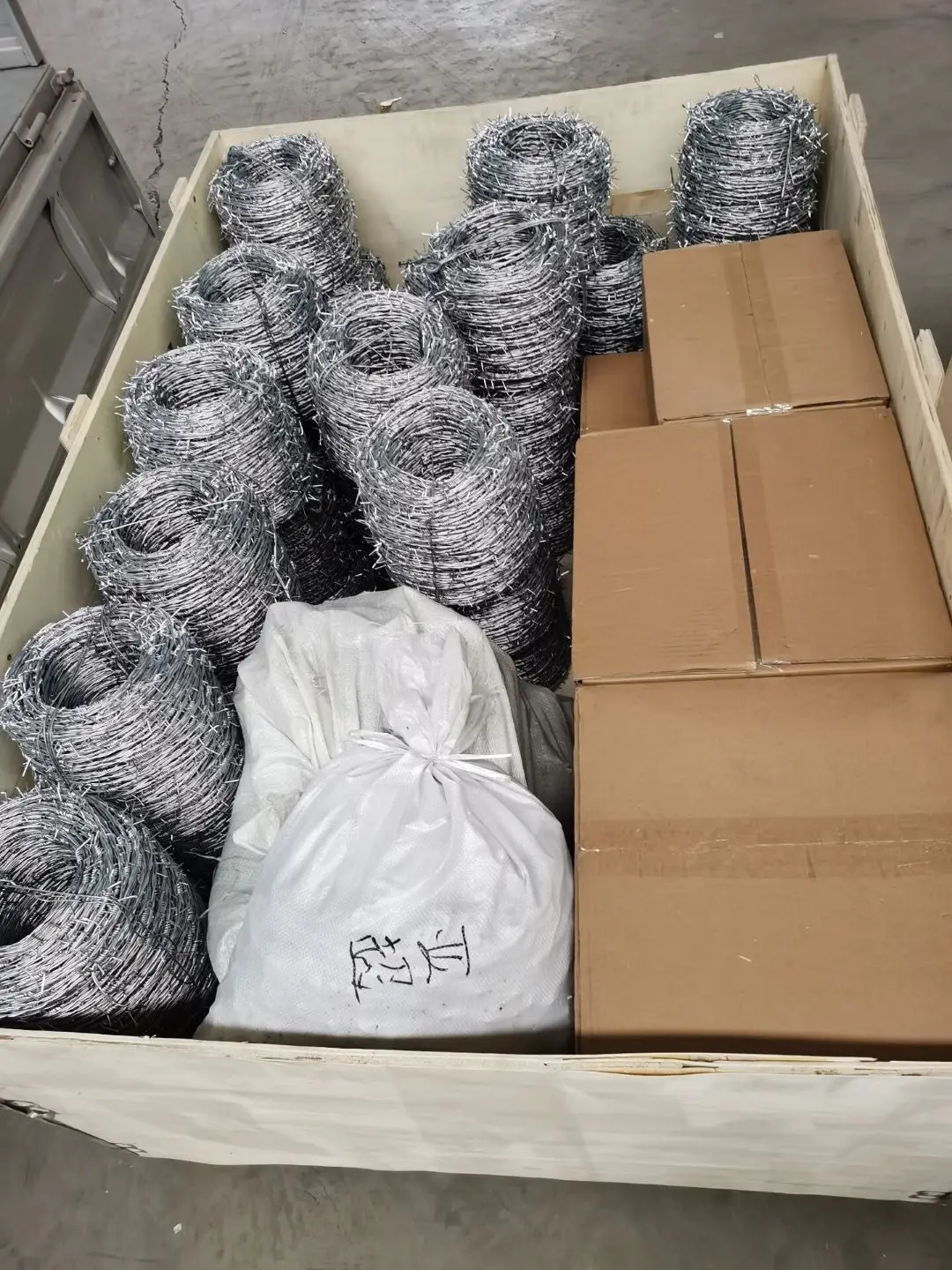

Barbed wire
Razor Barbed wire
Wall Spikes

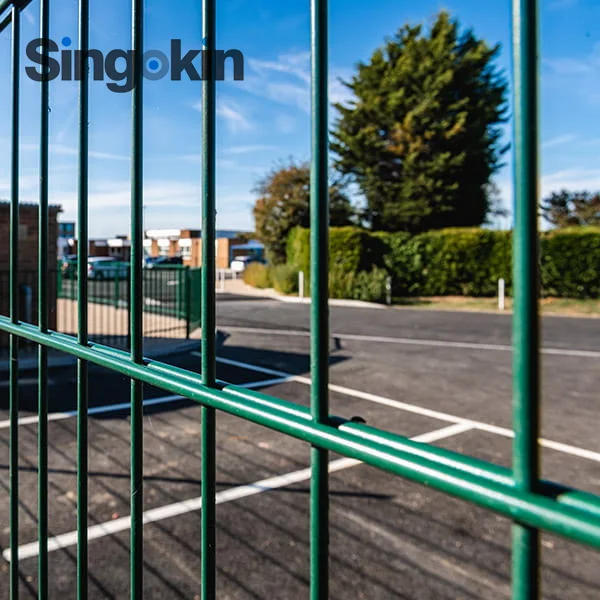

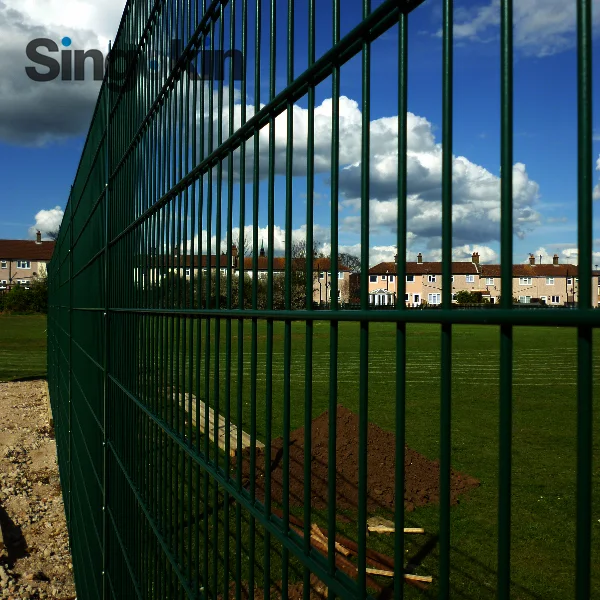

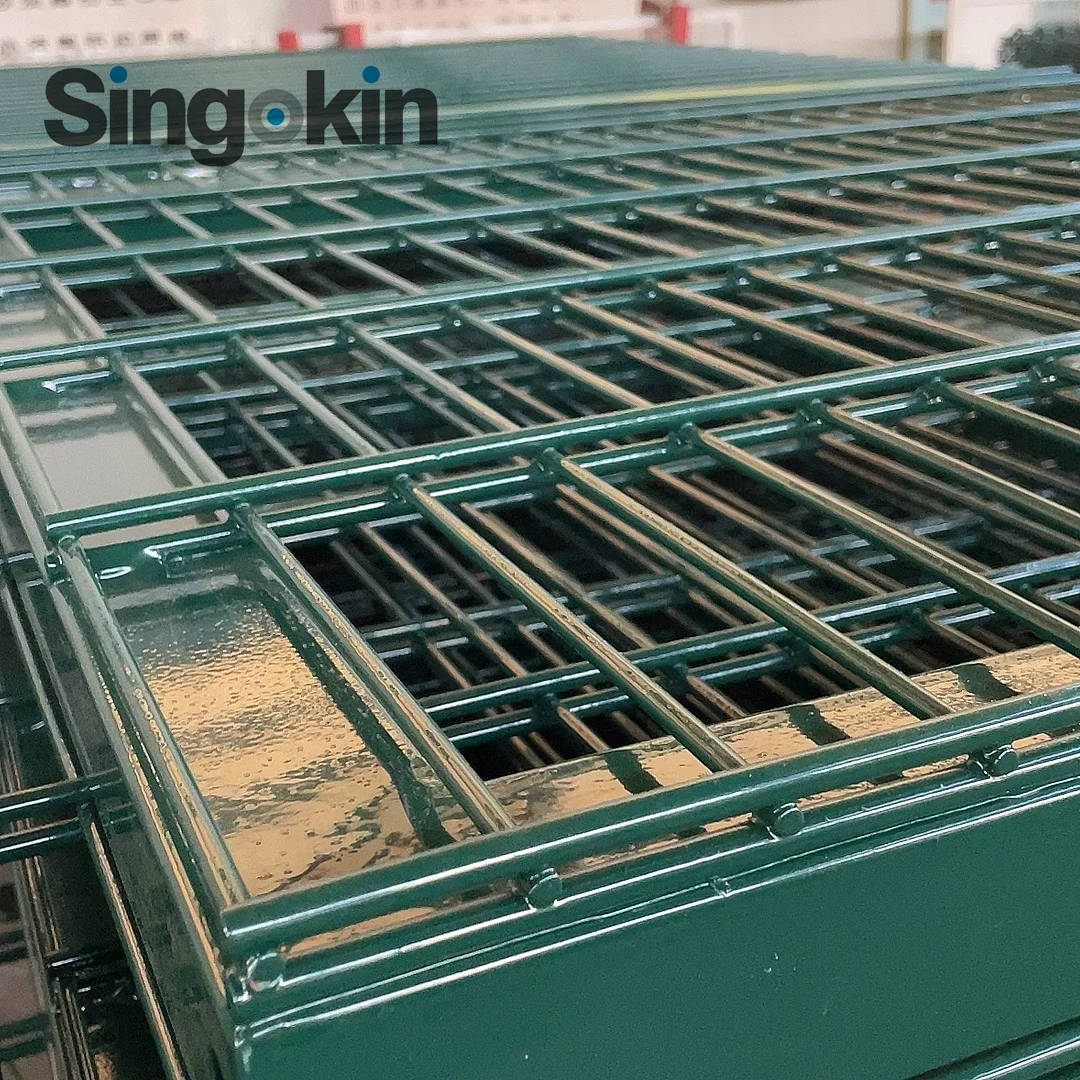

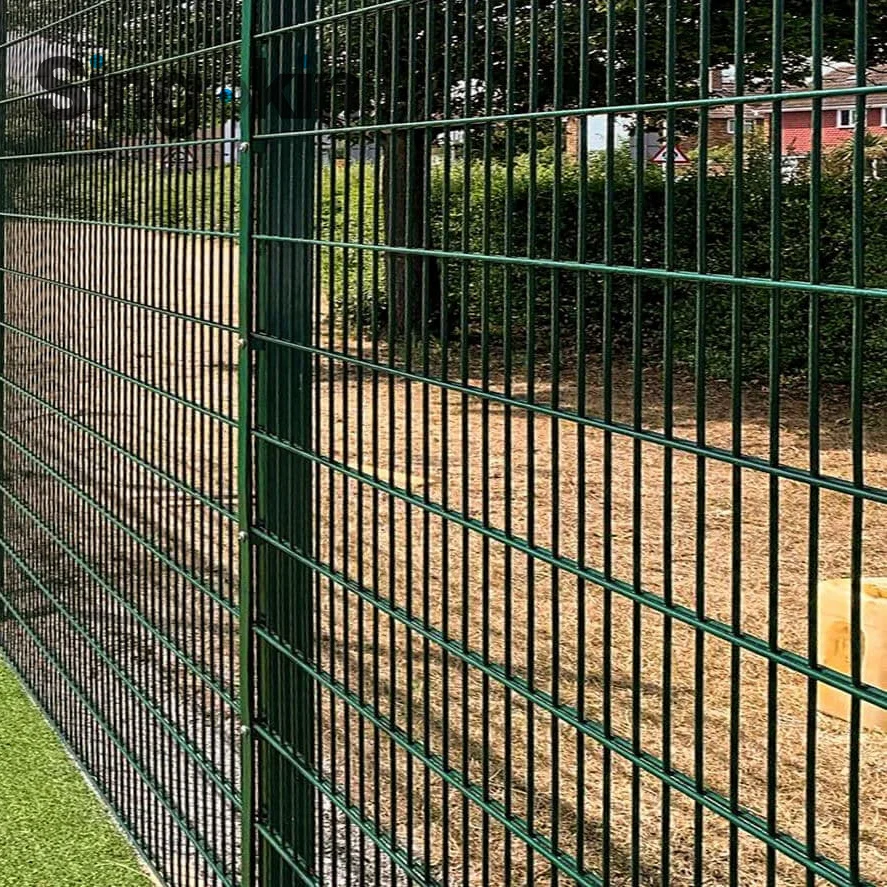

Products Show
Application

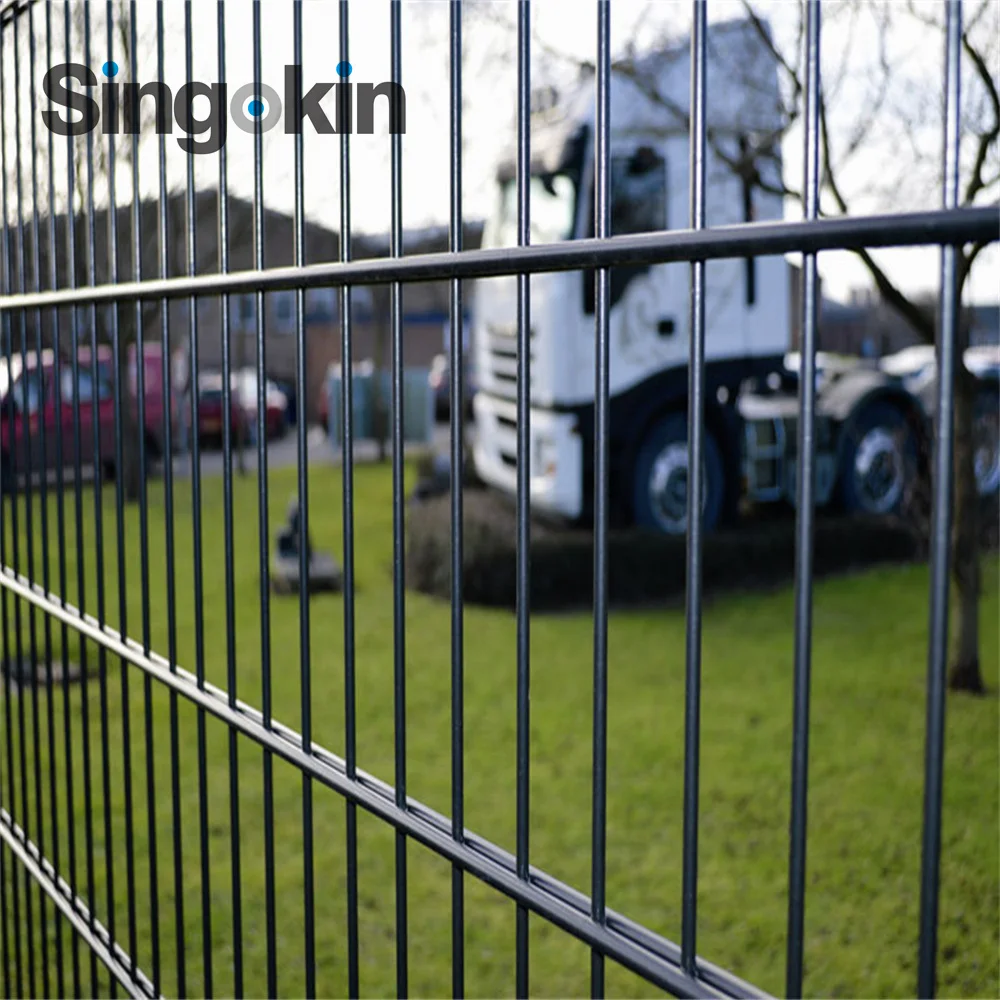

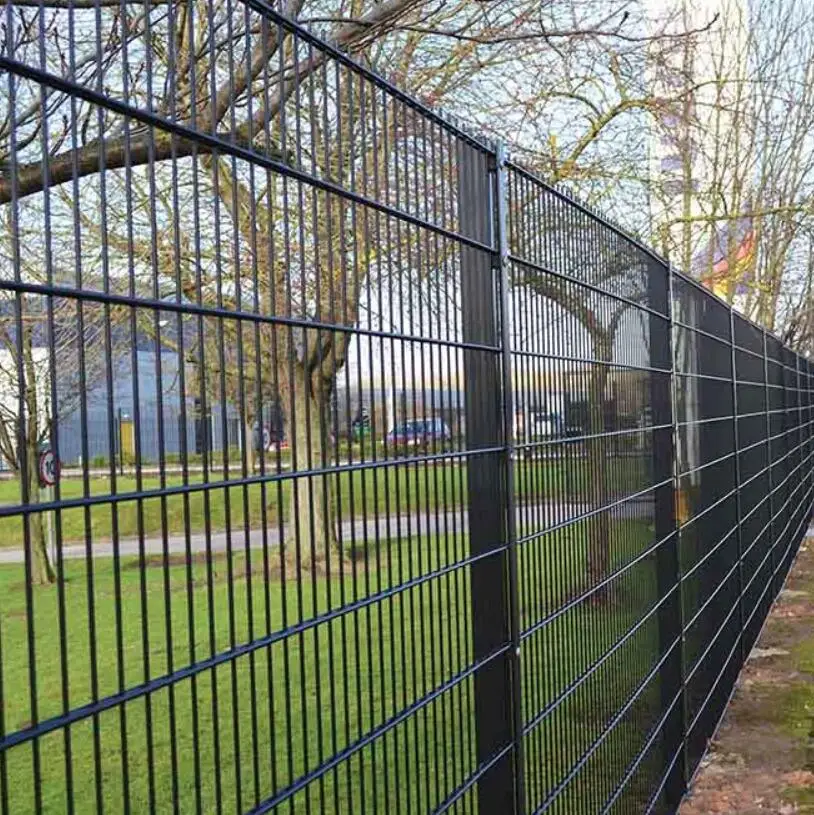

Double wire fence is very popular in European markets and is widely used in various residential, commercial and industrial applications, including but not limited to, playgrounds, schools,communities, gardens, parks, etc.
Packing & Delivery

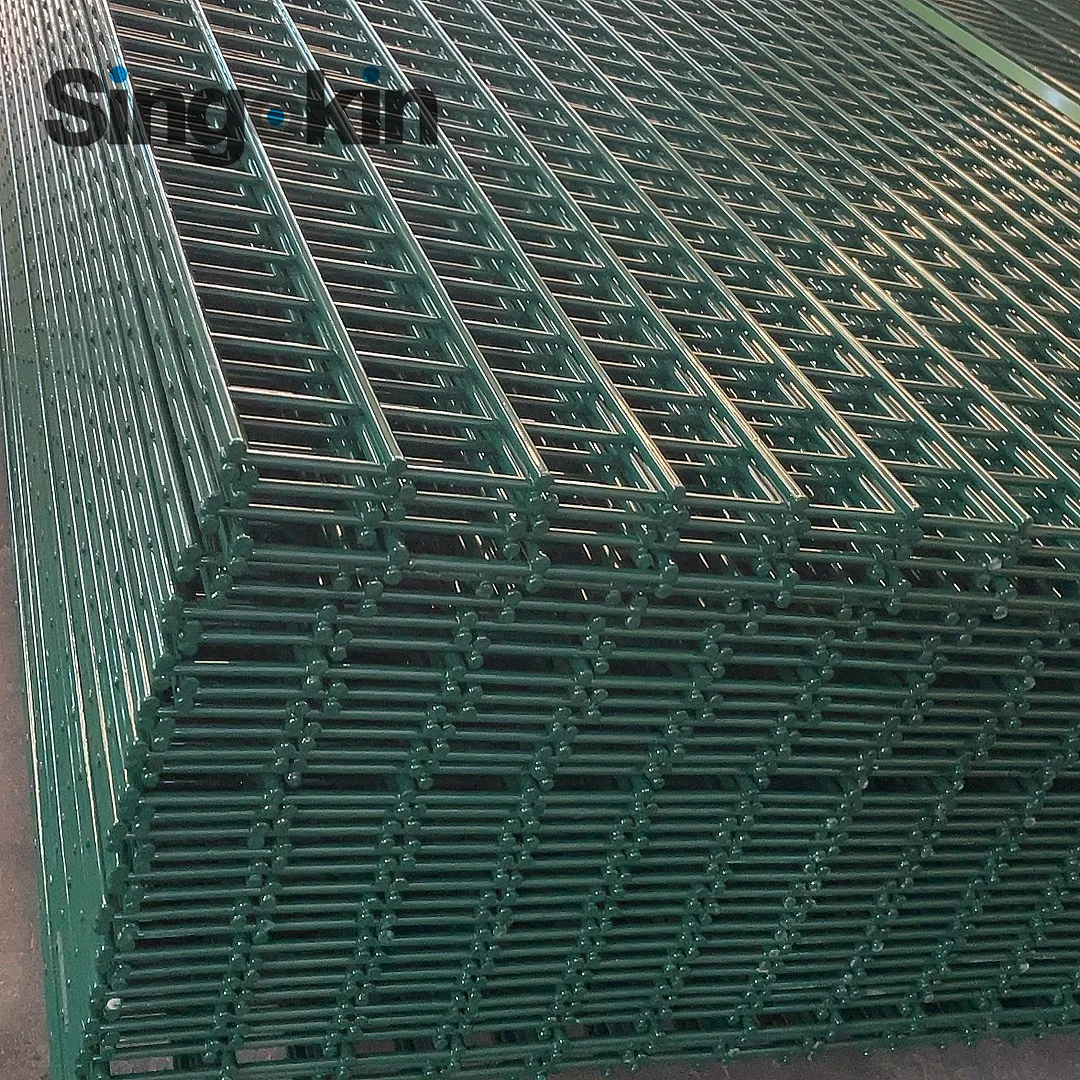

Double Wires Fence Package: by pallets, then in container.
