20 90l 150bar 250bar Oxygen Nitrogen Carbon Dioxide Bottle Tank Co2 Industrial Empty Argon Cylinder
- Category: >>>
- Supplier: Guangyuan Chuangji Fastening System Co. Ltd
Share on (1601153271504):
Product Overview
Description
Product Details

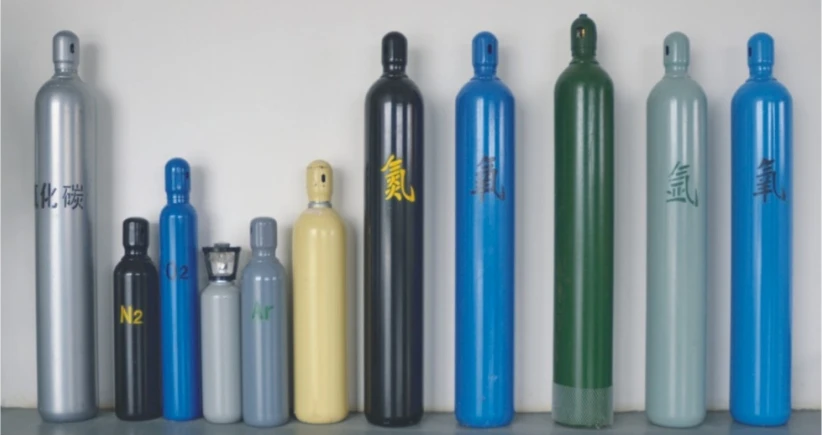

The cylinders can be filled with O2 or CO2 or H2 or Ar or He or N or CO or NO .Every clylinder has gone through water pressure testing . The water testing pressure of the cylinders is far bigger than working pressure, for example, when working pressure is 15 Mpa, the water testing pressure is up to 25 Mpa . All parameters( except the sheet --specification)such as package size ,price,etc.,are not the final ones as they need to be calculated the cost according to the real-time price. For example ,price is based on material ,but the material is always changing. We need to further negotiate about them in detail. On top of parameters above , body color ,words sprayed, valve type ,cap type , material type（37Mn , 34CrMo4 , CGA540B , CGA540D , QF-2C9 , CGA326 , ZF-15）, cap color, whether to do internal polishing and neck rings ,all can be customized. The higher cylinders have been being exported abroad such as Southeast Asian countries. Welcome to visit us. To see is to believe !
Seamless steel high pressure cylinder. Capacity 2.5 Liter to 52 Liter.
Cylinder standard: ISO9809, GB5099, DOT
Valve: CGA580,CGA540,CGA350,QF-2,QF-2C,QF-7D2 and etc.
Valve: CGA580,CGA540,CGA350,QF-2,QF-2C,QF-7D2 and etc.
Type | Material fshell | Nominal diameter mm | Nominal working pressure Mpa | Hydraulic test pressure Mpa | Design wall thickness mm | Nominal water capacity L | Mass Kg | Length ofshell (no valve) mm |
WMII219-20-15-A | 37Mn | 219 | 15 or 150bar | 22.5 or2 50bar | 5.0 | 20 | 26.2 | 718 |
WMII219-25-15-A | 25 | 31.8 | 873 | |||||
WMII219-32-15-A | 32 | 39.6 | 1090 | |||||
WMII219-36-15-A | 36 | 44.1 | 1214 | |||||
WMII219-38-15-A | 38 | 46.3 | 1276 | |||||
WMII219-40-15-A | 40 | 48.6 | 1338 |
Company Profile

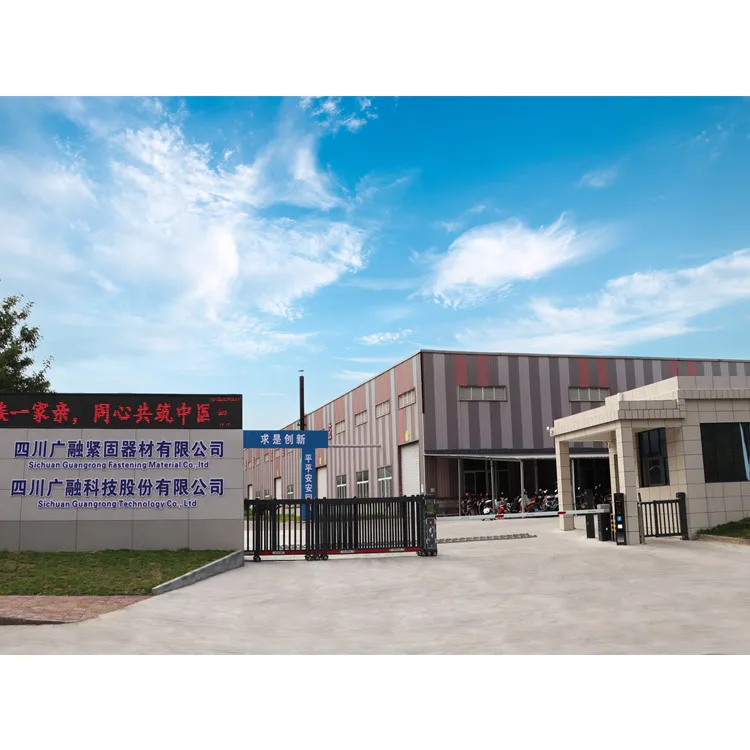

Sichuan Guangrong Technology Co., Ltd., affiliated to Sichuan Guangrong Group, was established in August 2011. It is a high-tech enterprise specializing in the design, manufacturing, sale, and service of pressure vessels. The company's annual production reach 450,000 pieces of indistrial cylinders.
The company are authorized with special license numbered TS2251255-2027.
The company are authorized with special license numbered TS2251255-2027.
Certifications
FAQ
Who are we?
A:In 2000, our headquarters was established in Sichuan, China, with two factories.In addition, we have a warehouse in Hebei. Our products have been exported to all over the world for a long time.
A:Before mass production, we will arrange quality inspection personnel to carry out strict sample inspection to ensure that the values of the samples are stable before being put into production. In the production process, we will arrange regular sampling inspection, on average every 30 minutes will be a complete product inspection;
A:In 2000, our headquarters was established in Sichuan, China, with two factories.In addition, we have a warehouse in Hebei. Our products have been exported to all over the world for a long time.
How do we guarantee quality?
A:Before mass production, we will arrange quality inspection personnel to carry out strict sample inspection to ensure that the values of the samples are stable before being put into production. In the production process, we will arrange regular sampling inspection, on average every 30 minutes will be a complete product inspection;
What can you buy from us?
A:Products including the Seamless Cylinder, Nail Gun, Drive Pins, Nail Gun Cartridge, and Integrated Nails.
A:Products including the Seamless Cylinder, Nail Gun, Drive Pins, Nail Gun Cartridge, and Integrated Nails.
Why to choose us?
A:Certified manufacturers with over 20 years of experience, highly stable production capabilities, and high-quality services.
What services can we provide?
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD
Accepted Payment Types: T/T, D/P, D/A
Languages Spoken: English, Chinese
A:Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD
Accepted Payment Types: T/T, D/P, D/A
Languages Spoken: English, Chinese
