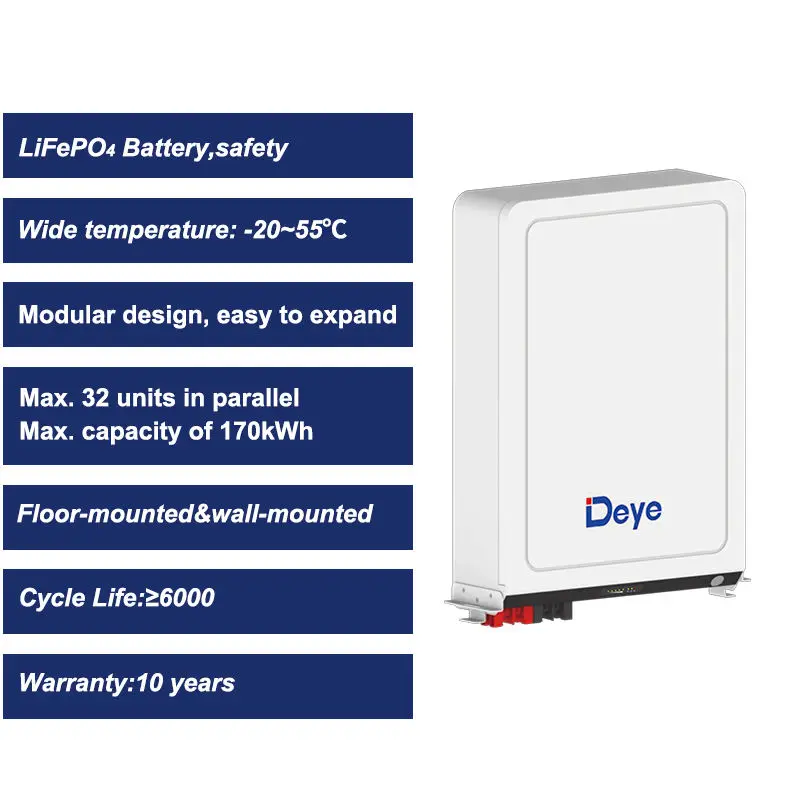

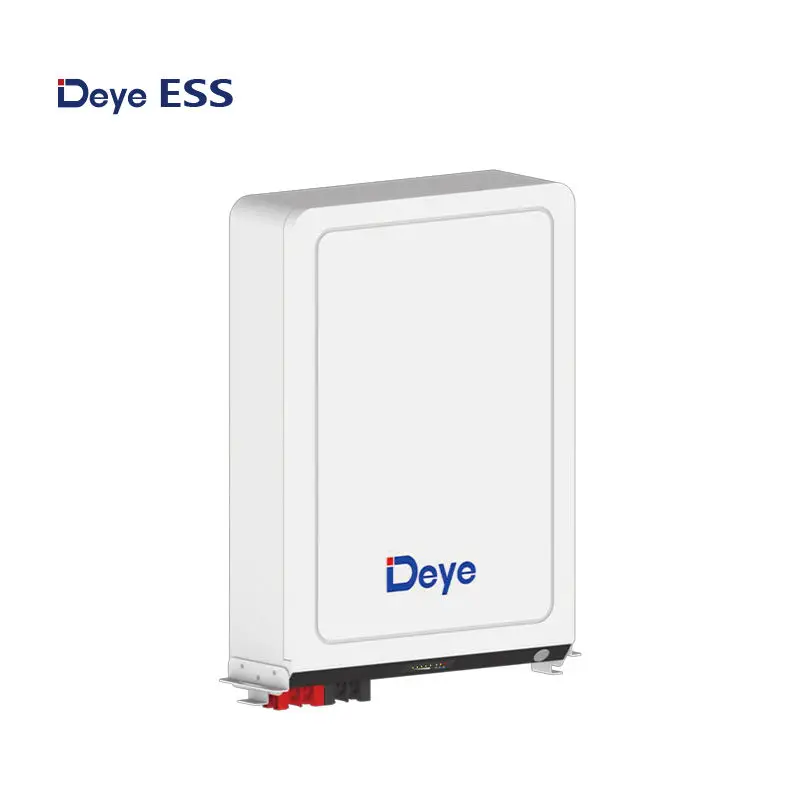

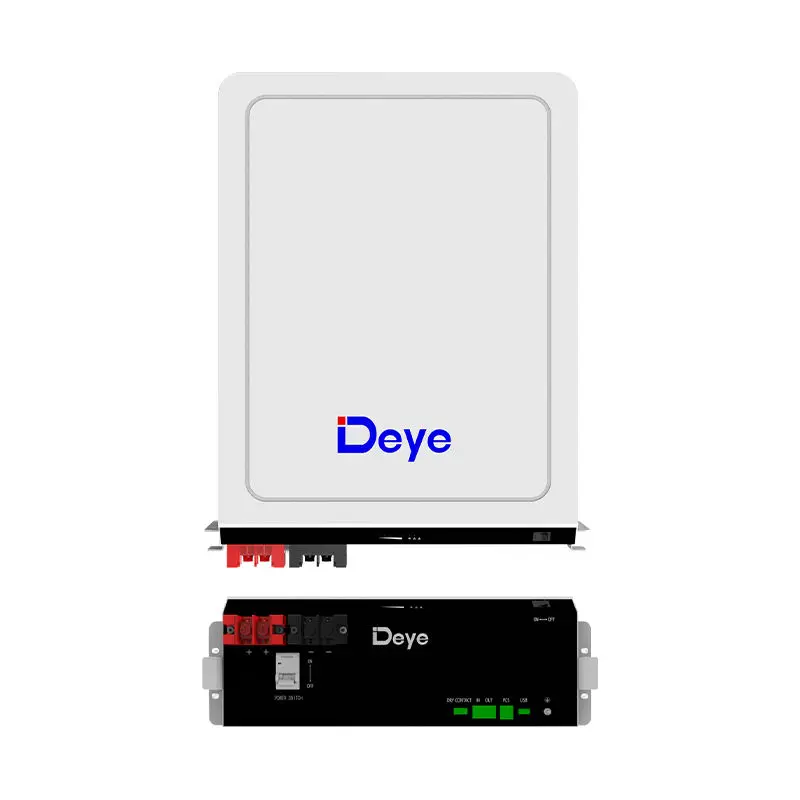

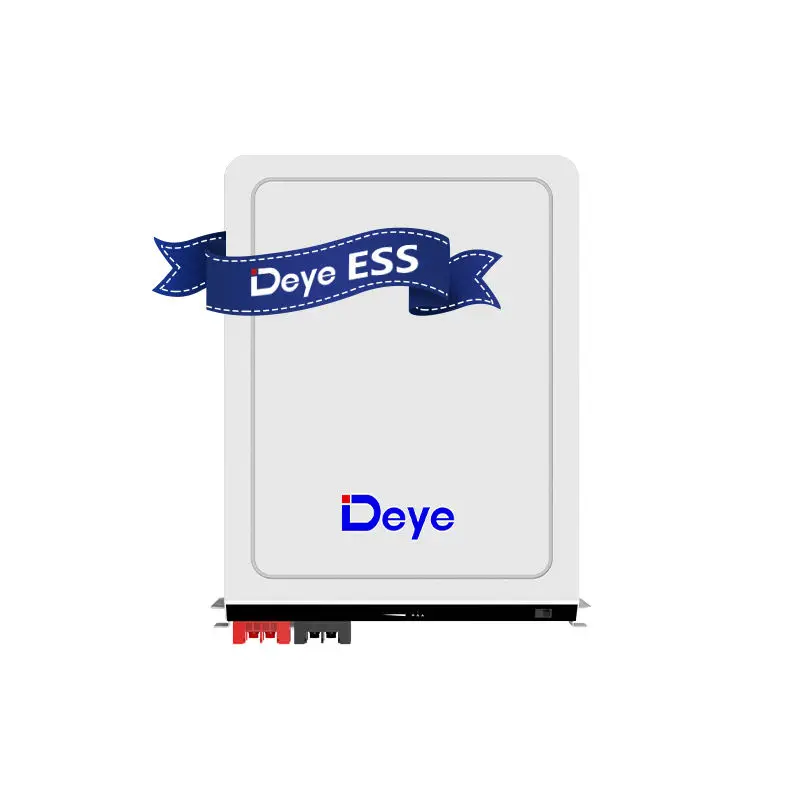

Factory price Deye ESS RW M5.3 Pro Safe Wall Mounted Solar LiFePO4 LFP 51.2V 104Ah Home Solar Energy Storage Battery
- Category: >>>
- Supplier: Reza Energy Technology (wuxi) Co. Ltd.
Share on (1601153272265):
Product Overview
Description
Specification
Model | RW-M5.3 Pro | |||
Main Parameter | ||||
Battery Chemistry | LiFePO4 | |||
Built-in Circuit Breaker | 125A 1P, 125Vdc | |||
Capacity (Ah) | 104 | |||
Scalability | Max.32 pcs in Parallel(170kWh) | |||
Nominal Voltage (V) | 51.2 | |||
Operating Voltage(V) | 43.2 ~ 57.6 | |||
Nominal Energy (kWh) | 5.32 | |||
Usable Energy (kWh) | 4.79 | |||
Charge/Discharge Current (A) | Recommend | 50 | ||
Max. | 100 | |||
Peak | 150 (2mins,25℃) | |||
Other Parameter | ||||
Recommend Depth of Discharge | 90% | |||

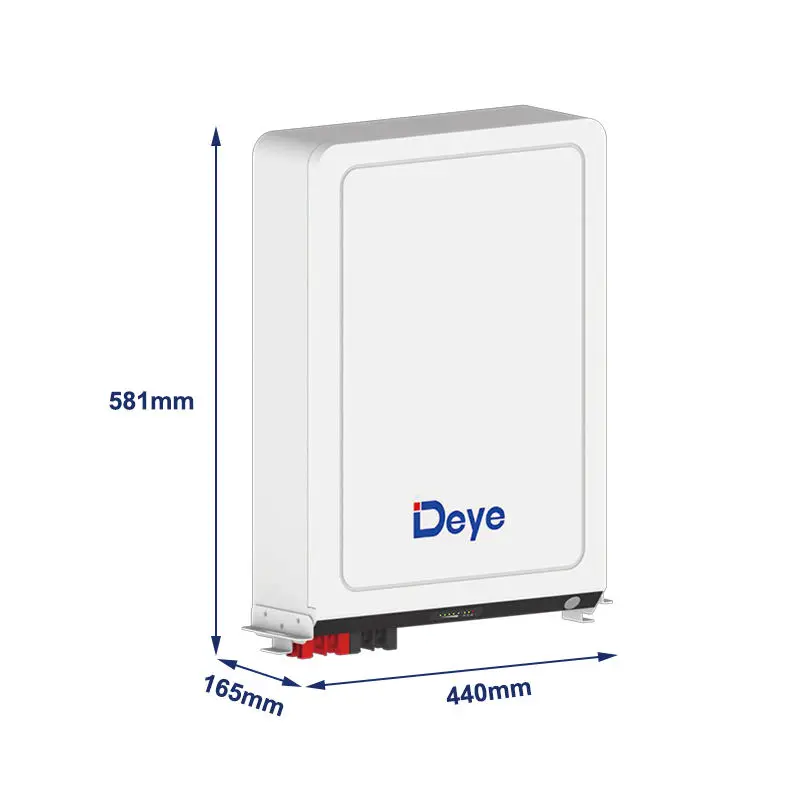

Dimension (W/H/D, mm) | 440*581*165(Without hanging board and handle) | |||
Weight Approximate(kg) | 45 | |||
Master LED Indicator | 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting) | |||
IP Rating of Enclosure | IP20 | |||
Operating Temperature | Charge:0 ~ +55℃ / Discharge: -20℃ ~ +55℃ | |||
Storage Temperature | 0℃ ~ +35℃ | |||
Humidity | 5% ~ 95% | |||
Altitude | ≤2000m | |||
Cycle Life | ≥6000(25℃±2℃, 90%DOD, 0.5C/1C,70%EOL) | |||
Installation | Wall-Mounted, 19inch Rack-mounted | |||
Communication Port | CAN2.0, RS485 | |||
Warranty Period | 5 years | |||
Energy Throughput | 16MWh@70%EOL | |||
Certification | UN38.3, CE, IEC62619 | |||

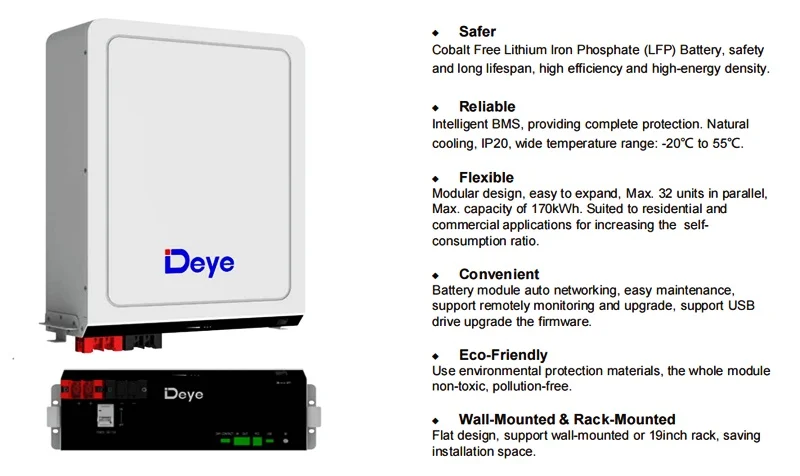

Product Description
RW-M5.3 Pro
1.This series lithium iron phosphate battery is one of new energy storage products developed and produced by Deye , it can be used to support reliable power for various types of equipment and systems.
2.This series is especially suitable for application scene of low power, limited installation space, restricted load-bearing and long cycle life.
2.This series is especially suitable for application scene of low power, limited installation space, restricted load-bearing and long cycle life.
3.This series has built-in BMS battery management system, which can manage and monitor cells information including voltage, current and temperature. What’s more, BMS can balance cells charging and discharging to extend cycle life.
4.Multiple batteries can connect in parallel for larger capacity and longer power supporting duration requirements.

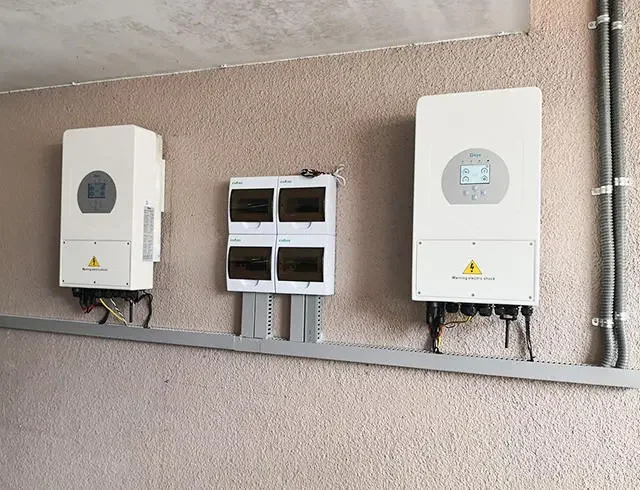

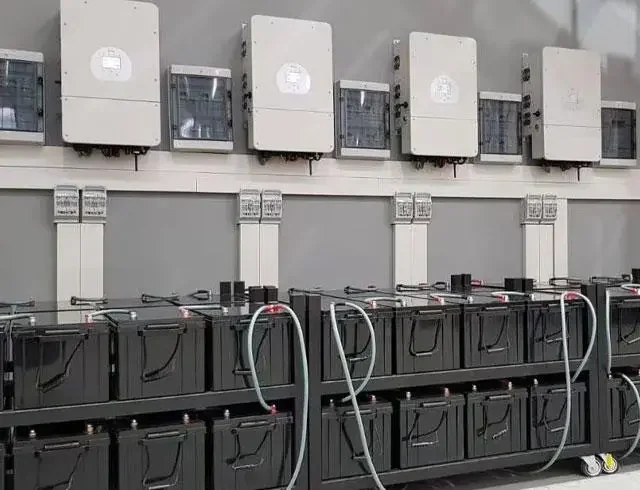

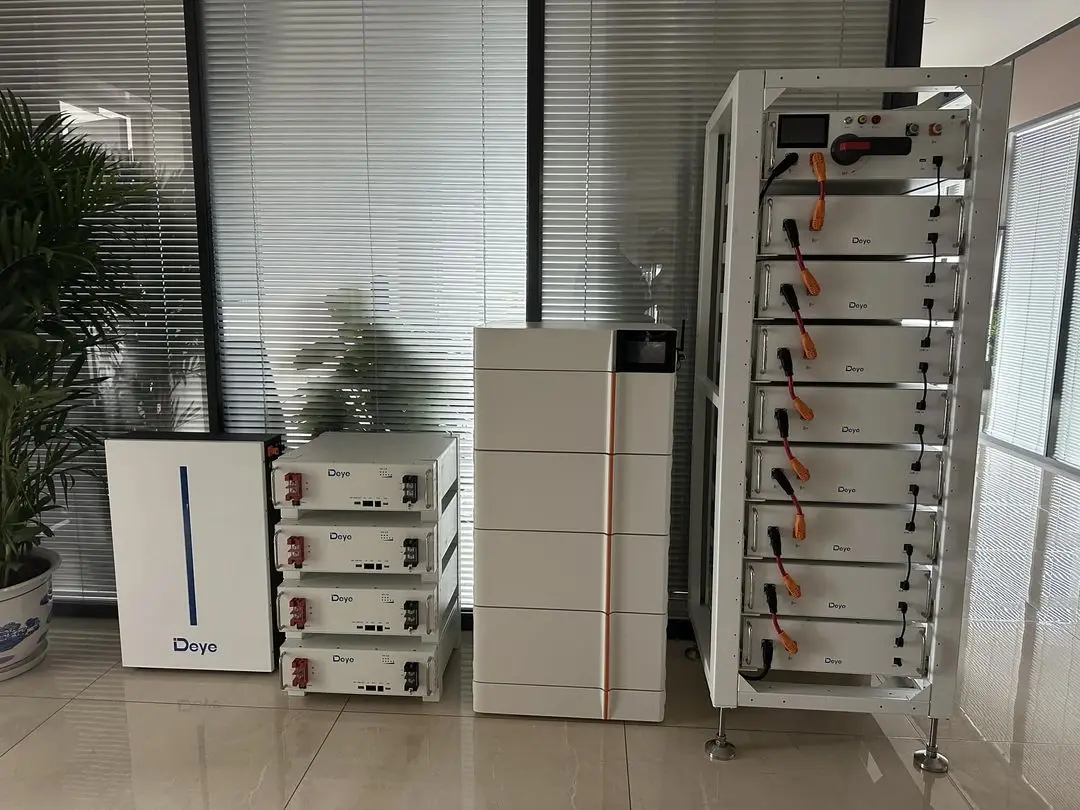

Our Projects
