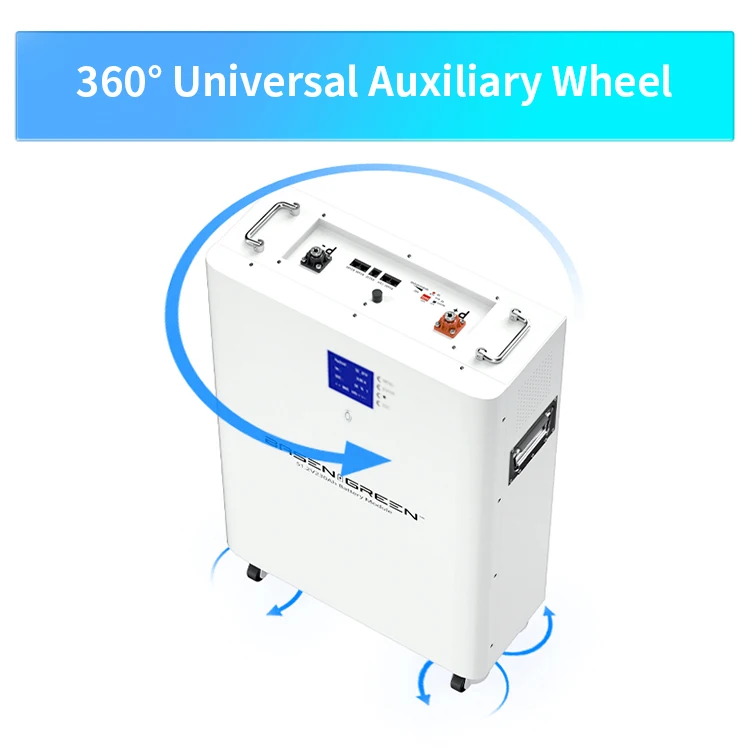

EU Stock Basengreen Energy Storage System 48V 51.2V Lithium Ion Battery Pack Power Pack Lifepo4 Battery 100AH 200AH With BMS
- Category: >>>
- Supplier: Shenzhen Basen Technology Co. Ltd.
Share on (1601153276468):
Product Overview
Description
Overseas Warehouse
BASENGREEN now have enough stock in
China/Poland EU/US/CA/DE location
for the 3.2V LiFePO4 cell/12V LiFePO4 battery pack/48V energy storage system.
It's best time to have quick shipping!
Time | Delivery From Overseas Warehouse | Transportation from China | ||
ETD | 1-3 working days | 3-7 working days | ||
ETA | 5-7 working days | 35-40 working days | ||
Transportation | Express | By rail/sea +DDP/DHL/UPS(DDP TAX FREE) | ||
DDP : The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything.Any questions please feel free to contact us！ | ||||
Product Introduction
Model | BR-OW-LV 14.3KWH | BR-OW-LV 15.5KWH | ||
Main Parameter | ||||
Cell Technology | Lithium-iron Phosphate (LiFePO4) | |||
Capacity | 280Ah | 304Ah | ||
Nominal Energy | 14.336Kwh | 15.5Kwh | ||
Round-Trip Efficiency | 98% | |||
Scalability | Max. 15 Modules in Parallel | |||
Dimensions(L/W/H) | 475*255*770mm | 615*580*215mm | ||
Weight | 150kg | 95kg | ||
Installation | Indoor | |||
Warranty | 5 Years Product Warranty | |||
10 Years Performance Warranty | ||||
Electrical Parameter | ||||
Nominal Voltage | 51.2V | |||
Max Charge Current | 200A | |||
Max. Cont. Charge Current | 200A | |||
Max Discharge Current | 200A | |||
Max. Cont. Discharge Current | 200A | |||
Operating Voltage Range | 43.2V-57.6V | |||
Charge Cut-off Voltage | 58.4V | |||
Discharge Cut-Off Voltage | 43.2V | |||
General Parameter | ||||
Cycle Life | ≥6000 Times (80%DoD) | |||
Service Life | 10 Years | |||
Protection Rating | IP55 | |||

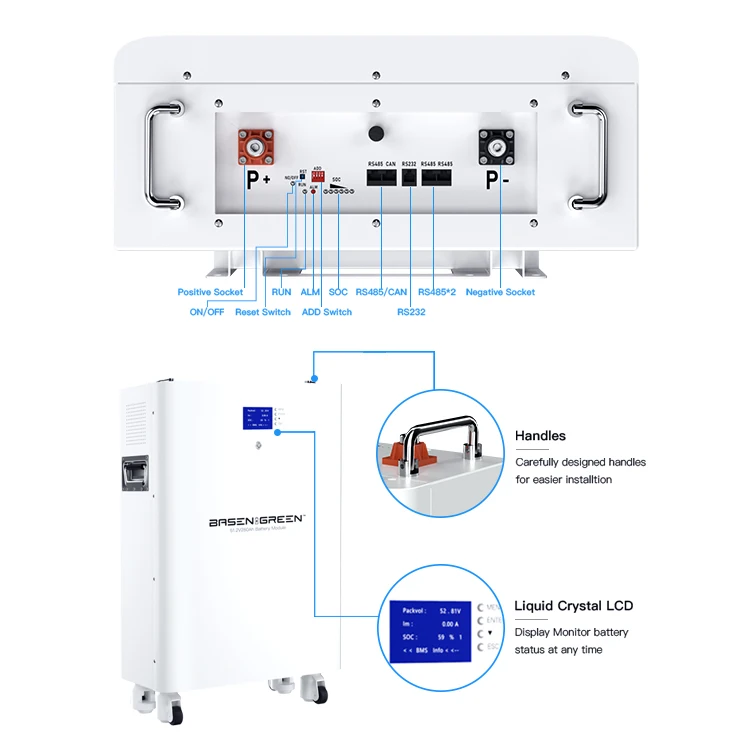

Display | SOC Status Indicator(optional), LED Indicator | |||
Communication | RS485, RS232, CAN | |||
Charge Temperature Range | 0°C~60°C (Under 0C extra heating mechanism) | |||
Discharge Temperature Range | - 20°C~60°C (Under 0Cwork with reduced capacity) | |||
Storage Temperature Range | - 40°C~55°C @ 60% ± 25% relative humidity | |||

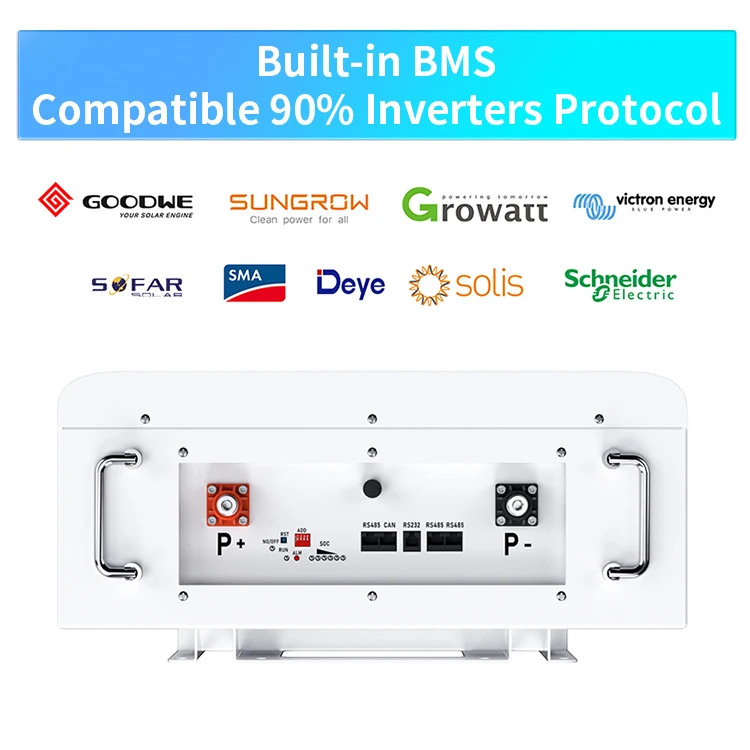

Compatible Inverters | SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc. | |||
* Contact us for the latest inverter-compatible list. ** Under specific test conditions | ||||
If want to DIY by yourself, then you can choose : CELLS+48V KITS
Model Name | Max Charge Current | AC Impedance Resistance | Weight | Dimension(mm) | ||||
3.2V 50AH | 50AH | ≤2.0mΩ | 1.1kg | H128*W148*D27 | ||||
3.2V 105AH | 105AH | 0.2~0.5mΩ | 2kg | H196*W130*37 | ||||
3.2V 154AH | 160AH | ≤0.50mΩ | 3.0KG | H346*W110*T34 | ||||
3.2V 230Ah | 230AH | ≤0.25mΩ | 4.3kg | H174*T54*H207 | ||||
3.2V 280Ah | 280AH | ≤0.25mΩ | 5.3kg | H200*W173*T72 | ||||
3.2V 304AH | 304AH | ≤0.25mΩ | 5.6KG | H206*W175*T73 | ||||
3.2V 306AH | 306AH | ≤0.25mΩ | 5.6KG | H206*W175*T73 | ||||
3.2V 314AH | 314AH | ≤0.25mΩ | 5.6KG | H206*W175*T73 | ||||
Note: Please confirm the quantity with your system before placing an order To use in 48V system, you need 16pcs To use in 24V system, you need 8pcs To use in 12V system,you need 4pcs .... Suit for System:12V 24V 48V 72V 96V 108V... Solar Energy Storage System Applicantion:RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery Pls contact Vicky(Click here) if you have any other questions. I am here at your service. 1. Above 280AH with 6000 times cycle life, Grade TOP QUALITY, Brand NEW with CLEAR Factory QR code on it. 2.The price comes with FREE Bus bars and Bolts. | ||||||||
Why BASENGREEN is your BEST Partner?
★ Your Expert For Power Solution:
With 13 years of experience in the battery industry, BASENGREEN has served over 12,000 customers from 80+ countries. We have 4 overseas warehouses.
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by Alibaba, we have received Alibaba's recommendation.
★ Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.
★ Guaranteed Quality Service:

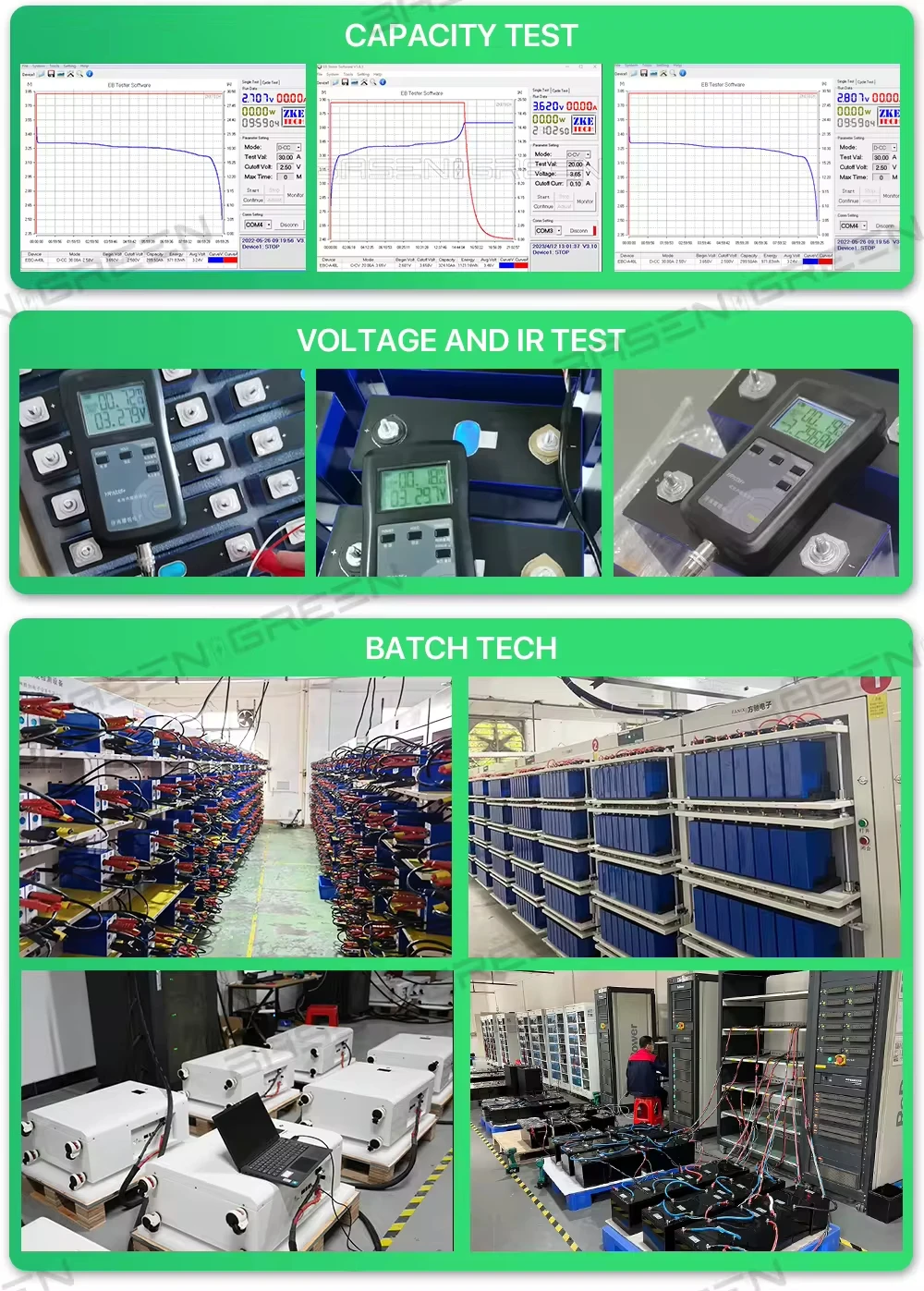

We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.
★ Fully Warranty Service Guaranteed:
BASENGREEN has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.
★ OEM / ODM Supported:
With an experienced team of energy storage structural and software engineers, we offer flexible customization services.
Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by Alibaba, we have received Alibaba's recommendation.
★ Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.
★ Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.
★ Fully Warranty Service Guaranteed:
BASENGREEN has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.
★ OEM / ODM Supported:
With an experienced team of energy storage structural and software engineers, we offer flexible customization services.
Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.
Production Ability
Over 5,000 square meters of standardized workshop with 40 skilled workers and spe-cialists; Materials subsidiary capable of fast
delivery time; Auto battery pack production line; ATE testing equipment; Professional testing laboratory.
● QUALITY
Well-established quality and process control system; Strictly compliance with ISO9001; Fully certified with CE, UL, UN38.3 and ROHS.
● SERVICE
5 years warranty period; 24 hour rapid response; Worry-free after-sales service system.
Packing&Shipping
Packaging can be customized according to customer specifications
FAQ
Q: I Need More Function Such Bt And Led Screen,I Also Want Anti Vibration Design For Using At My Marine/Rv/Vehicle Can I customized My Battery Pack?
Re: Yes Of Course, Just Let Me Know What Exactly You Need, Our Professional Engineer Team Will Give You An Excellent Solution, More Than You Expectation.
Q: I'M Very Sensible In Price, I Am A Wholesaler Of Battery Pack, If I sell your Battery Pack In My City , The Profit Is Very Low, Can I Get A Cheaper Price? And I Can See Your Competitor Sells More Cheap Then You.
Re: It Is Highly Suggest That You Can Have A Comparison With Our Competitor. Indeed, There Are Also Some Supplier Provide Low Price Battery Pack But Using Cheap Material. Pls Pay Attention To The Cycle Life And The Warranty, And We Have Anti Vibration Design And Communication Design. Maybe You Know The Price Of Cylindrical Cell Is Far Cheap Then Prismatic Cell.Besides, We Also Provide Cylindrical Cell Solution , Pls Contact Us Directly And We Will Tell You More. Most Importantly, We Can Give You A Professional Solution According To Your Local Market. Low Profit? Don'T Worry About That, Our Engineer Team Will Help You Help You To Solve It.
Q: I Can See The Post That Your Company Shows The Warranty Is 5 Years, So No Matter What The Battery Pack Be Used For, All 5 Years?
Re: No Sir, Maybe You Know The Cycle Life Of Cell Is Not Only Depends On The Quality Itself , But Also Be Affected By The Discharge/Charge Rate The Actual Temperature. So It Is Irresponsibility At All If A Supplier Tell You The Cycle Life But No Talking About The Actual Usage. For Room Temperature 25℃ And 1c Discharge And 0.5c Charge, The Cycle Life Of The Battery Pack Can Exceed 4000 Cycles And Warranty 5 Years, Only Energy Storage Usage.
Q: Can These Battery Pack Be Compatible With My Inverter? Do You Have A Company List Of The Inverter Which Is Compatible?
Re: Yes Sir, Our Battery Pack Can Compatible With Most Brand Of Inverter On The Market, Contact Us And Let Me Tell You More.
Q: What About The Delivery Time And Shipping?
Re: Some Of Times In Stock, We Can Make 3-7 days Fast Delivery. For USA,Canada,Australia And Most Of European Country , We Provide Tax Included Services, Door To Door, Once You Place An Order ,Then You Will Receive Your New Battery Pack In About 40-55 Days At Your Home! We Also Have Oversea Warehouse Service, 3-7 days Arrive, No Tax Fees, Please Contact With Our Sales !
