$12,600

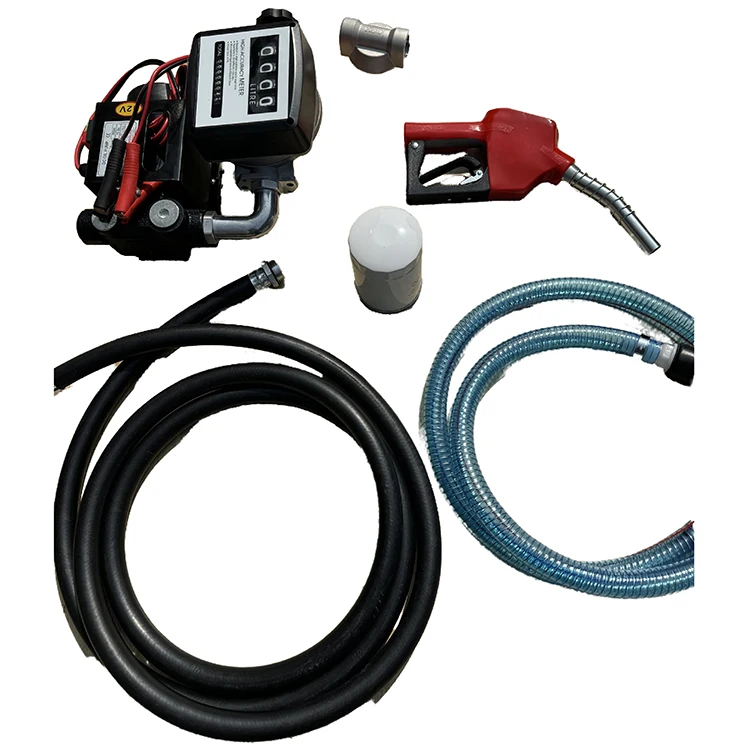

12V 24V 220V Min fuel diesel dispenser Cabinet Electric Transfer Oil Pump
- Category: >>>
- Supplier: Sumac Auto Recycling Equipment Co. Ltd.
Share on (1601153290267):
Product Overview
Description
Model | JYB-60 |
Pump | Single phase 220V, DC12V/24V |
Flow Meter | FM-120L in liter |
Outlet Hose | 4m |
Inlet Hose | 2m |
Automatic Nozzle | Yes |
Flow Rate | 20-60L per minute |
Dimension | 410*420*440mm |
Weight | 24.5Kg |

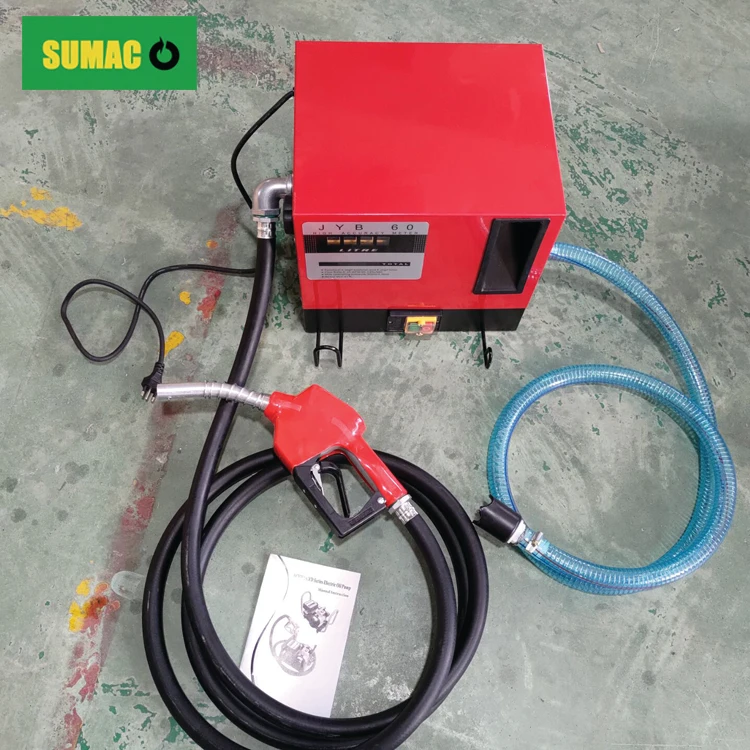

12V 24V 220V Wall Mount Diesel Dispenser Cabinet Electric Transfer Oil Pump
The electric fuel pump is a centrifugal pump. The impeller rotates in the pump casing, causing the liquid to rotate accordingly. Under the action of centrifugal force, a certain vacuum is formed in the center of the impeller connected to the pump inlet, and a smaller vacuum is formed at the outer edge of the impeller connected to the discharge pipe. High pressure, so as long as the impeller keeps turning, liquid will continue to be sucked in and discharged.The transparent hose 2 meters is the inlet pipe, which can be directly put into the diesel tank or connected with the oil outlet of the diesel tank. The black rubber hose is 4 meters, which is used to connect the oil gun directly.
Adjustment Instructions of FM-120L Flow Meter
When the metering error of the flowmeter is not accurate, the adjusting shaft can be adjusted. If the error value is too large to be adjusted, the end face of the adjusting shaft can be trimmed with a file of 1 ~ 1.5mm, and then adjusted; When the error is too large, the adjustment axis will be adjusted outward; when the error is small, the adjustment axis will be adjusted inward, and the screwdriver will be adjusted inward or outward for half a circle (up to 2 to 3 times), as shown in Figure 1; Quantitative fuel 100L, flow meter reading 100± 1% (L) until qualified, see Figure 2.
Figure 1
Figure 2
Related Products

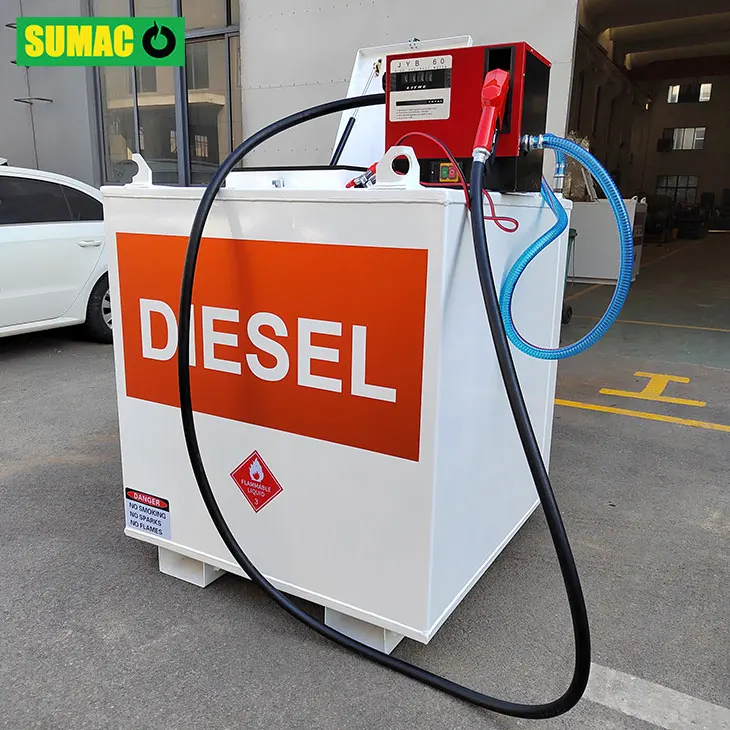

If you work on a job site with limited access, the diesel pump with fuel tank is suitable for you. This fully transportable fuel storage solution eliminates the risks of downtime and interruption to vital equipment, so you can stay on track and on top of operations.
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have builded up our company since 2011.
2. Where is your factory located?
Our factory address is : No.165 Yungu Road Zhutang Town Jiangyin City, Jiangsu Province, China.
4. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
5. May i know which payment will be accepted by your company?
30% to be paid by T/T in advance, balance to be paid by T/T against the final products' pics before shipment.
We are a manufacturer, and we have builded up our company since 2011.
2. Where is your factory located?
Our factory address is : No.165 Yungu Road Zhutang Town Jiangyin City, Jiangsu Province, China.
3. What is the delivery time of your machine?
In general, the delivery time of fuel pump is about 7 working days.
In general, the delivery time of fuel pump is about 7 working days.
4. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
5. May i know which payment will be accepted by your company?
30% to be paid by T/T in advance, balance to be paid by T/T against the final products' pics before shipment.
