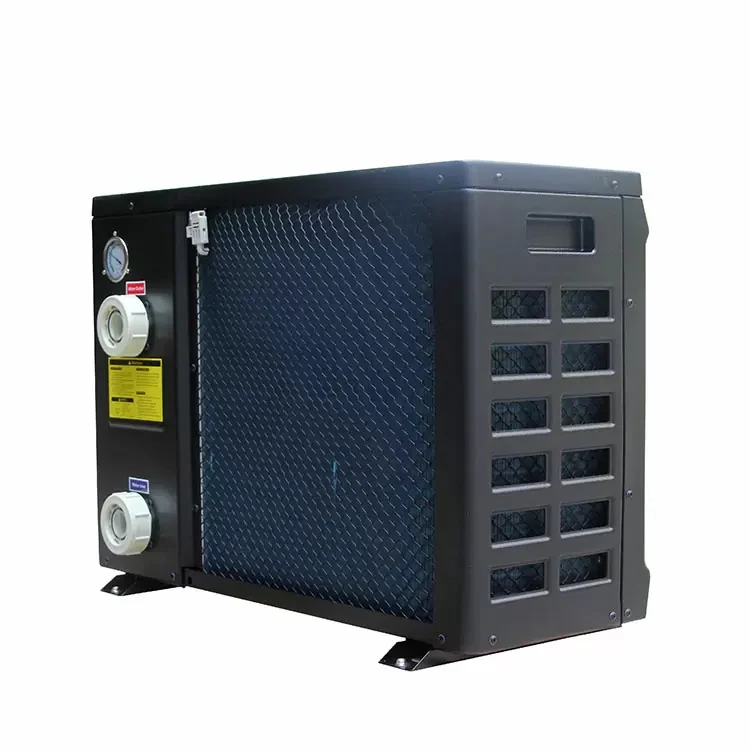

Custom 7.6 35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater
Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater

Custom 7.6 35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater

Share on (1601153404522):


Price:$420.00 - $1,228.00

Quantity:


Product Overview

Description



Products Description

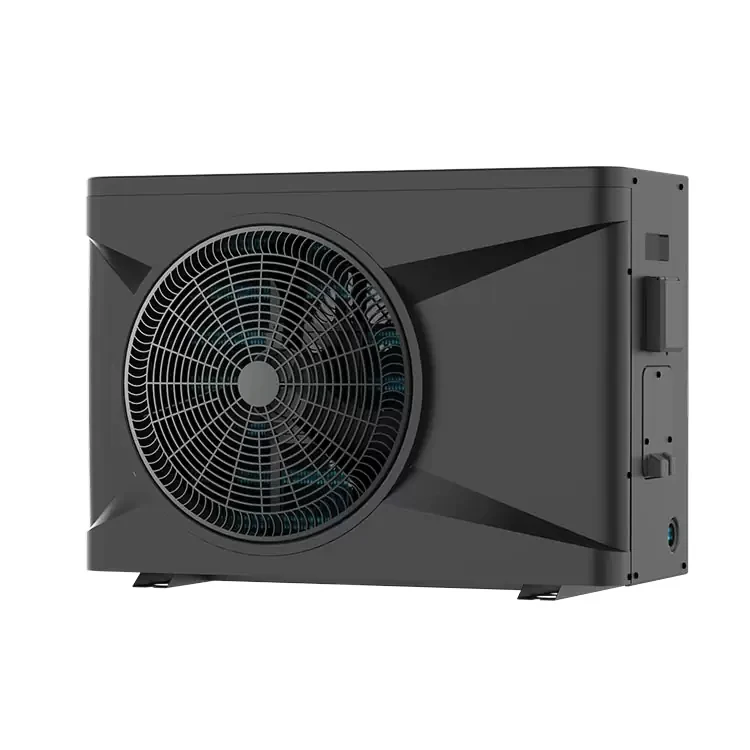

Custom 7.6-35kw DC inverter Heating and Cooling Swimming Pool Air Source Water Heater Boiler Air To Water Heat Pump Water Heater


Model No.
SYC-007TD1
SYC-010TD1
SYC-013TD1
SYC-017TD1
SYC-021TD1
SYC-030TD1
SYC-035TD1
SYC-030TD3
SYC-035TD3
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity (kW)
7.6~1.7
9.5~2.3
13~3.0
17~3.8
21~4.8
28~6.8
35~8.8
28~6.8
35~8.8
Power Input (kW)
1.12~0.11
1.40~0.15
1.91~0.19
2.5~0.24
3.09~0.30
4.12~0.43
5.15~0.56
3.97~0.43
5.15~0.56
COP
15.8~6.8
15.8~6.8
16~6.8
15.8~6.8
15.8~6.8
15.8~6.8
15.8~6.8
15.8~6.8
15.8~6.8
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity (kW)
6.1~1.4
7.6~1.9
9.8~2.3
13.5~3
16.5~3.8
23~5.5
25.5~6.4
23~5.5
25.5~6.4
Power Input (kW)
1.24~0.18
1.55~0.25
1.96~0.30
2.76~0.39
3.37~0.5
4.7~0.72
5.2~0.84
4.7~0.72
5.2~0.84
COP
7.6~4.9
7.6~4.9
7.6~5
7.6~4.9
7.6~4.9
7.6~4.9
7.6~4.9
7.6~4.9
7.6~4.9
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity (kW)
4.2~1.0
5.3~1.3
7.2~1.7
9.4~2.1
11.6~2.7
14.9~3.8
19.3~4.9
14.9~3.8
19.3~4.9
Power Input (kW)
1.11~0.15
1.4~0.19
1.89~0.25
2.47~0.31
3.05~0.4
3.92~0.57
5.08~0.73
3.92~0.57
5.08~0.73
EER
6.6~3.8
6.7~3.8
6.7~3.8
6.7~3.8
6.7~3.8
6.7~3.8
6.7~3.8
6.7~3.8
6.7~3.8
* General data
Power supply
220~240V/1/50Hz
380~415V/3/50Hz
Max Power Input (kW)
1.55
1.78
2.2
2.6
3.2
4.45
4.76
6.43
6.93
Max Current (A)
7.3
8.3
10.2
12
14.7
20.4
30
7.9
11.3
Water Flow Volume (m3/h)
2.5
3.5
4.5
5.5
6.5
9
12
9
12
Refrigerant
R32
Heat Exchanger
Titanium
Air Flow Direction
Horizontal
Automatic defrosting
by 4 way valve
Working temp. range (℃)
-15~43
Casing Material
ABS
Water Proof Level
IPX4
Noise level 1m dB(A)
39~49
40~52
42~53
43~55
45~56
47~58
49~59
47~58
49~59
Noise level 10m dB(A)
20~29
20~32
22~33
23~35
25~36
27~38
29~39
27~38
29~39
Net Weight (kg)
42
43
53
54
58
88
98
88
98
Gross Weight (kg)
53
54
64
65
69
99
110
99
110
Net Dimensions (mm)
864*349*592
925*364*642
1084*399*737
Package Dimensions (mm)
930*400*640
990*435*760
1146*460*862


Features:

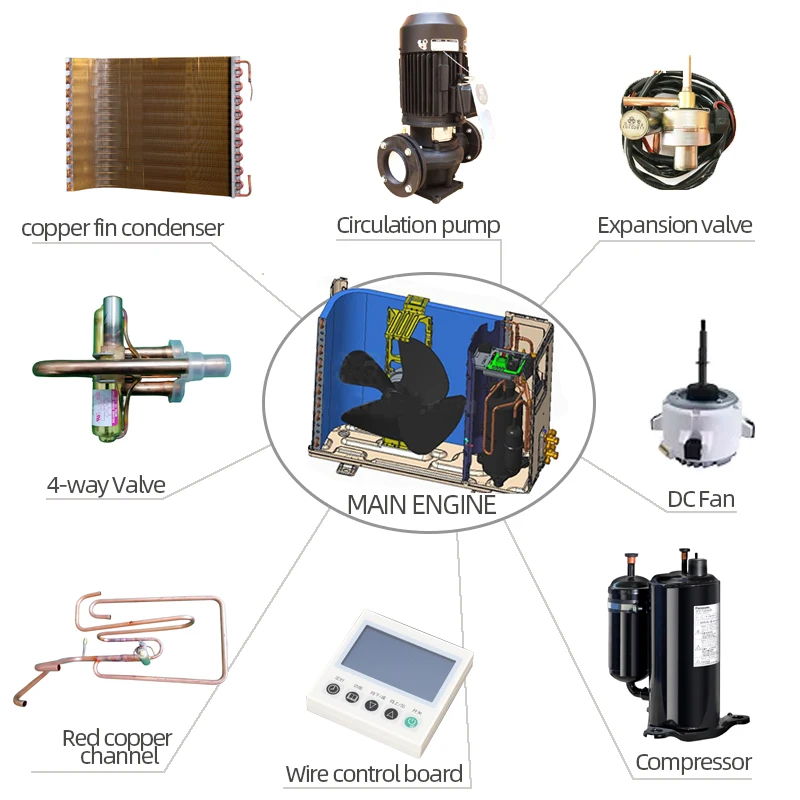

Full Inverter with R32 refrigerant.
High-end Mitsubishi compressor.
DC Inverter fan motor.
High efficiency COP up to 16.
Quiet running experience.
Built in WiFi function.
Hot gas defrosting.
Precise gas control with EEV.






Product Advantage

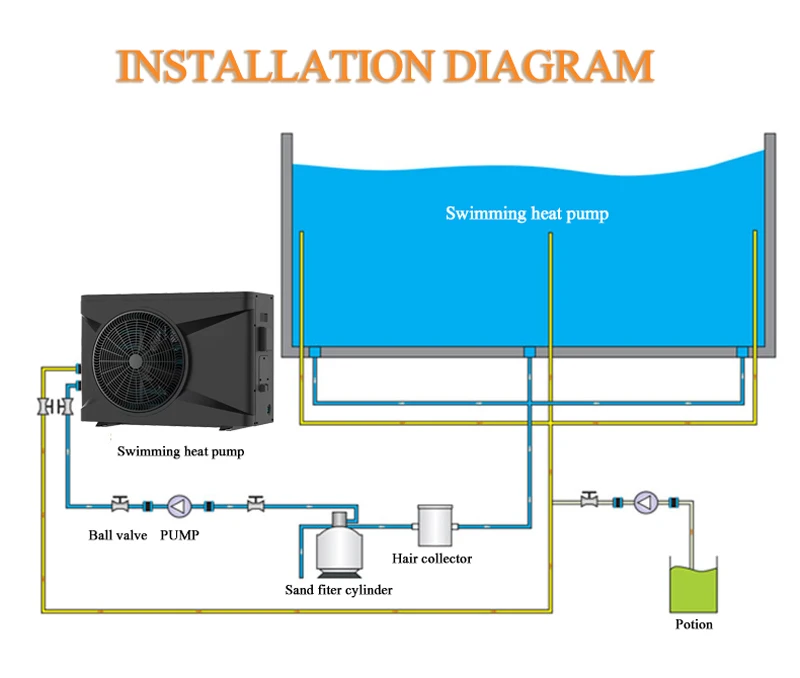

Install and Run




Customer Feedback




Company Profile






Global Customers




Testing and certification




FAQ


Q1 Are you a manufacturer?
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.

Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.

Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.

Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.

Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
