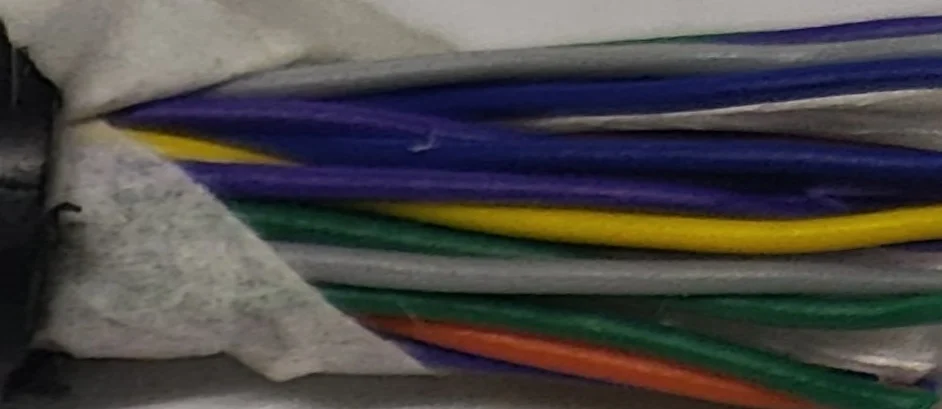

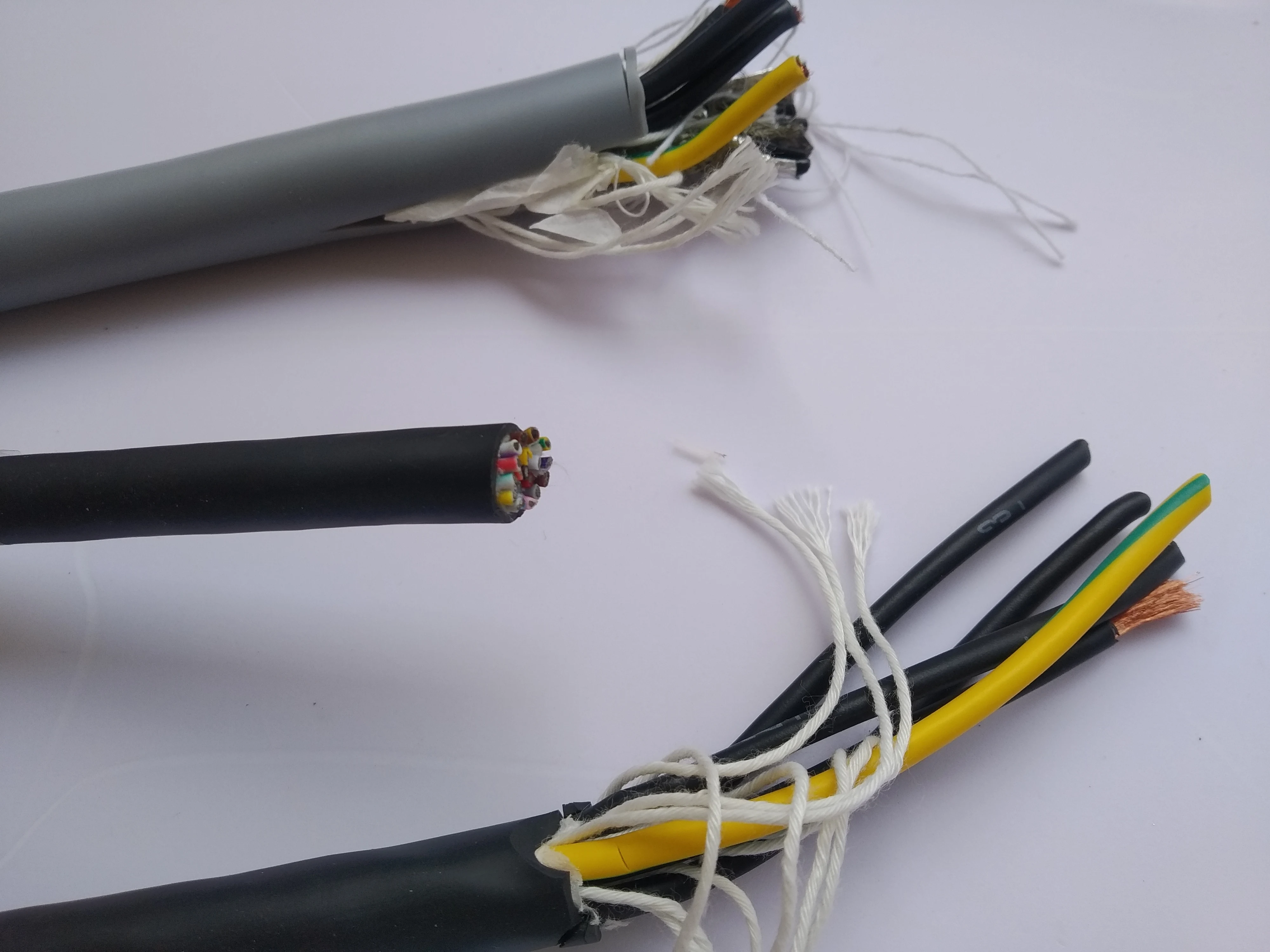

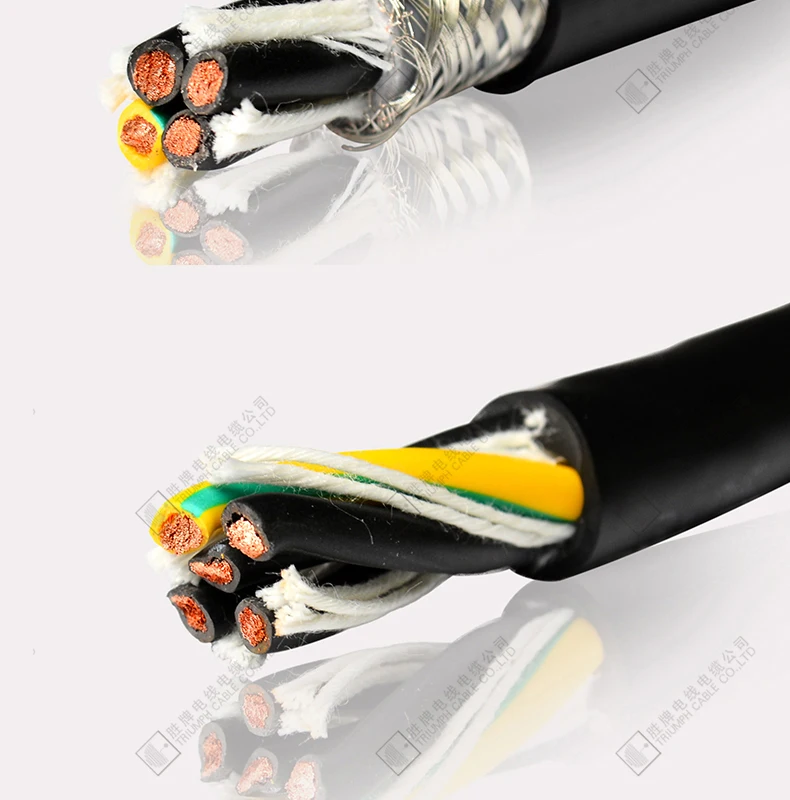

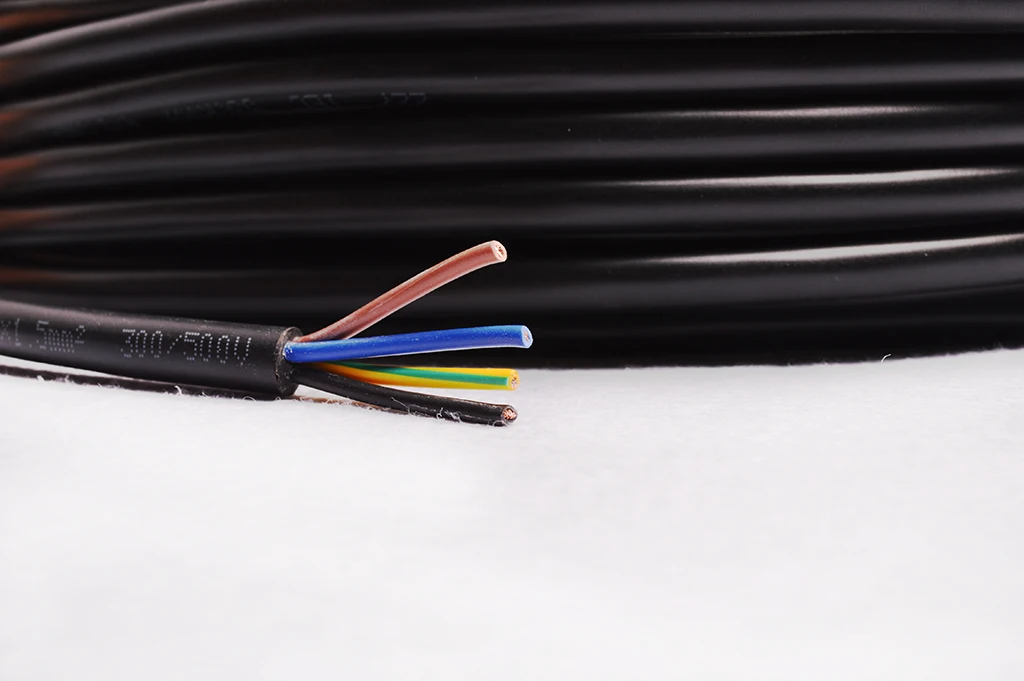

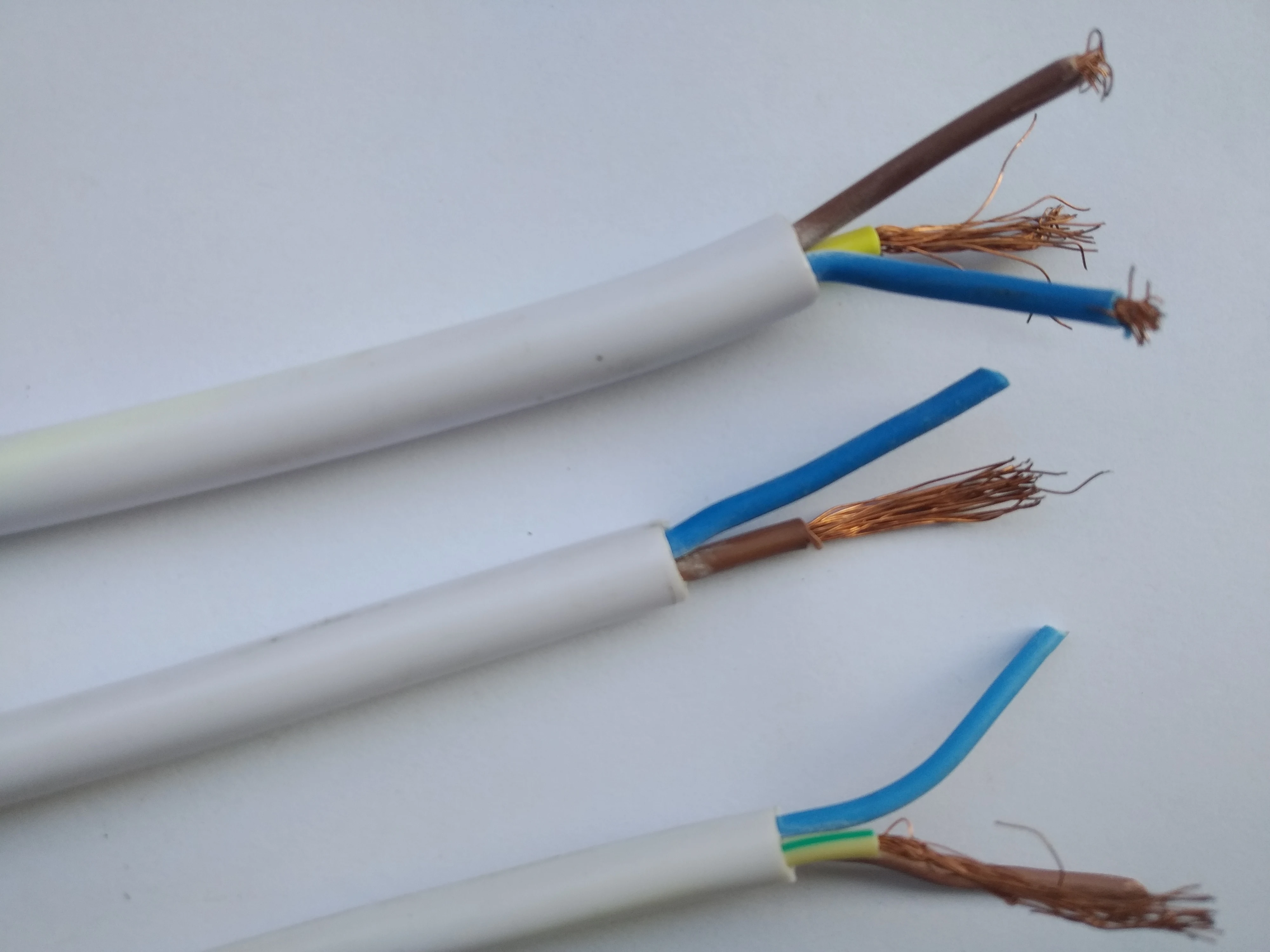

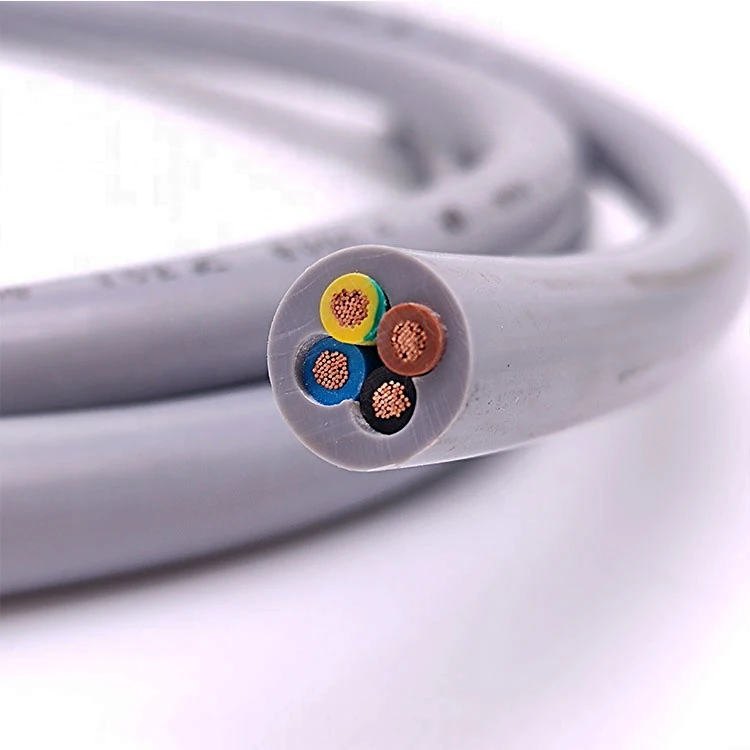

Flexible Control Cable Multi Cores PVC Insulated Jz 600 Flexible Control Cable

Name
JZ-600 HMH style fixed Halogen-free polymer installation Halogen-free polymer sheath control cable
JZ-600 HMH style
Control cable
Flexible, Number Coded, 0.6/1kV


Relevant information is for reference as below.
Part 1 covers the Standard's general requirements. RV,H05V-K,H07V-K Part 2-11 covers cables with flexible thermoplastic insulation
for the connection of domestic appliances to fixed power supply. These include: - H03VV-F: Light-duty circular cables - also known
as 218-Y cable - H03VVH2-F: Light-duty flat cables - also known as 2192Y cable - H05VV-F: Ordinary-duty circular cables -
H05VVH2-F: Ordinary-duty flat cables - H03V2V2-F: Heat-resistant light-duty circular cables - H03V2V2H2-F: Heat-resistant
light-duty flat cables - H05V2V2-F: Heat-resistant ordinary-duty circular cables - also known as 309-Y cable - H05V2V2H2-F:
Heat-resistant ordinary-duty flat cables - H05V2V2D3-F: Ordinary-duty cables with a strain-bearing memberPart 2-12 covers cables
with thermoplastic Polyvinyl Chloride (PVC) insulation cables for extensible leads to connect domestic appliances to the fixed
power supply. These include: - H03VVH8-F: Light-duty circular cable - H03VVH2H8-F: Light-duty flat cable - H05VVH8-F:
Ordinary-duty circular cable - H05VVH2H8-F: Ordinary-duty flat cable Part 2-21 covers flexible cables with cross-linked
elastomeric insulation for flexible connection of appliances or equipment, including heavy-duty industrial equipment, to the fixed
power supply. These include: - H05RR-F: Ordinary-duty cables - H05RN-F: Ordinary-duty cables - H07RN-F: Heavy-duty cables -
H07RN8-F: Heavy-duty water-resistant - H05BB-F: Heat-resistant ordinary-duty cables - H07BB-F: Heat-resistant heavy-duty cables -
H05BN4-F: Heat-resistant ordinary-duty cables - H07BN4-F: Heat-resistant heavy-duty cables -also known as 6381TQ cable - H05BQ-F:
Heat-resistant TPU sheathed (90 degrees) ordinary-duty cables - H07BQ-F: Heat-resistant TPU sheathed (90 degrees) heavy-duty
cables - H05GG-F: Heat-resistant EVA ordinary-duty circular cable (110oC) - H05GGH2-F: Heat-resistant EVA ordinary-duty flat cable
(110oC) Part 2-22 covers high flexibility braided cables with cross-linked elastomeric insulation for the connection of domestic
appliances to the fixed power supply where extra flexibility is required, including H03RT-H. Part 2-31 covers single core
non-sheathed cables with thermoplastic PVC insulation for fixed wiring applications. These include: - H07V-U & H07V-R: fixed
wiring (Class 1 or 2 conductor) - also known as 6491X cable - H07V-K: Fixed wiring (Class 5 conductor) - H05V-U & H05V-R: Internal
wiring (Class 1 or 2 conductor) - H05V-K: Internal wiring (Class 5 conductor) - also known as 2491X cable - H07V2-U & H07V2-R:
Heat-resistant fixed wiring Class 1 or 2 conductor) - H07V2-K: Heat-resistant fixed wiring (Class 5 conductor) - known as
tri-rated cable - H05V2-U & H05V2-R: Heat-resistant fixed wiring (Class 1 or 2 conductor) - H05V2-K: Heat-resistant internal
wiring (Class 5 conductor) Part 2-41 covers single core cables with cross-linked silicone rubber insulation for fixed
installations within high temperature zones. These include: - H05S-U: Heat-resistant non-sheathed cables (Class 1 conductor) for
fixed wiring - H05S-K: Heat-resistant non-sheathed cables (Class 5 conductor) for fixed wiring - H03S-K: Non-sheathed cables
(Class 5 conductor) for internal wiring - H05SJ-U: Braided cables (Class 1 conductor) for fixed wiring - H05SJ-K: Braided cables
(Class 5 conductor) for fixed wiring - H05SS-K: Sheathed cables (Class 5 conductor) for fixed wiring. Part 2-42 covers single core
non-sheathed cables with cross-linked EVA insulation for fixed installations within high temperature zones. These include: -
H07G-U: Heat-resistant cables for fixed wiring (Class 1 conductor). - H07G-R: Heat-resistant cables for fixed wiring (Class 2
conductor). - H07G-K: Heat-resistant cables for fixed wiring (Class 5 conductor). - H05G-U: Cables for internal wiring (Class 1
conductor) - H05G-K: Cables for internal wiring (Class 5 conductor) Part 2-51 covers oil-resistant control cables with
thermoplastic PVC insulation for the interconnection of manufacturing machines. These include: - H05VV5-F: Control cables - also
known as 318-Y cable - H05VVC4V5-K: Screened control cables Part 2-71 covers flat tinsel cables (cords) with thermoplastic PVC
insulation for the connection of small appliances to the fixed power supply, including H03VH-Y. Part 2-72 covers flat divisible
cables (cords) with thermoplastic PVC insulation for internal wiring or direct supply connection of luminaries (indoor use),
including H03VH7H-F. Part 2-81 covers cables with cross-linked elastomeric covering for arc welding. It superseded the withdrawn
standard BS 638 Part 4. These welding cables provide the connection between the welding power source, the electrode holder and the
workpiece. These include: - H01N2-D: Flexible welding cable. - H01N2-E: Extra-flexible welding cable. Part 2-82 covers cables with
cross-linked elastomeric insulation for use as decorative chains and with designated lampholders. These include: - H03RN-F: For
conductor sizes 0.5mm to 0.75mm - H05RN-F: For conductor sizes 0.75mm to 1.5mm - H05RNH2-F: For conductor sizes 1.5mm or 2.5mm for
two core flat cables Part 2-83 covers multicore cables with cross-linked silicone rubber insulation for high temperature fixed
installations with mechanical protection or for flexible use under low mechanical stress. These include: - H05SS-F: Heat-resistant
- H05SST-F: Braided heat-resistant - H05SSD3-K: Heat-resistant with strain-bearing element - H05SSD3T-K: Braided heat-resistant
with strain-bearing element Part 3-11 covers flexible fire performance cables with Low Smoke Zero Halogen (LSZH) thermoplastic
insulation for connection of domestic appliances to fixed supply in environments where LSZH properties are required. These
include: - H03Z1Z1-F: Light-duty circular cables - also known as 318-B cable - H03Z1Z1H2-F: Light-duty flat cables - H05Z1Z1-F:
Ordinary-duty circular cables - H05Z1Z1H2-F: Ordinary-duty flat cables Part 3-21 covers flexible fire performance cables with LSZH
cross-linked insulation and sheath for the connection of heavy-duty equipment and machinery to the fixed power supply in
environments requiring LSZH properties, including HO7ZZ-F. Part 3-31 covers single core fire performance cables with LSZH
thermoplastic insulation for fixed wiring. These include: - H07Z1-U: Fixed wiring cables (class 1 conductor) - H07Z1-R: Fixed
wiring cables (class 2 conductor) - H07Z1-K: Fixed wiring cables (class 5 conductor) - H05Z1-U: Internal wiring cables (class 1
conductor) - H05Z1-R: Internal wiring cables (class 2 conductor) - H05Z1-K: Internal wiring cables (class 5 conductor) Part 3-41
cover single core non-sheathed fire performance cables with LSZH cross-linked insulation. These include: - H07Z-U: Heat-resistant
fixed wiring cables (class 1 conductor) - H07Z-R: Heat-resistant fixed wiring cables (class 2 conductor) - known as 6491B cable -
H07Z-K: Heat-resistant fixed wiring cables (class 5 conductor) - H05Z-U: Heat-resistant internal wiring cables (class 1 conductor)
- H05Z-K: Heat-resistant internal wiring cables (class 5 conductor) - known as 2491B cable For reference, the withdrawn standard
BS6500 is applicable to BSEN50525-2:2001, BSEN50525-2-11:2011, BSEN50525-2-12:2011, BSEN50525-2-21:2011, and BSEN50525-2-71:2011.
These European Standards were approved by CENELEC (European Committee for Electrotechnical Standardization) and its members are
bound to give it the status of national standard.

100% hot sale Super soft silicone wire

From 4 gauge to 30 gauge in stock; Moq is one roll (100m,200m,300m packing); very small copper dia is 0.08 per strand; more color by choose.

Silicone fiberglass wire & cable

From 0.3mm to 100mm size ;Moq is one roll;high temperature 200C resistant;fiberglass abrasion resistant; more color by choose;

From 0.3mm to 10.0mm size; Moq is one roll; high tempearture 200C resistant;more color by choose or by requirment.

High speed singal transpant shield electric cable

There are 3 cores to 30 cores, Moq is one roll(100m/roll); bent resistant 8 million;Oil resistant.

Building copper wire and cable

There are BVR,BV,RV... for building.

More size more color low Moq in stock fast lead time .

PVC or silicone Flat cable for

from 10awg to 30awg size ; there are 2cores ... 50cores; the color by requirment .

Halogen free electric calbe &wire

There are different voltage 300v ,600v in stock. For example UL3266,UL3385,UL3386,UL3173...

SPT power cable

The cable pass UL certificate, Stand UL subject 62; the conducto is from 12awg to 20awg .

FEP wire and cable

There are voltage 300v,600v wire in stock. FEP material . UL certificate . For example UL1330,UL1332...

About us

1, the company professional to produce electric wire and cable.

Electric wire in stock

2, there are 500mm2 whare house , there are thousands styles wires in stock.Low Moq, short lead time.

Quality assurance

3, There are Voltage test machine, Elongation testing machine,Electronic hydrometer. stable product quality , supply, the good faith managemen.

Triumph Cable, located in Dongguan, is a professional electric wire and cable maker specialized in the production of diverse range of cables.
As a professional electric wire and cable maker,triumph cable has over ten years of production experience.We also have got the quality control system including UL certificate,  and a laboratory which test each kind of physical performance to guarantee the quality of our products. Main products include:Hook-up Wire, Computer Cable, Power Supply Cord, Halogen-free Wire, FEP Wire, Spiral Shield Cable, Ribbon-type Cable, Light Decoration Wire ,Flexible Cable,Irradiation Wire.Triumph Cable provides wires and cables that are utilized in diverse fields, from electrical equipment,communication facilities to automotive electronics and electrical appliance ,with operating temperature ranging from -100°C to 250°C. At present, we have constructed to a great sales-network in domestic and overseas markets. With great sincerity and kind cooperation spirit ,we truly welcome more and more overseas companies establish business relationship with us. Surely we can provide products with great quality and more favorable price.
