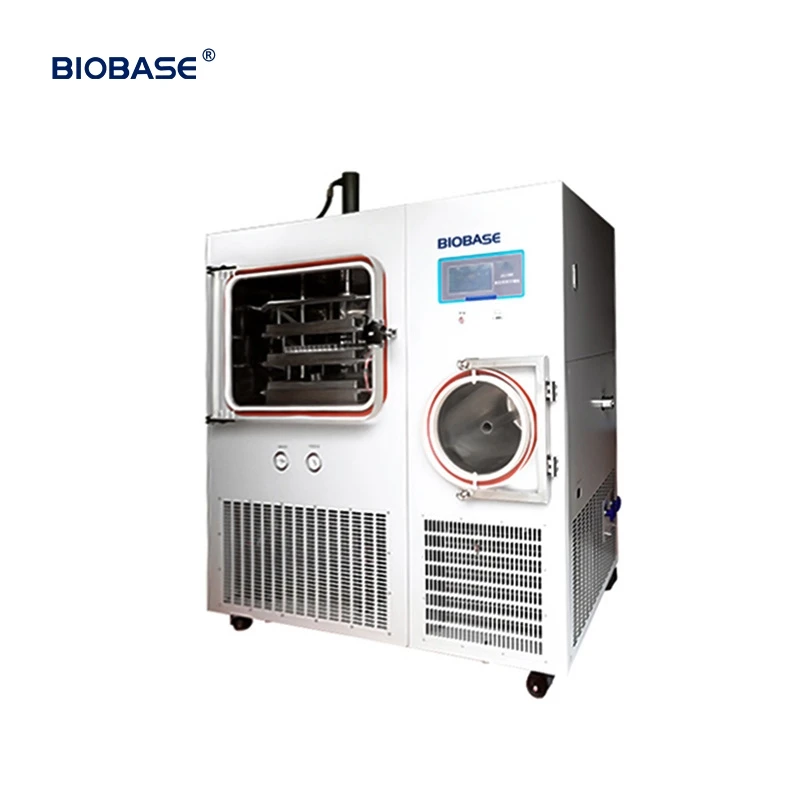

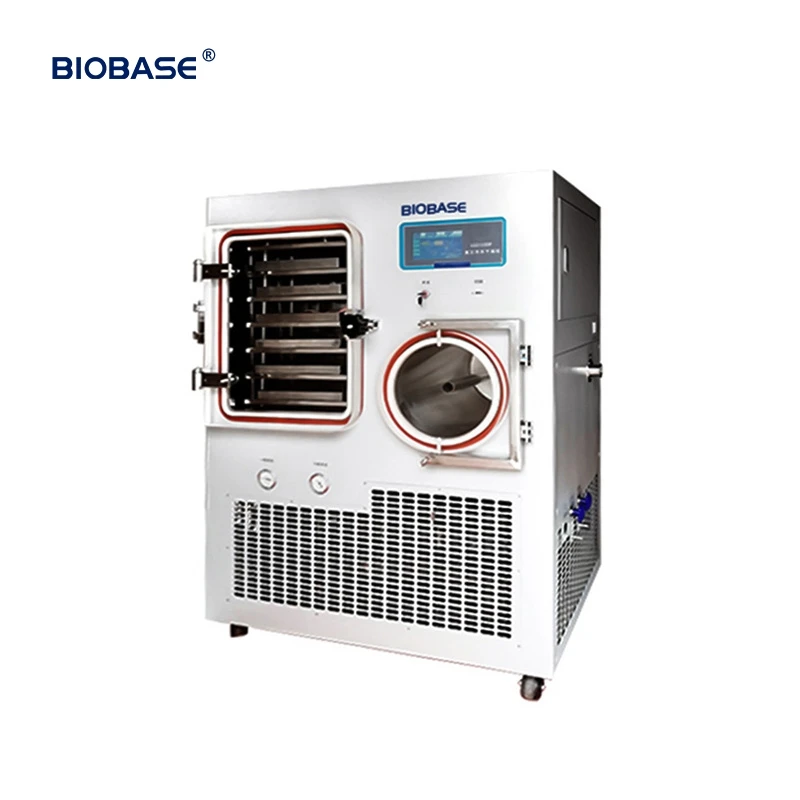

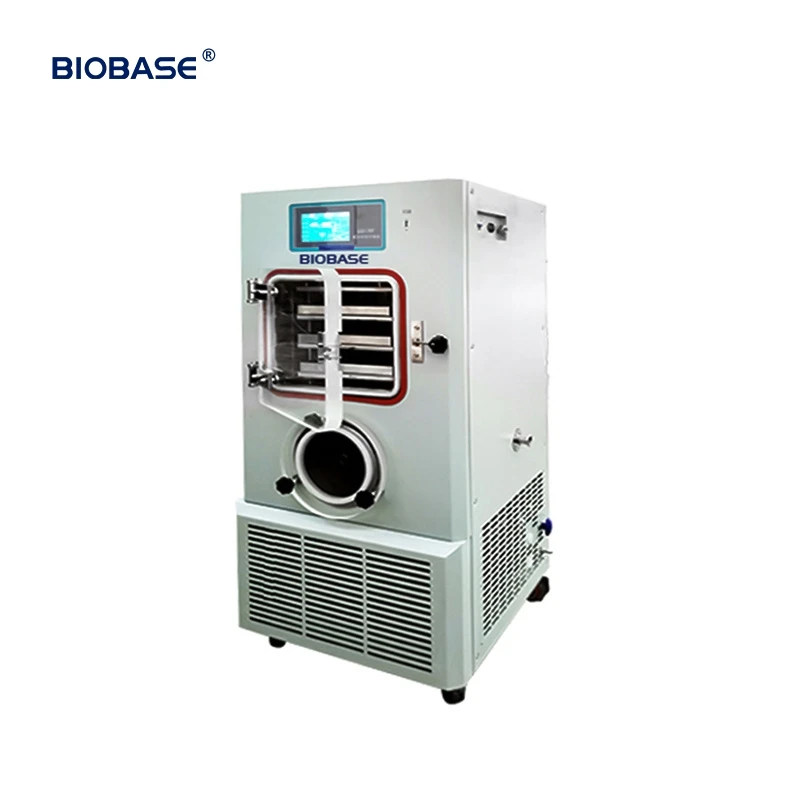

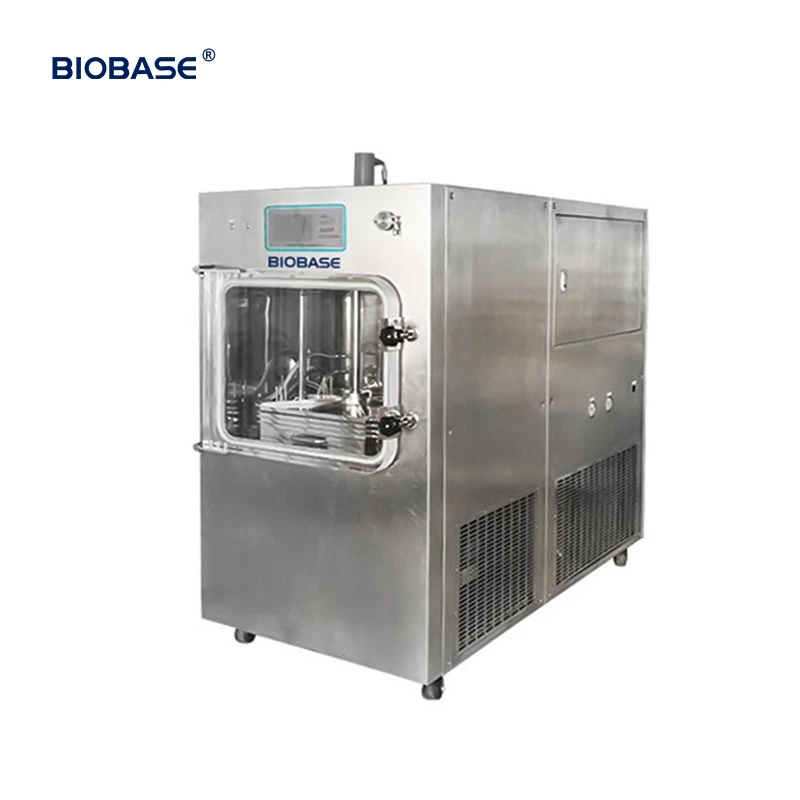

Biobase Pilot Freeze Dryer Dryer Electric Defrosting Automatic Pilot Freeze Dryer BK FD30T 3L for Laboratory/Hospital
- Category: >>>
- Supplier: Biobase Biotech (jinan) Co. Ltd.
Share on (1601153465170):
Product Overview
Description
Product Display
1. Pre-freezing, drying in-situ, easy to operate, good drying effect.
2. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and
control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.
3. 7-inch true color touch screen..
4. Flexible manual + automatic control mode, manual mode used for groping process, automatical mode used for batch production.
5. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.
6. User level and password can be set and decentralized for operation management.
2. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and
control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.
3. 7-inch true color touch screen..
4. Flexible manual + automatic control mode, manual mode used for groping process, automatical mode used for batch production.
5. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.
6. User level and password can be set and decentralized for operation management.
Technical Parameter
Model | BK-FD20S (Standard) | BK-FD20T (Stoppering) | BK-FD30S (Standard) | BK-FD30T (Stoppering) | |||||||
Freeze Drying Area | 0.3m² | 0.2m² | 0.4 m² | 0.3 m² | |||||||
Shelf Temperature | -50℃~+70℃(no-loading) | ||||||||||
Cold Trap Temperature | <-75℃(no-loading) | ||||||||||
Vacuum Degree | ≤5Pa(no-loading) | ||||||||||
Water Capture Capacity | ≥6kg | ≥8kg | |||||||||
Cold Trap Volume | 14L | / | 26L | ||||||||
Cold Trap Size (Diameter*H) | Φ200*460mm | / | Φ320*520mm | ||||||||
Drying Chamber Size (W*D*H) | 330*325*470mm | 340*500*420mm | 480*380*540mm | ||||||||
Shelf & Tray Size (W*D*H) | Shelf: 400*270*18mm Tray: 395*265*25mm | Shelf: 300*340*18mm Tray: 295*335*25mm | |||||||||
Qty. Of Shelf & Tray | Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | |||||||
Sample Loading Capacity (Liquid) | 3L | 2L | 4L | 3L | |||||||
Height Between Trays | 70mm | 50mm | 70mm | ||||||||
Tray Temperature Difference | ±1℃ | ||||||||||
Refrigerant | R404A + R23 | ||||||||||
Condenser Cooling Mode | Air cooling | ||||||||||
Defrost Mode | Electric defrosting | Natural defrosting(optional electric defrosting) | Electric defrosting | ||||||||
Stoppering Mode | / | Manual | / | Automatic | |||||||
Total Qty. Of Vial | Φ20mm | / | 440 | / | 654 | ||||||
Φ18mm | / | 868 | / | 1200 | |||||||
Φ12mm | / | 1554 | / | 2187 | |||||||
Vacuum Pump | 4L/S(14.4m³/h) | 6L/S(22m³/h) | |||||||||
Electric Defrosting Consumption | 800W | 800W | / | 1000W | |||||||
Silicone Oil Heating Rods Consumption | 800W | 800W | 1000W | 1000W | |||||||
Hydraulic Pressure Station Consumption | / | 500W | / | 1000W | |||||||
Total Consumption | 3KW | 3KW | 4.5KW | 5.5KW | |||||||
Power Supply | AC220V, 50Hz/60Hz(single phase) | ||||||||||
Main Body Weight | 300kg | 400kg | |||||||||
External Size (W*D*H)mm | 840*750*1580 | 920*780*1350mm | 1260*850*1420mm | ||||||||
Packing Size (W*D*H)mm/ Gross Weight | Main Body | 980*860*1720/400kg | 980*860*1720/470kg | 1100*980*1570/450kg | 1440*1070*1720/651kg | ||||||
Vacuum Pump | 950*420*500(37kg) | 790*340*460(57kg) | 790*300*470(52kg) | ||||||||
Recommend Products
How to choose a suitable Lab Refrigerator/Freezer?
According to Function/Temperature Requirements:* 1. Blood Bank Refrigerator：for storing blood samples, blood bags. (3-5℃）
* 2. Laboratory Refrigerator：for storing Reagent, Biomedicals, Vaccine，etc
(2-8℃）
* 3. -25℃ Freezer：-10~-25℃
* 4. Separate Refrigerator &Freezer: Top Refrigerator(2-8℃） & Bottom Freezer （-10~-25℃） Two in one, economical choice
* 5. -40℃ Freezer:：3 types: -10~-40℃, -15~-40℃, -20~-40℃, -30~-40℃
* 6. Separate Refrigerator &Freezer： Top Refrigerator(2-8℃） & Bottom Freezer
（-20~-40℃） Two in one, economical choice
* 7. -60℃ Freezer：-25~-60℃
* 8. -86℃ Freezer：-40~-86℃
We provide one stop purchase solution, can save cost and time for you.
Any requirement please tell me freely, details will be sent.
Air protection product | Cold chain product | General lab equipment | Analytical instrument |
biosafety cabinet | refrigerator | autoclave | Chemistry Analyzer |
laminar flow cabinet | blood bank refrigerator | incubator | ELISA Reader& Washer |
fume hood | -25 freezer | drying oven | Hematology Analyzer |
clean room | -40 freezer | centrifuge | Electrolytic analyzer |
PCR cabinet | -60 freezer | spectrophotometer | Urine Analyzer |
ect | -86 freezer | shaker | ect |
After Sale Service
After-sale service
1. Broken spare parts (except for wear parts) will be sent for free due to quality problems;
2. Professtional after-sercive team,in time response to customers technical problems;
3. New products update for customers' reference.
1. Broken spare parts (except for wear parts) will be sent for free due to quality problems;
2. Professtional after-sercive team,in time response to customers technical problems;
3. New products update for customers' reference.

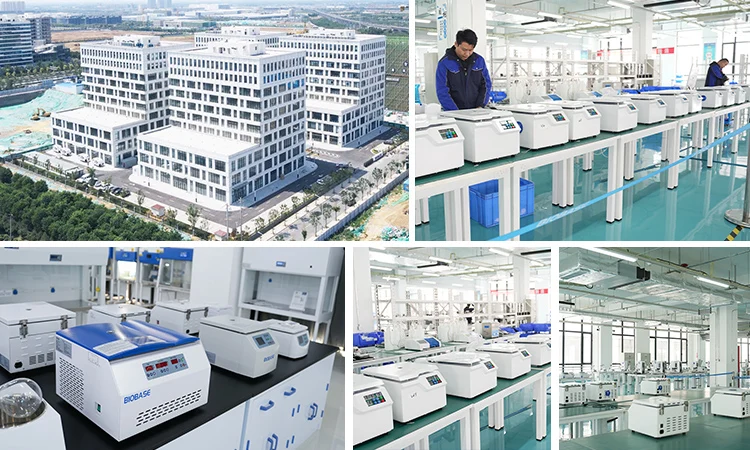

Company and factory
