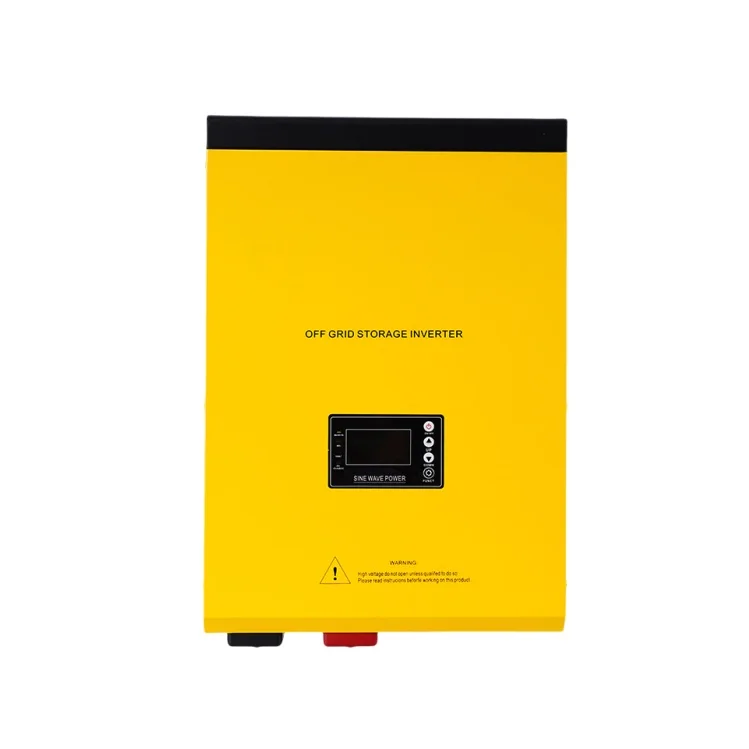

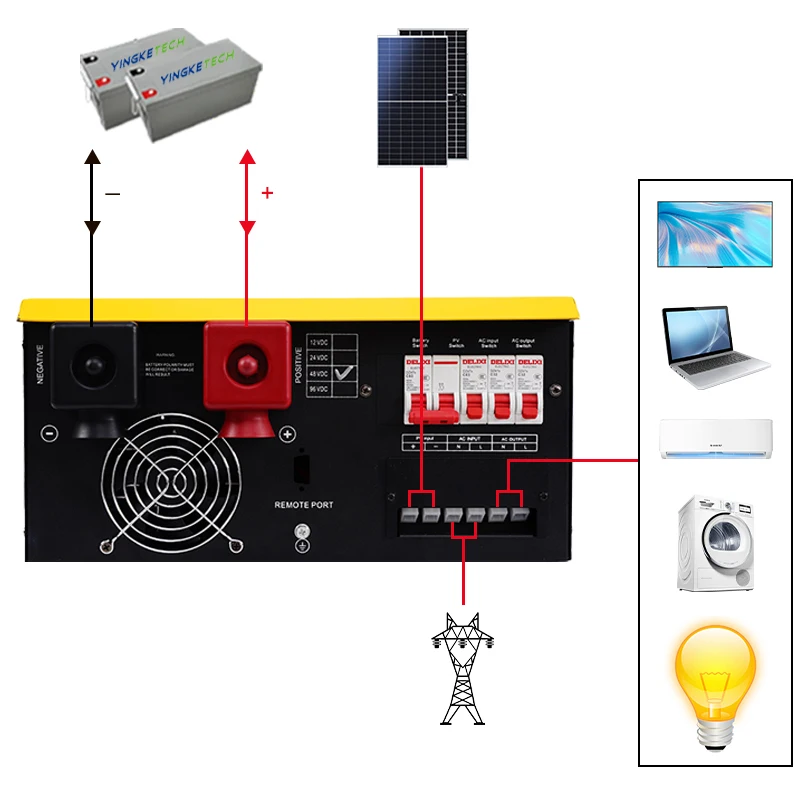

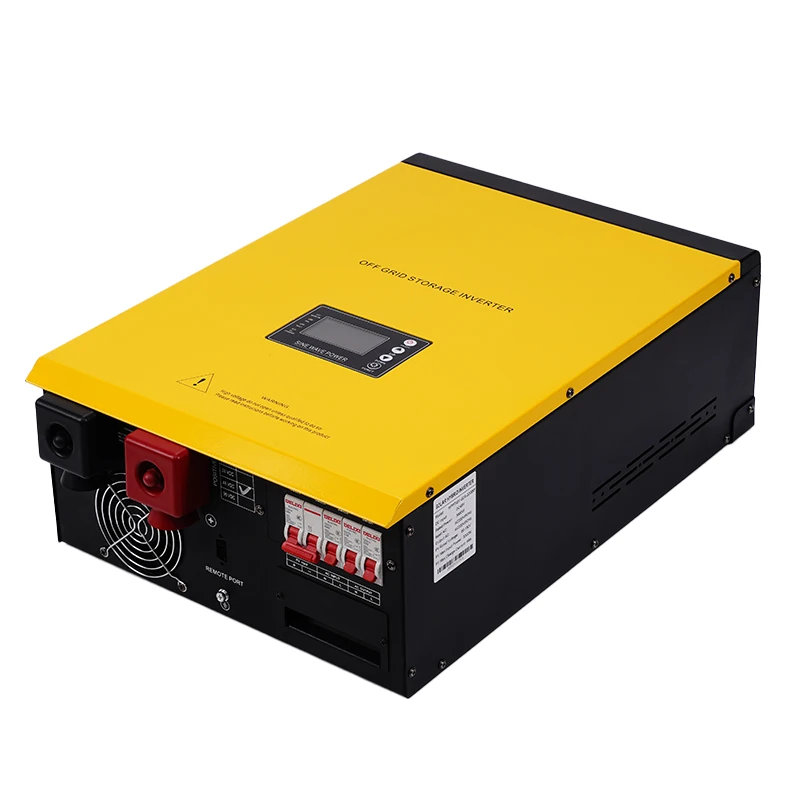

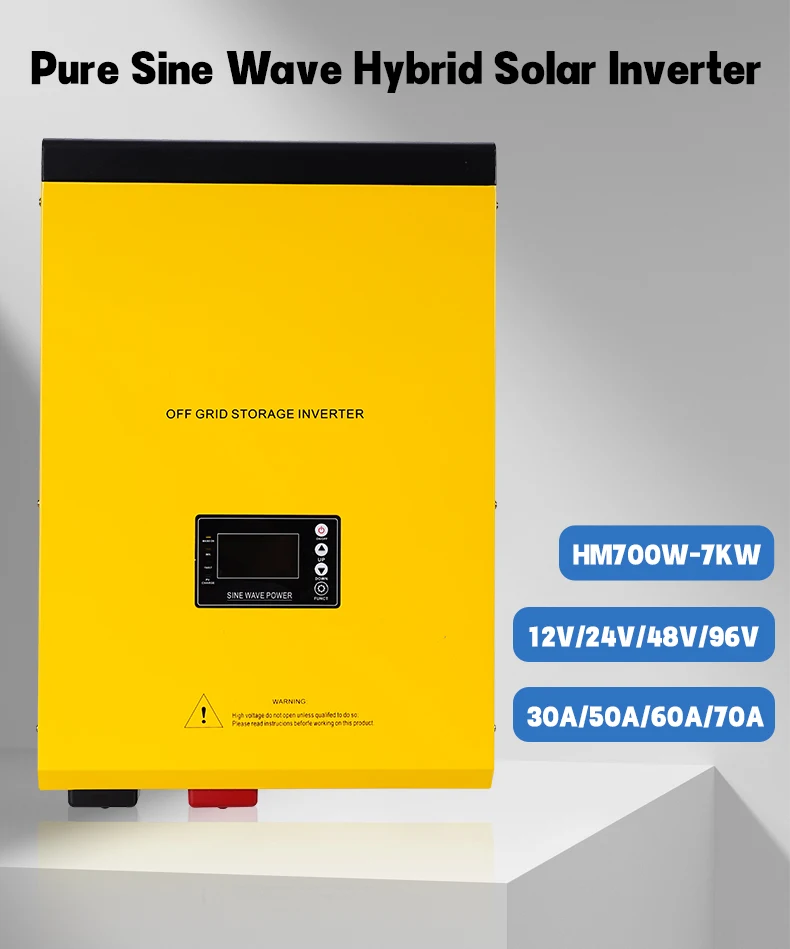

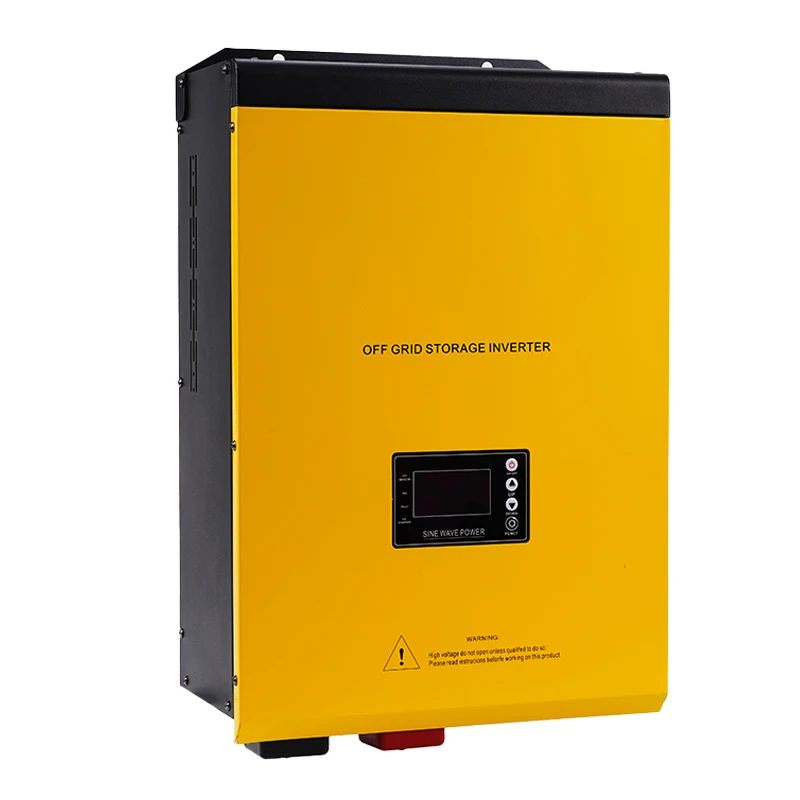

2kw 3KW 5000W Hybrid off grid Solar inverter with MPPT complete system Tororidal Transformer Hybrid Solar Power Inverter
- Category: >>>
- Supplier: Foshan Yingke Intelligent Electronic Technology Co. Ltd.
Share on (1601154104435):

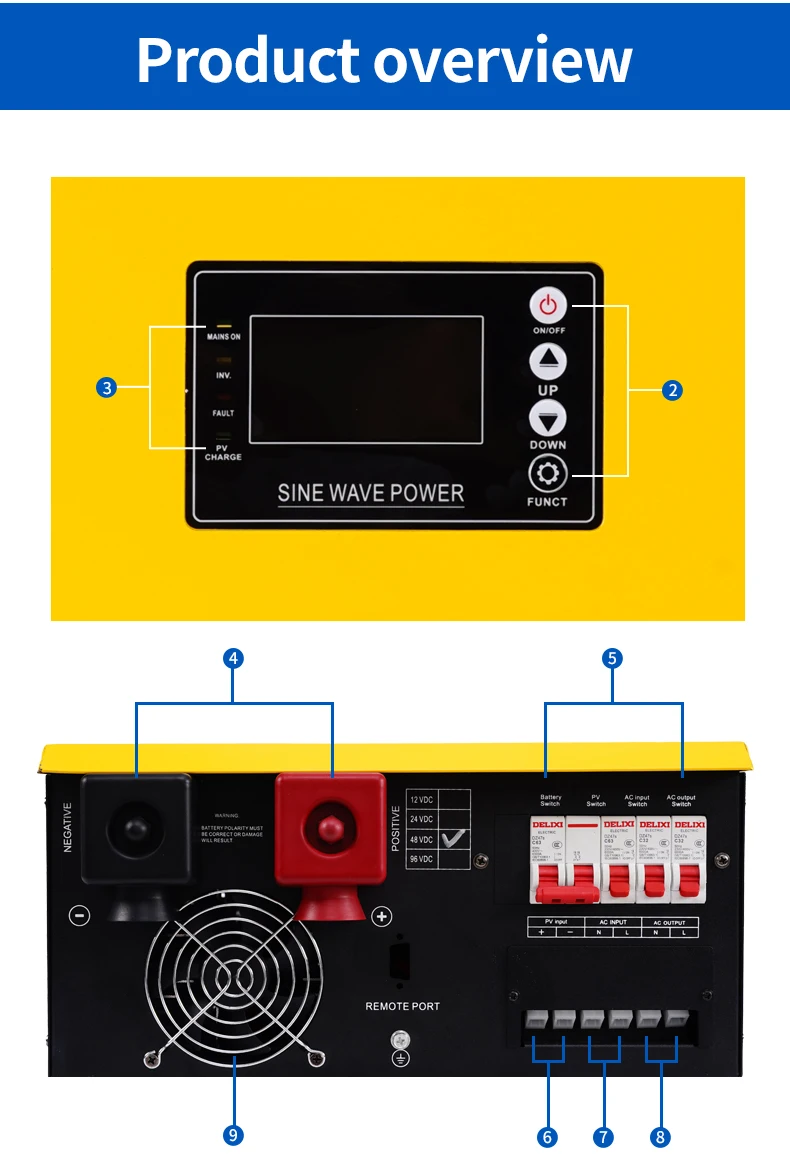

Product Overview
Description
Technical Parameter | ||||||||||
Model No. | MB-2002 | MB-3002 | MB-4002 | MB-5002 | MB-6002 | |||||
Rated Power | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
Battery | ||||||||||
Rated Voltage | 24VDC/48VDC/96VDC | |||||||||
Charge Current | 5A-30A(Adjustable) | |||||||||
Battery Type | Lead-acid, GEL, LiFeP04 | |||||||||
Input | ||||||||||
Voltage Range | 170-275VAC | |||||||||
Frequency | 45-65Hz | |||||||||
Output | ||||||||||
Voltage Range | 220VAC; ±3% ( Inverter Mode) | |||||||||
Frequency | 50/60Hz ±1% ( Inverter Mode) | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Convertion Time | <7mS (Typical Load) | |||||||||
Efficiency | >85% | |||||||||
Protection Function | Battery Overvoltage Protection, Battery Undervoltage Protection, Overload Portection, Short Circuit Protection, Overtemperature Protection etc. | |||||||||
Solar Charge Controller (optional) | ||||||||||
Input Voltage | MPPT: 18VDC~170VDC | |||||||||
PV Power | 12VDC-60A (800W), 24VDC-80A(1600W), 48VDC-60A(3200W) | |||||||||
PV charge current | 30A / 60A | |||||||||
Efficiency | >99% | |||||||||
Voltage of Boosting Charge | 12/14.2VDC; 24V/28.4VDC; 48V/56.8VDC | |||||||||
Voltage of Floating Charge | 12/13.75VDC; 24V/27.5VDC; 48V/55VDC | |||||||||
Physical Parameter | ||||||||||
Operation Temperature | -0 - +40℃ | |||||||||
Storage Ambient Temperature | -15 - +50℃ | |||||||||
Operation/Storage ambient | 10-90% No Condensation | |||||||||
Gross Weight (kg) | 20 | 25 | 30 | 32 | 36 | |||||
Product Size: D*W*H (mm) | 485*350*170 | |||||||||
Package Size: D*W*H (mm) | 620*425*262 | |||||||||
Products Specification are subjected to chang. | ||||||||||
Q1: Does your company also provide other solar products except MPPT Solar Controller?
A1: Yes, we also provide other solar products, like Pure Sine Wave Inverter, poly solar panel, off grid solar inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q2:What is our advantage ?
A2:We have professional R&D team, can customized the products you want.
Q3: How to choose a right inverter?
A3: Tell us your demand, then our sales manage will recommend a suitable inverter to you.
Q4: How about the delivery time?
A4: 3 days for sample; 5-25 days for bulk order.
Q5: What is the warranty of inverter?
A5: 2 year warranty.
Q6: How can we guarantee quality? How to solve the technical problem?
A6: Always a pre-production sample before mass production;Always final Inspection before packing.
24 hours after-service consultancy just for you and to make your problem to solve easily.
