item | value |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other |
Showroom Location | None |
Condition | New |
Type | Rotary Drilling Rig |
Power Type | Gasoline |
Place of Origin | China |
Jiangsu | |
Brand Name | XCMG |
Usage | Water Well |
Voltage | diesel engine |
Dimension(L*W*H) | 10200*3600*11250mm |
Weight | 23000KG |
Warranty | 1 Year |
Marketing Type | Hot Product 2022 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine |
Key Selling Points | Competitive Price |
Drilling Diameter | 500 |
Drilling Depth | 500m |
Mobility | Move by crawler |

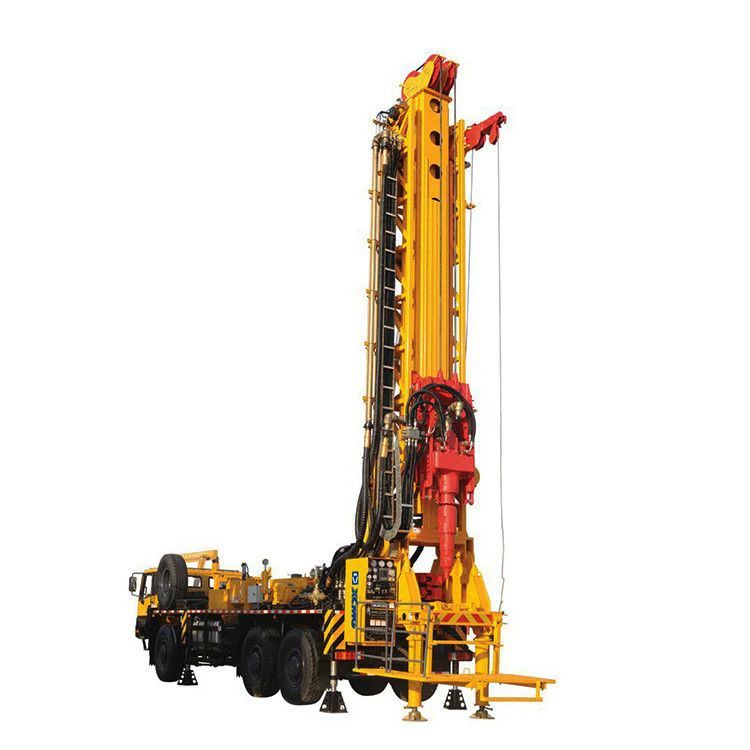

Product name | XSC5/280 |
Drilling depth | 500m |
Max. lifting force | 280kN |
Rapid lifting speed | 39m/min |
Rapid lowering speed | 57m/min |
Max. speed | 143 r/min |
Rated power | 164kW |
Passage diameter | 76mm |
Working size(LxWxH) | 10200*3600*11250mm |
Weight of the whole machine | 23t |
