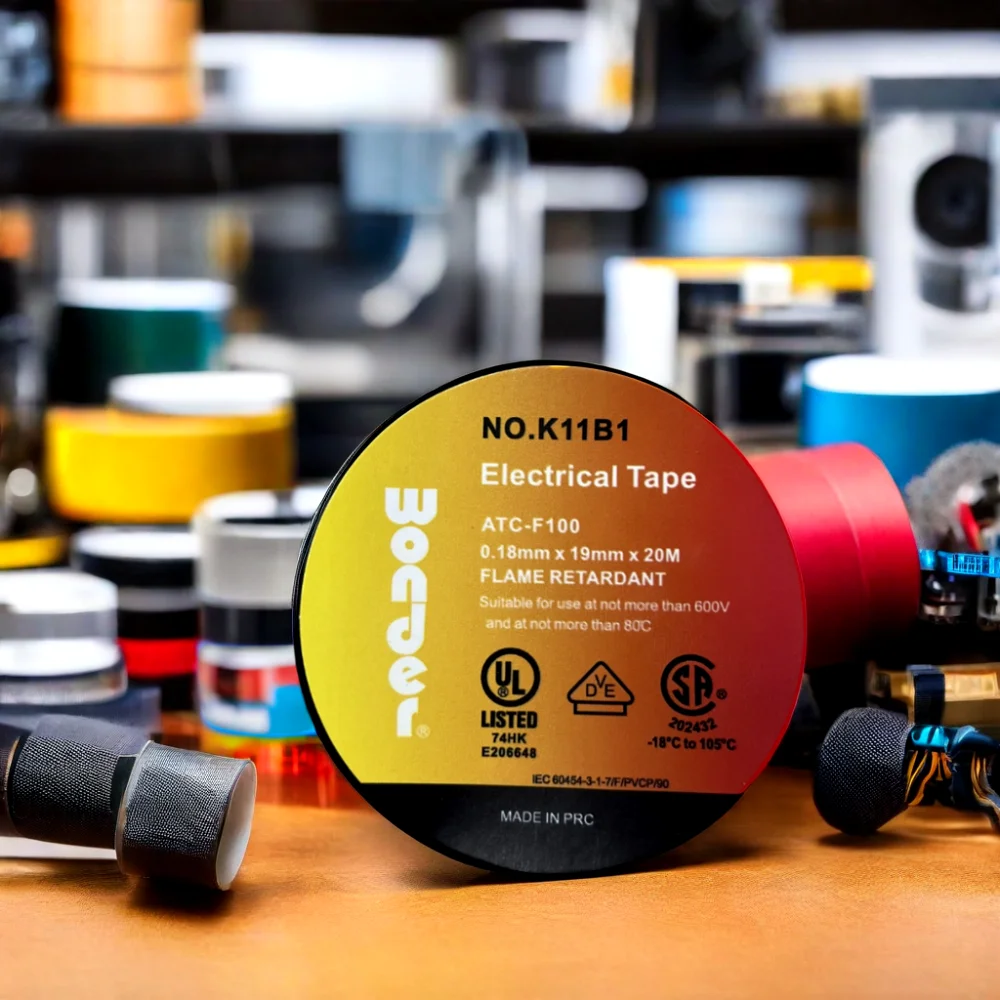

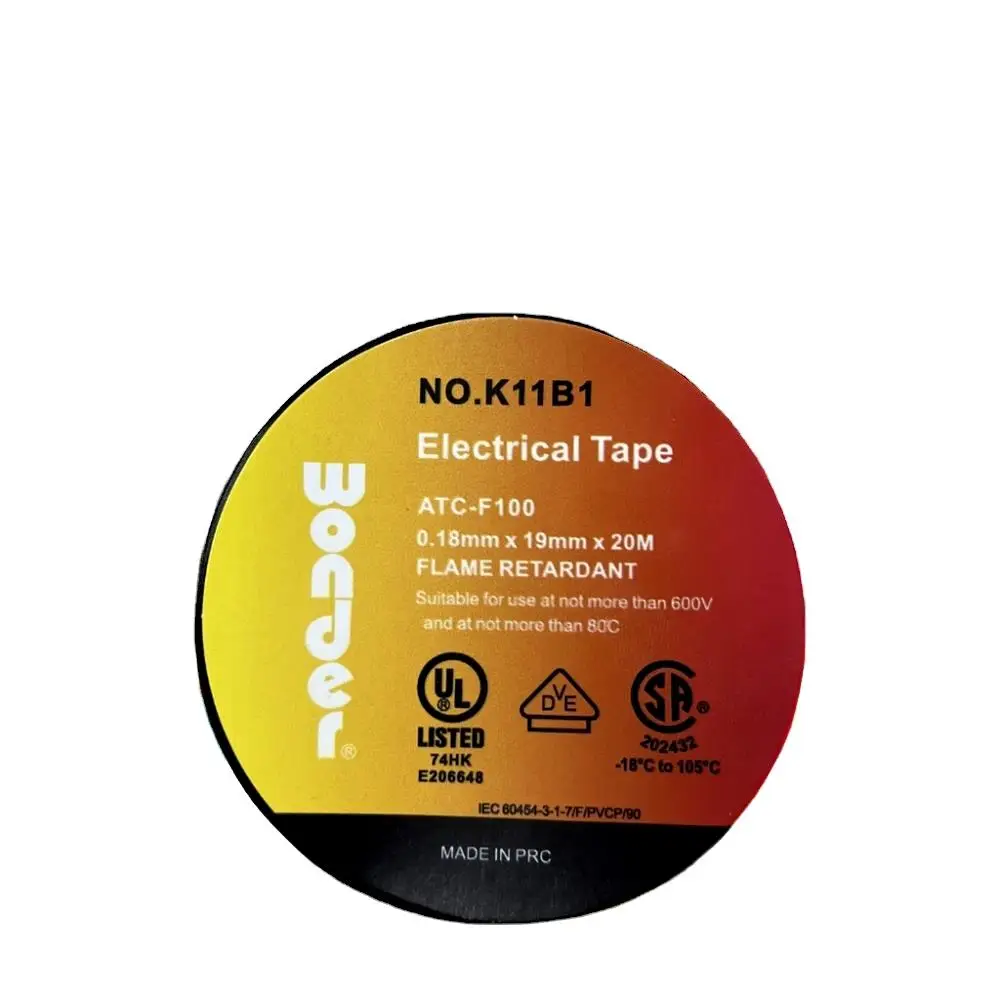

VDE Type 11 Electrical Tape Quality Tested Product Genre Insulation Materials Elements

Product Overview

Description

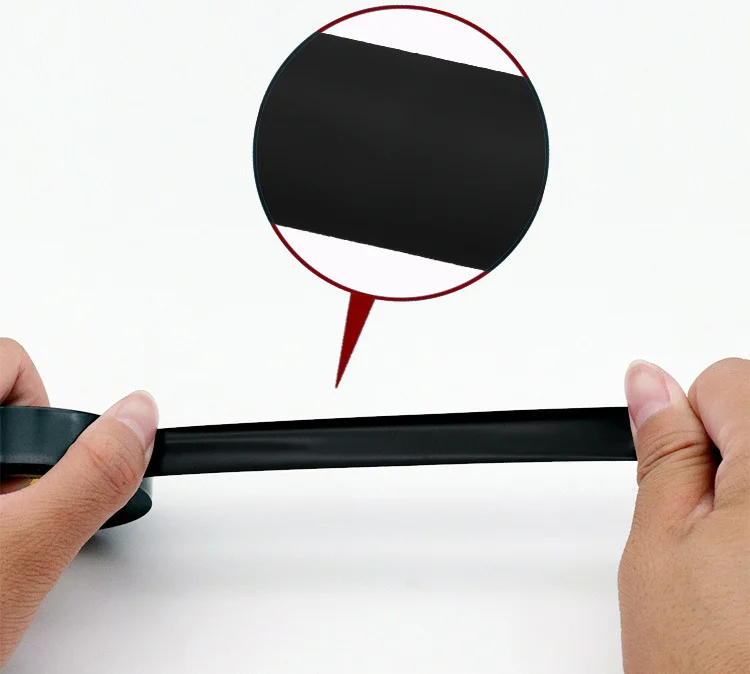

Product Features
Place of Origin	Guangdong, China
Material	PVC
Model Number	K11B1
Rated Voltage	40 KV/mm
BASE	RUBBER
Brand Name	OEM
ITEM	safety pvc insulation tapes
Type	Insulation Tape
COLOR	RED,YELLOW,GREEN,BLUE ,WHITE,BLACK , BROWN AND SO ON
Application	High Voltage
THICKNESS	7mil (0.180mm)
HIGH TEMPERATURE	18~105°C

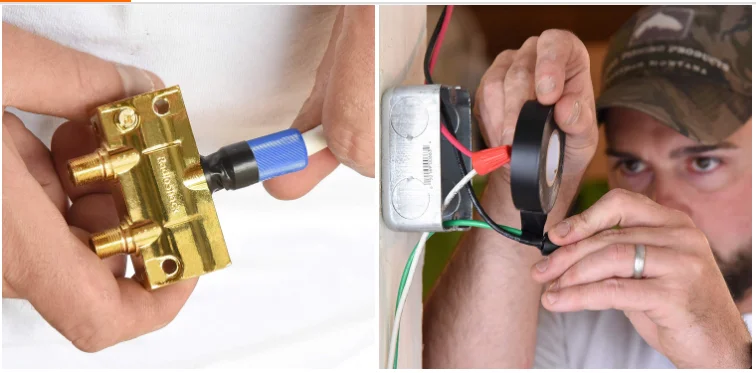

Applications:

Used for electrically insulate joints and splices in wires and cables, especially for protecting indoor and outdoor jacket over splices at wide range of temperatures.

Tech data sheet:

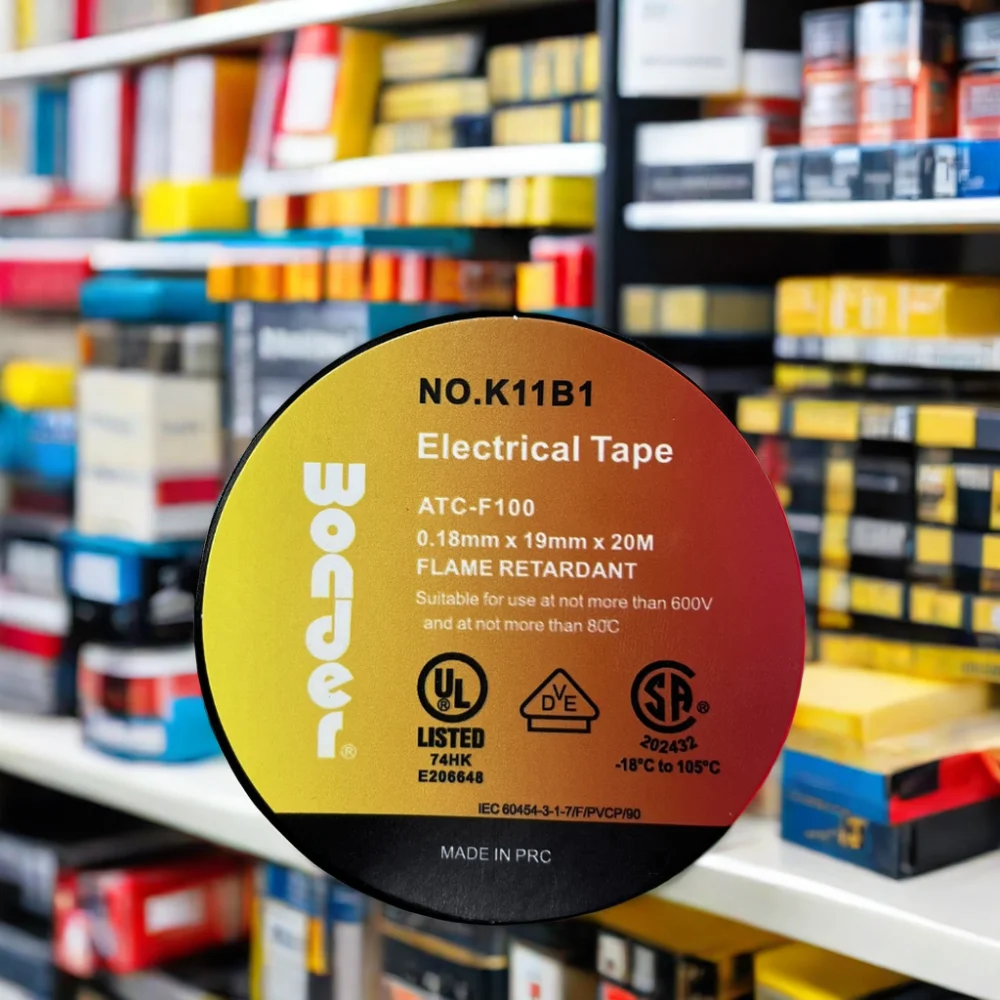

Item No.	K11B1
Thickness	7mil (0.180mm)
Material	PVC
Adhesion to Steel	16 oz./in. (1.8 N/10mm)

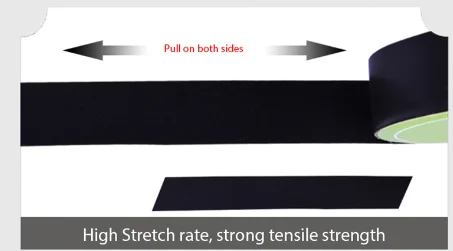

Tensile Strength (N/10mm)	17 lbs./in. (29.4N/10mm)
Elongation (%)	200
Dielectric Strength	40 KV/mm
Temperature Rating	VDE -18~90°C

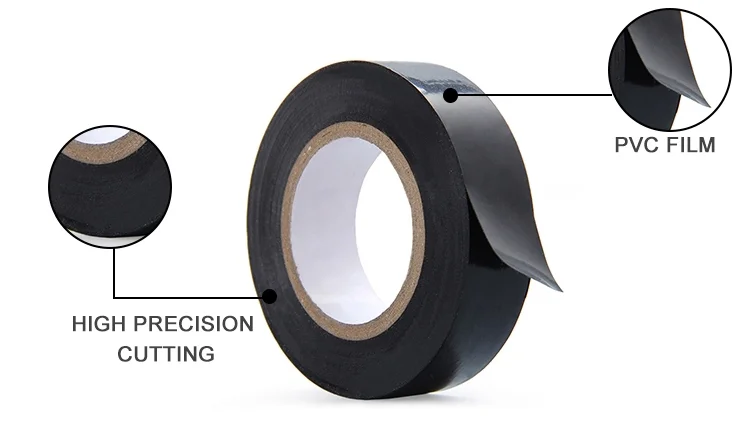

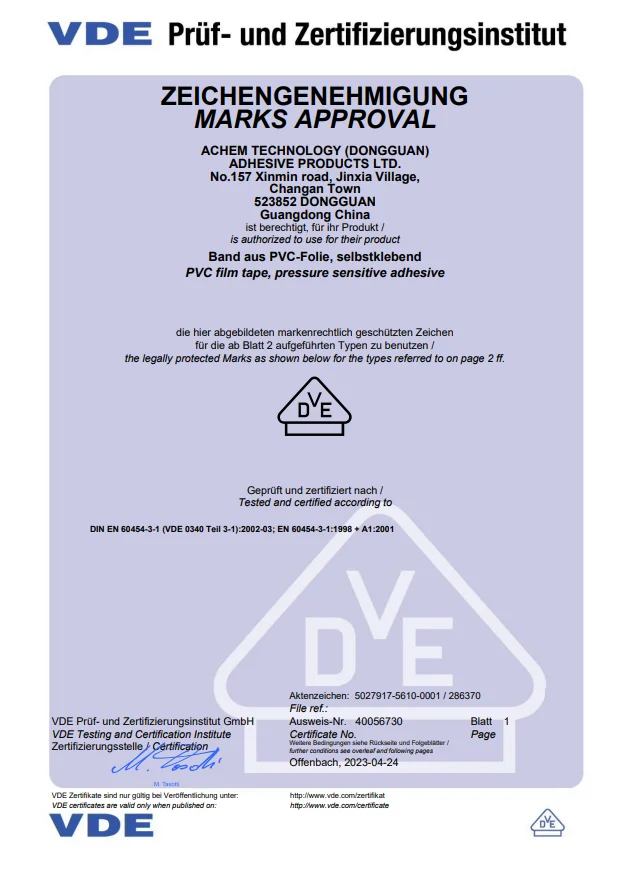

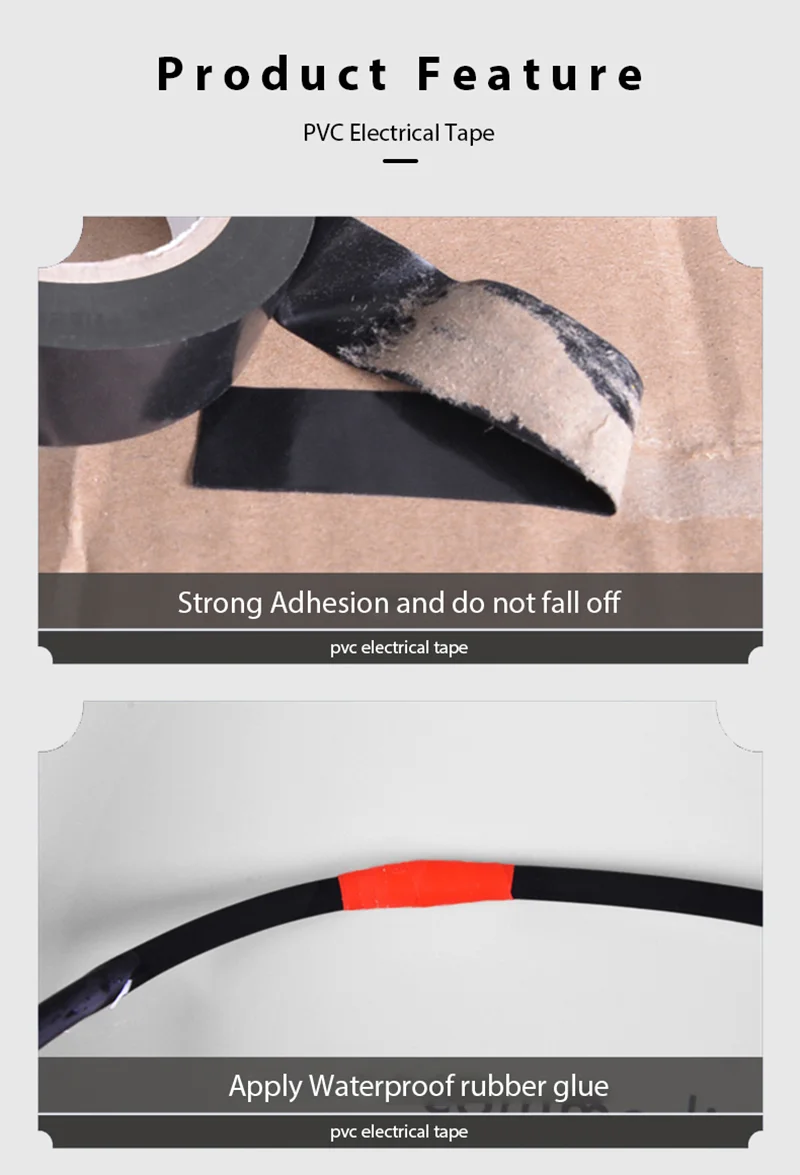

Feature	Very soft PVC film coated with rubber-based adhesive on one side. All weather resistance tape with excellent conformability, high voltage resistance, high adhesion and elongation. RoHS 2011/65/EU (2015/863/EU) compliant. UL510 listed. CSA Certified: CSA C22.2 No. 197:M83 PVC Insulating Tape (R2018). VDE Certified: IEC 60454-3-1-7/F-PVCP/90

COMPANY PROFILE

ACHEM is thefirst PVC tape producer in Taiwanand known internationally as the leading manufacturer in the world."Quality first, customer first and credit-based"are our management principles . To maintain stability of quality, ACHEM subjects itself to the highest of quality control. Starting from the initial raw material inspection to the final packing and loading, each step is scrutinized with the utmost zealous attitude, never dismisses any minor procedure.

MARKET and CERTIFICATIONS

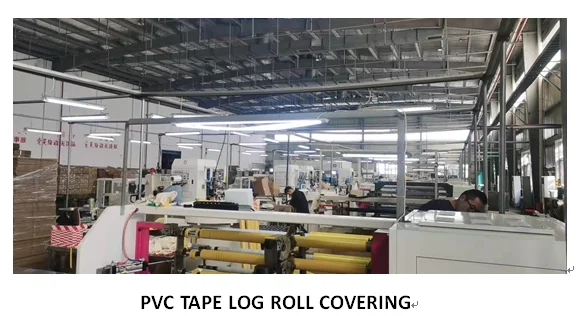

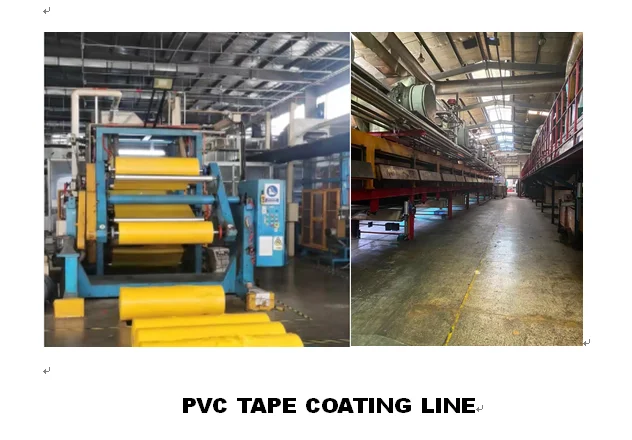

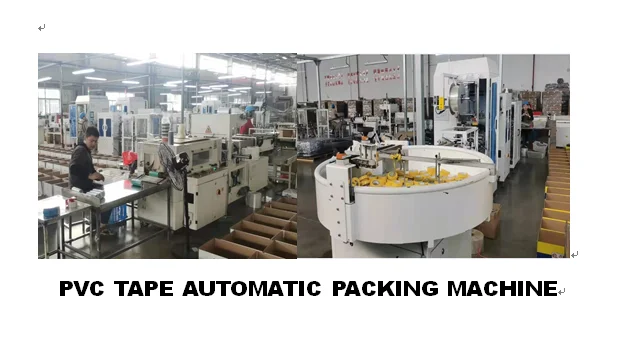

With a yearly production capacity of7.6 Millons square metersof tape, rely on a strong production capacity and advanced management system, we have a certain market share both in China and abroad. There are advanced equipment in ourmanufacturing facility, including:6coating lines, 12 slitting machines and 5 automatic packaging machines etc,. At present, we have sold our products more than80 countries and regionsacross the world:Southeast asia countries, North & South America, the European Union, Australia, the Middle Eastand other regions. In the past 20 years, with its high quality products, competitive price, timely delivery, and thoughtful service, we have made outstanding achievements in various.

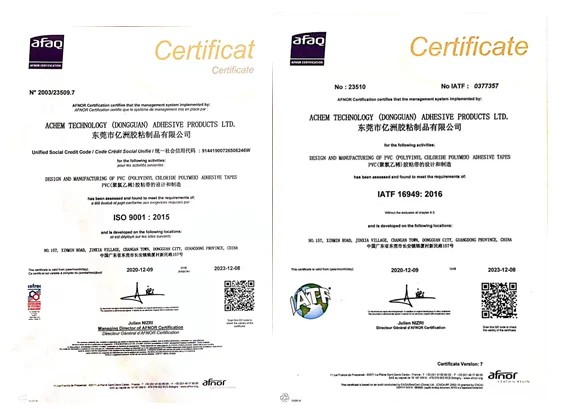

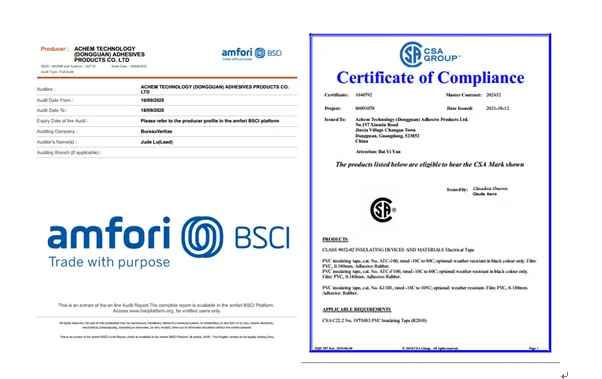

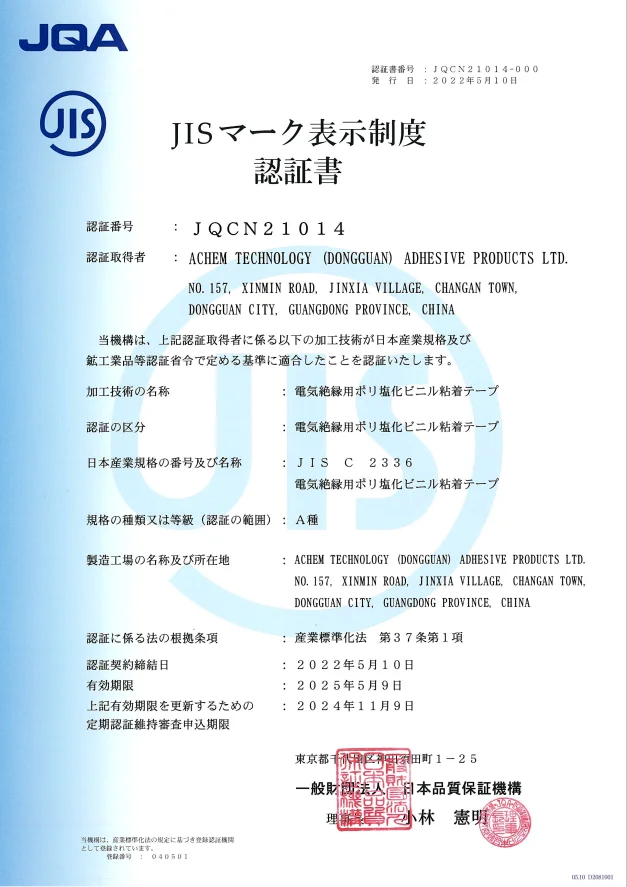

With the strong technical force, excellent manufacturing equipment, complete testing means and perfect quality assurance system. We have passed theISO9001quality system certification,RoHSenvironmental management system certification,JIScertification,IATF-16949,SGSandBSCIcertification etc,.

GLOBAL PARTNERS AND AWARDS

FAQ

1. What are our product categories?

Our factory always focuses on producing PVC electrical tape, PVC floor marking tape, PVC industial tape .PVC protection tape .

2.Can you send samples to us for checking?

Yes, if you are interested, we would like to send free samples for your checking, as well as our catalogues for your reference.

3.Can we custom our logo and print on the tape and package?

Yes, we can do your logo printed on the paper core and package, but we need you to send your design in AI files to us.

4. How long is the delivery time, can deliver in time?

The delivery time is 30-45 days after receiving the deposit.

5. How can we help you to enlarge your market?

Well-trained sales team offer best and careful services before and after sales

Firstly, we really rely on our RDteam for innovation. So every once a while, we will try to promote some new products to meet the market.We also maintain skill exchanges and cooperative relationships with

many research institutes domestically and internationally. So in a short time, it's great to let you be the trends setter and strive for best profit.
