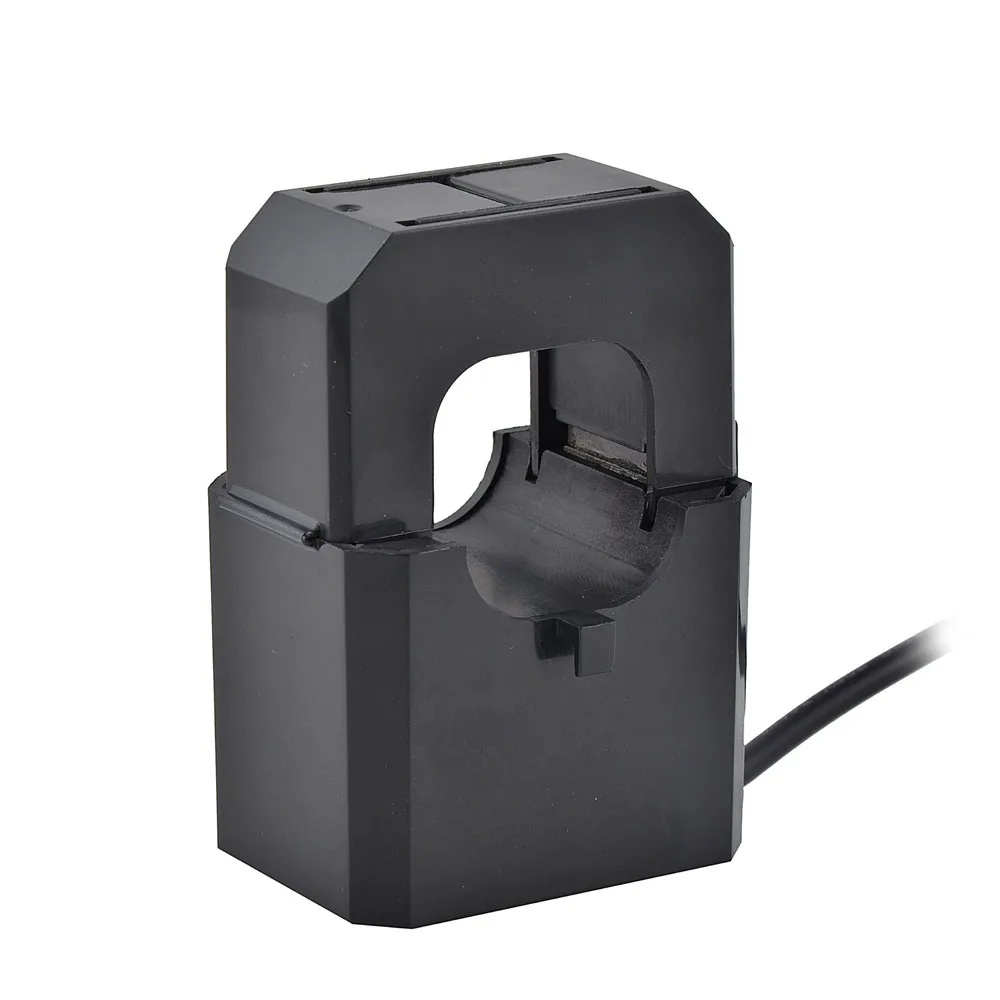

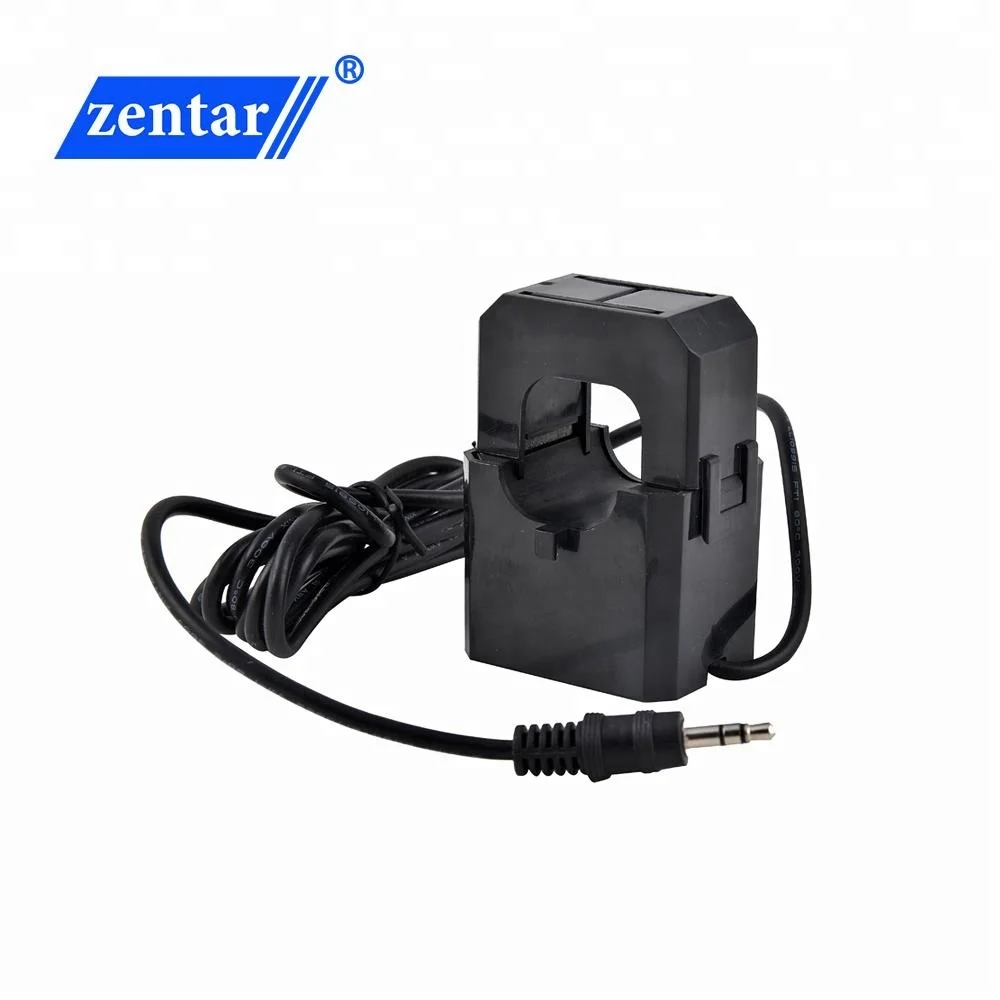

Zentar 100A 150A 200A Split Core Current Transformer CT302 AC current sensor 24mm hole size

Product Overview

Description



PRODUCT NAME:Zentar CT302 Split Core Current Transformer

Part Number:CT302

Rated current:100A 50Hz;

Rated turn ratio:2000 TS

Max current: 240A 50Hz

Rated load resistor: 50Ω

DCR :180±10%Ω

Inductance≥15H (@50Hz,1V)

Max error(1.2A-75A range)

Linearity error:1%

Electrical Strength:3000VAC 1mA60s



APPLICATIONS

for AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection.



Features:

Easy installation without removing existing cables

ETL listing and CE approved

RoHs compliant







100pcs in one inner box



two inner boxes in one carton



carton size 420*235*26mm



G.W is about 14kg
