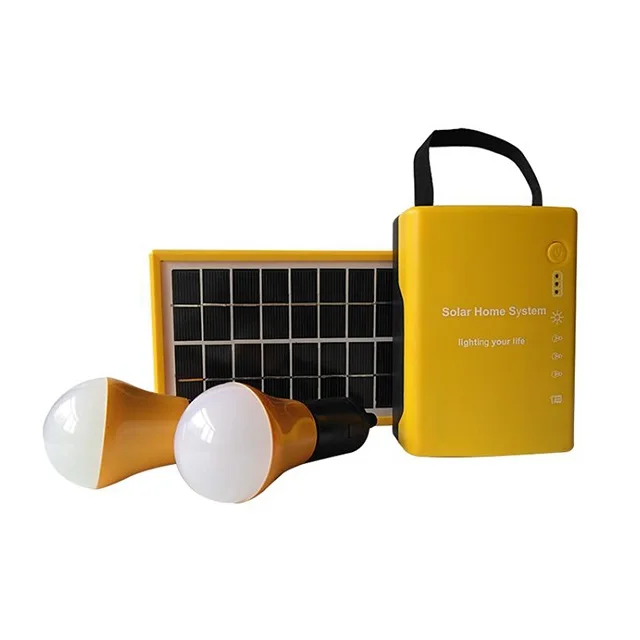

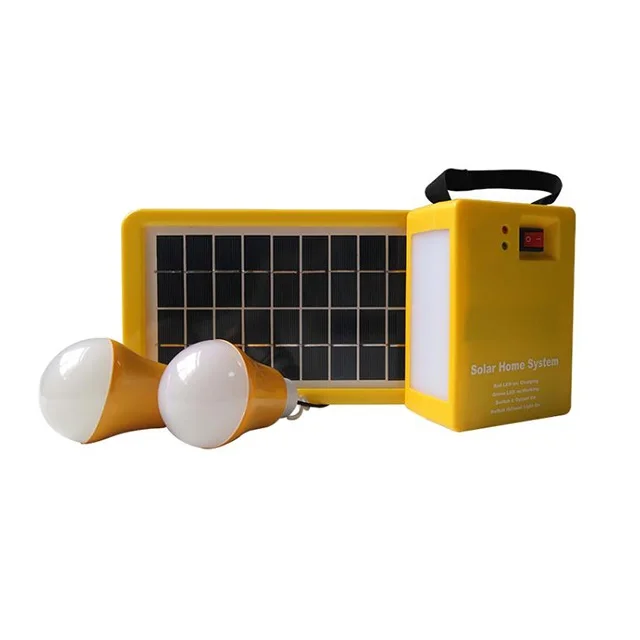

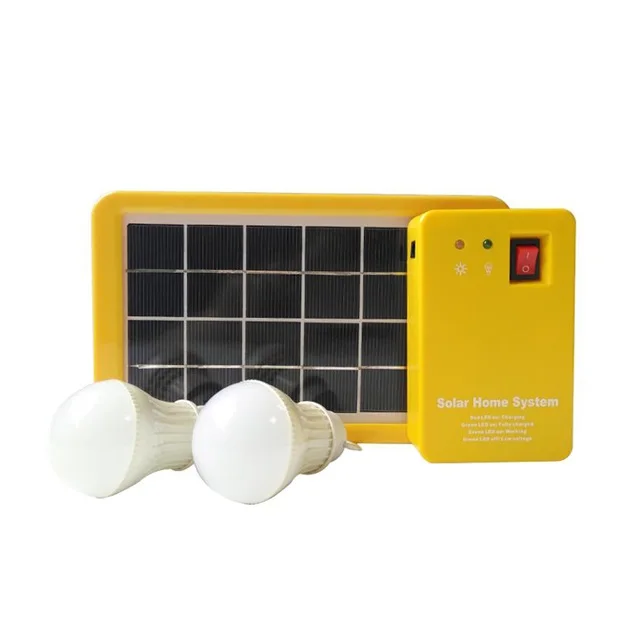

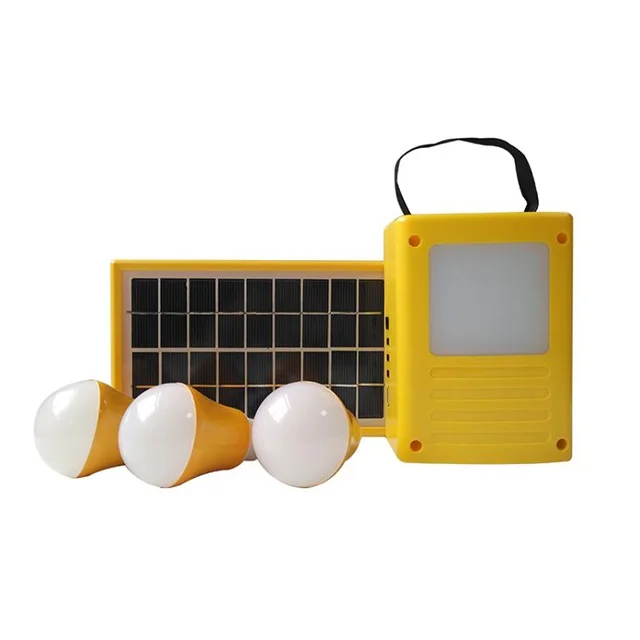

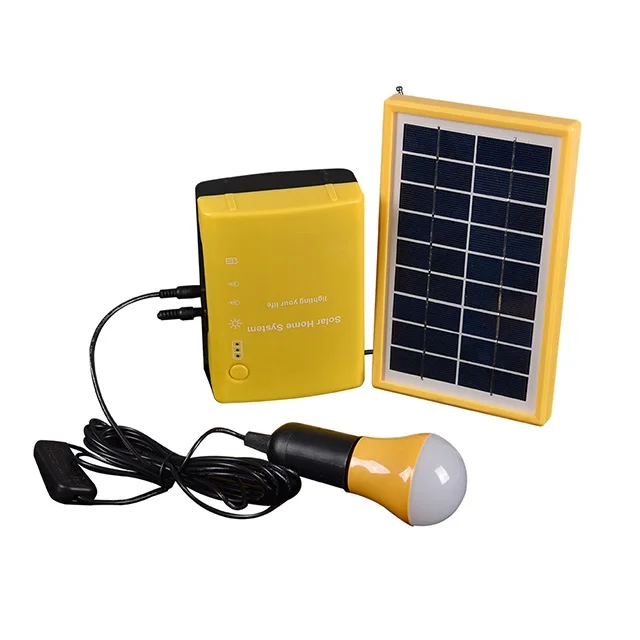

ESG Outdoor Lighting System Mini Solar Generator With DC Led Bulbs 3W 7w 10w portable Solar System
- Category: >>>
- Supplier: Guangzhou Henda Power Co. Ltd.
Share on (1601154190129):
Product Overview
Description
Why choose us?
Why choose us?
Why choose us?
Application
Solar panel parameters
| Model | 490PM5 -72SB | 500PM5 -72SB | 510PM5 -72SB | 520PM5 -72SB | 530PM5 -72SB | 540PM5 -72SB |
| Max Power(Pmax) [W] | 490 | 500 | 510 | 520 | 530 | 540 |
| Open Circuit Voltage(Voc) [V] | 46.4 | 46.5 | 46.6 | 46.6 | 46.7 | 46.8 |
| Short Circuit Current(lsc) [A] | 13.04 | 13.1 | 13.16 | 13.22 | 13.28 | 13.4 |
| Max Power Voltage(Vmp) [V] | 38.6 | 38.7 | 38.8 | 38.8 | 38.9 | 39 |
| Max Power Current(lmp) [A] | 12.18 | 12.27 | 12.37 | 12.5 | 12.6 | 12.82 |
| Module Efficiency [%] | 20.1 | 20.3 | 20.5 | 20.7 | 20.9 | 21.3 |
| Power Tolerance | 0-5W | |||||
| Max System Voltage | 1000V/1500V/DC(IEC) | |||||
| Max Series Fuse Rating | 20A | |||||
| Operating Temperature | -40℃ to + 85℃ | |||||
| STC | Irradiance 1000W/m2, cell temperature 25℃, AM1.5 | |||||
Inverter parameters
| Model | ESHYVM-3000 | ESHYVM-5000 |
| RATEDPOWER | 3000VA / 3000W | 5000VA / 5000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC 5% | |
| Surge Power | 6000VA | 10000VA |
| Efficiency (Peak) | 90%~93% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 63 VDC |
Lithium battery parameters
| NO | Iten | Specification | |
| 1 | Total power consumption | 4. 8KWH | |
| Model | 48V100Ah | ||
| 2 | Rated Capacity | Min. :100Ah | |
| Typical:100Ah | |||
| 3 | Internal Impedance | W 150mohm | |
| 4 | Nominal Voltage | 48V | |
| 5 | Charging Voltage | 54V | |
| 6 | Charging Method | CC&CV | |
| Standard Charging Process | 0. 2C (CC) charge to 54V, when 54V(CV)is reached, charge rate will reduce to 0.02C (A) for ful1 charge | ||
| 7 | Discharging Method | Constant current discharge | |
| 8 | Standard Discharge method | Cells should be discharged at a constant current of 0. 2C to 42V at 20° C ±5° C | |
| 9 | Standai'd discharge Capacity | miOOAh | |
| 10 | Max. Continuous Discharge Current | 100A | |
| 11 | Discharge Cut-Off Voltage | 42V | |
| 12 | Battery Weight | W45KG | |
| 13 | Battery Cycle Life | 11800 Cycles (83t DO) diatei'ge) | |
| 14 | Operating Temperature | Dischai'ge | -20° C to 55° C |
| Charge | 0° C to 45° C | ||
| Storage | 10° C to 30° C | ||
| 15 | Storage temperature | Within 1 month | - 5. C ~ +45° C |
CE

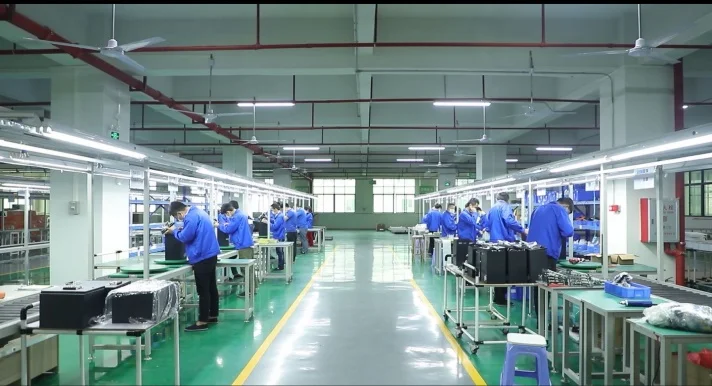

Factory
