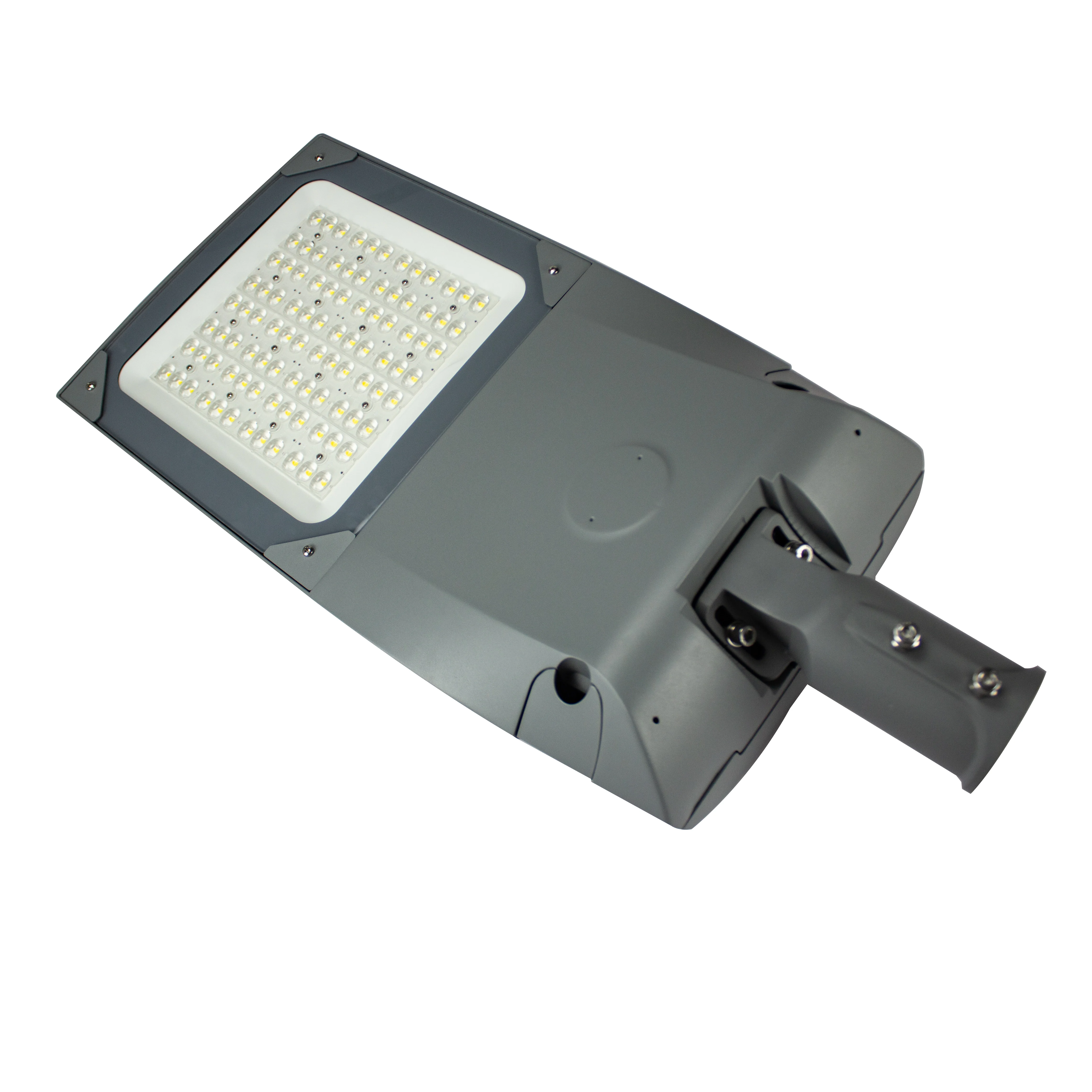

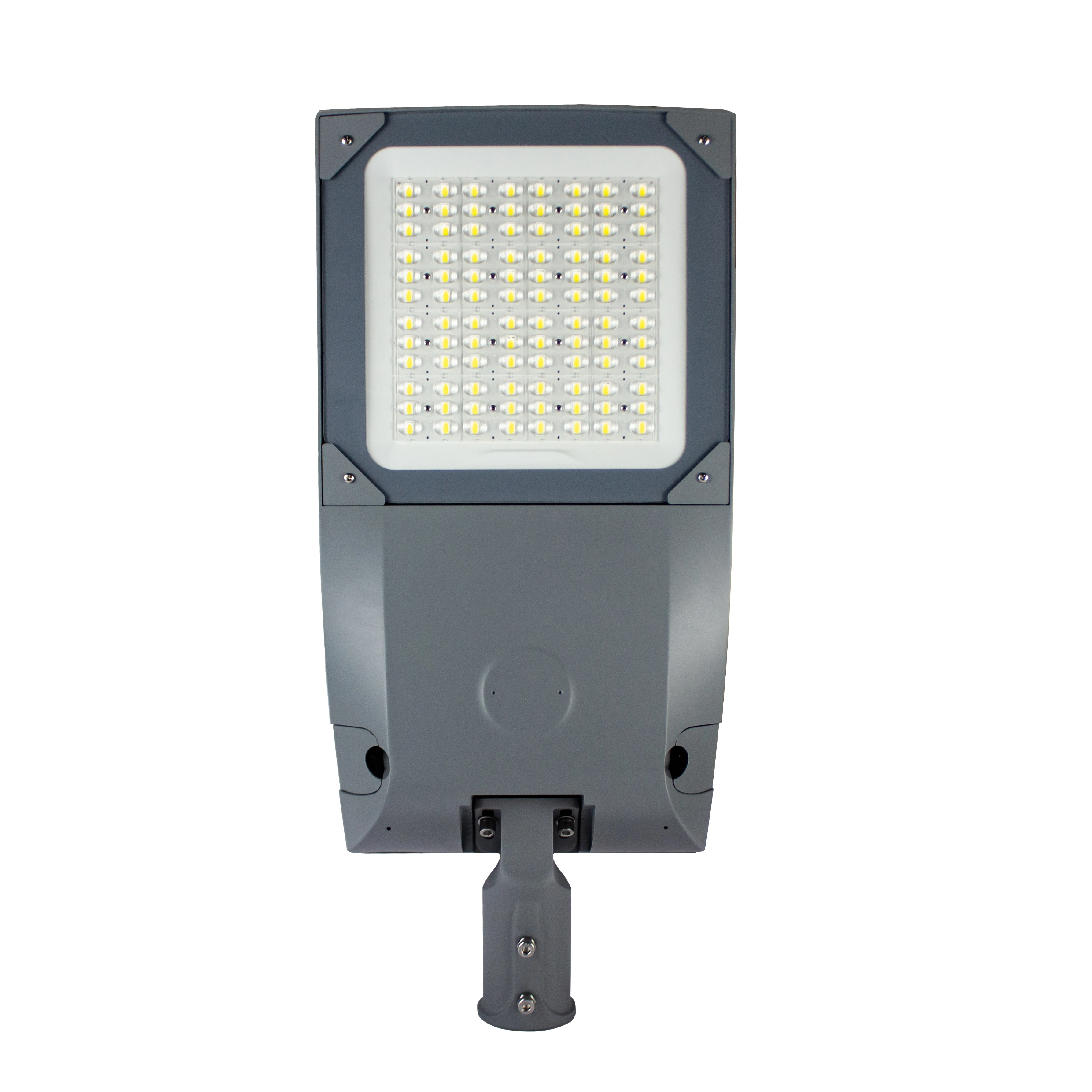

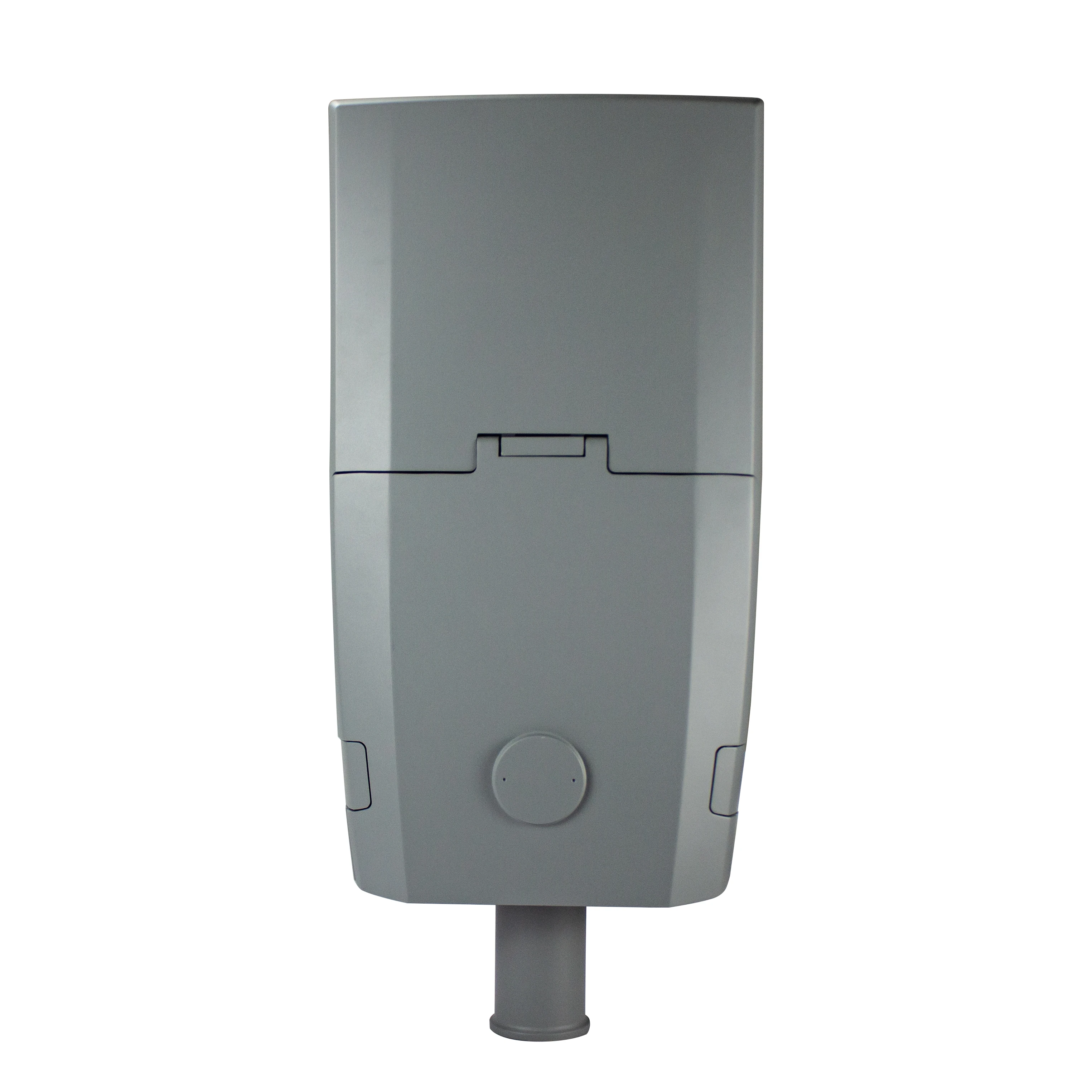

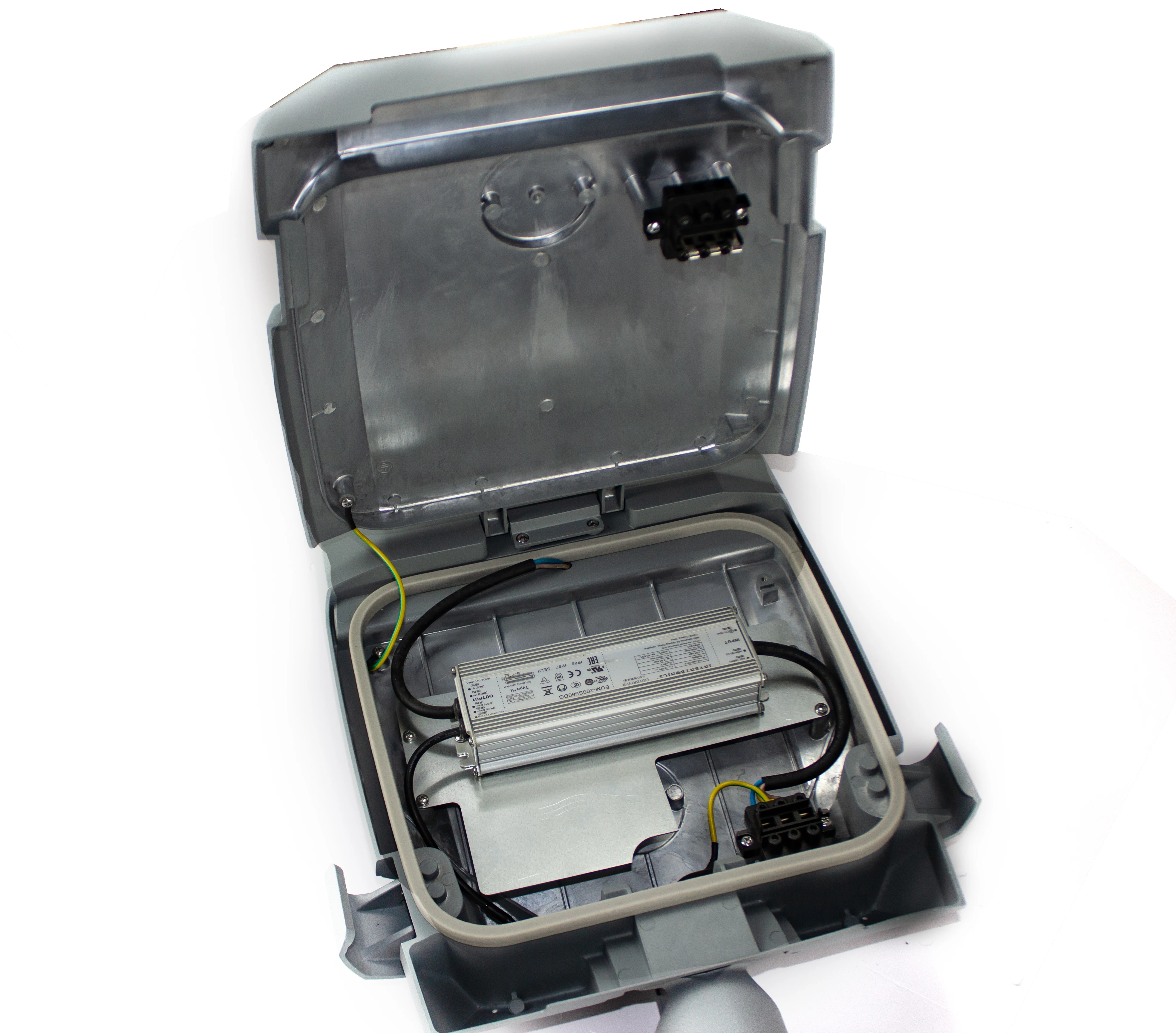

JYL08L 150W High Quality OEM LED Street Lights for Road Projects with Done Mal dimming driver
- Category: >>>
- Supplier: Zhejiang Jinyuan Optoelectronics Co. Ltd.
Share on (1601154221028):
Product Overview
Description
*JYL08 Series is our new generation of light, designed with high light efficiency leds and low light decay, combined with the latest management and smart lighting control system.
*JYL08 Series Street Light can be equipped with 0-10V, 1-10V, DALI, DALI2 D4i LED driver, perfect work with 3PIN, 5PIN or 7PIN NEMA socket and ZHAGA socket to fit the ZIGBEE, LORA or Motion/PIR to achieve remote smart control by software or App in future.
*Full range from 10W-200W with 4 sizes design. It is a great solution for roadway, residential areas, pedestrian walkways, large logistical centers and parking lots.
150W led street light; 3000-6000K IP66
96pcs 5050SMD |
Product features:
♦ Patented technology, integrated structure design
♦ Excellent thermal conductivity and large heat exchange
♦ Using 5050 EMC bracket with high thermal conductivity

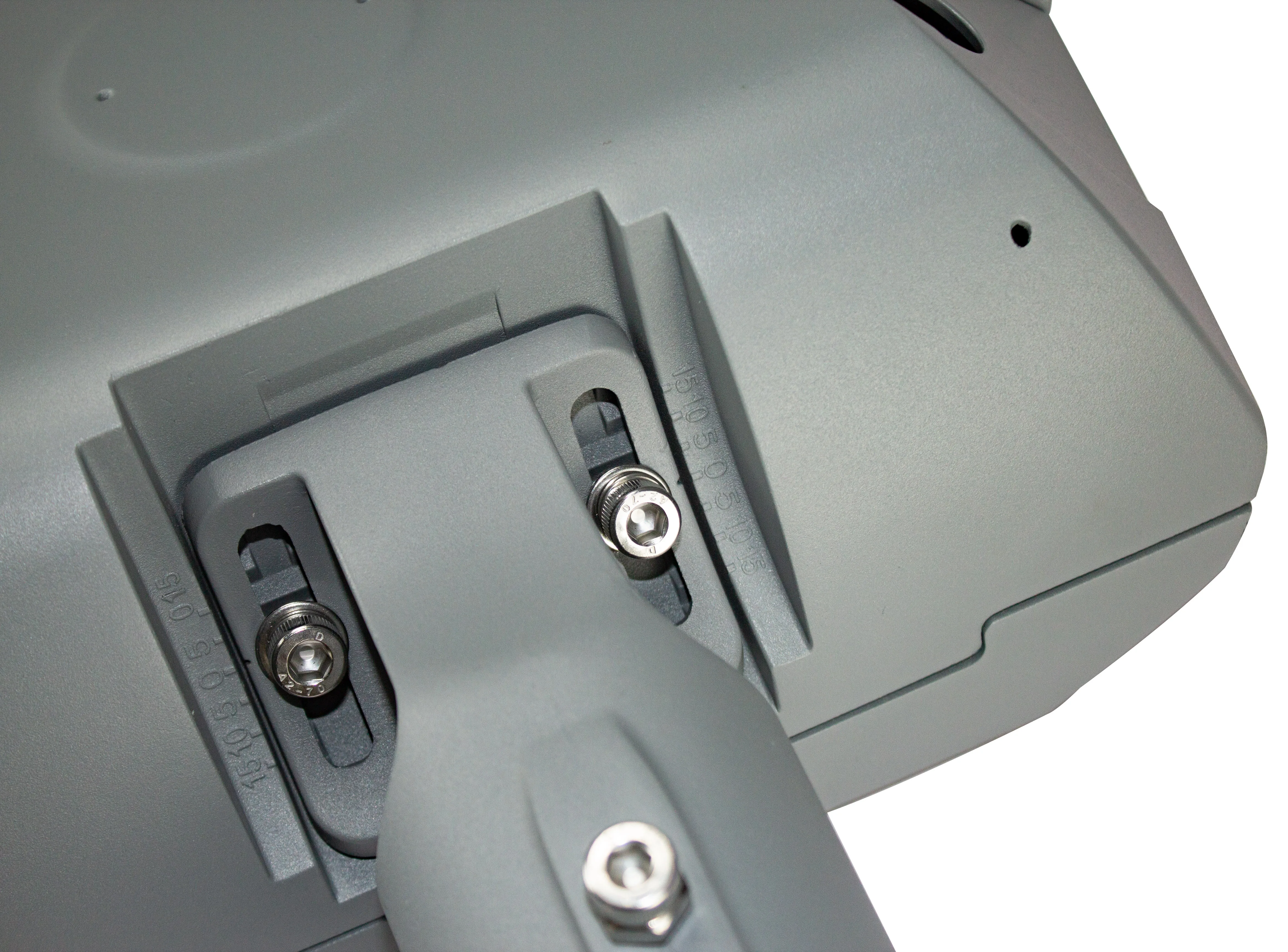

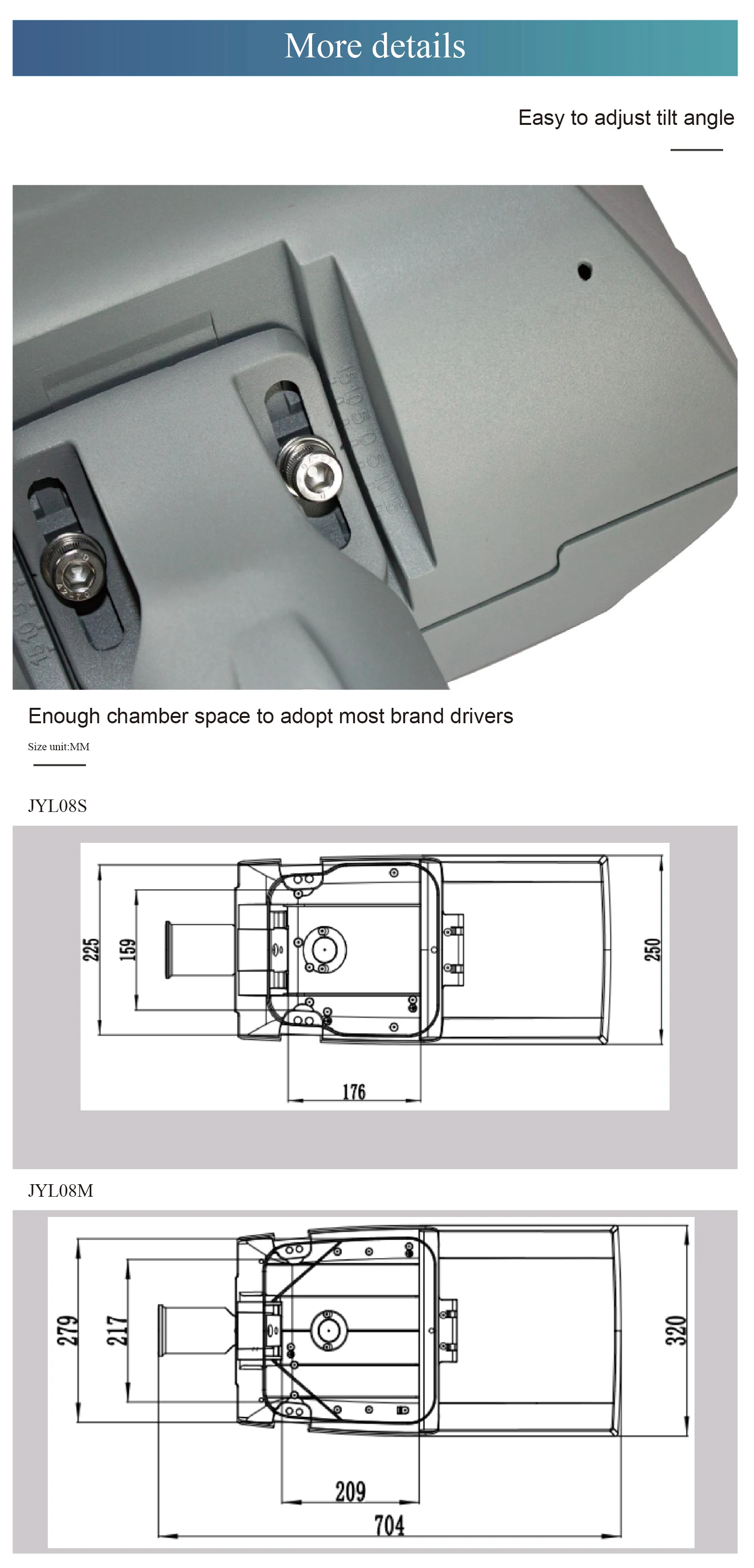

♦ Vertical or horizontal installation ,-15° to +15° angle adjustable
♦ Human efficacy light distribution
| Model | JYL08-60 | JYL08-80 | JYL08-100 | JYL08-120 |
| Power | 60W | 80W | 100W | 120W |
| Ligth efficiency | 140-190Lm/W | 140-190Lm/W | 140-180Lm/W | 140-180Lm/W |
| Total flux | 8400-11400lm | 11200-15200lm | 14000-18000lm | 16800-21600lm |
| CCT | 2700K /3000K / 4000K / 5000K / 5700K / 6500K | |||
| CRI | ≥Ra70 | |||
| LED chips | 5050 | |||
| Beam angle | 150*90°/150*70° | |||
| IP | IP66 | |||
| Voltage | AC100-277V,50/60HZ | |||
| Work environment | -30℃~45℃,10%~90% RH | |||
| Driver efficiency | ≥88% | |||
| PF | ≥0.95 | |||
| LED life | >100000H | |||
| Housing material | Die casting aluminum | |||
| Pipe diameter | 60mm | |||
| Lamp size(mm) | 589*250*117 | |||
| Packing size(mm) | 605*290*180 | |||
| Net weight(kg) | 4 | |||
| Gross weight(kg) | 4.6 | |||

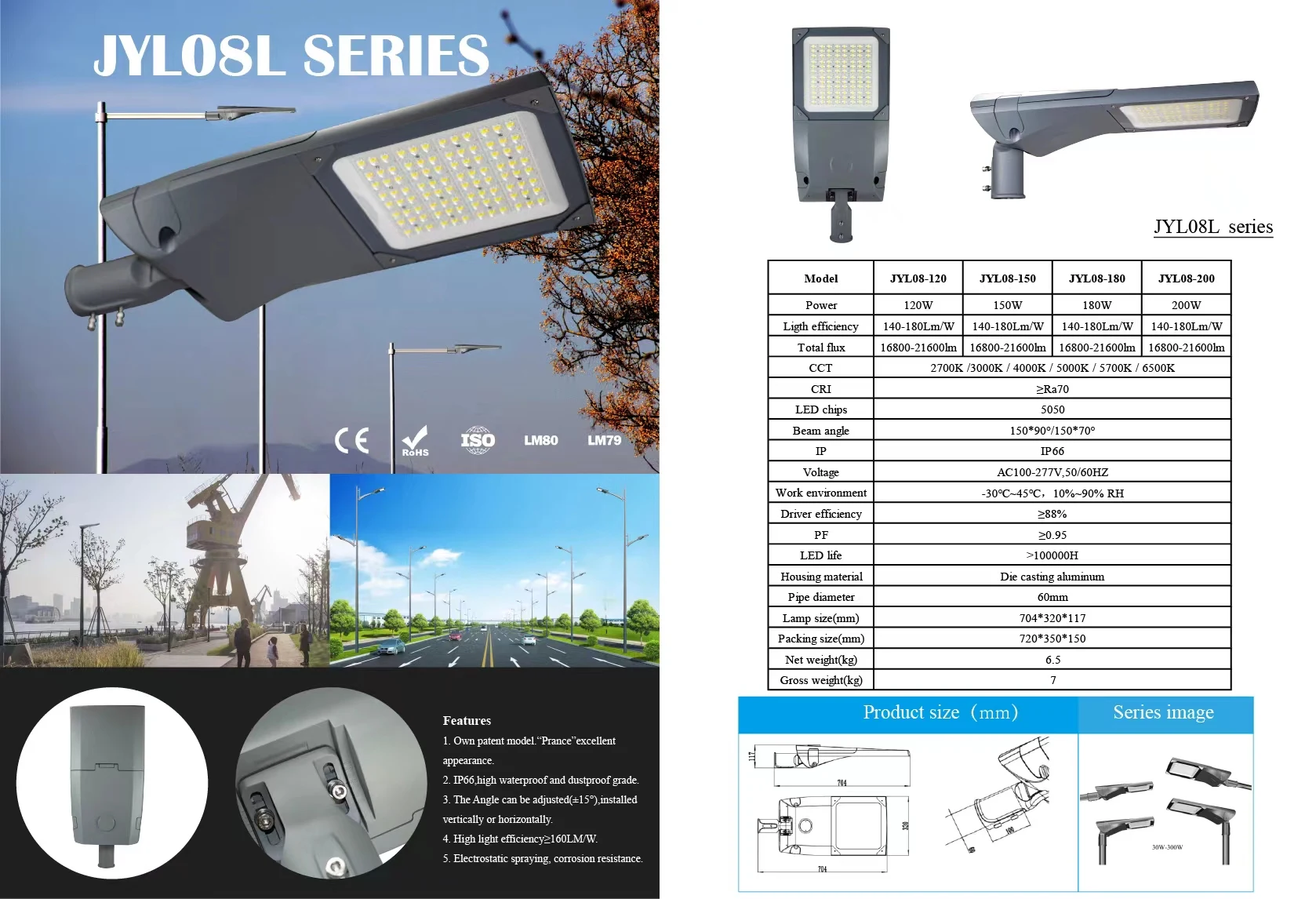

| Model | JYL08-120 | JYL08-150 | JYL08-180 | JYL08-200 |
| Power | 120W | 150W | 180W | 200W |
| Ligth efficiency | 140-180Lm/W | 140-180Lm/W | 140-180Lm/W | 140-180Lm/W |
| Total flux | 16800-21600lm | 16800-21600lm | 16800-21600lm | 16800-21600lm |
| CCT | 2700K /3000K / 4000K / 5000K / 5700K / 6500K | |||
| CRI | ≥Ra70 | |||
| LED chips | 5050 | |||
| Beam angle | 150*90°/150*70° | |||
| IP | IP66 | |||
| Voltage | AC100-277V,50/60HZ | |||
| Work environment | -30℃~45℃,10%~90% RH | |||
| Driver efficiency | ≥88% | |||
| PF | ≥0.95 | |||
| LED life | >100000H | |||
| Housing material | Die casting aluminum | |||
| Pipe diameter | 60mm | |||
| Lamp size(mm) | 704*320*117 | |||
| Packing size(mm) | 720*350*150 | |||
| Net weight(kg) | 6.5 | |||
| Gross weight(kg) | 7 | |||
We welcome you to purchase our superior line of led outdoor streetlights, flood lights, LED modules,path lights, wall washer lights, garden lights which are all crafted for professional results.
Pls contact us directly for OEM/ODM business of lighting.
