Gas generation equipment wood gas generator biomass burner pellet stove syngas gasifier for generate electricity from husk
- Category: >>>
- Supplier: Qingdao Kexin New Energy Technology Co. Ltd.
Share on (1601154288965):
Product Overview
Description
Equipment display

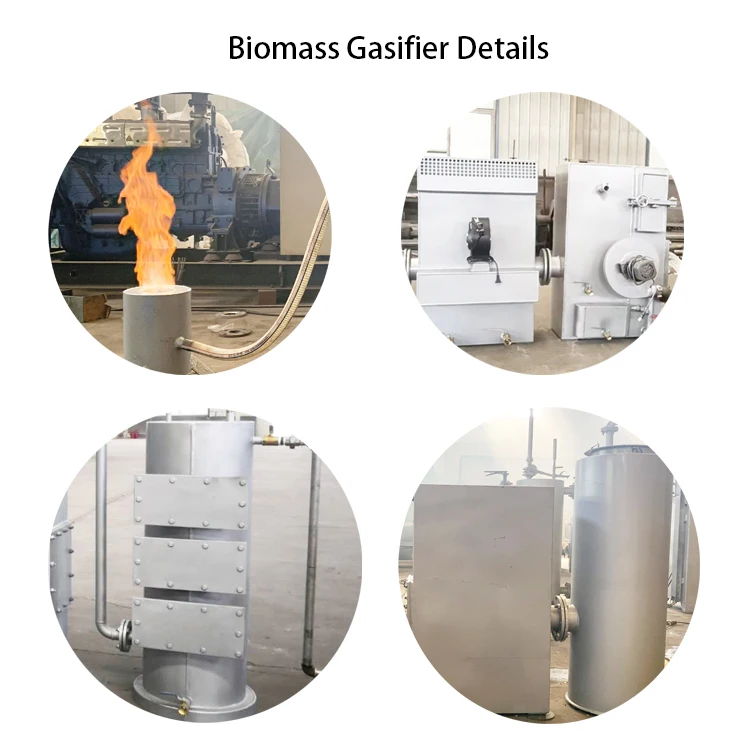

Small biomass gasifier
Equipment introduction
Biomass gasifier is a technology that converts all kinds of low calorific value solid biomass energy resources (such as agricultural and forestry waste, crop straw, domestic organic waste, edible fungi residue, livestock manure, and all combustible substances) into Biomass gas, Electric power Biomass carbon, Biomass oil, Wood vinegar, through gasification.

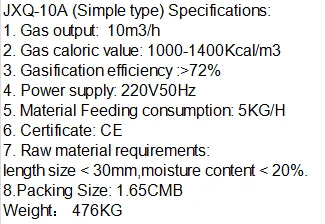

JXQ-10A Gasifier, Which is characterized by small volume, low cost and simple installation. Use it Cooking/heating/generating from waste biomass for home energy supply.
Our products have passed the CE certification. Our products are very popular in Europe. Like Germany, Italy, Norway
Our products have passed the CE certification. Our products are very popular in Europe. Like Germany, Italy, Norway

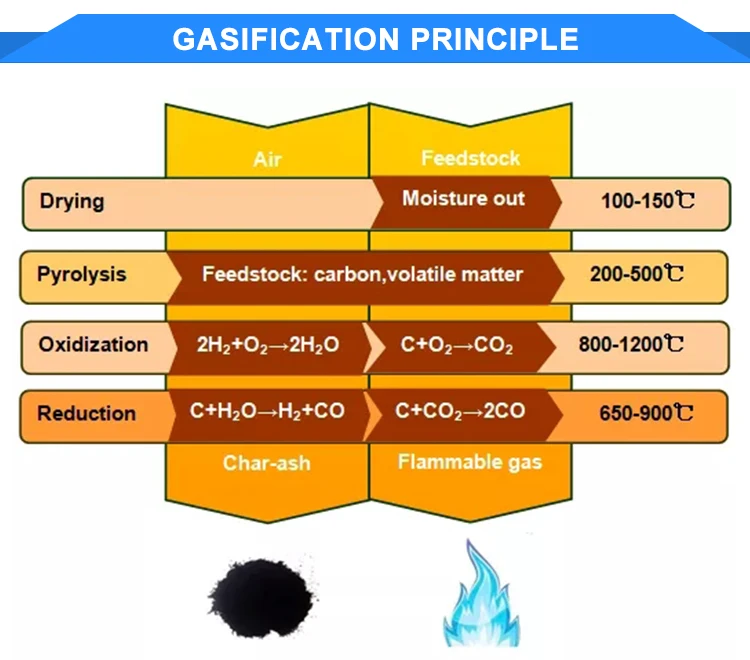

Gasification principle
Generation principle of biomass syngas: biomass raw material enters the reactor of gasifier, is heated and dried, and then with the temperature rising, its volatile matters are separated out and pyrolyzed (cracked) at high temperature. The pyrolyzed gas and biomass react with the air supplied in the oxidation zone to generate CO2 and water vapor. The heat generated by combustion is used to maintain drying, pyrolysis and lower part Endothermic reaction in the original region. The gas generated after combustion reacts with high temperature carbon layer through reduction zone (c + CO2 = 2CO, C + HO2 = H2 + CO) to generate biomass synthesis gas containing Co, H2, CH4, CMHN and other components, which is led out from the lower part and sent out for use after removing impurities such as tar through purification system. The ash is discharged from the lower part of the gasifier.
Types of raw materials
The biomass syngas power generation system is applicable to various kinds of biomass straws,
such as peanut shell, rice shell, corncob, cotton straw, corn straw, wood chips, branches, and other wood materials,cow manure, organic urban garbage, industrial organic garbage, such as plastic, rubber, cloth, paper shell, etc (the total content of plastic and rubber is less than 30%)
Requirements for raw material size:
biomass raw material in block orparticle shape ≤ 30mm
moisture content of raw material: ≤ 20%.
Gasification product:
Biomass gas: Can be used for power generation or boiler, kitchen gas
Biomass charcoal: Production of organic fertilizer/activated carbon raw materials
Industrial carbon
Biomass oil: Mention naphthol anthracene carbazole and other components
Wood vinegar: Applied to agricultural sterilization and antibacterial action
Reference value：
For example: consume 1KG of wood can get
Power 1.1-1.2KW
Biomass gas 2m3/h
Calorific value: 5.8-6.25MJ
Biomass carbon: 0.3Kg
Biomass gas: Can be used for power generation or boiler, kitchen gas
Biomass charcoal: Production of organic fertilizer/activated carbon raw materials
Industrial carbon
Biomass oil: Mention naphthol anthracene carbazole and other components
Wood vinegar: Applied to agricultural sterilization and antibacterial action
Reference value：
For example: consume 1KG of wood can get
Power 1.1-1.2KW
Biomass gas 2m3/h
Calorific value: 5.8-6.25MJ
Biomass carbon: 0.3Kg
Low tar content (10mg/Nm3), can ensure the stable operation of the engine
Project presentation
We have many successful projects around the world. Like USA,Italy, Russian,Korea,Germany,Singapore, Taiwan,etc.
Our customers
Equipment delivery
Ordering process
Company profile
Qingdao Kexin New Energy Technology Co., Ltd., founded in 1998.
We have successfully developed kx series biomass gasification equipment and syngas power generation series products: JXQ series Series (simple type), KX series (downdraft fluidized bed type) biomass gasification equipment, KX series biomass syngas power generation system, biomass syngas special hot blast stove, biomass raw material drum dryer, biomass shredder, drum drying equipment, dust collector and other products. The whole set of biomass gasification power generation equipment has obtained a number of national invention patents and utility model patents.
KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on.
Our company is committed to meet the needs of customers from all over the world and provide customers with higher quality after-sales service.
We have successfully developed kx series biomass gasification equipment and syngas power generation series products: JXQ series Series (simple type), KX series (downdraft fluidized bed type) biomass gasification equipment, KX series biomass syngas power generation system, biomass syngas special hot blast stove, biomass raw material drum dryer, biomass shredder, drum drying equipment, dust collector and other products. The whole set of biomass gasification power generation equipment has obtained a number of national invention patents and utility model patents.
KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on.
Our company is committed to meet the needs of customers from all over the world and provide customers with higher quality after-sales service.
FAQ
1.I need a biomass gasifier set, can you give me some suggestions?
2.How long is the gasifier set service life ?
The overall use of carbon steel, key parts of the use of 316L and 304 stainless steel, copper pipe. Corrosion resistance, high temperature resistance, oxidation resistance, improve the service life of the equipment, can reach more than 20 years.
3. Are you a factory or trading company?
A: Sure, We will give suggestions of the most suitable machine. Before
that, we need to know some information, such as effective capacity, materials, etc, to determine the main parameters.
that, we need to know some information, such as effective capacity, materials, etc, to determine the main parameters.
2.How long is the gasifier set service life ?
The overall use of carbon steel, key parts of the use of 316L and 304 stainless steel, copper pipe. Corrosion resistance, high temperature resistance, oxidation resistance, improve the service life of the equipment, can reach more than 20 years.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 25 years factory experience.
As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4.How long is the delivery time?
according to clients specific requirements, it will be 15 to 30 days
4.How long is the delivery time?
according to clients specific requirements, it will be 15 to 30 days
5. Whats your Quality assurance policy ?
The guarantee period of biomass gasifier is one year. The warranty period of generator set is one year or 1000 hours, whichever comes first.
