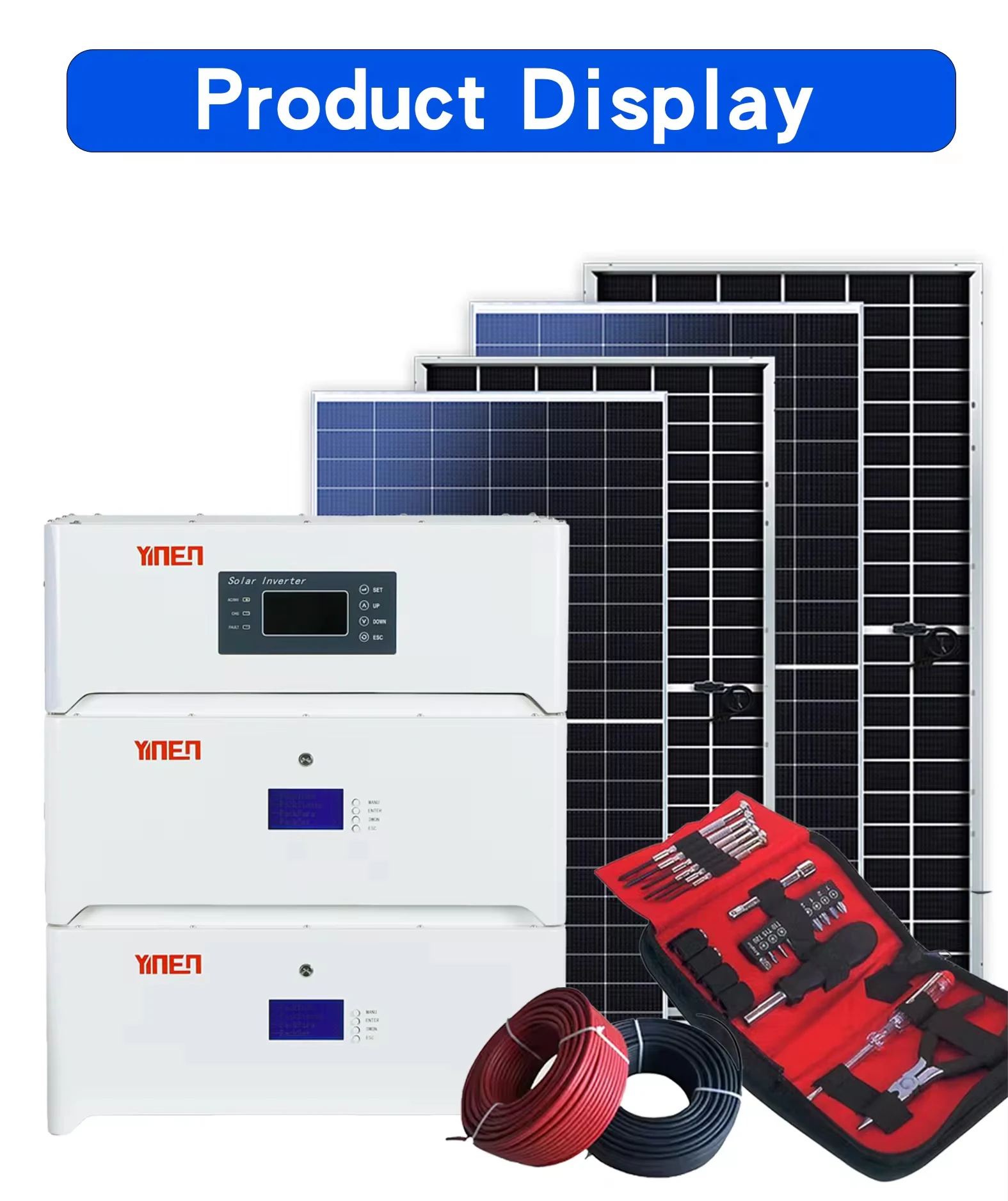

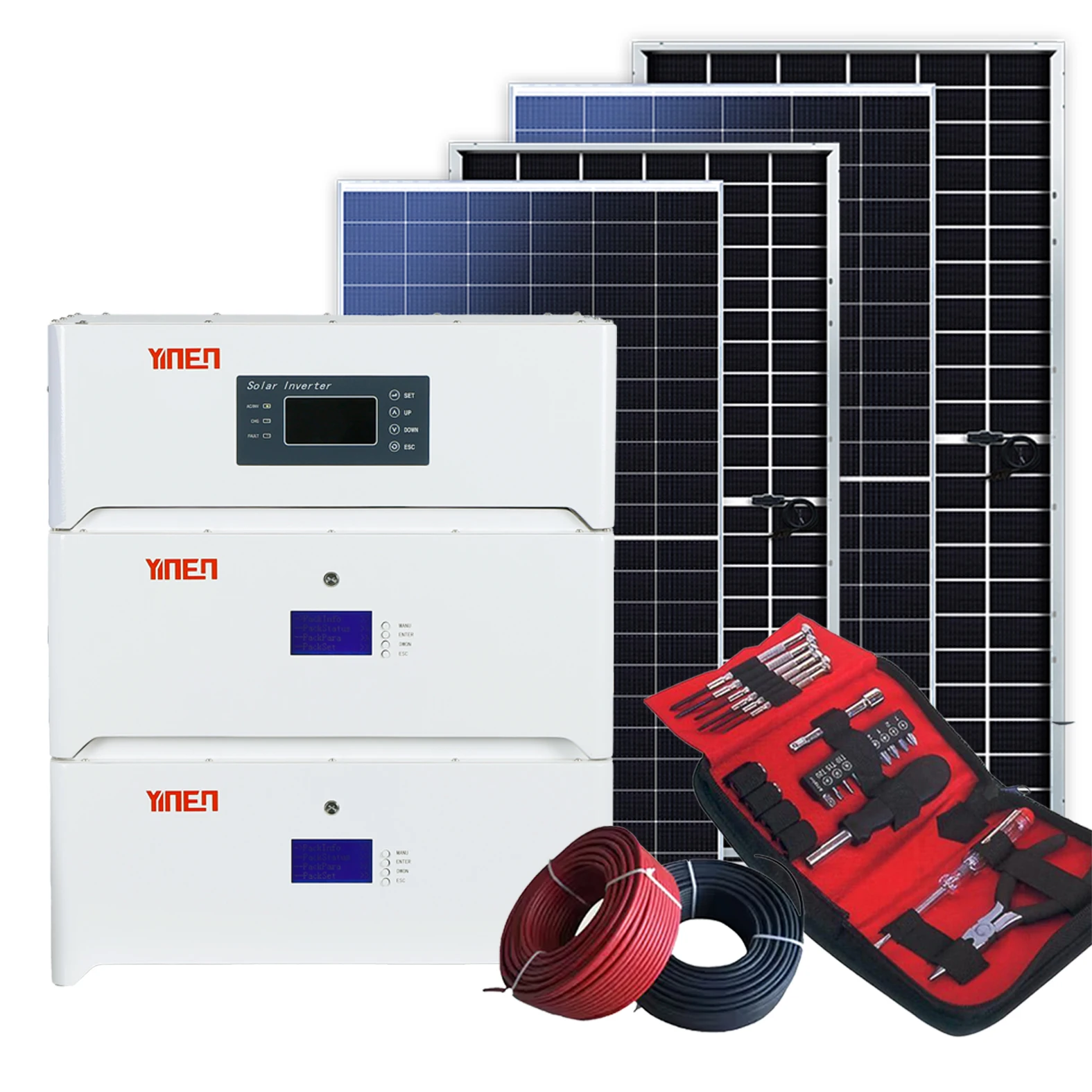

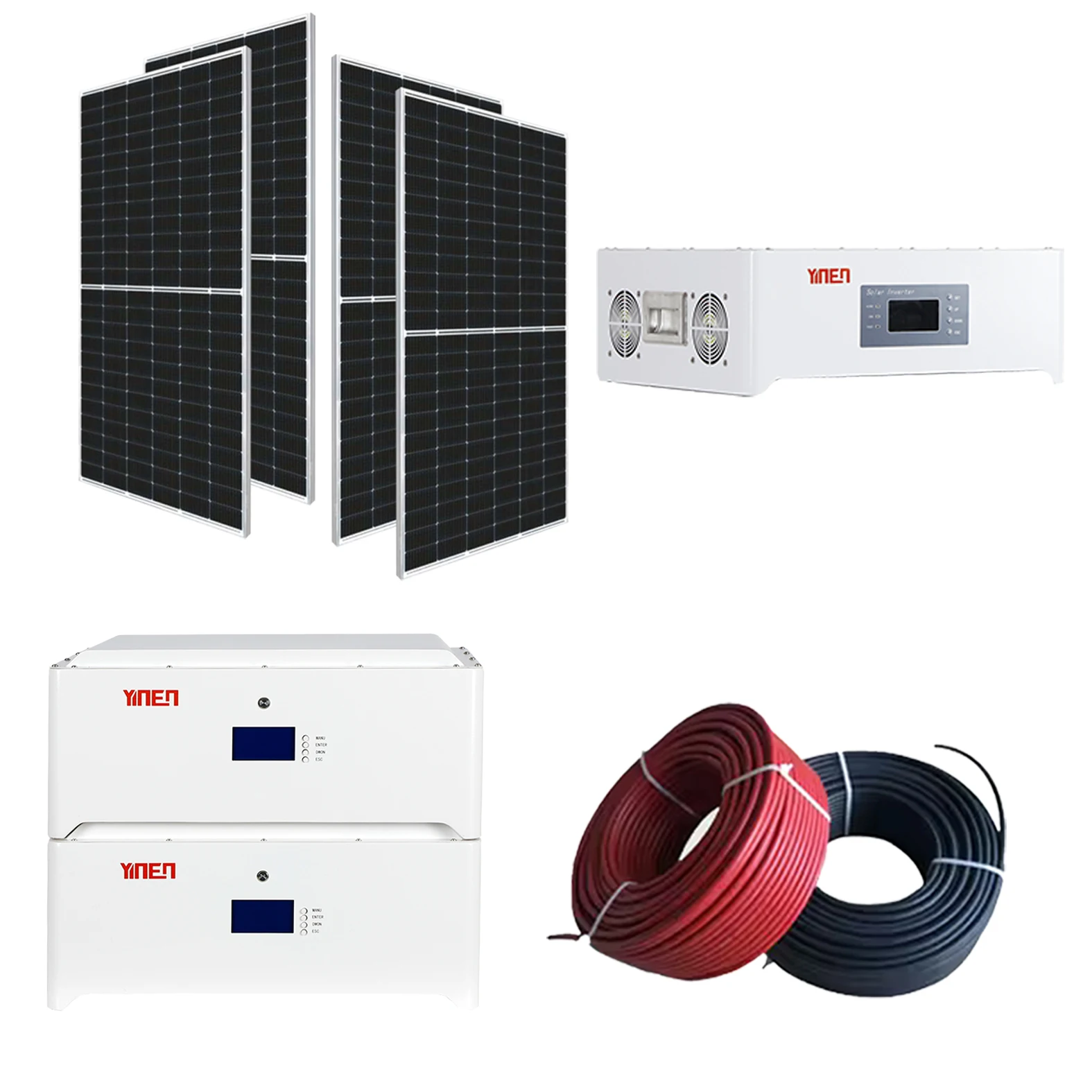

20Kw Complete Set Hybrid Solar Energy System Kit For Home Off Grid Stackable
- Category: >>>
- Supplier: Anhui Jnge Power Co. Ltd.
Share on (1601154354110):
Product Overview
Description
Specification | 5KWH | 10KWH | 20KWH | ||||
48V/5KW | 48V/5KW | 48V/6KW | 96V/10KW | ||||
Photovoltaic Panel | 46.9V/550W | 46.9V/550W | 46.9V/550W | 46.9V/550W | |||
6pcs | 8pcs | 8pcs | 16pcs | ||||
2S3P | 2S4P | 2S4P | 4S4P | ||||
3300W | 4400W | 4400W | 8800W | ||||
Inverter (Bubuilt-In MPPT Controller) | 51.2V/5000W | 51.2V/5000W | 51.2V/6KW | 96V/10KW | |||
Max. PV 5.12KW | Max. PV 5.12KW | Max. PV 5.12KW | Max. PV 9.6KW | ||||
Lithium battery | PV Opencircuit voltage 80V-240VDC | PV Opencircuit voltage 80V-240VDC | PV Open circuit voltage 80V-240VDC | PV Open circuit voltage 160V-240VDC | |||
Lithium battery | (51.2V/102AH)*1 | (51.2V/102AH)*1 | (51.2V/102AH)*2 | (51.2V/102AH)*4 | |||
Lithium iron phosphate, Lithium ternary, AGM battery Customized | |||||||
PV cable | 4m²(Black and red 50 meters each) | 4m²(Black and red 50 meters each) | 4m²(Black and red 50 meters each) | 4m²(Black and red 200 meters each) | |||
Combiner box | (Optional) | (Optional) | (Optional) | (Optional) | |||
RS485 communication | PC remote, mobile APP:GPRS/IF/Ethernet/PC upper computer (optional) | ||||||

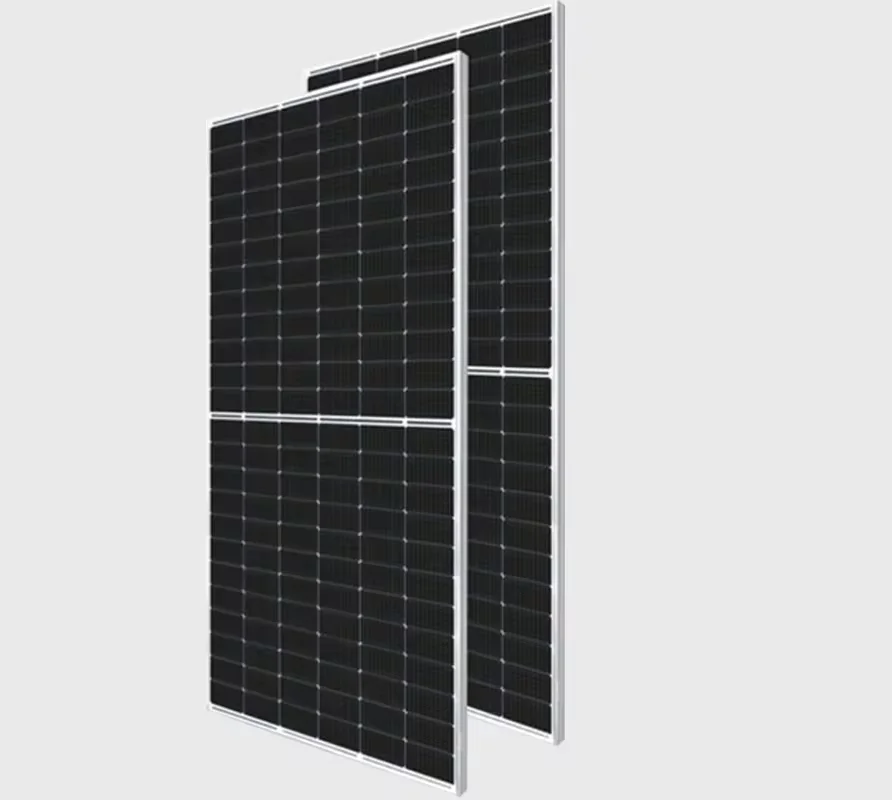

Photovoltaic Panel
Lower loss, higher power output
Durability
Half-cut cells boost solar panel performance effectively, reduces the risk of hidden cracks and broken gates
PID Resistance
Excellent resistance to PID, can effectively ensure the system power generation
Quality Assurance
15 years product warranty
Weight 29.0kg | ||
Dimensions 2278x1134x35mm | ||
Cell Type Mono Crystalline 182x91mm | ||
Number Of Cells 144（6x24） | ||
Glass 3.2mm Tempered Low Iron Glass | ||
Frame Aluminum Alloy | ||
Junction Box Split Junction Box | ||
Connector Mc4 Compatible | ||
Output Cables 4m²,Customized Length | ||
Operating Temperature -40~+85℃ | ||
Number Of Bypass Diodes 3 | ||
Maximum System Voltage VDC1500V | ||
5KW 6KW All-in-one Solar Inverter
Integrated with MPPT Solar Charger Controller and Low Frequency Pure Sine Wave Inverter
Strong Compatibility
Compatible with lead-acid battery, ternary lithium battery, lithium iron phosphate and other battery types.
Remote Monitoring is Available by Using Wifi Monitoring Kit.
Rated Power 5000W | ||
Built-in MPPT 100A | ||
Max PV Input 240V | ||
Battery Voltage 48V/96V | ||
PV Maximum Input Power 9600W | ||
MPPT Efficiency ﹥99.5% | ||
Storage Temperature -30℃～70℃ | ||
Conversion Efficiency ＞98% | ||

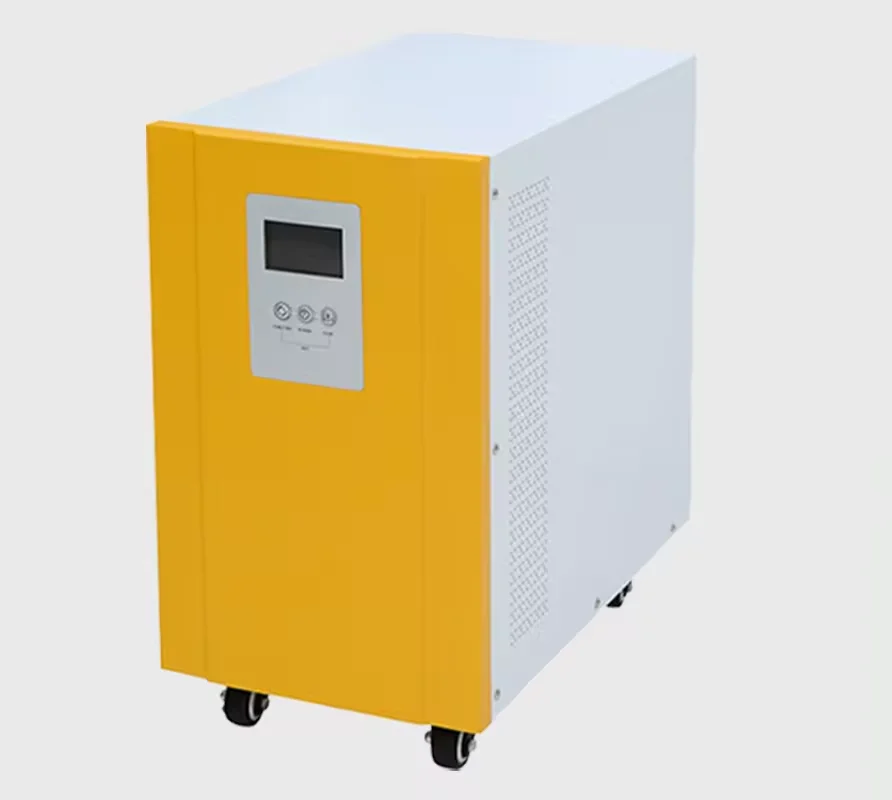

10KW 12KW Hybrid Inverter
Pure Sine Wave Output
High efficiency toroidal transformer lower loss
Intelligent LCD Integration Display
AC charge current 0-20A adjustable
Battery Configuration More Flexible
Supports diesel or gasoline generator, adapt any toughelectricity situation
RS485 communication port/APP optional.
High efficiency toroidal transformer lower loss
Intelligent LCD Integration Display
AC charge current 0-20A adjustable
Battery Configuration More Flexible
Supports diesel or gasoline generator, adapt any toughelectricity situation
RS485 communication port/APP optional.
Weight 70Kg | ||
Dimension 540*395*695mm | ||
Rated Power 10kw | ||
Start Motor 7HD | ||
Max AC charging current 0-40A | ||
Battery Voltage 48/96V/192VDC | ||
Transfer Time ≤4ms | ||
Display LCD | ||
Noise ≤55dB | ||

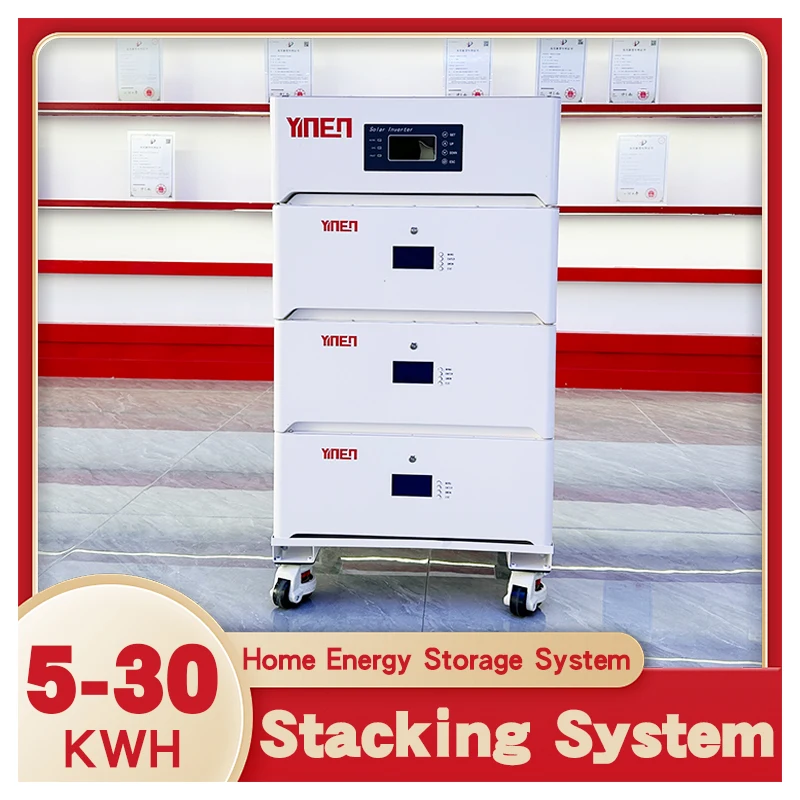

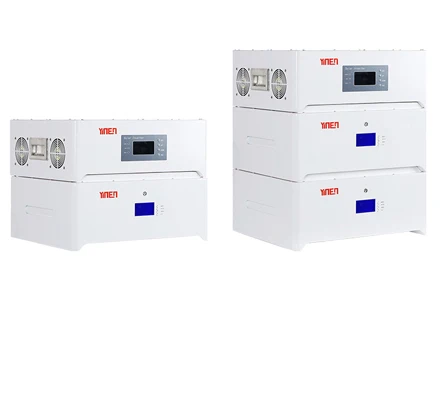

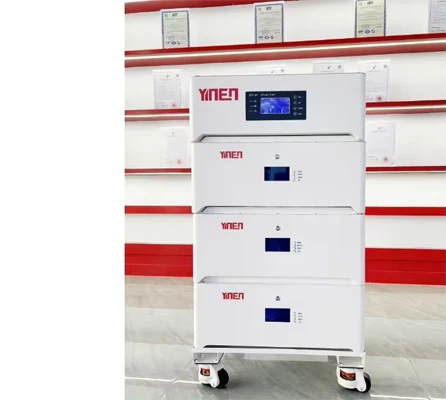

5KWH Stacked LiFePo4 Battery
Brand-new Grade A+ Cells
≥6000 times long cycle life
Compact Size, Easy Installation
Supports a maximum of 16 batteries in parallels
Compensive BMS to Match all Hybrid Inverters
Convenient RS485,CAN BUS Communication, optional blue tooth
Compact Size, Easy Installation
Supports a maximum of 16 batteries in parallels
Compensive BMS to Match all Hybrid Inverters
Convenient RS485,CAN BUS Communication, optional blue tooth
Weight 50Kg | ||
Rated Capacity 102Ah | ||
Dimension 500×400×200mm | ||
Rated Voltage 48Ｖ/51.2V | ||
Cycle Life ≥6000cycles | ||
Maximum expansion 16 groups | ||
Maximum continuous current 100A | ||
Transient Discharge Current 110A | ||
Charging cut-off Voltage 58.4V | ||
Discharge cut-off voltage 40V | ||
Discharge Temperature -30~＋60℃ | ||
Charging Temperature -10~＋55℃ | ||

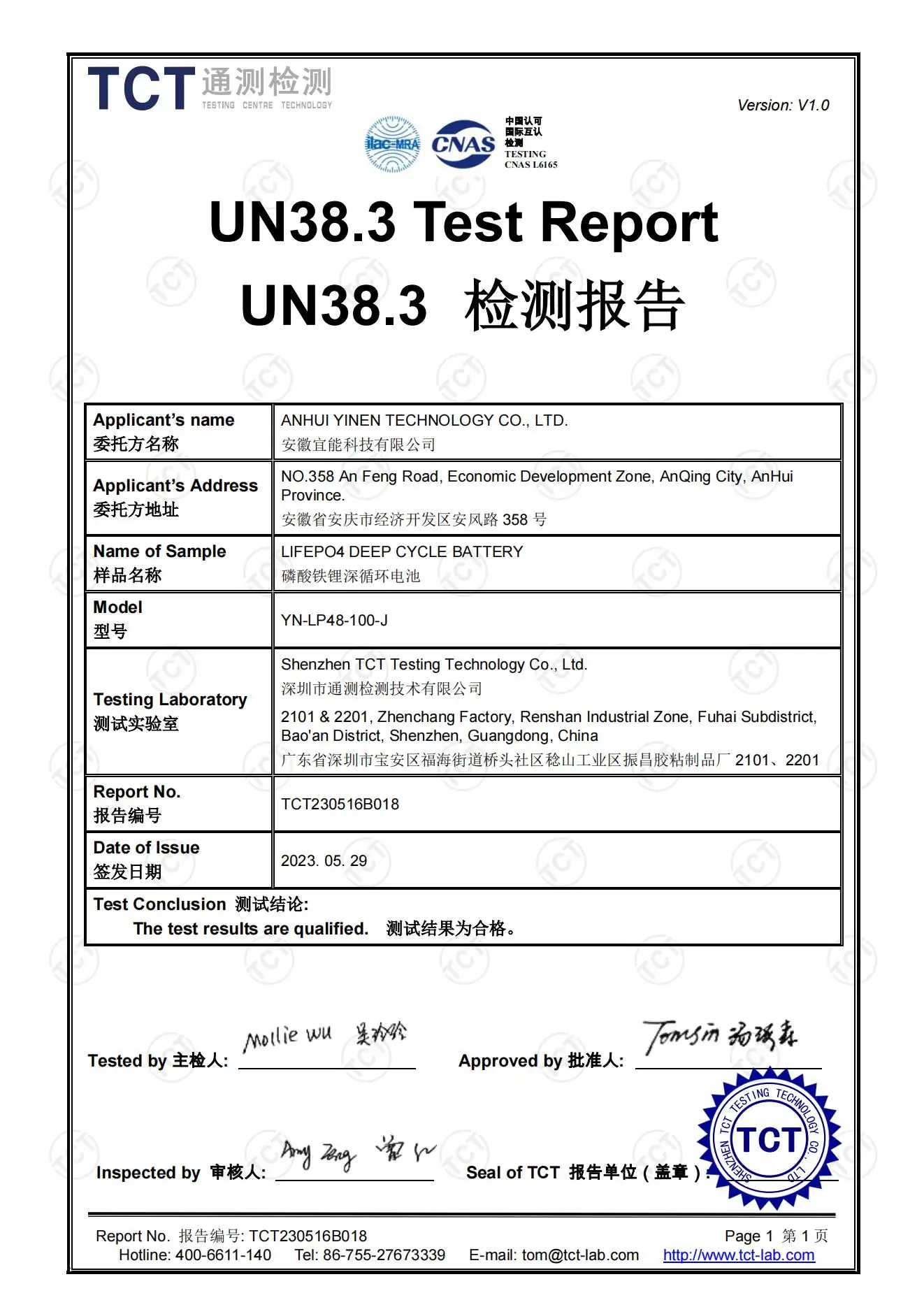

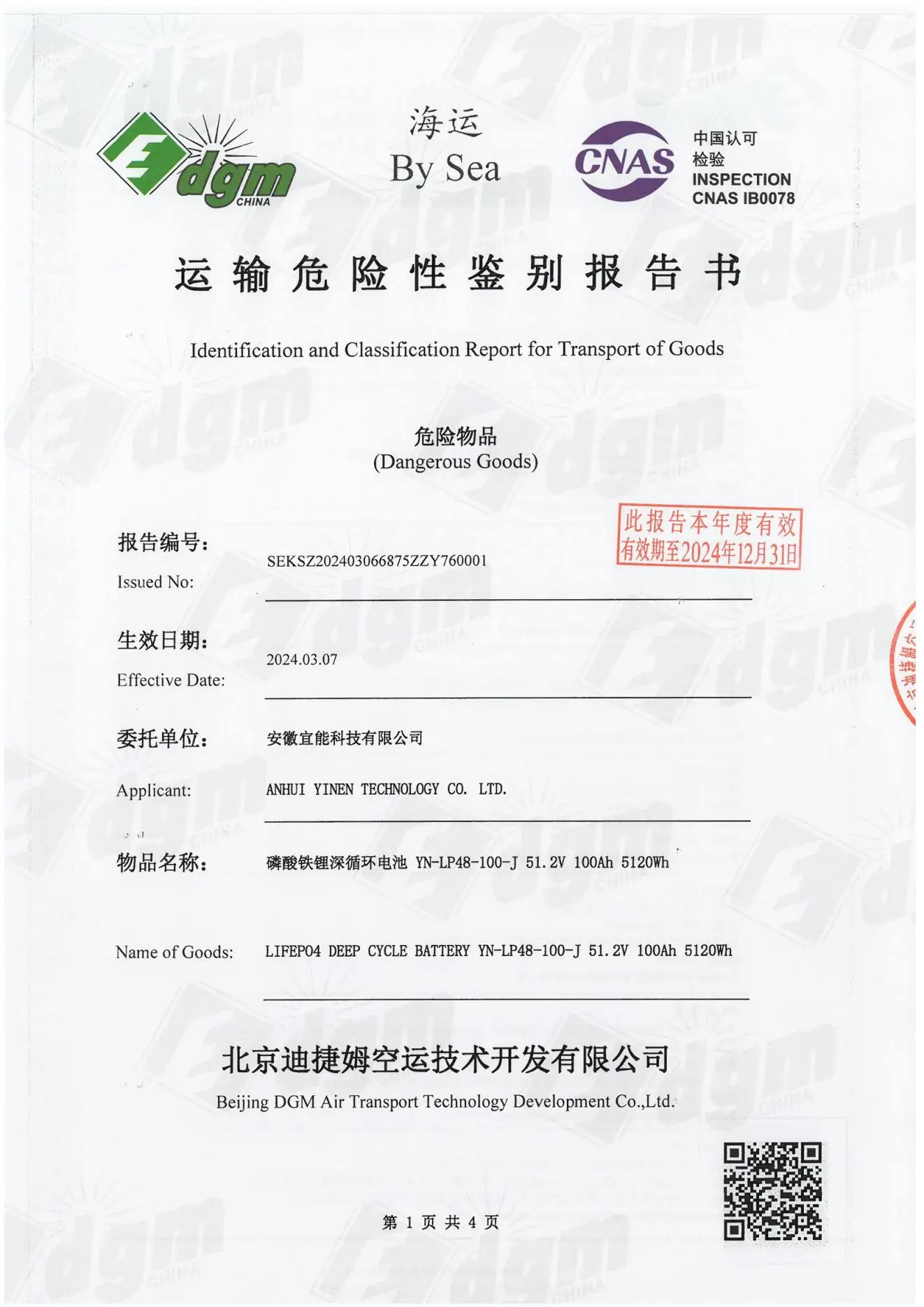

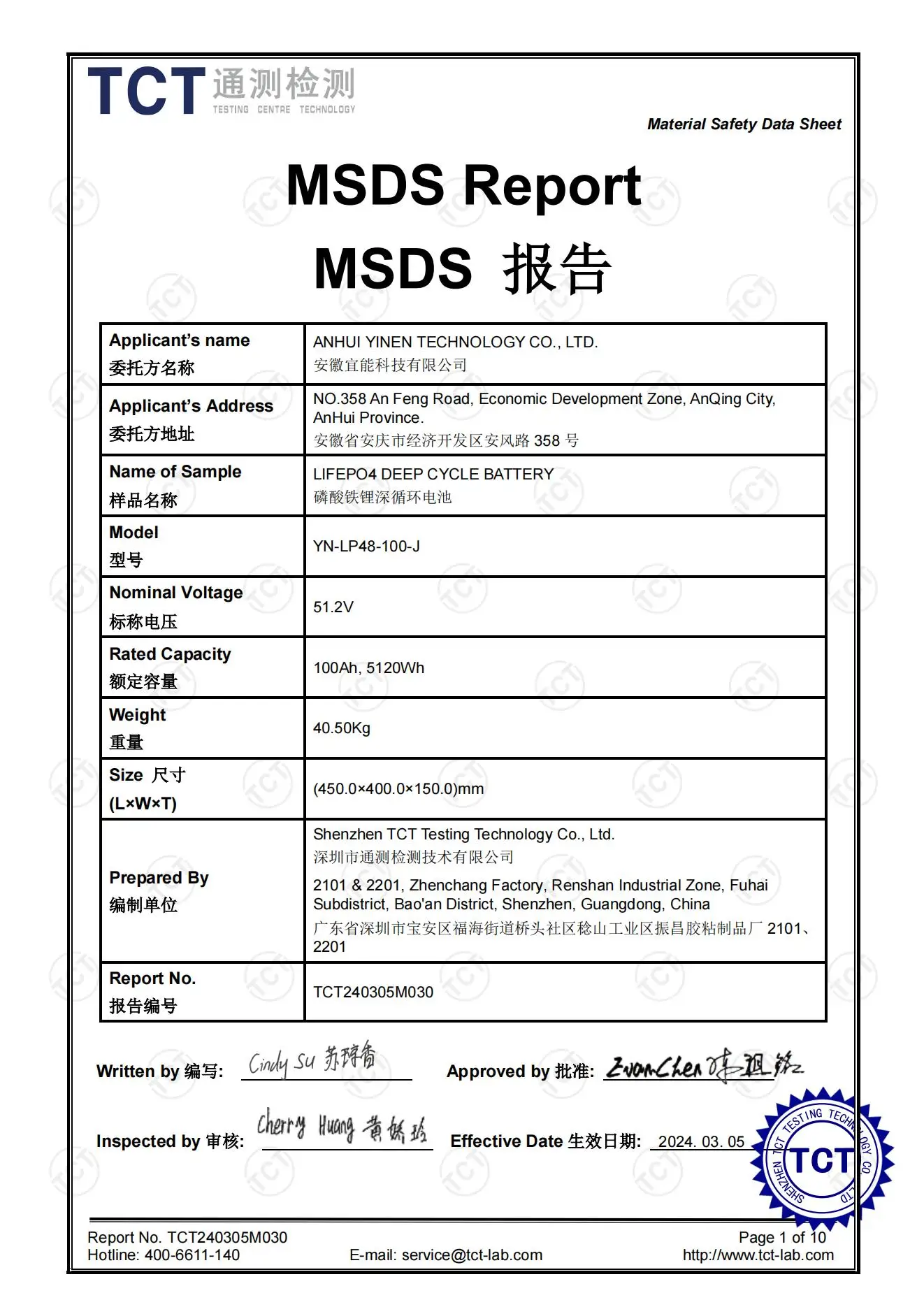

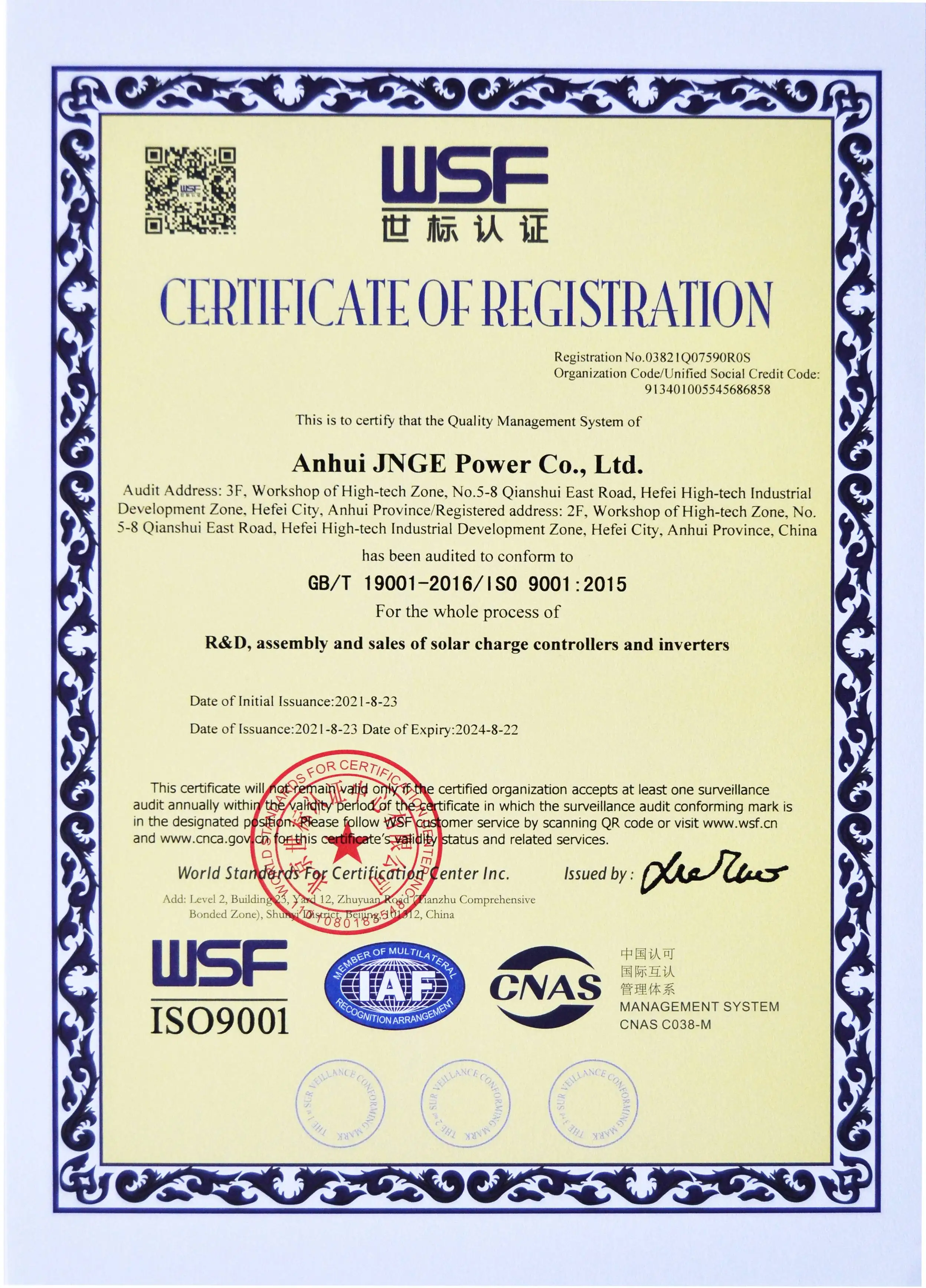

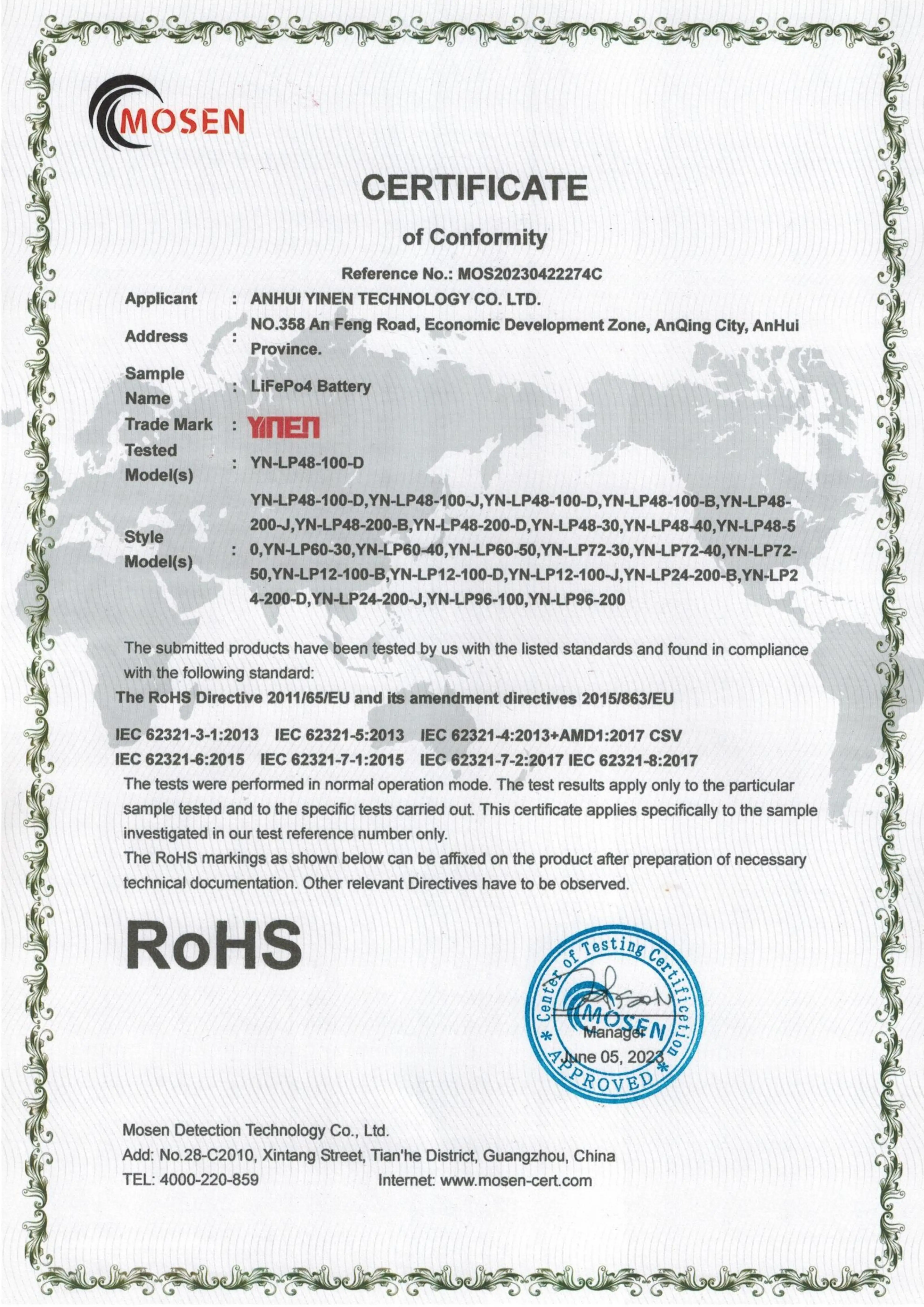

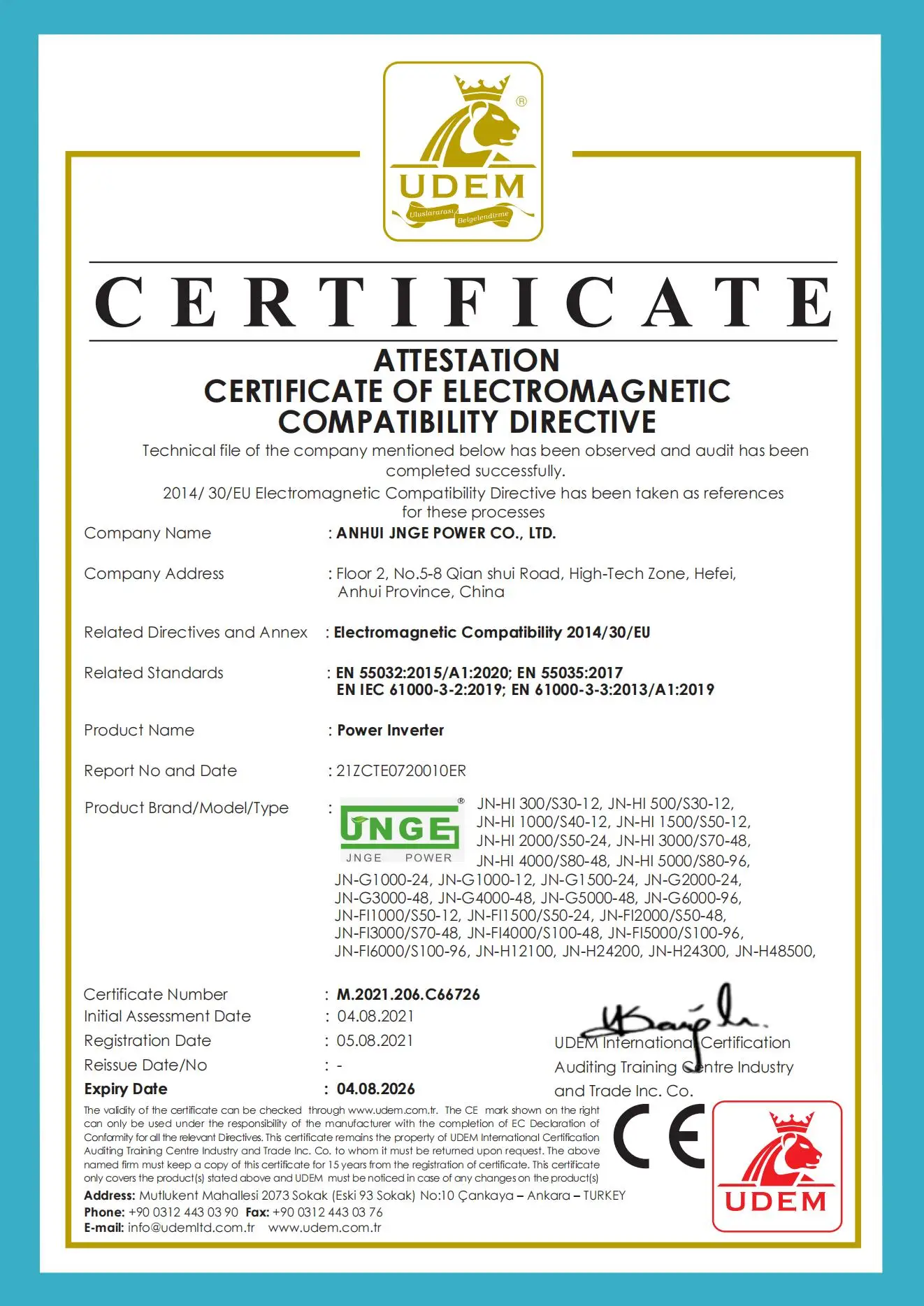

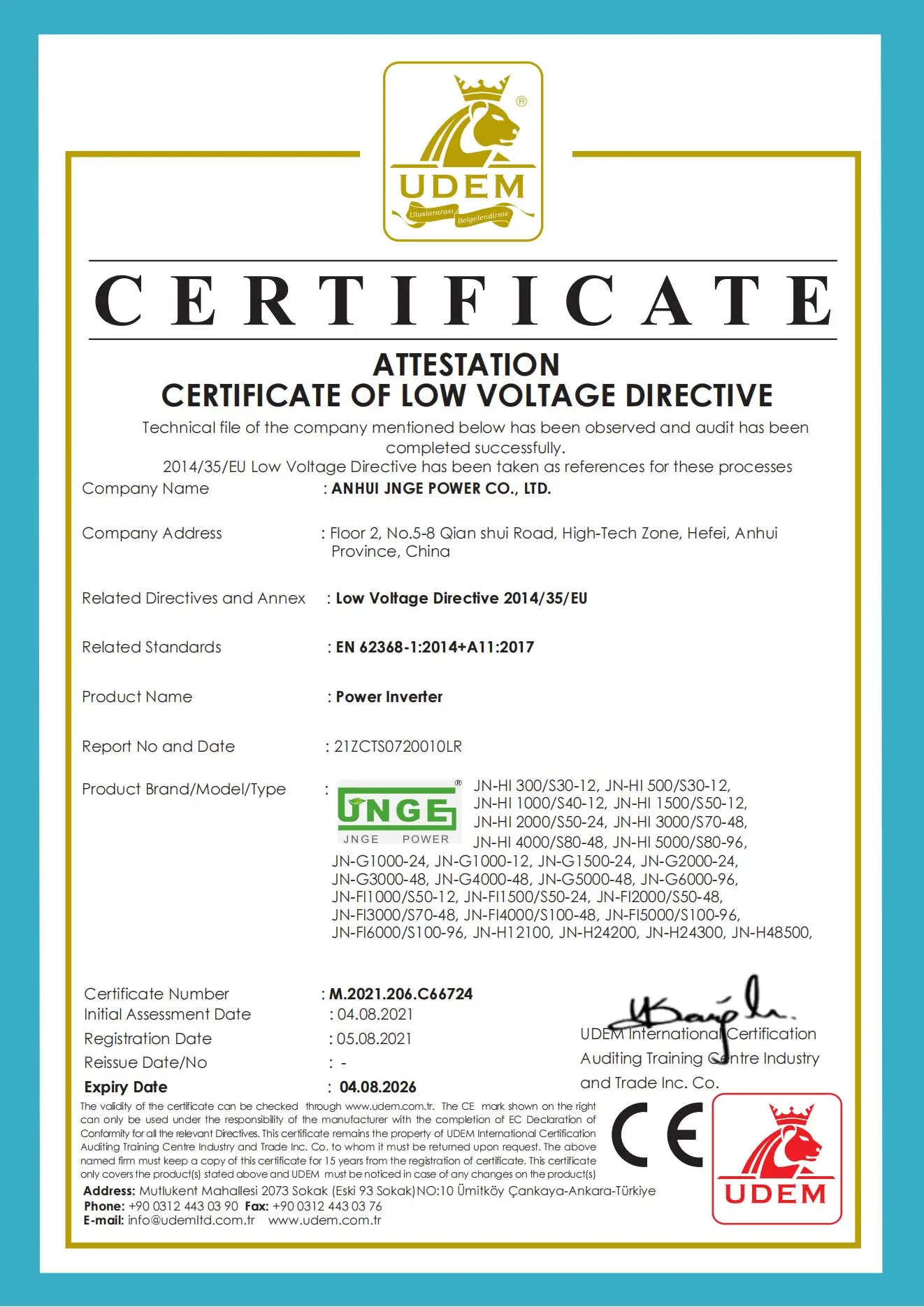

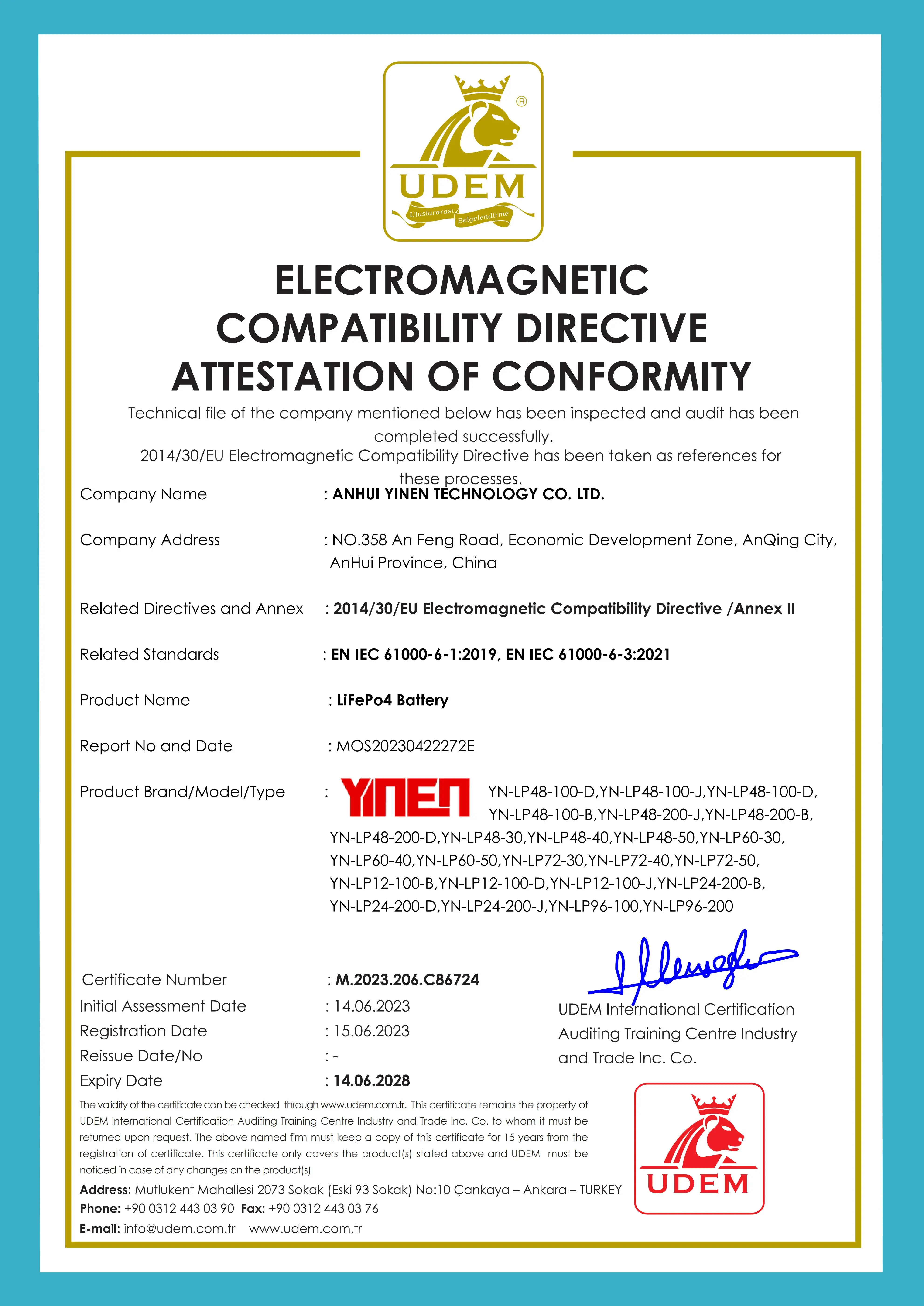

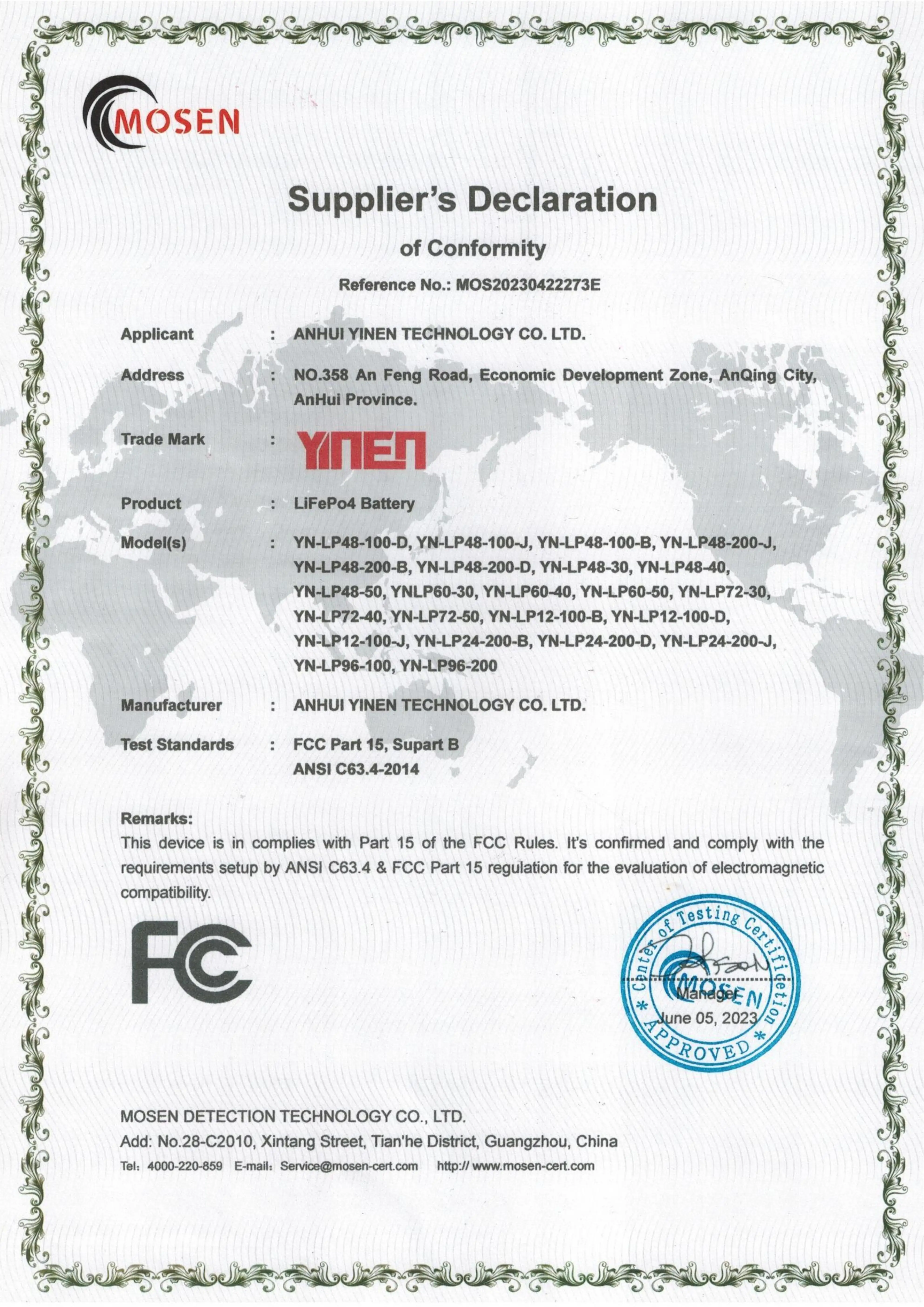

CERTIFICATIONS
FAQ
1. How to install and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
3. How is your technical support?
We provide lifetime online support through WhatsApp/ WeChat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
4. How can I make sure it's a secure transaction?
Alibaba can protect buyers' interest, all of our transaction will go through Alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you confirm the detailed information, Alibaba will release us the money.
5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
6. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
3. How is your technical support?
We provide lifetime online support through WhatsApp/ WeChat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
4. How can I make sure it's a secure transaction?
Alibaba can protect buyers' interest, all of our transaction will go through Alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you confirm the detailed information, Alibaba will release us the money.
5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
6. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
