Lithium Battery Protection Board Energy Storage Lifepo4 Battery Box 24v
- Category: >>>
- Supplier: Guangdong Npp New Energy Co. Ltd.Guangdong Ltd.
Share on (1601154390063):
Product Overview
Description
NPP Wall/Floor-Mount lithium battery is engineered with utmost reliability, utilizing Grade A cells to ensure extended cycle life and unwavering performance. These battery packs feature an advanced Battery Management System (BMS) that not only elevates system efficiency but also extends the battery's lifespan while prioritizing safety.

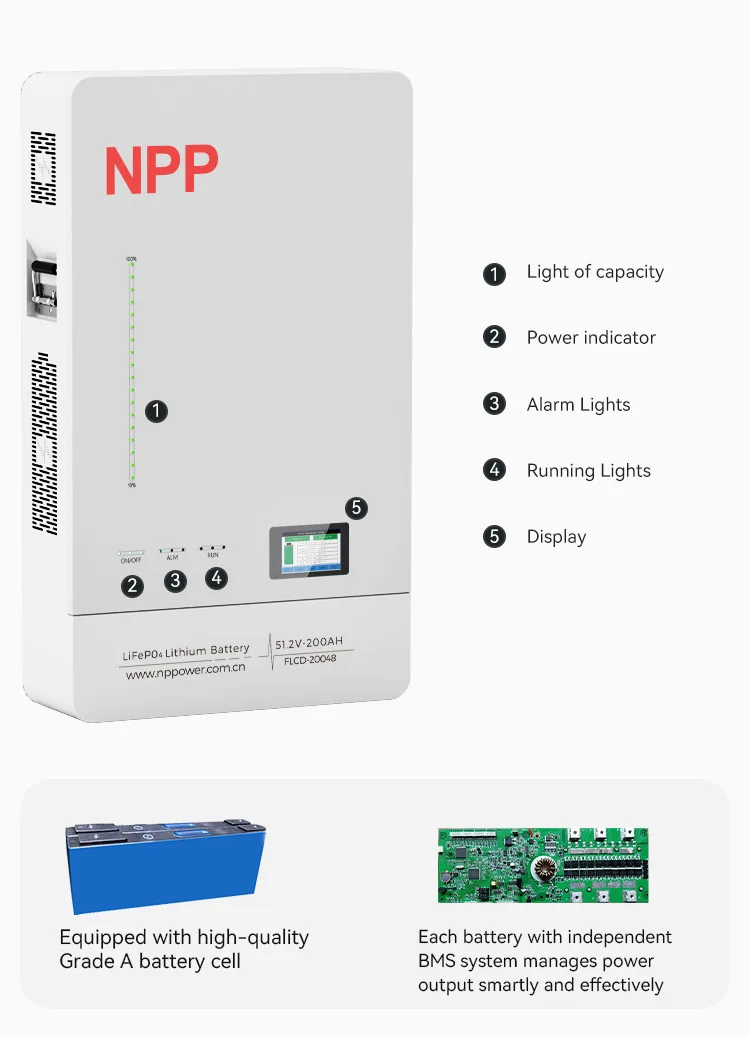

Our lithium battery comes equipped with a user-friendly LCD display, allowing for convenient real-time monitoring of battery status. You can also seamlessly access vital information via its exceptional RS232/485 communication function when connected to a computer.
Designed to provide a wide array of household applications, including PV self-consumption, backup power, load shifting, and off-grid solutions, this battery is a versatile choice. With its outstanding safety record, high energy density, and impressive longevity, it stands as a dependable energy solution for your needs.
Our lithium battery comes equipped with a user-friendly LCD display, allowing for convenient real-time monitoring of battery status. You can also seamlessly access vital information via its exceptional RS232/485 communication function when connected to a computer.
Designed to provide a wide array of household applications, including PV self-consumption, backup power, load shifting, and off-grid solutions, this battery is a versatile choice. With its outstanding safety record, high energy density, and impressive longevity, it stands as a dependable energy solution for your needs.
Specification
Electrical Parameters (25°C) | Rated Voltage | 51.2V | |||
Rated Capacity (C5) | 200Ah@25°C | ||||
Energy | 10240Wh | ||||
Months Self Discharge | <3% | ||||
Charge Efficiency | 99.5%@ 0.2C | ||||
Discharge Efficiency | 96-99%@ 1C | ||||
Terminal Diameter | M8 | ||||
Internal resistance (Fully charged, 25°C) | ≤80mΩ | ||||
Cycle life | >3000 cycles @ 0.2C 100%D.O.D | ||||
Capacity affected by temperature | 40°C | 101% | |||
25°C | 100% | ||||
0°C | 90% | ||||
-10°C | 75% | ||||
Nominal operating temperature | 25°C± 3°C (77°F± 5°F) | ||||
Operating temperature range | Discharge | - 20°C~ 60°C (-4°F ~ 140°F) | |||
Charge | 0°C~ 45°C (32°F ~ 113°F) | ||||
Storage | 0°C~ 40°C (32°F ~ 104°F) | ||||
Water Dust Resistance | IP50 | ||||
Charge Voltage | 58.4V | ||||
Standard Charge Mode (25°C±2°C, <75%RH) | 0.2CA Constant Current to 58.4V, then Constant Voltage 58.4V until the current drops to 0.02CA, before use, rest 30 minutes | ||||
Charge Current | 20A | ||||
Maximum Charge Current | 50A | ||||
Charge Cut off Voltage | 58.4V | ||||
Continuous Discharge Current | 100A | ||||
Maximum Pulse Current | 150A (<100ms) | ||||
Discharge Cut Off Voltage | 44.8V | ||||
Communicate Protocol (optional) | RS485/RS232/CAN | ||||
SOC (optional) | LED/Screen/PC Software | ||||
Application connection | 1 string 1 parallel | ||||
Mechanical | Cells | 16 Strings | |||
Container | Metal | ||||
Product Description
Packing & Delivery
Company Profile

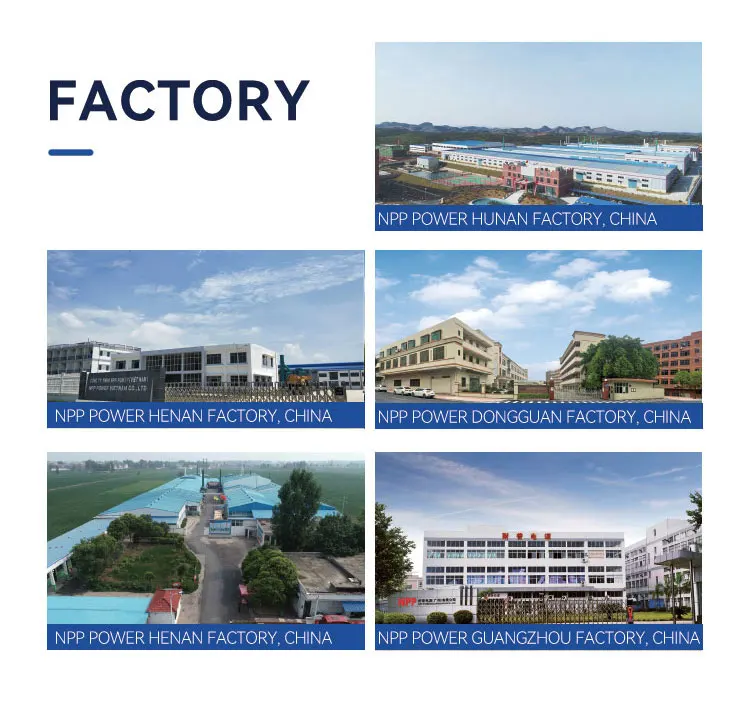

NPP Power is a Chinese high-tech enterprise providing customized home battery backup power supply solutions and products for special lithium solar battery systems for global users. We have 4 factories in China and 1 overseas factory in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.
To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.We have passed ISO9001, ISO14001, ISO45001, CE, EMC, CQC, TLC, SGS, UN38.3, and MSDS certifications.
Core Products: Lithium solar Battery for Energy Storage Power Station, LiFePO4 Technology in VRLA Container, LiFePO4 Technology for Telecom, Base Station, Cabinet Power, E-Vehicles, OEM Pack, Portable Power Station, etc.
To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.We have passed ISO9001, ISO14001, ISO45001, CE, EMC, CQC, TLC, SGS, UN38.3, and MSDS certifications.
Core Products: Lithium solar Battery for Energy Storage Power Station, LiFePO4 Technology in VRLA Container, LiFePO4 Technology for Telecom, Base Station, Cabinet Power, E-Vehicles, OEM Pack, Portable Power Station, etc.
FAQ
Q1: Are the batteries GRADE- A, brand NEW?
Yes, GRADE A+quality.the QRcode is intactBrand new
Q2: Are you factory?
NPP Power has five manufacturing plants, four in China and one in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.
Q3: How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q4: how can we guarantee quality?
The mature quality supervision team manages the scientific testing system. We have Core-engineers with energy storage industry producing experience for more than 20 years. Ensure battery safety, long cycle life service, and environment friendly
Q5: Can you provide OEM and ODM service?
Yes, We are a professional lithium Battery manufacture with factory, which produce all kind of high quality Ebike
lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Yes, GRADE A+quality.the QRcode is intactBrand new
Q2: Are you factory?
NPP Power has five manufacturing plants, four in China and one in Vietnam. To build a global manufacturing, marketing, and after-sales service network, NPP Power established overseas offices in Europe, America, and Africa.To better serve and listen to clients’ demands, NPP Power also annually attends overseas exhibitions.
Q3: How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q4: how can we guarantee quality?
The mature quality supervision team manages the scientific testing system. We have Core-engineers with energy storage industry producing experience for more than 20 years. Ensure battery safety, long cycle life service, and environment friendly
Q5: Can you provide OEM and ODM service?
Yes, We are a professional lithium Battery manufacture with factory, which produce all kind of high quality Ebike
lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
