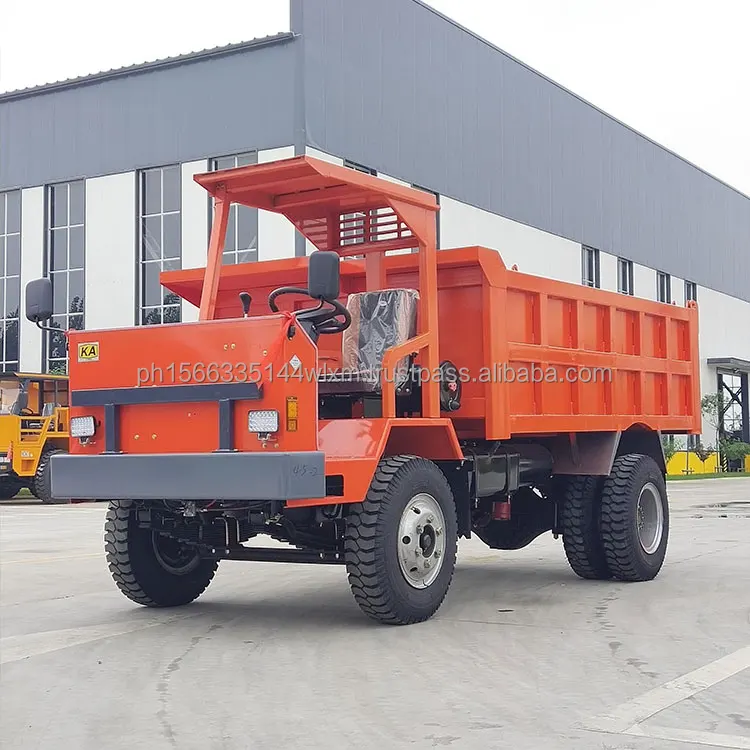

NEW High Efficiency 8 Ton Rock Transporter Vehicle Underground Mining Truck for Metal Mines in Africa
- Category: >>>
- Supplier: JJEM TRADINGJJEM TRADING
Share on (1601154905745):
Product Overview
Description
Product Description
The underground mining truck is designed to adapt to mines with narrow roadways and low heights. The overall frame is driven by the rear axle and the front wheels are steered. The gearbox with auxiliary gear is selected, the range speed change is wide, it can withstand large torque and large traction force, and the speed is fast.
ADVANTAGES:
Pneumatic Lever for Lifting Control
Easy Button Control for High and low speed
Hydraulic power steering,
Smooth Clutch Pedal with Clutch Booster
Easy Button Control for High and low speed
Hydraulic power steering,
Smooth Clutch Pedal with Clutch Booster
Equipped with false start protection ignition lock to prevent the repeated start protect the starter motor.
Equipped with an electromagnetic main power switch, the power supply of the vehicle can be cut off after the ignition lock is turned off.
Electrical line configuration fuse.
Water- exhaust gas purification,
Equipped with an electromagnetic main power switch, the power supply of the vehicle can be cut off after the ignition lock is turned off.
Electrical line configuration fuse.
Water- exhaust gas purification,
Safety protection cab,
Reversing voice alarm
Model | VT-6 | VT-8 | VT-10 |
Curb weight (kg) | 3200 | 3700 | 4900 |
Dimensions(mm) | 4200×1750×1950 | 4480×1870×1950 | 5020×2020×2120 |
Cargo size(mm) | 2700×1610×630 | 3000×1770×660 | 3400×1910×660 |
Wheelbase(mm) | 2150 | 2275 | 2510 |
Axle track(mm) | 1470/1270 | 1575/1360 | 1610/1580 |
Rear suspension(mm) | 1035 | 1165 | 1260 |
Small Ground Clearance (mm) | 165 | 165 | 165 |
Cargo loading height(mm) | 1610 | 1610 | 1750 |
Container unloading height(mm) | 3200 | 3370 | 3600 |
Approach / departure angle(°) | 38/39 | 35/38 | 30/40 |
Rated loading quality (kg) | 6000 | 8000 | 10000 |
Cargo volume (m3) | 3 | 4 | 5 |
Maximum driving force (KN) | 40 | 75 | 90 |
Heavy load gradeability(°) | ≤14 | ≤14 | ≤14 |
Cargo box maximum lift angle(°) | 42 | 40 | 40 |
Min. Turning Radius(m) | 7.0 | 7.5 | 8.5 |
Cargo lifting time(s) | ≤20 | ≤20 | ≤20 |
Container drop time(s) | ≤15 | ≤15 | ≤15 |
Company Information
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China.Unique has been dedicated to producing Mining machinery for 30 years. We take pride in manufacturing our mining machinery, and the chance to serve the varied needs of our customers worldwide. Our brand is recognized worldwide for our high quality, reliability, and our customer service.
We currently supply over 60 different countries with our products, include three categories: Stone Crushing & Screening Plants, Portable Crushing Plants, and Complete Crushing Plants. Our primary products are Jaw Crushers, Impact Crushers, Hydraulic Cone Crushers, Spring Cone Crushers, Vibrating Screens, Vibrating Feeders, Portable Crushing Plants and Aggregate Crushing Plants, mining dumper. Our products are available for countless use, meeting all of our customers' special needs.
