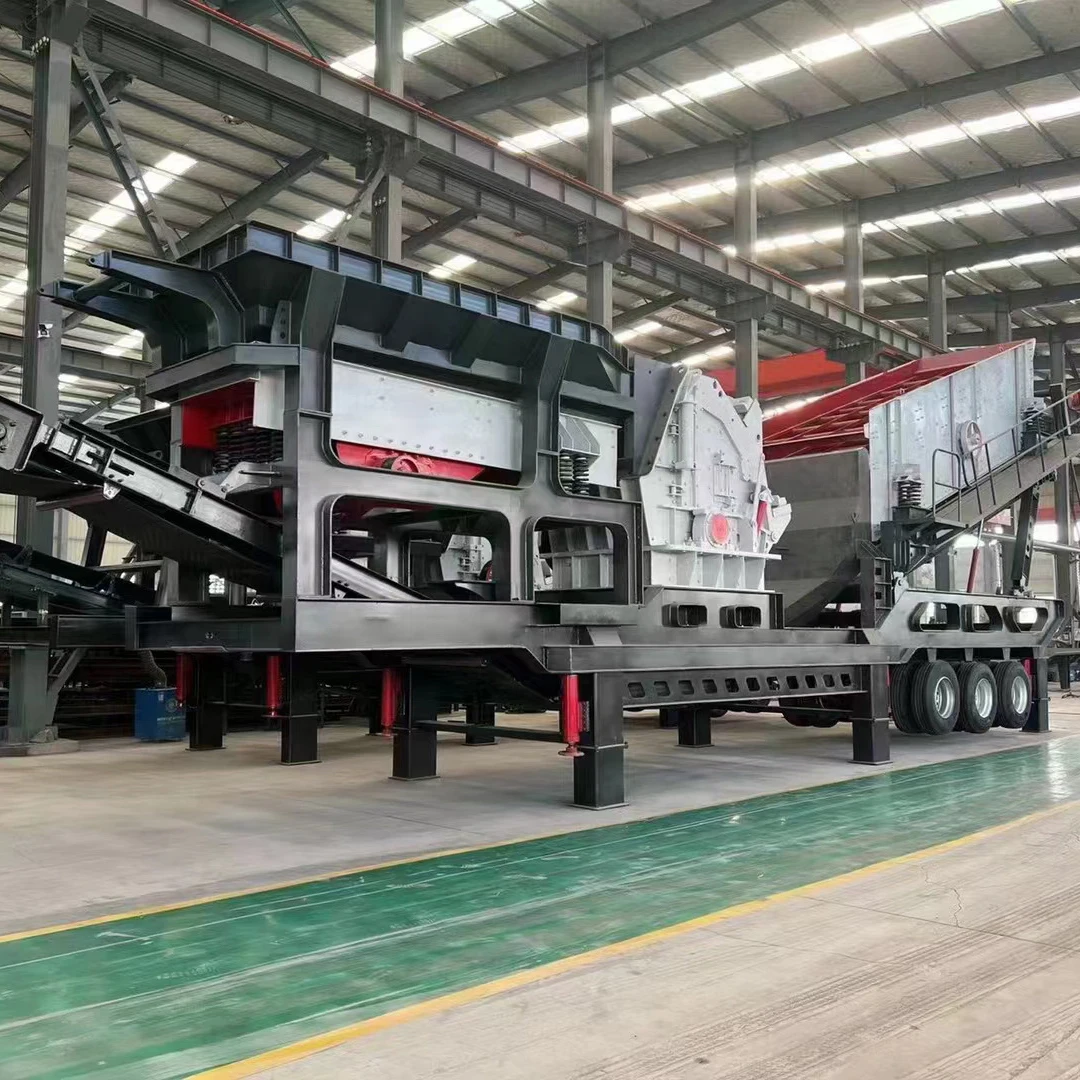

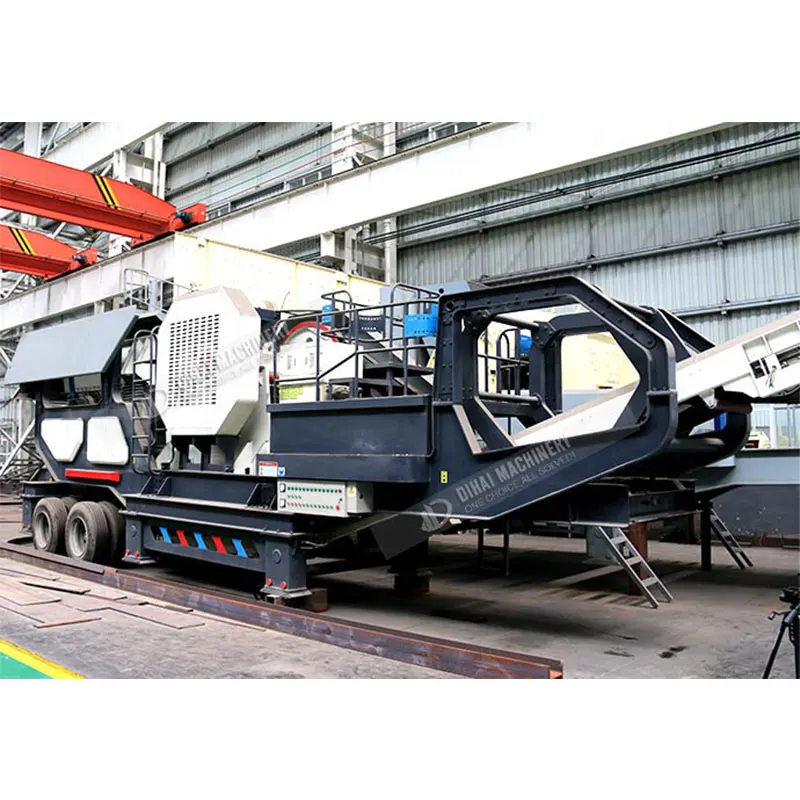

Combined Mobile Concrete Crushing Machine Price Mobile Aggregate Crusher And Screening Plant
- Category: >>>
- Supplier: HENAN DI HAI MACHINERY CO. LTD
Share on (1601155167828):

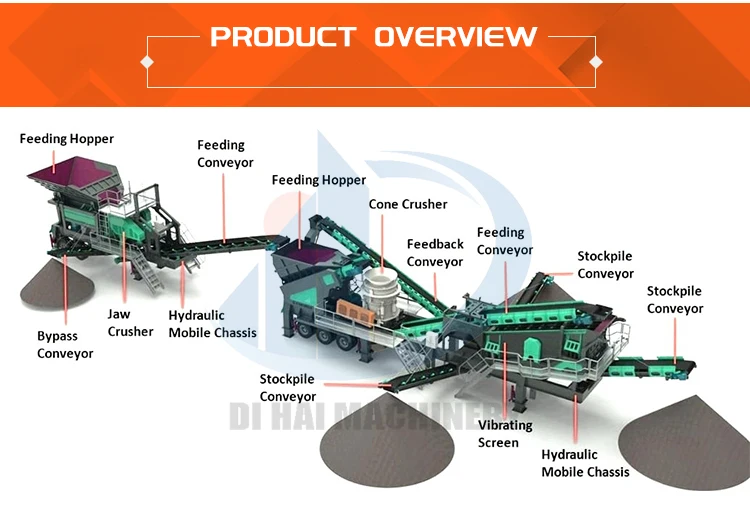

Product Overview
Description
Products Description
Mobile stone crushing and screening plants are compact systems that used to crush raw materials which are extracting from quarries and to classify them into desired sizes. If desired, we may integrate washing systems on our mobile units as well. Mobile crushers has been choosen instead of stationary plants with its easy installation and rapid displacement advantages. The new generation mobile crushers vary according to the type of the stones to be crushed and desired production capacity.

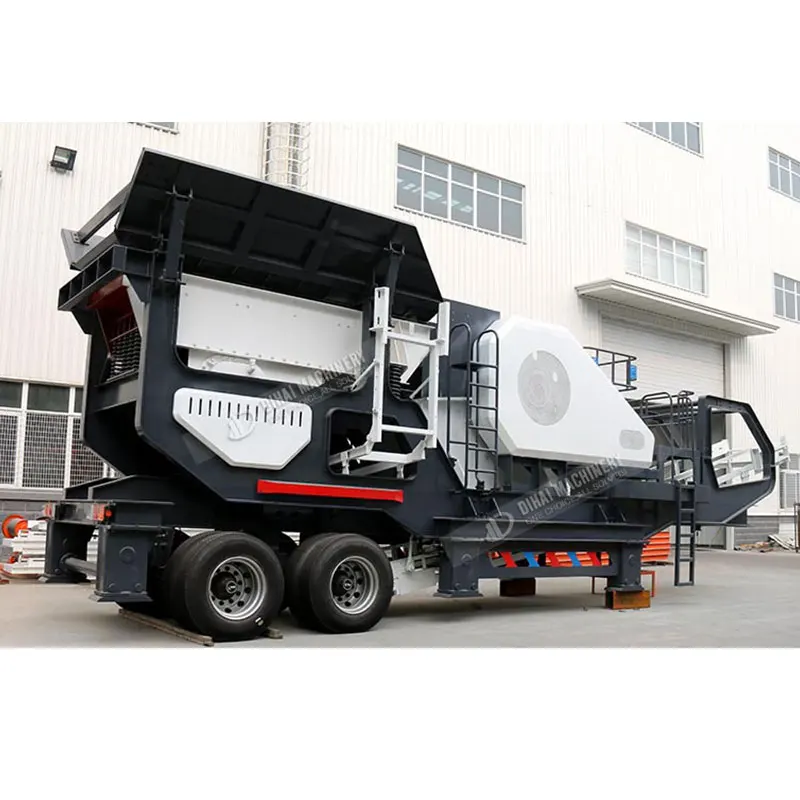

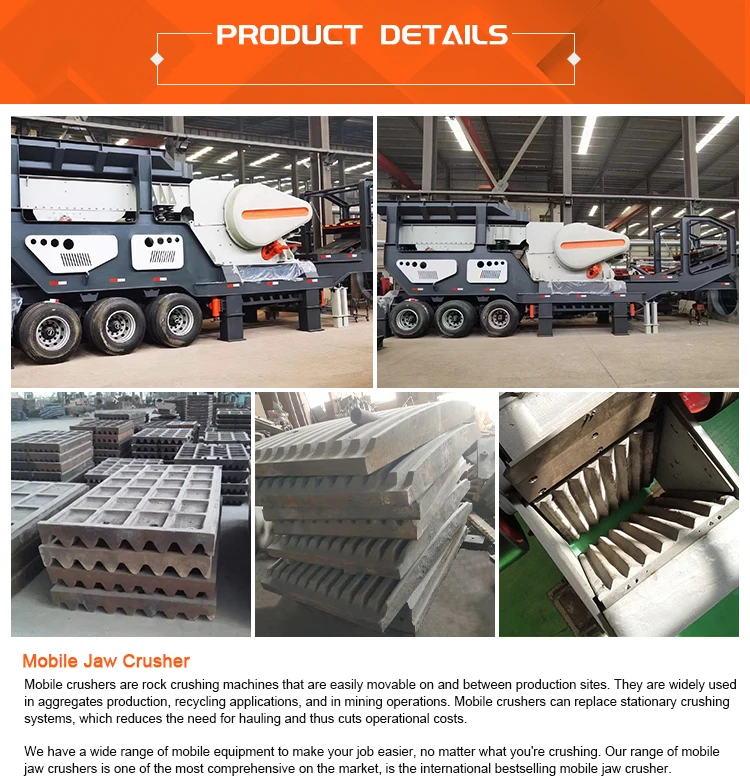

Mobile crushers
Mobile crushers can be installed in desired places and cost rate is lower and these advantages preferred reason to choose mobile crushers nowadays. Highly engineered mobile systems are assembled on a single mobile chassis with all their components, and provides easy maintanance and repair.
Product Application
Machine configuration can be adjusted to produce a multitude of finished products. The aggregate quality is far superior than with other type crushers because of its gradation and cuboid material shape.Mobile crushing production line is a full pass rate machine with screen,so you can get any final sizes.
Model | PP4060PE | PP5075PE | PP6090PE | PP75106PE | PP87106PE | PP90120PE | ||
Shipment Size | length | 8700 mm | 9326 mm | 10700 mm | 12500 mm | 12460 mm | 14450 mm | |
Width | 2490 mm | 2490 mm | 2780 mm | 2900 mm | 3120 mm | 3000 mm | ||
Height | 3895 mm | 4125 mm | 3840 mm | 4450 mm | 4440 mm | 4800 | ||
Weight | 17.4 t | 27 t | 35.4 t | 60 t | 60 t | 82 t | ||
Axle Load | 8.1 | 16 | 25 | 40.5 | 41.3 | 52 | ||
Traction Pin/Axle Load | 50/9.3 | Nov-50 | 50/10.4 | 90/19.5 | 90/18.7 | 90/30 | ||
Jaw Crusher | PE400X600 | PE500X750 | PE600X900 | PE750X1060 | PE870X1060 | PE900X1200 | ||
Feeding Port (mm) | 400*600 | 500*750 | 600*900 | 750*1060 | 870*1060 | 900*1200 | ||
Max. Feeding Size (mm) | 340 | 425 | 500 | 630 | 750 | 780 | ||
Discharge Adjustment (mm) | 40-100 | 50-100 | 65-180 | 80-180 | 170-270 | 95-225 | ||
Capacity (m3/h) | 10-35 | 25-60 | 30-80 | 72-150 | 145-235 | 170-250 | ||
Vibrator Feeder | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW490X110 | ZSW600X1300 | ||
Bin (m3) | 3.2 | 3.2 | 7.6 | 10 | 10 | 10 | ||
Bin Width (mm) | 2200 | 2200 | 3150 | 3000 | 3000 | 3000 | ||
belt Conveyopr | B600X5.8Y | B650X5.8Y | B1000X7.0Y | B1000X7.2Y | B1000X7.2Y | B1200X8.3Y | ||
Side Conveyor（Optional） | NO | B400X2.7Y | B500X2.7Y | B500X2.7Y | B500X2.7Y | B650X3.5Y | ||
De-ironing Separator(Optional） | RCYD-6.5 | RCYD-6.5 | RCYD-10 | RCYD-10 | RCYD-10 | RCYD-12 | ||
Number of Axes | 1 Axes | 2 Axes | 2 Axes | 3 Axes | 3 Axes | 3 Axes | ||
Model | 9030-3YA- F1010 | 9638-3YA- F1210 | 9638-3YA-F1214 | ||||

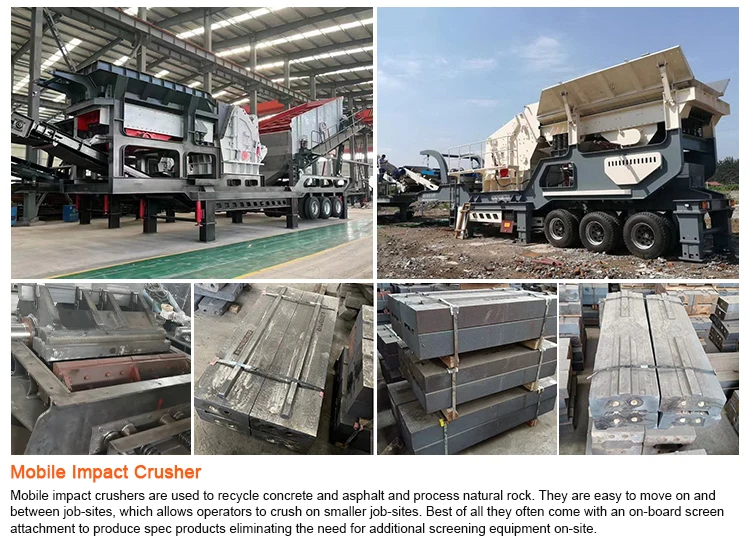

Impact Crusher | PFS1010 | PFS1210 | PFS1214 | ||||
Vibrator Feeder | ZSW300×90 | ZSW380×96 | ZSW380×96 | ||||
Screening Machine | 3YA1548 | 3YA1848 | 3YA1860 | ||||
De-ironing Separator | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | ||||
Number of Axes | 2 Sets | 3 sets | 3 Sets | ||||
Capacity | 80-200 tph | 100-285 tph | 120-400 tph | ||||
Hydraulic System | hydraulic lifting and descending | ||||||
Belt Conveyor | 6 Sets | 6 Sets | 6 Sets | ||||
Total Power | 185.7 Kw | 242.7 Kw | 287 Kw | ||||
Shipment Size | Length | 15900 mm | 17200 mm | 18500 mm | |||
Width | 2600 mm | 2900 mm | 2900 mm | ||||
Height | 3800 mm | 4000 mm | 4000 mm | ||||
Model | 120SMH33S | 120SMH34S | 180SMH42S | 250SMH53S | 250SMH54S | ||
Shipment Size | Length | 13300 | 13920 | 13720 | 15690 | 15690 | |
Width | 2780 | 2780 | 2780 | 3290 | 3300 | ||
Height | 4350 | 4460 | 4350 | 4500 | 4510 | ||
Weight | 31 | 34.4 | 37.3 | 53 | 54.4 | ||
Axle Load | 22 | 23.8 | 26 | 34.5 | 35.8 | ||
Traction Pin/Axle Load | 50/9.0 | 90/10.6 | 50/11.5 | 90/18.5 | 90/18.6 | ||

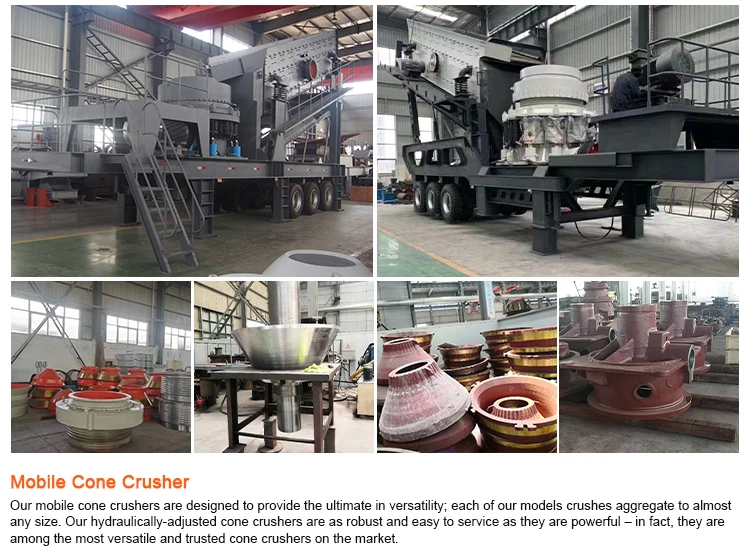

Cone Crusher | SMH120 | SMH120 | SMH180 | SMH250 | SMH250 | ||
Max. Feeding Size (mm) | 50-160 | 50-160 | 60-180 | 80-240 | 80-240 | ||
Discharge Adjustment (mm) | 9-32 | 9-32 | 9-32 | 9-51 | 9-51 | ||
Capacity | 40-150 tph | 40-150 tph | 60-220 tph | 70-400 tph | 70-400 tph | ||
Screening Machine | 3YK1545 | 4YK1548 | 3YK1860 | 3YK2160 | 4YK2160 | ||
Belt Conveyor | B800X7.2Y | B800X7.4Y | B1000X8.2Y | B1000X8.2Y | B1000X8.2Y | ||
Number of Axle Frames | 2 Axle | 2 Axle | 2 Axle | 3 Axle | 3 Axle | ||
Item | M3S1848V7611 | M3S1848V8518 | M3S1860V9526 | M3S2160V1140 | ||
Shipment Size | Length | 9800 mm | 13500 mm | 15600 mm | 15600 mm | |
Width | 2460 mm | 2830 mm | 2830 mm | 3100 mm | ||
Height | 4200 mm | 4350 mm | 4350 mm | 4480 mm | ||
Working Sizx (mm) | Max Length | 10900 mm | 14650 mm | 16300 mm | 16300 mm | |
Max Width | 3900 mm | 3900 mm | 3900 mm | 3900 mm | ||
Max Height | 5830 mm | 5980 mm | 6400 mm | 6550 m | ||
Weight | 26 t | 31 t | 36 t | 49 t | ||
Axle Load | 19.2 | 22.3 | 23.8 | 27.5 | ||
Traction Pin/Axle Load | 50/8.8 | 50/10.3 | 50/9.1 | 90/11.2 | ||
Max Feedign Size | 65(80) mm | 70(100) mm | 70(100) mm | 70(100) mm | ||
Number of Axle Frames | 2 Axle | 2 Axle | 3 Axle | 3 Axle | ||

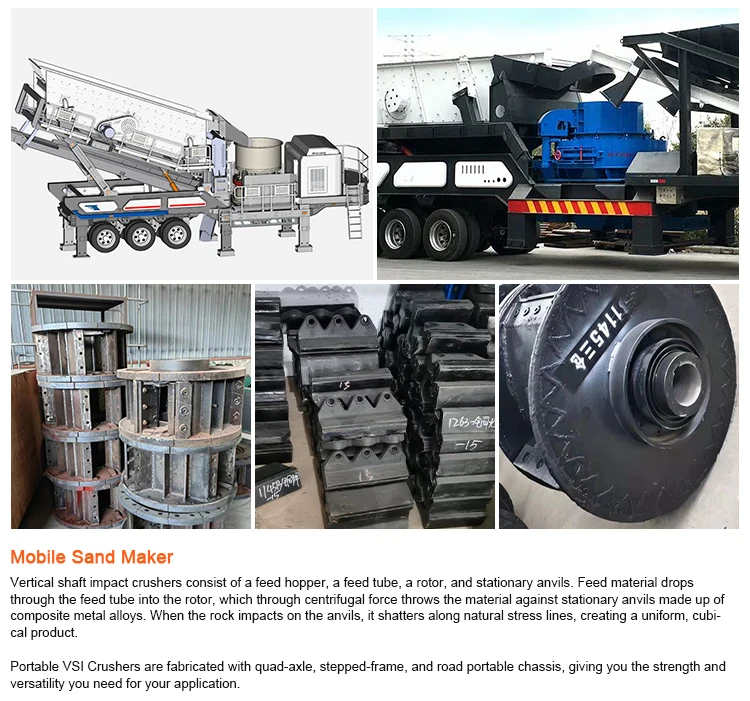

Crusher Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | ||
Capacity | 80-150 tph | 120-250 tph | 120-250 tph | 180-350 tph | ||
Discharge Conveyor | B800×2.2M | B800×2.2M | B800×2.5M | B1000×2.5M | ||
Belt Conveyor Under Screener | B800×7M | B800×7M | B800×8M | B1000×8M | ||
Screening Machine | 3YZS1848 | 3YZS1848 | 3YZS1860 | 3YZS2160 | ||
Model | Machine Type | Feeding Size | Capacity | Dimensions (mm) | ||
S-E46-PF1007 | 3YZK1237 | PE400×600 | ≤350 mm | 30-50 tph | 12500 x 2500 x 4500 | |
GZD650×2300 | PF1007 | |||||
S-E57-PF1010 | 3YZK1545 | PE500×750 | ≤425 mm | 50-100 tph | 13000 x 2500 x 4500 | |
ZSW850×3000 | PF1010 | |||||
S-E69-PF1214 | 3YZK1848 | PE600×900 | ≤500 mm | 100-180 tph | 15800 x 2550 x 4500 | |
ZSW9638 | PF1214 | |||||
S-E57-Q300 | 3YZK1545 | PE500×750 | ≤425 mm | 50-100 tph | 13000 x 2500 x 4500 | |
ZSW850×3000 | HP200 | |||||
S-E69-Q400 | 3YZK1860 | PE600X900 | ≤500 mm | 100-180 tph | 15800 x 2550 x 4500 | |
ZSW960 x 3800 | HP300 | |||||
Company Profile

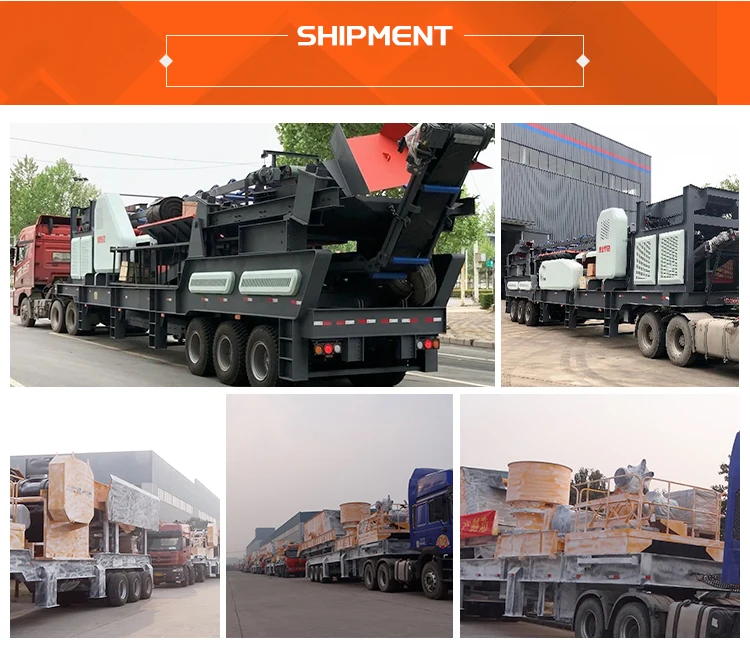

Packing And Shipping
