Customization energy conservation 4mm PVC low e glass windows insulated glass Heat Reflective Coated Insulating Glass
- Category: >>>
- Supplier: Shandong New Line Import and Export Co. Ltd.
Share on (1601155233932):
Product Overview
Description

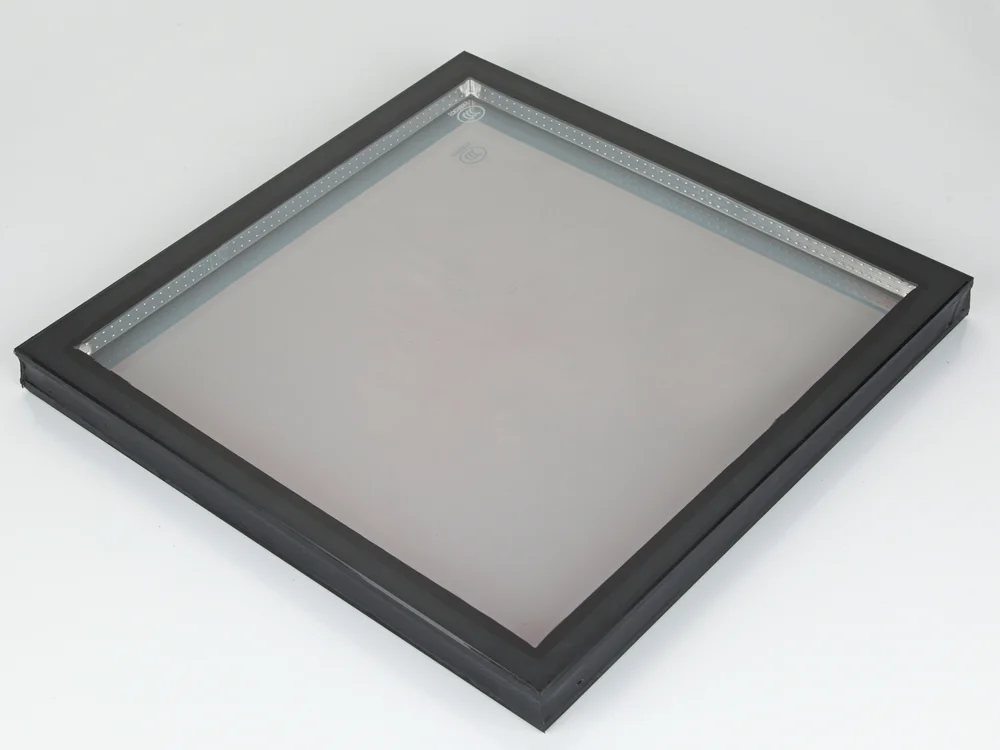

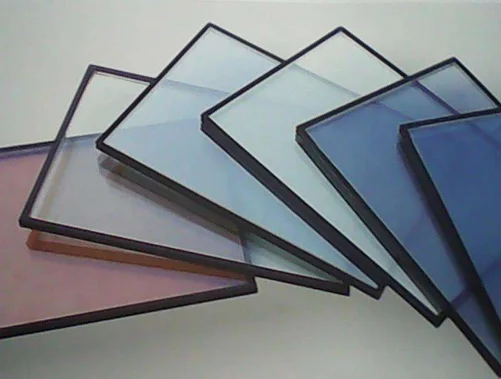

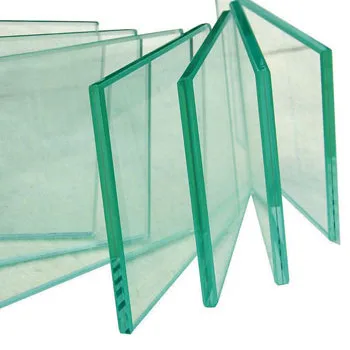

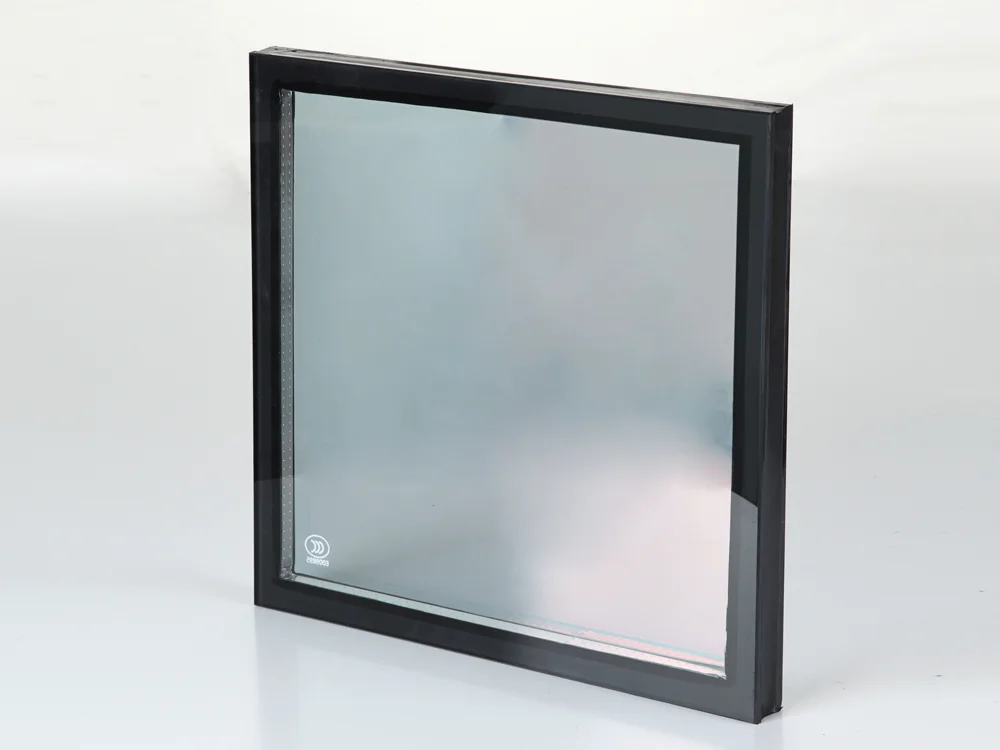

Low E Glass
Product Description
Defination
Low Emissivity glass, referred to as low-E glass, is the abbreviation of Low Emissivity in English. It is a film product which is plated with multiple layers of metal or other compounds on the glass surface.

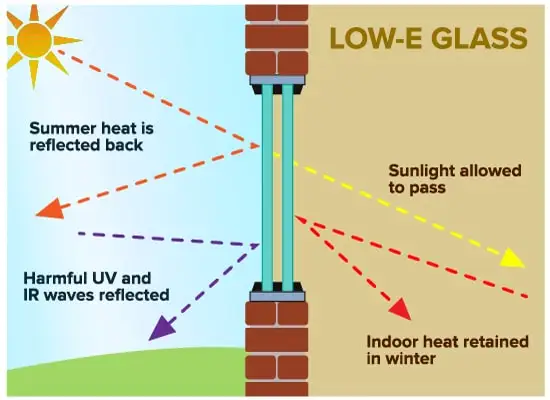

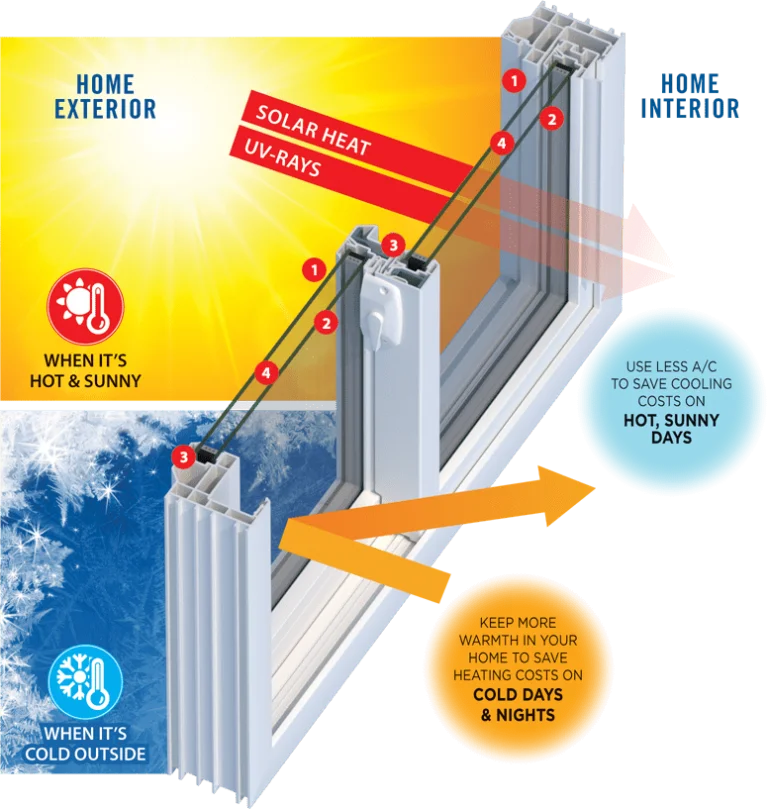

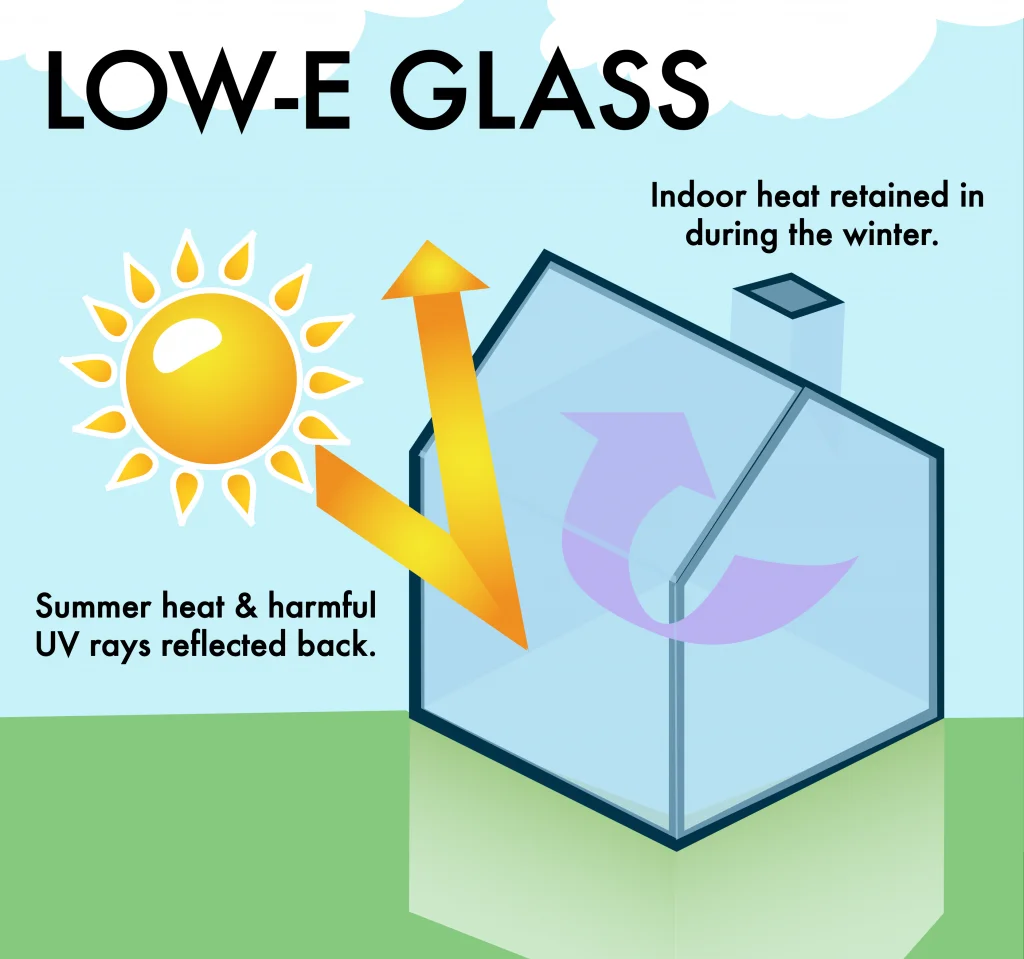

In short, this kind of glass can not only transmit light normally, but also block part of the heat energy. When thermal energy (infrared) from the sun or HVAC hits the low-emission glass, it is reflected back into the original space rather than being transmitted through the glass.
Material Performance
Excellent thermal performance
The radiant rate of ordinary float glass is as high as 0.84, when plated with a layer of silver based low radiation film, its radiant rate can be reduced to below 0.15. Therefore, the manufacture of building doors and Windows with Low-E glass can greatly reduce the transmission of indoor heat energy to the outside caused by radiation, and achieve the ideal energy saving effect.
Good optical properties
The visible light transmittance of Low-E glass varies from 0% to 95% in theory (6mm white glass is difficult to do), and the visible light transmittance represents the indoor lighting. Outdoor reflectance from about 10%-30%, outdoor reflectance is visible light reflectance, representing reflective intensity or dazzling degree, at present, China requires the visible light reflectance of curtain wall is not more than 30%
Comparable
1.Single silver Low-E glass
Any coated glass will limit the transmission of visible light to varying degrees while limiting the transmission of solar thermal radiation. Double silver Low-E glass can block more solar heat radiation than single silver Low-E glass.
In other words, in the case of the same light transmittance, double silver Low-E has a lower shading factor Sc, which can filter sunlight into a cold light source to a greater extent.
2.Double silver Low-E glass
The heat transfer coefficient of double-silver Low-E glass is lower than that of single silver Low-E, which can further improve the thermal insulation performance of the external window and truly achieve warm winter and cool summer.
In simple terms, because the double-silver Low-E glass greatly reduces the heat exchange of the indoor and outdoor environment through the glass, when the air conditioner is heated or cooled, the air conditioner can be in a standby state for a longer time after the indoor temperature reaches the set temperature, thereby saving power consumption.
The advantages of double silver Low-E glass can be simply summarized as follows:
1. Under the same glass combination, double silver Low-E glass has lower emissivity and lower heat transfer coefficient (U value) than single silver LOW-E glass. |
2. Double silver Low-E glass has a lower shading factor, that is, Sc value. |
3. In the case of the same shading coefficient (Sc value), the visible light transmittance is higher than that of single silverLow-E. |
In short, double-silver low-E glass highlights the shielding effect of glass on solar thermal radiation, cleverly combines the
high light transmittance of glass with the Low transmittance of solar thermal radiation, and successfully solves the problem of the coexistence of the double advantages of high light transmittance and low U value and Sc value, so it has better energy saving effect, which is an advantage that any other glass cannot have.
high light transmittance of glass with the Low transmittance of solar thermal radiation, and successfully solves the problem of the coexistence of the double advantages of high light transmittance and low U value and Sc value, so it has better energy saving effect, which is an advantage that any other glass cannot have.

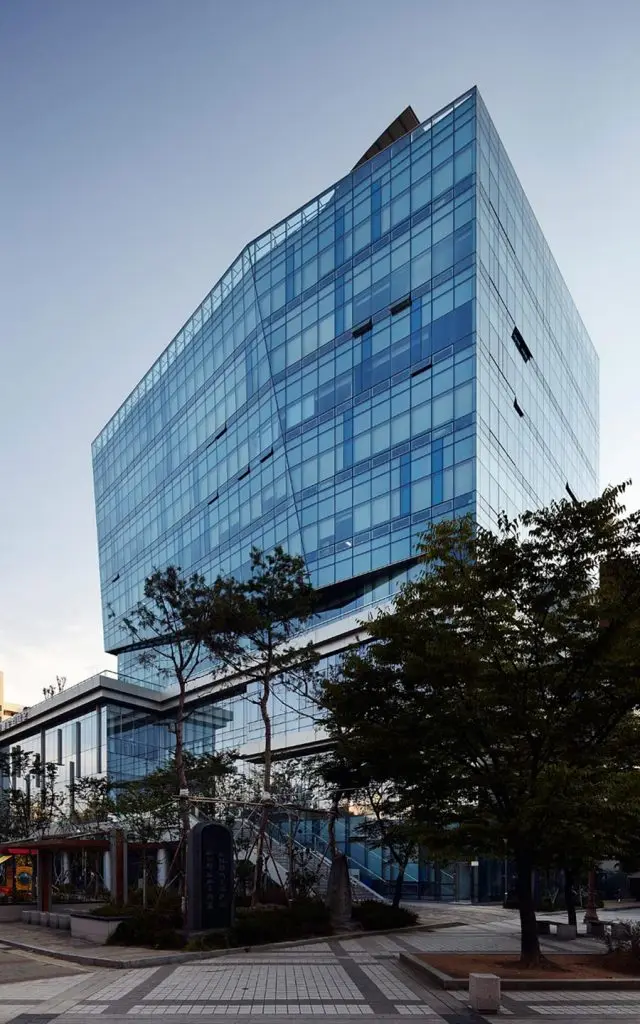

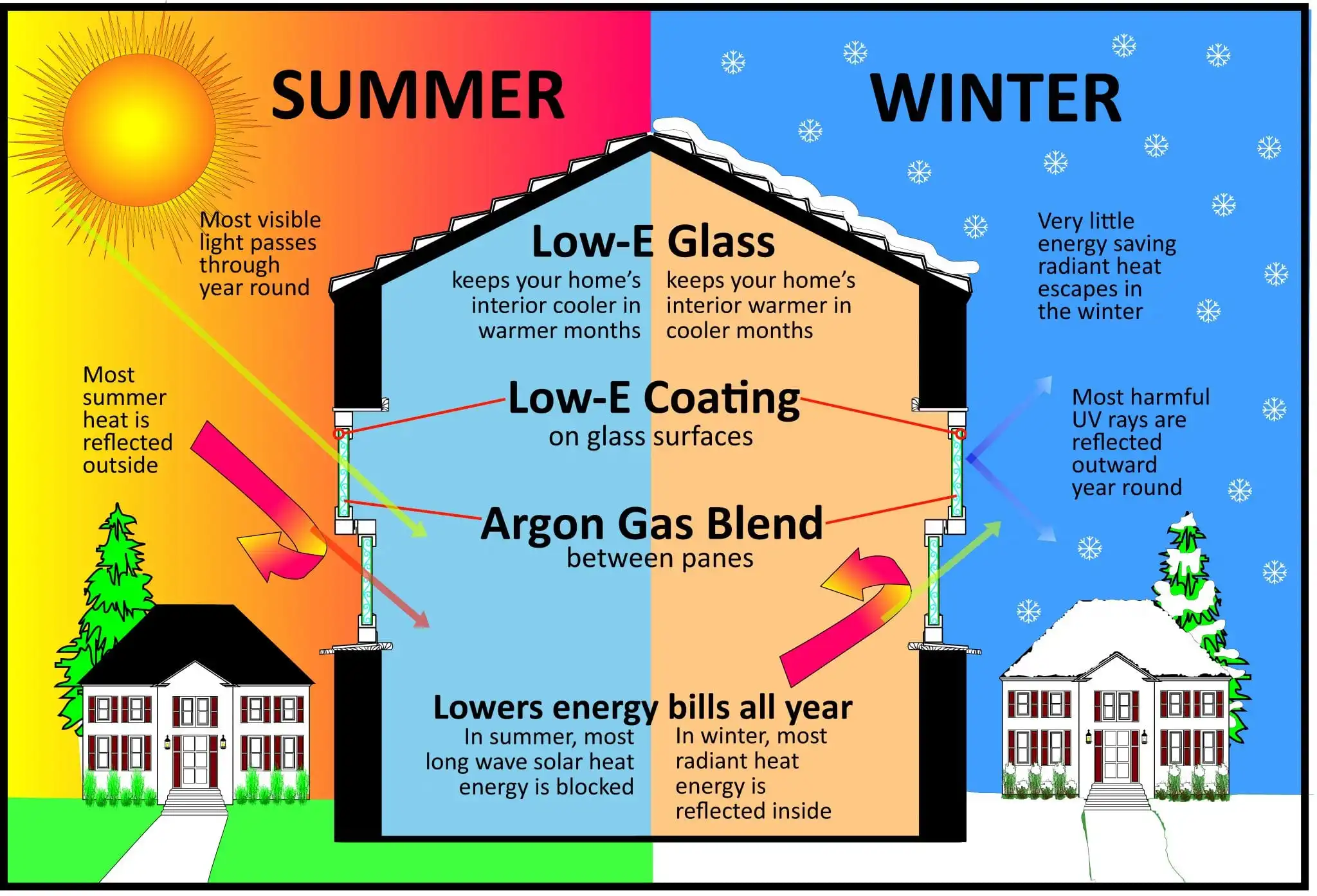

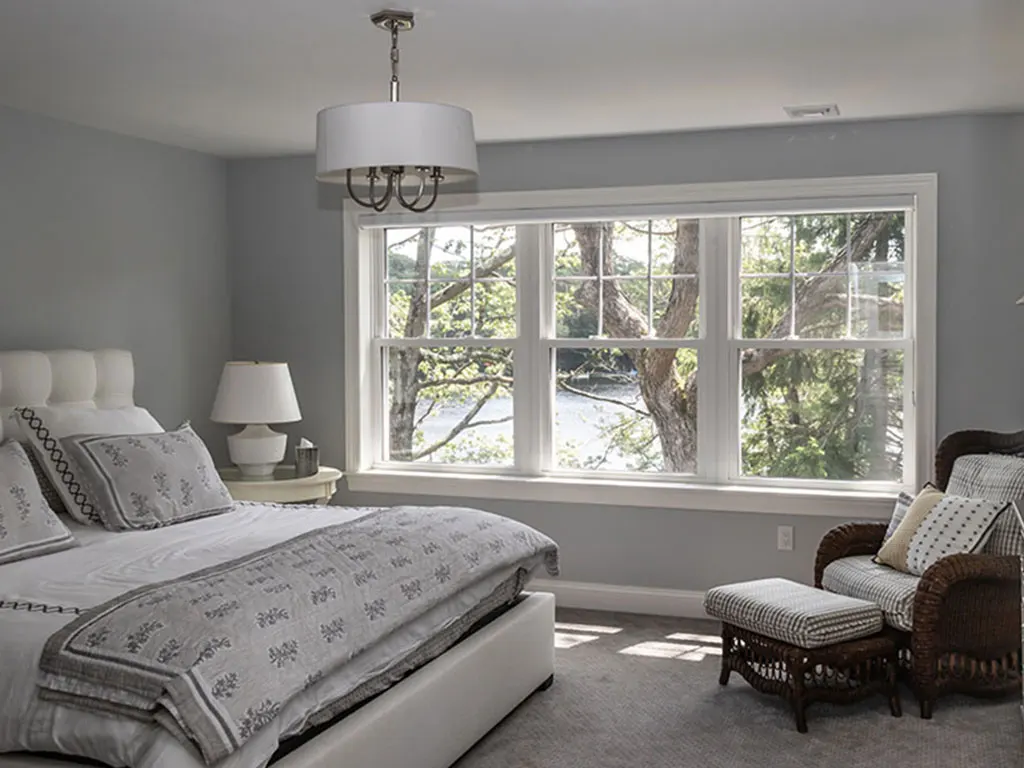

Effect display
Using Low-E glass to manufacture building doors and Windows can greatly reduce the transfer of indoor heat energy caused by radiation to the outdoors, and achieve the ideal energy saving effect. At the same time, the fuel consumed by heating can be greatly reduced, thus reducing the emission of harmful gases.

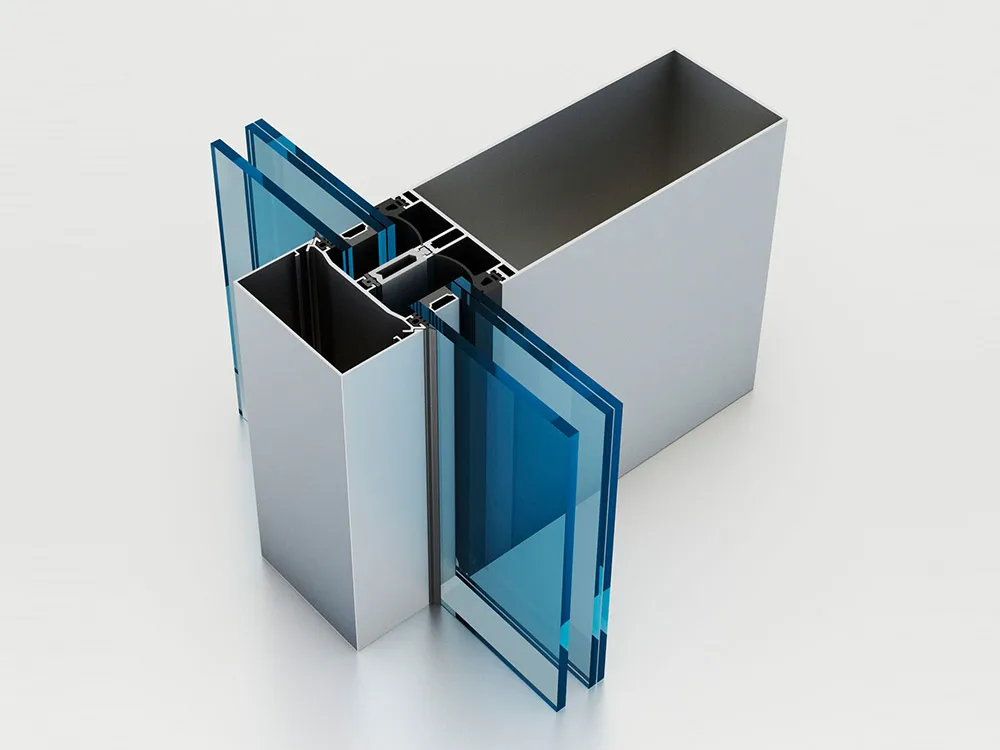

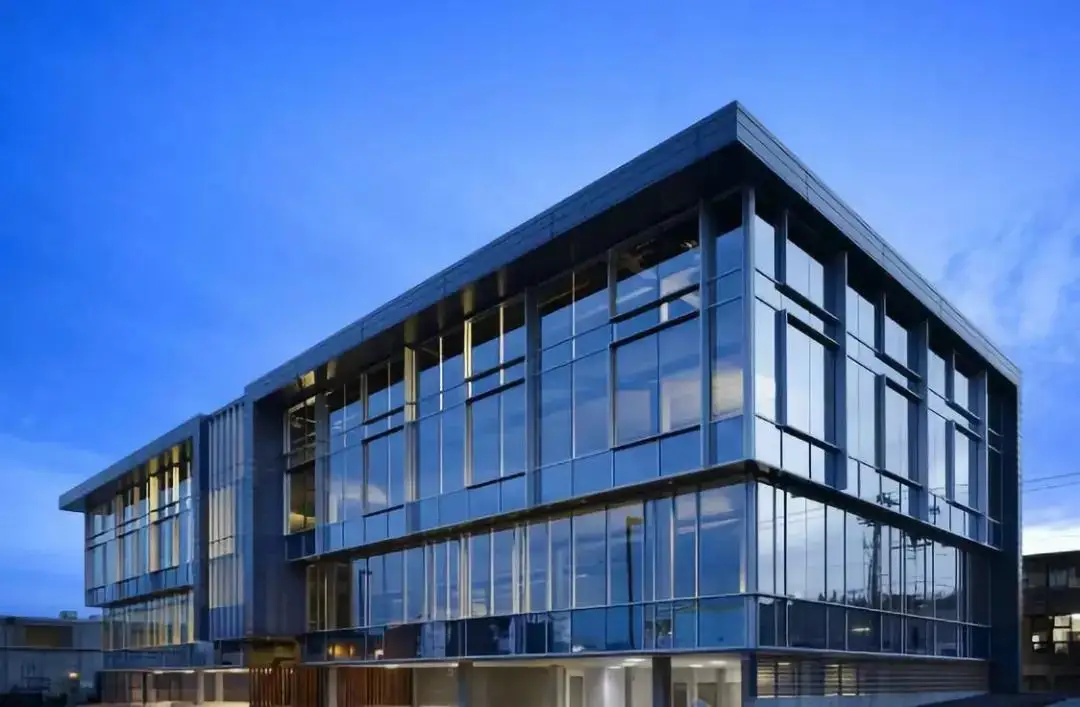

Application.
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | NEW LINE |
Model Number | Low e-glass |
Warranty | More than 5 years |
After-sale Service | Online technical support |
Project Solution Capability | total solution for projects |
Application | Courtyard, Leisure Facilities, Supermarket, Farmhouse, Workshop, Kitchen, School, Bathroom, Bedroom, Exterior, Dining, Warehouse, Staircase, Outdoor, Living Room, Office Building, Storage & Closet, Gym, Apartment, Sports Venues, Basement, Hotel, Home Bar, Hall |
Usage | Industrial, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument |
Thickness | 4mm-19mm |
thickness | customizable |
Selling Units | Single item |
Application | window door |
Packing & Delivery

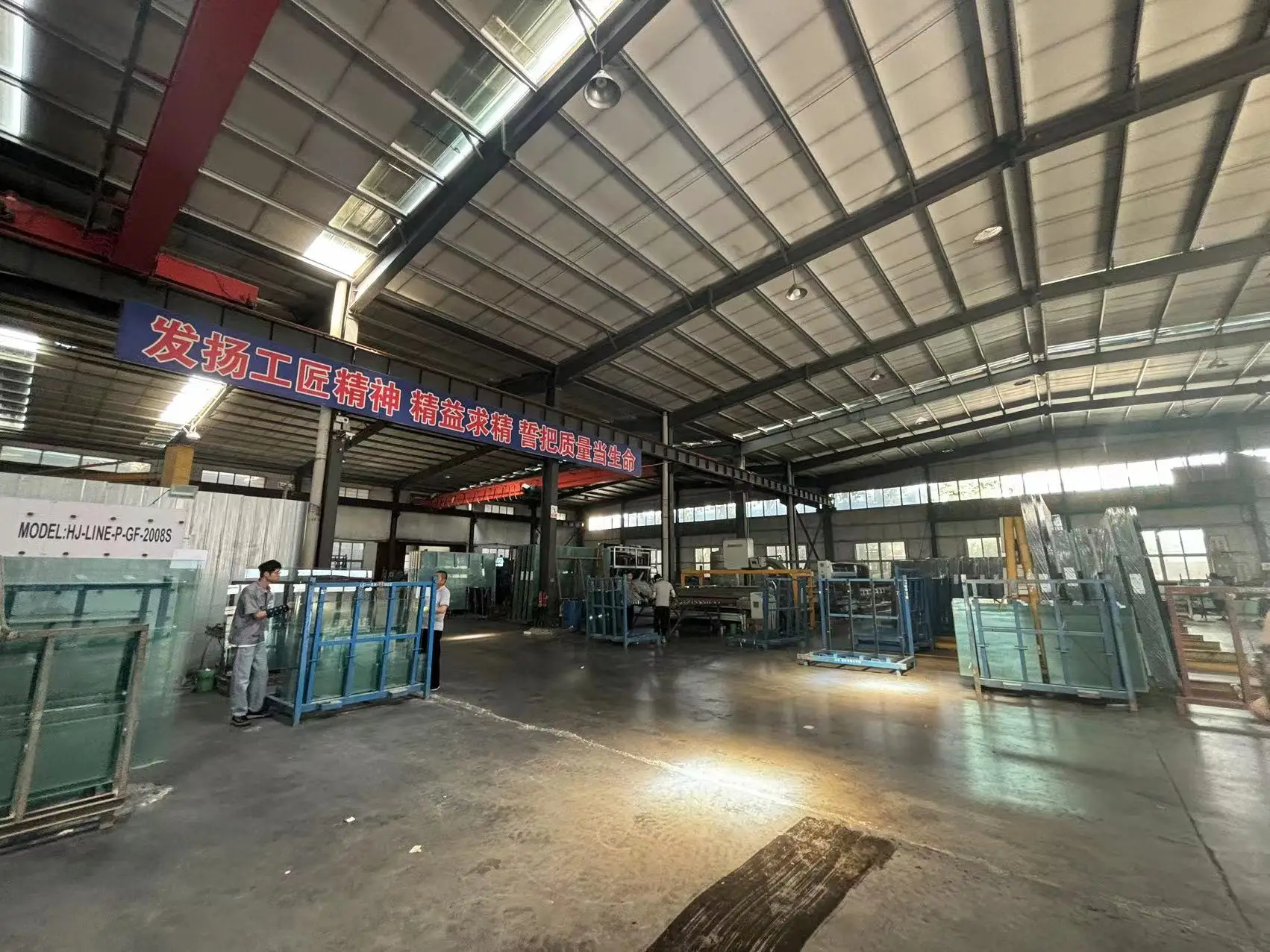

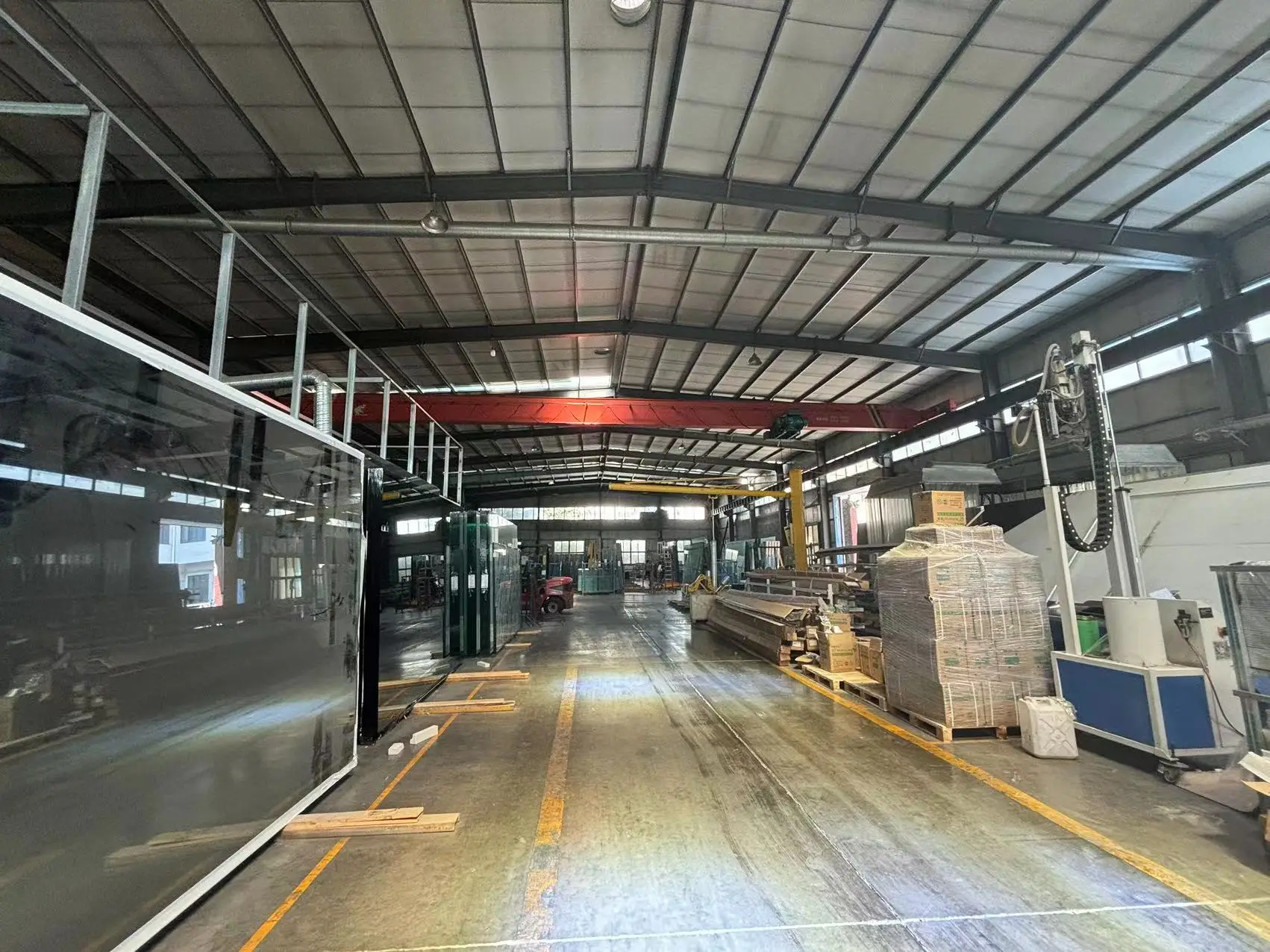

Company Profile
Shandong New Line Import and Export Co., Ltd. is a company specializing in the production and sales of different types of tempered glass, manhole covers, grilles and other building products. The company's production scale is large, there are many production lines, and the production can meet customer needs, sufficient inventory, complete testing system, quality and quantity, and timely delivery to customers. In order to promote sustainable development and expand the company, since its establishment, it has reached a good supply and demand relationship with a number of companies, reached cooperative relations with many large companies at home and abroad, and signed strategic partnerships with many companies.
We sincerely welcome your arrival.

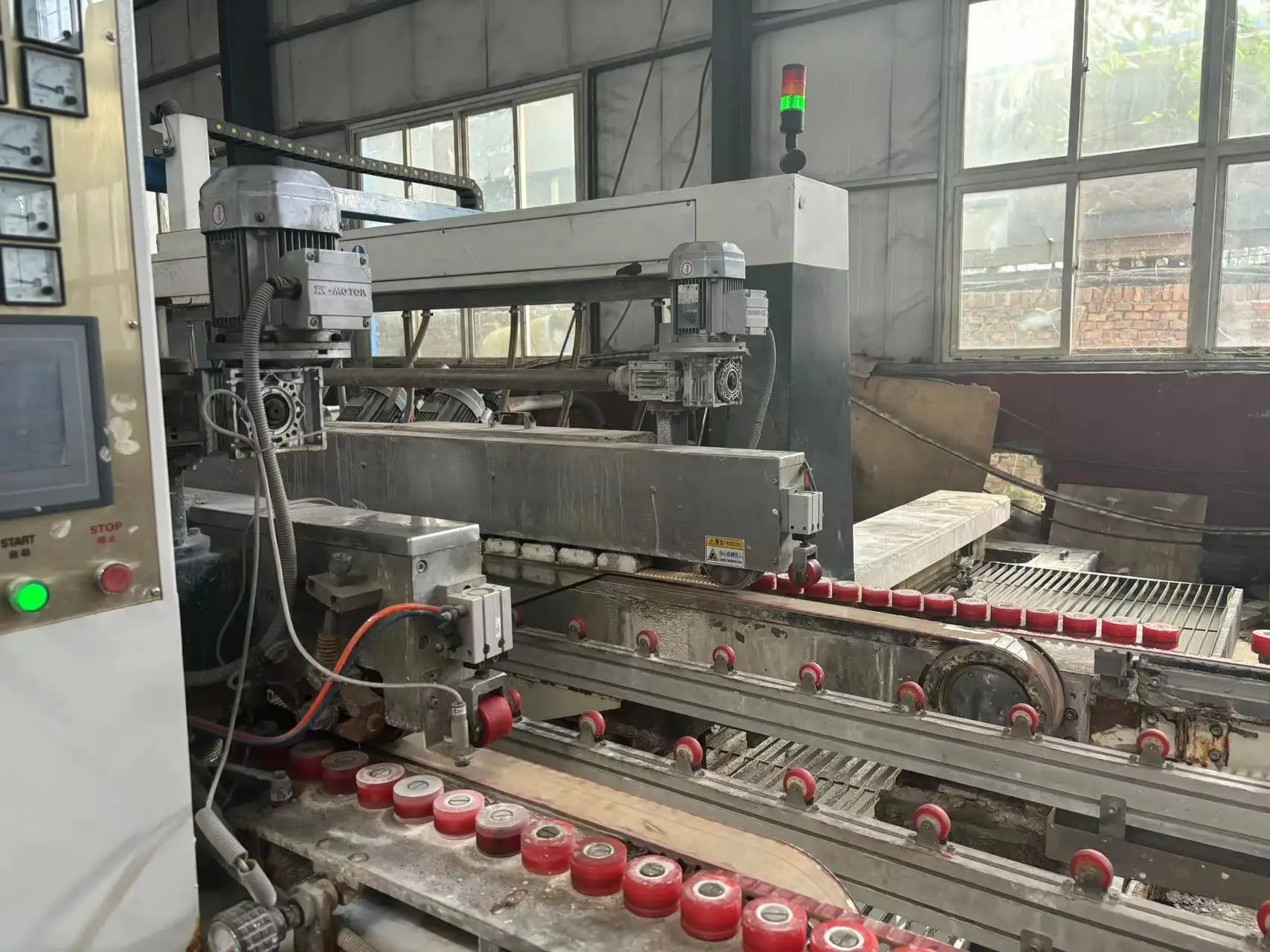

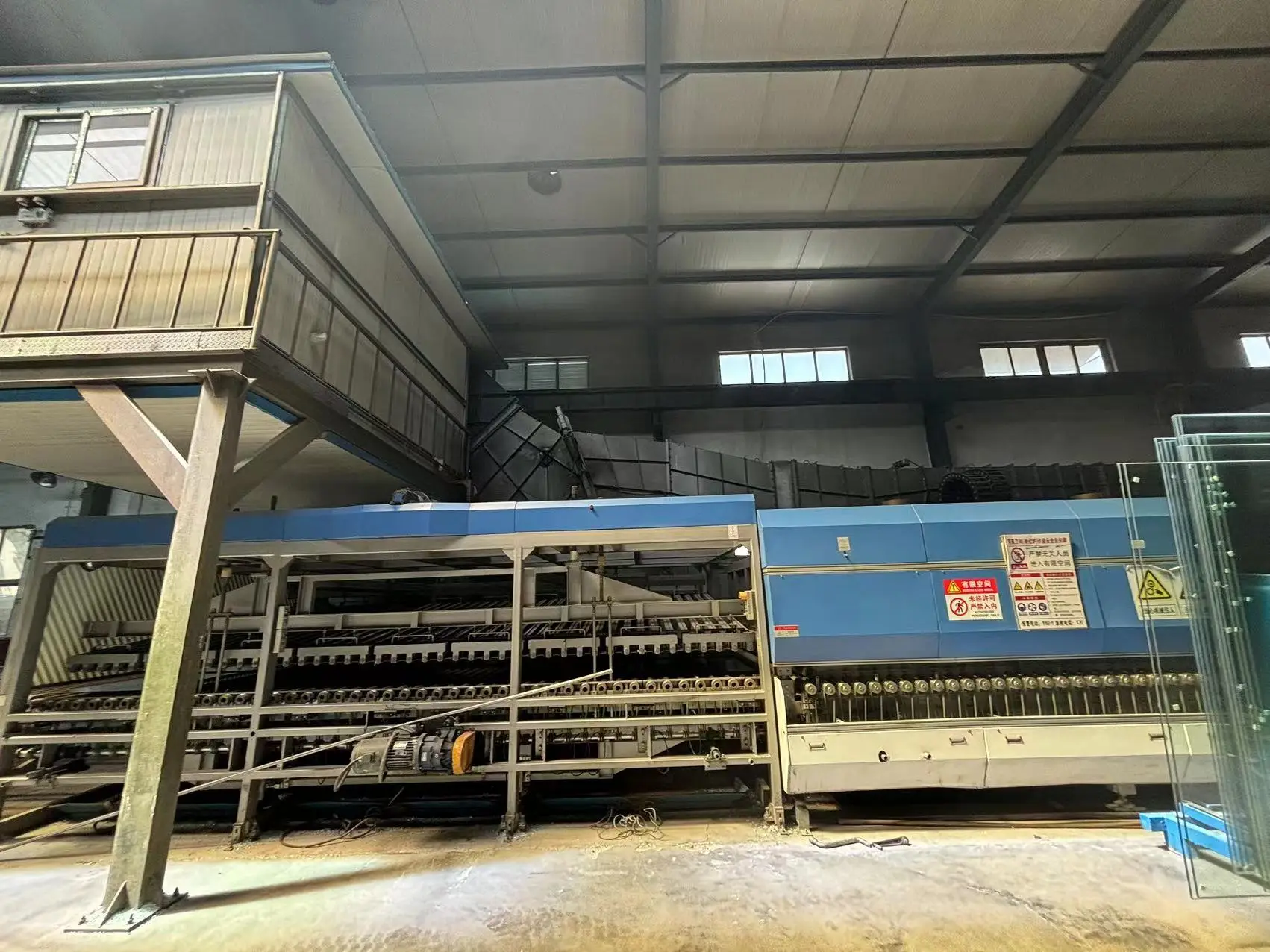

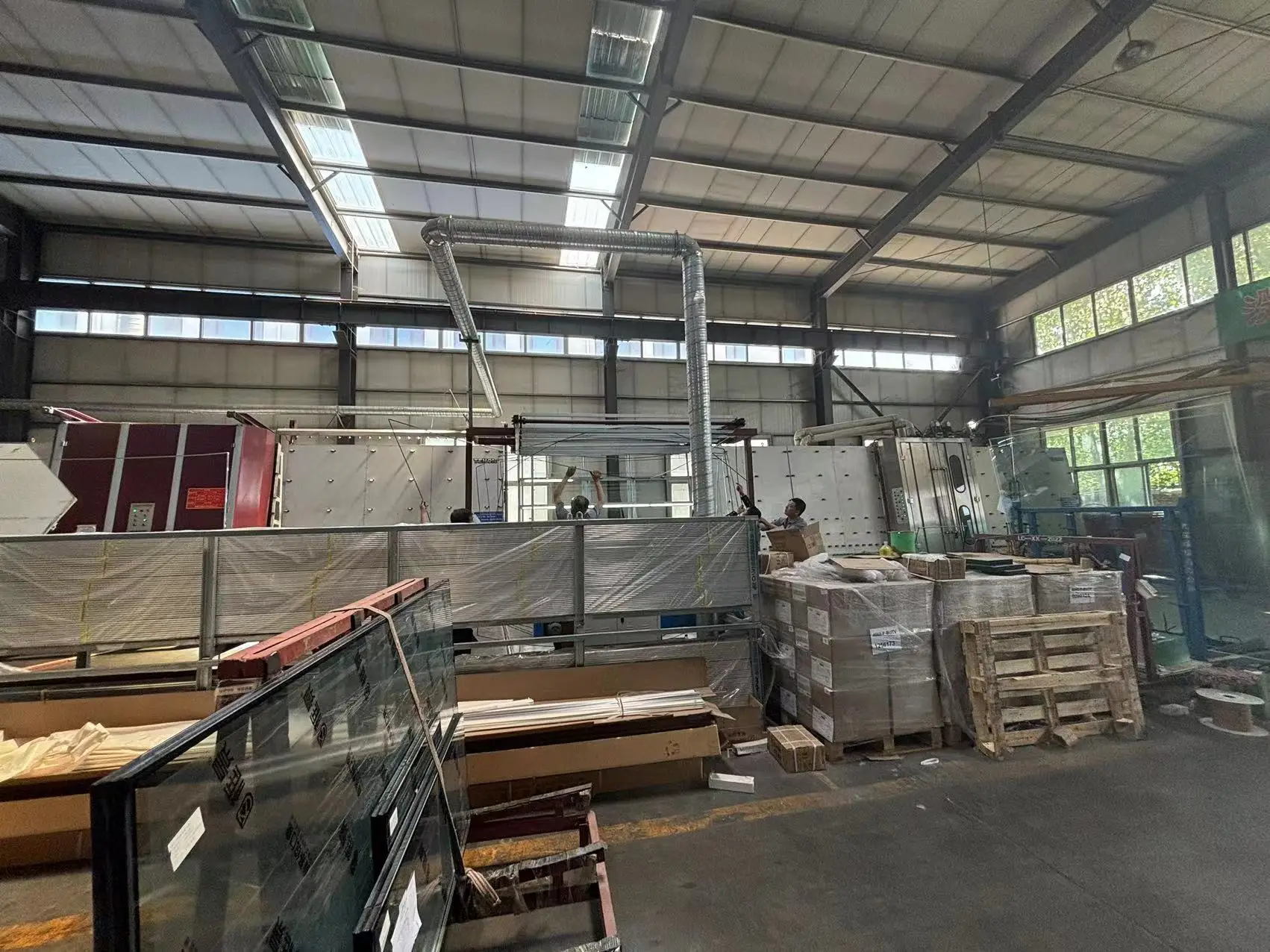

Exhibition
At present, we have established good partnerships with buyers all over the world. Mainly exported to Southeast Asia, South America, North America, Europe and West Africa. We have a wide range of buyers, builders, dealers and Amazon sellers. We do our best to serve every customer and constantly open up new areas. Looking forward to cooperating with you.
FAQ
1)Can you do design for us ?
Yes , We do OEM and ODM service.we have good experience to understand what buyers like and arrange development.
Yes , We do OEM and ODM service.we have good experience to understand what buyers like and arrange development.
2) Can you handle small orders ?
Of course, in order to support clients' business, we will prepare some stock for many hot sale model in advance, so that we can sell small quantity products to you each time. We can also handle small custom orders.but there's extra cost for
yarn/fabric/printing . It depends on details.
3)How to pay?
yarn/fabric/printing . It depends on details.
3)How to pay?
You can pay by L/C, D/A, D/P, T/T, WESTERN UNION, PAYPAL or BANK TRANFER, etc.
4)What is your sample policy?
Sample leadtime is 7-10 days if fabric and yarn is in stock . Samples shall be paid , and cost can be deducted from production .
5)What about after-sale service?
5)What about after-sale service?
All products will be strictly quality checked before packing
If any dissatisfaction, you’ll get our quick response and solution.
If any dissatisfaction, you’ll get our quick response and solution.
6)May I visit your factory?
Sure, welcome any time. We can also pick you up at the airport and station.
