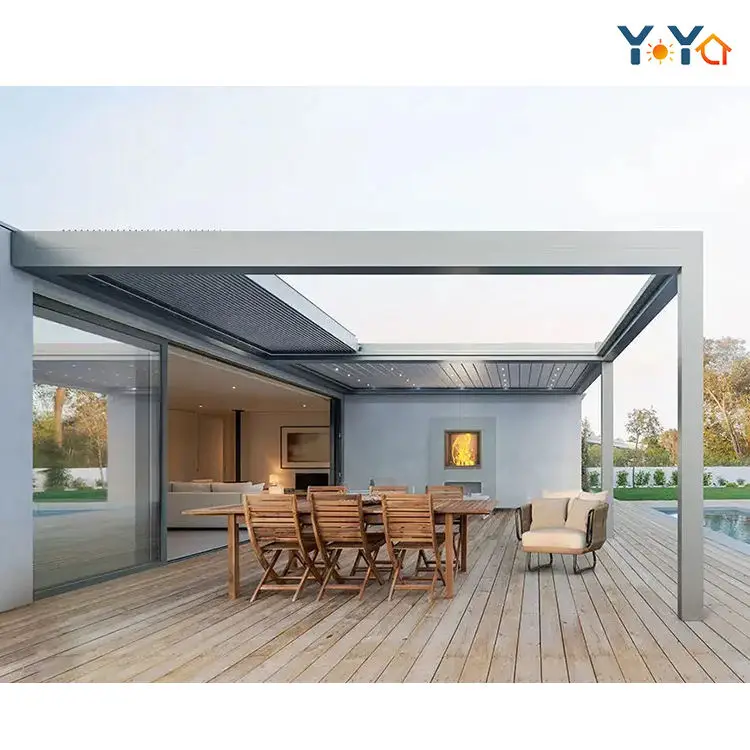

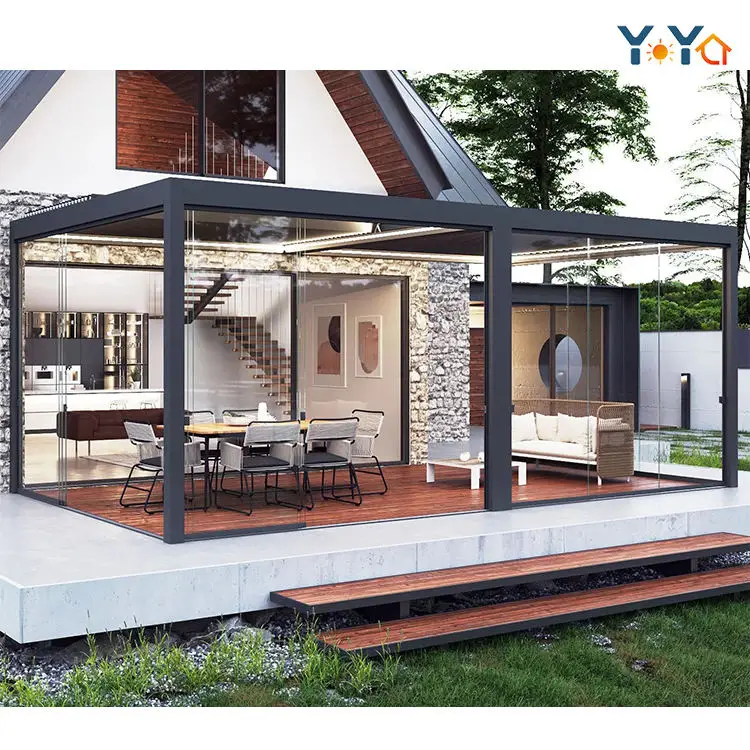

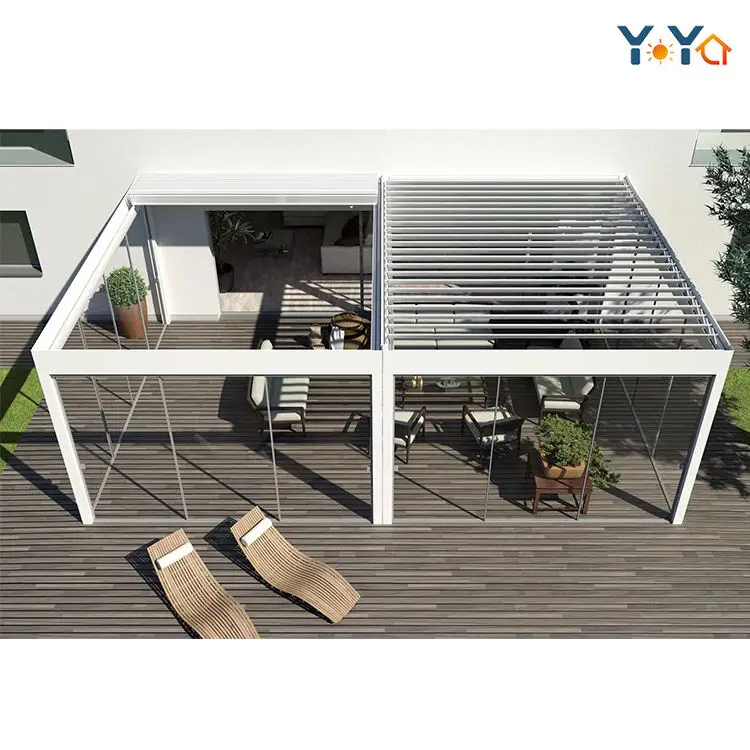

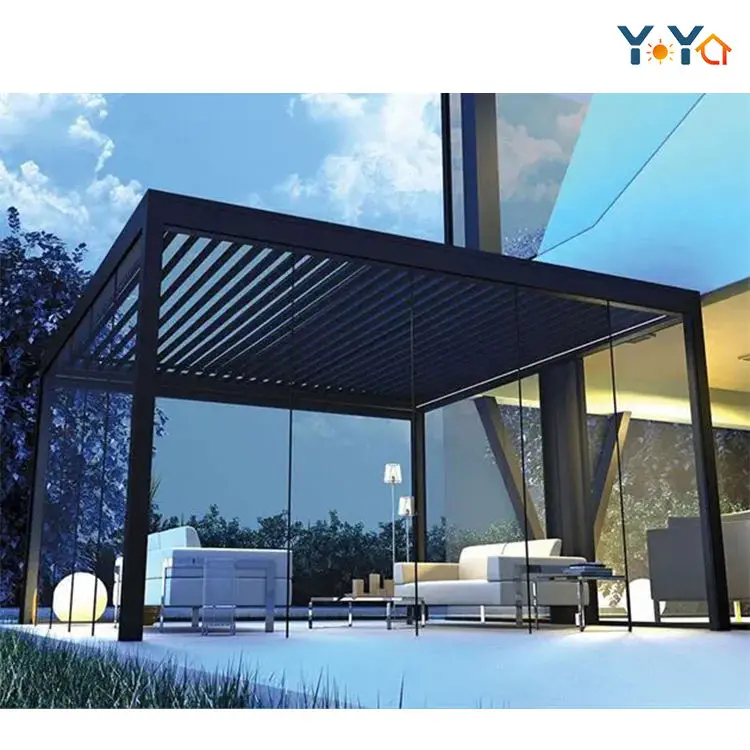

Customized Aluminum Bioclimatique Waterproof Sun Shade Motorized Sliding Canopy Awning Roof Louvered Pergola
- Category: >>>
- Supplier: Hangzhou Youya Outdoor Products Co. Ltd.Hangzhou Ltd.
Share on (1601155347724):
Product Overview
Description
Product
1. Simple and stylish design, eliminating complexity. A simple style that is more in line with the aesthetic and experience needs of the younger generation.

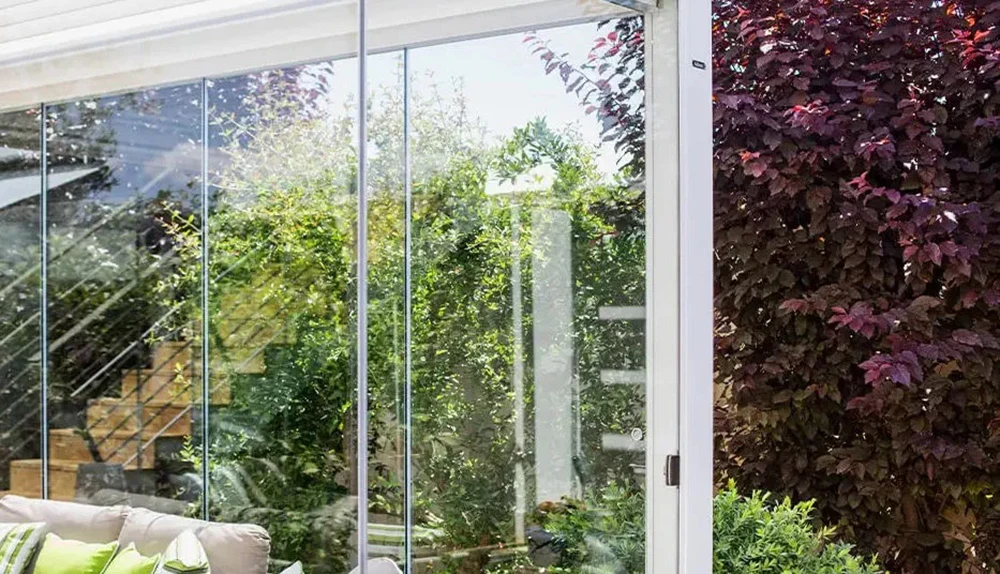

2. Large open space, ultra-narrow frame, more beautiful and better light transmission, making the room more open.

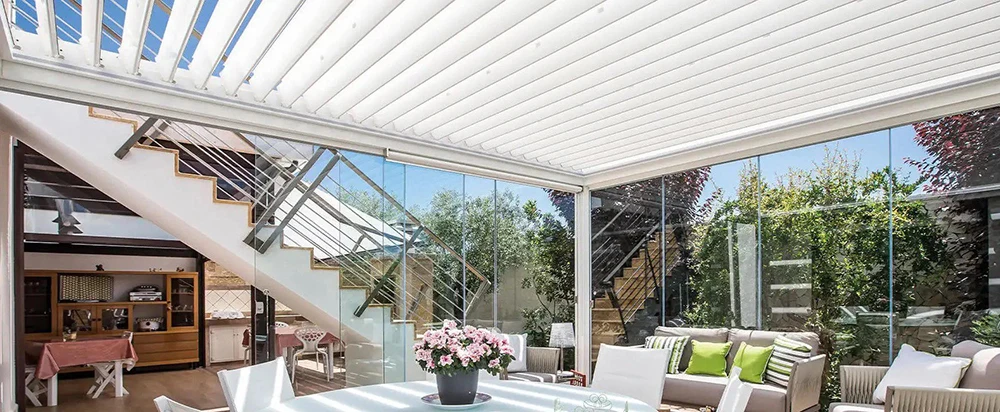

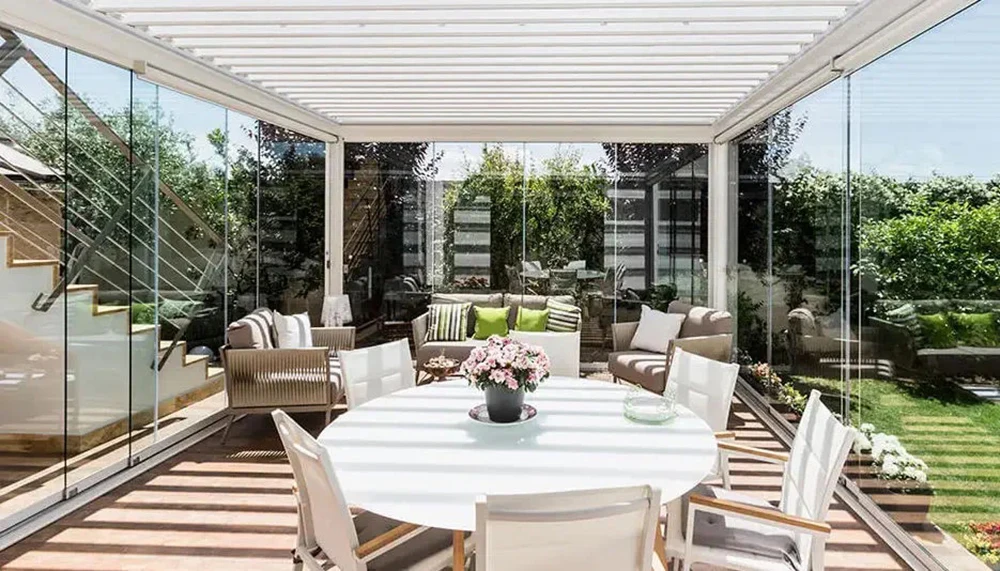

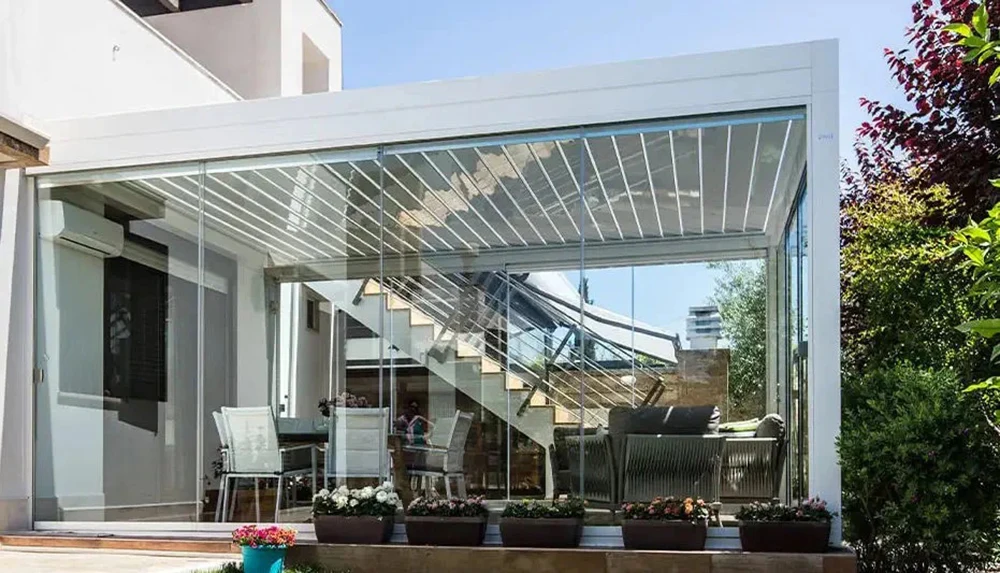

3. It can be used with a pergola to enjoy the outdoor leisure life without being affected by the weather.

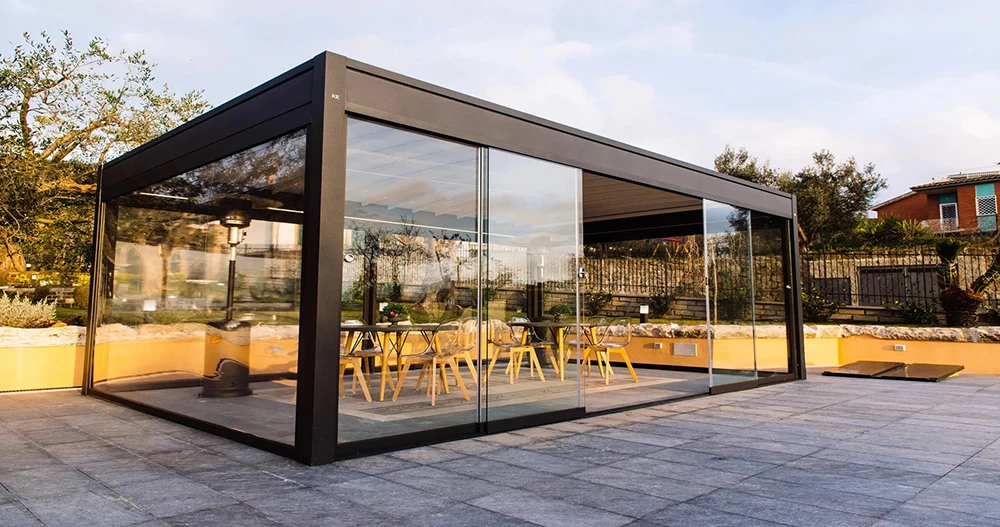

Product Name | Frameless Sliding Glass Door |
Frame Material | 1.6mm Thickness Aluminum |
Frame Color | RAL 7016 Grey Color & RAL 9016 Traffic White |
Product Size | Any Size Can Be Customized |
Glass Panel Size Range | Max: W1000 x H2600mm |
Glass Panel | 10mm/12mm Thickness Tempered Glass |
5mm+1.14PVB+5mm Laminated Glass | |
Glass Colors | 10mm Thickness Glass: Blue, Green, Grey |
12mm Thickness Glass: Transparent, Frosted |
Model | Pergola8610 | Pergola8630 | |
Size/Weight | 3x3x2.3m/117.4kg | 3x3x2.5m/130kg | |
3x4x2.3m/113.4kg | 3.5x3x2.5m/148kg | ||
4x4x2.3m/172.5kg | 3.5x3.5x2.5m/176kg | ||
4x3x2.5m/165kg | |||
4x3.5x2.5m/199kg | |||
4x4x2.5m/233kg | |||
Advantage | Aluminum Pergola Aluminum Frame: 1. Aluminum Beam size:120x100x2.0 mm; 2. Aluminum Column: 100x100x1.6 mm; 3. Alu. blade:145x23x1.4mm; 4.Height of column: 218cm; 5. Packing: (3x3m/ 3x4m/ 4x4m) 6. Manual. 7. LED light are optional Max size:400x400x230cm Min size:300x300x230cm Aluminum Frame: 1. Aluminum front cassette: 116×65×1.5mm; 2. Aluminum back cassette:105×120×1.5mm; 3. Aluminum guideway:61×40×1.2mm; 4. Aluminum lower beam：26×53×2.5mm; 5. Fabric：Sunshine fabric Max size: 400x300cm Min size: 150x100cm | Deluxe Aluminum Pergola Aluminum Frame: 1. Aluminum Beam size:150x100mm; 2. Aluminum Column: 120x120mm; 3. Aluminum sheet:190x34mm; 4. Height of column: 250cm; 5. Manual. 6. Motor & LED light are optional Max size: 400x400x250cm Min size: 300x300x250cm (This pergola is much stronger which could be mounted with dropdown screen/louver wall/glass wall) | |
Packing | 3x3x2.3m: 143x35.5x31.5cm (Alu. Clip Board-44PCS) 283x26.5x24cm (Alu. Beam) 247x23.5x23.5cm (Alu. Column) 3 packing and all packing weight 133.3kg | 3x3x2.5m----- 254x26x26cm,1 pc 276x27x22cm,2 pc 282x32x17cm,1 pc 4 packing and all packing weight 151kg | |
3x4x2.3m: 143x35.5x21cm (Alu. Clip Board-60 PCS) 384.5x28x25.5cm (Alu. Beam) 247x23.5x23.5cm (Alu. Column) 3 packing and all packing weight 131.1kg | 3.5x3x2.5m: 254x26x26,1 pc 276x27x22,3 pc 336x32x17,1 pc 5 packing and all packing weight 174kg | ||
4x4x2.3m: 193x35.5x21cm (Alu. Clip Board-60 PCS) 384.5x28x25.5cm (Alu. Beam) 247x23.5x23.5cm (Alu. Column) 3 packing and all packing weight 185.3kg | 3.5x3.5x2.5m: 254x26x26,1pc 330x27x22,3 pc 336x32x17,1pc 5 packing and all packing weight 202kg | ||
4x3x2.5m: 254x26x26,1pc 276x27x22,3pc 390x32x17,1pc 5 packing and all packing weight 191kg | |||
4x3.5x2.5m: 254x26x26,1pc 330x27x22,3pc 390x32x17,1pc 5 packing and all packing weight 226kg | |||
4x4x2.5m: 254x26x26,1pc 330x27x22,3pc 390x32x17,1pc 5 packing and all packing weight 251kg | |||
Add | Can be increased according to demand Manual Screen,Screen With Motor,Glass Door,Led Light. | ||
Recommend Products
OEM & ODM

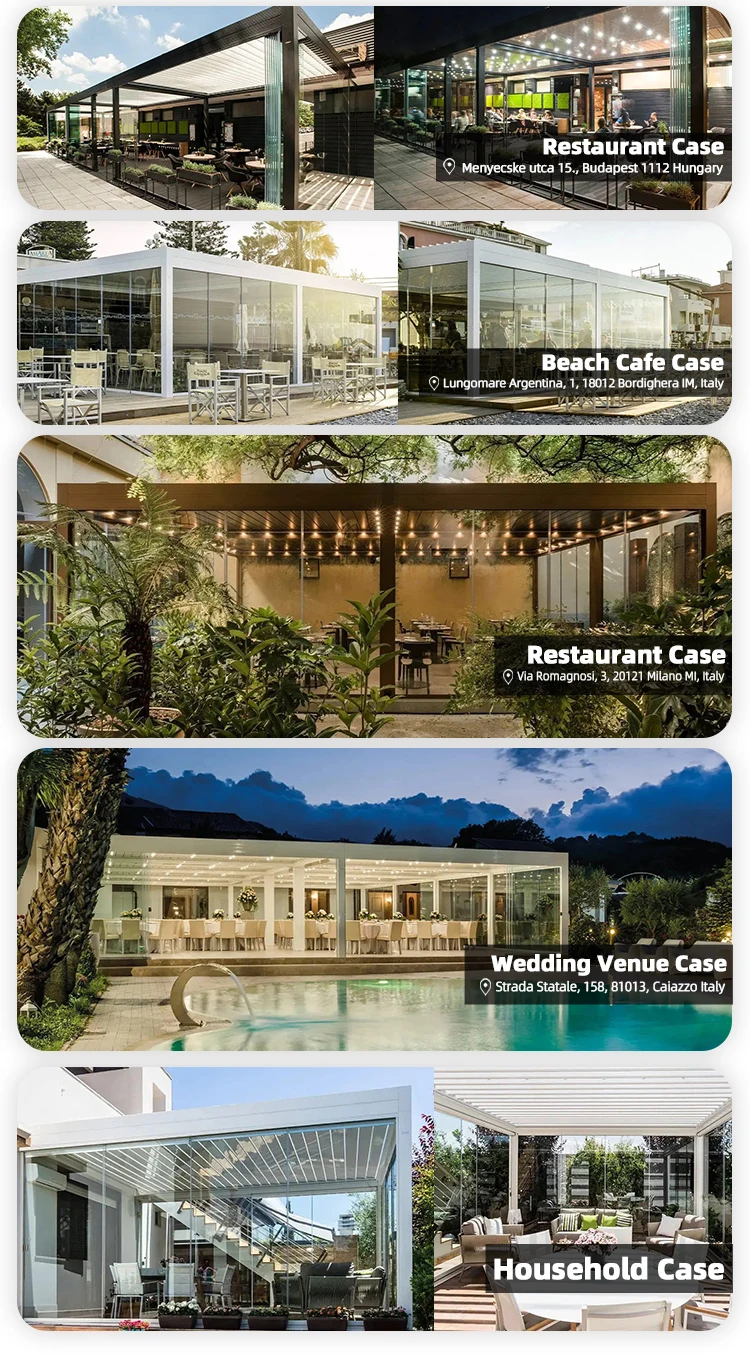

Our Project
