Small Scale Mining Machinery Mucking Loader For Gold Mining Or Gold Exploration Equipment Small Articulated Loader
- Category: >>>
- Supplier: Zhengzhou Lianke Machinery Manufacture Co. Ltd.
Share on (1601155355432):
Product Overview
Description
Product Description
Underground Tunnel Mucking Loader Digging Mucking Loader Coal Mine Tunnel Mucking Loader for Sale
Our company is Zhengzhou Lianke Machinery Manufacturing Co., Ltd.,We are a factory that specializes in the production of small dump trucks and Mucking Loaders. At present, our machines and equipment have been sold to Peru, Bolivia, Chile, and Ecuador.

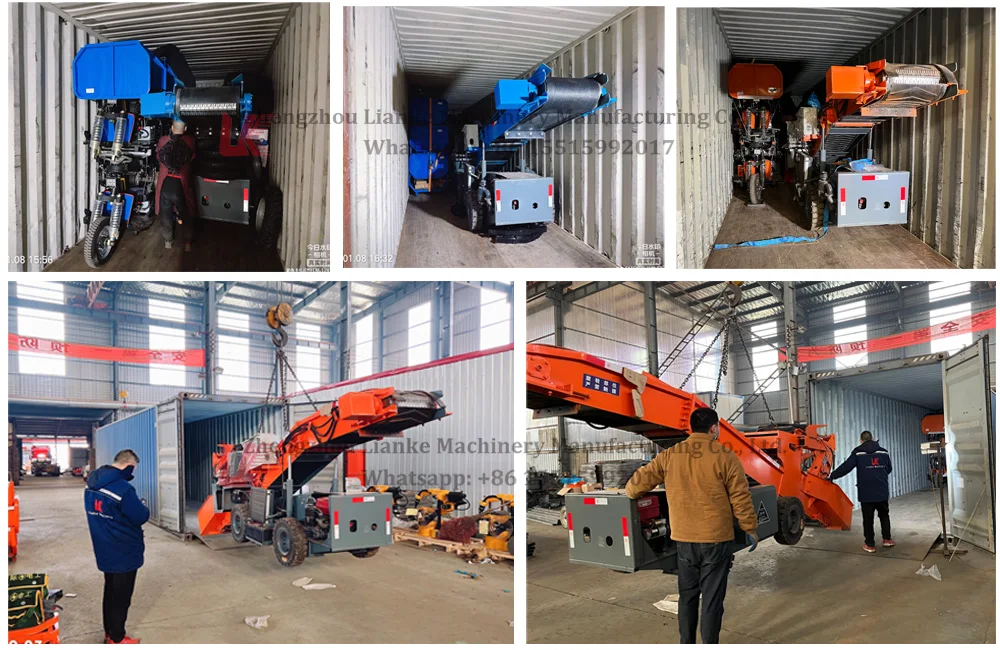

Loading plan
A 20' GP can load two units ZWY-50H mucking loaders and A 40'HC can load 4 units ZWY-50H mucking loaders. If you want to purchase mucking loader and electric dumper at the same time, they can be mixed into containers.
Work with small mining dumper and large diesel mining trucks

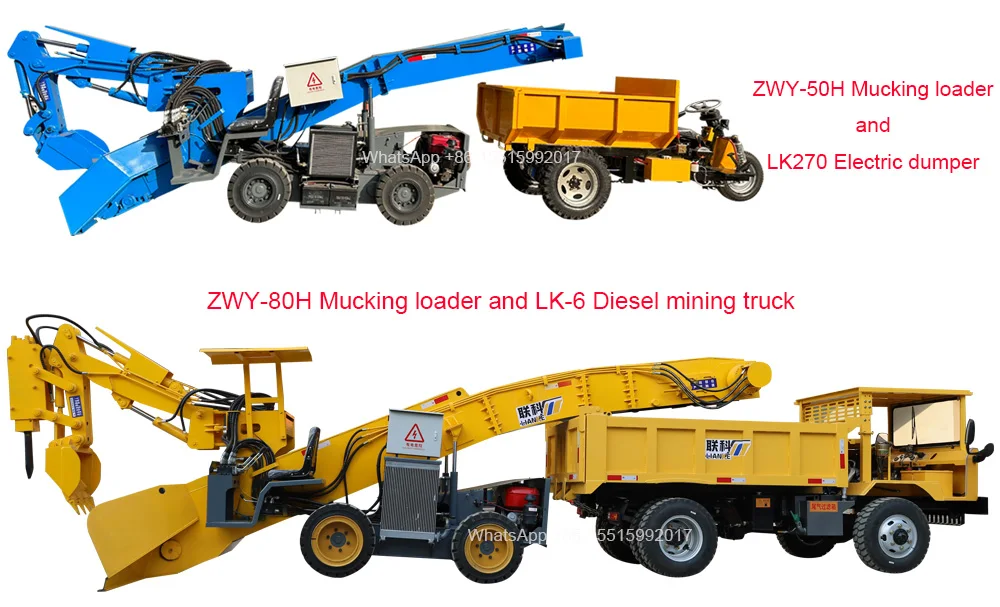

The first picture are our ZWY-50H mucking loader and LK270 electric dumper, and the second picture are our ZWY-80H mucking loader and LK-6 diesel mining truck

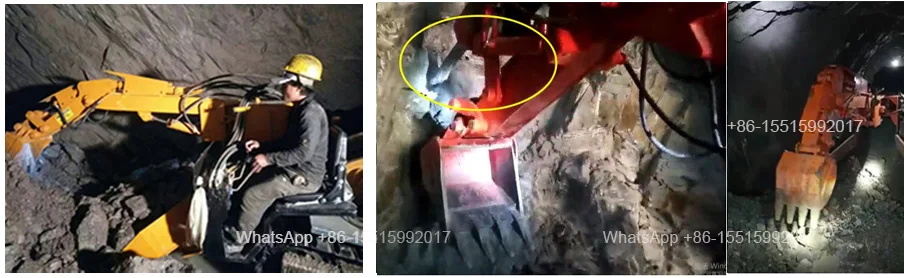

Different usage scenarios
This machine can be used for excavation and material transportation in mines. If a crushing hammer is installed, it can also drill holes in the rock walls of the mine for burying explosives

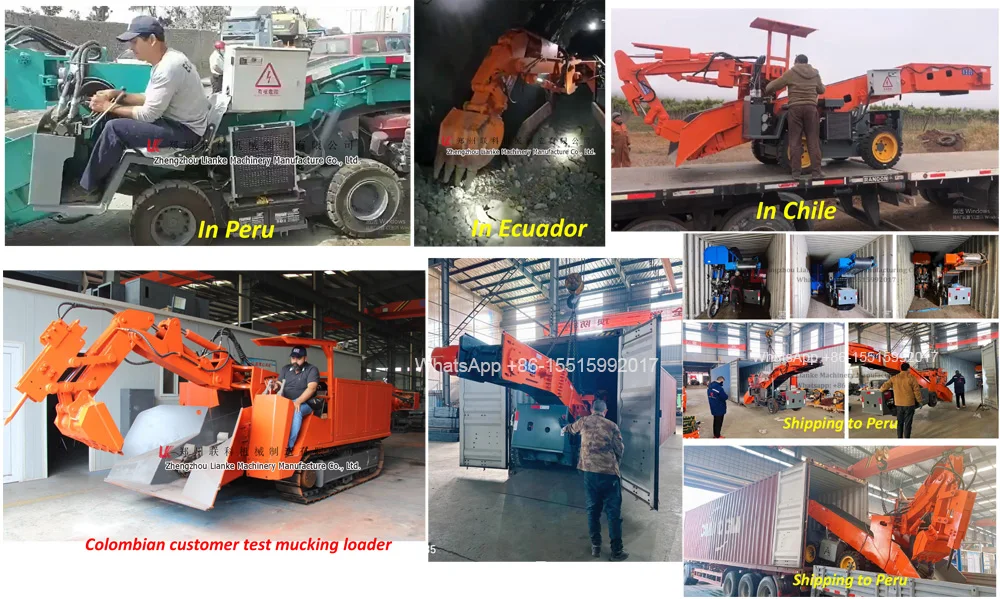

Customer's feedback and Warranty
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

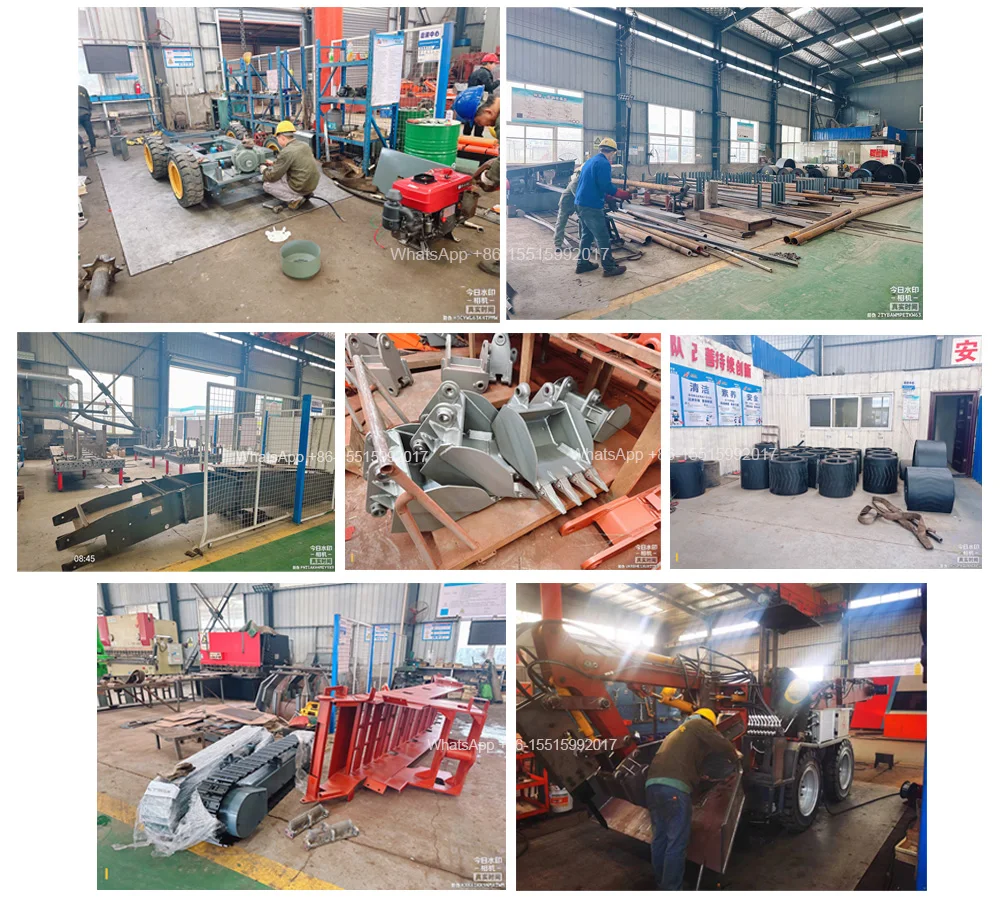

Factory show
We have professional technicians ,we can provide customized services based on the specifications of the customer's mine.
Specification
ZWY-50H model Mucking loader technical parameters | ||||||
Techinal Data | Functional Parameters | |||||
Overall Dimension | 4800*1300*1400 mm | Loading Ability | 50m3/h | |||
Ground Clearance | 210mm | General power | 15 kw | |||
Wheel Base | 1300 mm | Weight | 3000 kg | |||
Digging Width | 2200 mm | Climbing ability | ≤ 10° | |||
Digging Height | 2100 mm | Belt Speed | 0.63 m/s | |||
Digging Depth | 700mm | Travelling Speed | 2km/h | |||
Digging Distance | 1600mm | Rated Work Pressure | 16 Mpa | |||
Dumping Height | 1400 mm ( variable ) | Transporting Way | Belt | |||
Dumping Distance | 1500 mm ( variable ) | Moving Way | Solid Tire | |||
Operating Mode | Multiway value | |||||
Adaptive tunnel dimension ( Width * Height ) | ≥1.4*1.75m | |||||
Normally, before we quoted you our model machine, we would like to ask you some questions,
To provide the most suitable model machine according to your mine or tunnel information.
Please check the specific size of our model ZWY-50H
To provide the most suitable model machine according to your mine or tunnel information.
Please check the specific size of our model ZWY-50H
When your mine width is more than 1.4.M,height is more than 1.75M,
Our ZWY-50H model machine can go inside your mine

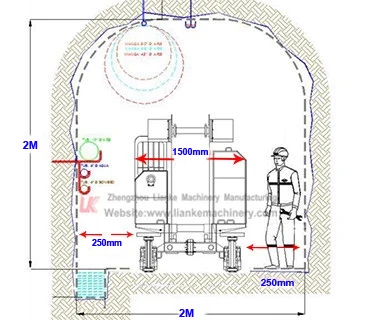

From the left picture, you could see that,
Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.
With considering that, our Model ZWY-50H can be apply to the mine or tunnel which section is more than 1.4M*1.75M
Our ZWY-50H model machine can go inside your mine
From the left picture, you could see that,
Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.
With considering that, our Model ZWY-50H can be apply to the mine or tunnel which section is more than 1.4M*1.75M
Customized item

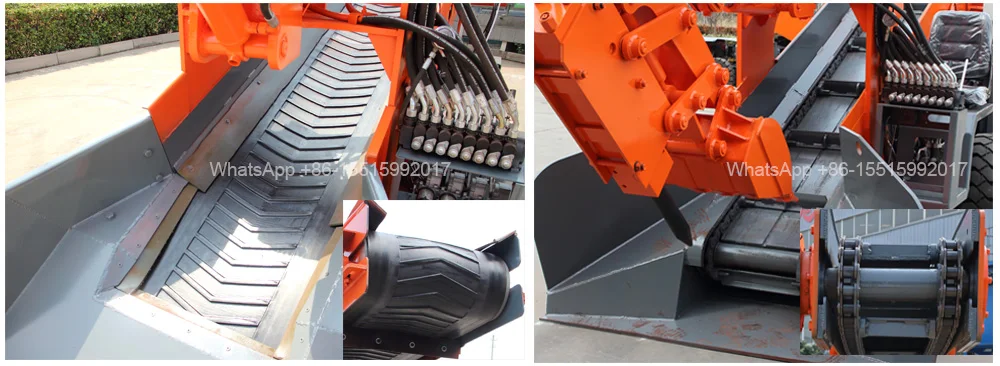

Belt conveyor or scraper conveyor
Belt type: ,Suitable for a mine with a slope of less than 8 degrees,materials used for conveying loose or small particles, such as soil, low density stones, etc. Advantages: high transport efficiency and low cost
Scraper type: It mainly used in the mines with slopes greater than 8 degrees,double chain on each side of the conveyor. in the scraper conveyor, We installed the baffles，the height of the baffle is 13cm. It can prevent the slipping of the material well.

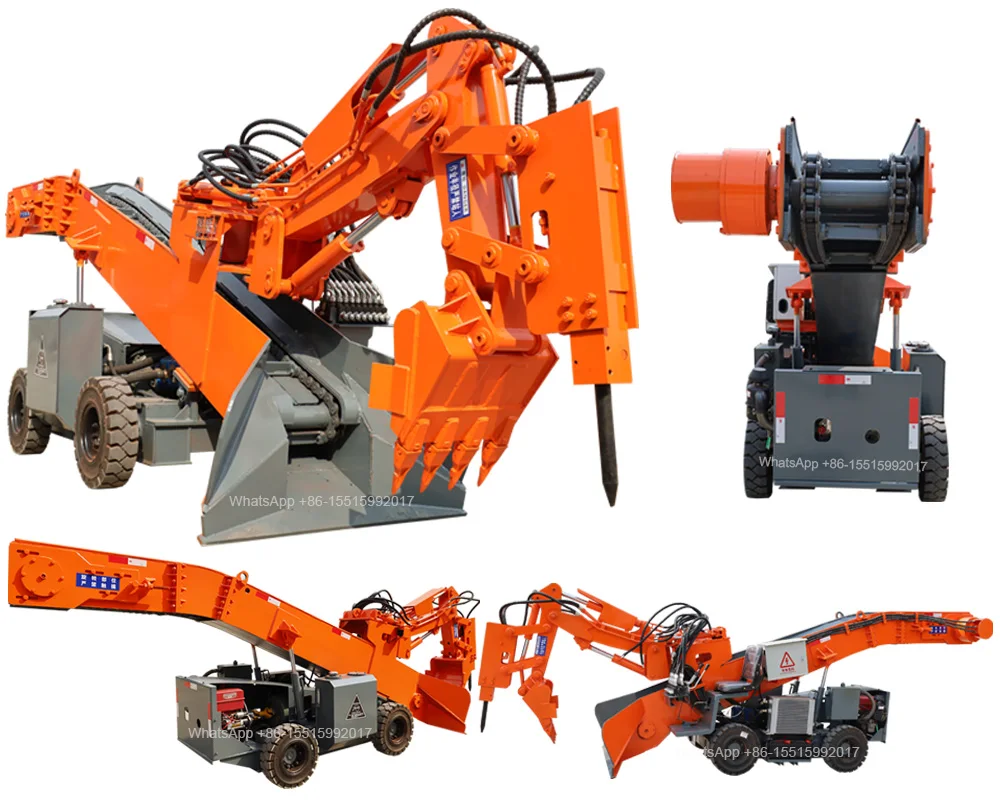

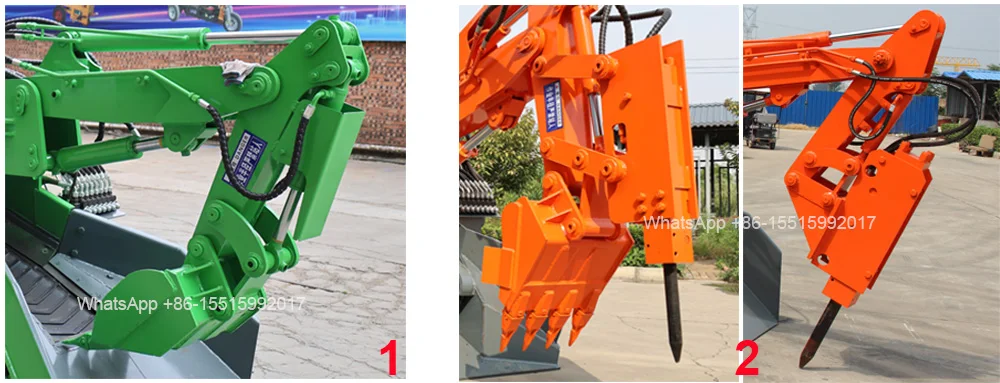

Digging bucket and broken hammer
There are two types of broken hammer of our mucking loader. One is that the broken hammer and the digging are one, and the other is that the broken hammer and the digging bucket are separated.you can choose as your need.

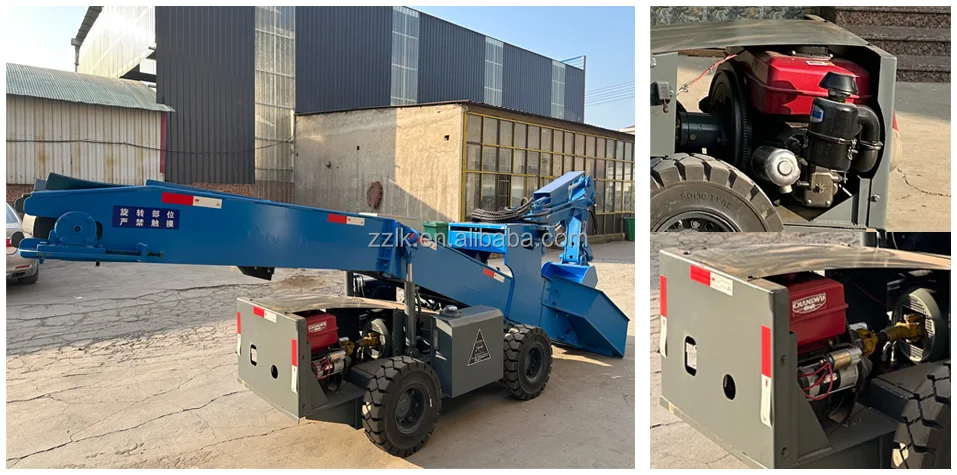

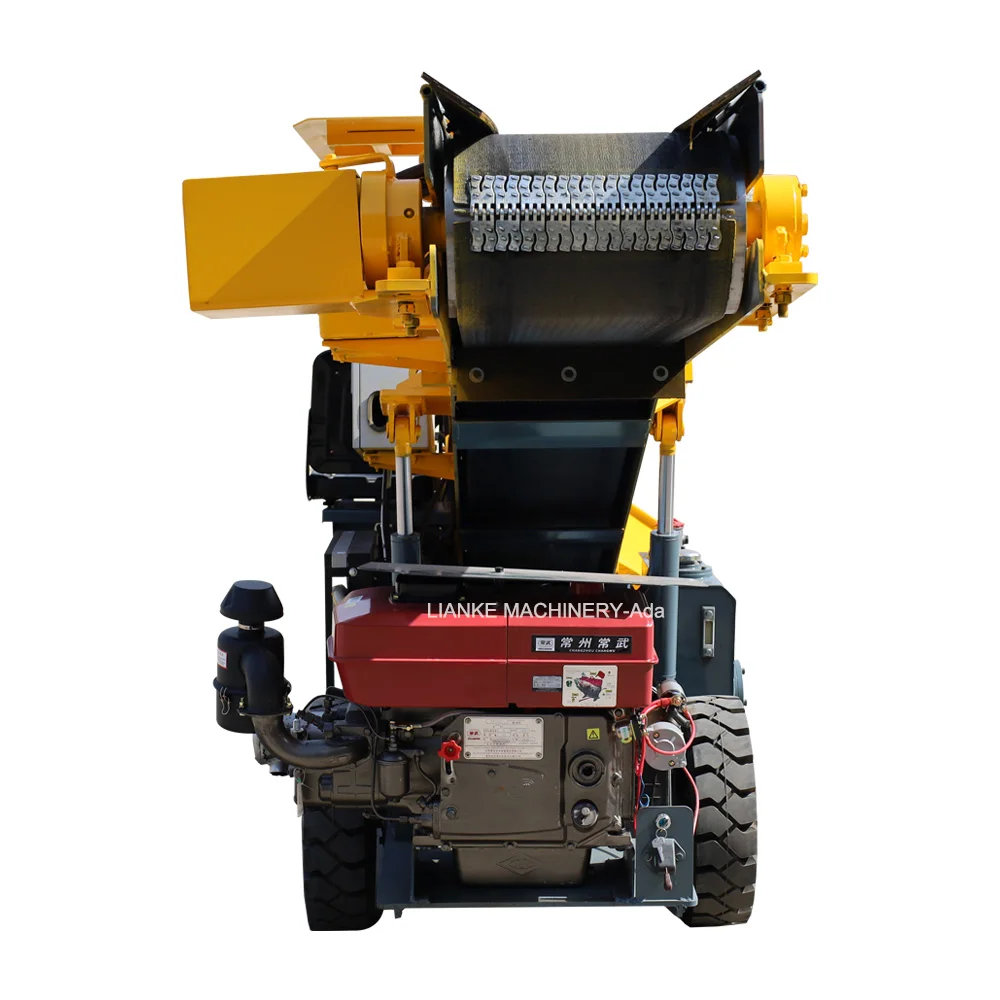

Diesel engine
The function of diesel engine 1. When the machine needs to be transfer to another place, it is not convenient to connect the wires.you can startup the diesel engine.
2. When testing the machine, or it is not convenient to use electricity, it can replace electricity for a short time.

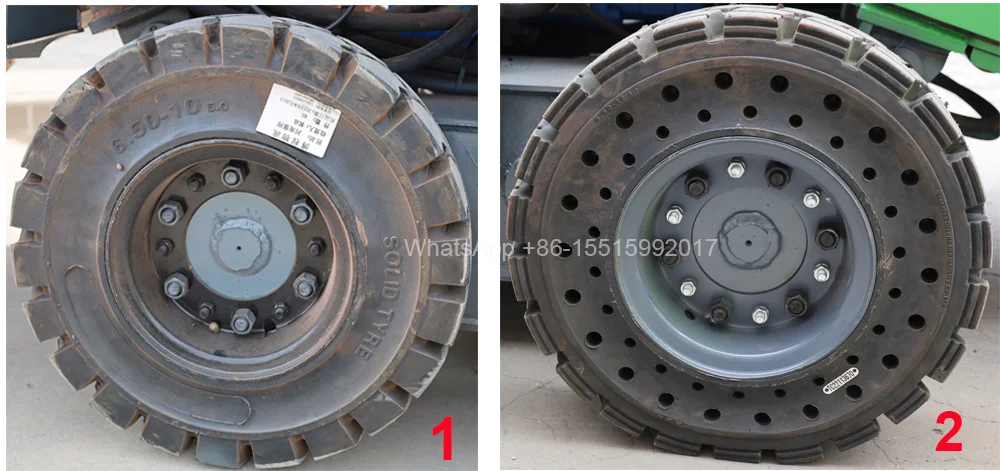

Walking method and mining wheels
Mining wheels:Standard:Use solid mining tire. Optional :Mining tires with holes.The function of Mining tires with holes,There will be vibrations when the machine is walking and working, and using hollow tires can reduce the stress during walking and have a shock-absorbing effect.

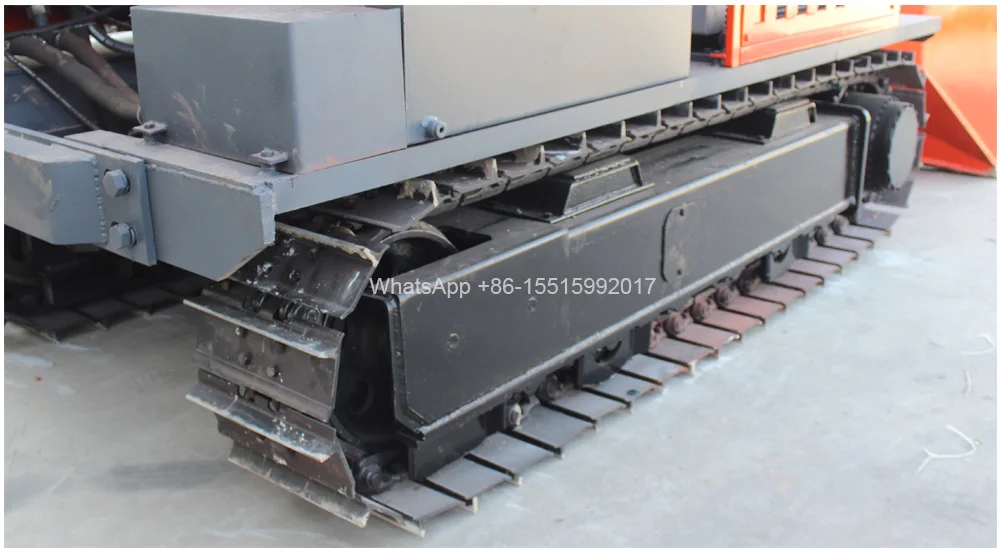

Crawler type:
If your local road conditions need to be climbed and the slope is greater than 12 degrees, you need to use crawler type. The chassis of the crawler is heavier, which can be suitable for various road conditions.
Crawler type:
If your local road conditions need to be climbed and the slope is greater than 12 degrees, you need to use crawler type. The chassis of the crawler is heavier, which can be suitable for various road conditions.

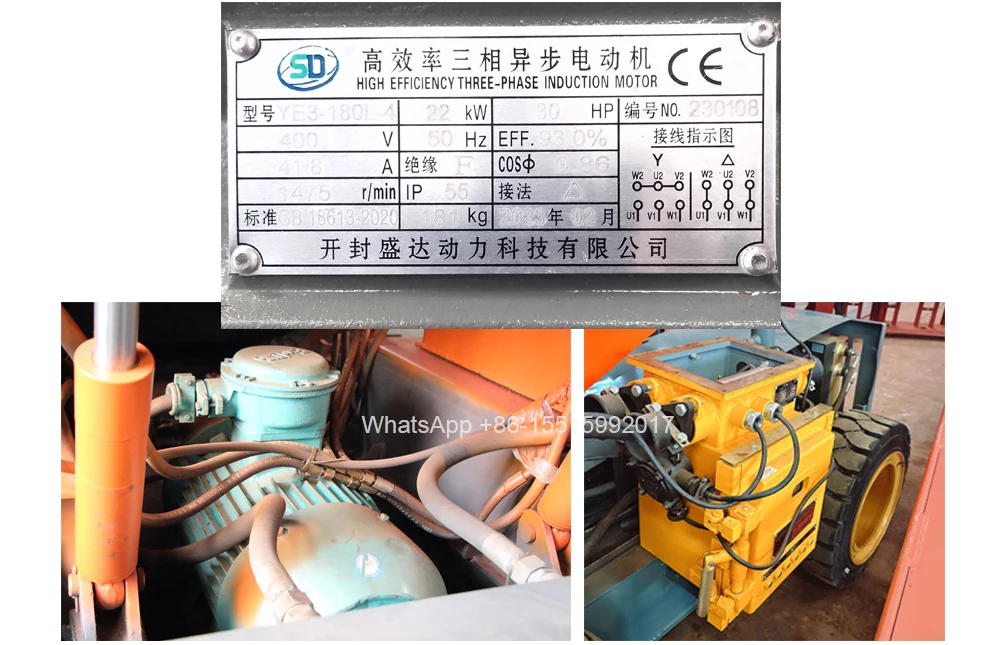

Different voltages and Explosion-Proof Motor can be customized
1.According to the local electricity requirements of the customer, machines with different voltages and frequencies can be customized, such as 220V, 380V, and 440V.
2.If your machine is used in coal mines or other flammable and explosive environments, then an explosion-proof motor needs to be used
How to operate the mucking loader
The machine can be customized

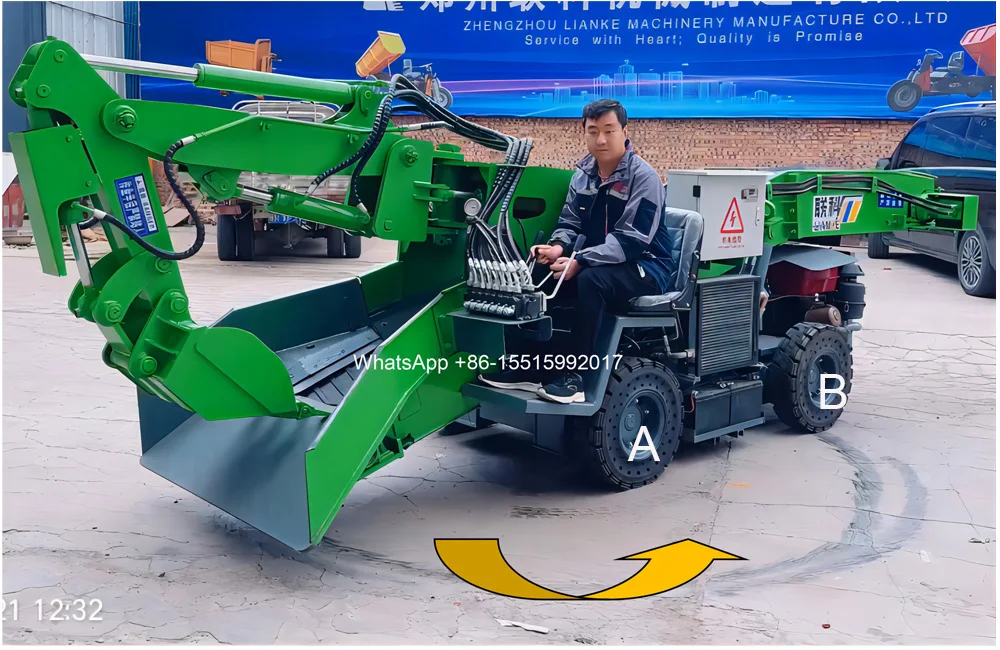

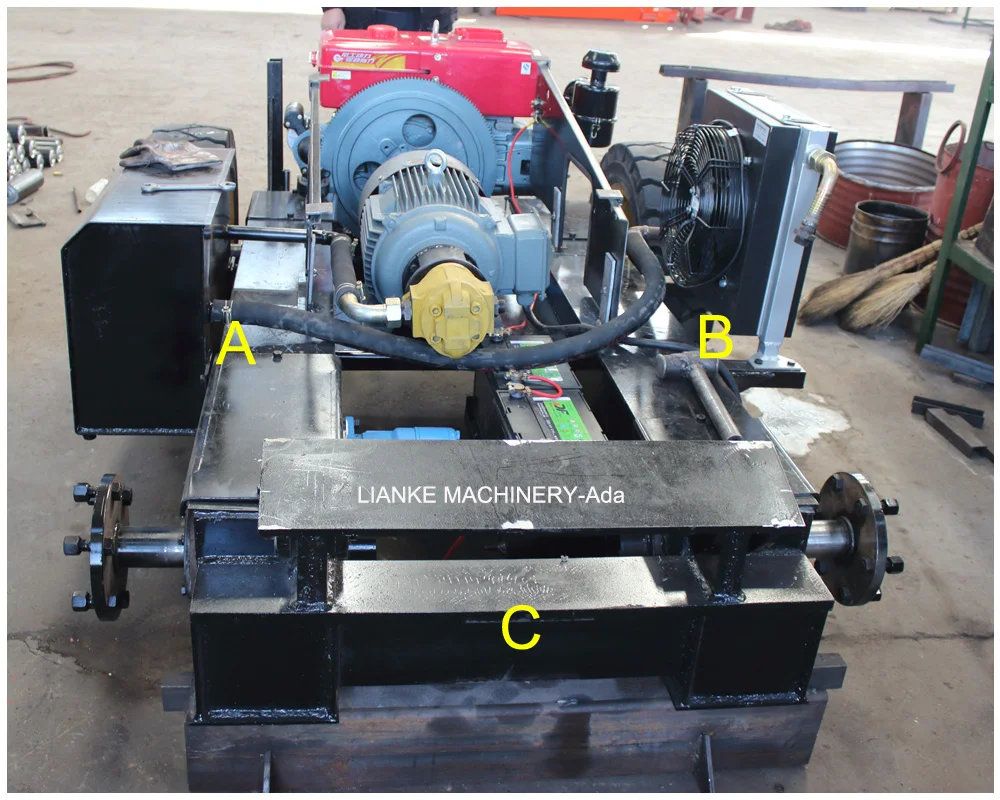

ZWY-50H Sliding mucking loader,number 50 refers to the capacity, 50m3/hour, H means the sliding structure.
Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in" A" side, to drive 2 wheels, the other hydraulic motor in "B"side, to drive another 2 wheels. The chassis is made by our factory,we can customize the" C "length,to achieve machine width customize.
How to turn the machine
This picture you can see, how sliding structure to achive rotate at original place.
D1 and D2 wheel is in one row, they will move together, at the same time, the opposite 2 wheels in one row,Then, it can achieve rotate at original place, if you still not understand, please contact me to ask video.
D1 and D2 wheel is in one row, they will move together, at the same time, the opposite 2 wheels in one row,Then, it can achieve rotate at original place, if you still not understand, please contact me to ask video.

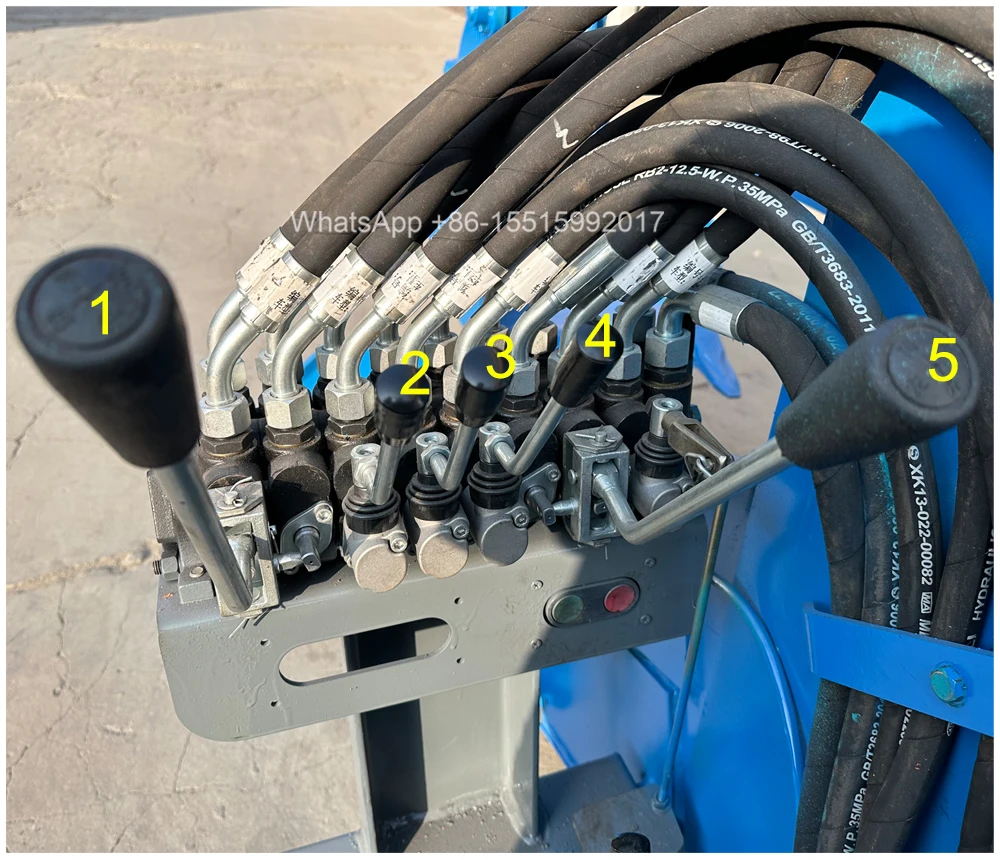

How to operate the mucking loader
2 and 3 control forward and backwardness and turning, 4 control the lifts of the hydraulic oil cylinder 5 control the lifting ofthe big arm and the recovery of the digging bucket. 1 control the small arm and control the left and right sway at the front of
the mucking loader.
