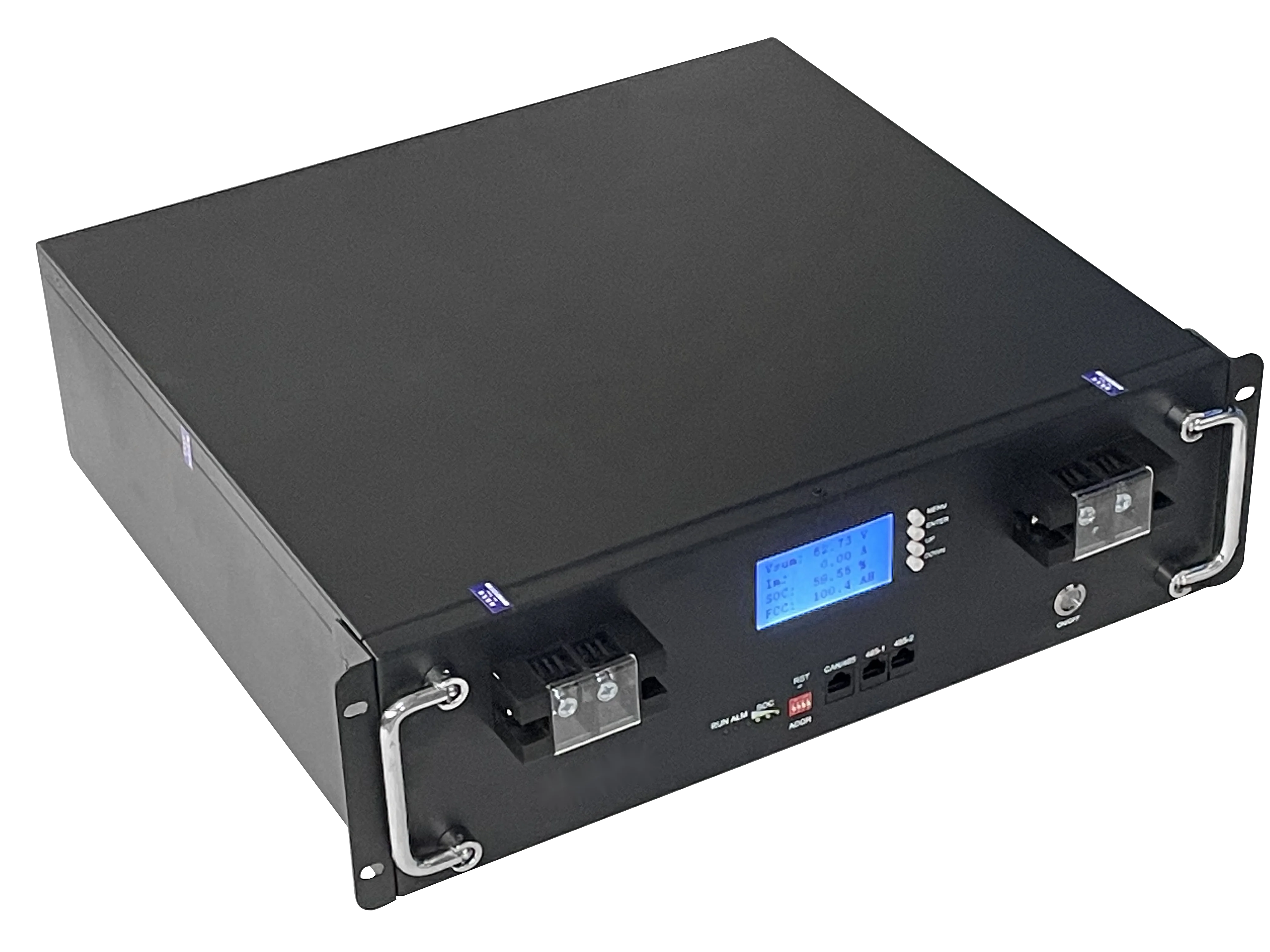

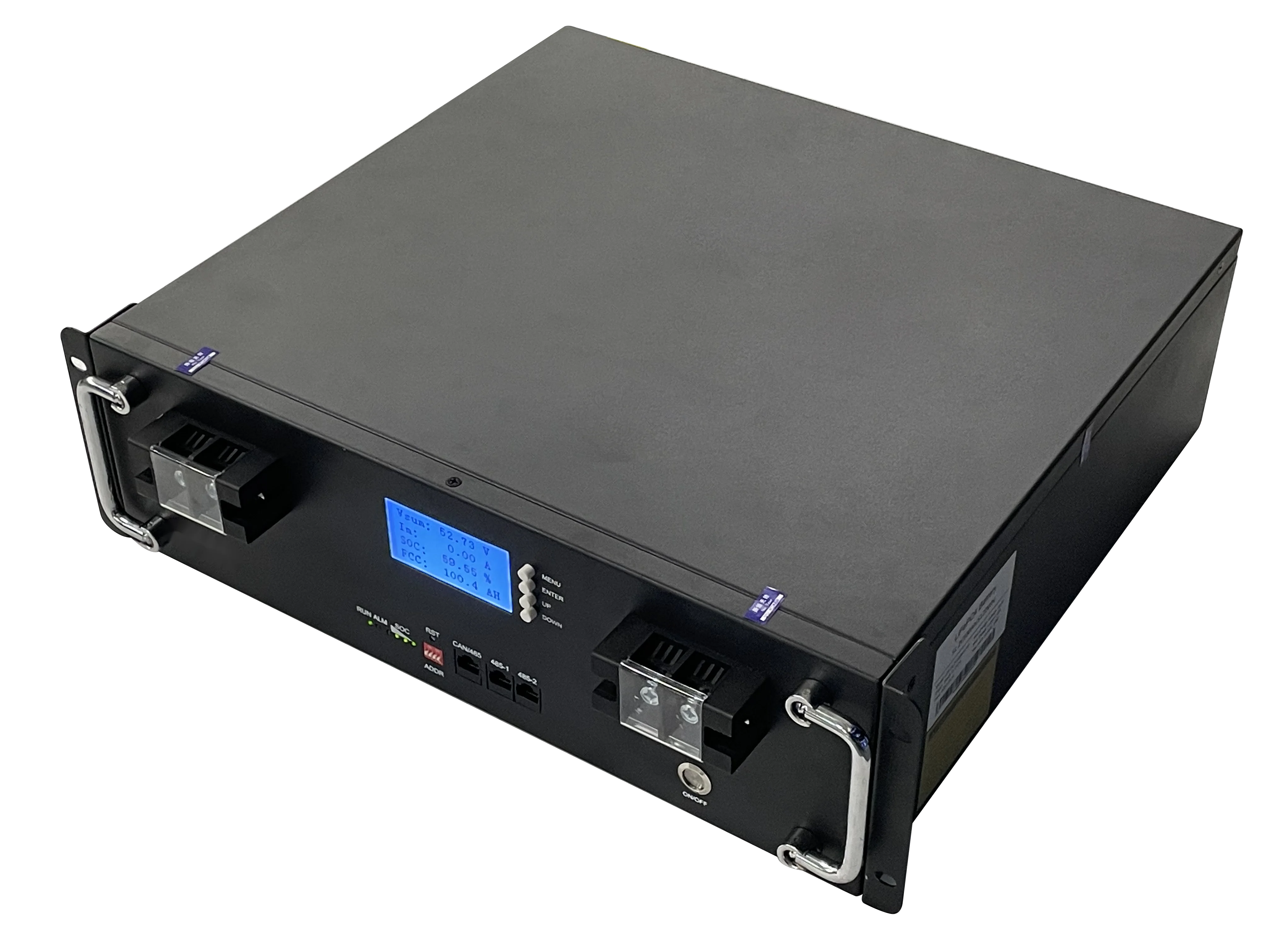

Great Power Home Battery Solar Energy Storage System 5kwh/10kwh Rack Mounted Power Supply 51.2V 100ah/200ah Home Appliance CAN
- Category: >>>
- Supplier: Guangdong Langchuan New Energy Technology Co. Ltd.
Share on (1601155401367):
Product Overview
Description

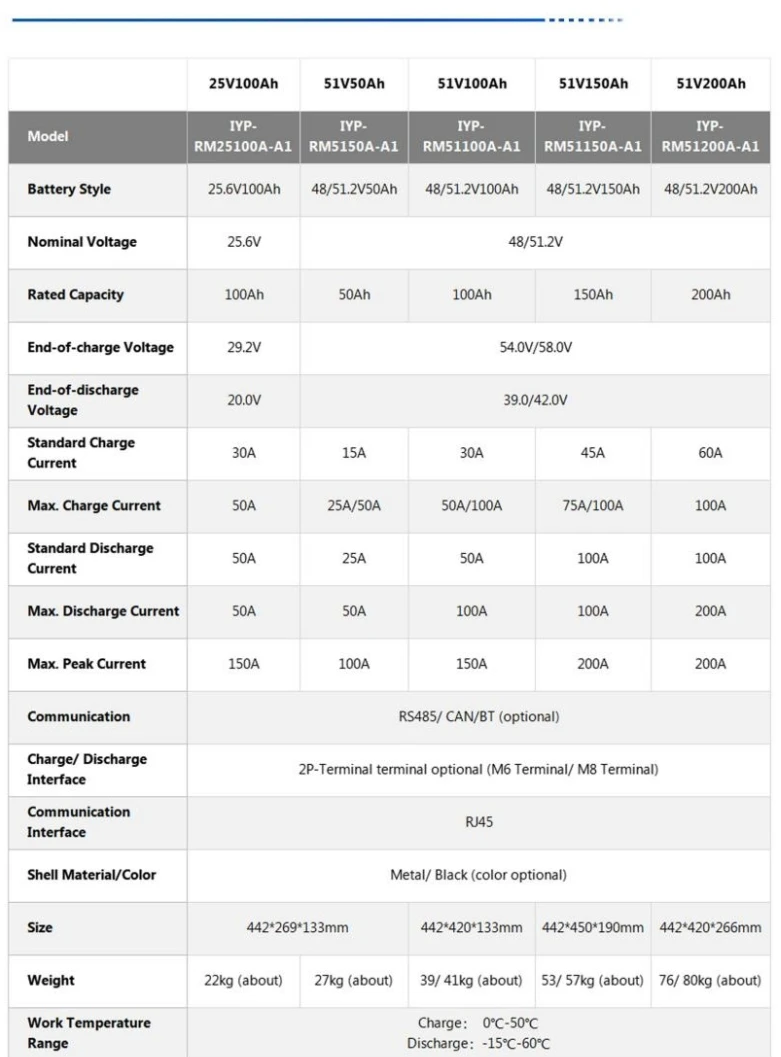

Product Paramenters
25V100Ah | 51V50Ah | 51V100Ah | 51V150Ah | 51V200Ah | |||||
Battery Style | 25.6V100Ah | 48/51.2V50Ah | 48/51.2V100Ah | 48/51.2V150Ah | 48/51.2V200Ah | ||||
Nominal Voltage | 25.6V | 48/51.2V | |||||||
Rated Capacity | 100Ah | 50Ah | 100Ah | 150Ah | 200Ah | ||||
End-of charge Voltage | 29.2V | 54.0V/58.0V | |||||||
End-of-discharge Voltage | 20.0V | 39.0/42.0V | |||||||
Standard Charge Current | 30A | 15A | 30A | 45A | 60A | ||||
Max. Charge Current | 50A | 25A/50A | 50A/100A | 75A/100A | 100A | ||||
Standard Discharge Current | 50A | 25A | 50A | 100A | 100A | ||||
Max. Discharge Current | 50A | 50A | 100A | 100A | 200A | ||||
Max. Peak Current | 150A | 100A | 150A | 200A | 200A | ||||
Communication | RS485/ CAN/BT (optional) | ||||||||
Charge/ Discharge Interface | 2P-Terminal terminal optional (M6 Terminal/ M8 Terminal) | ||||||||
Communication Interface | RJ45 | ||||||||
Shell Material/Color | Metal/ Black (color optional) | ||||||||
Size | 442*269*133mm | 442*420*133mm | 442*450*190mm | 442*420*266mm | |||||
Weight | 22kg(about) | 27kg (about) | 39/ 41kg (about) | 53/57kg(about) | 76/ 80kg (about) | ||||
Work Temperature Range | Charge： 0℃-50℃ Discharge：-15℃-60℃ | ||||||||
Products Description

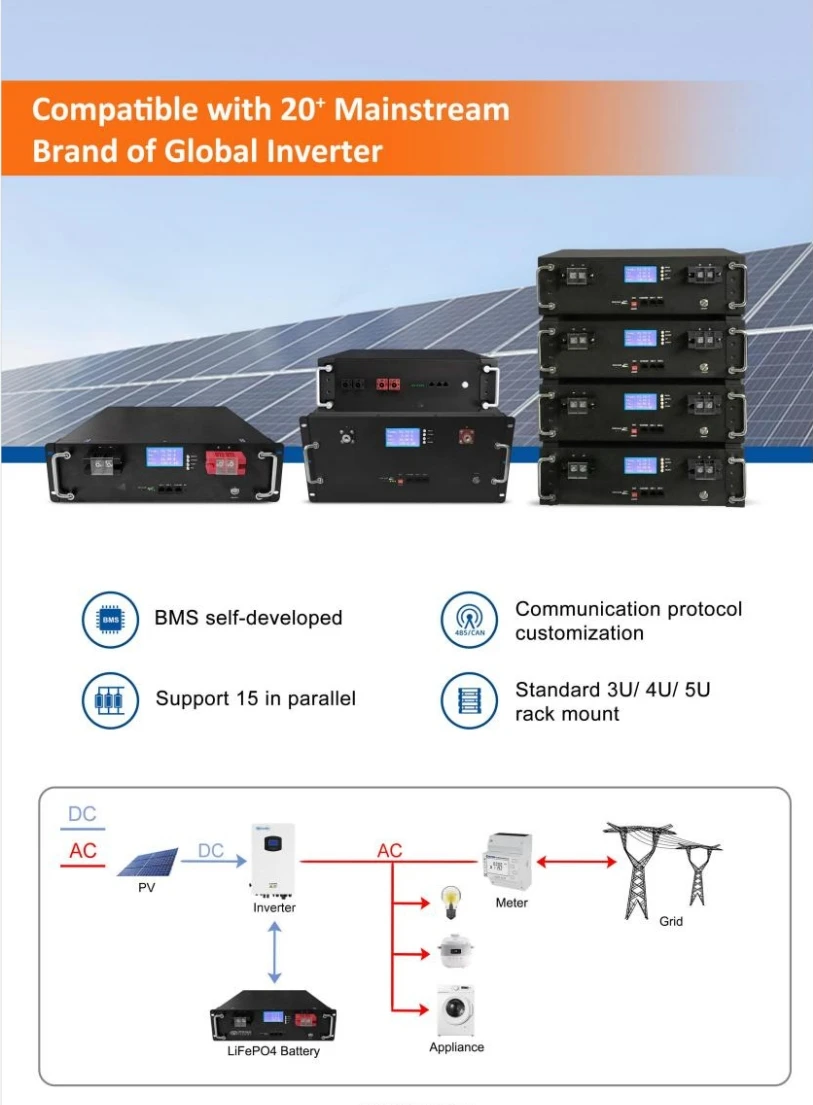

Details Images

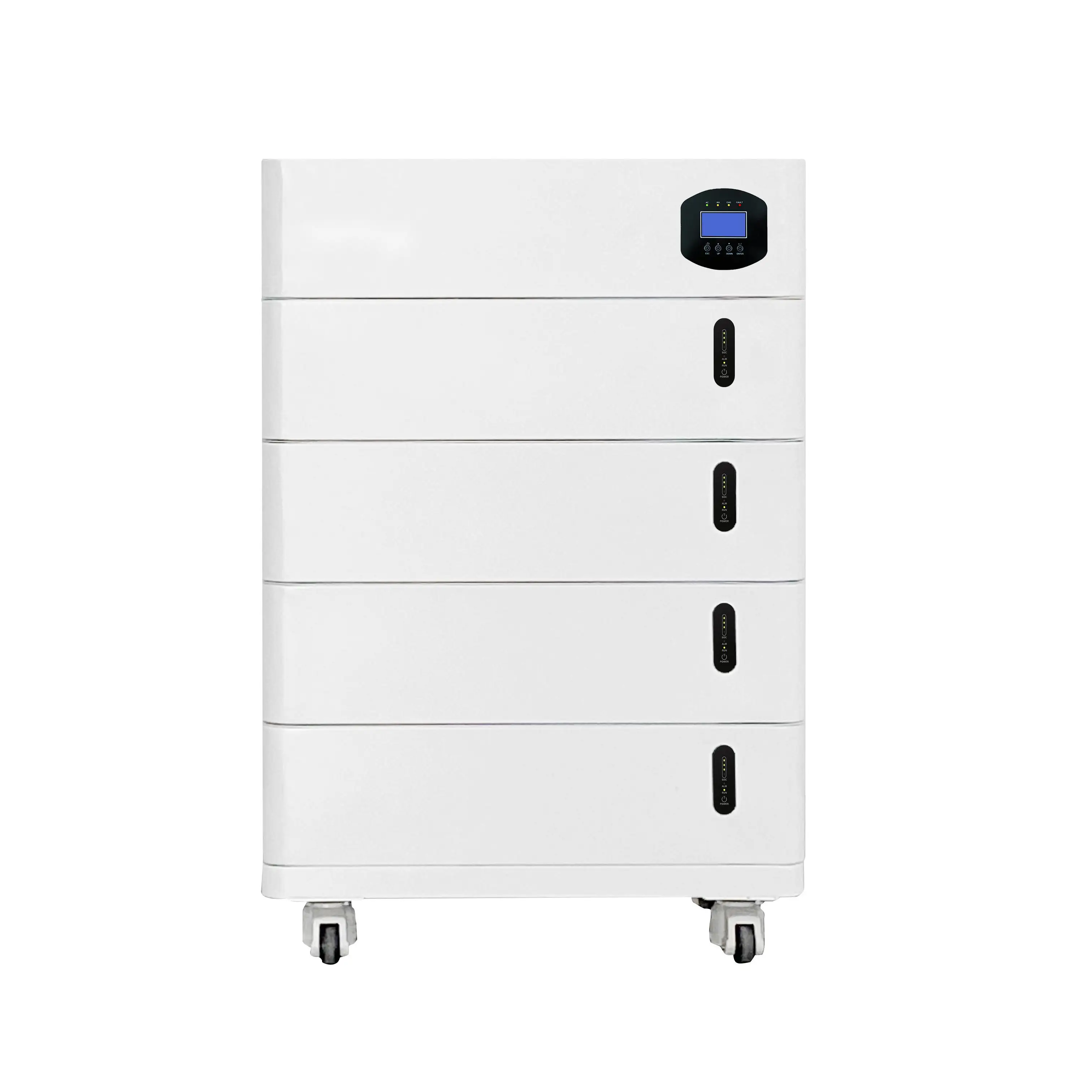

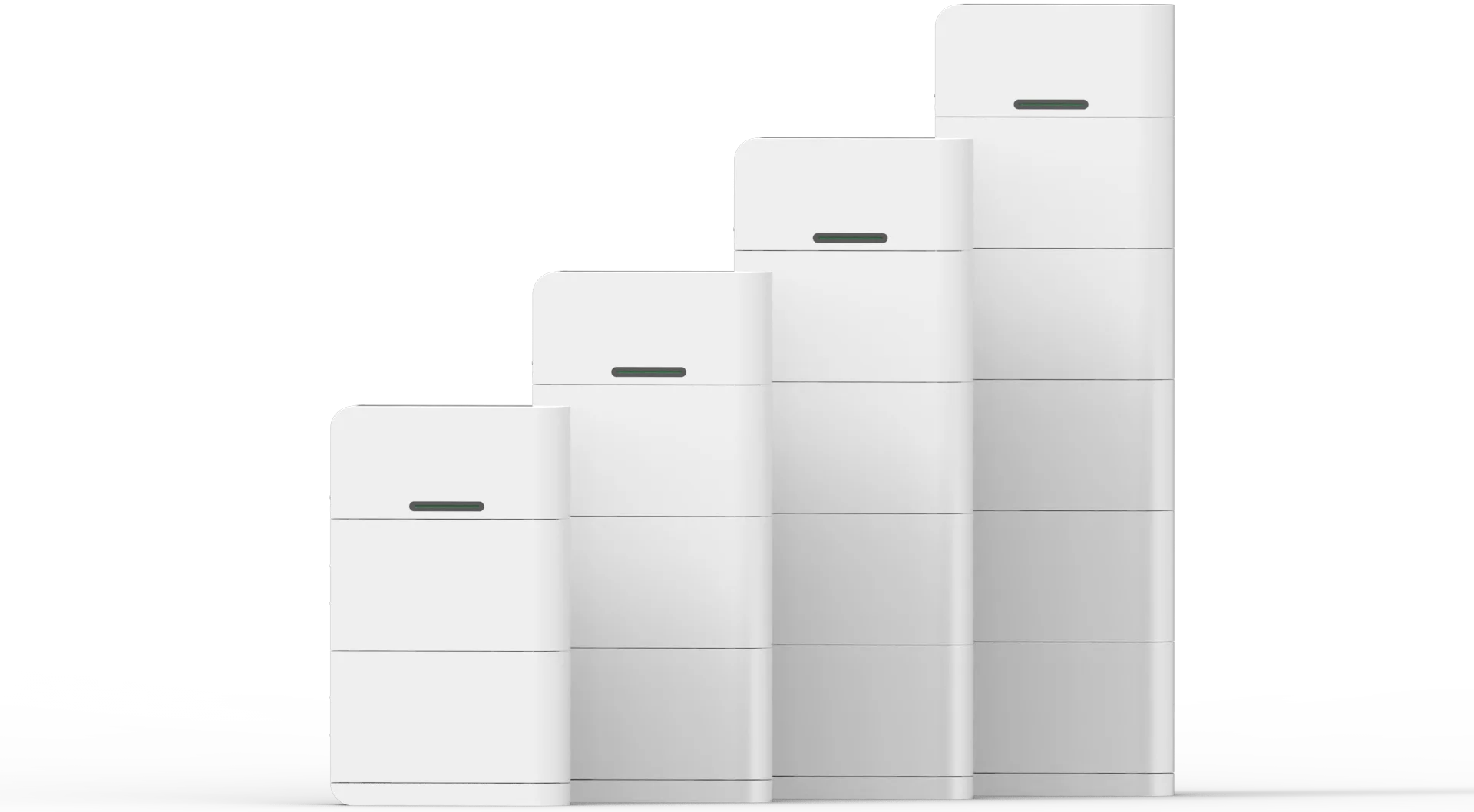

Recommend Products
Company Profile

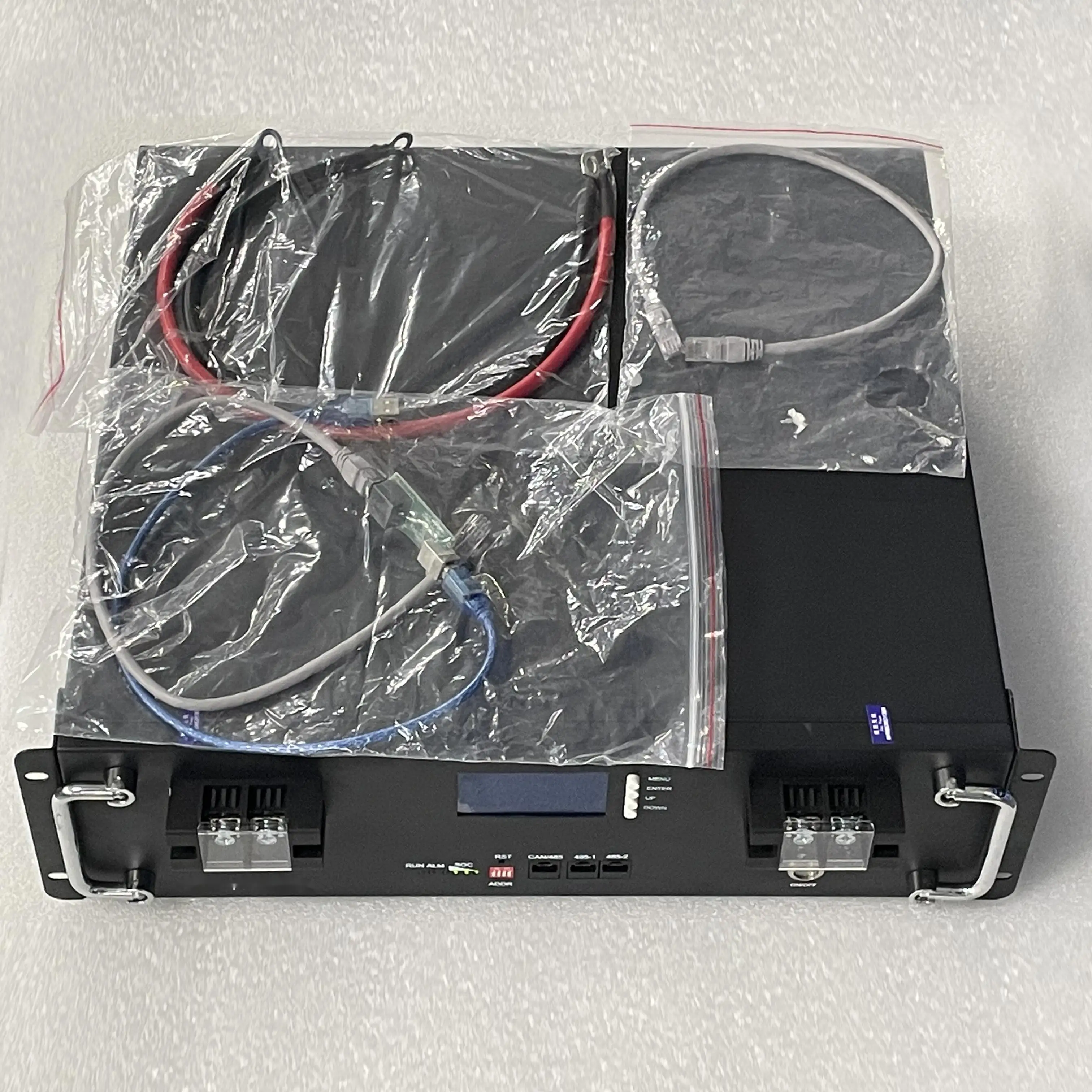

Product packaging
Certifications
FAQ
1. Is the freight on the website accurate?-Please contact us before you order,the default freight on the website is basically
calculated according to the usual air freight price, different countries,differentorder weight, different freight. Please contact
us in time, we will provide you with the best shipping way and accurate freight.
2. The delivery time set on your system is 15 days, do I really need to wait so long?
-No, if it is not a customized order, we usually send it out within 3 -5working days.
3. Does the shipping way to our country include tax?
-It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and
Canada have tax-included shipping channels.
4. Why the transportation time is so long and the tracking number not updated in nearly a month?
-As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict.
We transit our products by formal DG logistic channel, it is more slowly than the normal logistic, because it needs wait the DG
ship/train schedule. Due to the particularity of the product and logistic, the tracking number we provide will not updated before
the goods passes the customs in your country. Don't worry, your goods is still in normal transit. When the goods passes through
the customs in your country, the tracking information will updated, and you will receive it within 3-5 days.
5. Is this product safe?
-Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion
at any circumstance.
6. How to confirm the high quality of the product you sent me?
-Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
7. The battery is so heavy, will it damaged easily on the road?
-This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and
reliable. When youopen the package, you will definitely feel our sincerity.
8. Is it OK to print my logo on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
calculated according to the usual air freight price, different countries,differentorder weight, different freight. Please contact
us in time, we will provide you with the best shipping way and accurate freight.
2. The delivery time set on your system is 15 days, do I really need to wait so long?
-No, if it is not a customized order, we usually send it out within 3 -5working days.
3. Does the shipping way to our country include tax?
-It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and
Canada have tax-included shipping channels.
4. Why the transportation time is so long and the tracking number not updated in nearly a month?
-As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict.
We transit our products by formal DG logistic channel, it is more slowly than the normal logistic, because it needs wait the DG
ship/train schedule. Due to the particularity of the product and logistic, the tracking number we provide will not updated before
the goods passes the customs in your country. Don't worry, your goods is still in normal transit. When the goods passes through
the customs in your country, the tracking information will updated, and you will receive it within 3-5 days.
5. Is this product safe?
-Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion
at any circumstance.
6. How to confirm the high quality of the product you sent me?
-Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
7. The battery is so heavy, will it damaged easily on the road?
-This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and
reliable. When youopen the package, you will definitely feel our sincerity.
8. Is it OK to print my logo on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
