55inch Videowall Monitor Multi Screen Tv Advertising Lcd Video Wall Screen Display
- Category: >>>
- Supplier: Hebei Zhongxuan Jingrui Electronic Technology Co. Ltd.
Share on (1601155540848):
Product Overview
Description
Products Description
Product features
1.Adopt original industrial grade IPS (DID) LCD splicing panel;
2.Using direct-lit LED backlight technology and shine out filters can ensure a high degree of uniformity in screen brightness;
3.With resolution of 1920×1080, it can restore ultra-high resolution original image display through splicing;
4.It adopts high heat dissipation body design, supports 7×24 hours of continuous work, and has a long service life;
5.It adopts modular unit assembly and supports multiple installation methods such as embedded, wall-mounted, and hoisted.
2.Using direct-lit LED backlight technology and shine out filters can ensure a high degree of uniformity in screen brightness;
3.With resolution of 1920×1080, it can restore ultra-high resolution original image display through splicing;
4.It adopts high heat dissipation body design, supports 7×24 hours of continuous work, and has a long service life;
5.It adopts modular unit assembly and supports multiple installation methods such as embedded, wall-mounted, and hoisted.
panel properties | ||
Size | 55 inch | |
O/C | TFT LCD glass LG | |
light source | LED backlight | |
resolution | 1920×1080 (compatible with 30HZ 3840×2160) | |
screen ratio | 16:09 | |
brightness | 600 cd/m2 | |
contrast | 5000:01:00 | |
Response time | 6.5ms | |
Display color | 16.7M, 72% | |
life | 60,000 H(typ) | |
angle of viewing | 89/89/89/89 (CR≥10) | |
Unilateral bezel width | 1.7mm | |
Physical seam width | 3.5mm | |
power properties | ||
Voltage | AC 100~230V, 50~60Hz/single-phase input 220V, 20A | |
Overall power consumption | Working state: ≤200W; Standby state: ≤3W | |
Functional properties | ||
Signal format | PAL/NTSC automatic identification, maximum support 1080P | |
Operation method | remote control | |
Working/storage environment | ||
Working temperature/humidity | 0~50℃/20%~80% (no condensation) | |
storage temperature/humidity | -10~60℃/5%~95% ( no condensation ) | |
interface | ||
Input Interface | Power interface, DVI, HDMI, RS232 in | |
Output Interface | RS232 out | |
language | ||
OSD | Simplified Chinese, English | |
structure | ||
Body color | black | |
Product material | Strong metal case, anti-static, anti-magnetic field, anti-interference | |
Total Weight | Approx. 14.8(kg), without accessories | |

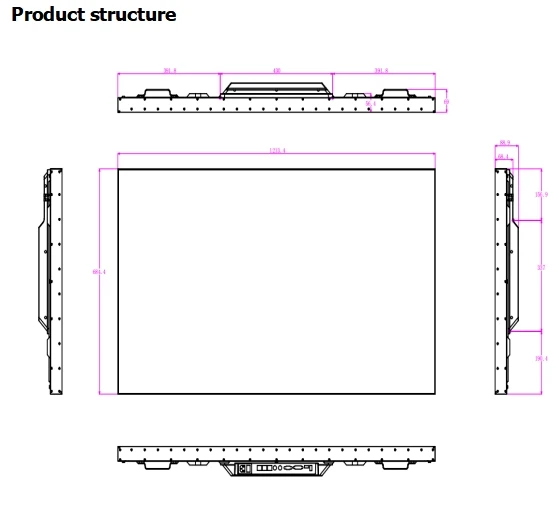

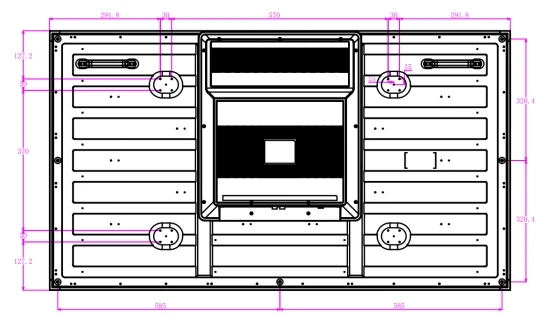

Overall size | 1213.4×684.4×88.9(mm) | |

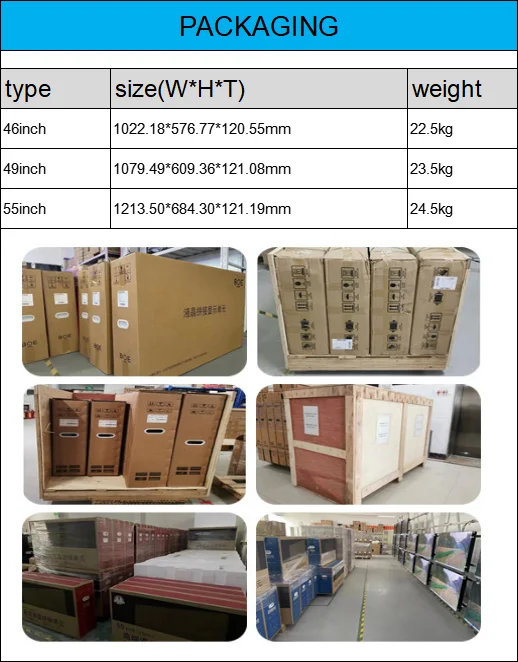

Packing Size | 1355×800×260(mm), 2 units in a carton | |

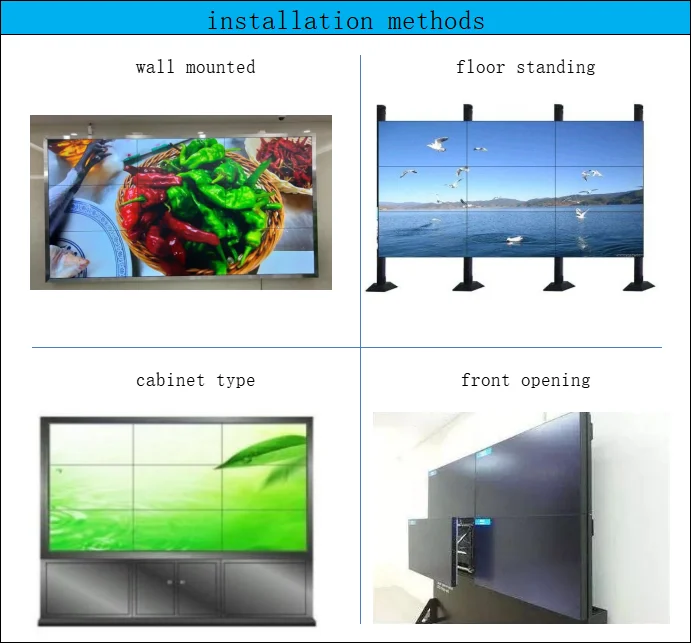

installation method | Embedded/wall-mounted/ceiling-mounted | |
other | ||
Accessories | AC power cord, remote control, remote control receiver, 232 serial port, hook | |

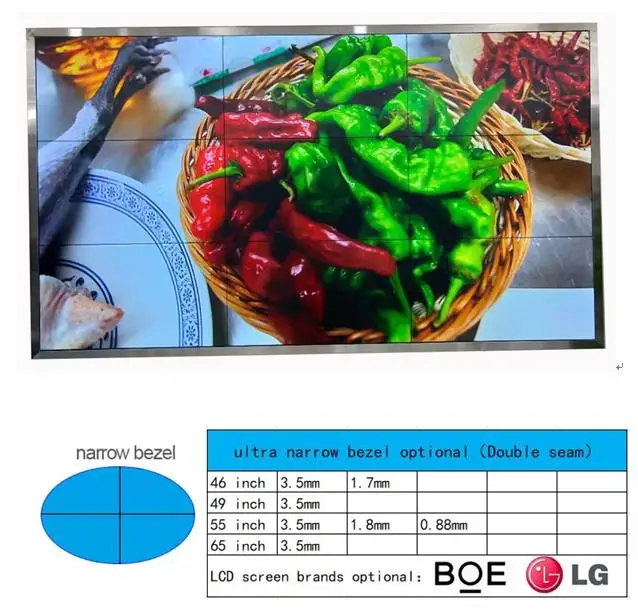

46 inch
55 inch
Precautions
![]()
1.Handle with care when transporting and handling;
2.Do not use in places with corrosion, flammable and explosive;
3.In order to avoid the danger of electric shock, please cut off the power supply during installation, commissioning and moving;
4.Do not install near the heat source, so as not to overheat the product and damage the product;
5.Make sure that all connectors are connected correctly and reliably;
6.Do not open the cover of the product without permission.
2.Do not use in places with corrosion, flammable and explosive;
3.In order to avoid the danger of electric shock, please cut off the power supply during installation, commissioning and moving;
4.Do not install near the heat source, so as not to overheat the product and damage the product;
5.Make sure that all connectors are connected correctly and reliably;
6.Do not open the cover of the product without permission.
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
