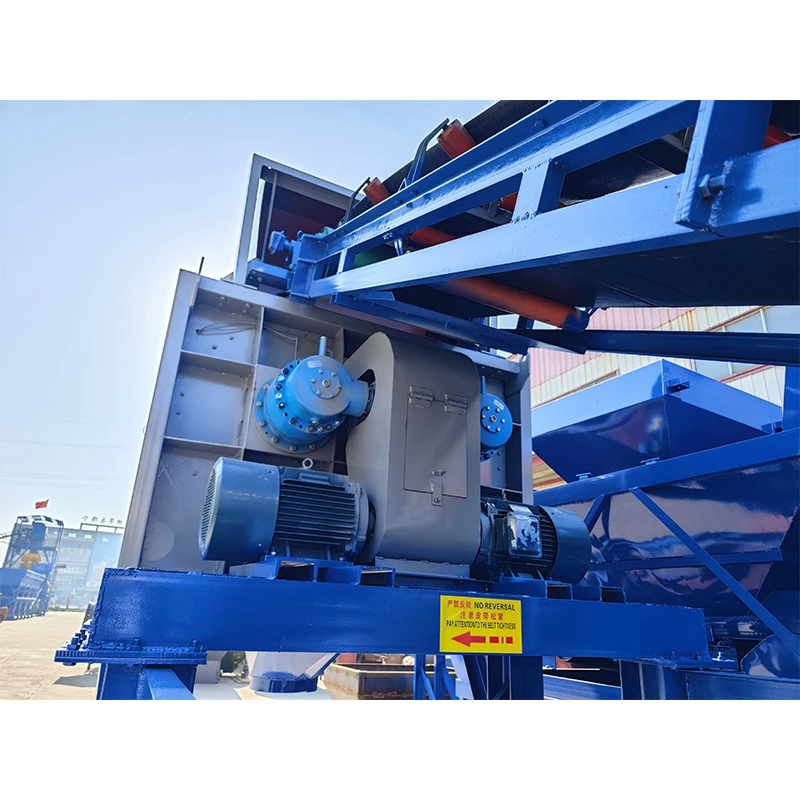

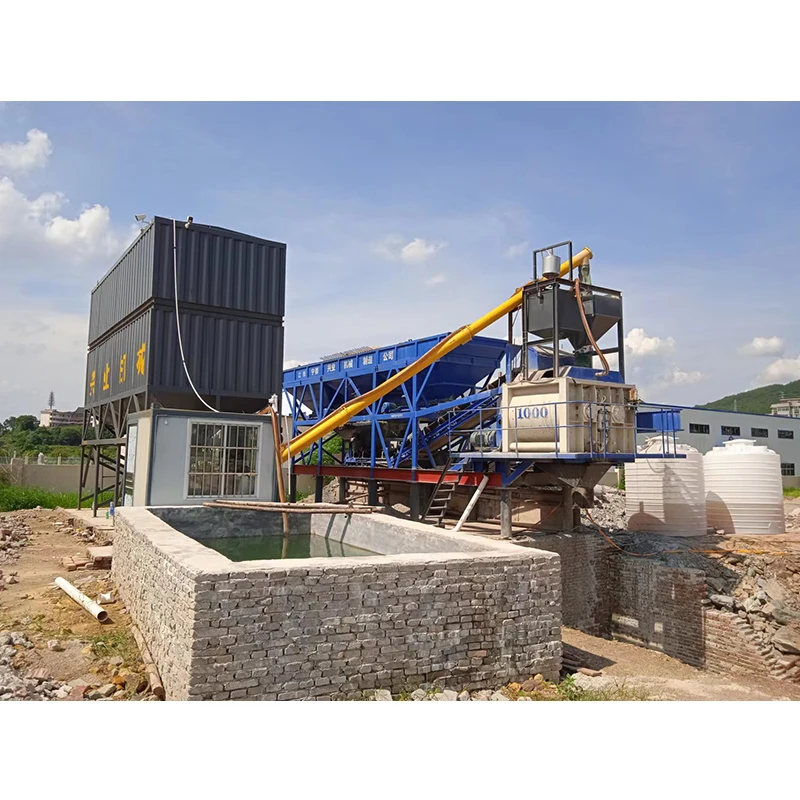

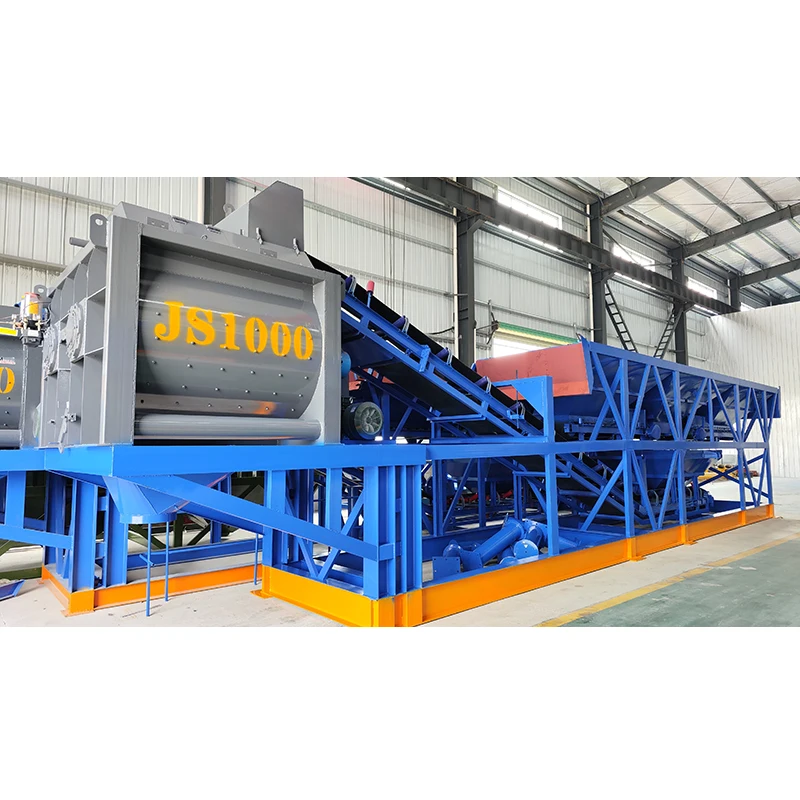

Low Cost 1m3 Fully Automatic Concrete Mixing Plant 60m3/h Ready Mix Concrete Batching Plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.
Share on (1601155550387):
Product Overview
Description
Product Description
Low Cost 1m3 Fully Automatic Concrete Mixing Plant 60m3/h Ready Mix Concrete Batching Plant
Specification
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 210 | 230 | 288 |

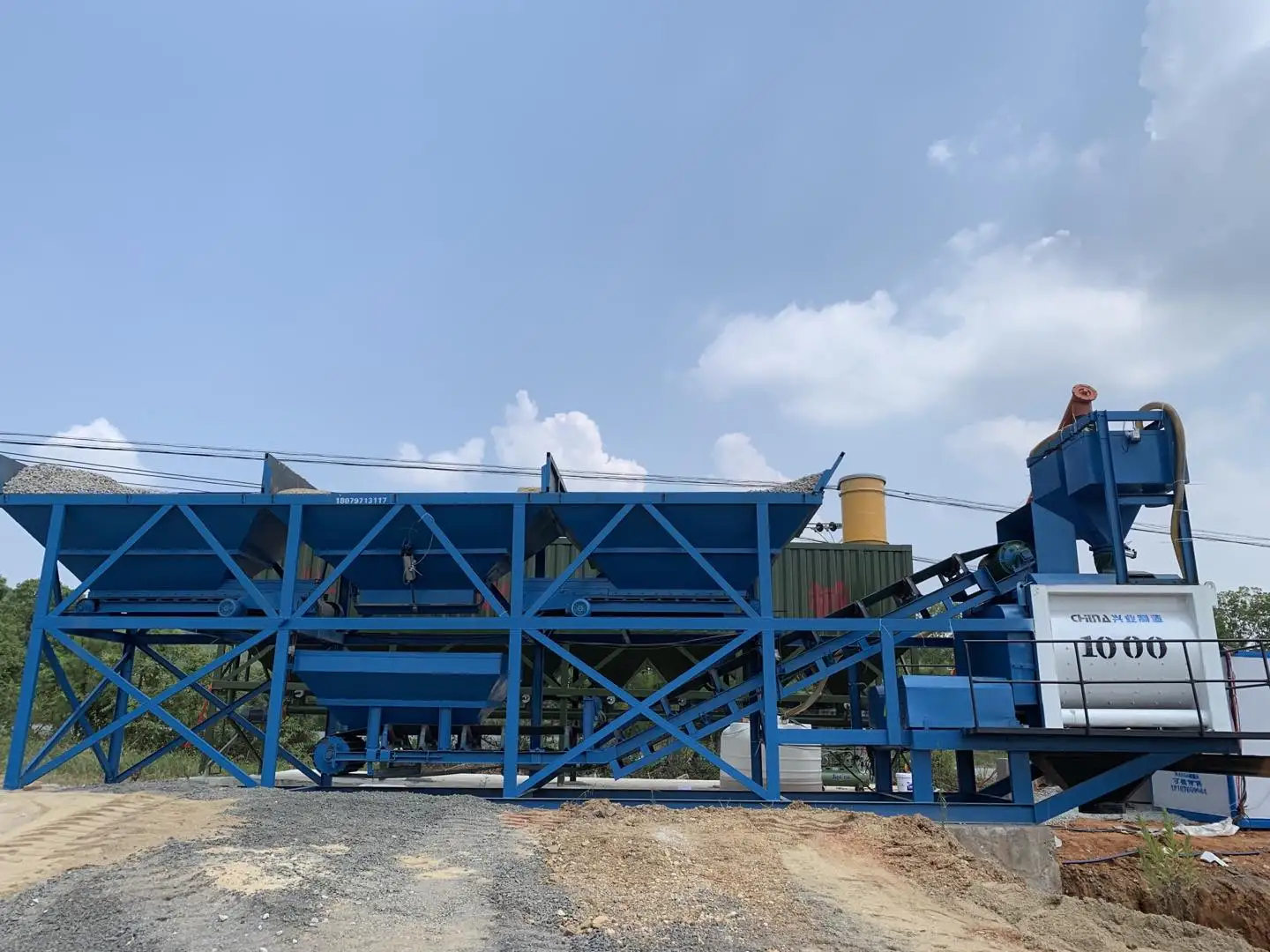

Installation Cases
Pakistan Installation Case
Indonesia Installation Case
Peru Installation Case
Myanmar Installation Case

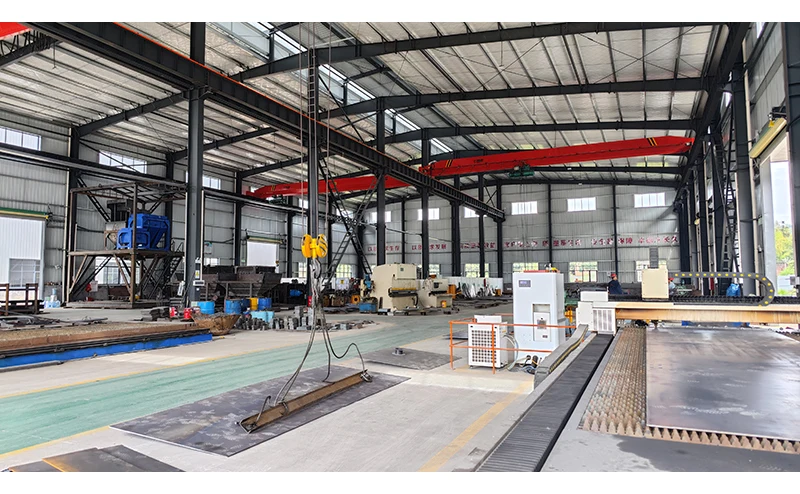

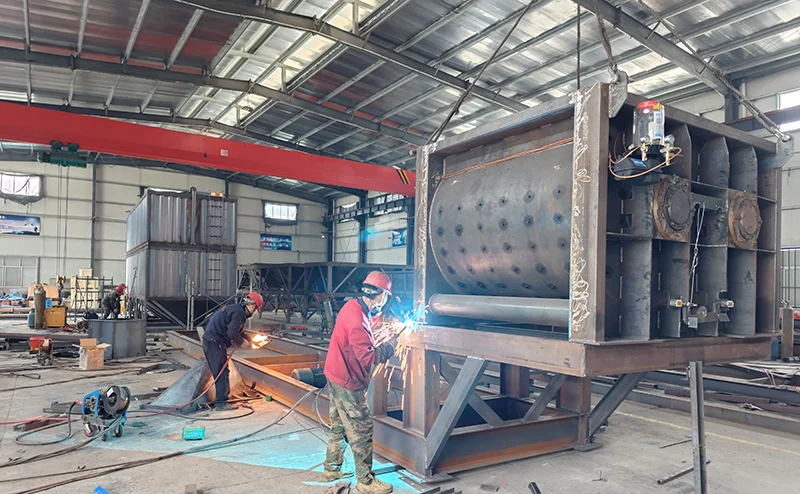

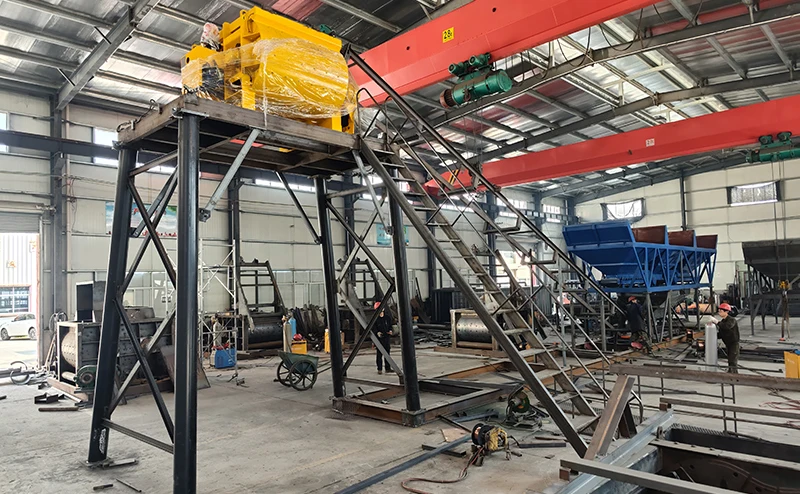

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
As an experienced and reputable concrete batching plant manufacturer, I am proud to say that Ningdu Xingye Machinery Manufacturing Co., Ltd. has been in the industry for 25 years.
Our company has grown rapidly in recent years, and we are excited to be completing our new plant (20000 square meters) in May 2023, which will increase our production capacity and efficiency.
As the only and largest concrete mixing plant manufacturer in Jiangxi, I have a professional design team that can create customized concrete mixing equipment to meet our customers' diverse needs.
As the only and largest concrete mixing plant manufacturer in Jiangxi, I have a professional design team that can create customized concrete mixing equipment to meet our customers' diverse needs.

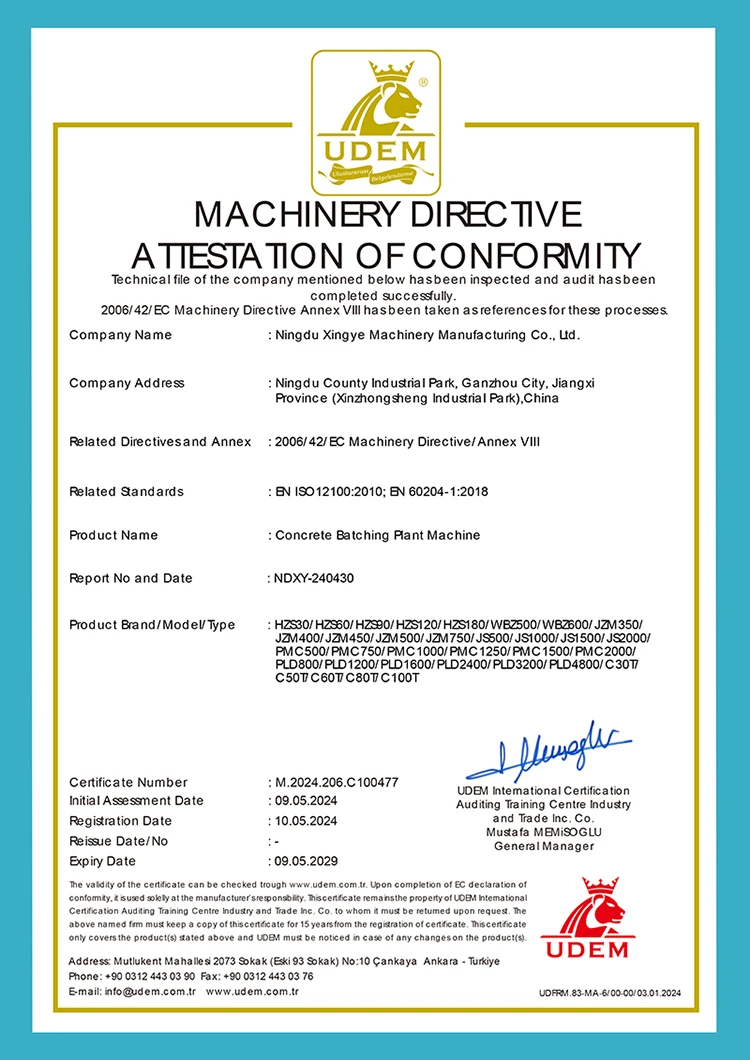

We take pride in having a strict quality inspection team that ensures our products meet the necessary standards and are of the highest quality.
Our excellent after-sales installation team ensures that our clients are satisfied with their purchases and that our products are exported all over the world.
Our excellent after-sales installation team ensures that our clients are satisfied with their purchases and that our products are exported all over the world.
At Ningdu Xingye Machinery Manufacturing Co., Ltd., we are dedicated to providing exceptional customer service and reliable products that meet our client's expectations.
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
