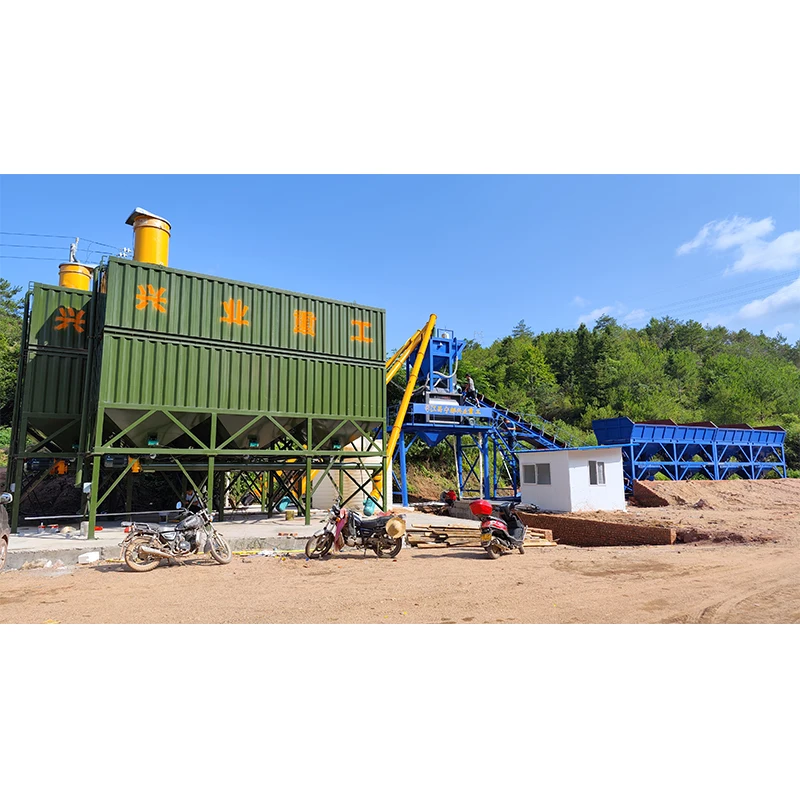

Factory Direct Sale 90m3/h Double Shaft Forced Mixer HZS90 Ready Mixed Concrete Batching Plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.
Share on (1601155613285):
Product Overview
Description
Factory Direct Sale 90m3/h Double Shaft Forced Mixer HZS90 Ready Mixed Concrete Batching Plant
Product Description
Concrete Batching Plant:batching machine,concrete mixer,mixing host,cement silo,control room,fully automatic control system.
Mixing system
Equipped with high -wear -resistant alloy stirring arms, high abrasion resistance and strong impact resistance.
Ingredient system
Microcomputer remote control operation, fast accurate ingredients, simple operation, and strong control function.
Reservoir system
The cement warehouse tank is equipped with a capacity system, which prevent powder from arched.
Conveyor system
Run smoothly, automated, centralized control; long -distance transportation, large transport volume, continuous transportation and other advantages.
Measuring system
Water, cement powder, and external agents are measured by electronic scale; precise ingredients, stable structure.
Control System
Remote management, intelligent control, manual control, and equipment have functions such as alarm correction and operation monitoring.
Equipped with high -wear -resistant alloy stirring arms, high abrasion resistance and strong impact resistance.
Ingredient system
Microcomputer remote control operation, fast accurate ingredients, simple operation, and strong control function.
Reservoir system
The cement warehouse tank is equipped with a capacity system, which prevent powder from arched.
Conveyor system
Run smoothly, automated, centralized control; long -distance transportation, large transport volume, continuous transportation and other advantages.
Measuring system
Water, cement powder, and external agents are measured by electronic scale; precise ingredients, stable structure.
Control System
Remote management, intelligent control, manual control, and equipment have functions such as alarm correction and operation monitoring.
YOU MAY LIKE
Specification
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65 | 85 | 100 | 145 | 165 | 210 | 230 | 260 |

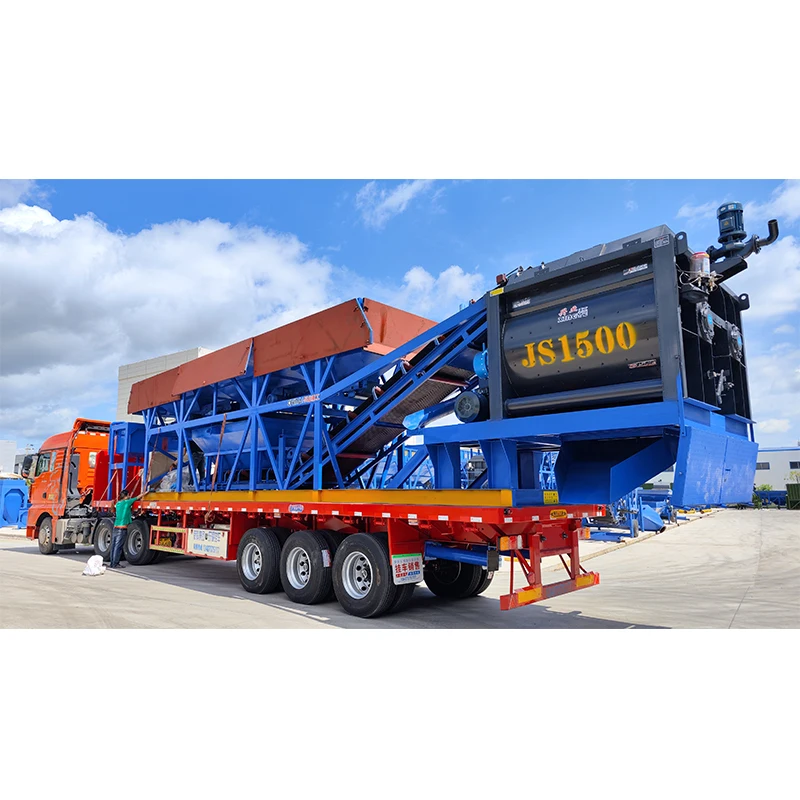

Packing and Delivery
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience.
We are the only and largest concrete mixing plant manufacturer in Jiangxi.
The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
FAQ
Question 1: Are you factory or a trading company?
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: We are a factory dedicated in concrete batching plant over 15 years, all the supporting equipment are available, including but not limited to batching machine, Stabilized soil batching plant, cement silo, concrete mixers, screw conveyor, etc.
Answer: Just tell us the capacity (m3/day)of concrete you want to produce concrete per day or per month.
Question 3: What's your advantage?
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Answer: Rich production experience, Excellent design team, Strict quality audit department, Strong after-sales installation team
Question 4: Do you supply training and after-sale service?
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Answer: Yes, we will supply installation and training on site and also we have a professional service team that can solve all the problems ASAP.
Question 5: What about the payment terms and incoterms?
Answer: We can accept T/T and L/C, 30% deposit, 70% balance before shipment.
EXW, FOB, CIF, CFR these are the common incoterms we operating.
Question 6: What about the delivery time?
Answer: Normally, the stock items can be send out in 1~2 days after receive the payment.
For customized product, the production time need about 7~15 working days.
Question 7: What about the warranty?
Answer: All of our machines can provide 12-months warranty.
