Jinan Powerful Photo Frame Jointing Machine

Share on (1601156223522):


Price:

Quantity:


Product Overview

Description



Product Description


Photo Frame Jointing Machine




Specification


Model
CGZK-1200x800
Maximum processing range (mm)
1200x800
Minimum working range (mm)
80x80
Size constraint (mm)
Length一Width<400
High frequency maximum input power (kw)
8
High frequency maximum oscillation power (kw)
5
Feed:
manual feed in and out
Pressure mode:
four-corner motor, precision ball screw
Group frame form:
Group frame form 45 degree mouth type wood frame, MDF frame assembly
Man-machine interface
touch screen operation mode
Control system
PLC control
Machine size
2100(L) x 1270(w) x 1750(H)
Weight(T)
1.1

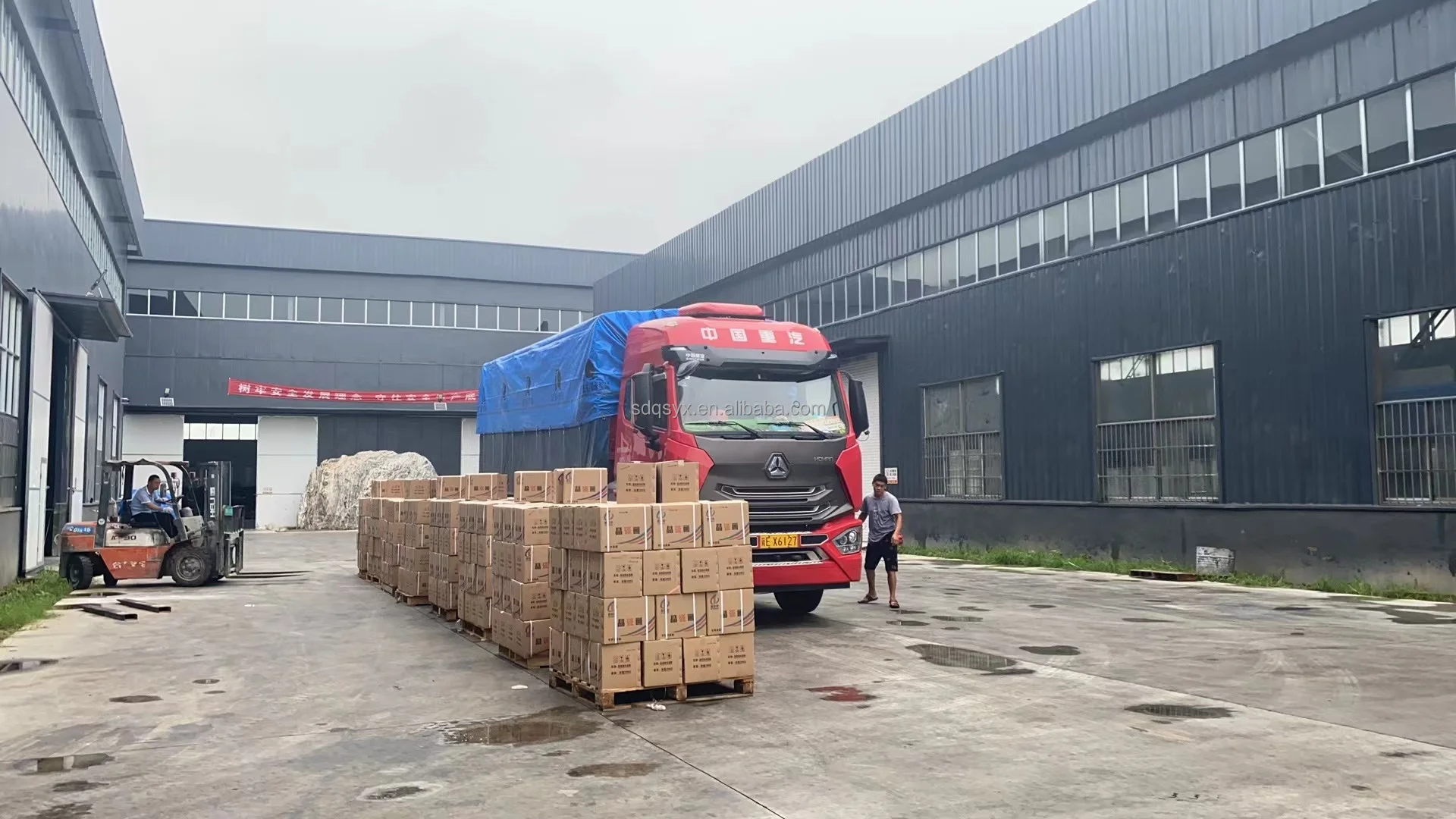

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

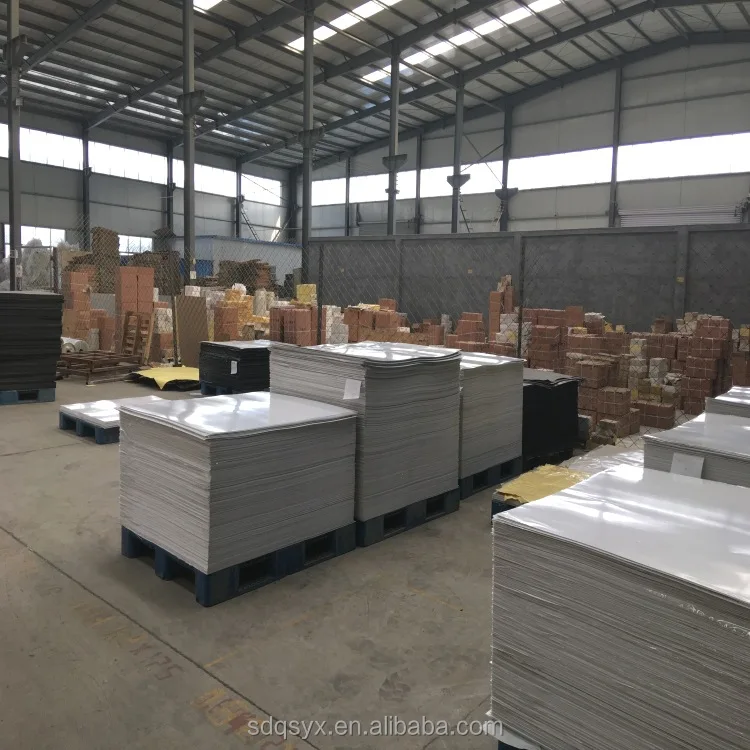

Company Profile




Jinan Powerful Image Equipment Co.,LTD. is committed to international well-known company.
We have been in this industry for about 14 years. So we have much experiences for producuing album machines and consumables such as UV coating machine, creasing machine, binding machine, paper cutter, adhesive pvc sheet, crystal ab glue, cold/hot lamination films and so on.

We take part in Shanghai Expo for two times in one year. It is in February and July.
In April, we will take part in Beijing Expo. We are very happy to see you.

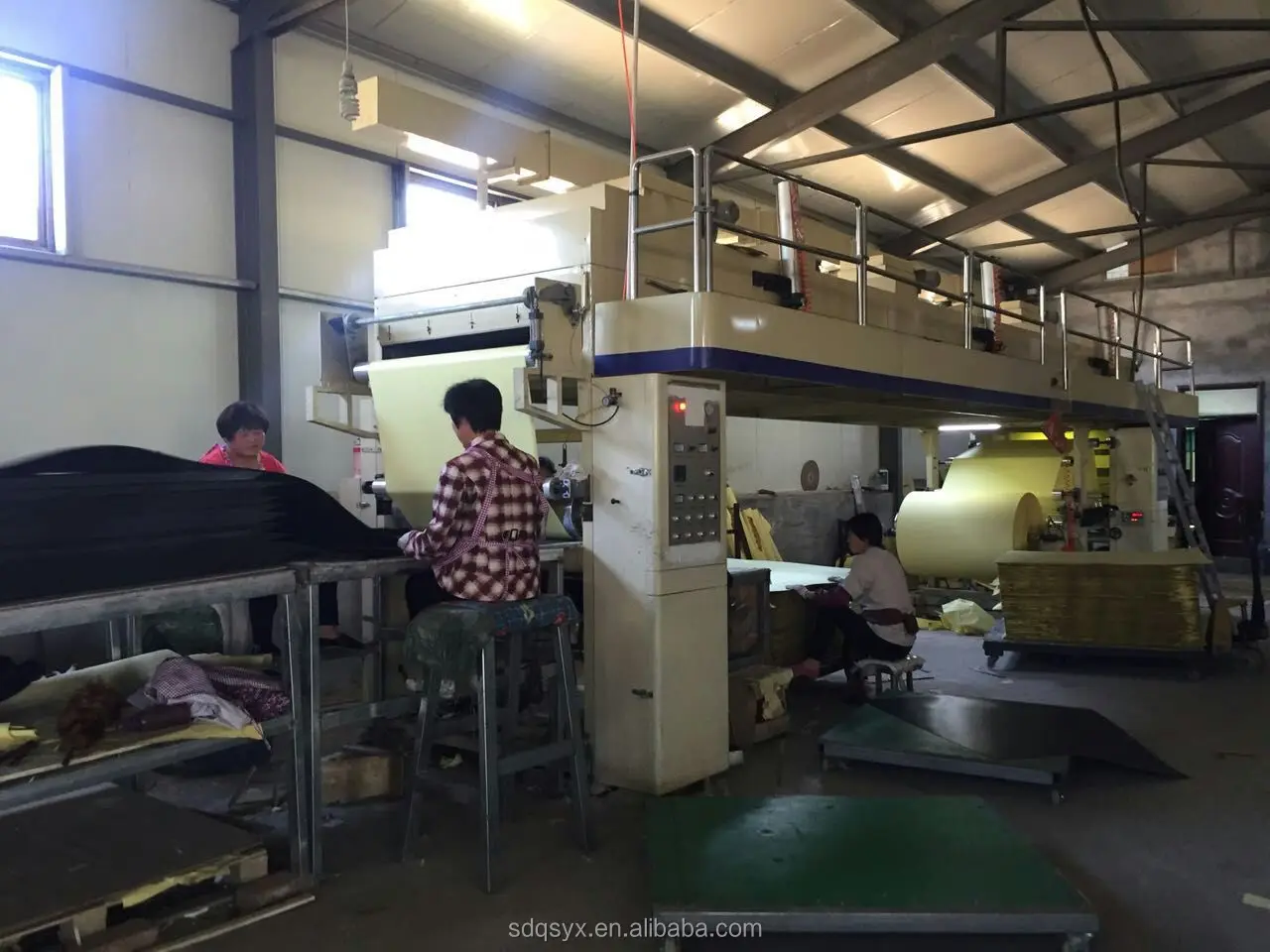

We have our own cold laminating lamination film production line, quality and delivery speed are very guaranteed. We have customers all over the world.




Contact With Me



Contact Me for free sample

wechat /whatsapp: +86-15063342149
