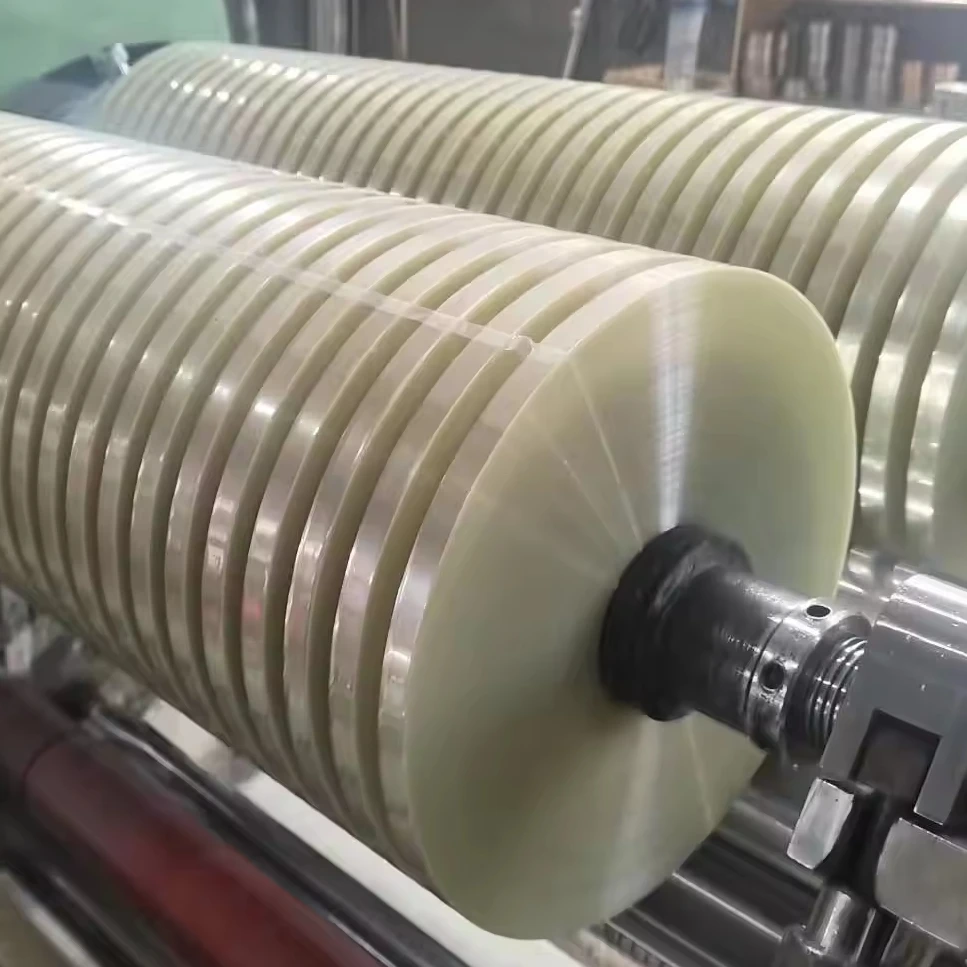

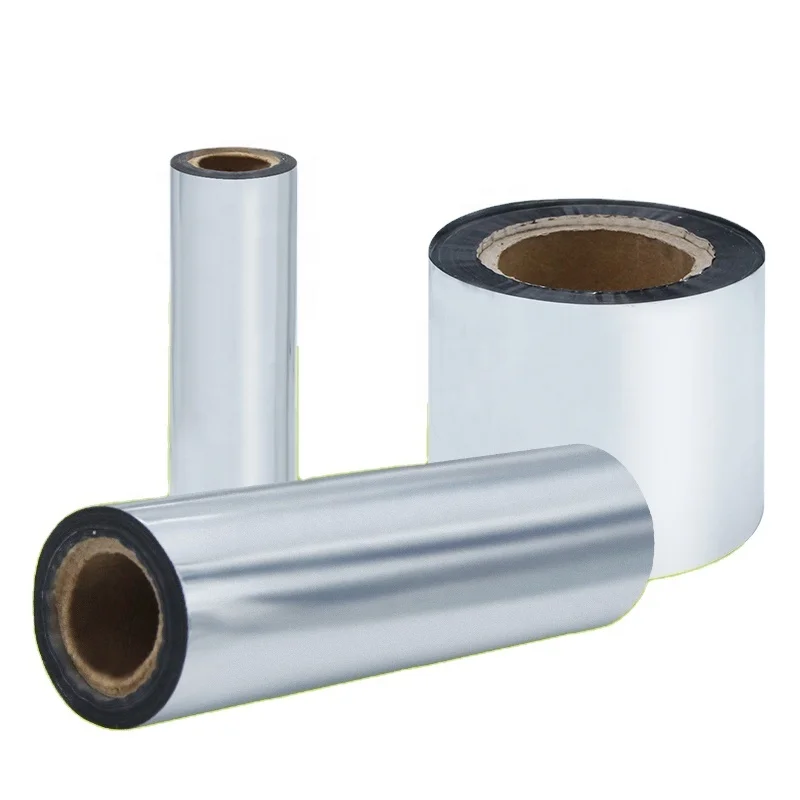

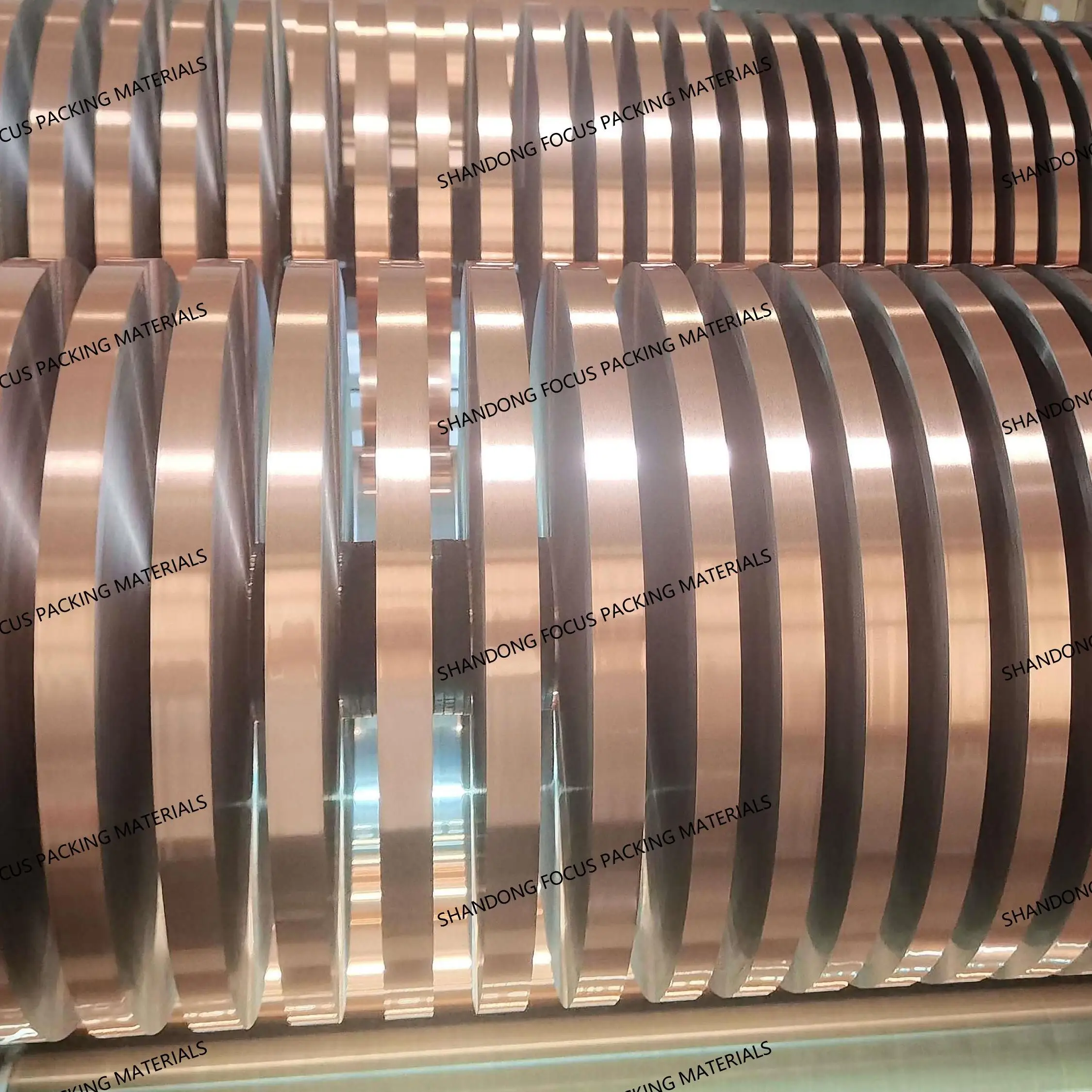

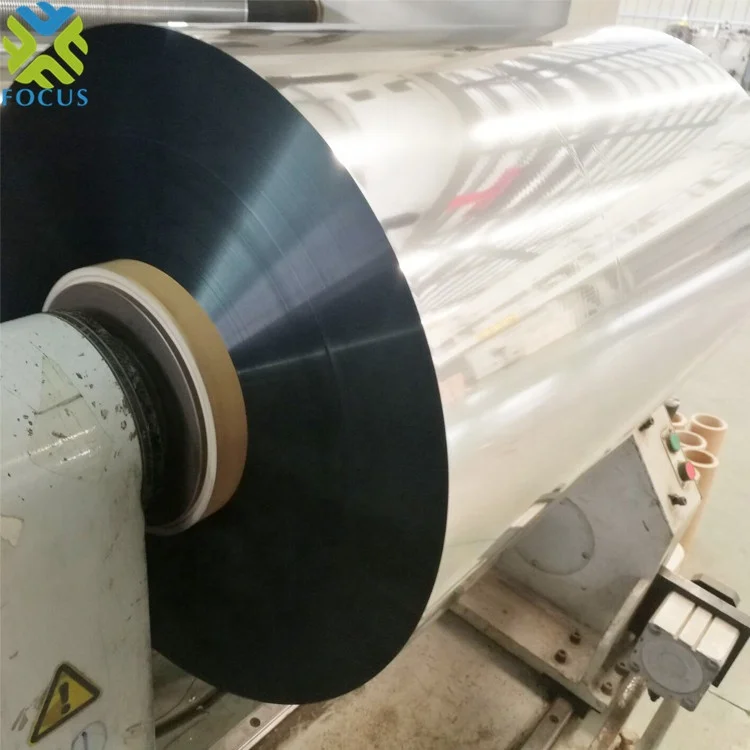

Aluminum foil polyester tape laminated film Heat Insulation/Cable Shielding/Roof Water Proof Materials
- Category: >>>
- Supplier: Shandong Focus Packing Materials Co. Ltd.
Share on (1601156240342):
Product Overview
Description

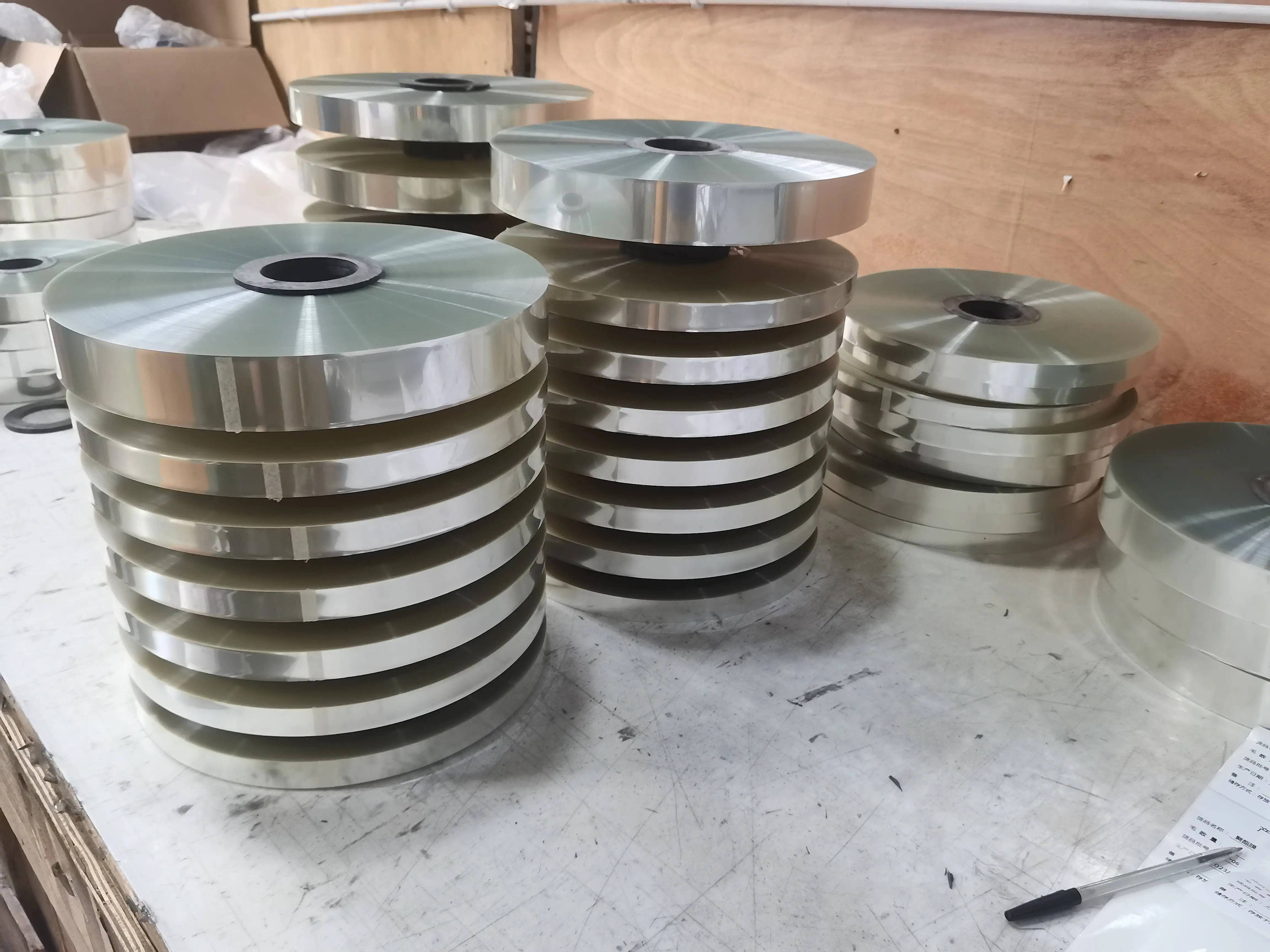

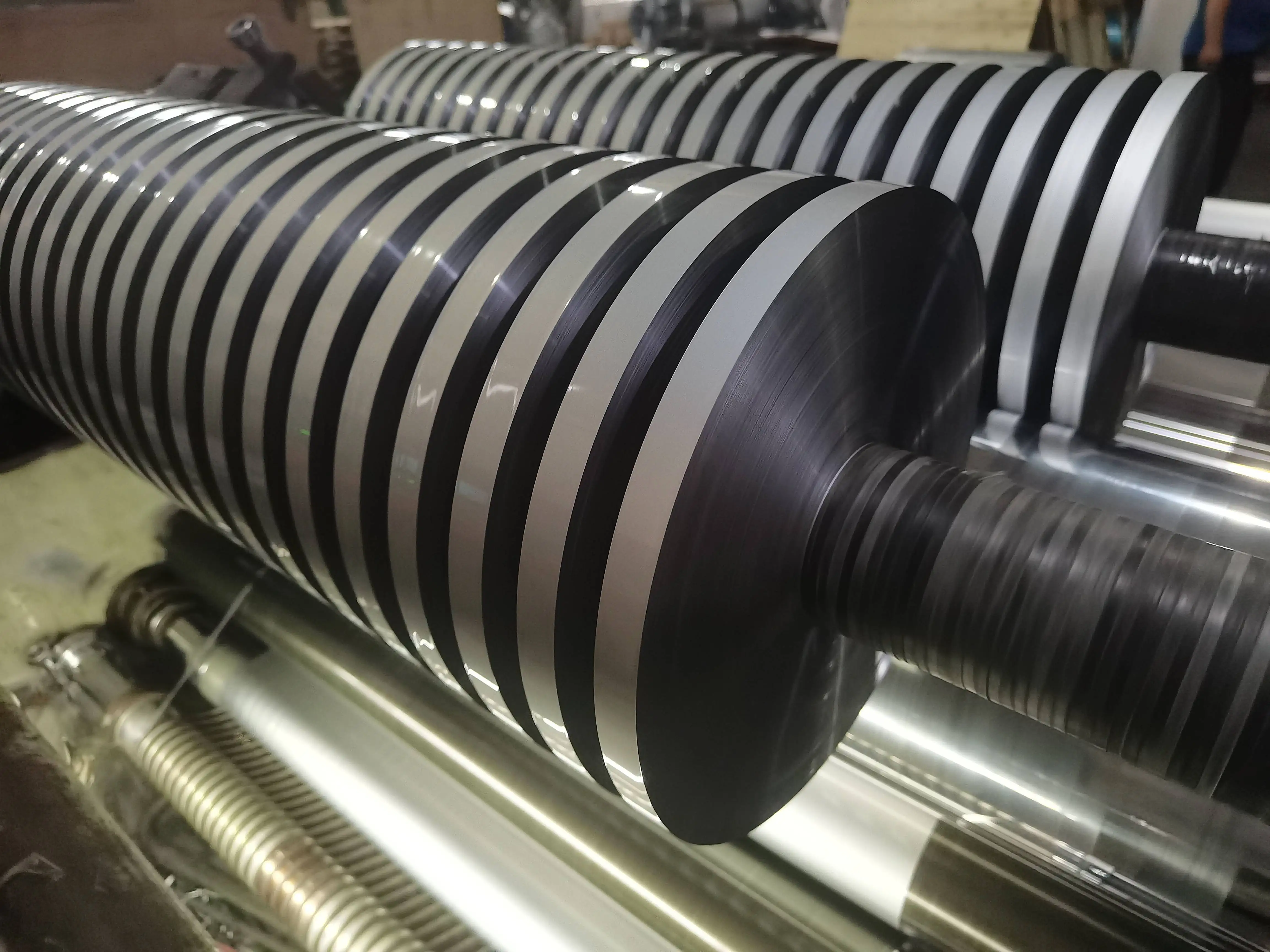

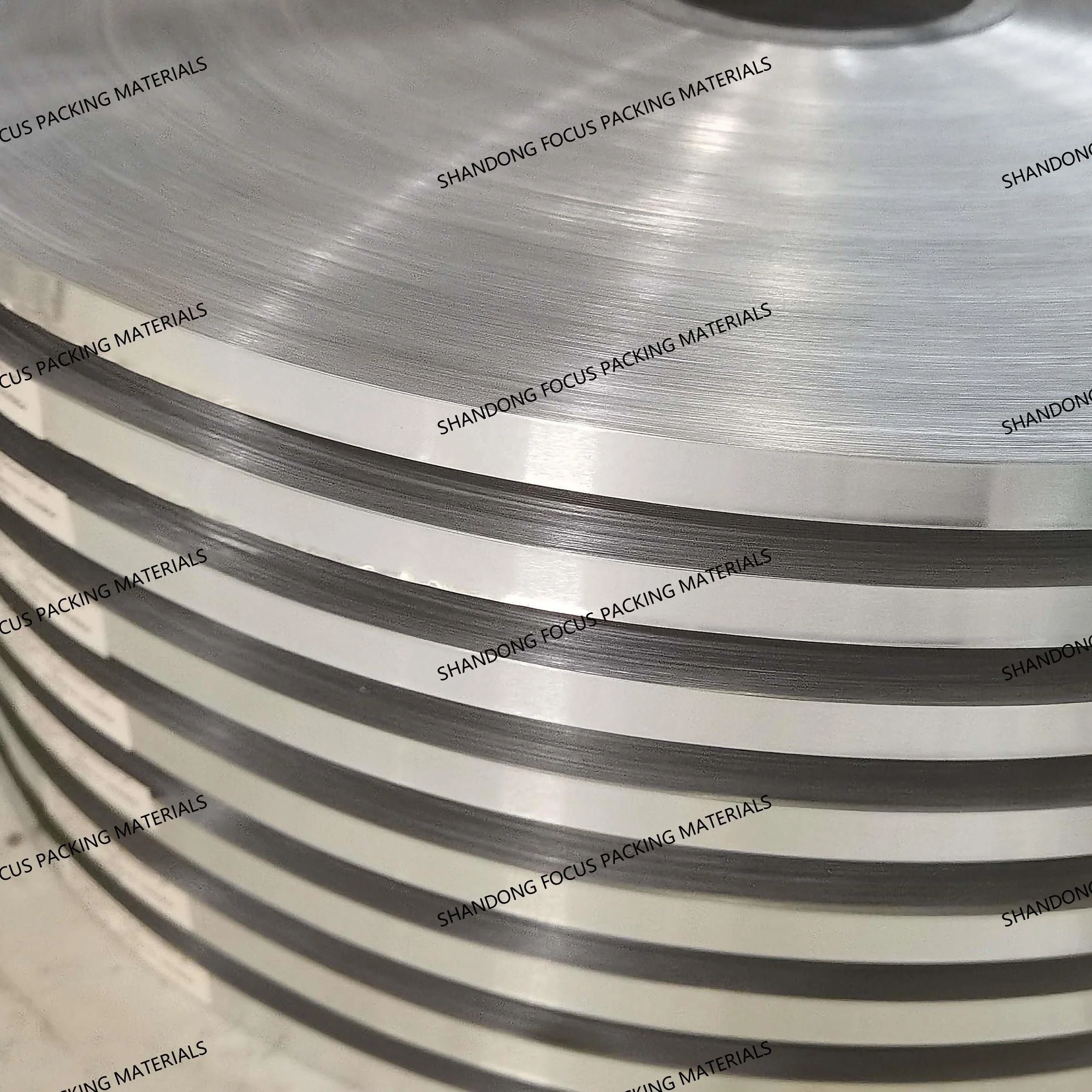

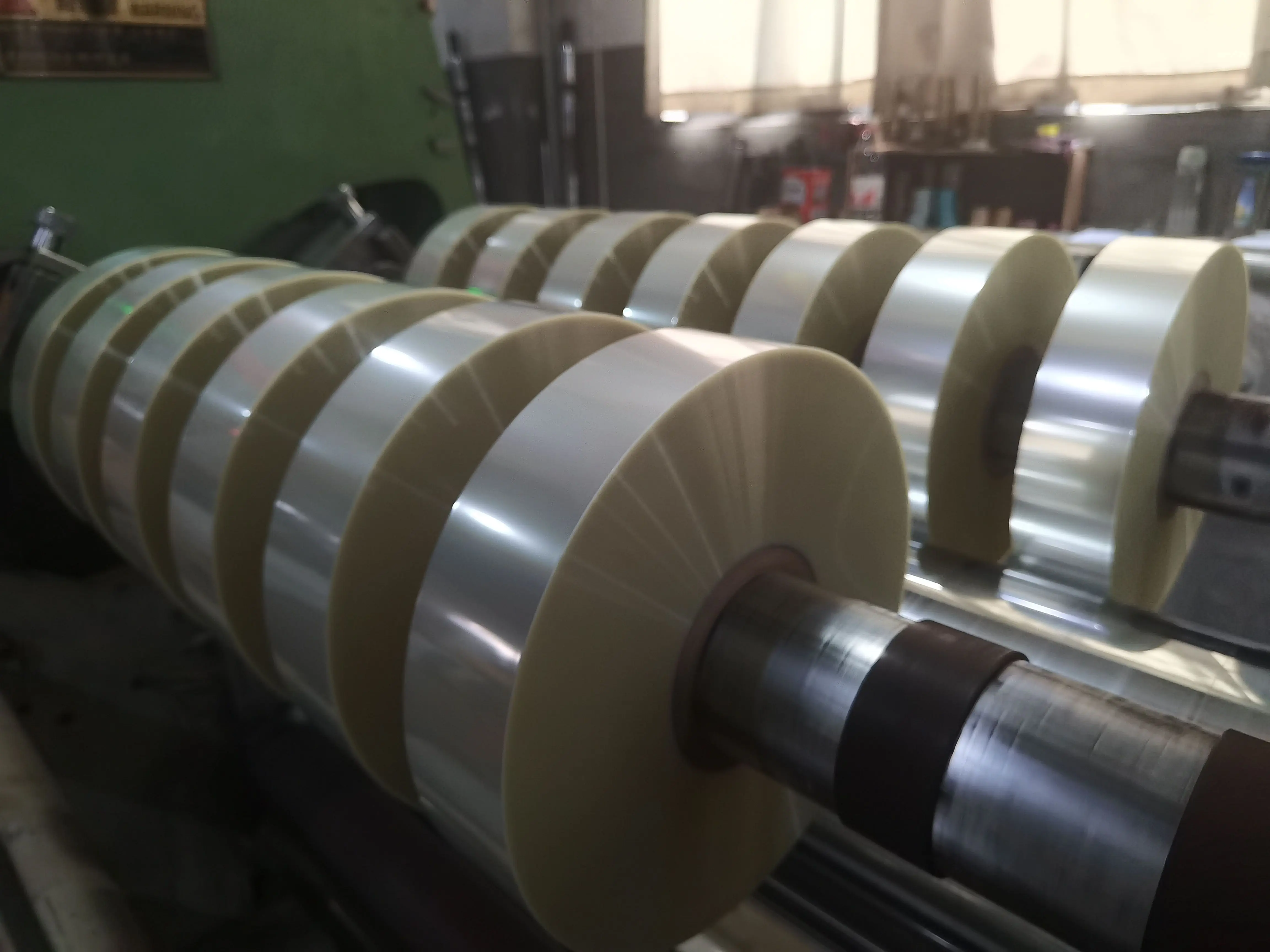

6um AL+12um PET for cable shielding and flexible duct insulation materials
This tape consists of aluminum foil laminated with a polyester film which provides conductivity, electromagnetic insulation and high mechanical strength. AL-Mylar Tape will form a protective barrier, shielding cable to electromagnetic or electrostatic interference. Aluminum and polyethylene-based film laminate, with a polyester supporting layer.
We can provide single-sided/ double-sided aluminum foil Mylar tape. The double-sided aluminum foil Mylar tape is composed of a layer of polyester film in the middle and a layer of aluminum foil on both side. The double-layer aluminum reflects and absorbs the signal twice, which has a better shielding effect.
The aluminum foil Mylar tape we provided has the characteristics of high tensile strength, good shielding performance, and high dielectric strength, etc.
The color of the double-sided aluminum foil Mylar tape is natural, the single-sided can be natural, blue or other colors required by customers.
The aluminum foil Mylar tape we provided has the characteristics of high tensile strength, good shielding performance, and high dielectric strength, etc.
The color of the double-sided aluminum foil Mylar tape is natural, the single-sided can be natural, blue or other colors required by customers.
Features
1.The ultimate feature of this tape is used for cable shielding as a shielding insulator when assembling electronic components.
2.It provides more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable.
3. Applicable cable: signal, control, instrumentation, coaxial cable, special cables.
复合结构 Structure | 总厚度 (μm) | 克重 (g/m) | 比面积 (mi/kg) |
AL/PET 9.12 | 24 | 44.5 | 22.5 |
AL/PET 9.15 | 27 | 48.5 | 20.6 |
AL/PET 9,23 | 35 | 60.0 | 16.7 |
AL/PET 9.36 | 48 | 78.0 | 12.8 |
AL/PET 12.12 | 27 | 53.0 | 18.9 |
AL/PET 12.15 | 30 | 57.0 | 17.5 |
AL/PET 12.23 | 38 | 68.0 | 14.7 |
AL/PET 25.12 | 40 | 88.0 | 11.4 |
AL/PET 25.23 | 51 | 103.0 | 9.7 |
AL/PET 40.20 | 63 | 143.0 | 6.9 |
AL/PET 40.25 | 68 | 149.0 | 6.7 |
Inner Diameter: 53.5mm(2.1in),76mm(3.0in);
Outer Diameter OD:250-650mm;\t\t
Color:Silver/Blue/Copper;
Color:Silver/Blue/Copper;
Packaging\t

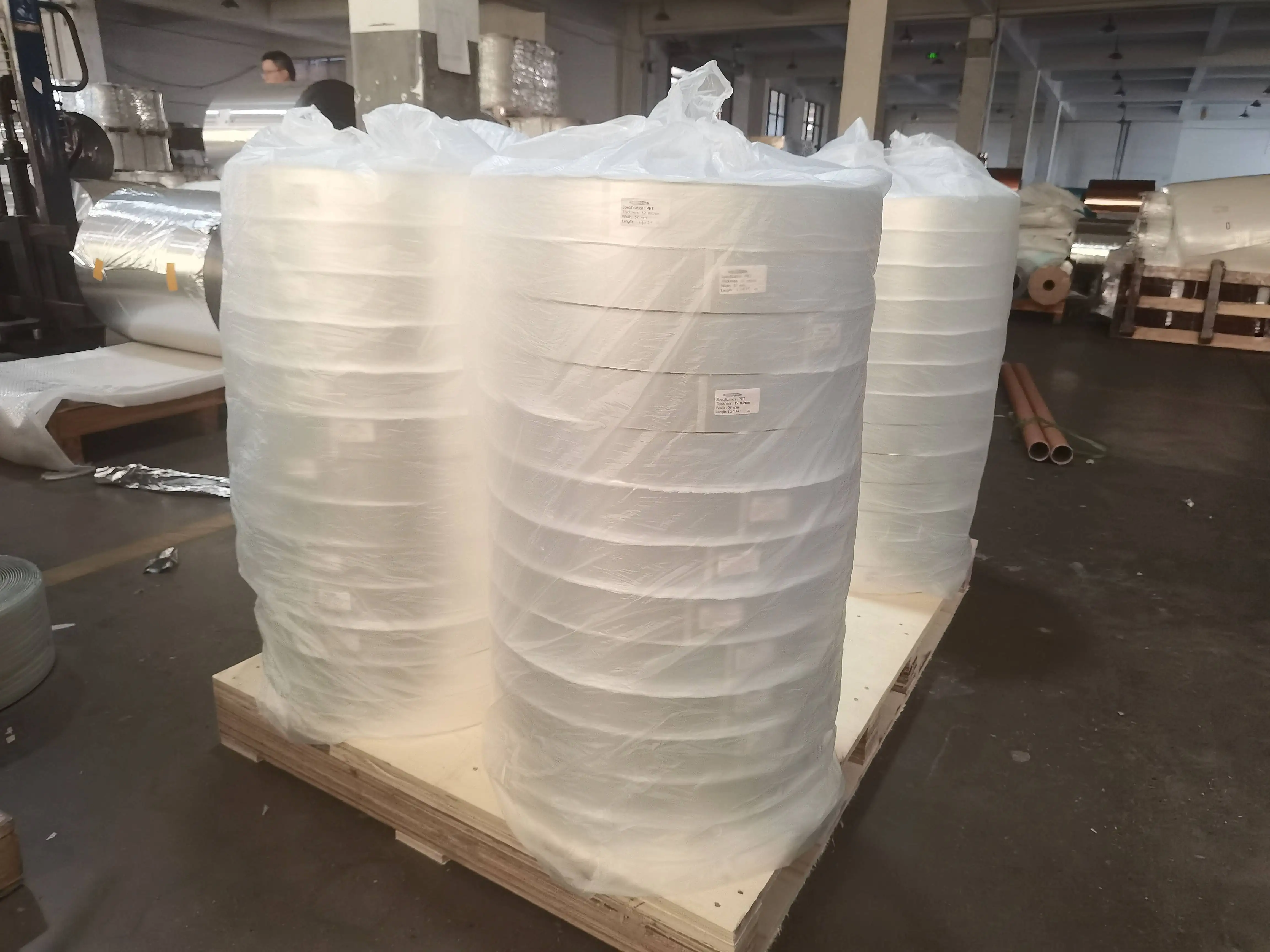

1.inner-plastic bag,Outside-carton on a plywood pallet
2.Inner-plastic bag,Outside plywood wooden box
3.Plywood wooden box\t
3.Plywood wooden box\t
