ETL 2 inch led downlight housing remodel IC housing recessed potlight housing
- Category: >>>
- Supplier: Huizhou Lanbot Optoelectronic Technology Co. Ltd.Huizhou Ltd.
Share on (1601156396056):
Product Overview
Description

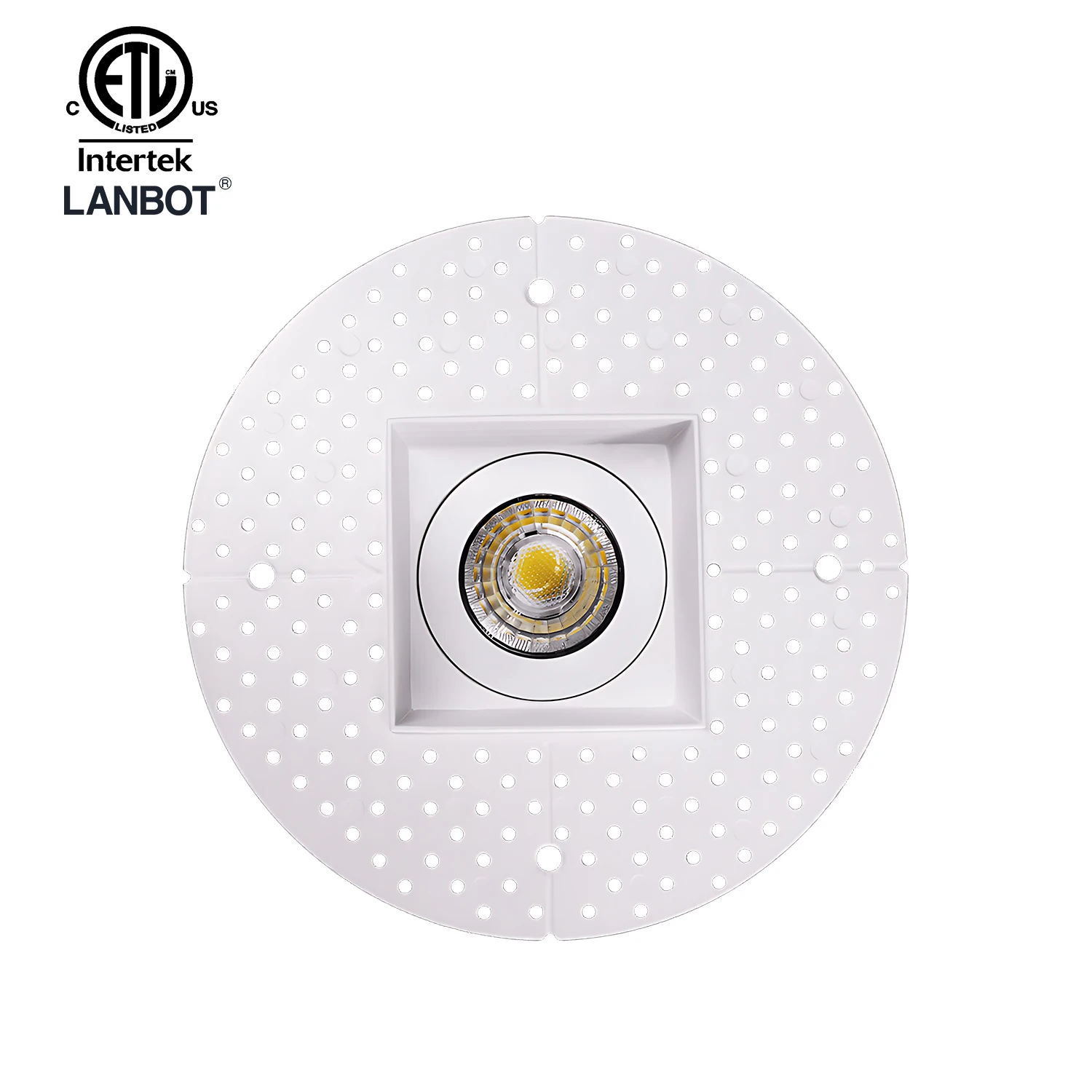

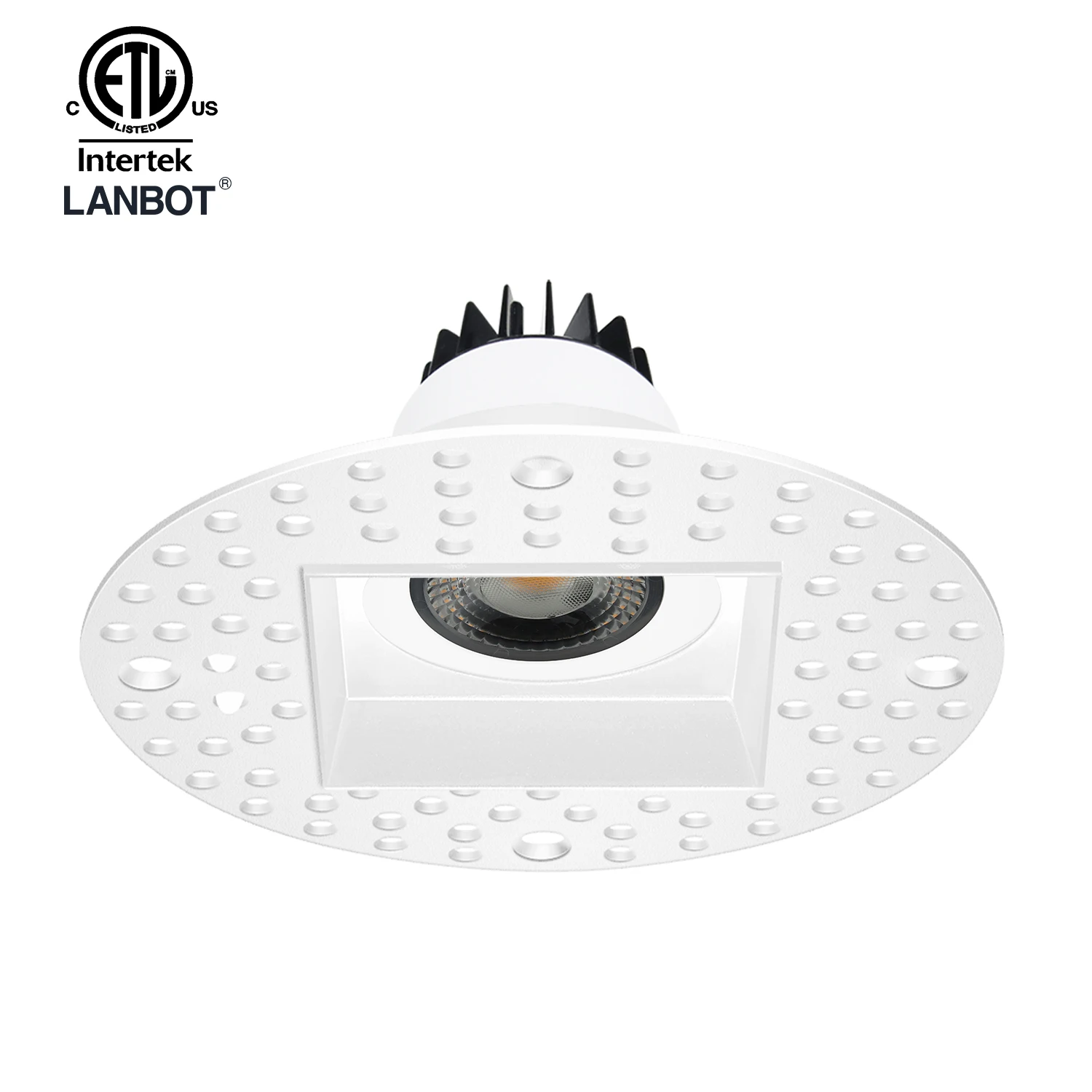

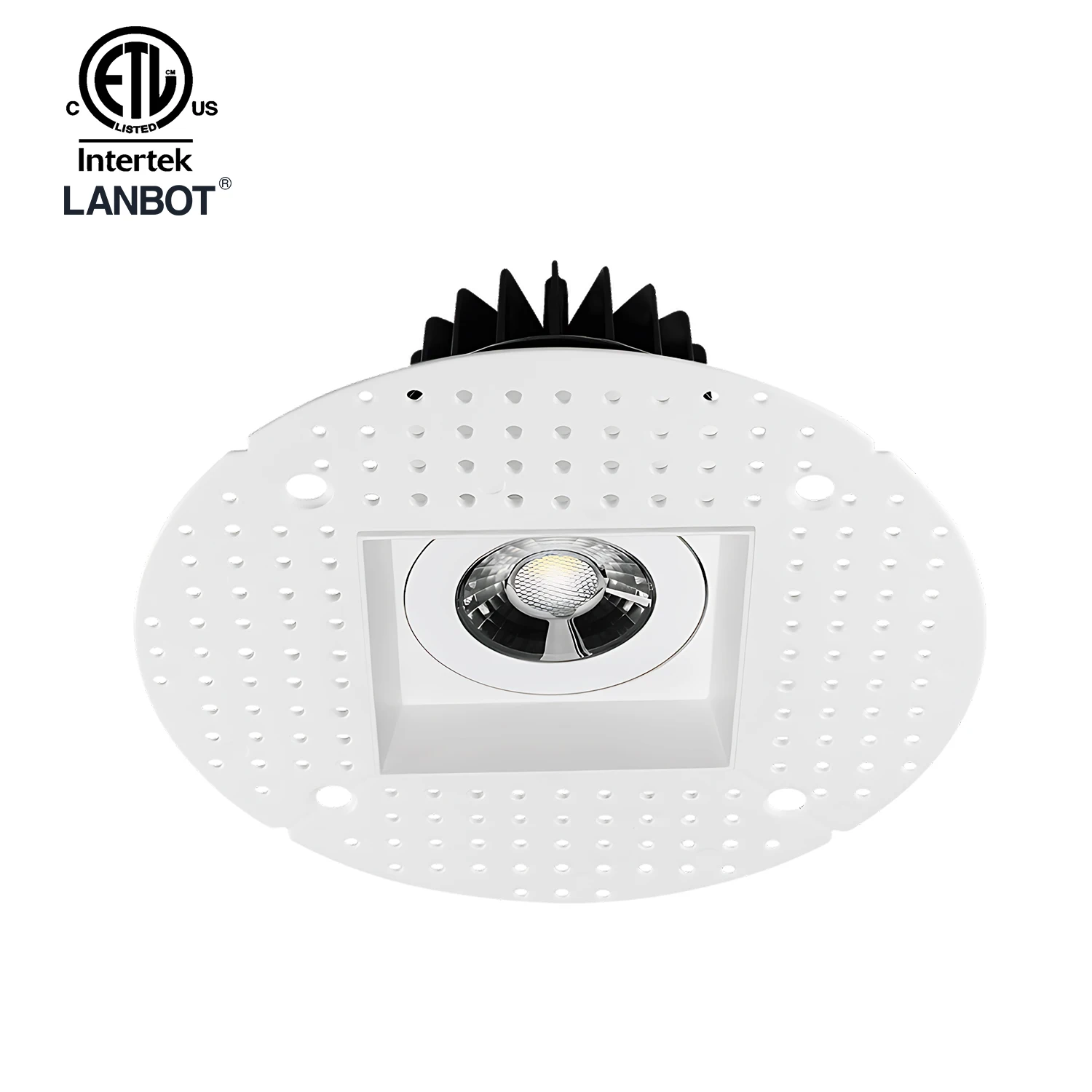

VEGA SERIES MODULE LED DOWNLIGHT, ETL, 5CCT, TRIAC/ELV/0-10V, DTW, IC & AIRTIGHT

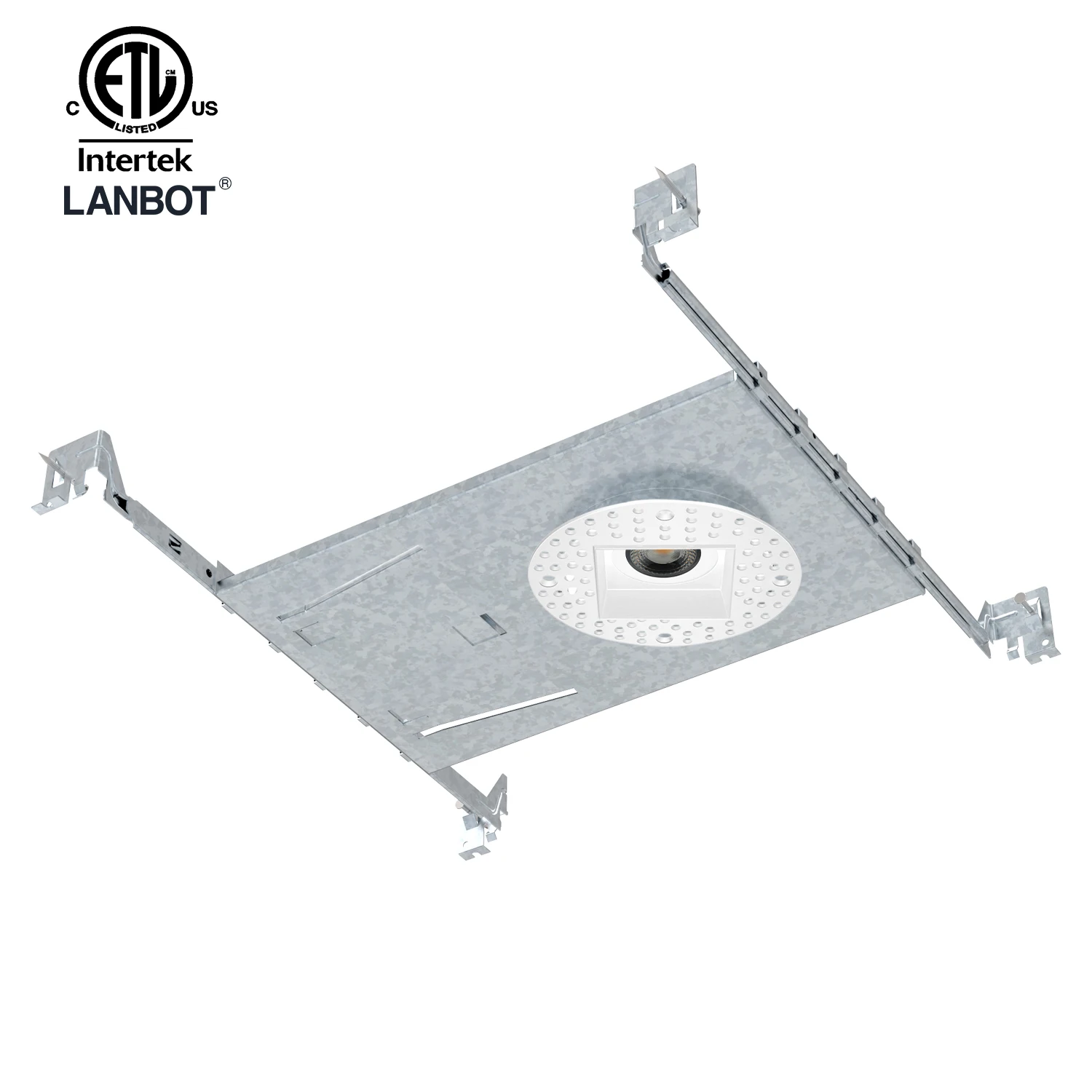

Lanbot designed 2 In. Module LED Recessed Downlights are the new over achiever, designed to over deliver on light quality, efficiency, and configurability. The newly engineered module housing system delivers the best design for changeable trims in square and round for different remodel or new construction applications. From residential and commercial to hospitality and retail, the 2'' modular Downlight is easily and fast to install to the drywall ceilings with trim changeable. It has a perfect deep regressed optic system provides quality light with minimal glare and maximum control, bringing illumination into the space. Drivers on all models are accessible from below the ceiling to make serviceability quick and easy. It is IC rated and airtight rated and innovative in design and technology, offering a sustainable solution for various applications with its high lumen output and adaptability. Designed for both residential and commercial spaces the series offers for dry/damp locations for remodel and new construction projects. The fixture installs no housing required for remodel applications. A mounting frame with optional hanger bars is included for new constructions. Housing/bracket is sold separately, and a remote driver is included.
Why New Constructions?

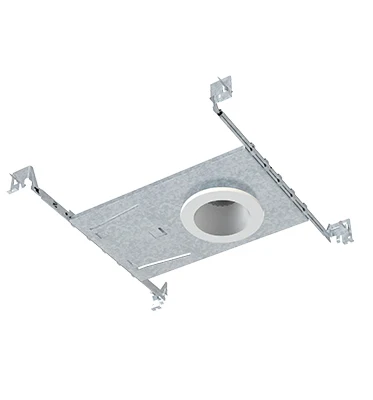

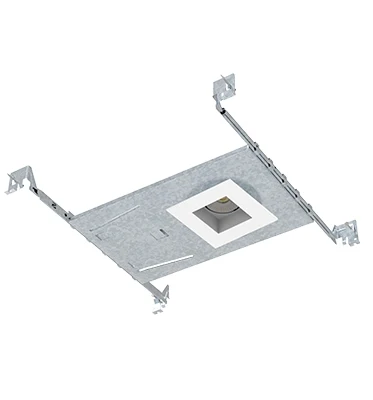

New construction fixtures are attached to ceiling joists before drywall installation, providing sturdy support. They can be used in retrofit applications if there’s access to the area above the fixture, like an attic. New construction housings offer more style choices and are typically cheaper than remodel fixtures.
Product Paramenters

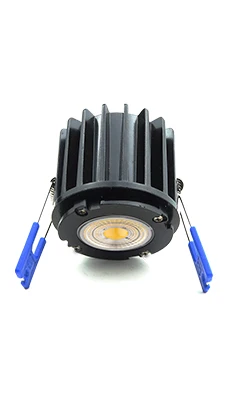

LED Engine -Modular design
*Strong output: 8W
*Lumens:85LPW/100LPW
*Color Tempeature: 1CCT/5CCT/WD
*CRI: 80Ra/90Ra*Optics: 15°/24°/36°
Strong Quality high end designed Trim
*Deep Regressed /Anti-glare design

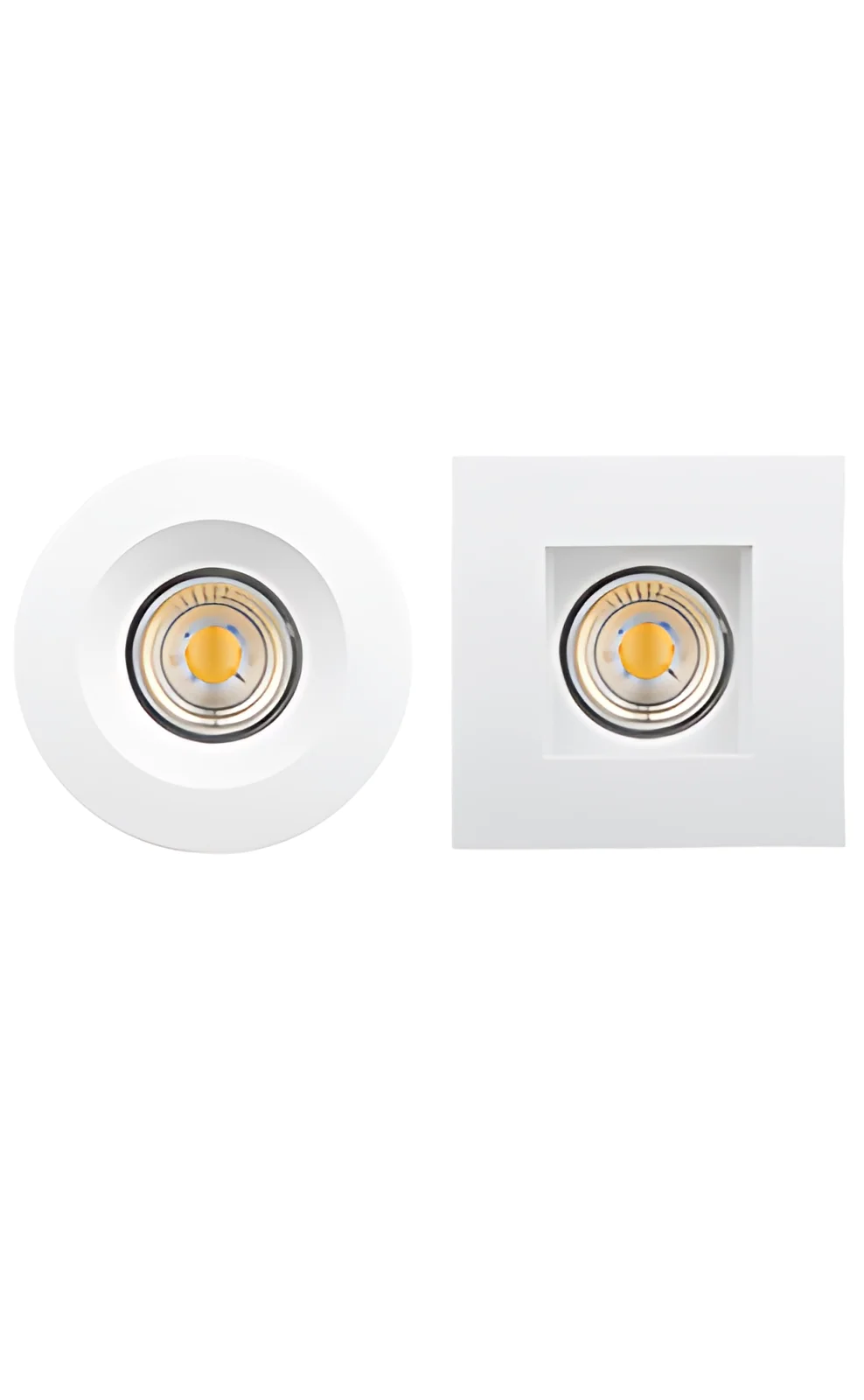

*Square tirm or Round trim
*Finish: white/Black/Silver/Brush nickel/Gold/Bronze

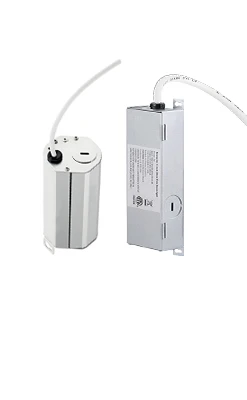

Isolated LED Driver Junction Box
*Low profile and Fit any 2 inch cutout
*Galvanized Junction Box-1CCT/WD
*Alu. Junction Box-1CCT/5CCT/DW
*120V/277V/347V, Triac/Elv/0-10V
*EM backup scheme optional

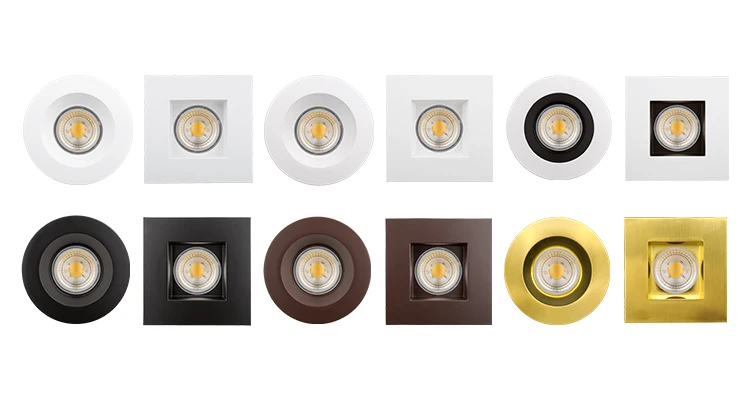

Optional Trim Finish
Round White, Square White, Round baffles, Square Baffles, Round White Black, Square White Black, Round Black, Square Black, Round Bronze, Square Bronze, Round Gold, Square Gold.
Why Paint The LED Downlight In Different Finishes?

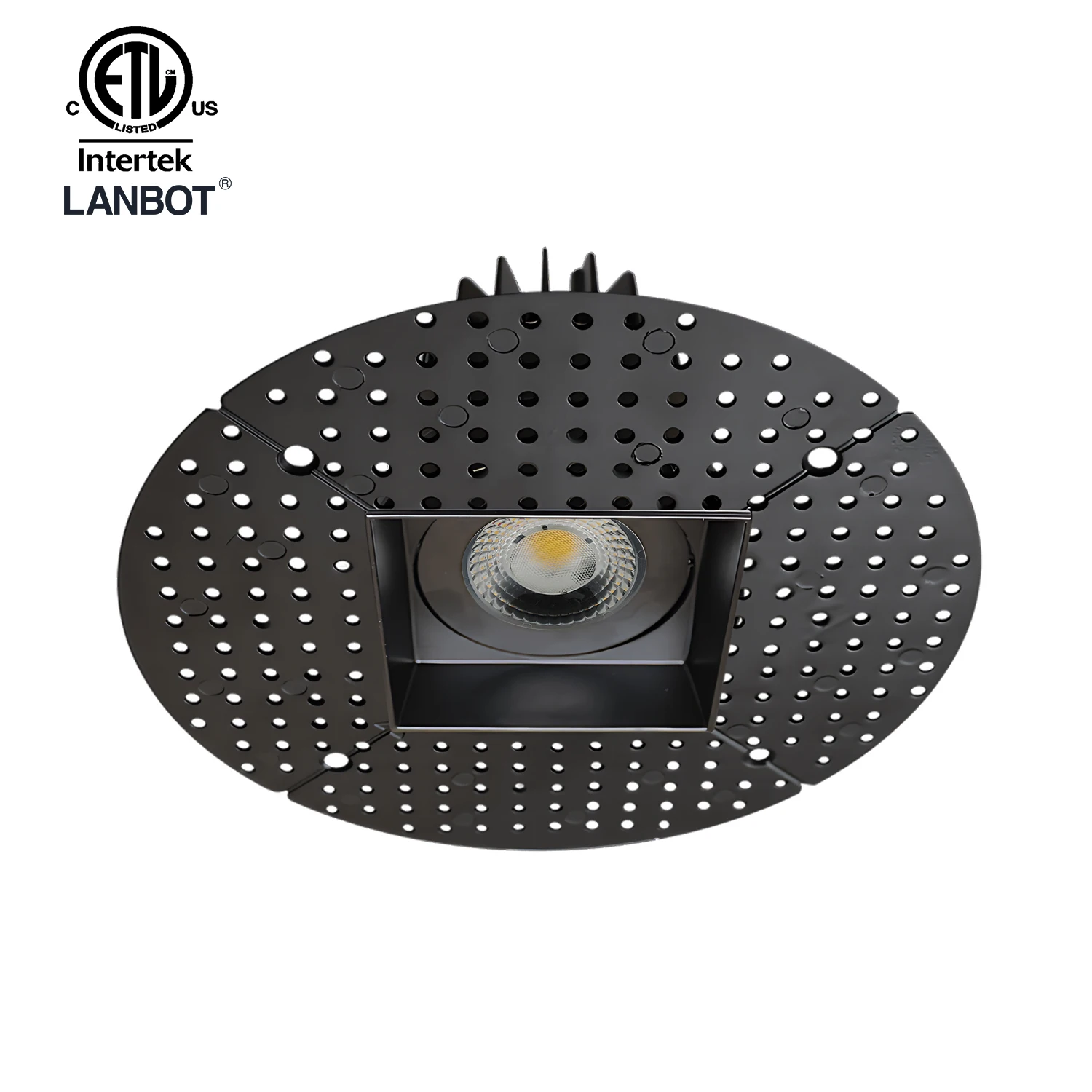

LED downlight trims are painted in different colors to enhance light output, aesthetics, glare reduction, and reflection. white is the most popular trim to match almost white ceiling/dry walls. Black/Dark finish mostly used in nightclubs and bars, also maybe for wooden ceilings to match the hardware or to emphasize the trim lines. Black also can reduce glare, and reflective colors like chrome can enhance light reflection. Bronze trims, as with black ones, are used in many wooden ceilings to match the background tones of the wood or the darkness of the ceiling.These factors optimize both the functionality& aesthetics of the lighting.
2 inch Module Downlight Features
* 5CCT User Selectable Light Color
* CRI 90+ for True Color Rendering
* White & Black Trims
* 2 1/2″ Deep to fit the limited space
* CRI 90+ for True Color Rendering
* White & Black Trims
* 2 1/2″ Deep to fit the limited space
* Beam spread: 15°/24°/38°
* Type IC & Airtight Rated
* Fast& Easy To Install –Save On Labor
* Driver Inside Connection Box
* Type IC & Airtight Rated
* Fast& Easy To Install –Save On Labor
* Driver Inside Connection Box
*120V Triac/Elv, 277v/347v 0-10V
*Remodel/New constructions
* Suitable for Damp/Wet Location
* Warranty: 5 Year
* cETLus certified
* Suitable for Damp/Wet Location
* Warranty: 5 Year
* cETLus certified
Product Parameters
ITEM NAME | VOLTAGE | WATT | LPW | CRI | CCT | DIM | OPTICS |
LED Engine | 120V | 8W | 85/100 | 80/90 | 1CCT/5CCT/WD | Triac/Elv | 15°/24°/36° |
100-277V | 8W | 85/100 | 80/90 | 1CCT/5CCT/WD | 0-10V | 15°/24°/36° | |
100-347V | 8W | 85/100 | 80/90 | 1CCT/5CCT/WD | 0-10V | 15°/24°/36° |
