New Intelligent Control Double Stainless Steel air Shower Room
$1,650.00-1,800.00
304 Stainless Steel Air Shower Room Intelligent Voice Automatic Induction Air Shower Room
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.Guangzhou Ltd.
Share on (1601156559315):
Product Overview
Description
Product Information
All sizes and styles can be customized | All sizes and styles can be customized | |||||||||||
Model | Model | BACCLEAN-AS01 | BACCLEAN-AS02 | BACCLEAN-AS03 | BACCLEAN-AS04 | BACCLEAN-AS05 | ||||||

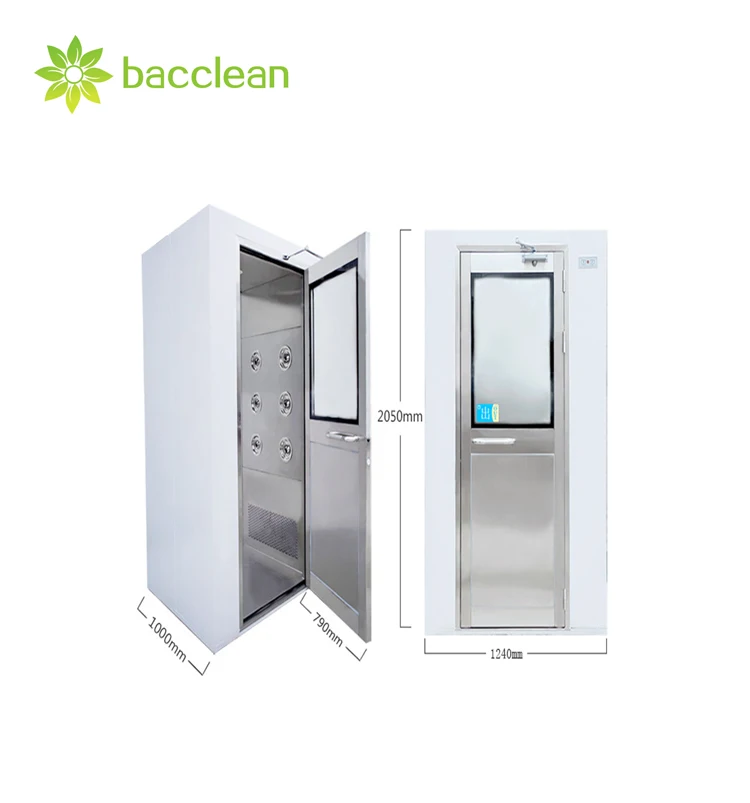

OveralI dimension(mm) | OveralI dimension(mm) | 1200X1000X2180 | 1200X2000X2180 | 1200X3000X2180 | 1200X1500X2180 | 1300X1000X2050 | ||||||
Inside dimension(mm) | 800X930X1910 | 800X1930X1910 | 800X2930X1910 | 800X1430X1910 | 800X930X1910 | |||||||
The number of stainless steel nozzles (set) | The number of stainless steel nozzles (set) | 12 | 24 | 32 | 16 | 12 | ||||||
Noise db (meter awayfrom the equipment) | Noise db (meter awayfrom the equipment) | ≤63 | 3500/165 | 0.72 | 36.6 | H13 | ||||||
Fan | Power supply | 380/50 | 500/230 | 1.36 | 4.4 | H13 | ||||||
Power | 600 | 600 | 750 | 750 | 550 | |||||||
Wind quantity | 1500 | 1500 | 2500 | 1500 | 1200 | |||||||
HEPA filter | Size | 630x630x69 | 630x630x69 | 630x915x69 | 630x915x69 | 630x630x69 | ||||||
number | 1 | 2 | 2 | 1 | 2 | |||||||
Pre- filter | Size | 775x380x21 | ||||||||||
number | 1 | 2 | 2 | 1 | 2 | |||||||
Whole power | 630 | 1240 | 1540 | 780 | 1130 | |||||||
Product Display

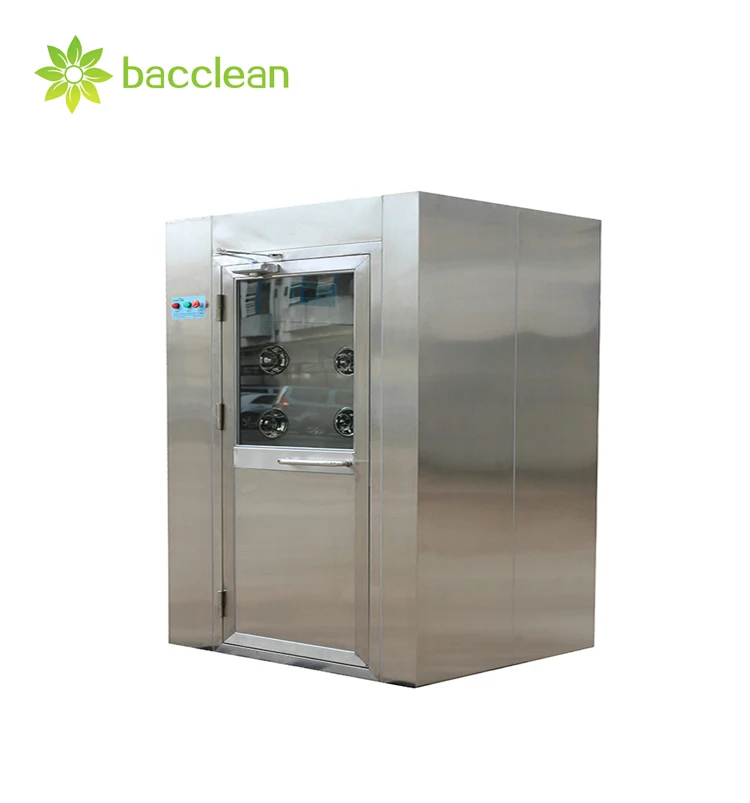

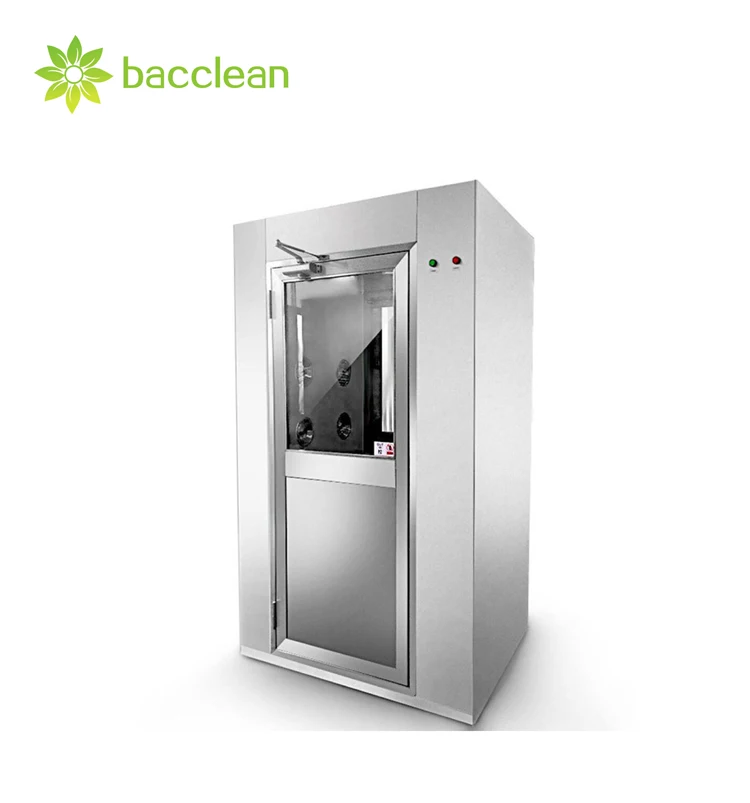

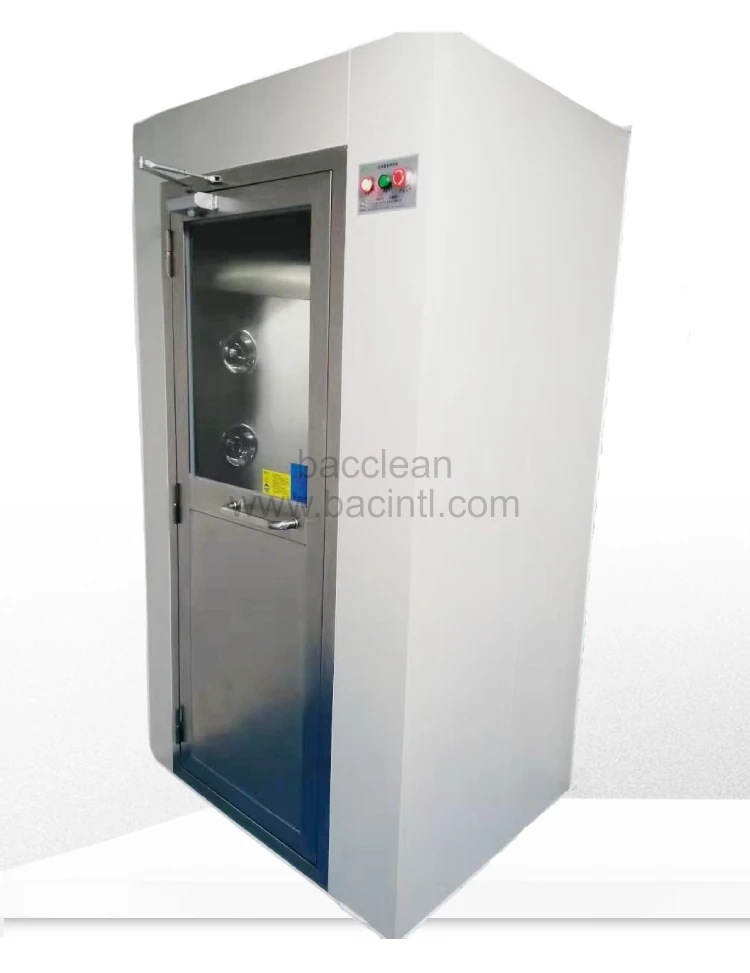

air shower
The air shower is widely used for the cleanroom to blow off the dust. It uses the imported electronic components, so it has high performance and uses good sealing materials to ensure high internal sealing properties.
Also it adopts the high quality HEPA filter which efficiency is above 99.99%. Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 25m/s.
Also it adopts the high quality HEPA filter which efficiency is above 99.99%. Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 25m/s.
How a cleanroom Air Shower house works
1. The people passes through the entry door and a sensor activates interlock magnets, which lock the air shower and cleanroom doors.
2. Numerous adjustable nozzles blow high-velocity streams of Class 100 filtered air onto the people.
3. The high-velocity air creates a flapping effect on clothing which produces a scrubbing action, removing particulates from cleanroom garments.
4. To ensure all particulates are removed, workers raise their arms and rotate in place.
5. Indicator lights signal the end of the cleaning cycle, and the cleanroom door opens.
2. Numerous adjustable nozzles blow high-velocity streams of Class 100 filtered air onto the people.
3. The high-velocity air creates a flapping effect on clothing which produces a scrubbing action, removing particulates from cleanroom garments.
4. To ensure all particulates are removed, workers raise their arms and rotate in place.
5. Indicator lights signal the end of the cleaning cycle, and the cleanroom door opens.
6. In addition, it takes four to eight seconds of cleaning time and another two to four seconds for the air shower to purge contaminated air before the worker can exit. Computerized microprocessors control the cleaning and wait times associated with the air shower decontamination process.
The features of the air shower
1) The interior control system is fully-automatic infrared induction.
2) It adopts stainless steel handle, thick stainless steel base plate and stainless teel nozzle.
3) Doors can be opened or closed automatically.
4) It adopts two kinds of primary filter and HEPA filter with 99.99% efficiency.
5) It is equipped with large air volume and low noise fan.
6) It is equipped with a software touch-type time relay
7) Modular design scheme, it can be assembled and connected into air shower channels of different lengths and shapes according to actual needs. It's convenient for transportation and disassembly.
7) Modular design scheme, it can be assembled and connected into air shower channels of different lengths and shapes according to actual needs. It's convenient for transportation and disassembly.
indicator light and
Emergency stop switch

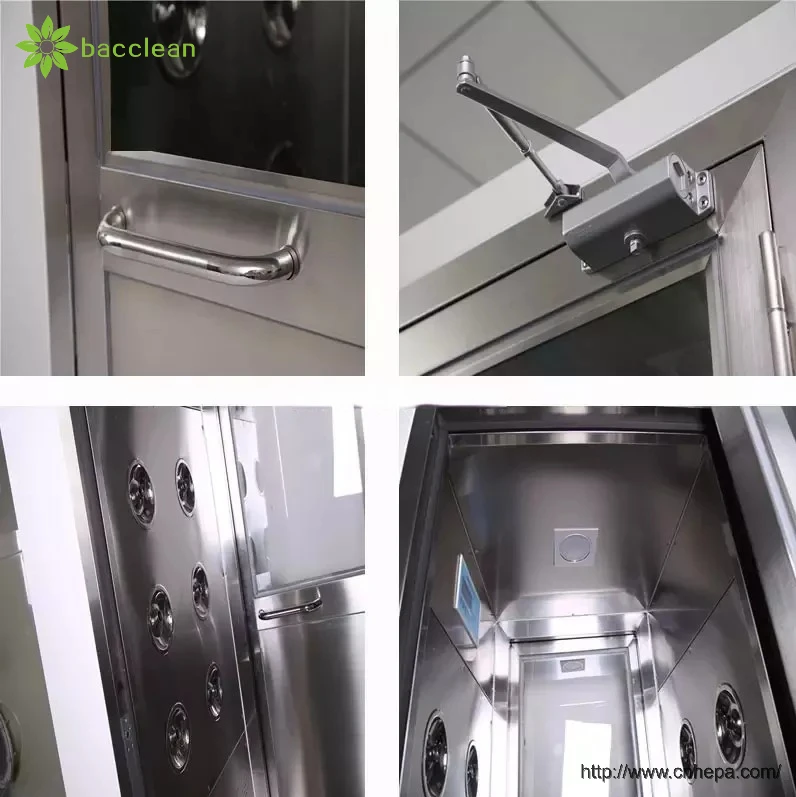

DOOR CLOSER
HANDLE
NOZZLE
Air shower control panel
HEPA filter in air shower
Air shower with shoe cleaning is available as well.
We also can make air shower with long passageway
L shape air shower in high quality

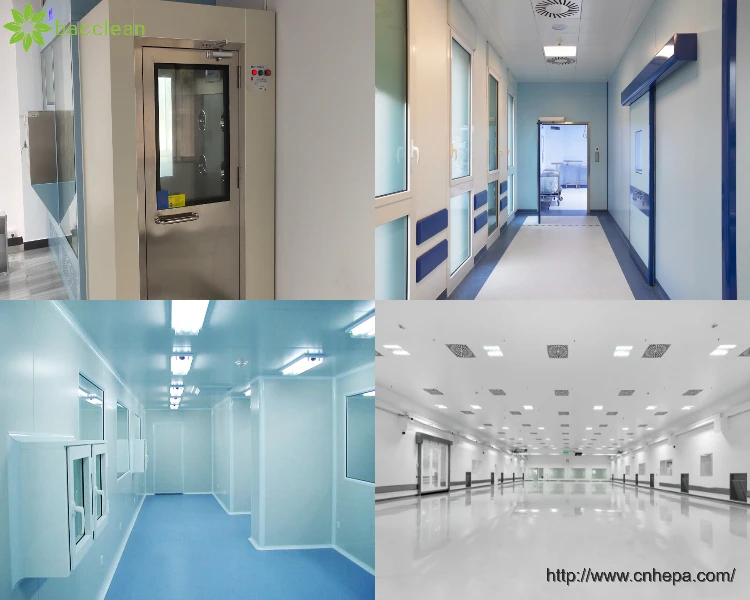

Application
Application
The air shower is widely used in semiconductor factory, microelectronics factory, etc.

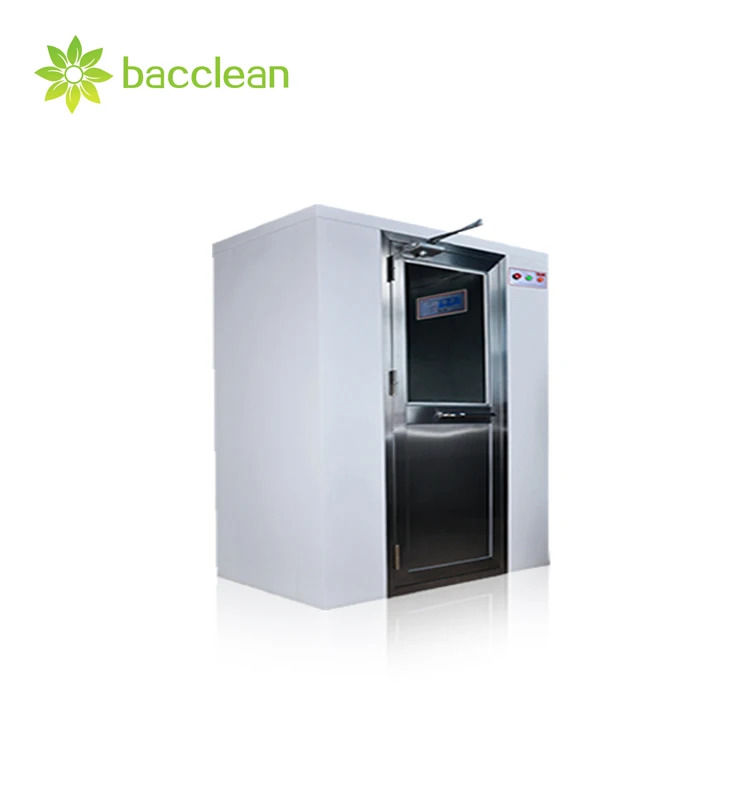

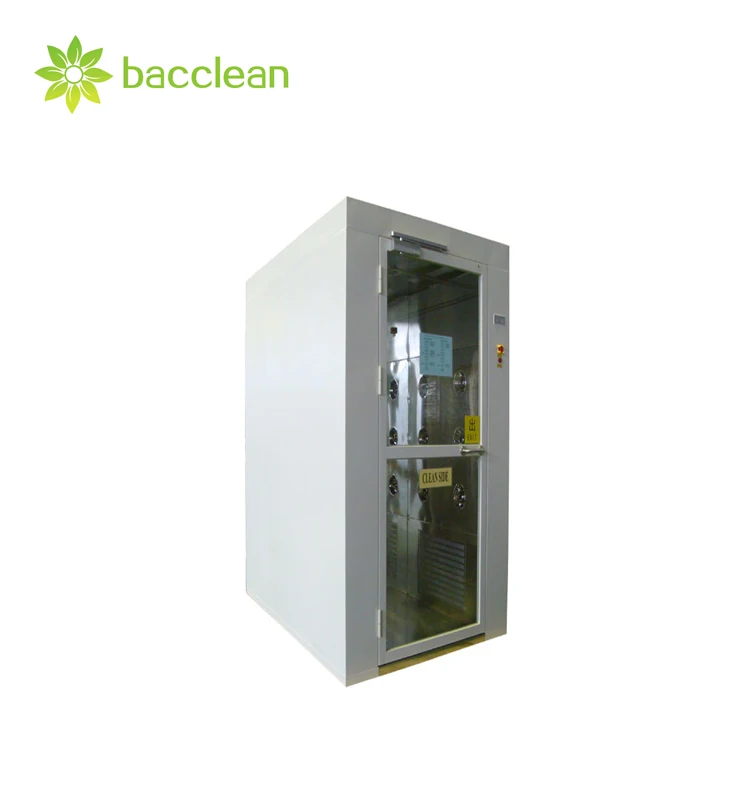

Hot-Sale Products

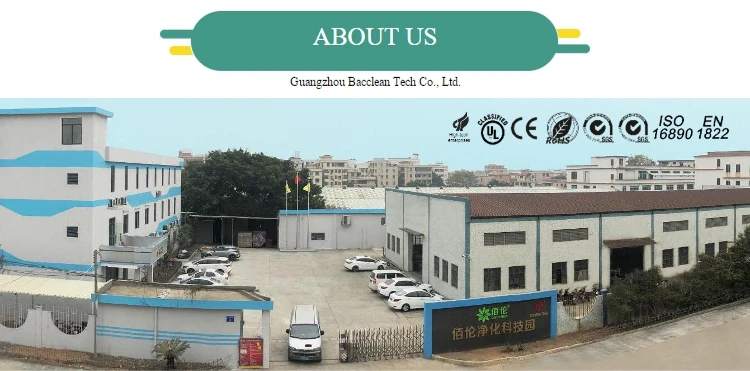

ABOUT US
Guangzhou Bacclean Tech Co., Ltd
Guangzhou Bacclean Tech Co., Ltd. is located in Guangzhou and is specialized in manufacturing Air shower,Pass box,Clean bench,Clean shed and Filter.

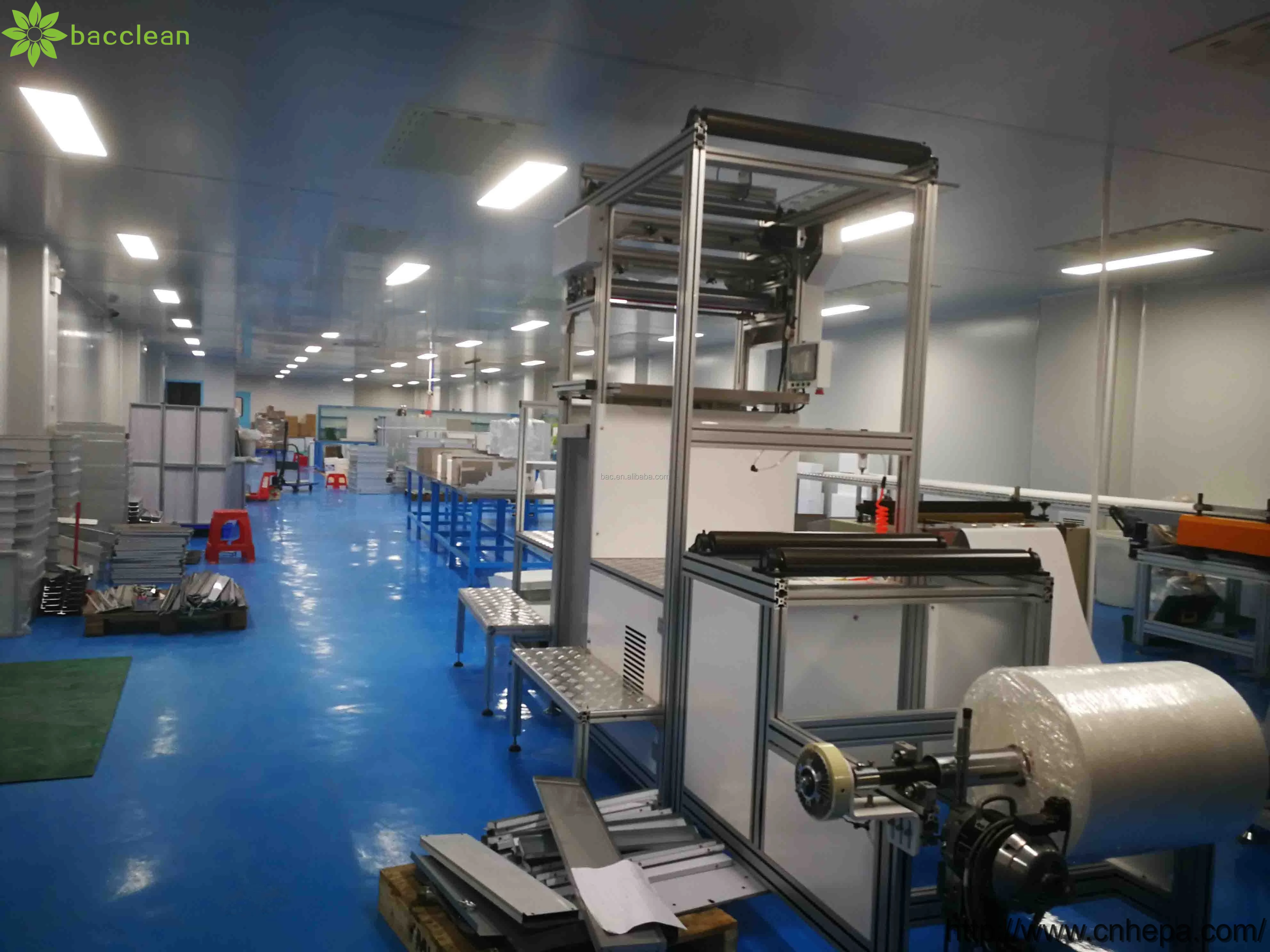

Bacclean has strong technical force, with the domestic advanced numerical control processing equipment & the factory area is over 8,000㎡.
Bacclean has strong technical force, with the domestic advanced numerical control processing equipment & the factory area is over 8,000㎡.
The company specializes in the production of air shower, cargo air shower, pass box, clean bench, HEPA box, FFU, LAF, air purifier, laminar flow ceiling, dispensing booth, clean booth, modular cleanroom, automatic roll filter machine, ULPA filter, HEPA filter, separator HEPA filter, gel seal HEPA filter, mini pleat HEPA filter, high temperature resistance HEPA filter, medium filter, V bank filter, pocket filter, pre-filter, pleat filter, activated carbon air filter, etc.
Certificate Display
The company has won the honorary title of "National High-tech Enterprise" and owns dozens of product patents and a number of high-tech products.
Meanwhile has the certifications for UL, ROHS, REACH, CE, ISO9001, ISO14001, ISO16890, EN1822, etc.
Meanwhile has the certifications for UL, ROHS, REACH, CE, ISO9001, ISO14001, ISO16890, EN1822, etc.
OUR EXHIBITIONS

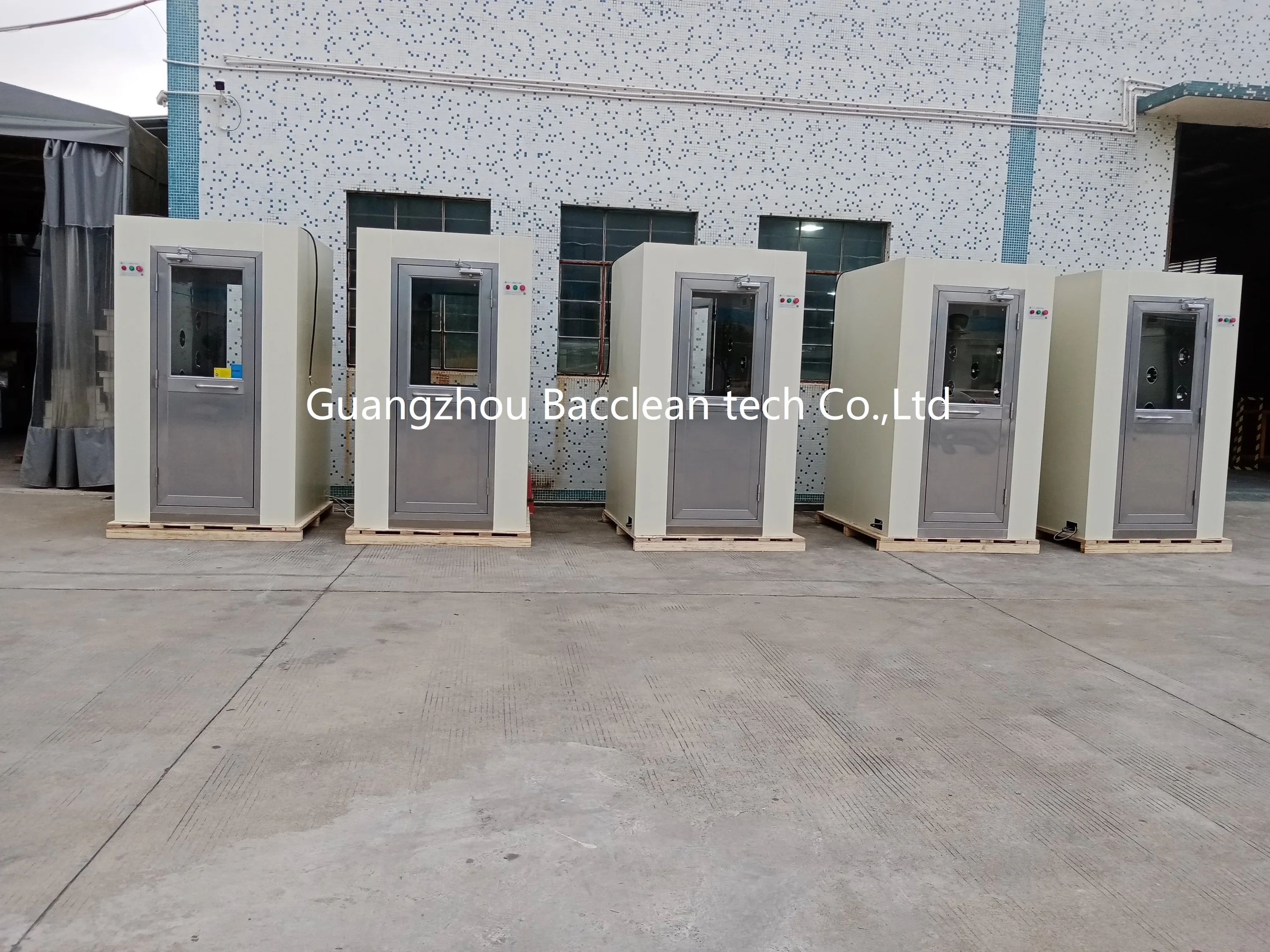

Shipment
