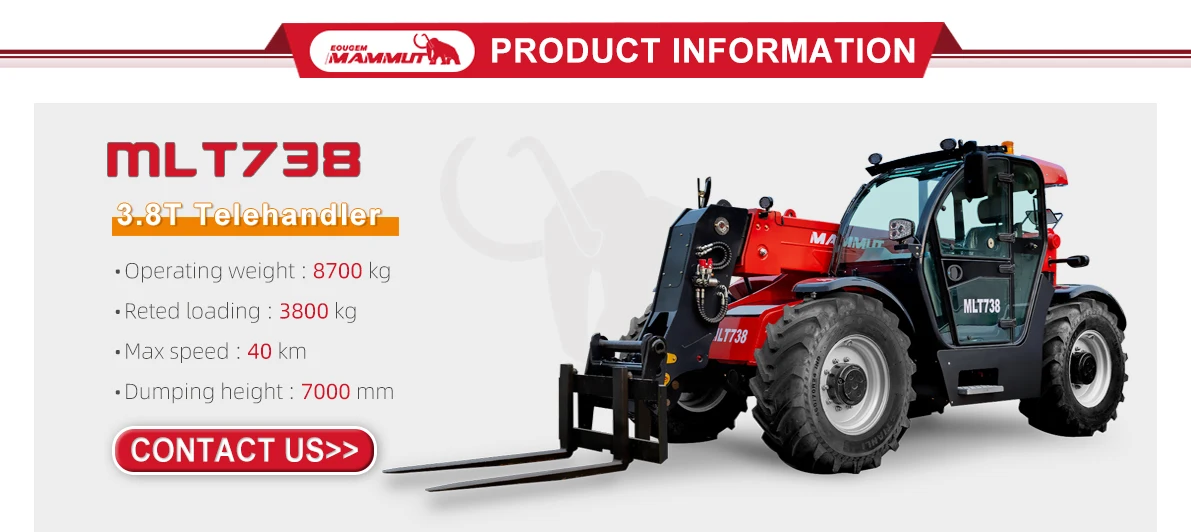

telehandler forklift 7m dumping height 3.5ton 3 Ton Capacity Telescopic Forklift Telehandler Diesel Powered with 3 Stage Mast
- Category: >>>
- Supplier: Shandong Oujin Engineering Machinery Co. Ltd.
Share on (1601157021187):
Product Overview
Description
mammut telehandler

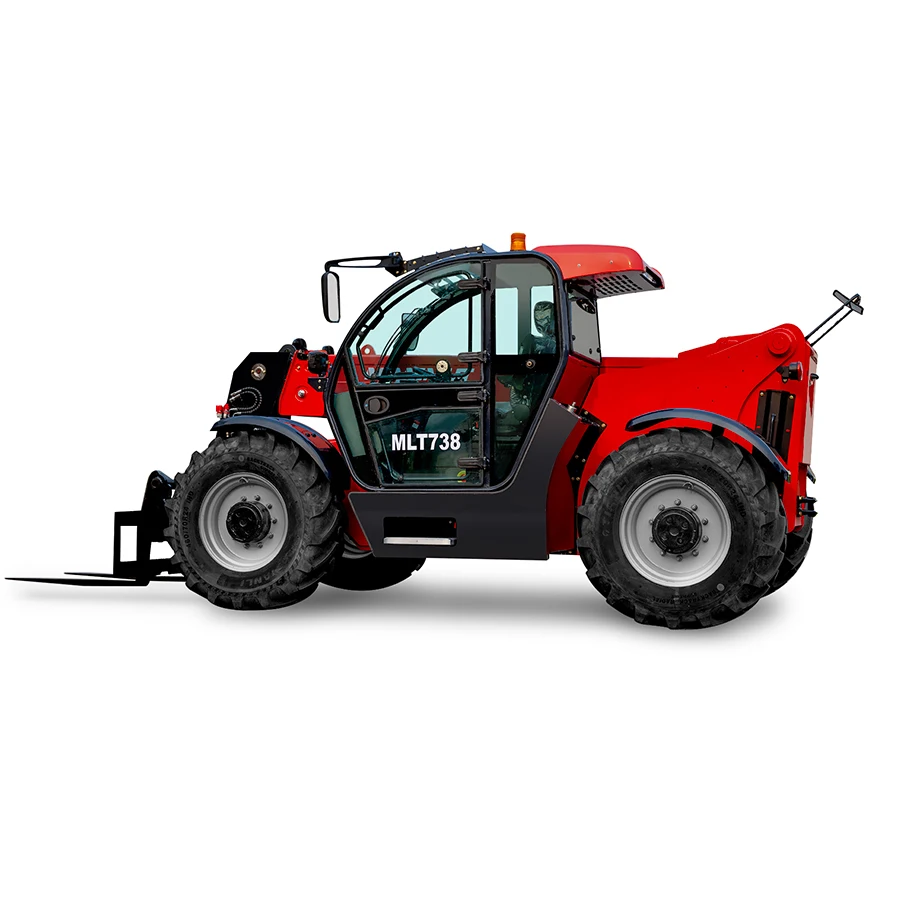

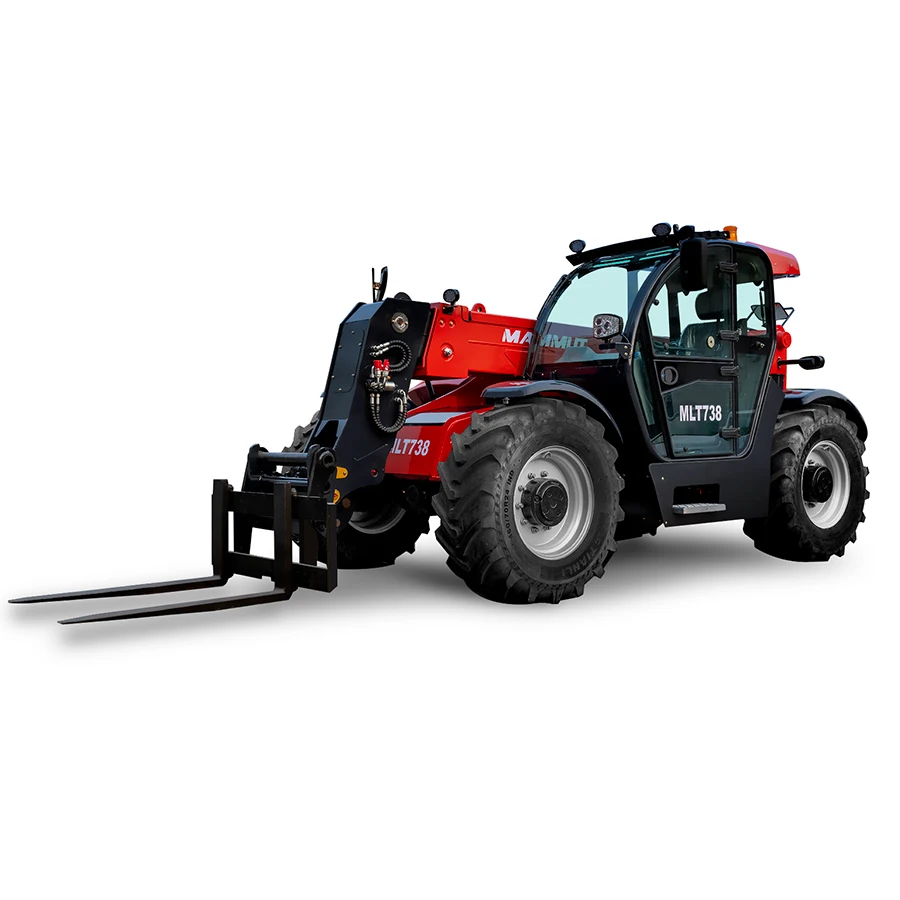

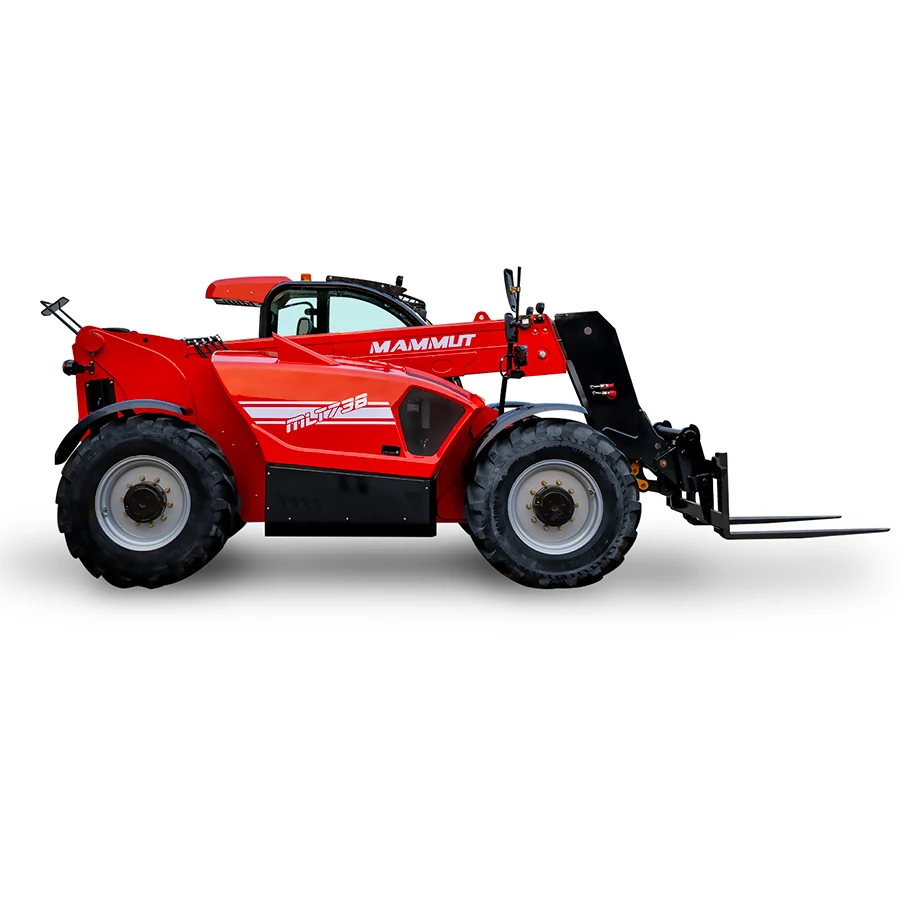

MLT738 is the latest MAMMUT agricultural version telehandler which features the highest operation simplicity, safety and
efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.

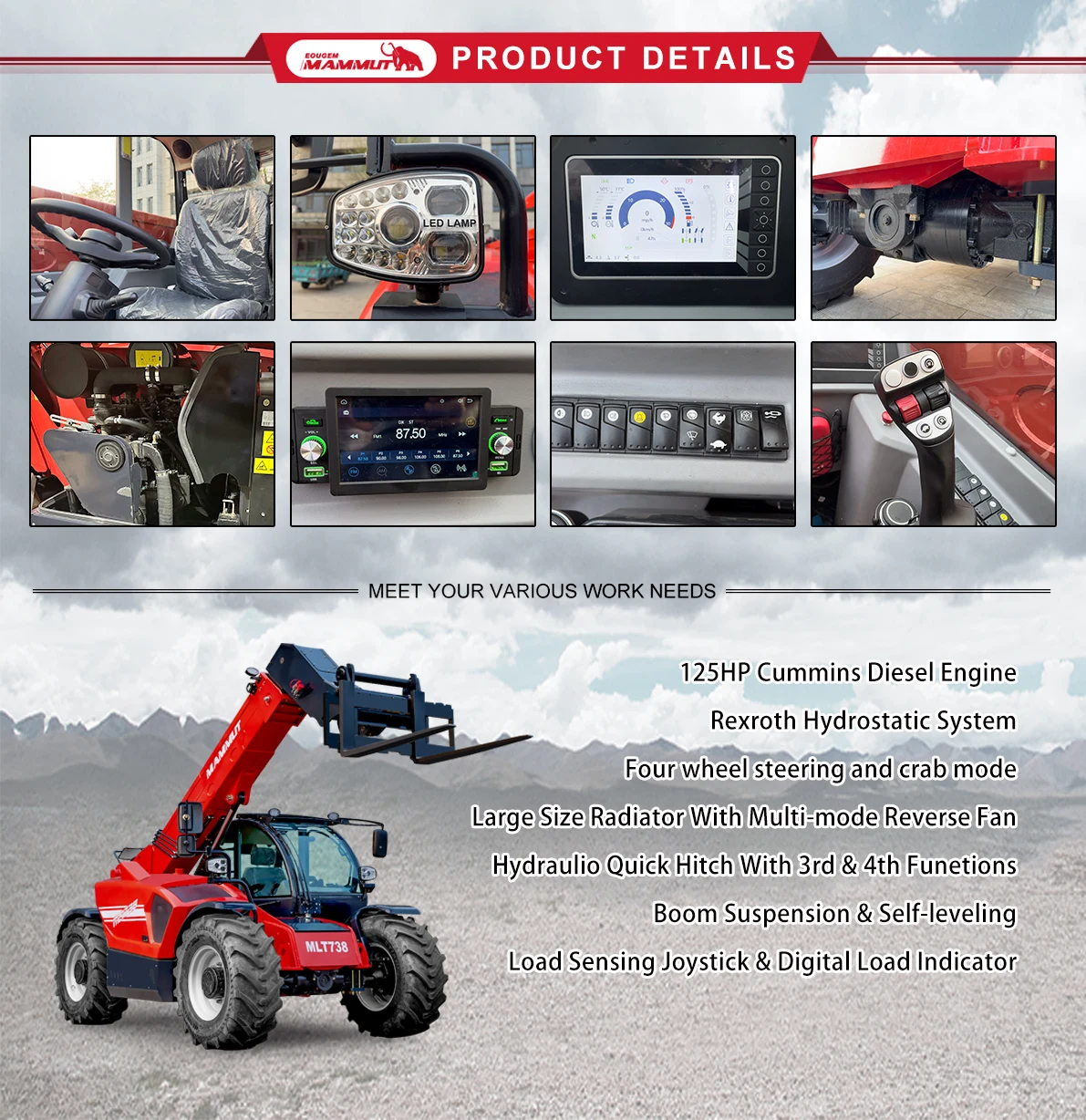

Product Description
Standard Configurations For MTL738&telescopic Wheel Loader
1. Perkins engine 92kw (stage 2) 2. BOSCH hydraulic system
3. Foot brake pedal
4. 1.7 cbm bucket
5. AGRI tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
3. Grass or snow tires
4. All kinds of attachments
1. Perkins engine 92kw (stage 2) 2. BOSCH hydraulic system
3. Foot brake pedal
4. 1.7 cbm bucket
5. AGRI tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
Optional Configurations For MTL738&telescopic Wheel Loader
1. Kubota Stage V or Epa 4 engine
2. Hydraulic quick hitch (Customized)3. Grass or snow tires
4. All kinds of attachments
Advantage
A telehandler is a construction vehicle made to lift items and heavy weights, and it often is a hybrid of the crane and forklift
in terms of abilities and size. The main feature of the telehandler is its boom, which is capable of equipping attachments for
further uses. By using the right extension and lifting angle, an operator can double or triple a telehandler’s maximum lifting
weight while remaining safe. Aside from its long arm, the most defining aspect of a telehandler is its boom.
The boom itself is able to pick up and carry items, but it can do much more than this, which makes this machine very versatile.
Many different attachments can be placed on the boom, allowing it to perform different tasks. For example, there is a bucket that
a person can fit into, a fork or table that can be used to easily lift items, or a safety cage that is like the bucket but larger.
in terms of abilities and size. The main feature of the telehandler is its boom, which is capable of equipping attachments for
further uses. By using the right extension and lifting angle, an operator can double or triple a telehandler’s maximum lifting
weight while remaining safe. Aside from its long arm, the most defining aspect of a telehandler is its boom.
The boom itself is able to pick up and carry items, but it can do much more than this, which makes this machine very versatile.
Many different attachments can be placed on the boom, allowing it to perform different tasks. For example, there is a bucket that
a person can fit into, a fork or table that can be used to easily lift items, or a safety cage that is like the bucket but larger.

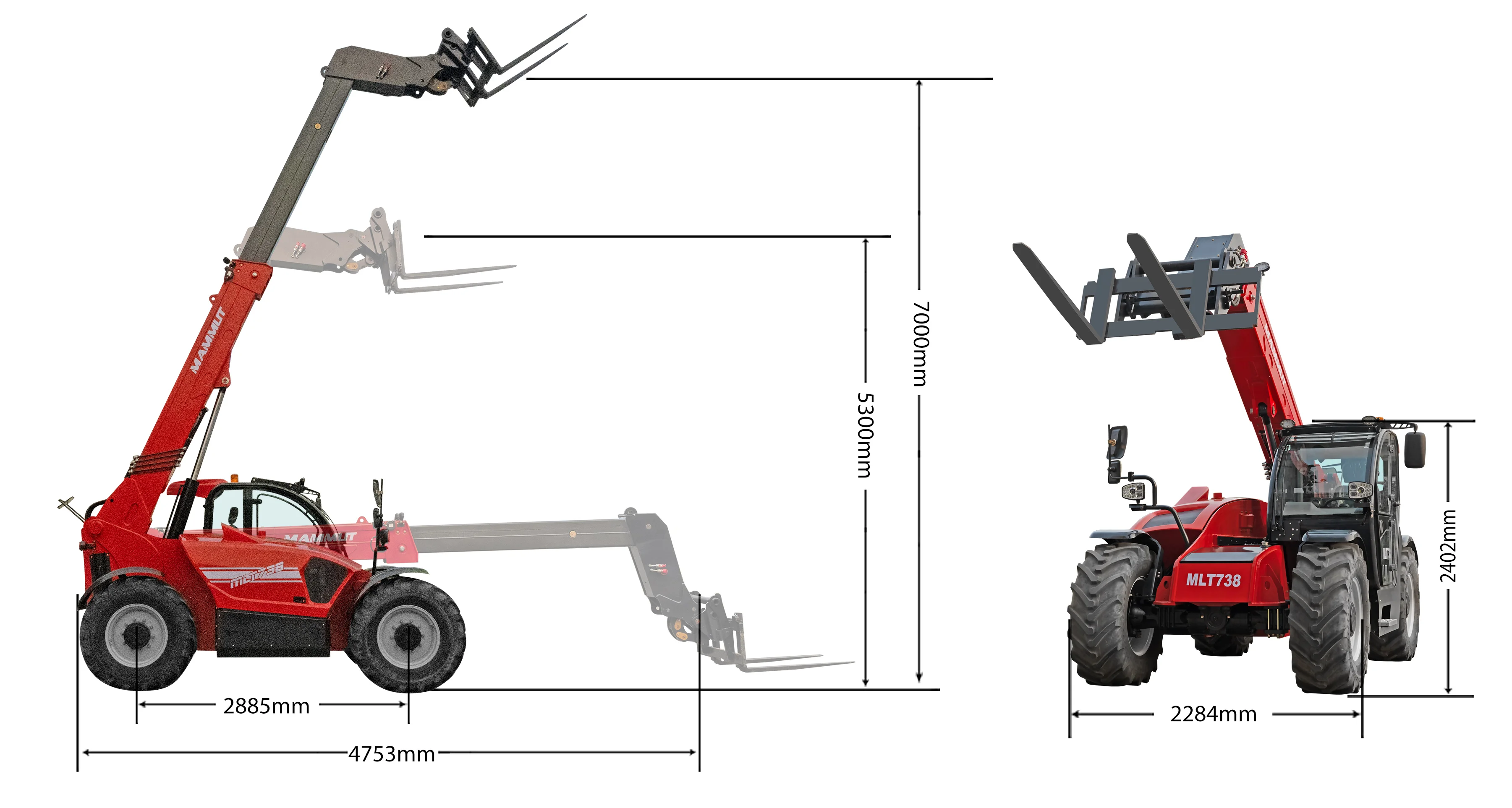

Product Specification
UnitDescription | Unit | MLT738 |
Gross weight | kg | 10500 |
Engine power | kW | 92 |
Rated load | kg | 3500 |
Effective load at maximum forward reach | kg | 635 |
Maximum lifting height | mm | 13700 |
Maximum forward reach | mm | 9600 |
Center distance of load | mm | 600 |
Luffing angle | ° | -4~73 |
Fork angle | ° | 90~18 |
Maximum traction force | kN | ≥55 |
Gradeability | ° | ≥25 |
Maximum traveling speed | km/h | 30 |
Turning radius | mm | ≤4750 |
Braking distance | m | ≤8 |
Overall length | mm | 6300 |
Overall width | mm | 2580 |
Overall height | mm | 2740 |
Wheelbase | mm | 2980 |
Wheel tread | mm | 2600 |
Fork length | mm | 1200 |
Bale clamp diameter | mm | 800-1800 |

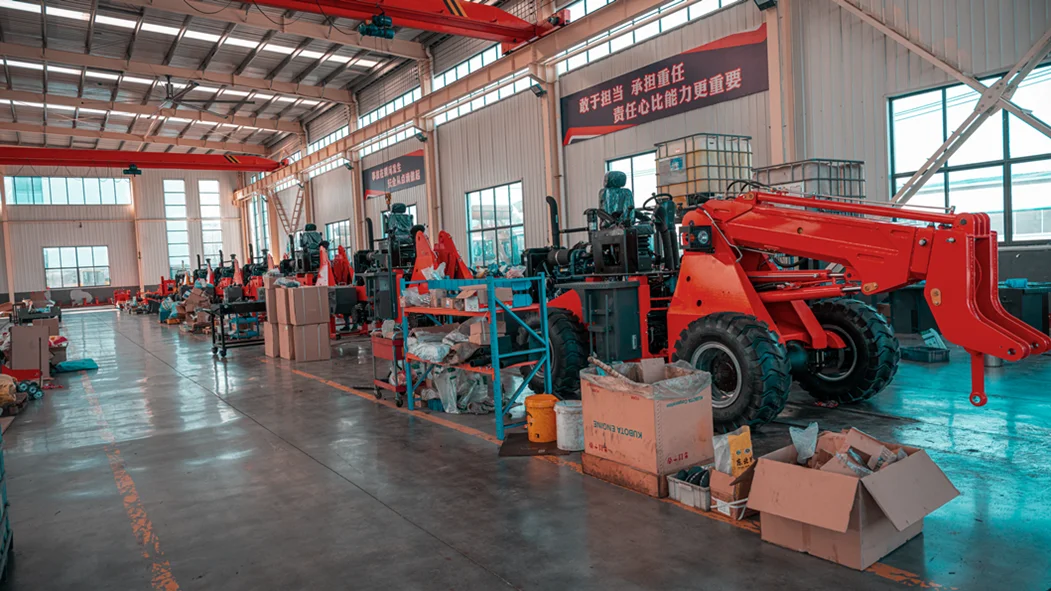

Company Profile
Packing & Delivery
FAQ
1.(Are you trading company or manufacturer?)
We are a factory has over 200 engineering technician,overs an area of 35000 square meters.We mainly export to Europe, North America, South America and some African countries and regions, export countries more than 80
2.(How long is your delivery time?)
For our standard machine the delivery time is 25-30days
But for OEM products the delivery time is 45days
The attachment of the machine is 10 days
3.(Is oem available?）
Yes ，we provide the OEM&ODM service
4.（How much can loaded in 40HC container?）
Depend on model normally 3-4 sets can loaded.
5.(How to become an agent?)
There are certain conditions for acting as our agent. You must have relevant mechanical experience, after-sales and spare parts warehouse, and can guarantee to sell 50-100 machines within a year.
6.(product instructions)
Before delivery, we will have 2-3 professional engineers set up the operation video, 100% of customers can learn from the 10-20 minute operation video, and provide us to provide 24-hour answers at any time
We are a factory has over 200 engineering technician,overs an area of 35000 square meters.We mainly export to Europe, North America, South America and some African countries and regions, export countries more than 80
2.(How long is your delivery time?)
For our standard machine the delivery time is 25-30days
But for OEM products the delivery time is 45days
The attachment of the machine is 10 days
3.(Is oem available?）
Yes ，we provide the OEM&ODM service
4.（How much can loaded in 40HC container?）
Depend on model normally 3-4 sets can loaded.
5.(How to become an agent?)
There are certain conditions for acting as our agent. You must have relevant mechanical experience, after-sales and spare parts warehouse, and can guarantee to sell 50-100 machines within a year.
6.(product instructions)
Before delivery, we will have 2-3 professional engineers set up the operation video, 100% of customers can learn from the 10-20 minute operation video, and provide us to provide 24-hour answers at any time
