Vegetable and fruit seed extraction machine beef tallow/cashew nut shell/orange oil extraction machine
- Category: >>>
- Supplier: Wenzhou Jinbang Light Ind Machinery Co. Ltd.
Share on (1601157495358):
Product Overview
Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Application
Stainless Steel multifunctional extraction tank Chinese Traditional Herbal Extraction Machine

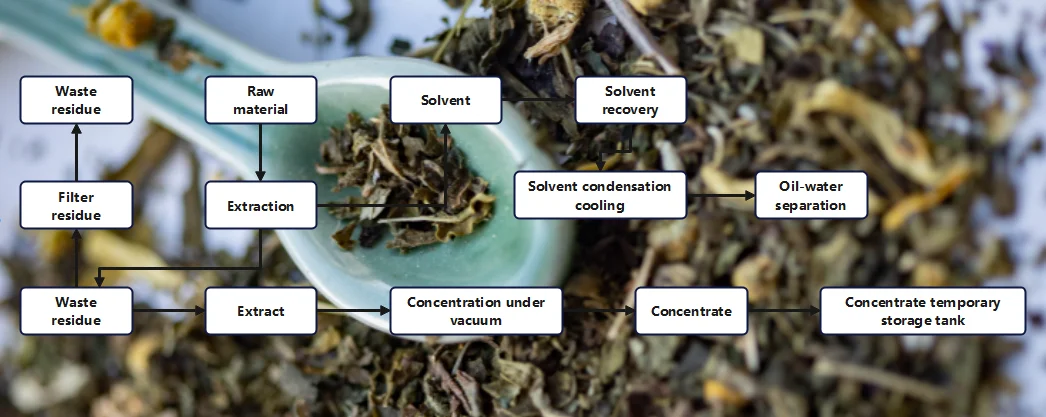

Put the herb materials to be extracted into the extraction tank, and add a certain proportion of solvents such as
water,ethanol, methanol, acetone, etc. according to the production process (add it according to the process). For the extraction of the original herb, the extraction temperature can be set according to actual needs. The extraction is carried out according to the production process. After the extraction is completed, the pipeline valves are opened in sequence, and the liquid is pumped into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during the concentration passes through the condenser and cooler to become the condensate and return to the extraction tank as a new solvent. Add the new solvent to the herb. From top
water,ethanol, methanol, acetone, etc. according to the production process (add it according to the process). For the extraction of the original herb, the extraction temperature can be set according to actual needs. The extraction is carried out according to the production process. After the extraction is completed, the pipeline valves are opened in sequence, and the liquid is pumped into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during the concentration passes through the condenser and cooler to become the condensate and return to the extraction tank as a new solvent. Add the new solvent to the herb. From top
to bottom, through the herb material layer to the bottom of the extraction tank, the soluble components in the herb material are dissolved in the solvent in the extraction tank, and sent to the extraction tank as a new solvent, forming a new solvent and refluxing extraction until it is completely dissolved (the extract is colorless) and the concentration continues.,Until it is concentrated into the required specific gravity ointment, the colorless liquid in the extraction tank can be reused next time.
Extraction Machine Range of Application:
This commercial-scale Electric or Steam Distillation Extraction effectively captures and extracts volatile oil components out of plant material and collects various volatile fragrance compositions from the following plants:
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.
* Conventional plant flowers and leaves such as rose, osmanthus, wild chrysanthemum, lavender, wormwood, rosemary, wintersweet,sophora japonica, primrose, mint, thyme, lemon balsam, chamomile, vetiver, lemongrass, agarwood, eucalyptus, thyme.
* Plant rhizome: aloes, ginger, aloe, clove.
* Fruits: passion fruit, prickly ash, castor bean, star anise, grape seeds, lemon.

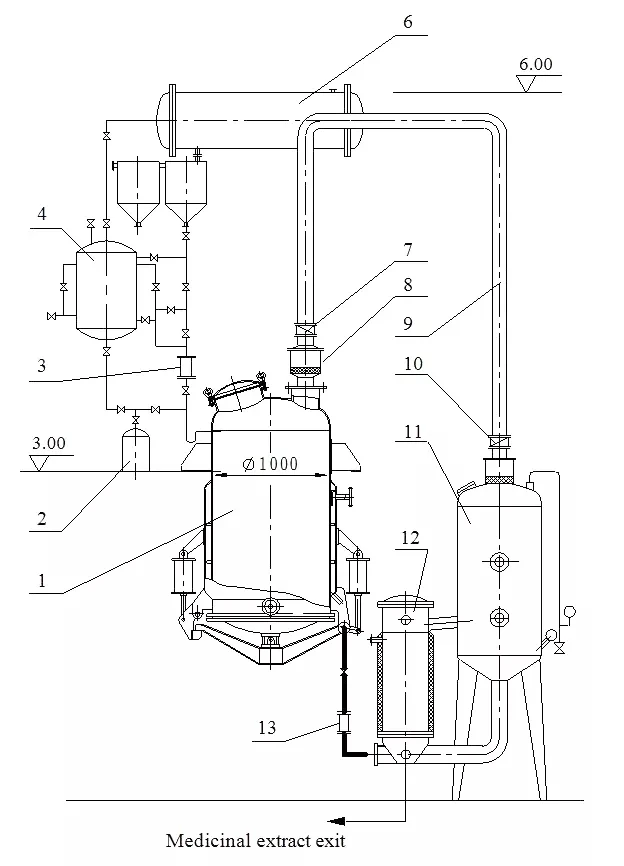

Products Introduction
1.Extracting tank
2.Oil or water separator
3.Sight glass
4.Vacuum switcher
5.Cooler
6.Hot backset current condenser
7.Butterfly valve
8.Defoamer machine
9.Reflux pipe
10.Butterfly valve
11.Concentrating Evaporator
12. Heater
13.Sight glass
2.Oil or water separator
3.Sight glass
4.Vacuum switcher
5.Cooler
6.Hot backset current condenser
7.Butterfly valve
8.Defoamer machine
9.Reflux pipe
10.Butterfly valve
11.Concentrating Evaporator
12. Heater
13.Sight glass
Product Structure:
Traditional Chinese herb Hot Backset Current Low Temperature Draw Low Temperature Concentrate Unit Comprehensive Backset Current, Ooze And Filter Drawing, Adverse Current And Hot Backset Current Extraction And Concentrate Four Kinds Of Principles.
Products Description
Product Paramenters
Volume of distillation still | 1500L |
Heat transfer area of condenser | ≥5㎡ |
Volume of distillation basket | 1000L |
Volume of distilled liquid storage tank | 50L |
Power of aqua astricta set | 18KW |
Capacity | 3000L |
Series technical parametes | TQ-1 | TQ-2 | TQ-3 | TQ-4 | TQ-5 | TQ-6 |
Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure (MPA) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Compressed air pressure (MPA) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Feed port diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (m²) | 3.0 | 4.7 | 6.0 | 7.5 | 9.5 | 12 |
Condensation area (m²) | 4 | 4 | 5 | 5 | 8 | 10 |
Coling area (m²) | 1 | 1 | 1 | 2 | 2 | 3 |
Filtration area (m²) | 3 | 3 | 3 | 5 | 5 | 6 |
Slag gate area (m²) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Energy consumption (kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
Company Profile
Certifications
FAQ
Q1：When purchasing a vacuum belt dryer, it is essential to consider the following factors:
●With many VBD types, you need to select one with features that best suit your production needs.
Some of the aspects you consider are the size, the source of heat and achievable temperature range.
● The cost of the vacuum belt dryer is essential to ensure you make a purchase you can pay. Usually, having a budget
guides you on what vacuum bel dryer to buy.
●Your production capacity influences your choice of vacuum belt dryer.
Where you have significant production needs, you need to select a VBD with a large capacity.
● VBDs and other commercial equipment typically have attached warranties that assures you of your product’s quality.
You need to evaluate the warranty option of your VBD with a preference for extended warranties.
● The purchasing process is essential when considering an acquisition of a VBD. Especially when purchasing for
commercial use,you need to ensure you undertake the necessary processes during negotiation.
* Whomever you are purchasing from is another factor of consideration you need to prioritize.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Vacuum Belt Dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
Some of the aspects you consider are the size, the source of heat and achievable temperature range.
● The cost of the vacuum belt dryer is essential to ensure you make a purchase you can pay. Usually, having a budget
guides you on what vacuum bel dryer to buy.
●Your production capacity influences your choice of vacuum belt dryer.
Where you have significant production needs, you need to select a VBD with a large capacity.
● VBDs and other commercial equipment typically have attached warranties that assures you of your product’s quality.
You need to evaluate the warranty option of your VBD with a preference for extended warranties.
● The purchasing process is essential when considering an acquisition of a VBD. Especially when purchasing for
commercial use,you need to ensure you undertake the necessary processes during negotiation.
* Whomever you are purchasing from is another factor of consideration you need to prioritize.
It is prudent to buy from a reputable seller with years of experience and quality.
Q2:What Heat Sources can you Employ for your Vacuum Belt Dryer?
● Steam
● Hot water
● Hot oil
Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.
Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.
