  • Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier
Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier

Ball mills High quality ball mill wholesale price hot selling ball mill grinder slag/ore/industrial ball mill supplier

Share on (1601157608300):


Price:$6,900.00 - $7,390.00

Quantity:


Product Overview

Description



Products Description


The energy-saving ball mill is the key equipment for crushing the material after it is crushed. The machine is widely used in cement, silicate products, new building materials, refractories, fertilizers, ferrous and non-ferrous metal beneficiation and glass ceramics and other production industries, dry or wet grinding of various ores and other abrasive materials.




Product Paramenters


Model
Rotary speed(r/min)
Balls load
Feeding size(mm)
Discharging size(mm)
Capacity(t/h)
Motor power(kw)
Weight(t)
Φ900*1800
36-38
1.5
≤20
0.075-0.89
0.65-2
18.5
4.6
Φ900*3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
5.6
Φ1200*2400
36
3
≤25
0.075-0.6
1.5-4.8
30
12
Φ1200*3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
Φ1200*4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
13.8
Φ1500*3000
29.7
7.5
≤25
0.074-0.4
2-5
75
15.8
Φ1500*4500
27
11
≤25
0.074-0.4
3-6
90
21
Φ1500*5700
28
12
≤25
0.074-0.4
3.5-6
130
24.7
Φ1830*3000
25.4
11
≤25
0.074-0.4
4-10
130
28
Φ1830*4500
25.4
15
≤25
0.074-0.4
4.5-12
155
32
Φ1830*6400
24.1
21
≤25
0.074-0.4
6.5-15
180
34
Φ1830*7000
24.1
23
≤25
0.074-0.4
7.5-17
210
38
Φ2100*3000
23.7
15
≤25
0.074-0.4
6.5-36
210
34
Φ2100*4500
23.7
24
≤25
0.074-0.4
8-43
245
42
Φ2100*7000
23.7
26
≤25
0.074-0.4
8-48
280
50
Φ2200*4500
21.5
27
≤25
0.074-0.4
9-45
280
48.5
Φ2200*6500
21.7
35
≤25
0.074-0.4
14-26
370
52.8
Φ2200*7000
21.7
35
≤25
0.074-0.4
15-28
380
54
Φ2200*7500
21.7
35
≤25
0.074-0.4
15-30
380
56
Φ2400*4500
21
30
≤25
0.074-0.4
8.5-60
320
65
Φ2700*4000
20.7
40
≤25
0.074-0.4
12-80
400
94
Φ2700*4500
20.7
48
≤25
0.074-0.4
12-90
430
102
Φ3200*4500
18
65
≤25
0.074-0.4
25-130
800
147


Details Images


Merits of Ball Mill
1.High abrasion resistance and impact resistance.
2.The gear has high flexural strength.
3.Good lubrication and reliable operation.
4.Energy saving, low wear.
5.Closed system, dust-free and more environmentally friendly.
6.Wet and dry operation, fully functional.
7.Reliable operation, low carbon and environmental protection.

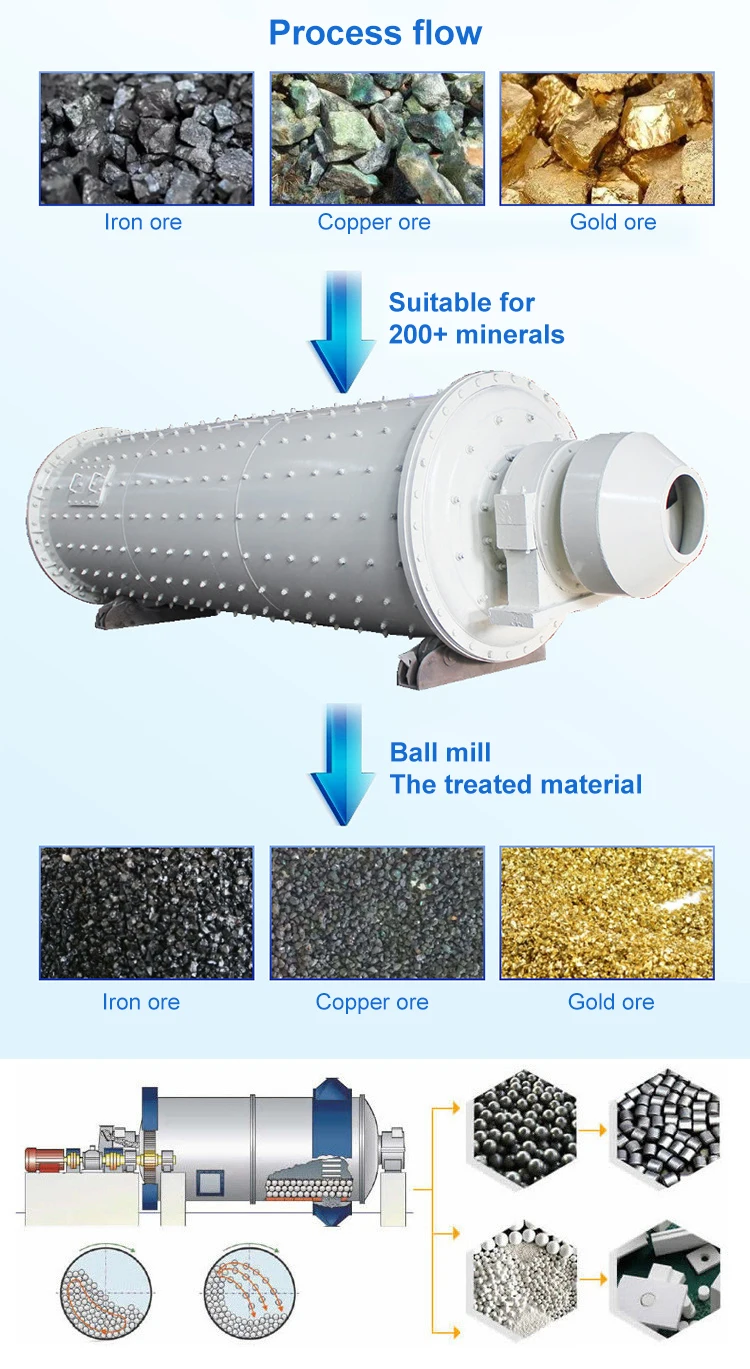

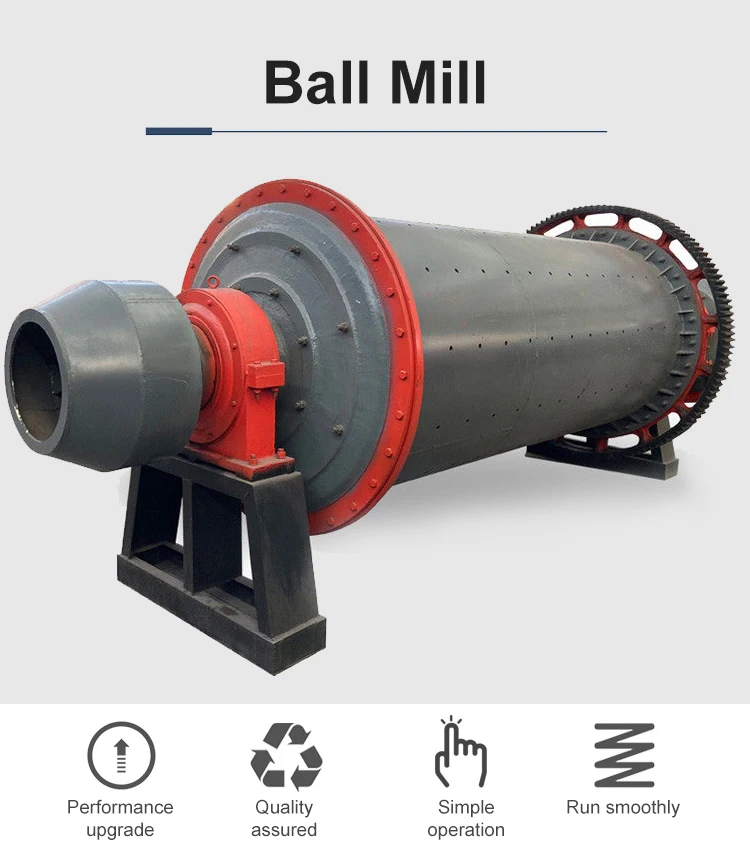

This ball mill is a horizontal cylindrical rotating device, outer edge gear transmission, two-bin, lattice type ball mill. The material enters the first bin of the mill evenly by the feeding device through the feeding hollow shaft, which has a stepped liner or corrugated liner, which is equipped with steel balls of different specifications, and the centrifugal force generated by the rotation of the cylinder will bring the steel ball to a certain height and fall, which will hit the material and grind hard.




Constituent
Feeding device：Including lower hopper, screw feed barrel, or feed cone cylinder
Supporting device: divided into two ends of main bearing support, mixed support.
Rotary part: including hollow shaft, mill barrel and partition plate, liner, retaining ring, etc. in the mill.\t
Discharging device: edge discharge, center discharge, intermediate discharge.
Transmission device: divided into two forms of edge transmission and center transmission, including main motor, auxiliary motor, reducer, transmission shaft and edge transmission of large and small gears.






Company Profile














FAQ


Q1: Can you customize by my specialized request?
A Yes, we can.
Q2: How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q3: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q4: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q5: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis
Q6: Service and Payment Terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
