Xuyang CF ceramic disc rotary drum vacuum filter, mining slurry dewatering, drum filter china
- Category: >>>
- Supplier: Yixing Xuyang Environmental Technology Co. Ltd.
Share on (1601157675991):
Product Overview
Description

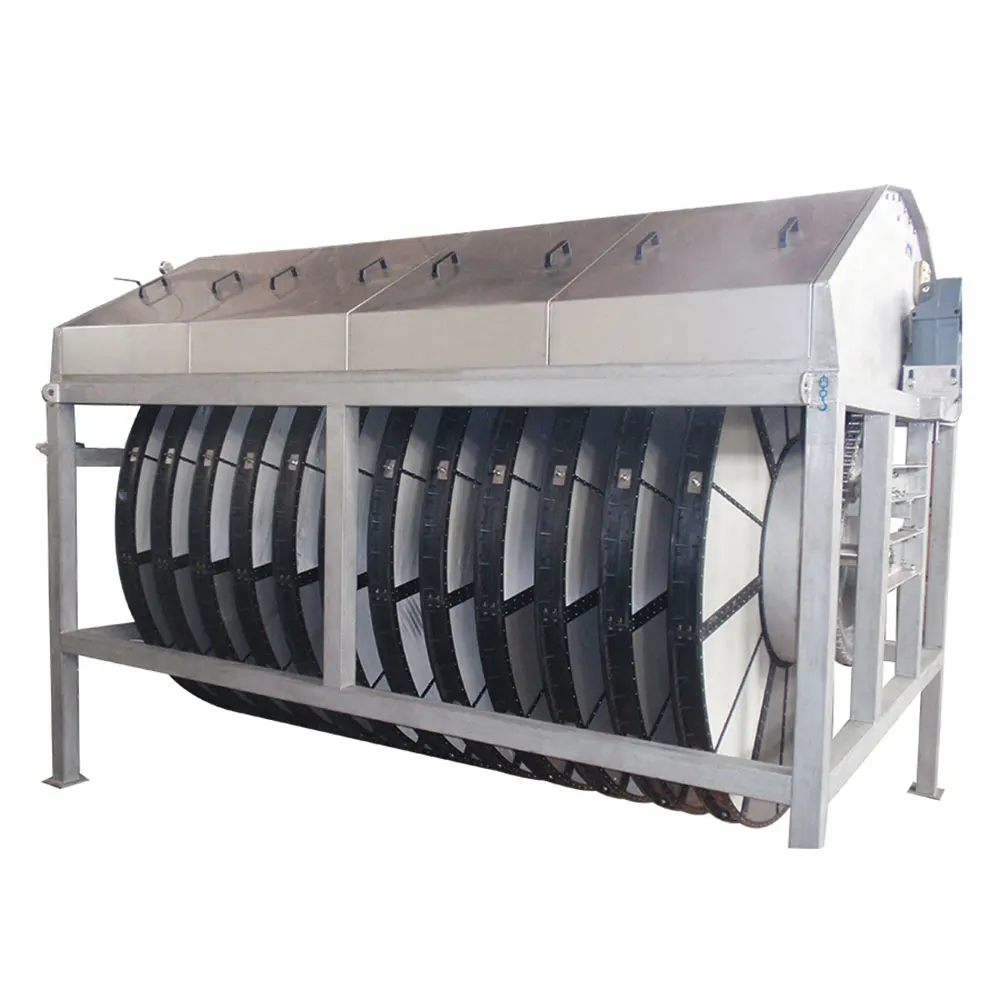

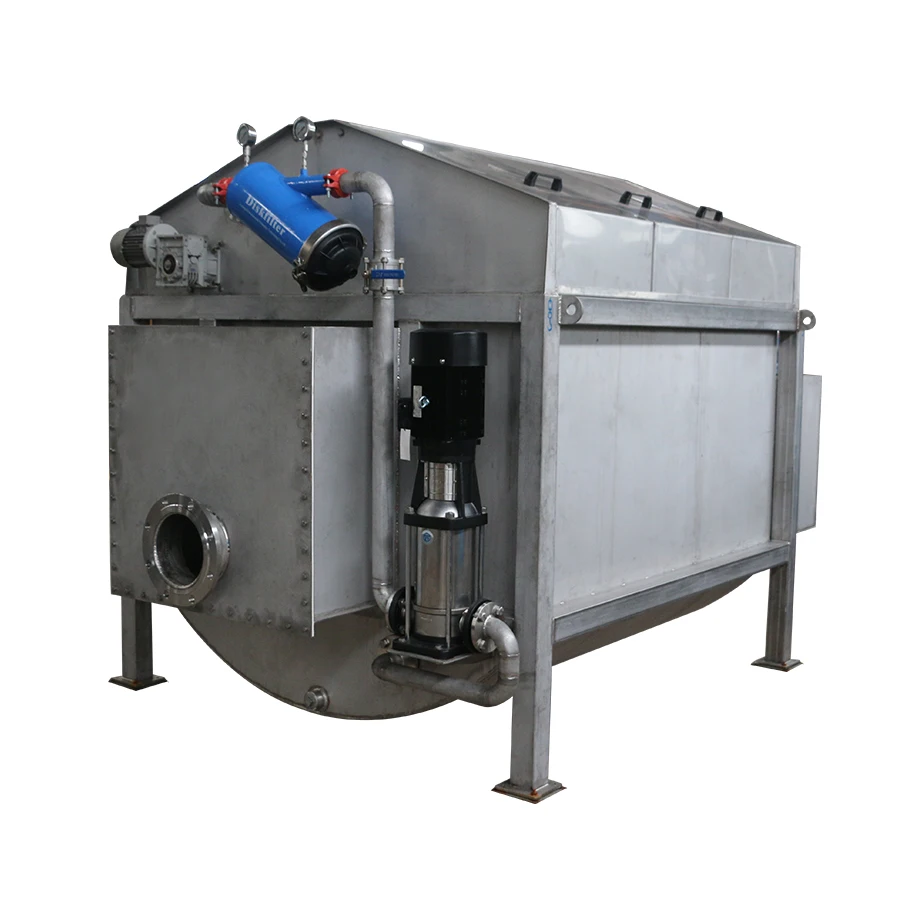

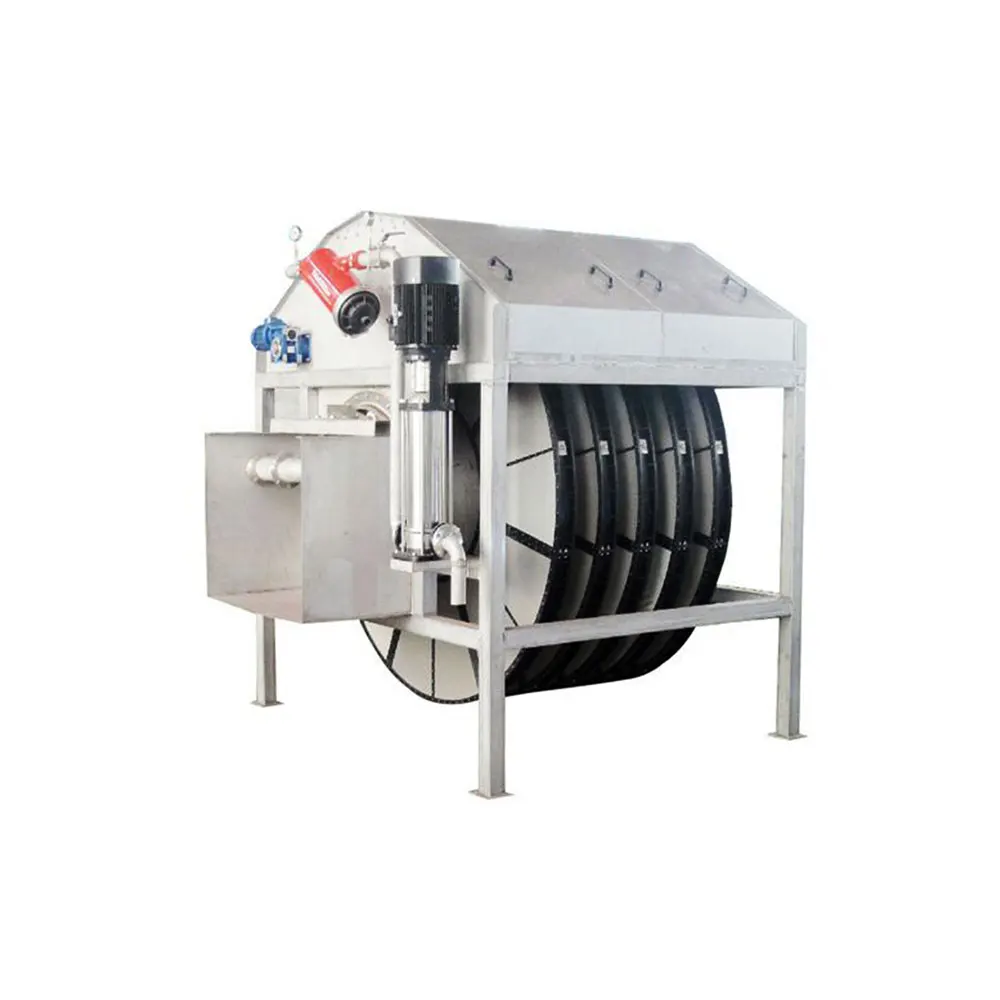

The GLD cloth media disc filter is ideal for dealing with cooling systems and wastewater recycling.
* Cooling water and circulating water for reuse after filtration: inlet water quality SS ≤ 80 mg/L, outlet water quality SS ≤ 20
mg/L.
* For advanced sewage treatment: set after conventional methods like activated sludge, extended aeration, SBR, oxidation ditch,
trickling filter or oxidation pond. Its applications include ①eliminating total suspended solids; ②removing phosphorus through
the addition of chemicals; and ③removing heavy metals and other elements.
* For effluent from activated sludge final sedimentation. It has been designed to ensure water quality up to 30 mg/Ln tanks:
inlet water SS: 30 mg/L (maximum bearing 80-100 mg/L), outlet water SS ≤ 5mg/L, turbidity ≤ 2 NTU. The filter is highly
effective, with the majority of effluent having a turbidity of 1 NTU.
mg/L.
* For advanced sewage treatment: set after conventional methods like activated sludge, extended aeration, SBR, oxidation ditch,
trickling filter or oxidation pond. Its applications include ①eliminating total suspended solids; ②removing phosphorus through
the addition of chemicals; and ③removing heavy metals and other elements.
* For effluent from activated sludge final sedimentation. It has been designed to ensure water quality up to 30 mg/Ln tanks:
inlet water SS: 30 mg/L (maximum bearing 80-100 mg/L), outlet water SS ≤ 5mg/L, turbidity ≤ 2 NTU. The filter is highly
effective, with the majority of effluent having a turbidity of 1 NTU.
Technical Specifications
Model | GLD1600 | GLD2000 | GLD2500 |
Flow rate | 15m³/h (single filtration unit) | 25m³/h (single filtration unit) | 42m³/h (single filtration unit) |
Disc diameter | 1600mm | 2000mm | 2500mm |
Number of disc | 2-8 pcs | 2-10 pcs | 2-10 pcs |
Filtration area | 2.5m²/single disc | 4.3m²/single disc | 7.0m²/single disc |
Filtration speed | 8-15m | 8-15m | 8-15m |
Filter influent SS (suspended solids) | ≤30mg/L | ≤30mg/L | ≤30mg/L |
Filter effluent SS (suspended solids) | ≤10mg/L | ≤10mg/L | ≤10mg/L |
Disc material | Reinforced plastic | Reinforced plastic | Reinforced plastic |
Fiber cloth | Stainless steel wire mesh | Stainless steel wire mesh | Stainless steel wire mesh |
Influent central tube material | Stainless steel | Stainless steel | Stainless steel |
Filter tank body material | Stainless steel/carbon steel | Stainless steel/carbon steel | Stainless steel/carbon steel |
Drive motor power | 1.5 kW | 1.5 kW | 2.2 kW |
Backwash pump power | 5.0-7.5 kW | 5.0-7.5 kW | 7.5-11.0 kW |
Backwash pressure | 5-8bar | 5-8bar | 5-8bar |
Cleaning cycle | 0-120min | 0-120min | 0-120min |
Cleaning time | 1-3min | 1-3min | 1-3min |
Head loss | 200mm | 250mm | 300mm |
Filtration method | Gravity filtration | Gravity filtration | Gravity filtration |

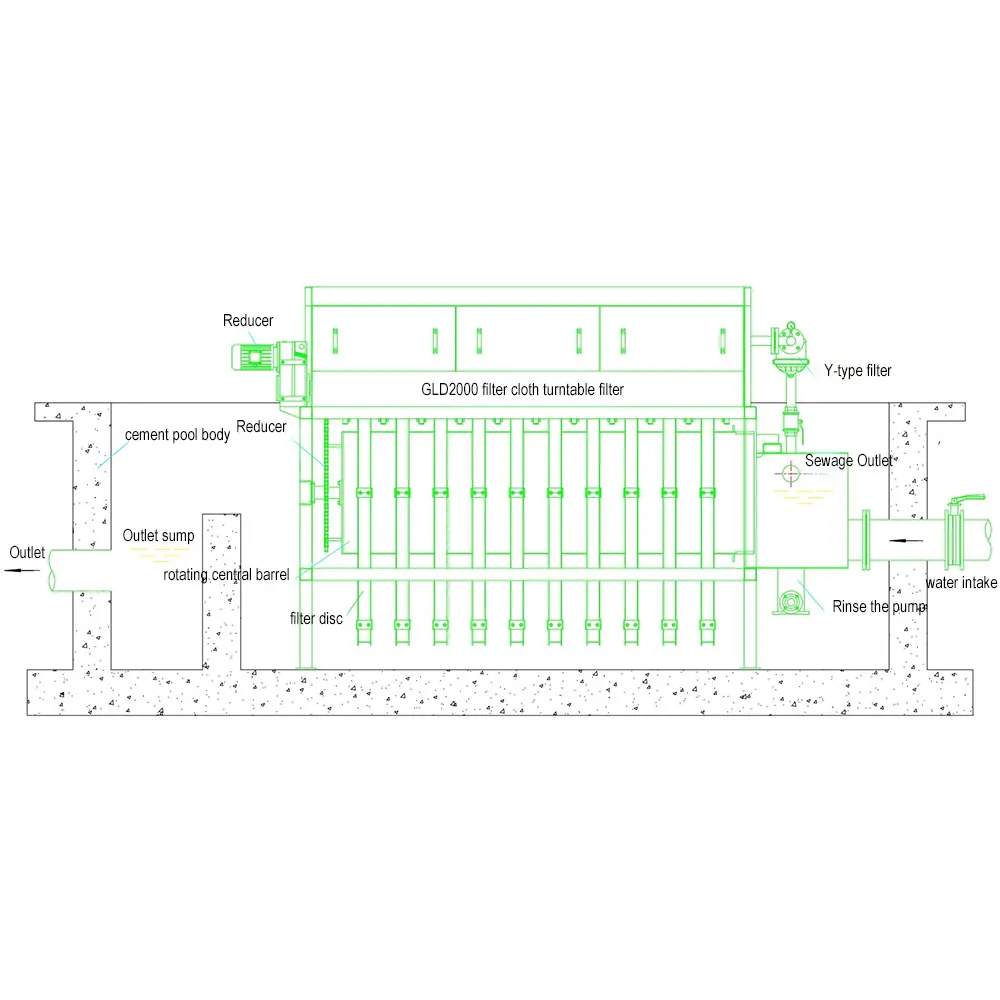

Installation | Integrated metal tank or concrete tank | Integrated metal tank or concrete tank | Integrated metal tank or concrete tank |
Dimensions | 3550×1800×2400 | 4800×2300×2800 | 6000×2800×3500 |
*For larger flow, different water quality and other technical parameters, please consult Xuyang for details.
The GLD cloth media disc filter is ideal for dealing with cooling systems and wastewater recycling.
* Cooling water and circulating water for reuse after filtration: inlet water quality SS ≤ 80 mg/L, outlet water quality SS ≤ 20
mg/L.
* For advanced sewage treatment: set after conventional methods like activated sludge, extended aeration, SBR, oxidation ditch,
trickling filter or oxidation pond. Its applications include ①eliminating total suspended solids; ②removing phosphorus through
the addition of chemicals; and ③removing heavy metals and other elements.
* For effluent from activated sludge final sedimentation. It has been designed to ensure water quality up to 30 mg/Ln tanks:
inlet water SS: 30 mg/L (maximum bearing 80-100 mg/L), outlet water SS ≤ 5mg/L, turbidity ≤ 2 NTU. The filter is highly
effective, with the majority of effluent having a turbidity of 1 NTU.
* Cooling water and circulating water for reuse after filtration: inlet water quality SS ≤ 80 mg/L, outlet water quality SS ≤ 20
mg/L.
* For advanced sewage treatment: set after conventional methods like activated sludge, extended aeration, SBR, oxidation ditch,
trickling filter or oxidation pond. Its applications include ①eliminating total suspended solids; ②removing phosphorus through
the addition of chemicals; and ③removing heavy metals and other elements.
* For effluent from activated sludge final sedimentation. It has been designed to ensure water quality up to 30 mg/Ln tanks:
inlet water SS: 30 mg/L (maximum bearing 80-100 mg/L), outlet water SS ≤ 5mg/L, turbidity ≤ 2 NTU. The filter is highly
effective, with the majority of effluent having a turbidity of 1 NTU.
FAQ
1. How long is your delivery time?
Generally it is 25 days, and it is also according to quantity.
2. Can you design filters according to the working condition?
Yes. We have professional R&D department including more than 10 engineers, and we can design the more suitable filters for you.
3.what can you buy from us?
Self-Cleaning Screen Filter，Self-Cleaning Disc Filter，Hydraulic Self-Cleaning Screen Filter，Cloth Media Filter，AGF Sand Media Filter，Sludge Dewatering Equipment，Magnetic Water Treatment System，Automatic Water Softener.
4. why should you buy from us not from other suppliers?
Xuyang is an expert manufacturer of industrial water filtration systems with verified expertise in wastewater treatment. The founder, Mr. Shen, has over 25 years of experience in the engineer and production of water treatment systems.
5.How do you pack the goods?
We usually use Export standard plywood cases, or we can pack them according to your requirements.
Generally it is 25 days, and it is also according to quantity.
2. Can you design filters according to the working condition?
Yes. We have professional R&D department including more than 10 engineers, and we can design the more suitable filters for you.
3.what can you buy from us?
Self-Cleaning Screen Filter，Self-Cleaning Disc Filter，Hydraulic Self-Cleaning Screen Filter，Cloth Media Filter，AGF Sand Media Filter，Sludge Dewatering Equipment，Magnetic Water Treatment System，Automatic Water Softener.
4. why should you buy from us not from other suppliers?
Xuyang is an expert manufacturer of industrial water filtration systems with verified expertise in wastewater treatment. The founder, Mr. Shen, has over 25 years of experience in the engineer and production of water treatment systems.
5.How do you pack the goods?
We usually use Export standard plywood cases, or we can pack them according to your requirements.
