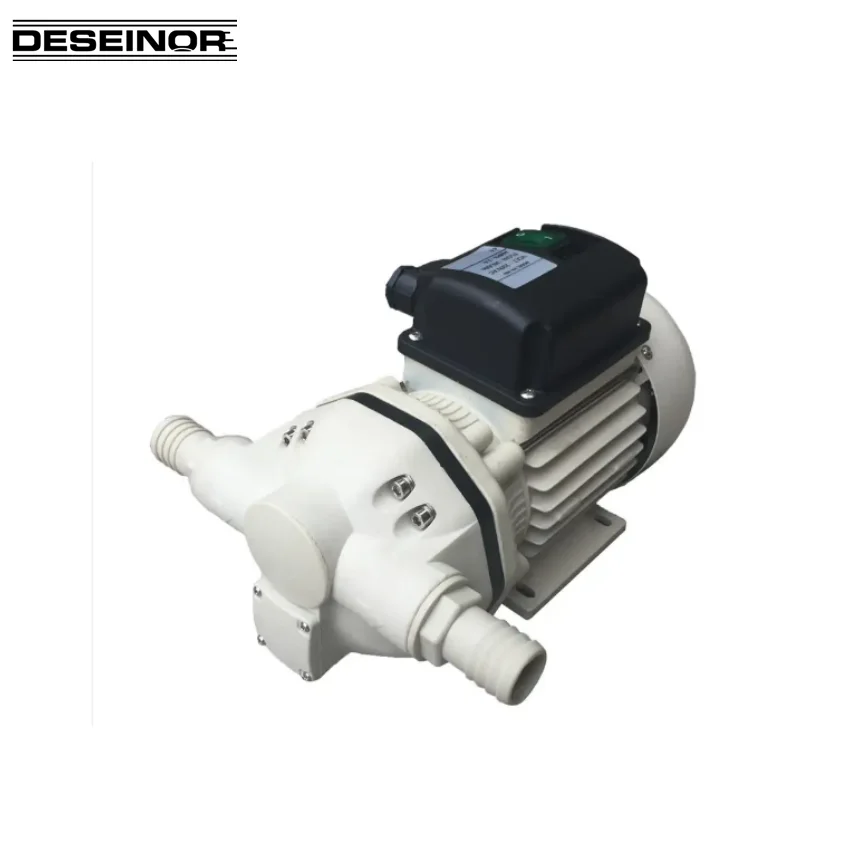

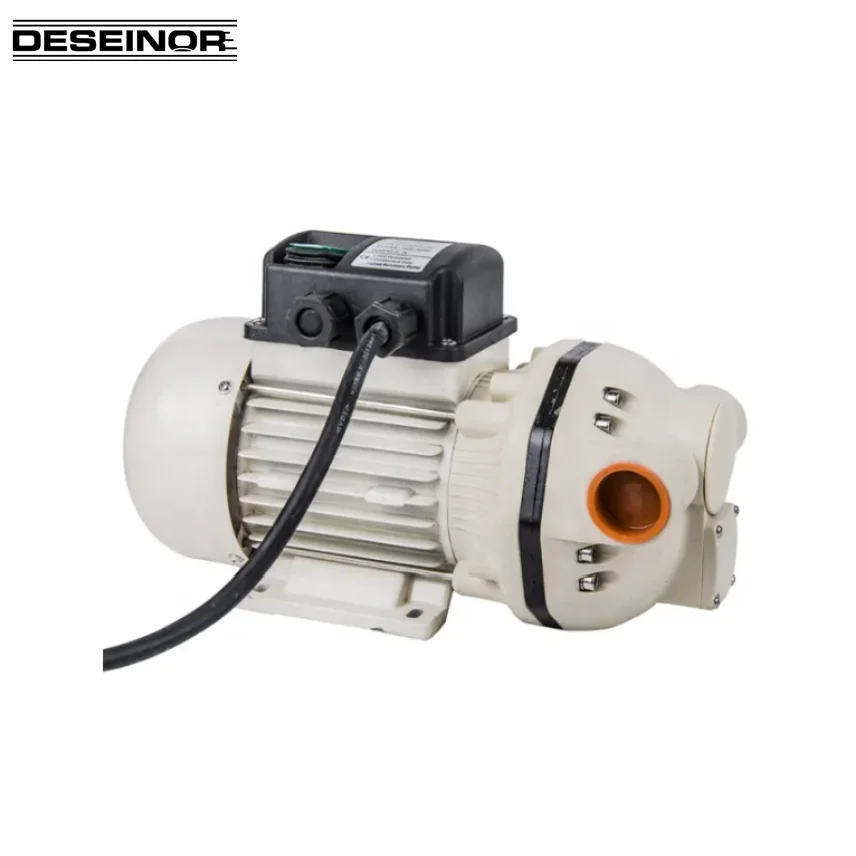

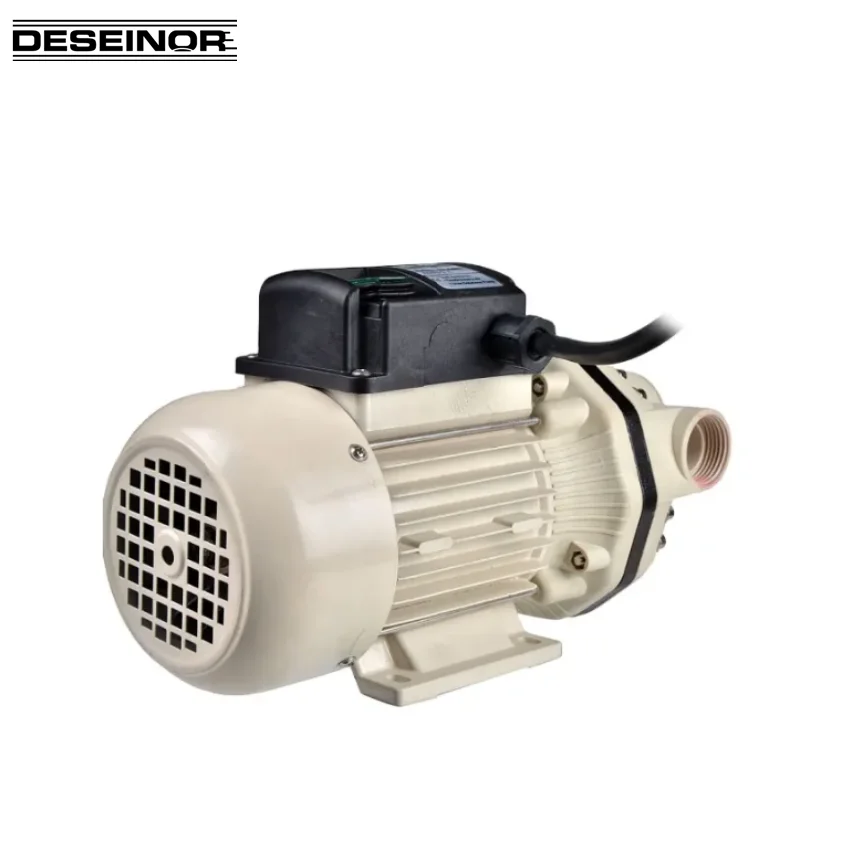

Adblue Dispenser UREA Solution System 12V 24V 220V DEF Transfer Pump Adblue Fitting adblue pump kit

Product Overview

Description

chemical dispenser,urea solution AdBlue pump/urea Pump/DEF pump

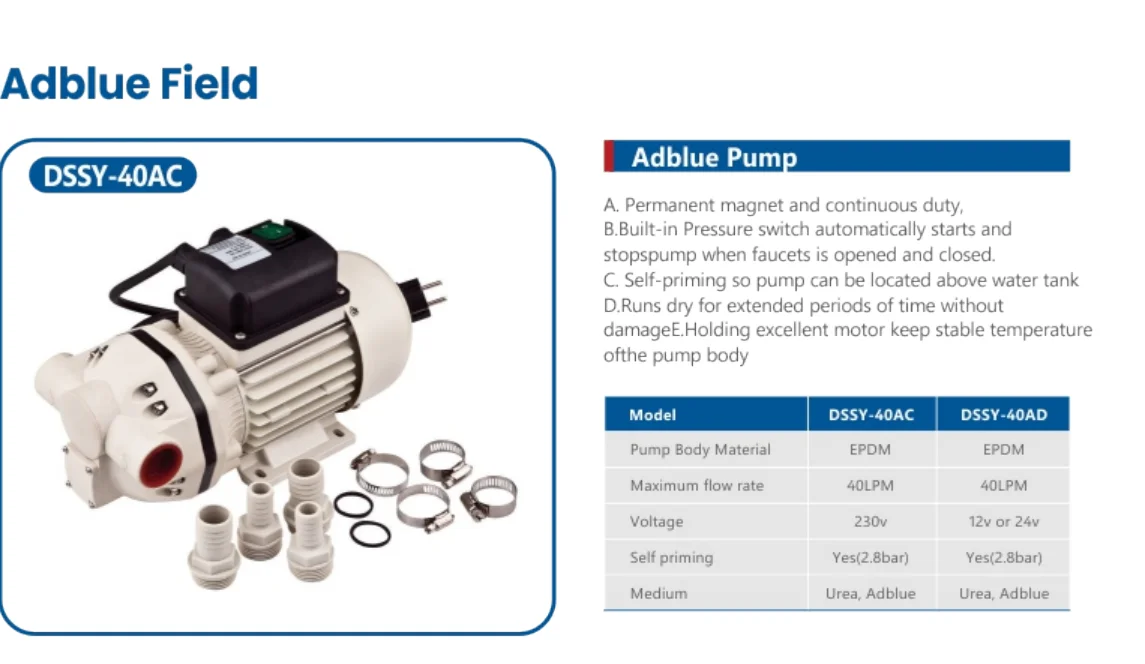

Function:



* Permanent magnet and continuous duty
* Built-in pressure switch automatically starts and stops pump when faucets is opened and closed
* Self-priming so pump can be located above water tank
* Runs dry for extended periods of time without damage
* Hold excellent motor keep stable temperature of pump

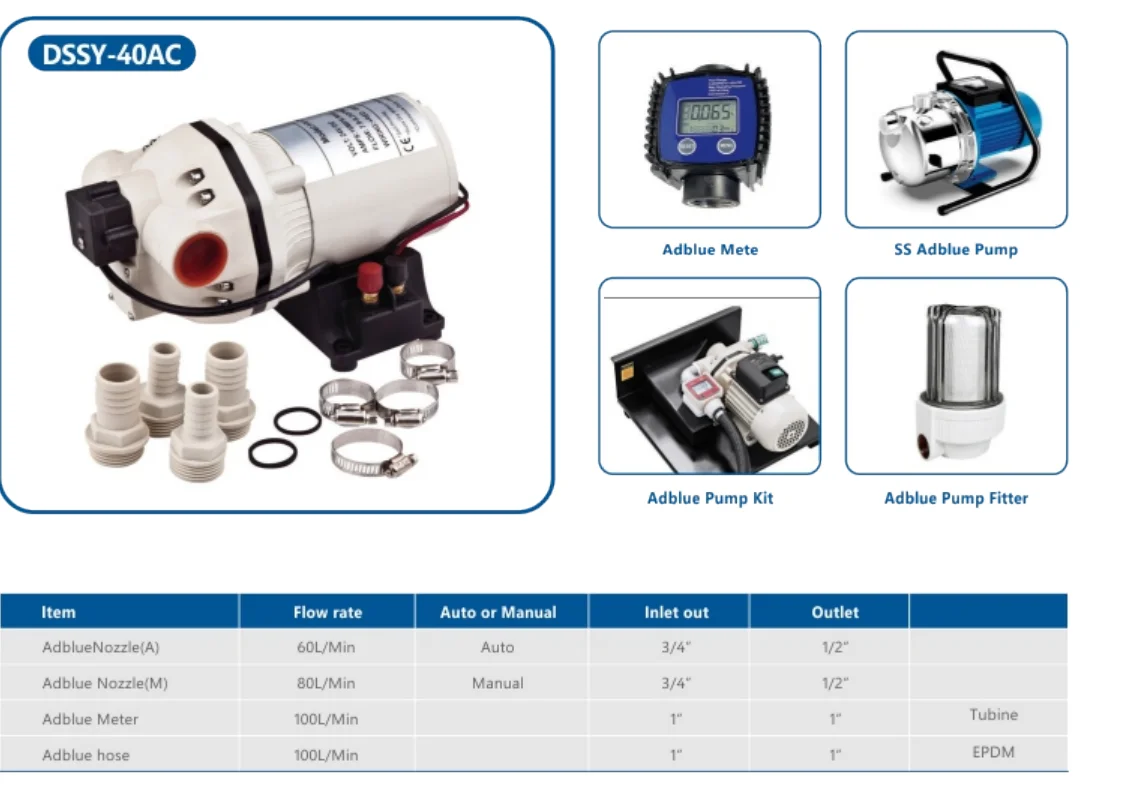

tem No		Description			Images
Adblue automatic nozzles		Automatic Trigger nozzle with safety cut out valve Materials of construction stainless steel, viton  Fitting:3/4'' BSPP Flow range:0~60L/min Max.pressure:5 bar
Adblue Manual Nozzles		Filling Nozzle manual Trigger Nozzle Fittings:19mm barb Flow range:0~80L/min Max.pressure:3.5Bar
Adblue meter(K24)		Type:Inline turbine meter polyamide body Flow range:10~120L/min Accuracy:+-1% Pressure:10bar Connections:BSPT 1'' or NPT1''
Adblue EPDM hose		Size:19mm ID transfer hose supplied complete with 1''BSPT Type:EPDM Internal diameter:19mm Wall Thickness:4mm Flow range:0~60L/min
Sec Suction Coupling		Type: Female coupling Fitting:3/4'' BSPP Flow(max): 40L/min (0.6bar max.pressure drop) Pressure(max.2bar)
Bracket Set Nozzle holder		Design specially for this system  Bracket set material: Iron
