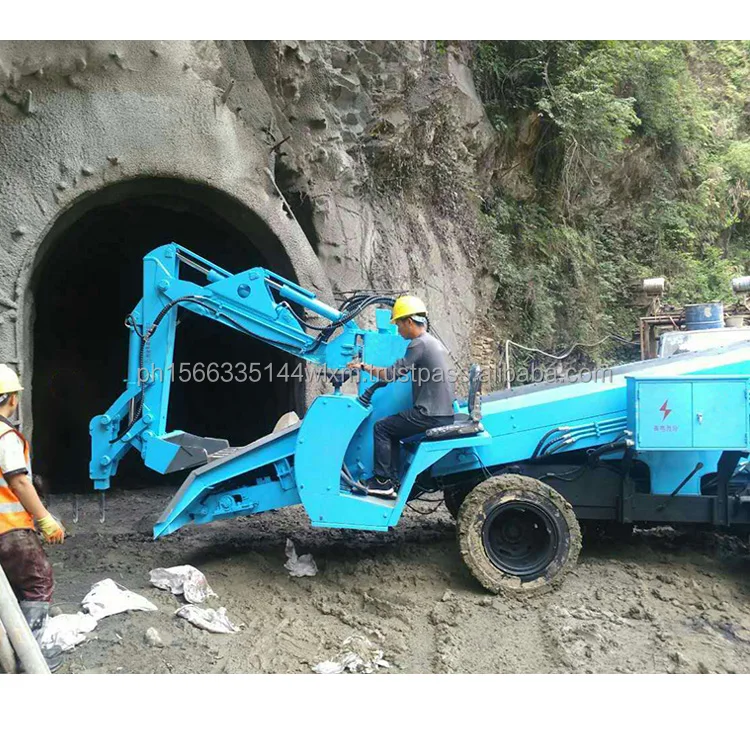

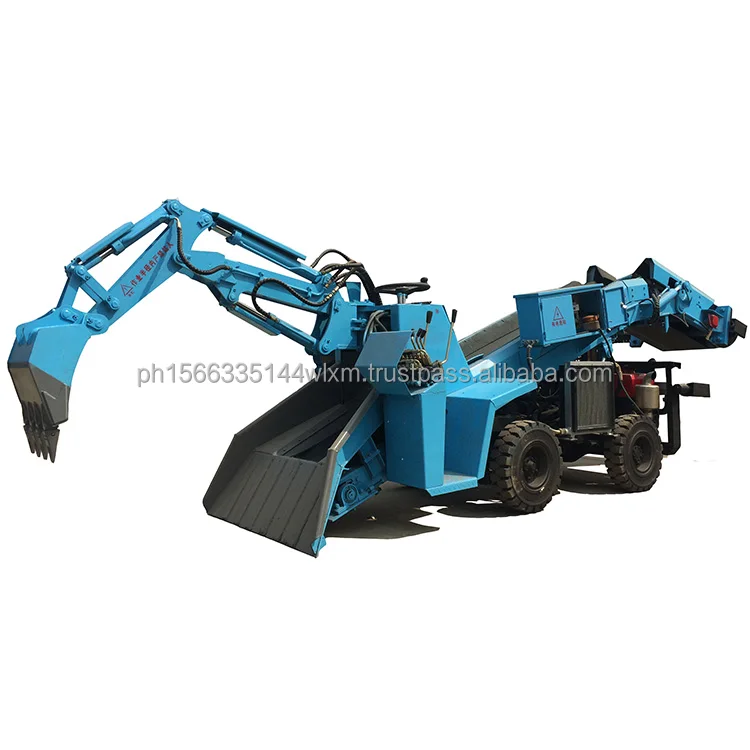

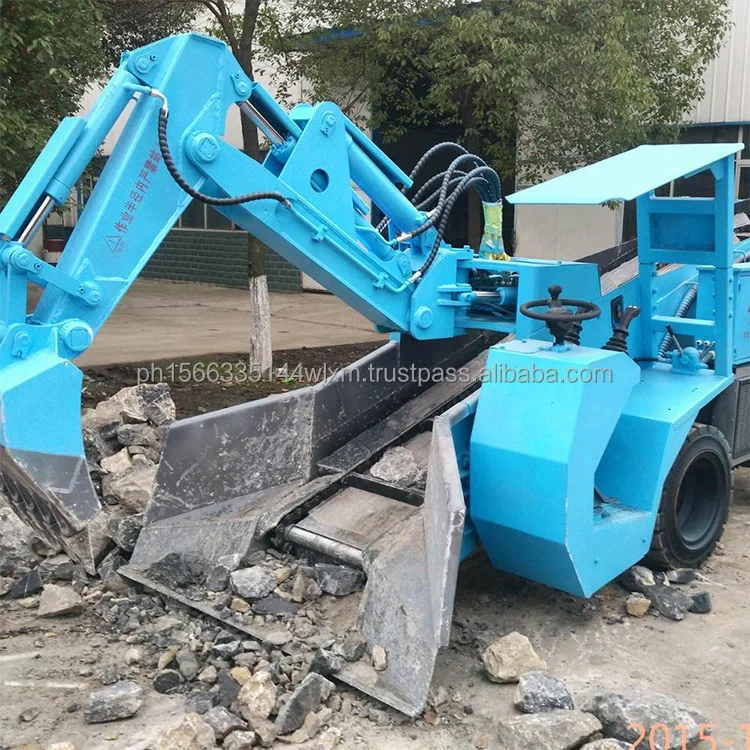

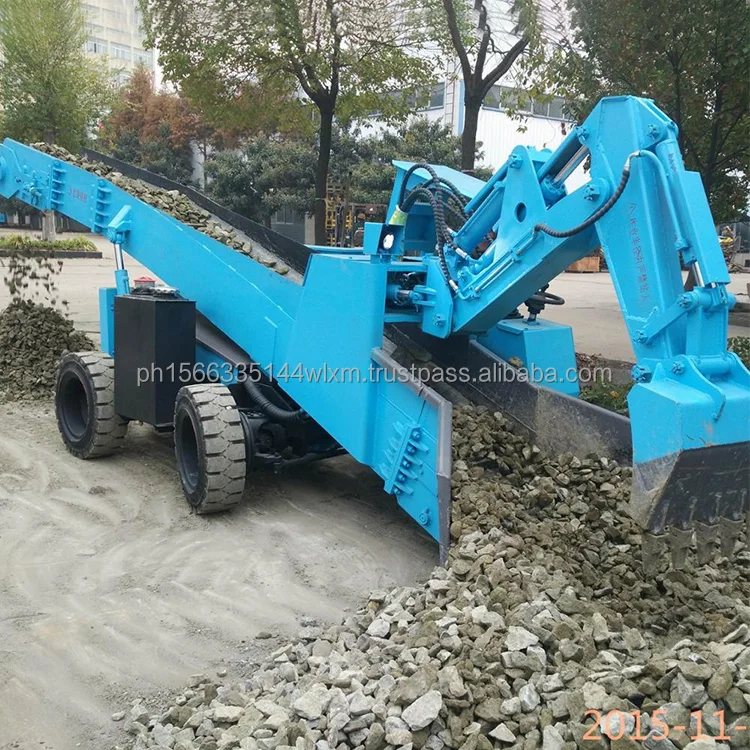

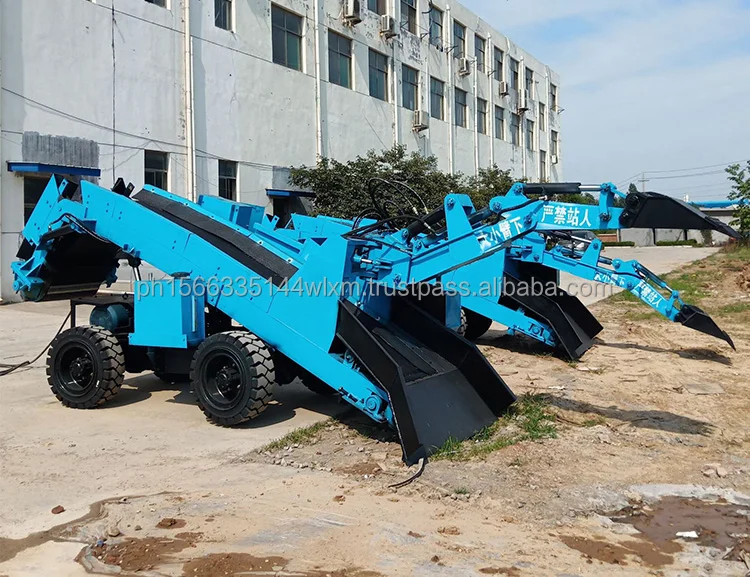

Mucking Loader Underground Loader Electric Small Underground Wheel Mucking Loader

Share on (1601157693888):


Price:

Quantity:


Product Overview

Description



Product Description

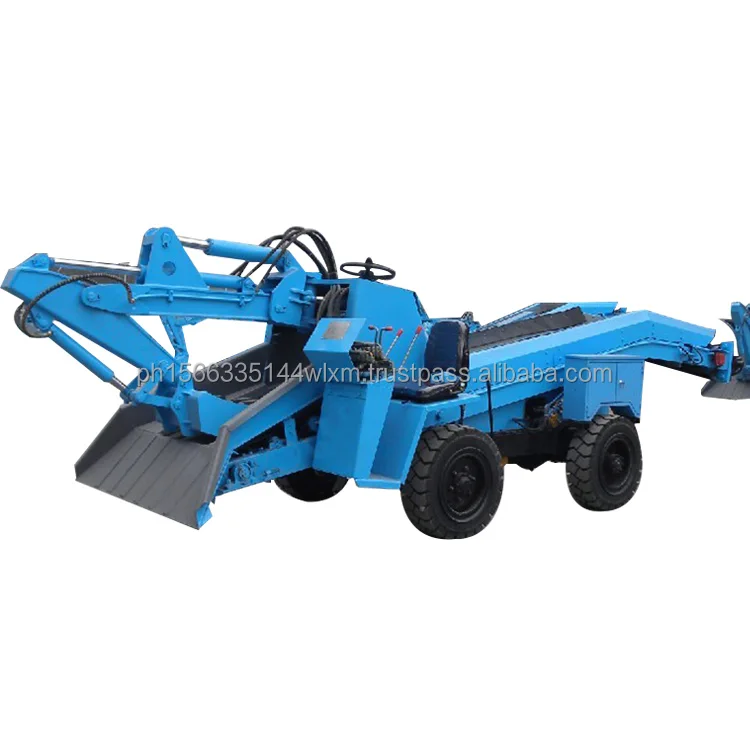

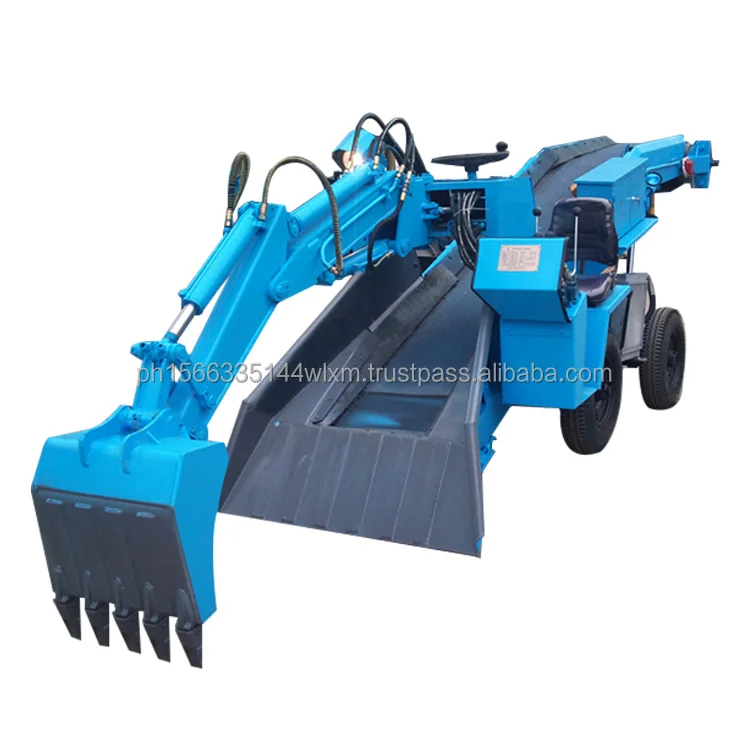

ZY (7)ZY (8)





The wheel mucking loader, also known as wheel haggloader or wheel tunnel excavator, is a type of underground mining equipment. Wheel excavation loader (mucking loader) is applicable to the construction of tunnel, mine, water conservancy and other projects and the mucking of small-section diversion caves and mines.





This machine is mainly used to collect, transport and load grave soil or slags of mines and tunnels. Wheel excavation loader (mucking loader) is controlled by a fully hydraulic system, and is characterized by safety, environmental friendliness, low energy consumption and high efficiency.



With an excellent humanized design, our wheel mucking loader can enormously reduce workers’ labor intensity, characterized by a high speed of transport, safety and reliability, environmental friendliness, high efficiency, and high economization on manpower.

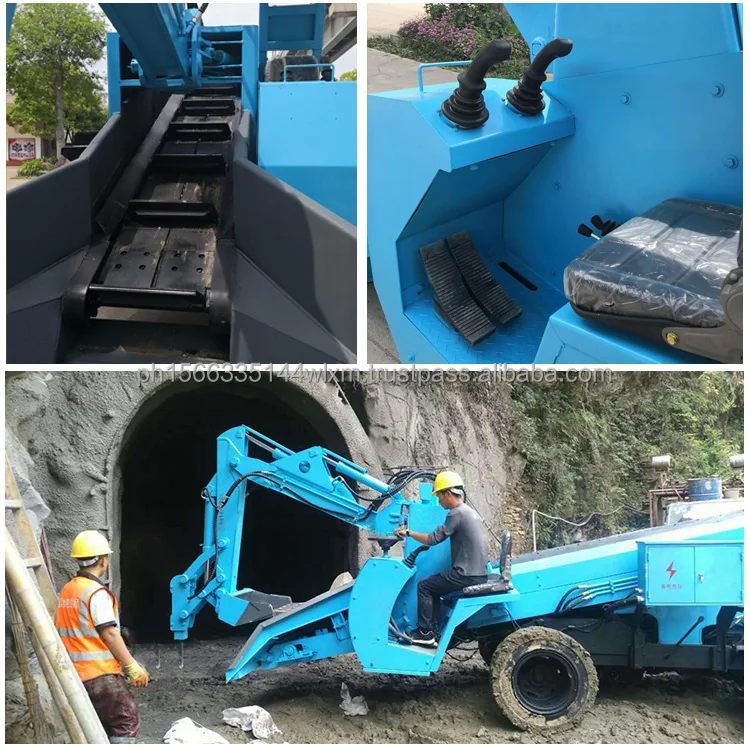

ZY (12)






























































































































































PRODUCT SPECIFICATIONS
Description/ModelZY-50/15TZY-60/18.5TZY-80/18.5TZY-120/30T
Loading Capacity≥50m³≥60m³≥80m³120m³/h
Digging Distance1300mm≥1320mm≥1730mm≥2000mm
Digging Width2400mm≥3200mm≥3310mm≥4500mm
Loading Width≥2400mm≥3200mm≥3310mm≥3800mm
Digging Height1600mm≥1740mm≥2200mm≥3200mm
Digging Depth210mm≥290mm≥630mm≥660mm
Unloading Height≥1400mm≥1600mm≥1700mm≥2000mm
Ground Clearance180mm≥180mm≥190mm≥270mm
Loading Length1500mm≥2200mm≥2500-3200mm≥3500-4500mm
Wheel Base1200mm15501580mm1910mm
Tire Min.Turning Radius≥5m≤5m≤6m≤8m
Gradability≤8°12°12°15°
Converyor Belt Speed0.80±5% m/s0.80±5% m/s0.80±5% m/s0.80±5% m/s
Conveying Capacity≥50m³/h≥60m³/h≥80m³/h≥120m³/h
Moving Speed1.2km/h1.2km/h1.2km/h1.2km/h
Rated Working Pressure12Mpa12Mpa12Mpa17Mpa
Total Power15KW18.5KW18.5KW30KW
Total Weight2450±5% kg3350±5%kg4000±5%kg7200±5%
Overall Dimension

5000/4750x1400x1450


mm



5500x1600x1600


mm



7500x1700x1700


mm



9000x2200x2200


mm


Applicable Working Area2.0x2.0m22.3mx2.3m22.5x2.5m24.0x4.0m2

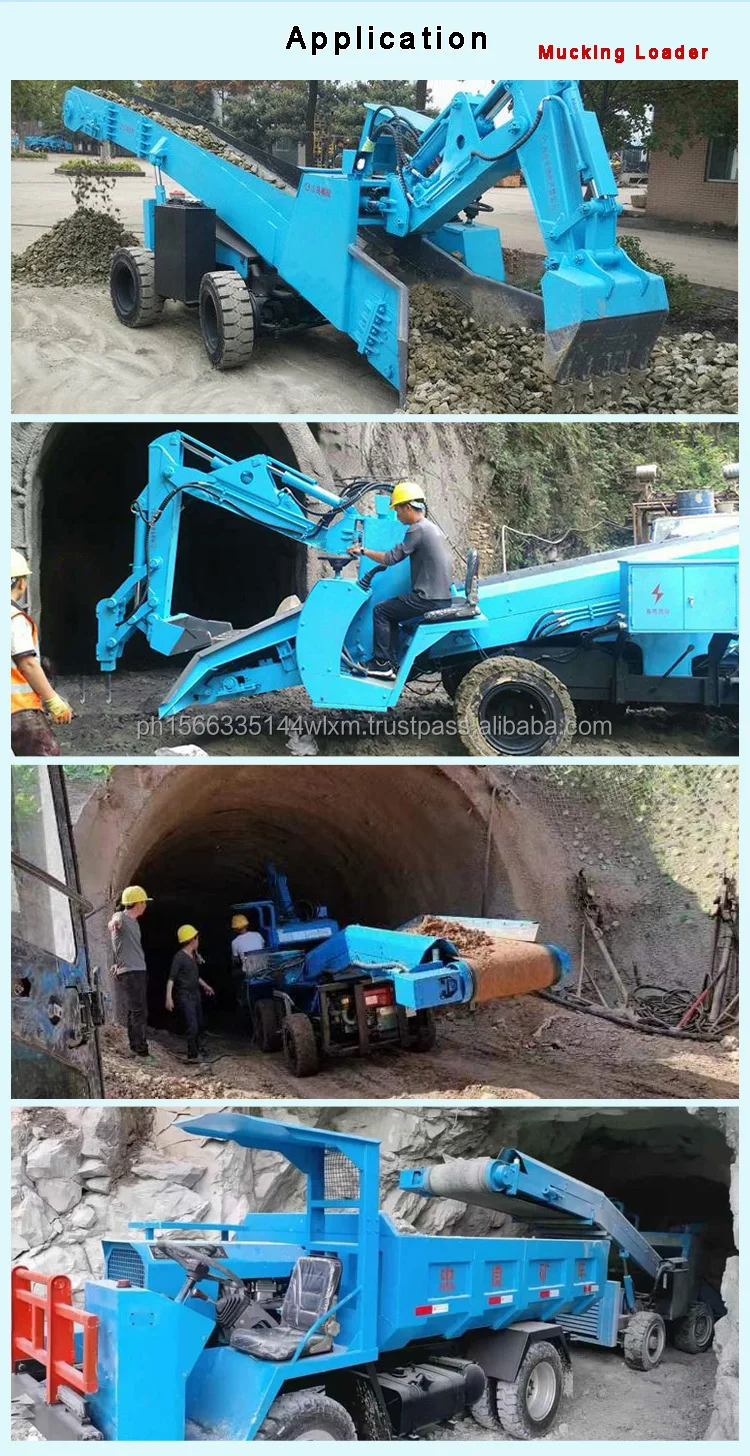

ZY (16)





Company Information


UNIQUE Group is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Mucking LoadersConcrete Mixing PlantsMobile Concrete Batching PlantsTower CranesBuilding HoistsConcrete Mixer TruckConcrete Pumps and Block Making Machines and etc…





UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.



UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!

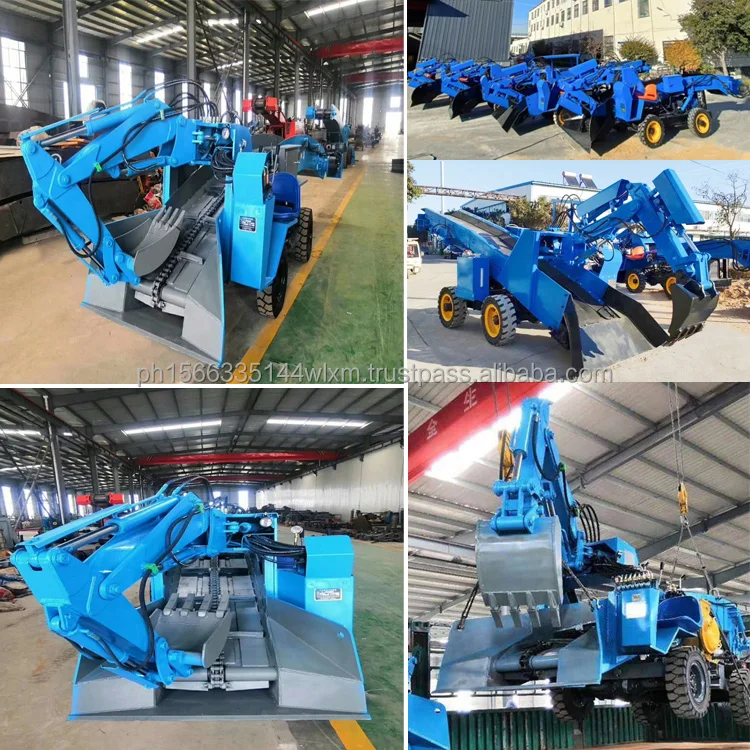

ZY (15)





Certificate-1

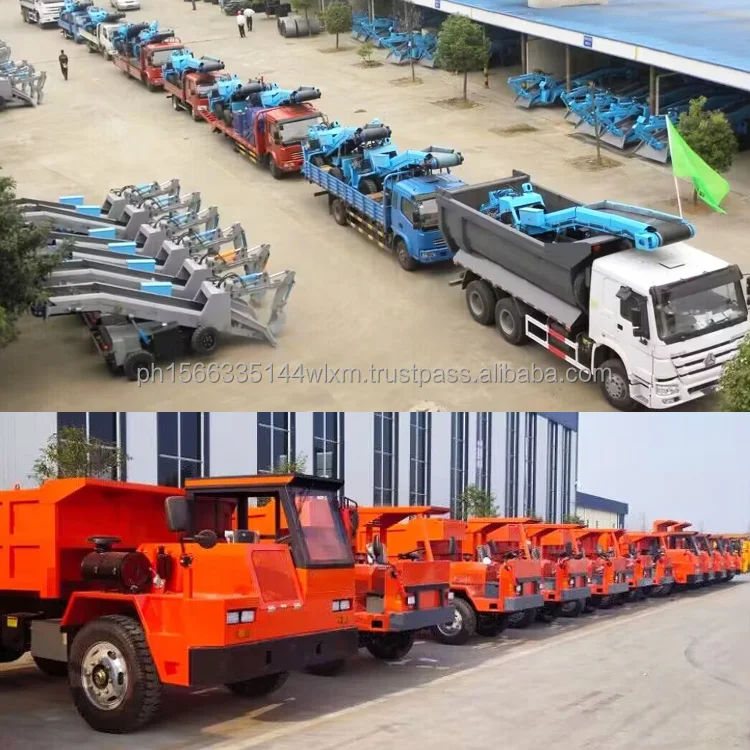

Packaging & Shipping


DT-7





customer show


JS2000-9JS2000-10





FAQ


Q1: Are you trading company or manufacturer?


A: We are factory. We can design and manufature product with our patent.





Q2: How long is your delivery time?


A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.





Q3: What is your payment method?


A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.





Q4: Do you inspect the finished products?


Yes, each step of production and finished products will be came out inspection by QC department before shipping.
