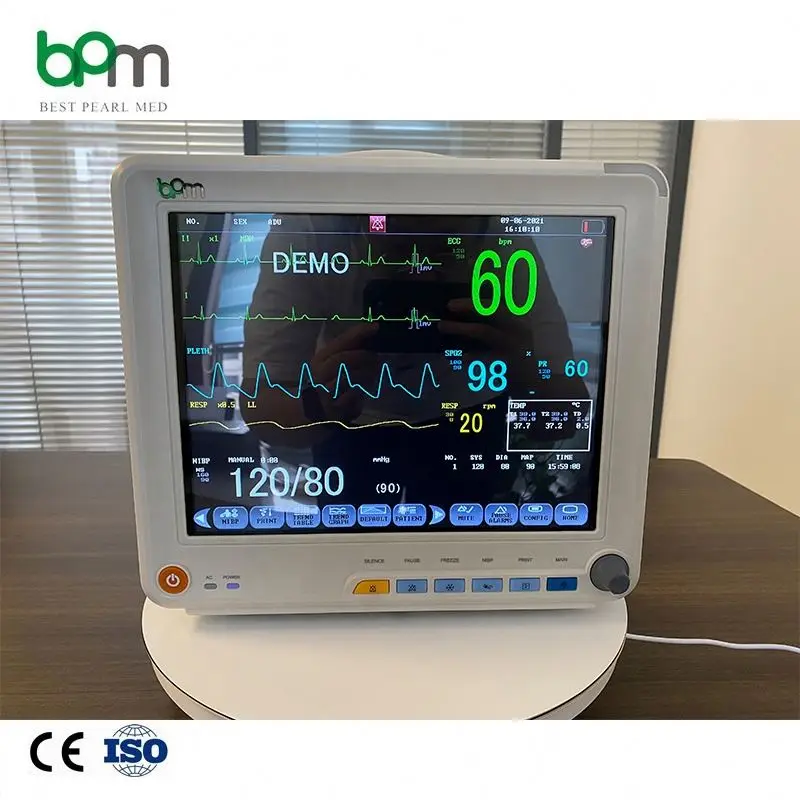

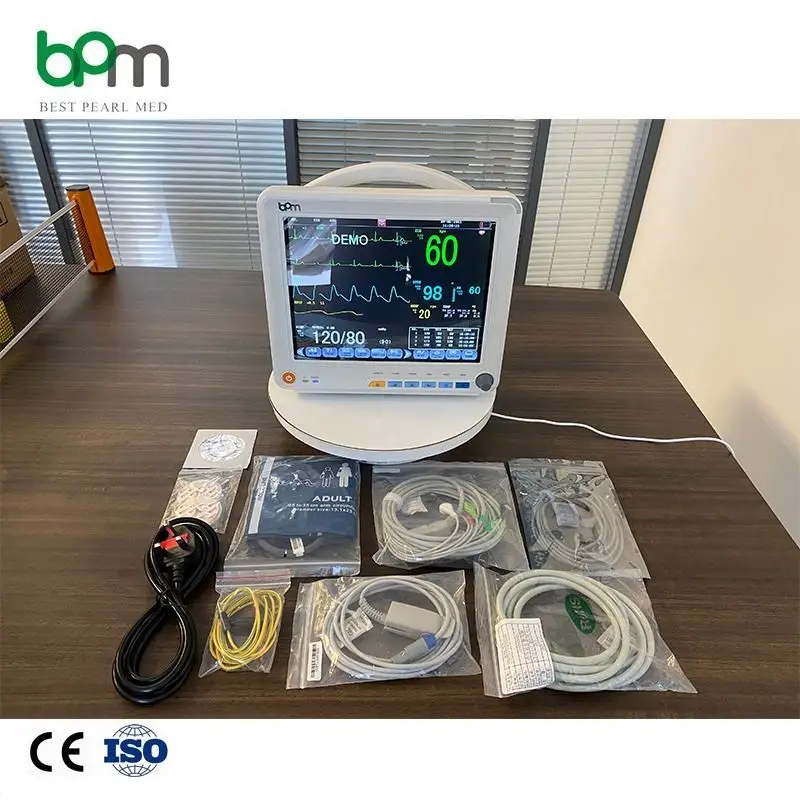

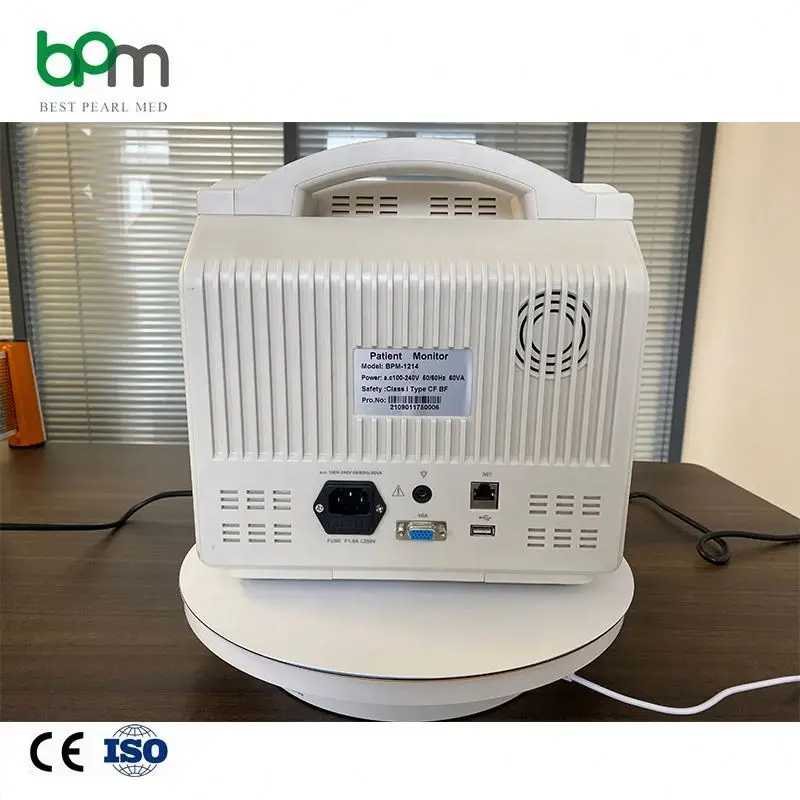

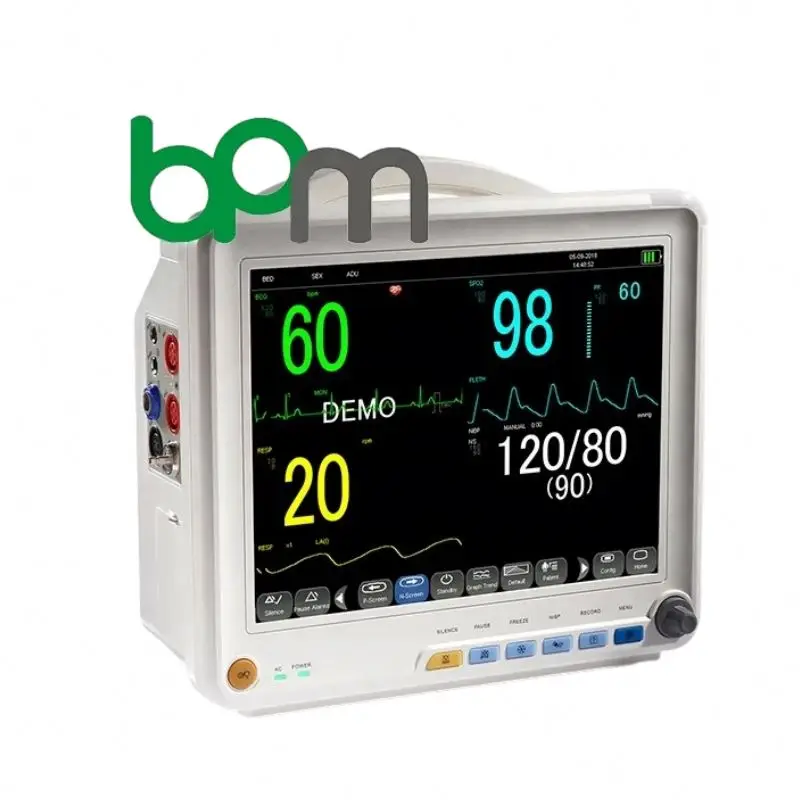

Advanced Technology Wholesale Price Bedside Patient Monitor

ECG

Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)

Gain: ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV

Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)

Resolution: 1 BPM

Accuracy: ±1%

Sensitivity >200 uV(Peak to peak)

ST measurement range: -2.0 ~ +2.0 mV

Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater

Other Range: unspecified

Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

Bandwidth:Diagnostic: 0.05~130 Hz

Monitor: 0.5~40 Hz

Surgery: 1~20 Hz

SPO2

Measuring Range: 0 ~ 100 %

Resolution: 1%

Accuracy: 70% ~ 100% (±2 %)

Pulse Rate: 20-250 BPM

Resolution: 1 BPM

Accuracy: ±3 BPM

NIBP

Method: Oscillometry

Measure mode: Manual, Auto, STAT

Unit: mmHg, kPa

Measure and alarm range:

n Adult Mode

SYS 40 ~ 280 mmHg

DIA 10 ~ 225 mmHg

MEAN 20 ~ 240 mmHg

n Pediatric Mode

SYS  40 ~ 220 mmHg

DIA  10 ~ 160 mmHg

MEAN 20 ~ 170 mmHg

n Neonatal Mode

SYS 40 ~ 135 mmHg

DIA 10 ~ 100 mmHg

MEAN  20 ~ 110 mmHg

Resolution: 1mmHg

Accuracy: ±5mmHg

RESP

Method: Impedance between RA-LL or RALA

Measurement Range:

Adult: 10 ~ 120 BrPM

Neonatal / Pediatric: 7 ~ 150 BrPM

Resolution: 1 BrPM

Accuracy: ±2 BrPM

TEMP

Measure and Alarm Range: 0 ~ 50 °C

Resolution: 0.1°C

Accuracy: ±0.1°C
