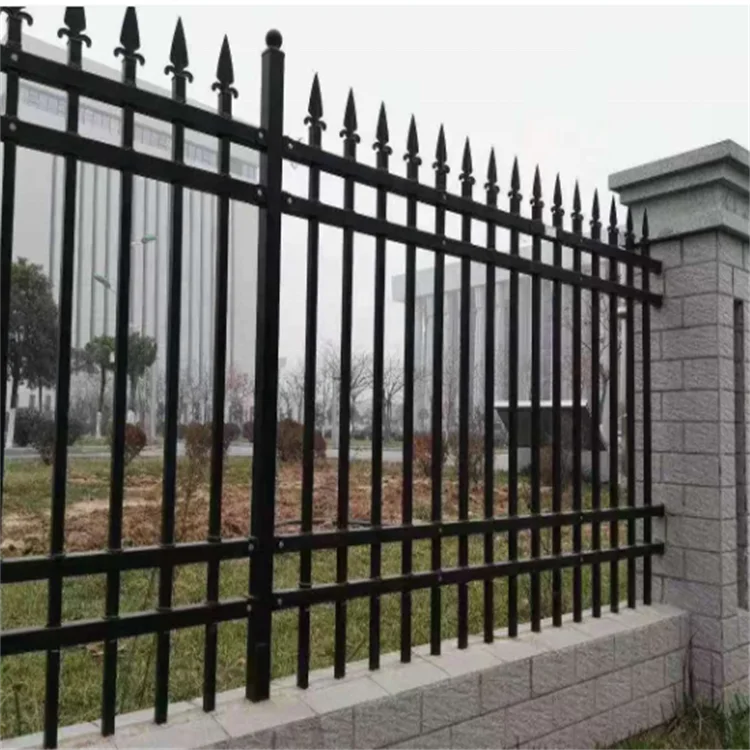

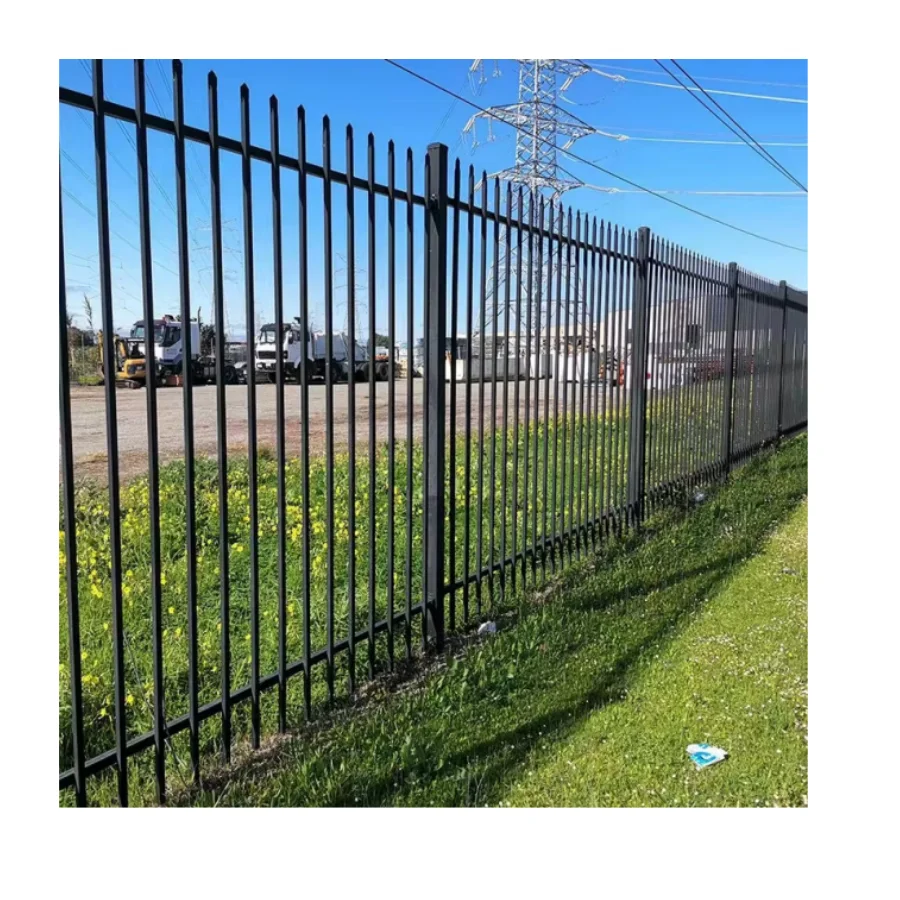

steel picket fence guardrail is both practical and decorative, can be used for home address, courtyard, villa, enterprise, municipal, park wall guardrail, the product is made of hot zinc steel, has a strong corrosion resistance, high temperature resistance, excellent moisture and heat resistance, low basic requirements, long service life, green environmental protection.

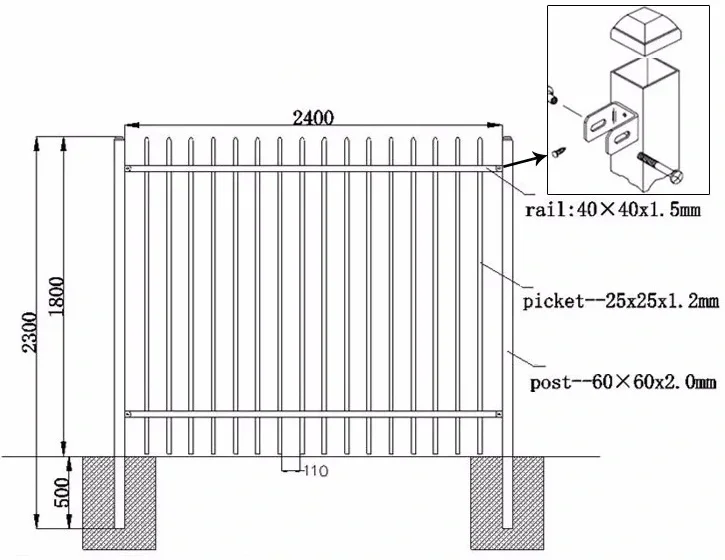

The Drawing of steel picket fence

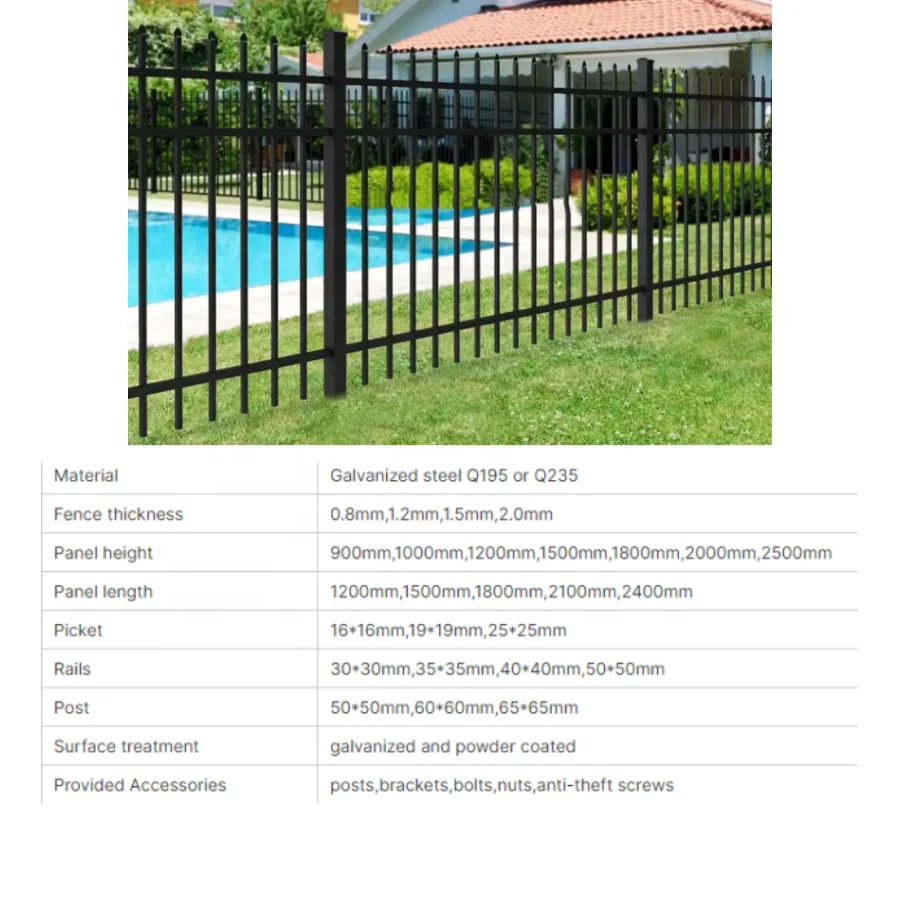

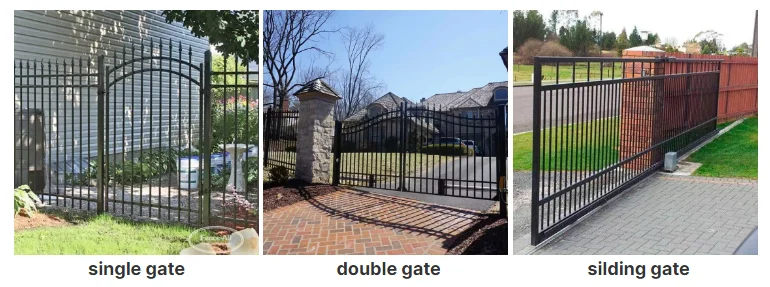

Main Types

| Specification Of Steel Picket Fence | |
| Panel Size(H*L) | 1.2x1.8m,1.2x2.0m, 1.5x1.8m,1.5x2.0m,1.8x2.0m,1.8mx2.4m,2.1x2.4m, etc |
| Horizontal rail | 30x30mm, 40*40mm,45*45mm, 2 rails,3 rails or 4 rails |
| Thickness:0.8--2.0mm | |
| Picket tube | 15x15mm,19*19mm,25*25mm |
| Thickness: 0.6--1.2mm | |
| Post | 50*50mm,60*60mm,80*80mm,100*100mm, Thickness: 1.2--3.0mm |
| Vertical pipe distance | 100mm,110mm,120mm |
| Color | popular color is black ,all RAL color can be customized. |
| Surface treatment | hot dipped galvanized, galvanized + powder coated |
| Note: The fence can be customized according to your required if above specification is not satisfied with you | |

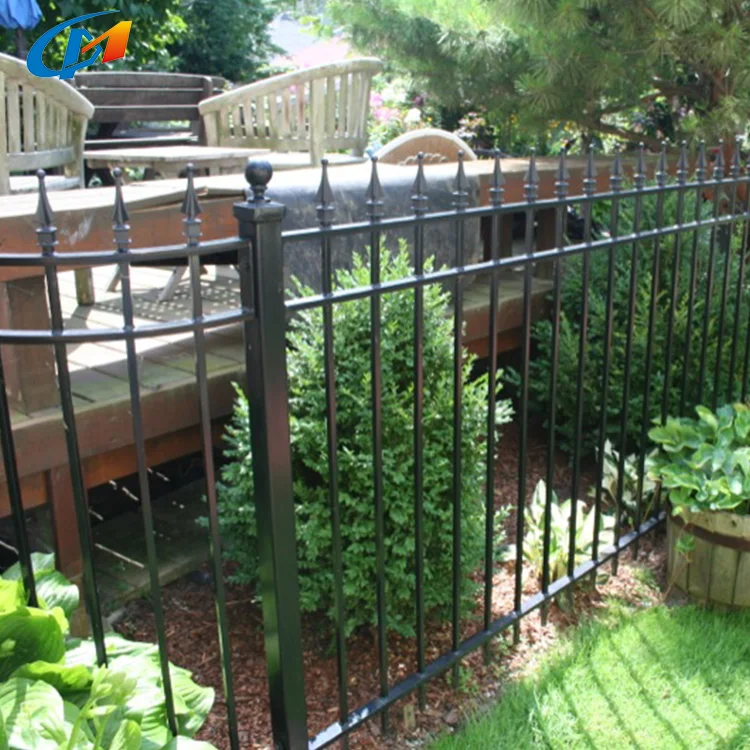

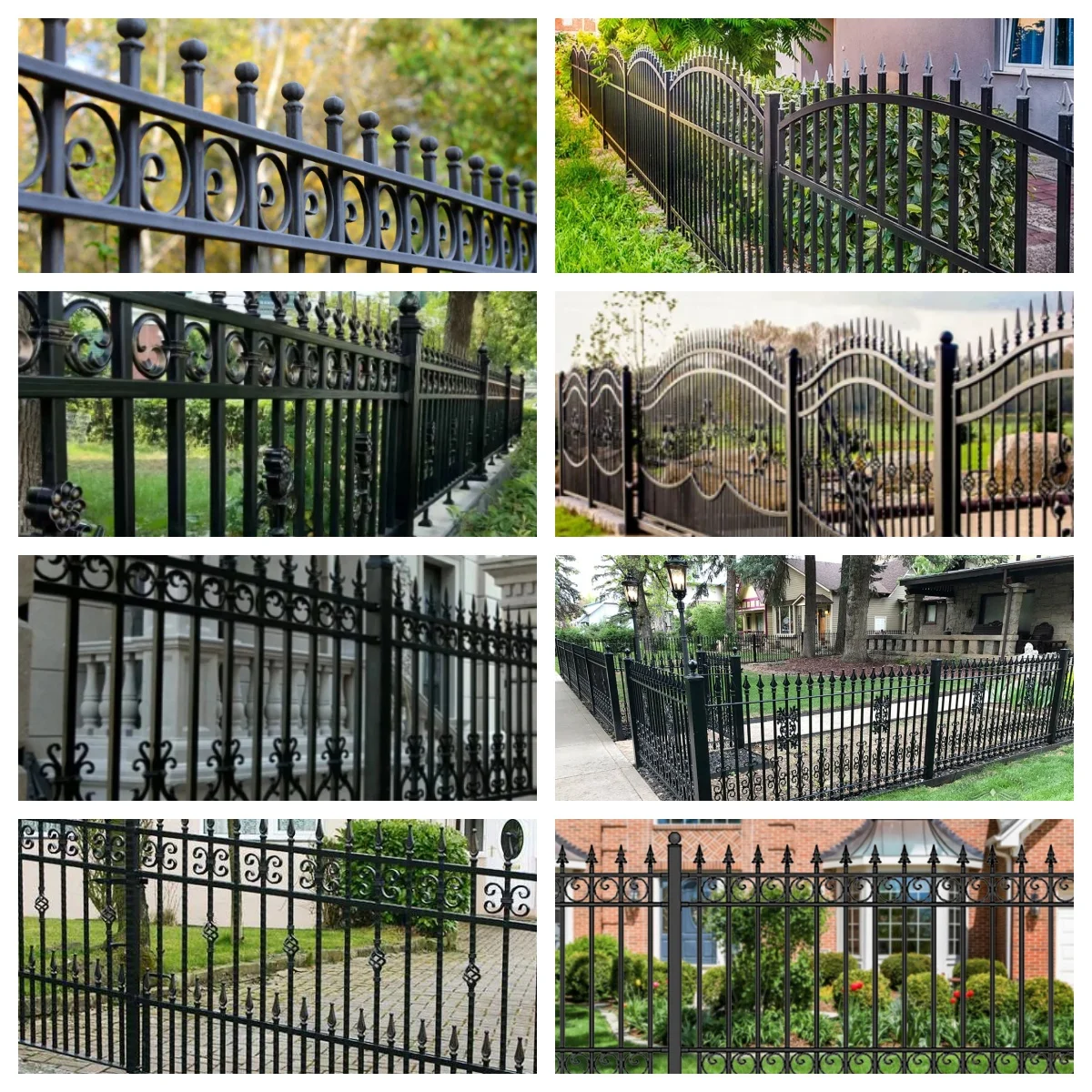

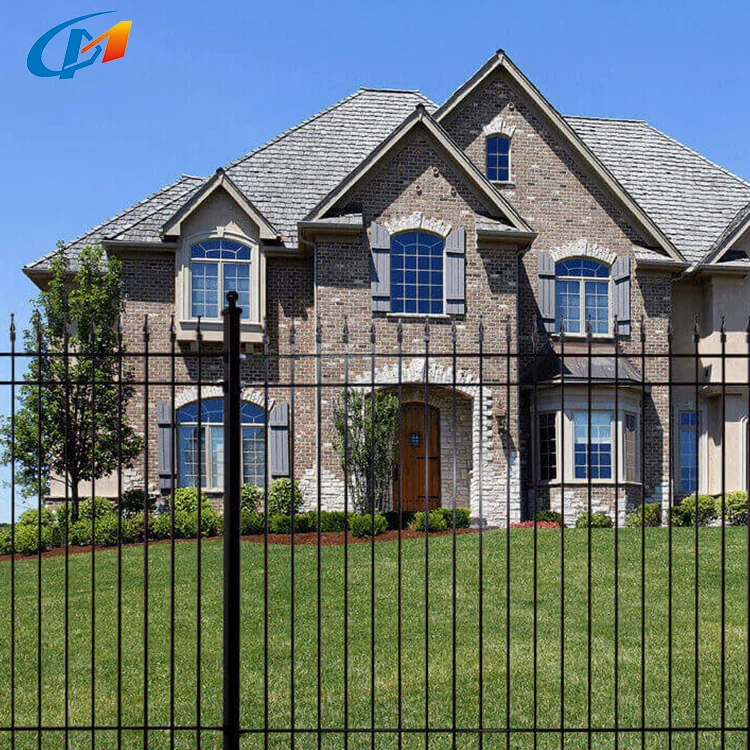

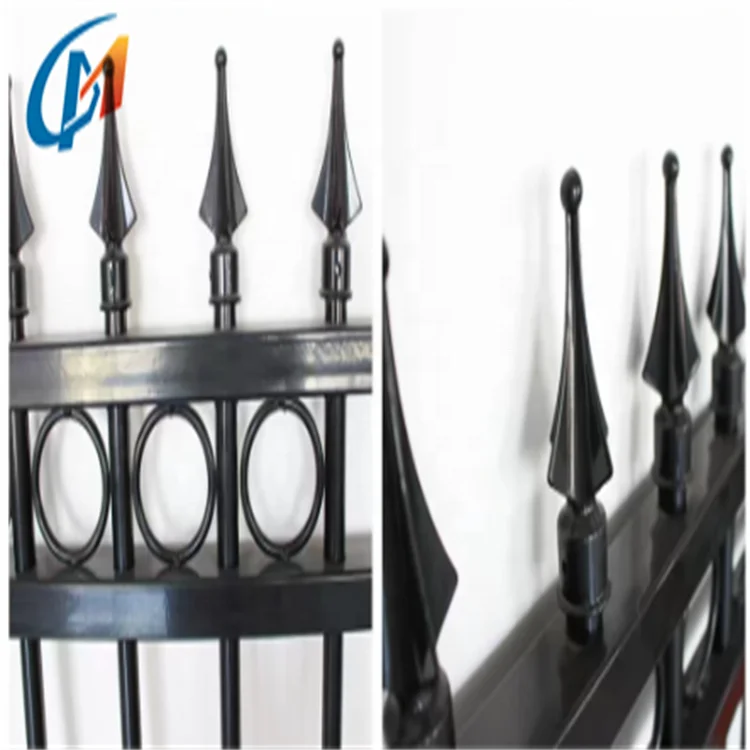

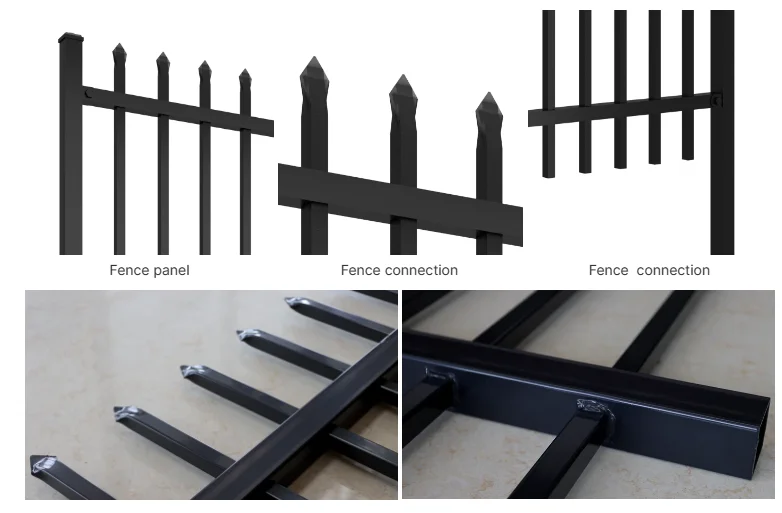

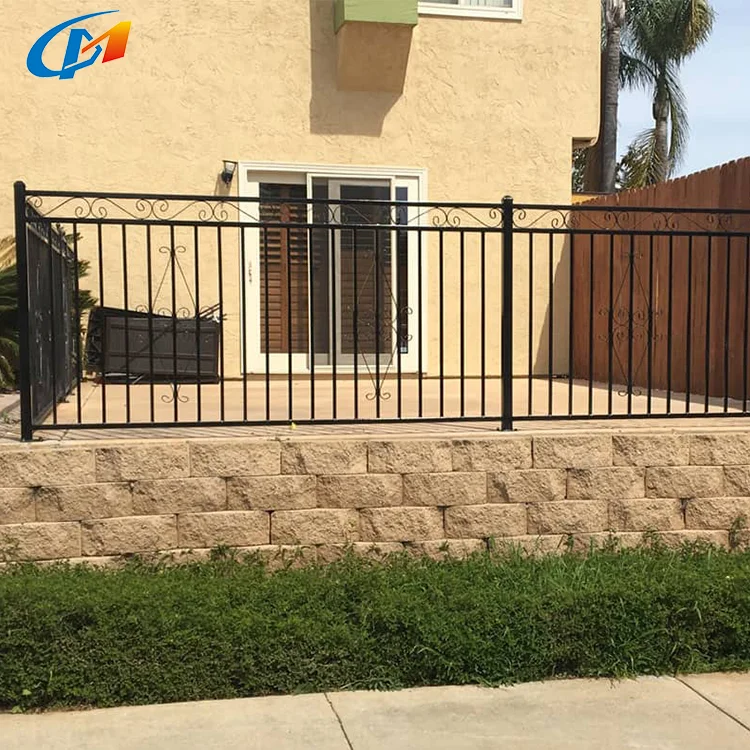

Images Dispay
