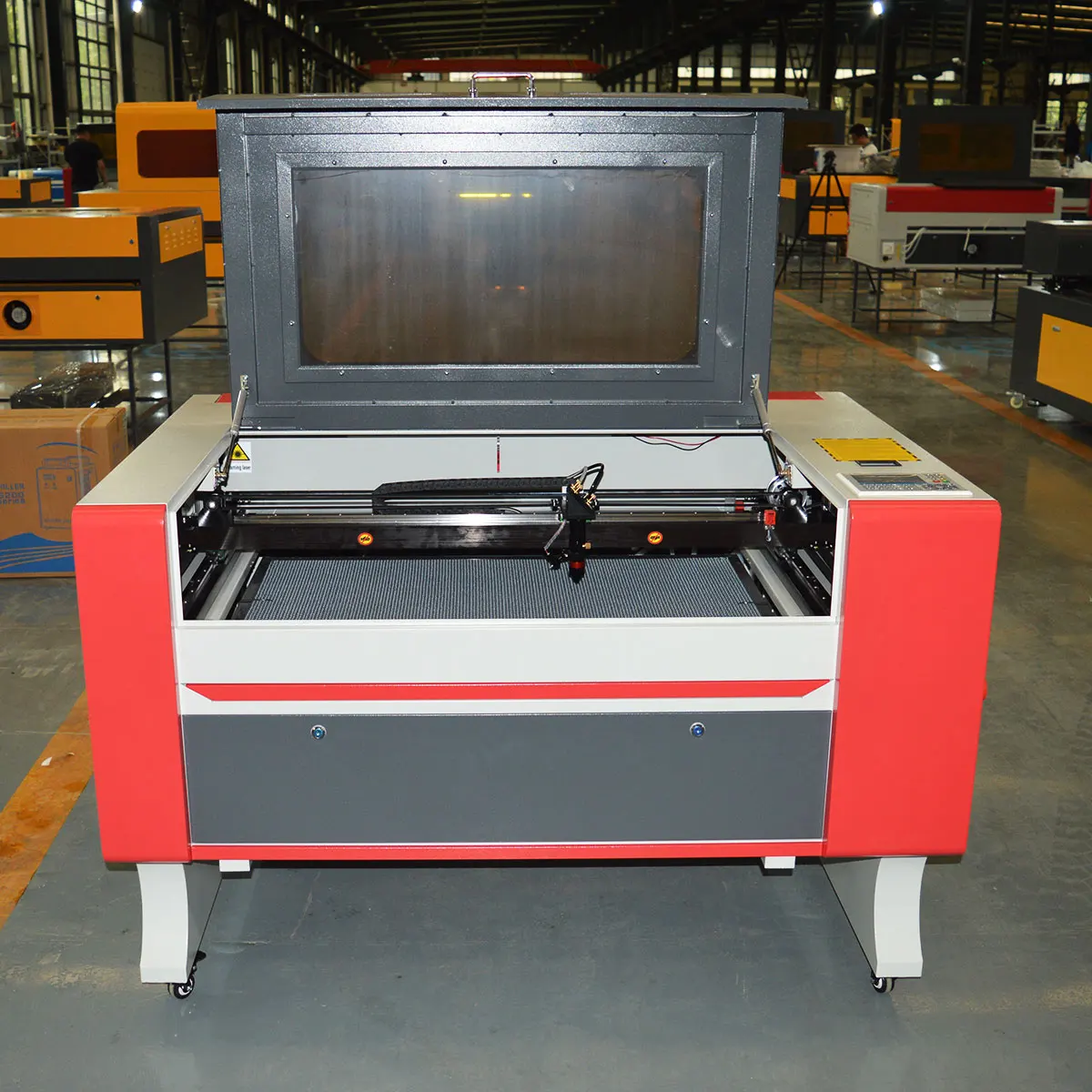

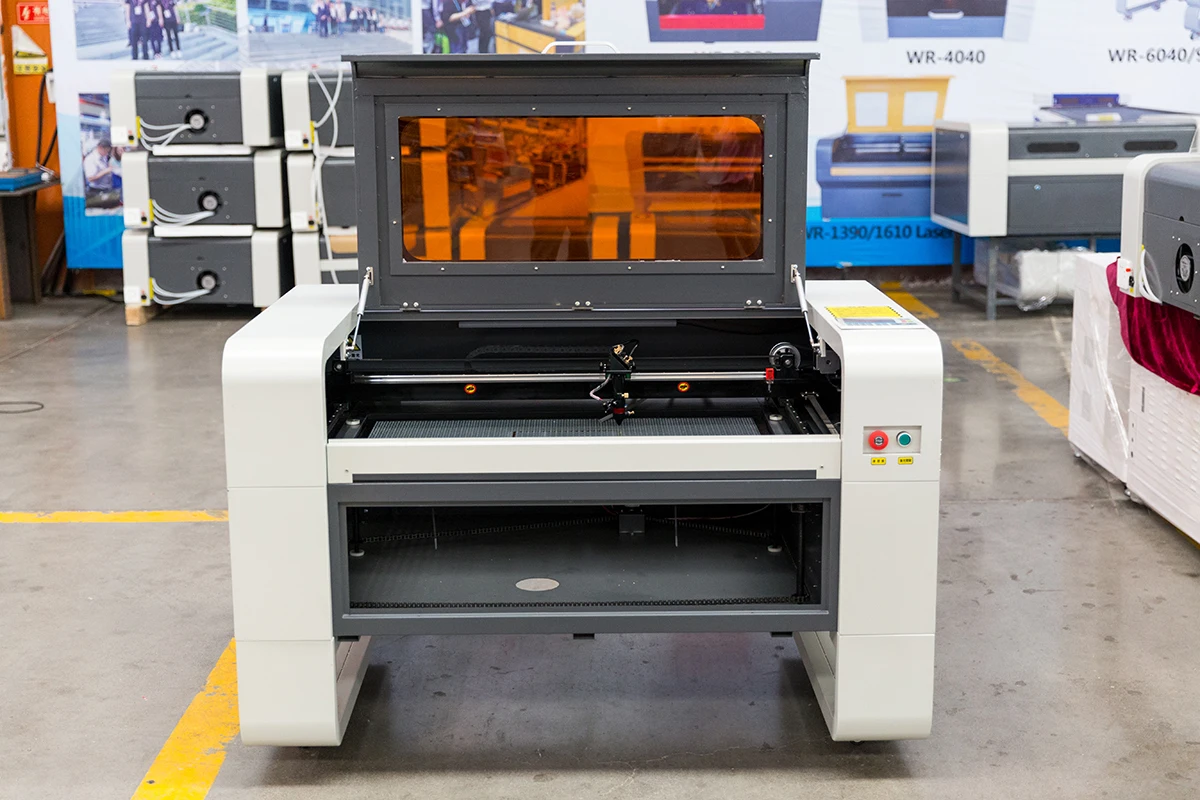

VOIERN 57 motor 1080 Ruida 60w 80w laser carving machine/wood laser cutting machine 100w
- Category: >>>
- Supplier: Liaocheng Voiern Laser Technology Co. Ltd.
Share on (1601157894591):
Product Overview
Description
Product Description
Their X/Y axes are all with 15mm Line Guide
4060
400*600MM
SIZE:140*79*98cm
400*600MM
SIZE:140*79*98cm
9060/1080
900*600/1000*800MM
9060 SIZE:140*98*98cm
900*600/1000*800MM
9060 SIZE:140*98*98cm
1080 SIZE:156*118*98cm
1390/1310
1300*1000/1300*900MM
1310 SIZE:185*139*98cm
1390 SIZE:185*131*114cm
1300*1000/1300*900MM
1310 SIZE:185*139*98cm
1390 SIZE:185*131*114cm
1. The underside of the machine can be separated
2. The height of the legs and wheels is about 38cm
3. High power laser tube or special size laser tube, the machine size will change, please contact online for details
Their X/Y axes are all with inner slide
Configuration parameters
Model | WR-9060/1310 | ||||||
Machine color | Gray-white | ||||||
Working area | 900*600/1300*1000mm | ||||||
Laser power | 60W/80W/100W/130W/150W | ||||||
Laser type | Co2 sealed-off laser tube | ||||||
Cooling way | Water circulation cooling | ||||||
Water Protection | Yes | ||||||
Mirrors/Lens | Lens：D20mm,F63.5mm / Mirror :D25mm | ||||||
Working platform | Honeycomb/ Blade (pick one of two) | ||||||
Resolution | 1000dpi | ||||||
Engraving speed | 1-800mm/s | ||||||
Engraving thickness | 0-2mm | ||||||
Cutting speed | 1-200mm/s | ||||||
Cutting thickness | 0-20mm | ||||||
Supply voltage | AC200V/110V 50HZ/60HZ | ||||||
System environment | WIN7/8 | ||||||
Positioning accuracy | Less than 0.01mm | ||||||
Minimum character | Chinese character 2*2mm/Letter 1*1mm | ||||||
Working temperature | 0-45℃ | ||||||
Packing | Export wooden box packaging | ||||||
Support software | Ruida-V8, Support embedded Coreldraw direct output | ||||||
Optional accessories | Simple rotation/standard chuck/cw3000 chiller/cw5000 chiller | ||||||
Optional Accessories

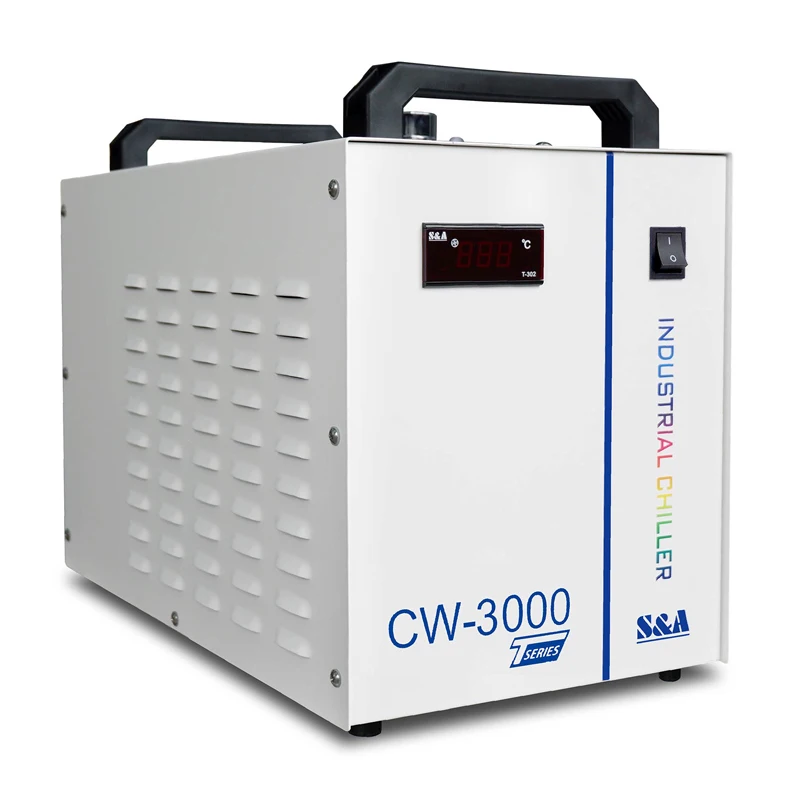

cw3000 Chiller cw5000 Chiller
Cooling fan
Constant temperature cooling
Simple rotation
Standard chuck

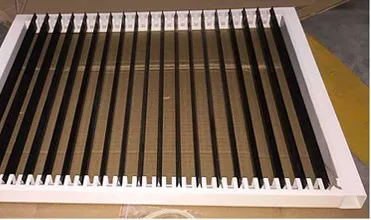

Blade platform
Mainly used for surface engraving of standard cylinder
Mainly used for special-shaped cylinder surface sculpture
It is mainly used for cutting large surface plates
Detailed Images

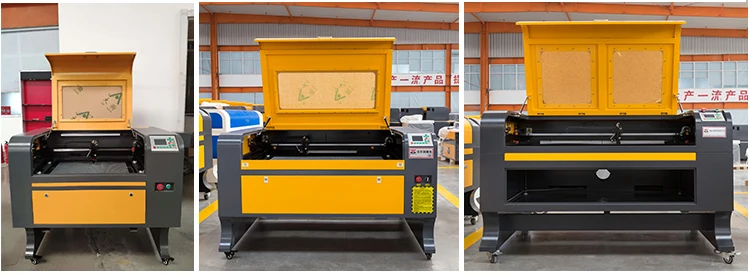

Each model of the 57 motor series has the same configuration, but the working area is different If you need to install a special
specified configuration, please contact us online
specified configuration, please contact us online

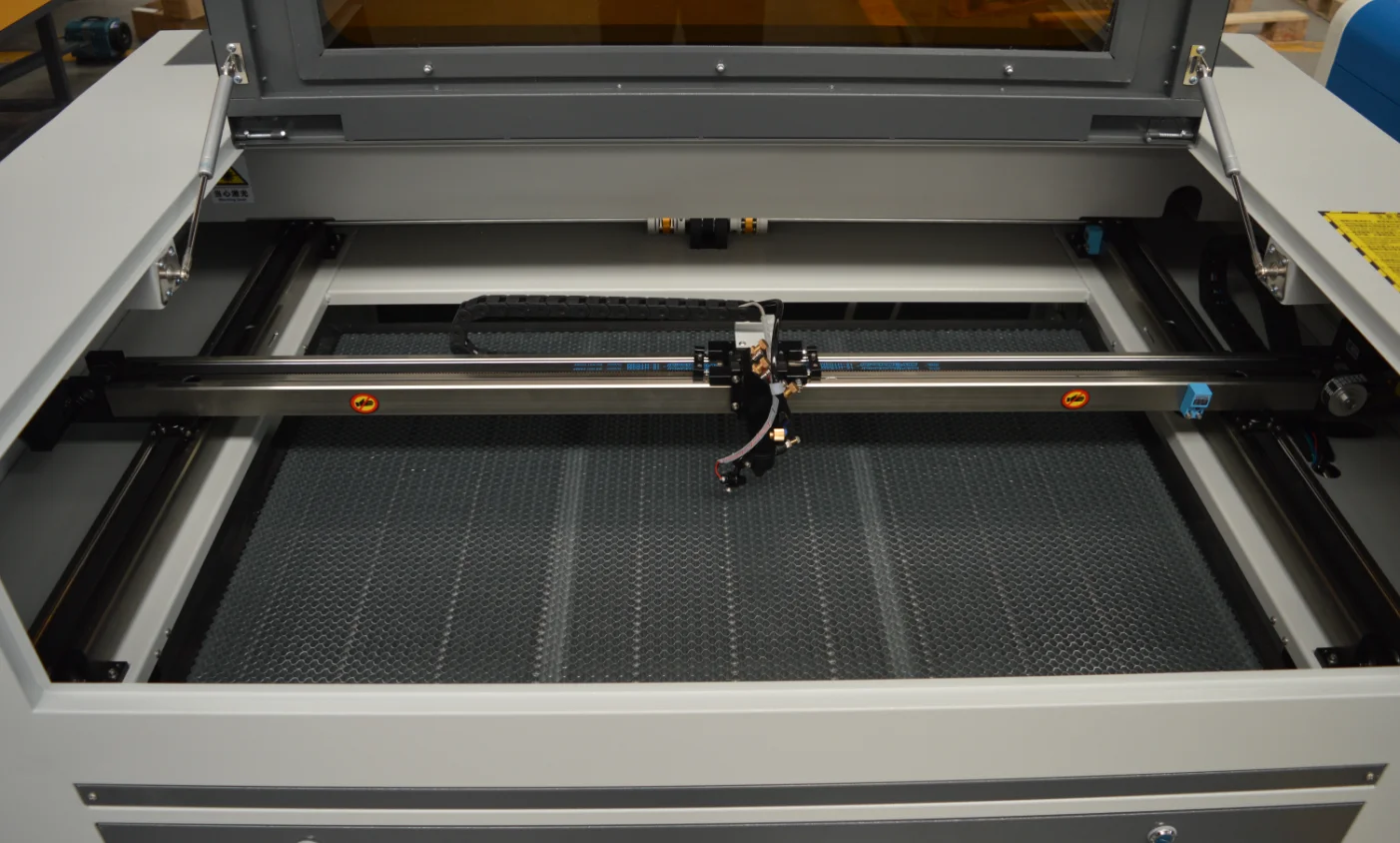

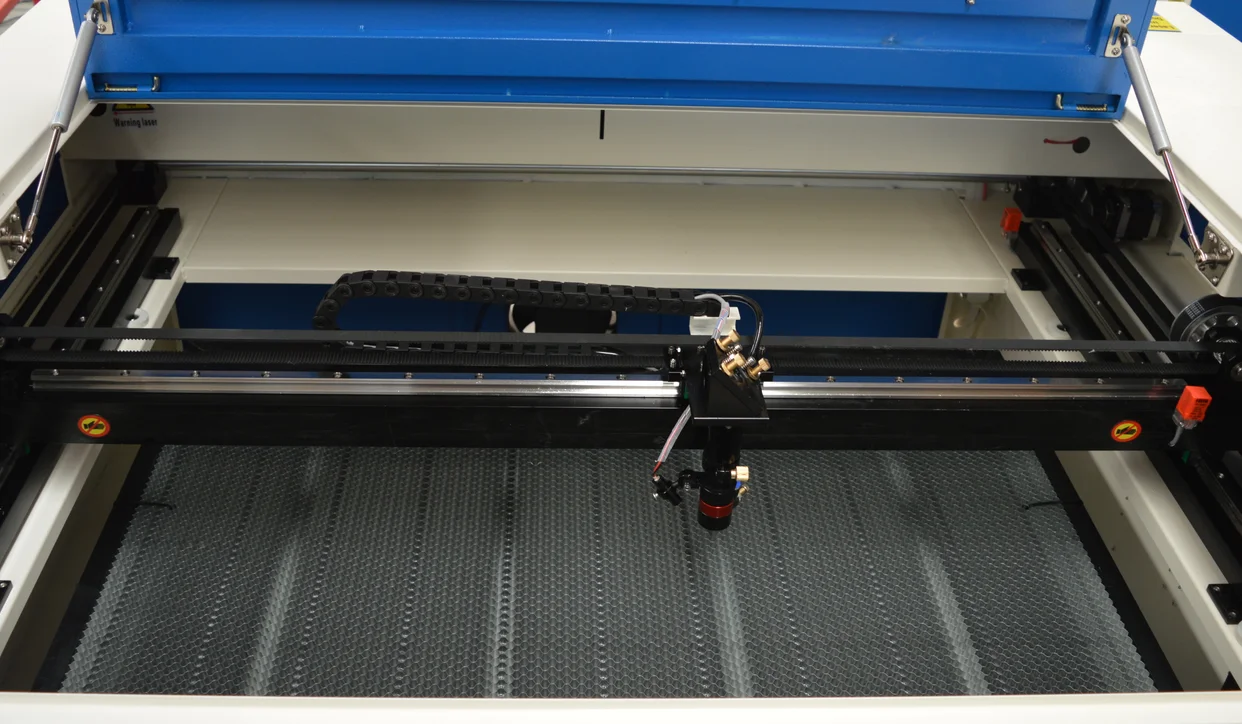

Working Platform
2. Multiple formats to choose 900*600mm/1300*1000mm
3. High strength honeycomb panel
3. High strength honeycomb panel

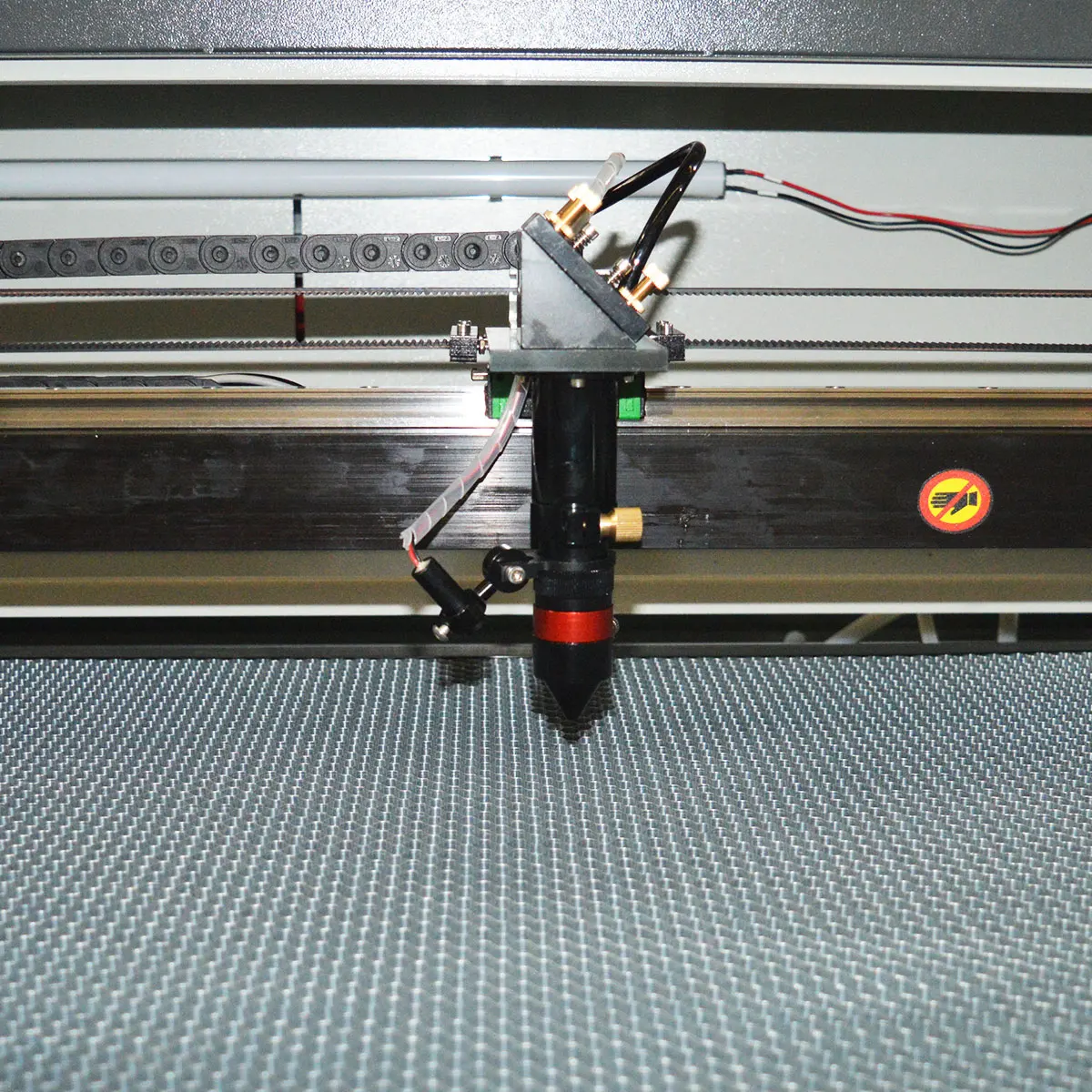

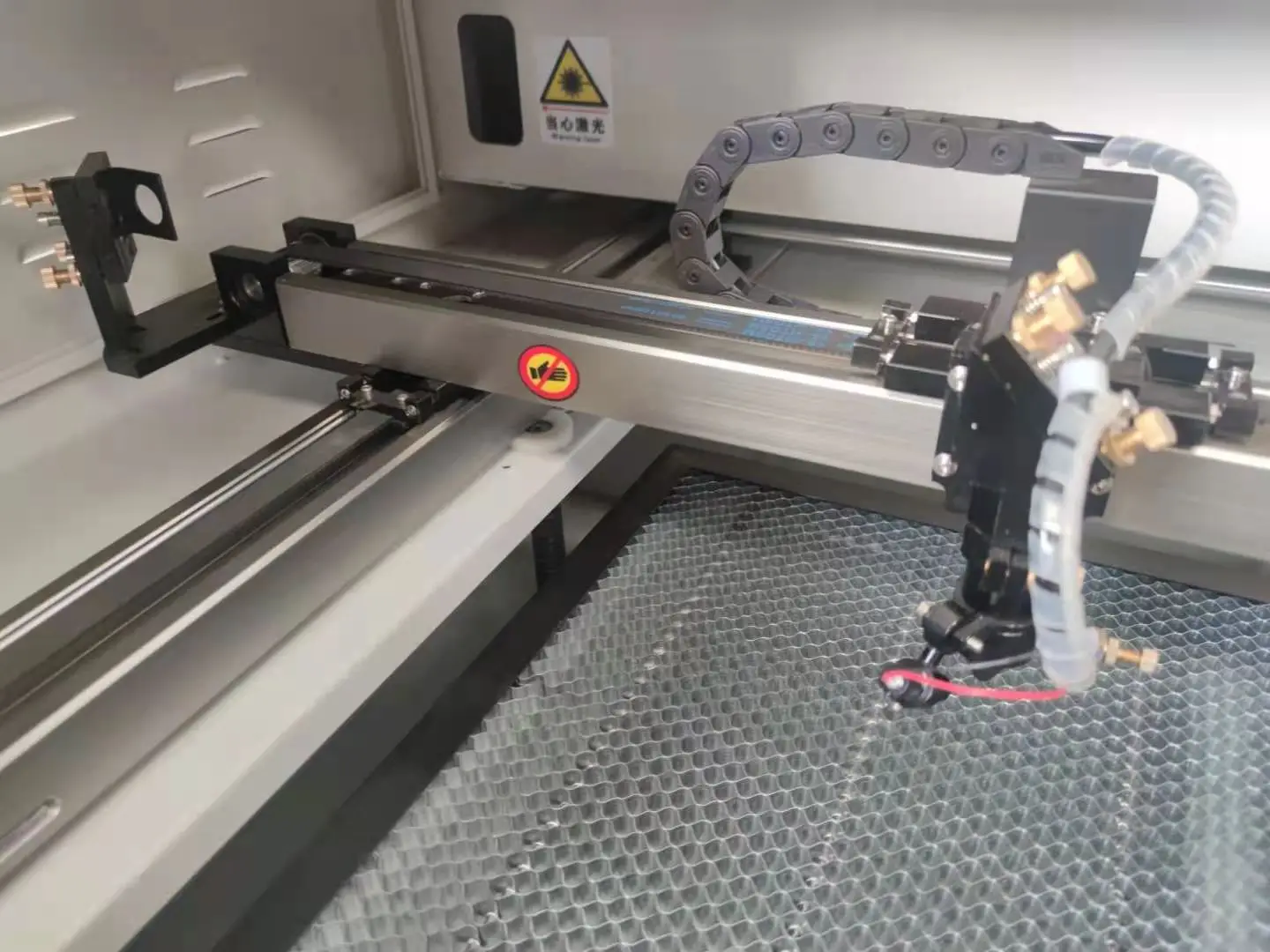

Laser Head
2. D20mm , High quality imported focusing mirror

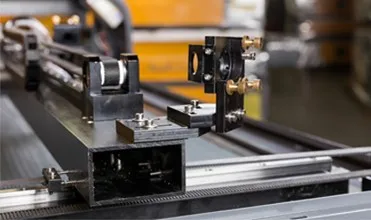

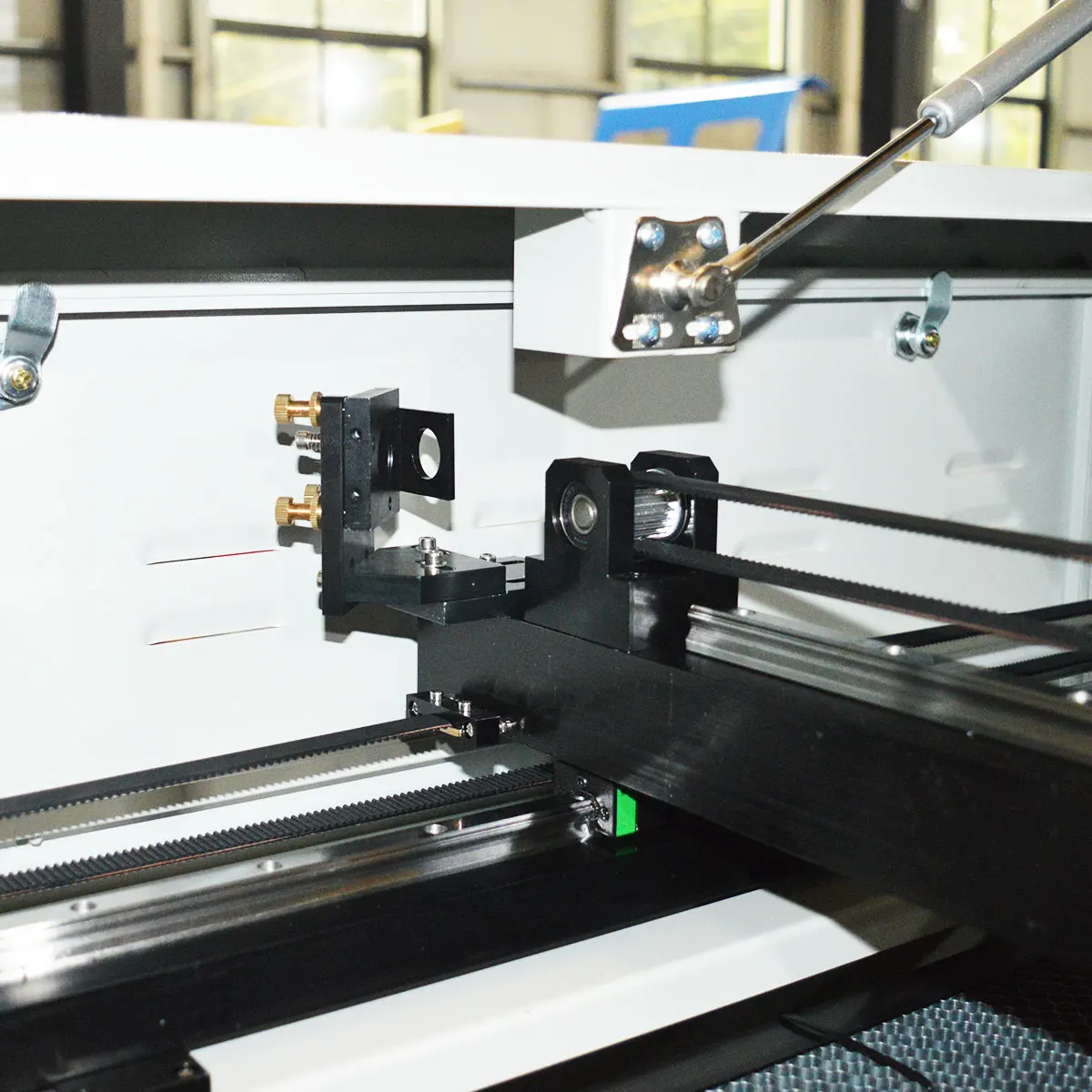

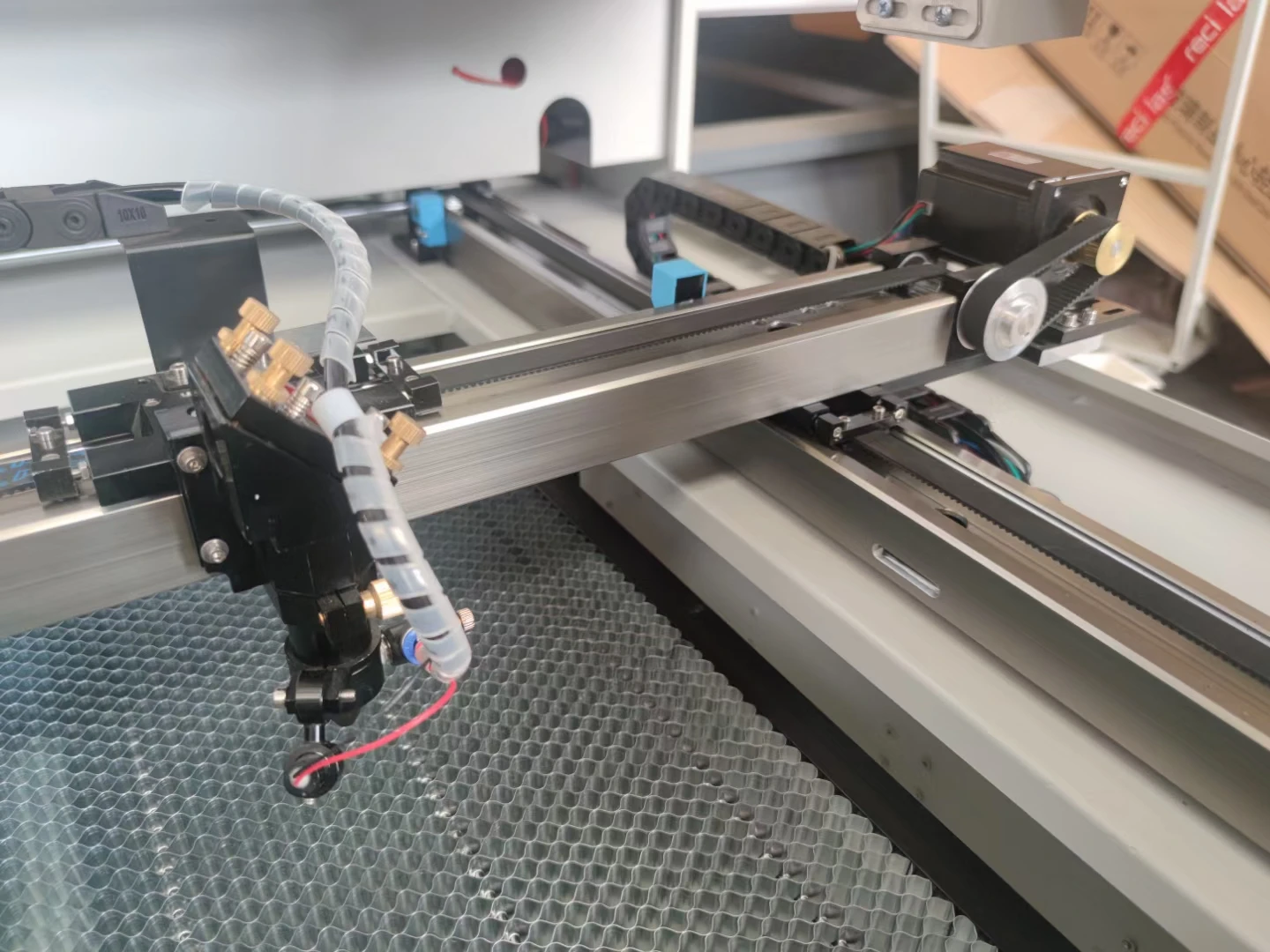

X-axis Motion Module Upgrade
2. 3M widened belt
3. Synchronizing reducer
3. Synchronizing reducer

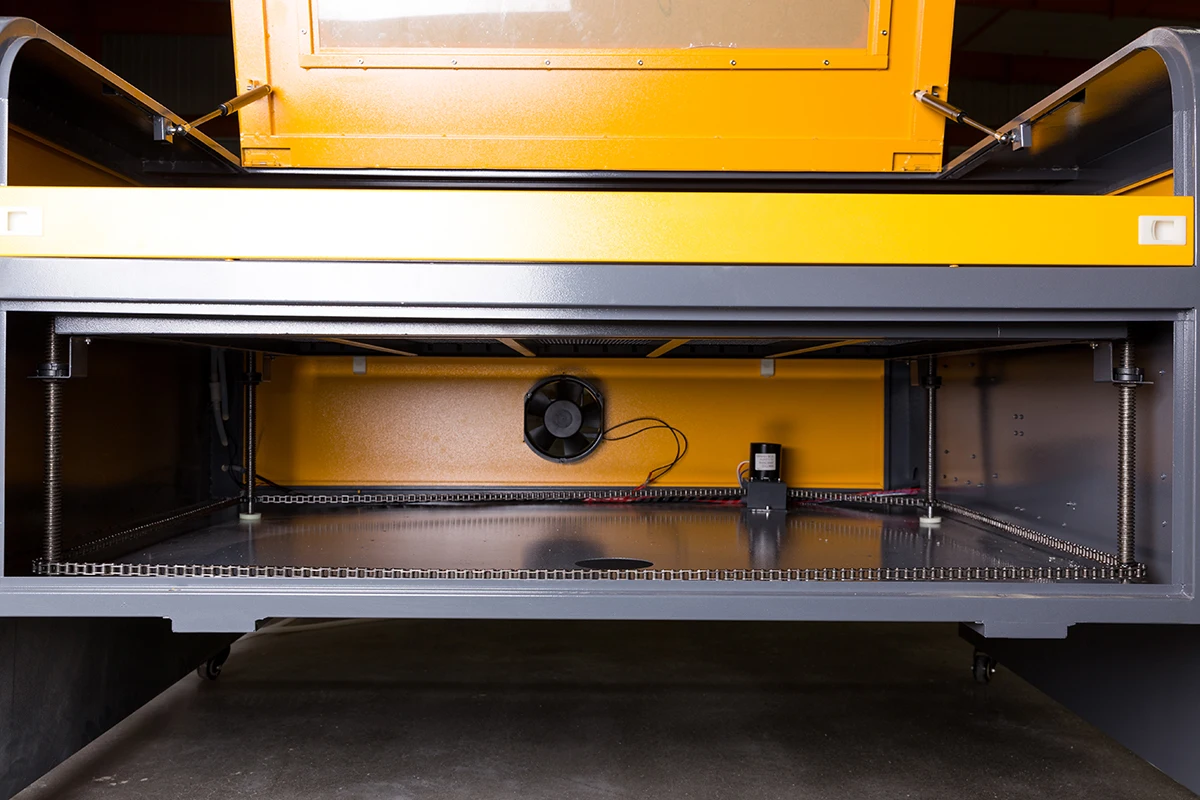

Electric lifting platform
The effective lifting height is about 20cm
2. The effective lifting height of 1390 is about 30cm

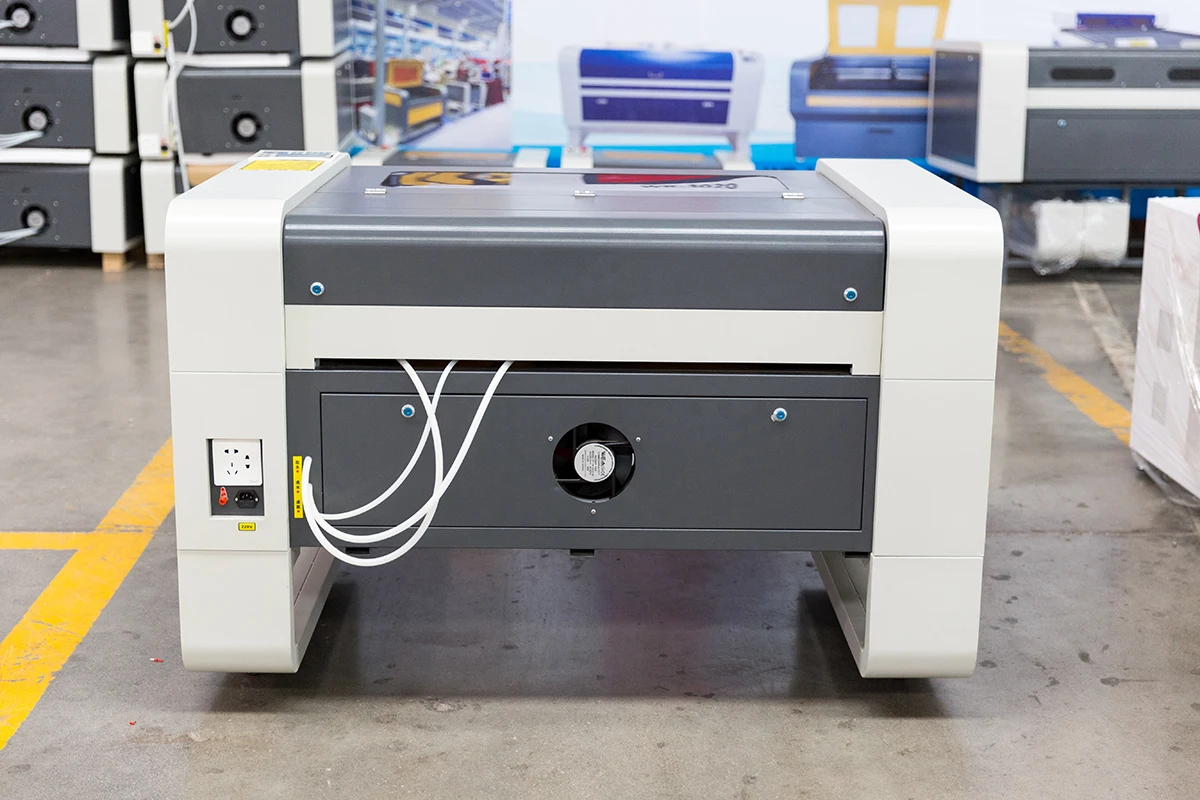

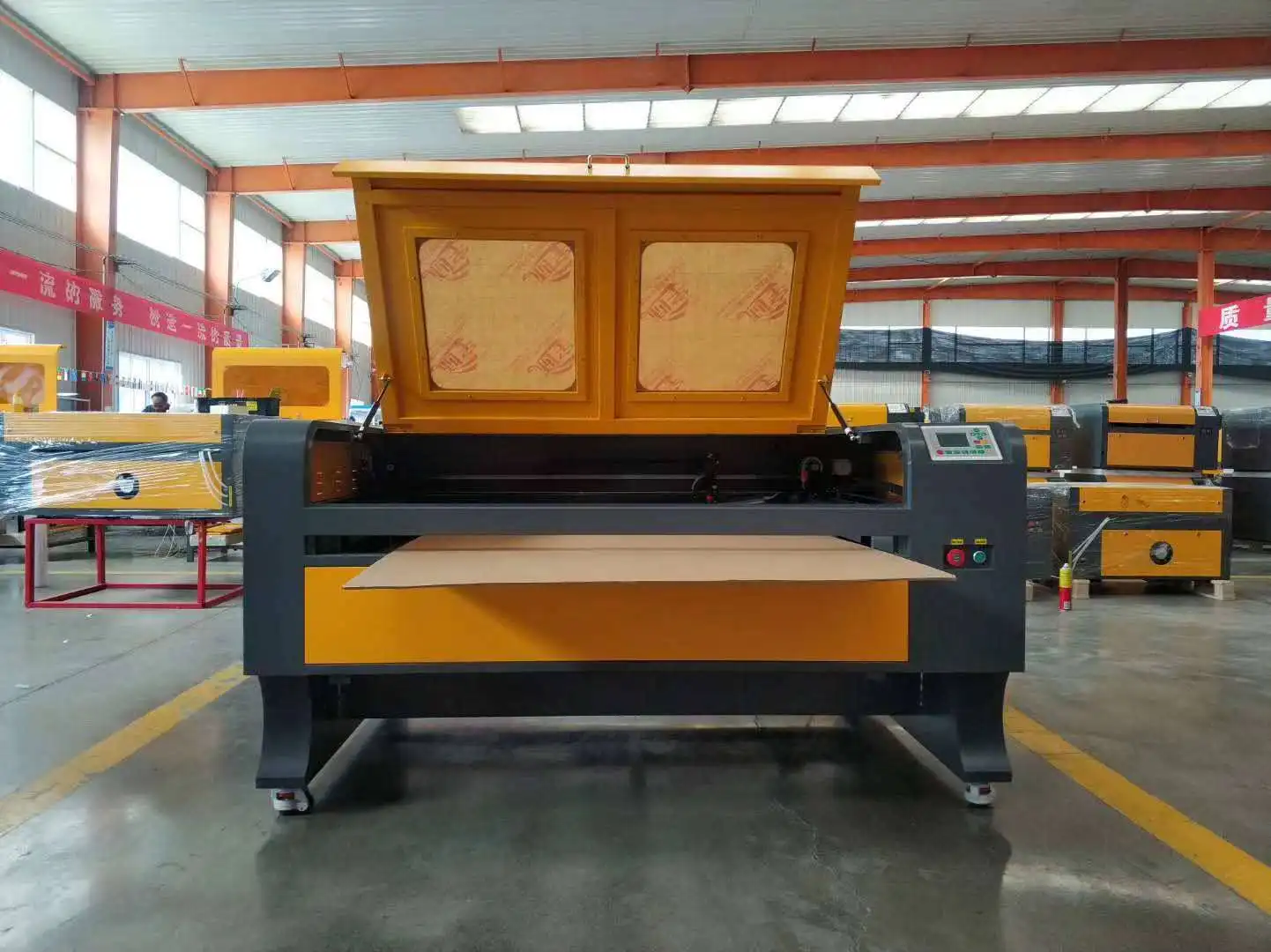

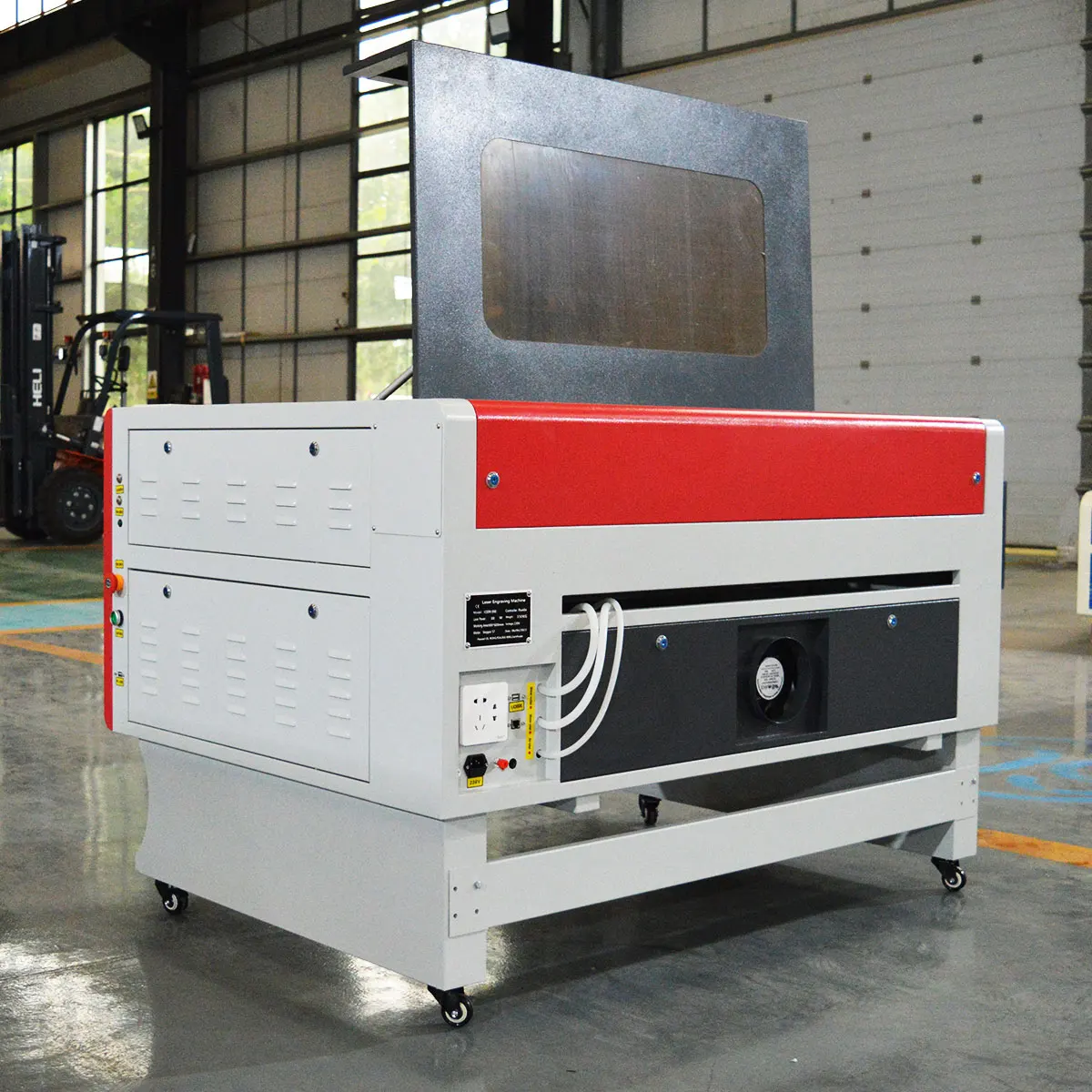

Pass Through
Support large panel front and back through

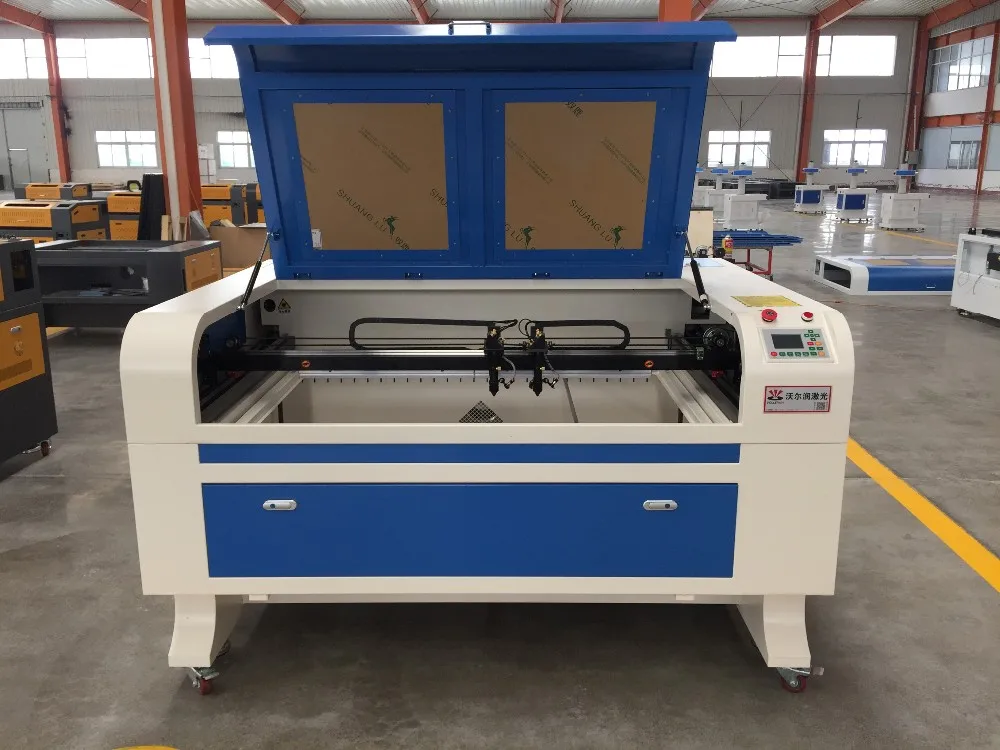

Product Presentation

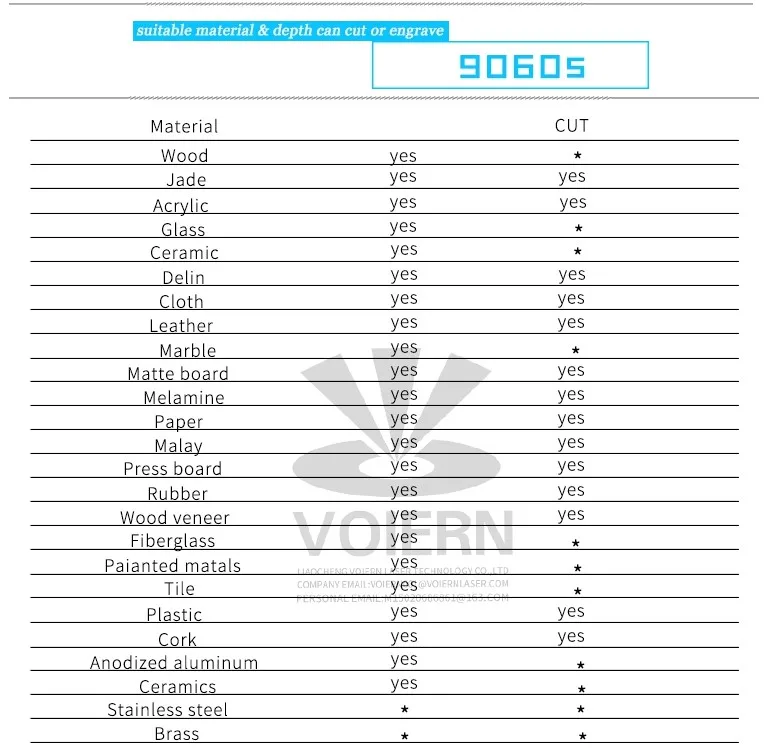

Mainly used for engraving and cutting of non-metallic materials
