Privacy Window Tint Glass Switchable Electric PDLC Smart Film for Glass
US $78.00-$149.00
Shenzhen manufacturer electrochromic smart glass foil
- Category: >>>
- Supplier: Shenzhen Zeelang Glass Co. Ltd.
Share on (1601157963943):
Product Overview
Description
Product Description
Custom Shenzhen manufacturer electrochromic smart glass foil
Smart foil, also called electrochromic foil .It is a product that is capable of adjusting light transmission between transparency and opaque while using AC power.
Smart foil, also called electrochromic foil .It is a product that is capable of adjusting light transmission between transparency and opaque while using AC power.
How to works ?

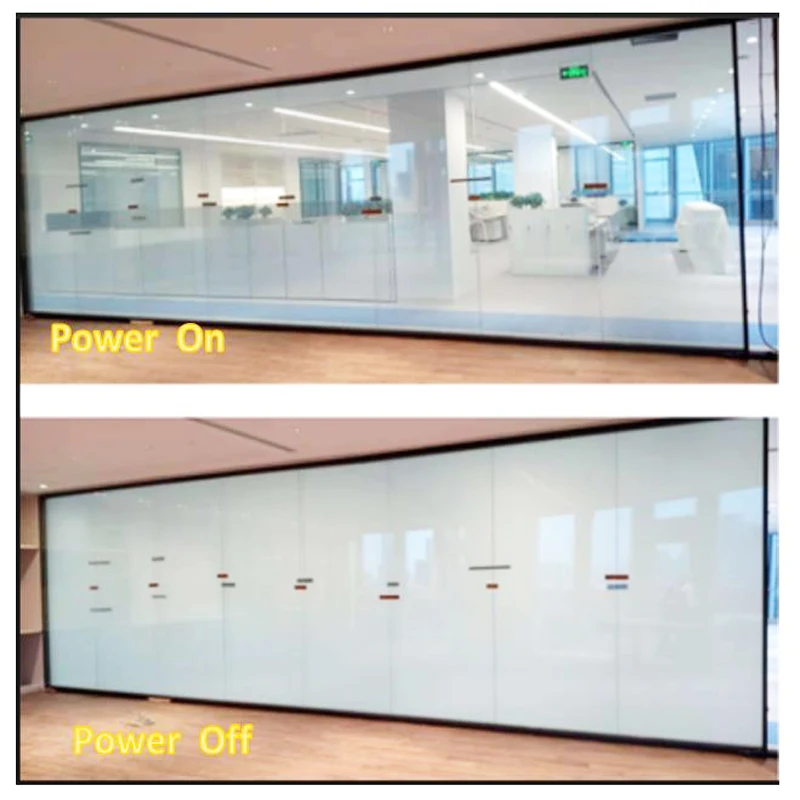

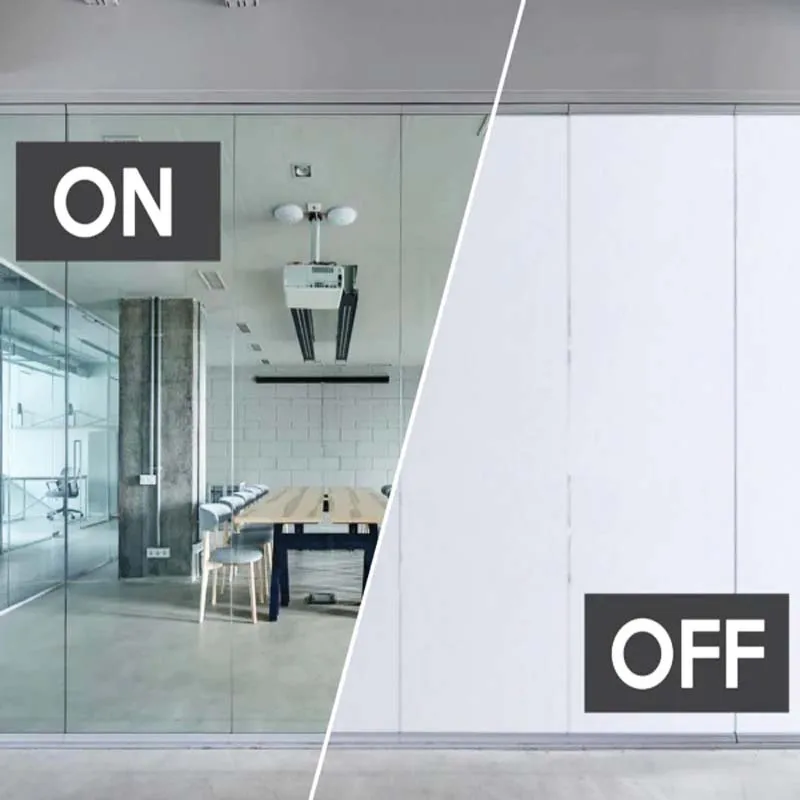

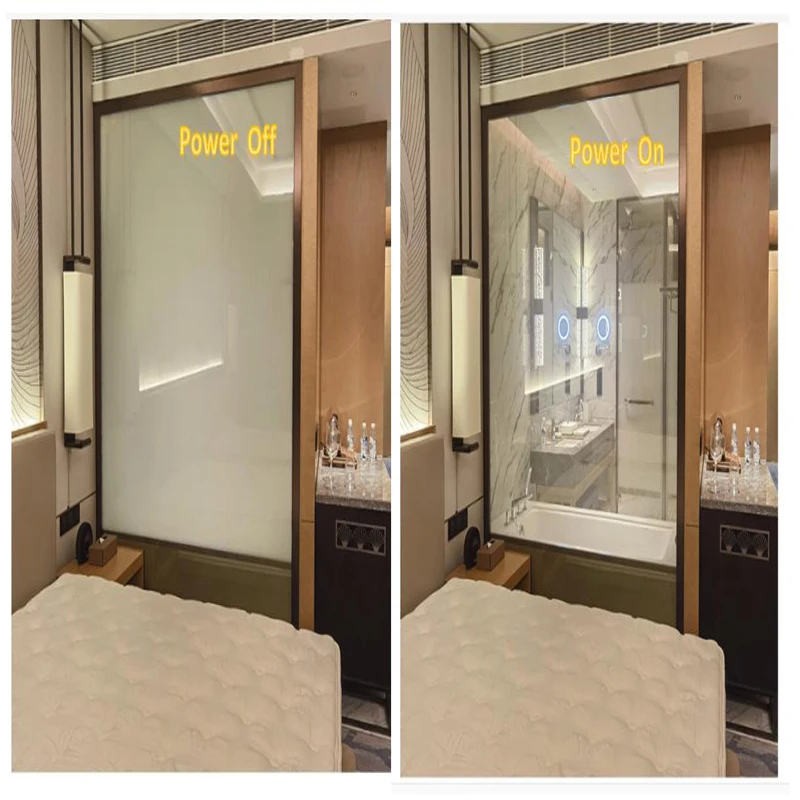

Smart glass foil connection to AC power supply . Film power on , by Changing the orientation of the liquid crystal molecules with an electric field , it is possible to vary the intensity of the transmitted light .
Films power off , as liquid crystal molecules are randomly orientated , restricting lights from passing through .
Films power off , as liquid crystal molecules are randomly orientated , restricting lights from passing through .
Feature
Manufacturing Technique
Technology Data
·Power: On: Transparent, Off: Opaque
·Transmittance: 88% ± 1
·Solar Reduction: up to 40%
·UV Block: more than 98%
·Operating Temperature: -13°F ~ 185°F
·Operating Voltage: 48V (Standard Line Voltage)
·Energy Use: 0.4 Watts/SF
Stability Test
Film passing four kinds of stabilty testing.normal condition as follows:
High Temp. Testing : 80℃× 500 hr
Low Temp. Testing: -10℃× 500 hr
High humidity test: 60℃/95% RH × 500 hr
TCT:-10℃(30min)~80℃(30min) × 10 times
·Power: On: Transparent, Off: Opaque
·Transmittance: 88% ± 1
·Solar Reduction: up to 40%
·UV Block: more than 98%
·Operating Temperature: -13°F ~ 185°F
·Operating Voltage: 48V (Standard Line Voltage)
·Energy Use: 0.4 Watts/SF
Stability Test
Film passing four kinds of stabilty testing.normal condition as follows:
High Temp. Testing : 80℃× 500 hr
Low Temp. Testing: -10℃× 500 hr
High humidity test: 60℃/95% RH × 500 hr
TCT:-10℃(30min)~80℃(30min) × 10 times
Application

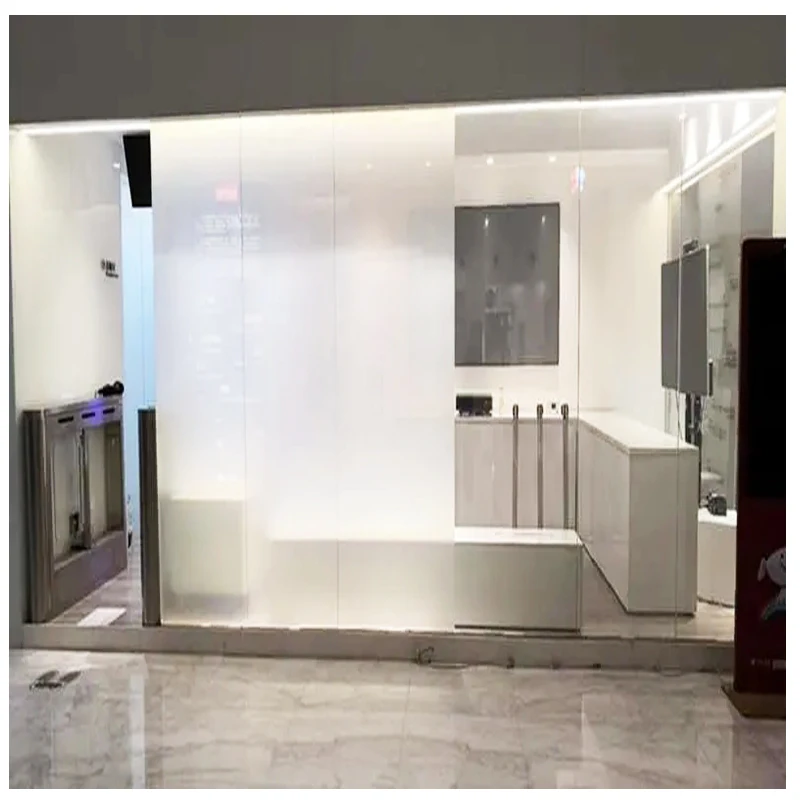

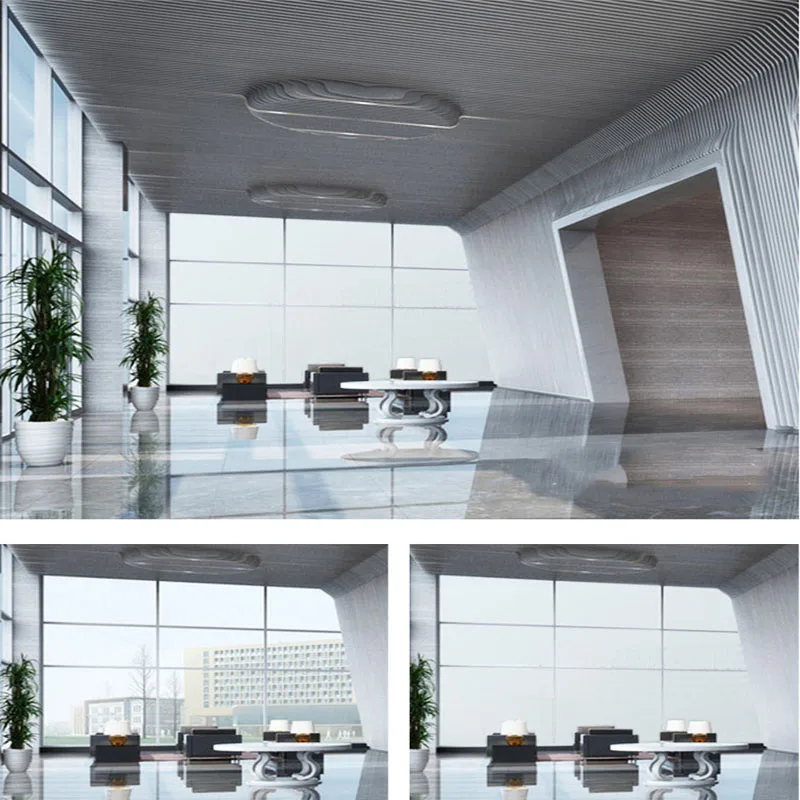

Smart dimming film can be widely used many fields , Like bedroom ,hotel , bank , meeting room , office area , curtain wall ,bathroom ,living room , etc .
Company Profile
Certificates
FAQ
Q: Are you trading company or factory ?
A: We are factory
Q:What is the lead time?
A: Different meeting quantity , the processing time are not same. Small qyt need 3 days . within one week for more qty films
Q. What is the transparency of the privacy smart film?
A: Transparency when turn on including 82%-84%, 86%-88%, 89%-91%.
Q. What is the standard size?
A: With roll wide size , we have 1020mm , 1220mm 1520mm and 1820mm
Length size are 50M
Q.What’s the thickness of film ?
A: The smart PDLC film thickness have 0.3 or 0.5mm
Q.Is the smart film can be curved ?
A:Yes , the film can be curved , but can’t do curved as 90 degree.
Q.Do you have warranty time ?
A:Yes , we offered one year warranty time.
A: We are factory
Q:What is the lead time?
A: Different meeting quantity , the processing time are not same. Small qyt need 3 days . within one week for more qty films
Q. What is the transparency of the privacy smart film?
A: Transparency when turn on including 82%-84%, 86%-88%, 89%-91%.
Q. What is the standard size?
A: With roll wide size , we have 1020mm , 1220mm 1520mm and 1820mm
Length size are 50M
Q.What’s the thickness of film ?
A: The smart PDLC film thickness have 0.3 or 0.5mm
Q.Is the smart film can be curved ?
A:Yes , the film can be curved , but can’t do curved as 90 degree.
Q.Do you have warranty time ?
A:Yes , we offered one year warranty time.
