Android mobile pos system 5 Inch 4G touch screen Handheld Portable mini smart POS Terminal with Printer
- Category: >>>
- Supplier: Orchid Technologies Co. Ltd.
Share on (1601157997005):
Product Overview
Description
Product Introduction
Rugged Smart POS

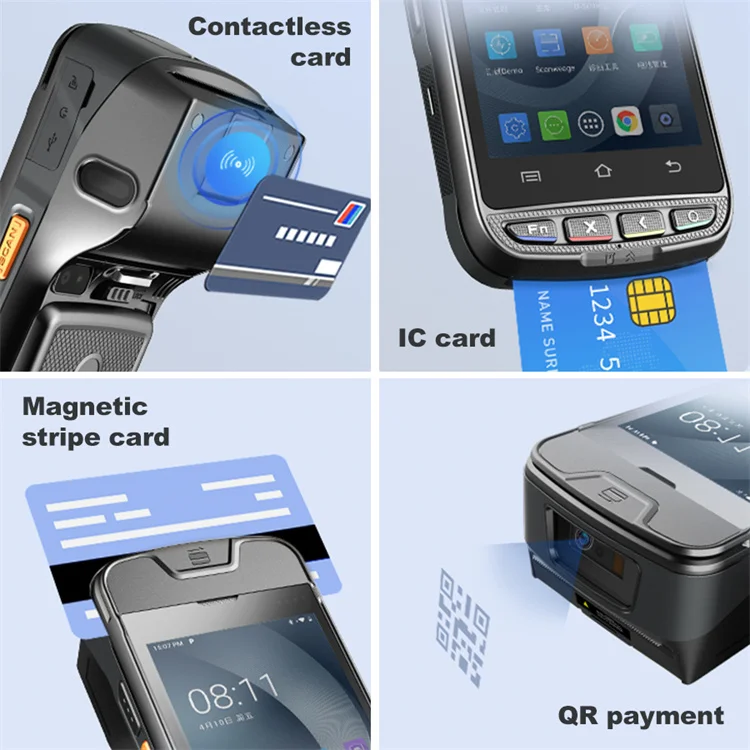

*. Multiple Payment Solutions: MSR, Chip card, NFC, 2D payment, Membership rewards point;
*. Advanced Capacitive Touchscreen: 5" HD(720×1280), Industrial grade sensitivity, works with gloves and wet fingers.
*. Thermal Printer: 2"thermal printer, 30mm paper roll, Supports 2D barcode printing;
*. Powerful Data Collection: 1D or 2D barcode scanning, 5MP camera, GPS positioning;
*. Optional Fingerprint Module.

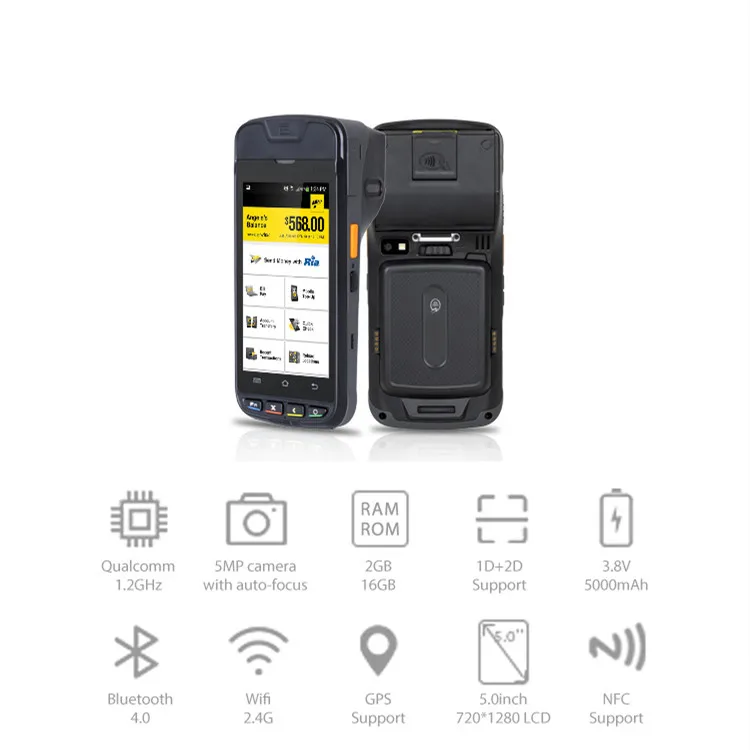

Product Parameters
Basic Characteristics | ||
O.S. | Safedroid OS (based on Android 8.1), supports multi-language | |
CPU | Quad-Core 1.3GHz | |
Display | 5.0 inch TFT-LCD HD (720 x 1280) color screen | |
Panel | Ultra sensitive capacitive touch screen, works with gloves and wet fingers | |
RAM | 1GB 2GB | |
ROM | 8GB 16GB | |
Dimensions | 184mm x 81 mm x 32mm (max 51mm) | |
Weight | 490g (Battery included) | |
Buttons | Front: User definable button x 1, Cancel button x 1, Confir button x 1 , Clear button x 1 Side: The volume switch button, Power button | |
Input | Handwriting and soft keyboard | |
Barcode Scanner | Camera on top | |
Radio Communication | ||
Wi-Fi | 802.11 b/g/n wireless communication | |
BT | BT 4.1 | |
Radio Communication | 4G TDD-LTE: B40 FDD-FTE: B1/B2/B3/B4/B5/B7/B8/B20 3G UMTS(WCDMA)/ HSPA+: 850/900/1900/2100MHz 2G GSM/EDGE/GPRS/CDMA: 850/900/1800/1900MHz | |
Power | ||
Main Battery | Rechargeable 3.8V, 5000mAh lithium polymer battery pack (Typical Operation time ≥8 hours | |
RTC Battery | Real time clock battery | |
Payment | ||
Magcard | Supports ISO7811/7812/7813, and supports triple track (tracks 1/ 2/ 3), bi-directional | |
Chip Card | Supports ISO7816 standard | |
Contactless Cards | Supports 15693;Supports 14443A / 14443B; Supports 10MHz~20MHz frequency, and Reading time less than 300 milliseconds | |

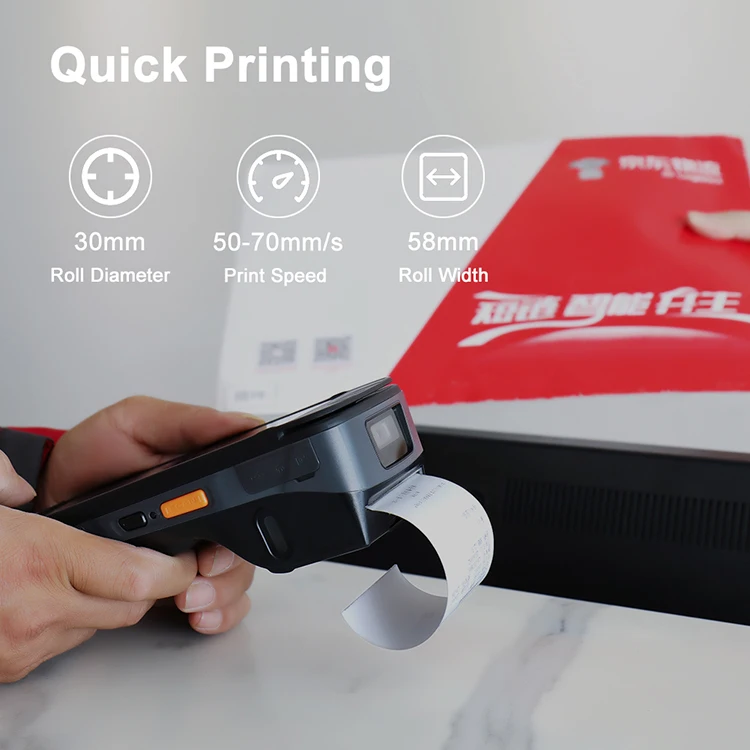

58mm printing paper, 203dpi / 8dot / mm; Printing speed: 50~70mm/s, and supports barcode printing , 30mm media roll size. | ||
Expansion and Peripherals | ||

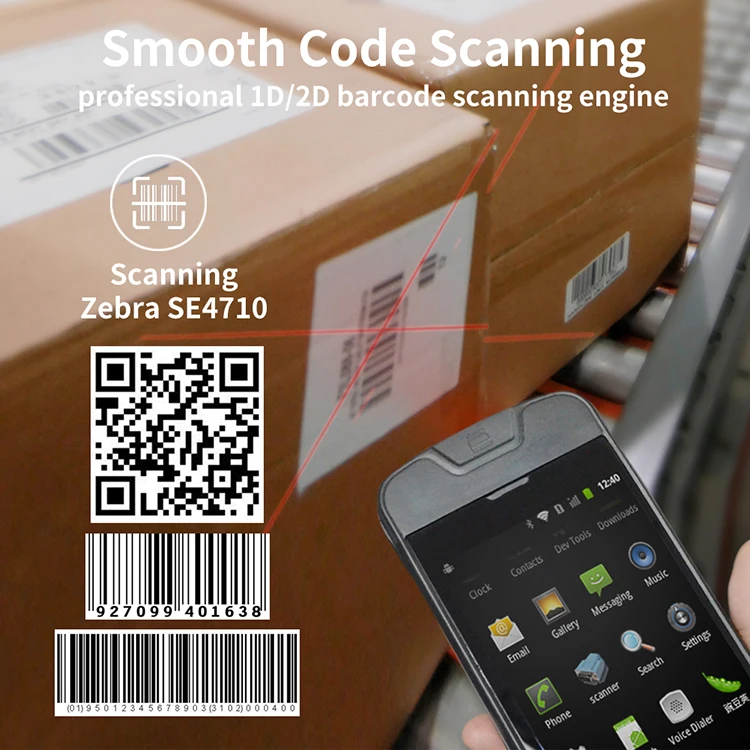

Camera | 5MP auto-focus camera with flash on top. Support 1D/2D bar codes decoding | |
GPS | GPS, Supports A-GPS, GLONASS, Beidou | |
Slot | Micro SD/TF x 1(a maximum of 32 GB), SIM x 1, | |
PSAM | SAM x 2 Conforms to ISO7816 standard | |
Interfaces | Mini USB x 1, Pogo pin x 1, 3.5mm Audio Jack x 1, DC Jack | |
Audio | Speaker | |
Accessories | ||
Standard | Power adaptor, Data line, One battery. | |
Optional | Dual-Slot Battery Charger, Carrying Pouch, Cradle, Hand Strap, Stylus, Media roll, Fingerprint Module | |
User Environment | ||
Operating Temp. | -10~50℃(14~122℉) | |
Storage Temp. | -40~70℃(-40~158℉) | |
Humidity | 5% ~ 95% (non condensing) | |
Drop Durability | 1.3m | |
Product Certification | ||

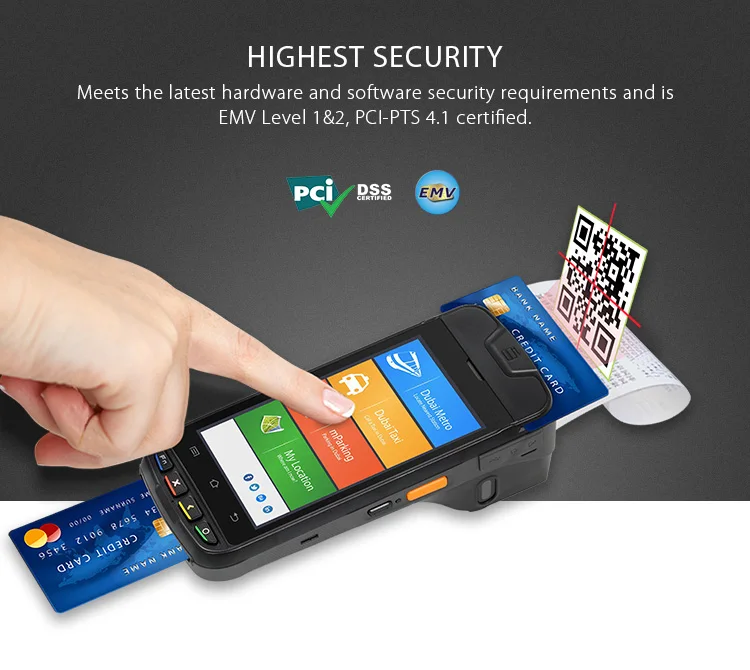

Certification | CCC, CE, FCC, RoHS, PCI, EMV LEVEL | |
Detailed Images
Product Description
Company Profile
Certifications
Packing & Transportation
FAQ
Q: How about your products' quality?
A: As a global manufacturer of IoT devices system for more than 15 years, we are the long-term partner of more than 150 customers in over 70 countries. Sample is available before mass production.Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: Please contact us freely. We supply online training and inspection. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 5-10 days for sample orders. 15-40 days for mass production orders (based on quantities).
Q: How will you deliver?
A:By air, by sea or as your request. We cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: Can you offer ODM service?
A: Yes,we have offered ODM services to top brands in the world.
