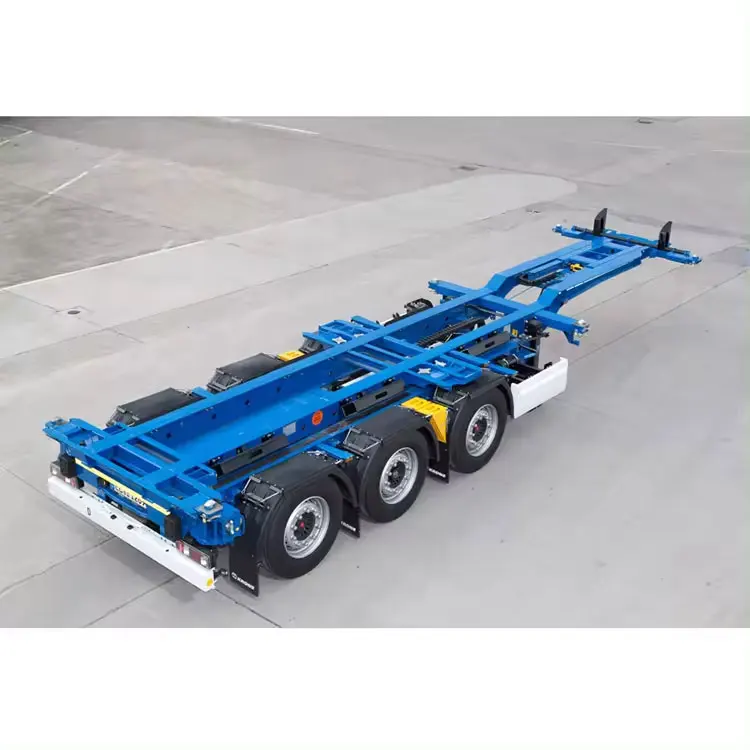

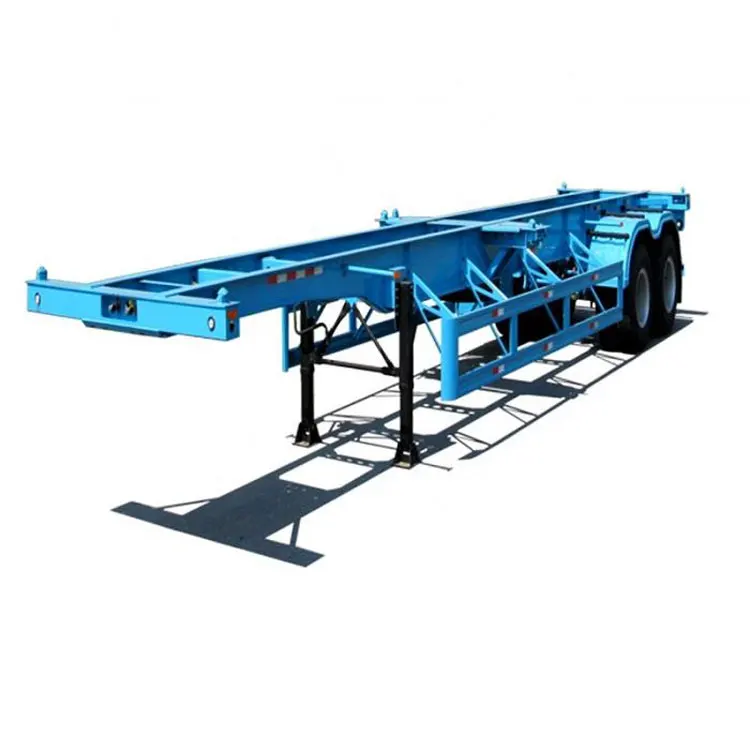

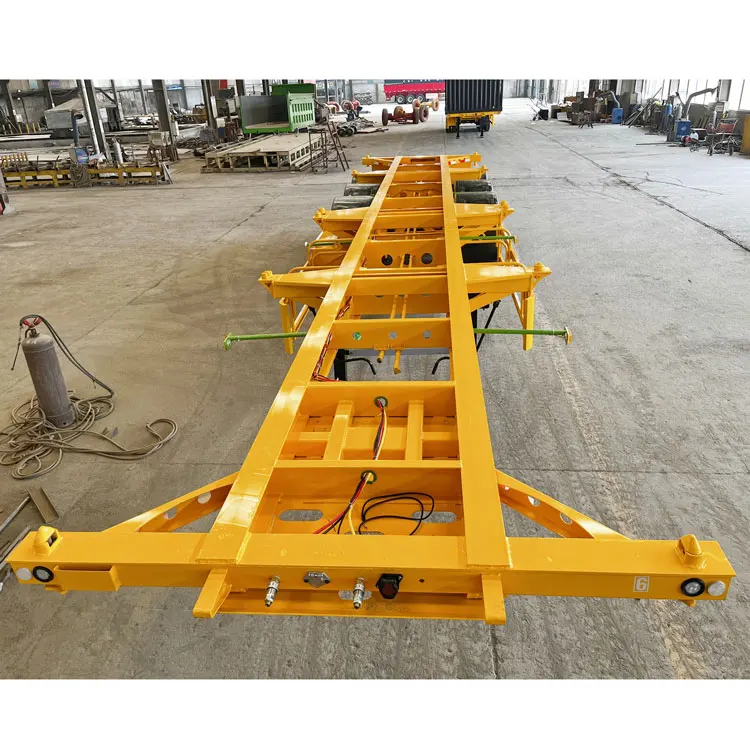

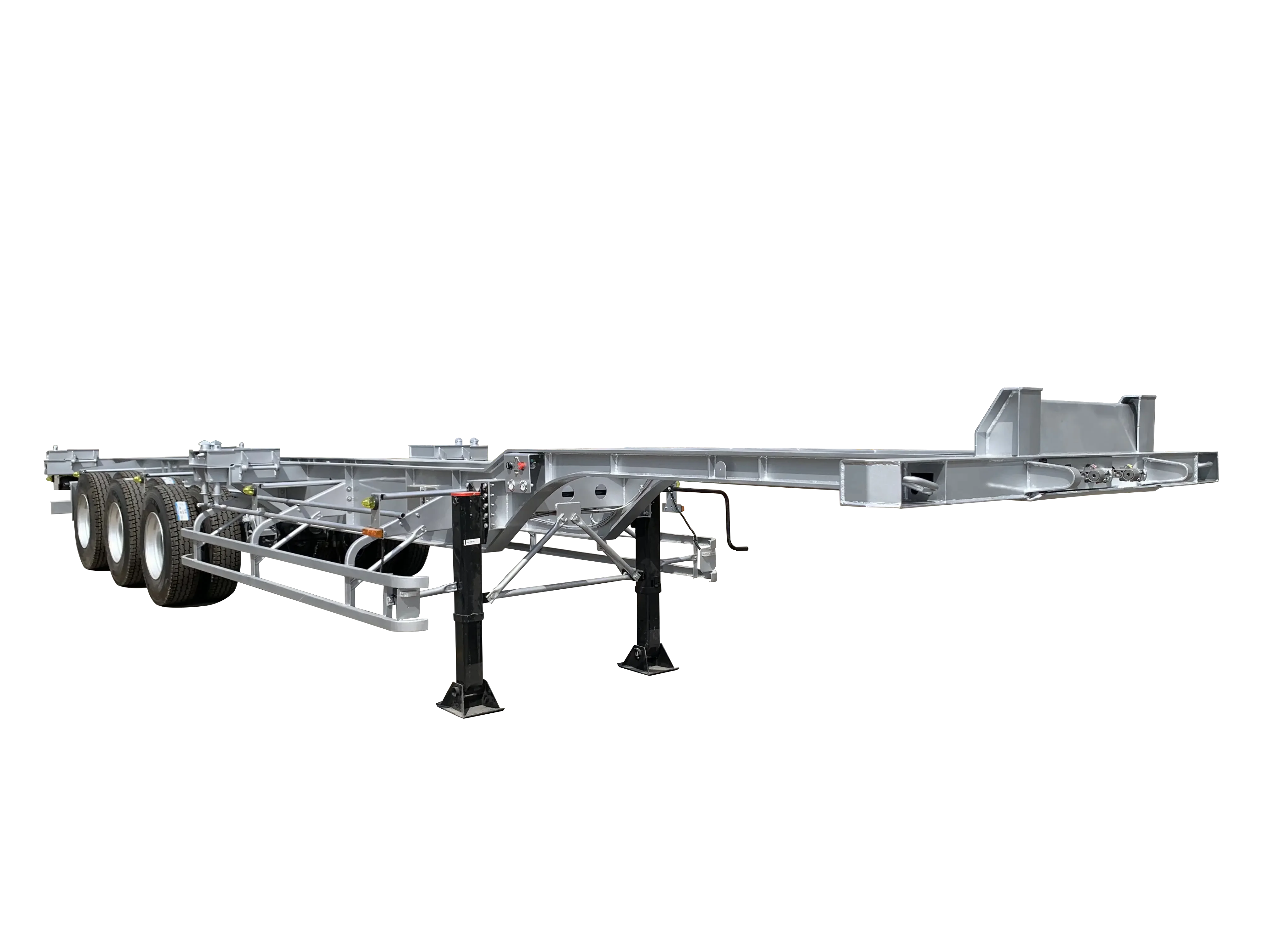

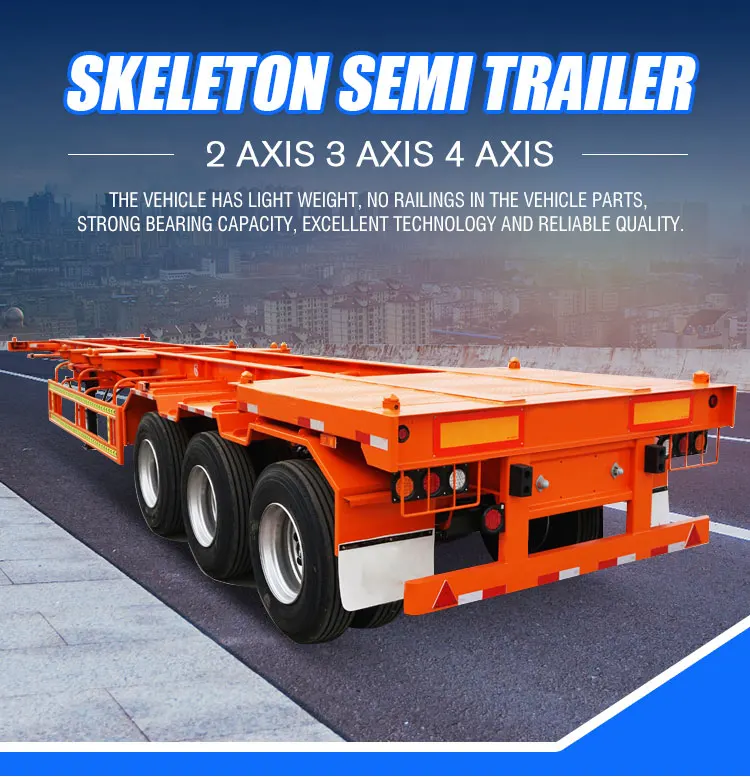

Factory Price 3axles 20ft 40ft Frame Shipping Chassis Skeletal Skeleton Semi Trailer 40ft Container Trailer
- Category: >>>
- Supplier: Liangshan Huayuan Freight Service Co. Ltd
Share on (1601158010074):
Product Overview
Description

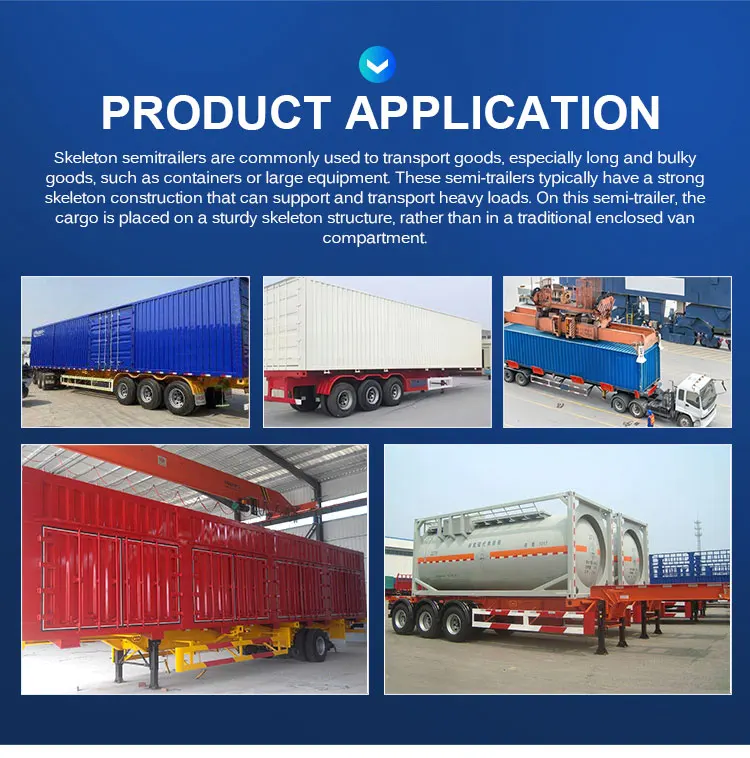

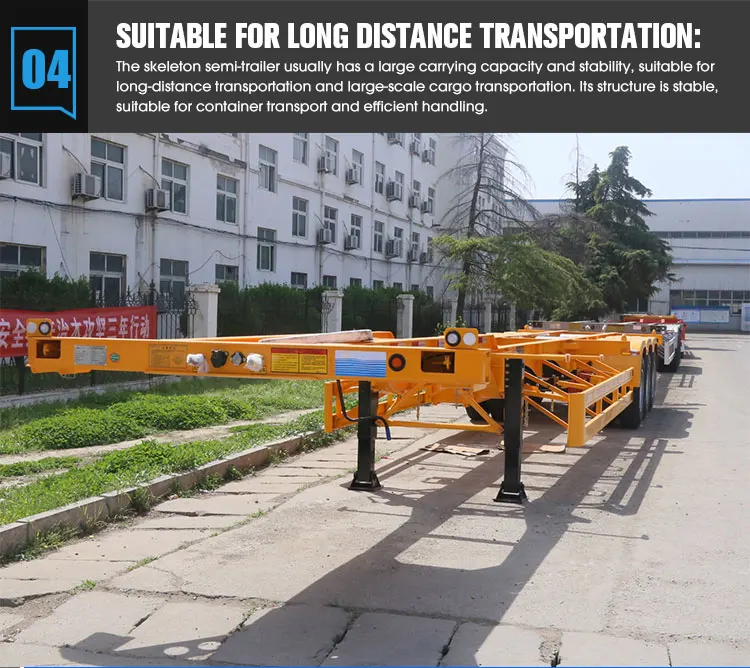

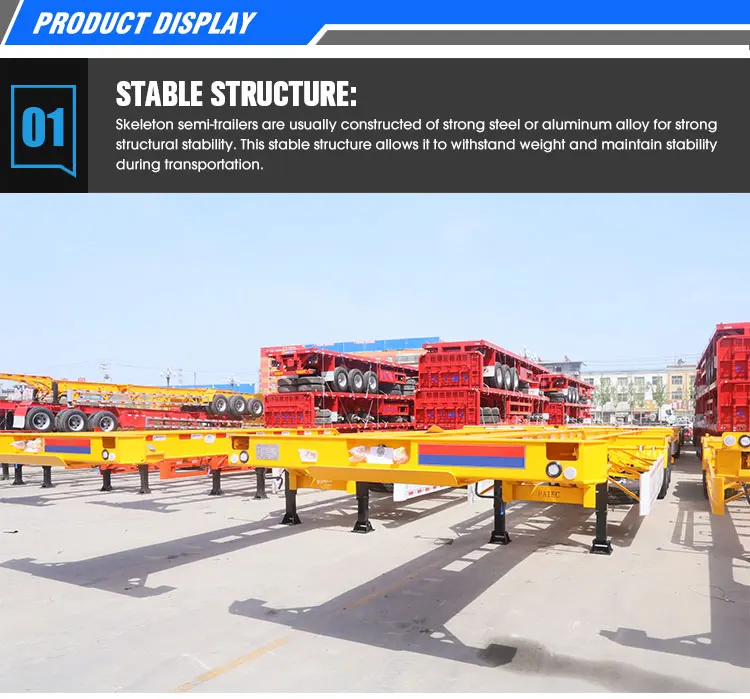

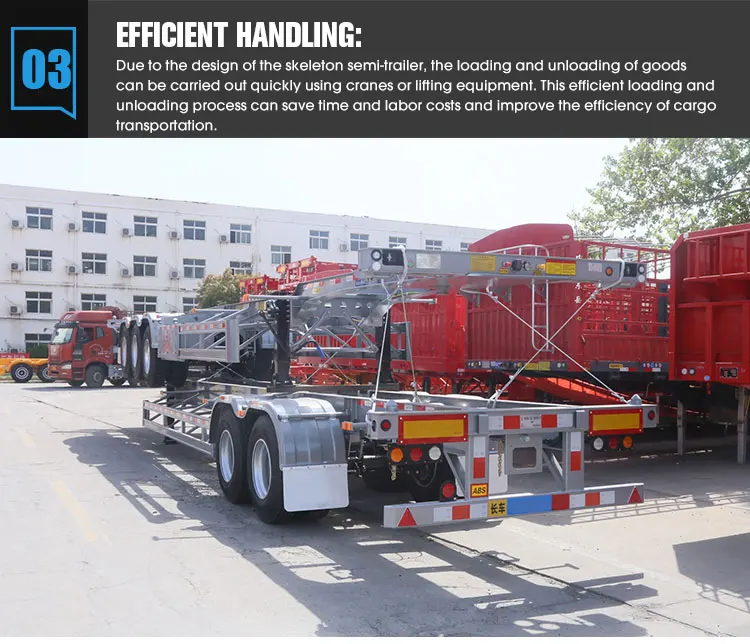

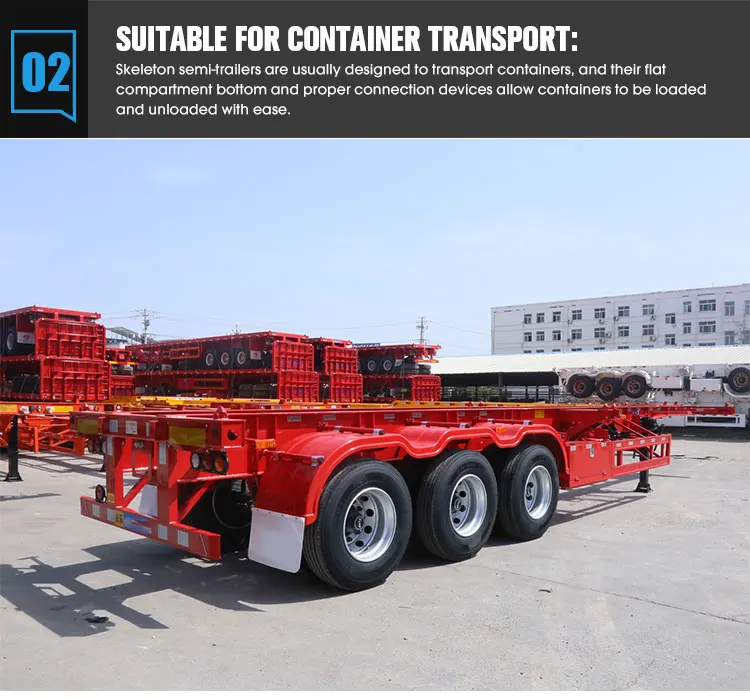

The design of the skeleton semi-trailer enables it to quickly load and unload cargo via cranes or lifting equipment. They are commonly used to transport containers that can be easily unloaded from cargo ships, trains or other means of transport and loaded directly onto semi-trailers. It has high carrying capacity and stability, suitable for long-distance transportation and large-scale cargo transportation.
Product Name | 20FT Container chassis Semi Trailer | 40FT Skeletal Container chassis Trailer | |

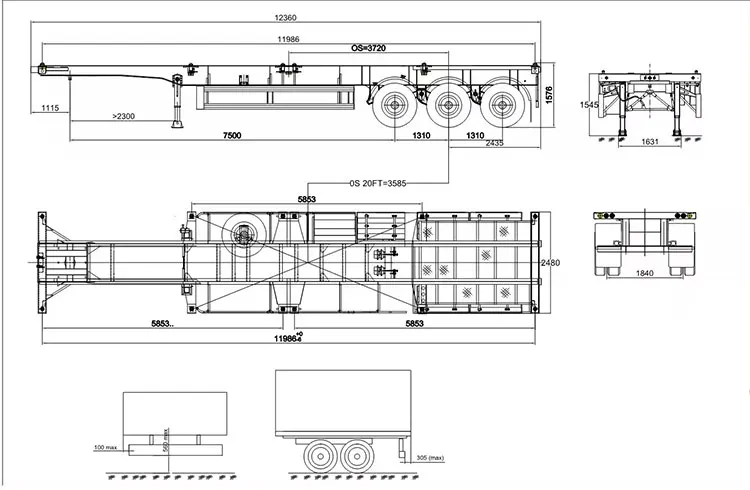

Dimension | 7500*2500*1550mm | 12500*2500*1550mm | |

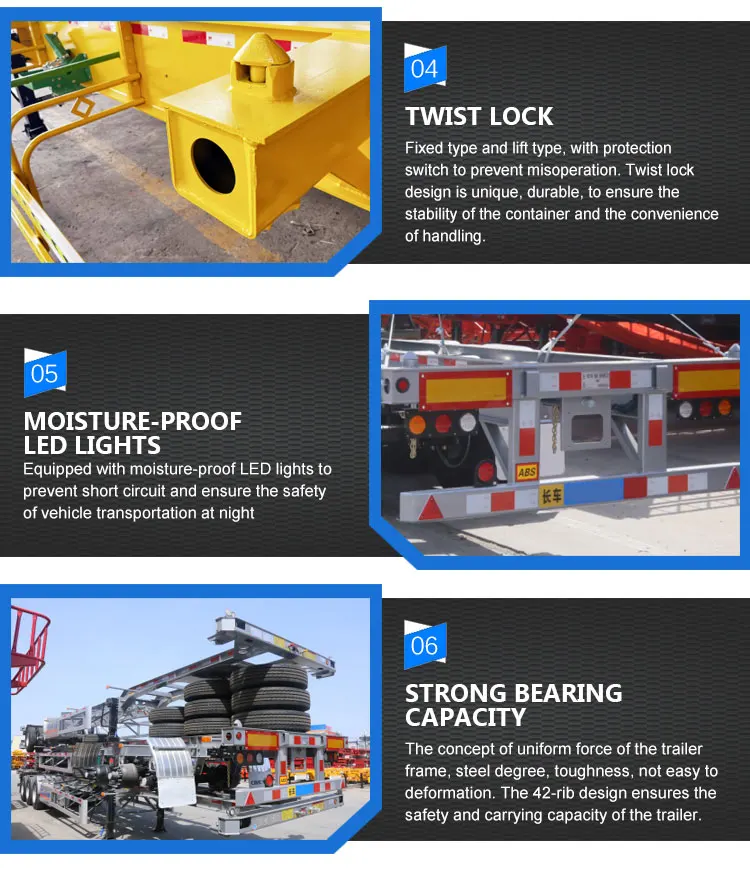

Twist Lock | 4/8 set ISO Standard | 12/14 set ISO Standard | |

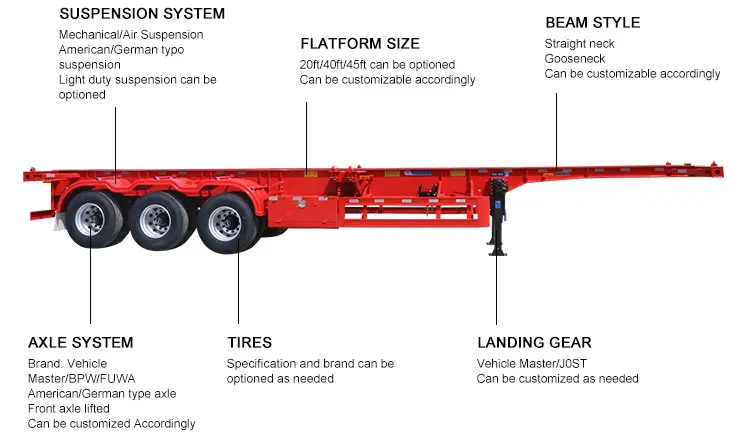

Suspenssion | Mechanical / Air / Bogie | Mechanical / Air / Bogie | |

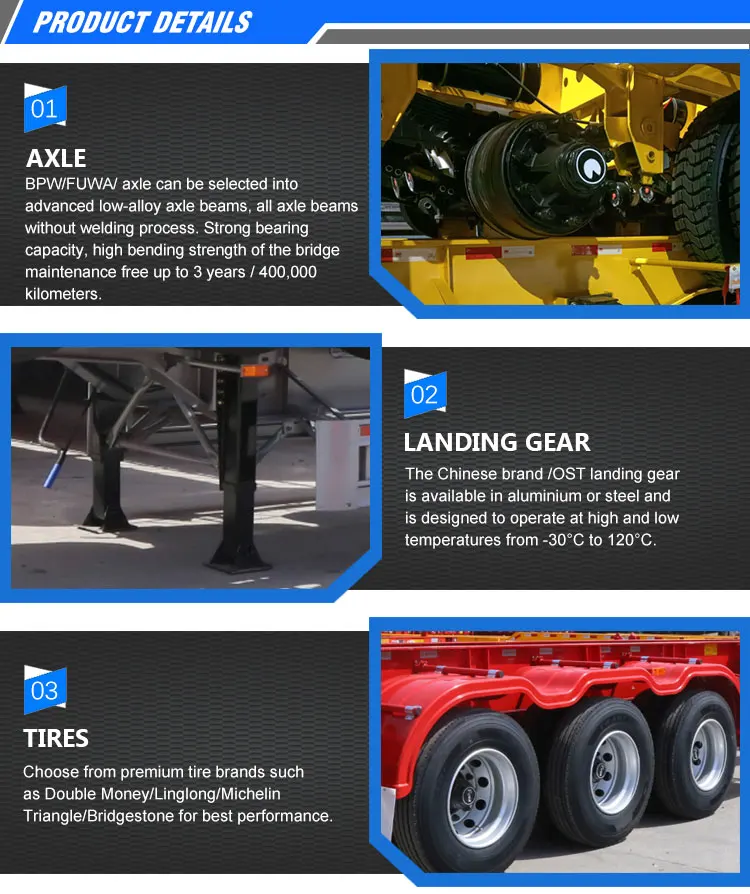

Axle | 2/3 axles BPW/FUWA/PDME | 2/3/4 axles BPW/FUWA/PDME | |
Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum | 8/12/16 pieces 9.0-22.5 Steel/Aluminum | |
Tire | 8/12 pieces 12R22.5 | 8/12/16 pieces 12R22.5 | |
Chamber | 4/6sets T30/30 | 4/6/8 sets T30/30 | |
Brake Valve | WABCO | ||
Main Beam | "I" Section 500mm hieght Q345/T700 matirial | ||
Upper plate | 14mm | ||
Lower plate | 16mm | ||
Mid Web | 8mm | ||
Height | 500-520mm | ||
Air Tank | 28L | ||
Brake Pipe | Nylon Wire Pipe | ||
Support Leg | 28T Lifting JOST/YAHUA | ||
Kingpin | 2"(50mm)/3.5"(90mm) JOST | ||
Lights | 12v/24v LED Waterproof | ||
Ensure that the side curtain is intact and not torn or worn, so as not to be further damaged during transportation. Use wooden boxes, foam, plastic film and other materials to pack the fragile parts, while using ropes or plastic belts to secure the vehicle.
