HTE M36 FD1 Multi stage Spring Automatic Recovery Hydraulic Bolt Tensioner For Wind Power
- Category: >>>
- Supplier: Xianheng International Science&technology Co. Ltd.
Share on (1601158645274):
Product Overview
Description
Products Description

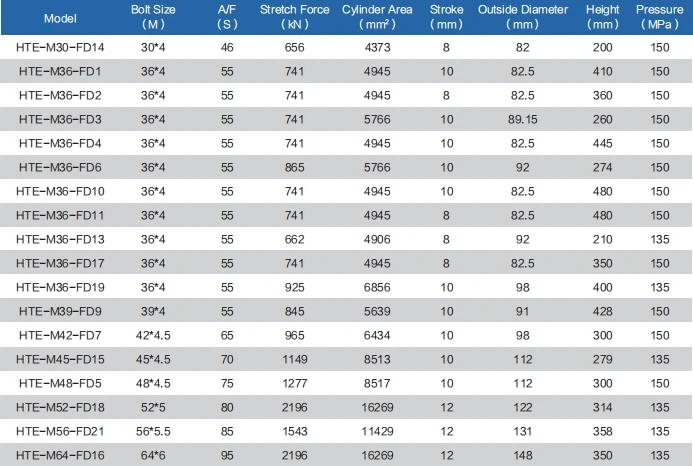

Model | HTE-M36-FD1 |
Bolt Size（M） | 36*4 |
A/F（S） | 55 |
Stretch Force（kN） | 741 |
Cylinder Area（mm2） | 4945 |
Stroke（mm） | 10 |
Outside Diameter（mm） | 82.5 |
Height（mm） | 200 |
Pressure（MPa） | 150 |
1. With lightweight, fast, efficient, accurate and other advantages
2. Smaller outside diameter with strong pull, suitable to use in narrow spaces
3. Spring automatic recovery, with over stroke protection, suitable for frequent use
4. 700 -1500bar working pressure
5. Can work with ultra-high pressure electric stretch pump
2. Smaller outside diameter with strong pull, suitable to use in narrow spaces
3. Spring automatic recovery, with over stroke protection, suitable for frequent use
4. 700 -1500bar working pressure
5. Can work with ultra-high pressure electric stretch pump
1.How about the payment terms?
30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available,
we can discuss in details.
2.ls the whole working procedure finished by your workshop?
90% procedures are finished in our workshop, so we can control strictly the quality of components and finished products. Surface color treatment is done outside but we check each batch incoming materials.
3.How do you guarantee your quality?
Firstly, quality test in every process. We produce most components by ourselves, started from cutting raw material, machining roughly in the first step, casting, forging, punching, heat treatment, finish machining,painting, assembling and finally packing,we will spot check for each step.Secondly, we collect all comments on our products from customers, then improve quality.
4.What about lead time and stock status?
We have stock for our best-selling products and most models, so we can shorten delivery time to 3 days and even 1 day after order confirmation.
5. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
6.What support can I get?
We will provide training support, marketing support, technical support and supply chain support.You can contact us for more information.
7.Where is your factory located? Can I visit your factory?
We are in Hangzhou city, east China. We are near to international airport and 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcomed.
8.Do you provide guarantee for the products?
Yes, we offer whole set 2 years warranty,can extend to 3 years with fee.
we can discuss in details.
2.ls the whole working procedure finished by your workshop?
90% procedures are finished in our workshop, so we can control strictly the quality of components and finished products. Surface color treatment is done outside but we check each batch incoming materials.
3.How do you guarantee your quality?
Firstly, quality test in every process. We produce most components by ourselves, started from cutting raw material, machining roughly in the first step, casting, forging, punching, heat treatment, finish machining,painting, assembling and finally packing,we will spot check for each step.Secondly, we collect all comments on our products from customers, then improve quality.
4.What about lead time and stock status?
We have stock for our best-selling products and most models, so we can shorten delivery time to 3 days and even 1 day after order confirmation.
5. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
6.What support can I get?
We will provide training support, marketing support, technical support and supply chain support.You can contact us for more information.
7.Where is your factory located? Can I visit your factory?
We are in Hangzhou city, east China. We are near to international airport and 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcomed.
8.Do you provide guarantee for the products?
Yes, we offer whole set 2 years warranty,can extend to 3 years with fee.
