Factory grinding cnc machine oil mist collector oil smoke fume coolant gas collection extractor
- Category: >>>
- Supplier: Kwlid (jiangsu) Intelligent Equipment Manufacturing Co. Ltd.
Share on (1601158680696):
Product Overview
Description
Product Description
Oil mist purifier is installed on various machine tools such as CNC machining centers, grinders, and lathes to collect and purify environmental pollutants such as oil mist, water mist, and dust generated during mechanical processing. It is an effective tool for energy conservation, emission reduction, improvement of workshop environment, and resource recycling!
we mainly produce centrifugal vertical oil mist collector and intelligent electrostaic oil mist collector.

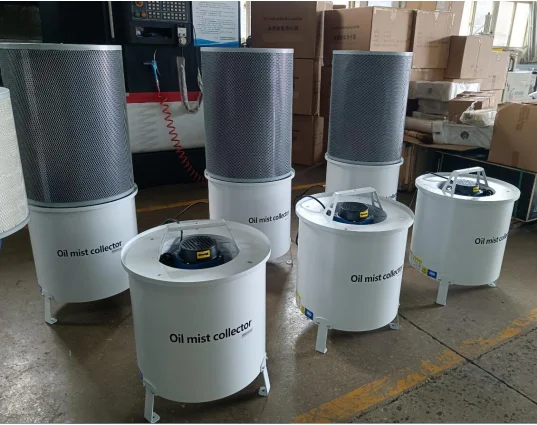

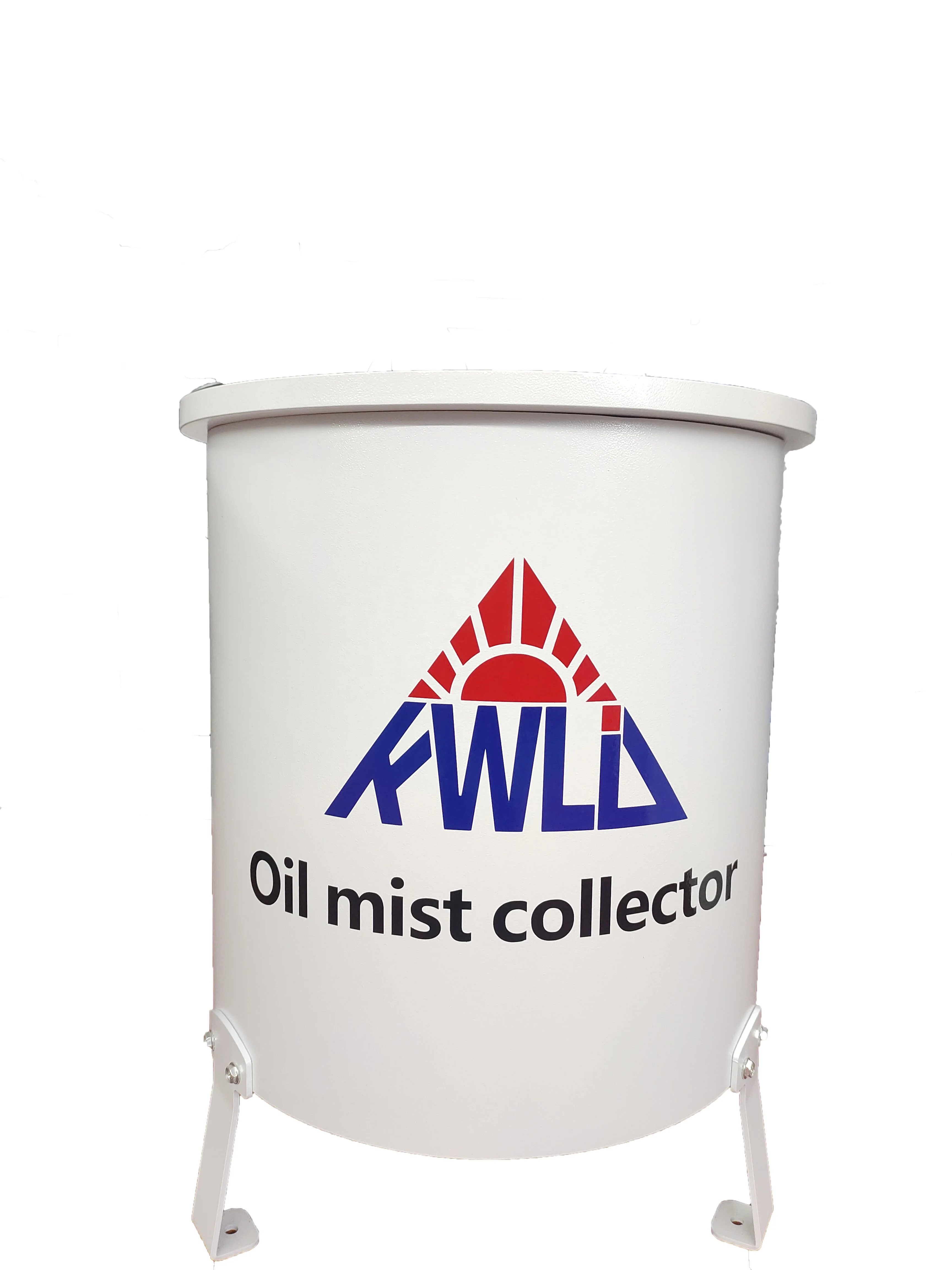

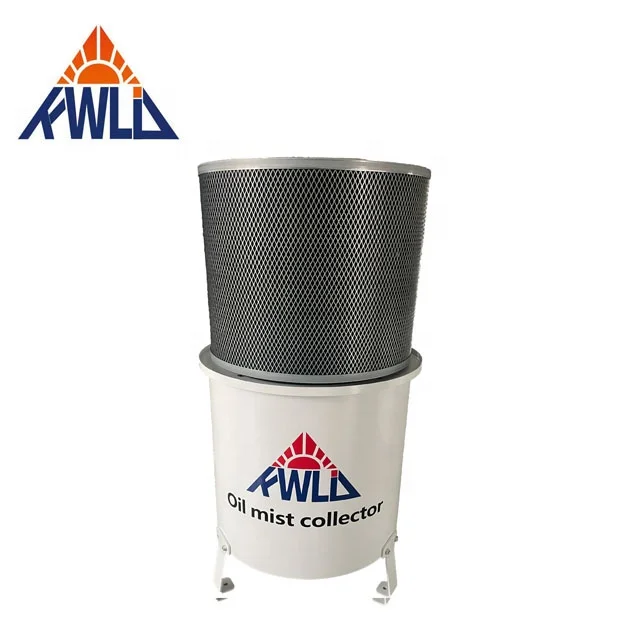

centrifugal vertical oil mist collector
intelligent electrostaic oil mist collector
centrifugal vertical oil mist collector is suitable for collecting and purifying water-soluble oil mist of various machine
tools.The product features are small size, large air volume, high purification efficiency; low noise, long life of consumables,and low replacement cost. For high-concentration oil fume working conditions, a high-efficiency post filter can be selected, and the filtering accuracy can reach 0.3 micron level for effective purification. It is an effective tool for you to save energy and reduce emissions, improve the workshop environment, and recycle resources!
tools.The product features are small size, large air volume, high purification efficiency; low noise, long life of consumables,and low replacement cost. For high-concentration oil fume working conditions, a high-efficiency post filter can be selected, and the filtering accuracy can reach 0.3 micron level for effective purification. It is an effective tool for you to save energy and reduce emissions, improve the workshop environment, and recycle resources!

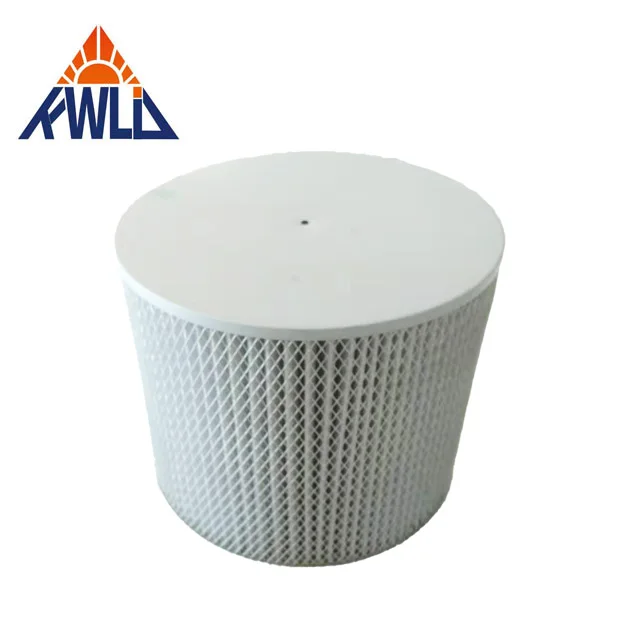

♥Material: High efficiency oil filter cotton + imported air filter material.
♥Type:Pre filtration and post purification.
♥Usage: Effective treatment of dust, oil mist, water mist, smoke, odor, and harmful gas.
The post processing can absorb more than 0.02um particles, the filtration effect is 99%.
♥Advantages:Simple installation, low maintenance cost, long service life.
The post processing can absorb more than 0.02um particles, the filtration effect is 99%.
♥Advantages:Simple installation, low maintenance cost, long service life.
Purification principle
1. The polluted air around the machine tool will be sucked into the pretreatment chamber at the bottom

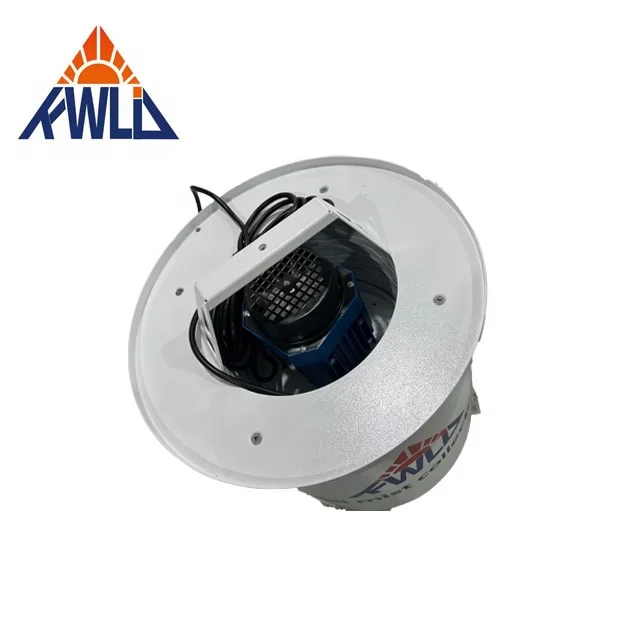

2.By the centrifugal force produced by the rotating turbine and the accelerating effect of coalescence principle, the oil mist can be easily combined and transformed into liquid state.
2.By the centrifugal force produced by the rotating turbine and the accelerating effect of coalescence principle, the oil mist can be easily combined and transformed into liquid state.
3. The multi-level and high-efficiency filter cotton can intercept and capture even the smallest particulate pollutants, and prevent the release and diffusion of pollutants in the factory workshop again.
4.The special oil drain pipe is designed to return the oil to the machine tool for reuse.
Installation Instruction
Product benefits
1.Smal size, low energy consumption, and large air volume. The centrifugal structure design makes the product appearance small and saves installation space. The low resistance of the oil mist machine makes the air volume achieved under the same power larger, eneroy-saving and efficient;
2.High filtration efficiency. The product is equipped with filter cotton and high efficiency filter at the back end of the centrifugal structure to ensure the filtration accuracy and efficiency. Because the centrifugal structure is designed as a pretreatment, a higher purification eficiency can be achieved by matching with filter cotton later. Compared with the traditional filter cotton oil mist collector, the flter cotton required is less and the cost is lower.
2.High filtration efficiency. The product is equipped with filter cotton and high efficiency filter at the back end of the centrifugal structure to ensure the filtration accuracy and efficiency. Because the centrifugal structure is designed as a pretreatment, a higher purification eficiency can be achieved by matching with filter cotton later. Compared with the traditional filter cotton oil mist collector, the flter cotton required is less and the cost is lower.
●Improve workshop environment and enhance company image
●Ruduce the occupational diseases of employees and reduce the turnover rate
●Saving the cost of workshop cleaning
●Protect the environment and benefit the society
●Ruduce the occupational diseases of employees and reduce the turnover rate
●Saving the cost of workshop cleaning
●Protect the environment and benefit the society

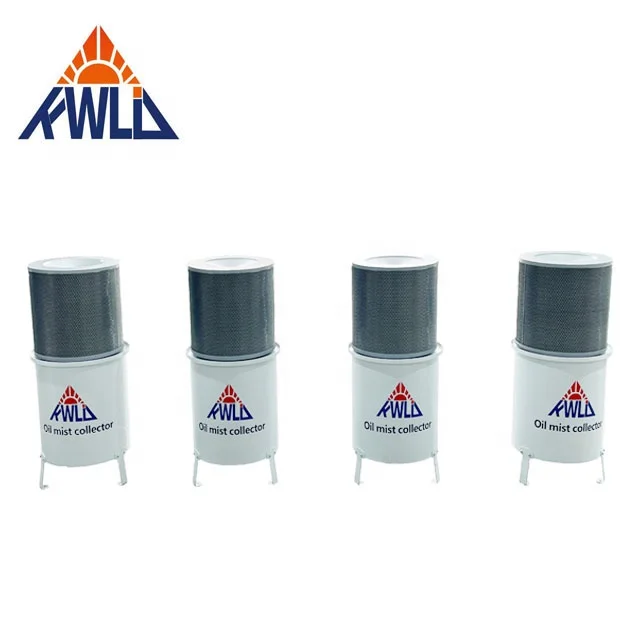

we mainly produce the following size for selection:
Model | LJ-250 | LJ-370 | LJ-750 | LJ-750L | LJ-1100 |
Power | 0.25KW | 0.37KW | 0.75KW | 0.75KW | 1.1KW |
Voltage | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Air volume | 680m³/h | 1080m³/h | 1380m³/h | 2300m³/h | 3000m³/h |
RPM | 2800 | 2800 | 2800 | 2800 | 2800 |
Inlet diameter | 125 | 150 | 150 | 150 | 150 |
Weight | 21kg | 30kg | 35kg | 37kg | 39kg |
Dimension | 380*800 | 430*900 | 470*900 | 470*1150 | 470*1150 |
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Kwlid (Jiangsu) Intelligent Equipment Manufacturing Co., Ltd is a Sino-German cooperative enterprise.and specializing in the
production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment
series, chip conveyor series and other products. The company is located in Shenzhou Intelligent Manufacturing Industrial Park,Changshu City,Jiangsu Province.Kwlid company integrates research and development , production and sales, it is a large-scale supplier of mechanized equipment accessories in the domestic industry. The company has advanced production technology and equipment and an excellent design and R&D team. lts series of products are widely used in CNC machine tools, welding
equipment,automation equipment, Glass machinery, stone equipment and many other industries.
production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment
series, chip conveyor series and other products. The company is located in Shenzhou Intelligent Manufacturing Industrial Park,Changshu City,Jiangsu Province.Kwlid company integrates research and development , production and sales, it is a large-scale supplier of mechanized equipment accessories in the domestic industry. The company has advanced production technology and equipment and an excellent design and R&D team. lts series of products are widely used in CNC machine tools, welding
equipment,automation equipment, Glass machinery, stone equipment and many other industries.
Exhibtion
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturer , we have professional team and professional production line
Q: How long is your delivery time?
A: We are Manufacturer , we have professional team and professional production line
Q: How long is your delivery time?
A:It depends on your order item and quantity.Usually within 5-7 days for stock goods, 7-15 days for customized products after receiving the prepayment or relevant L/C.
Q: What is your terms of payment ?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Dear friend , if you are interested in our products , please feel free to contact me by inquiry .
Q: What is your terms of payment ?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Dear friend , if you are interested in our products , please feel free to contact me by inquiry .
here i will reply you within one hour as soon as getting your inquiry information .
