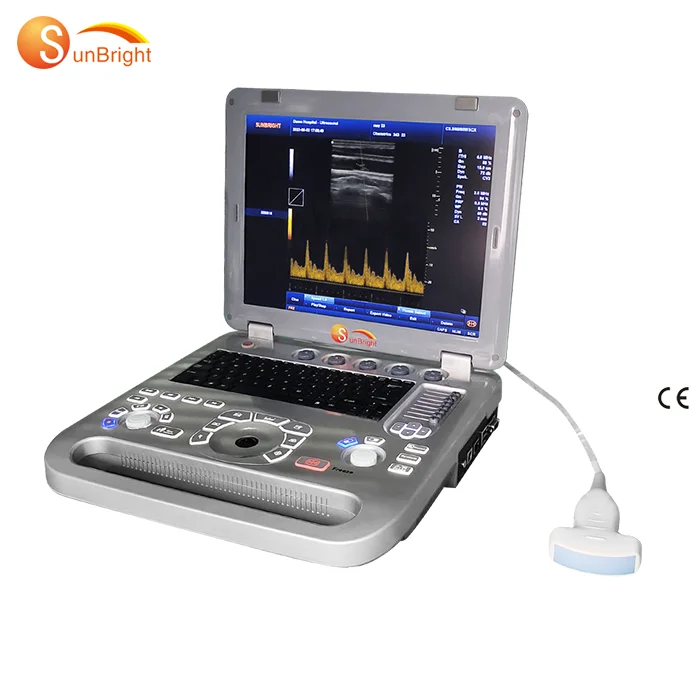

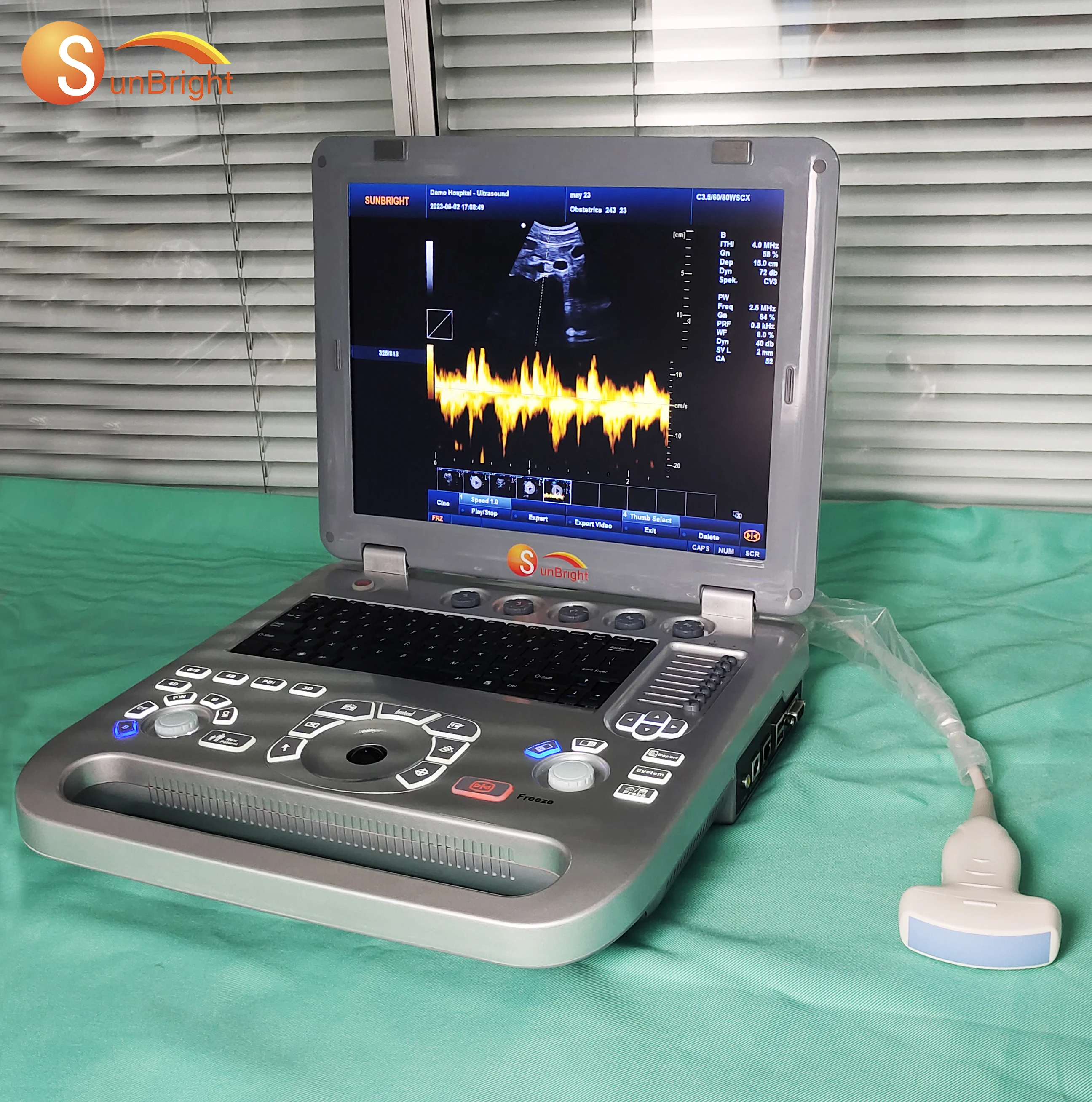

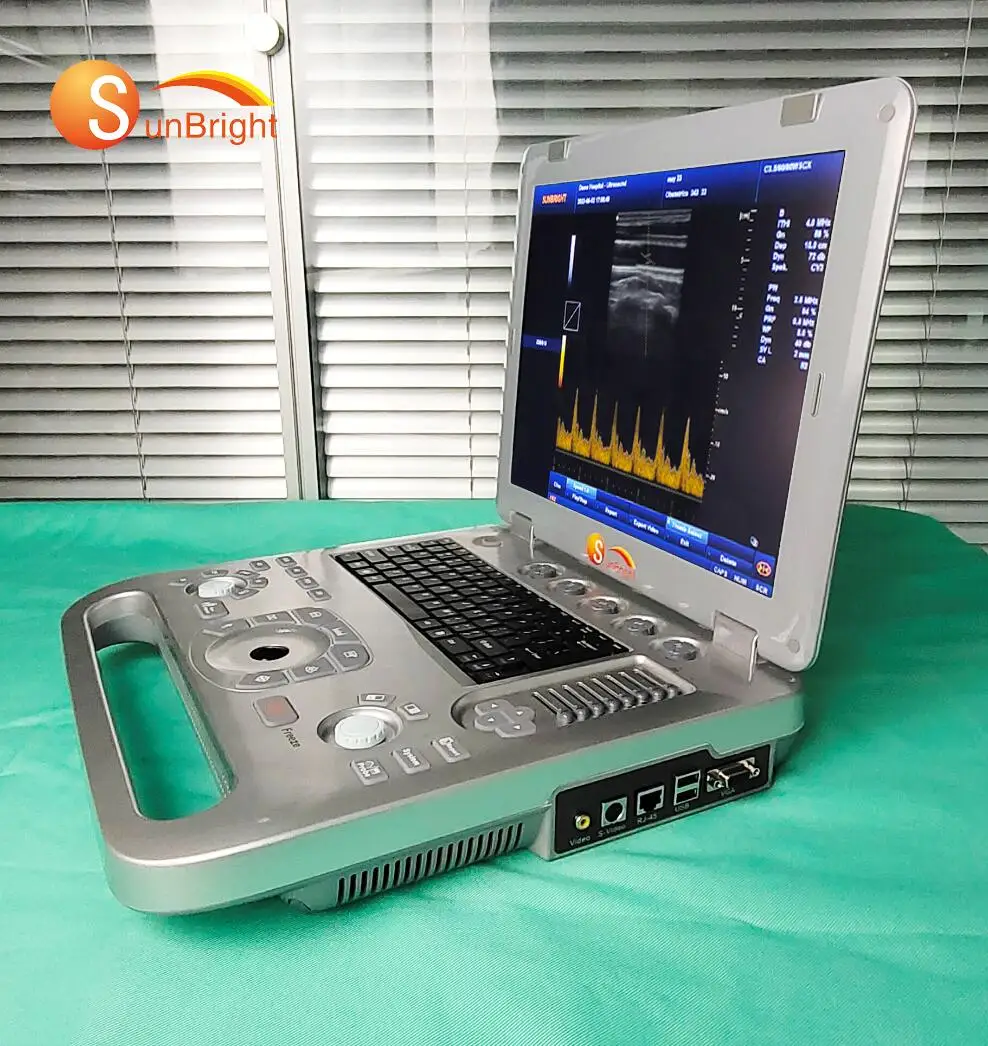

2024 ultrasound scanner 3D pregnancy ultrasonic PW portatil ultrasound model
- Category: >>>
- Supplier: Shanghai Sunbright Industrial Co. Ltd.
Share on (1601158772869):
Product Overview
Description
Product Description
Fast description:
2024 ultrasound scanner 3D pregnancy ultrasonic PW portatil ultrasound model
User Permission setting
Intuitive Windows-based operating principles

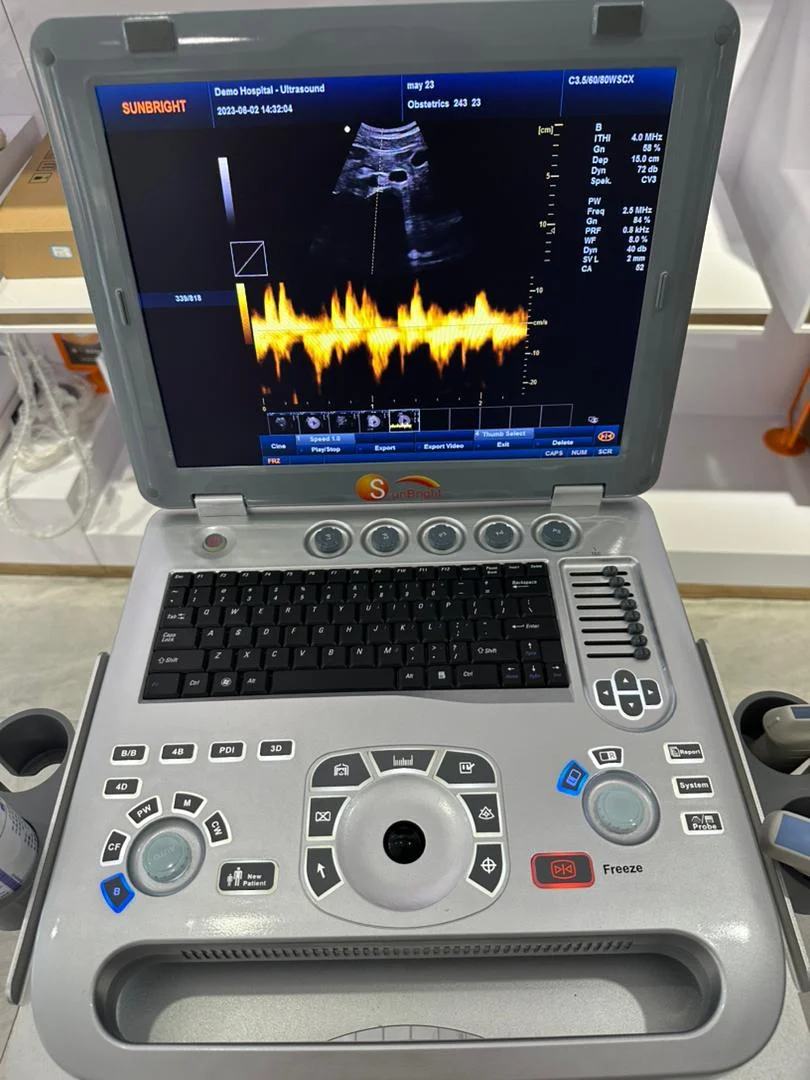

User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step

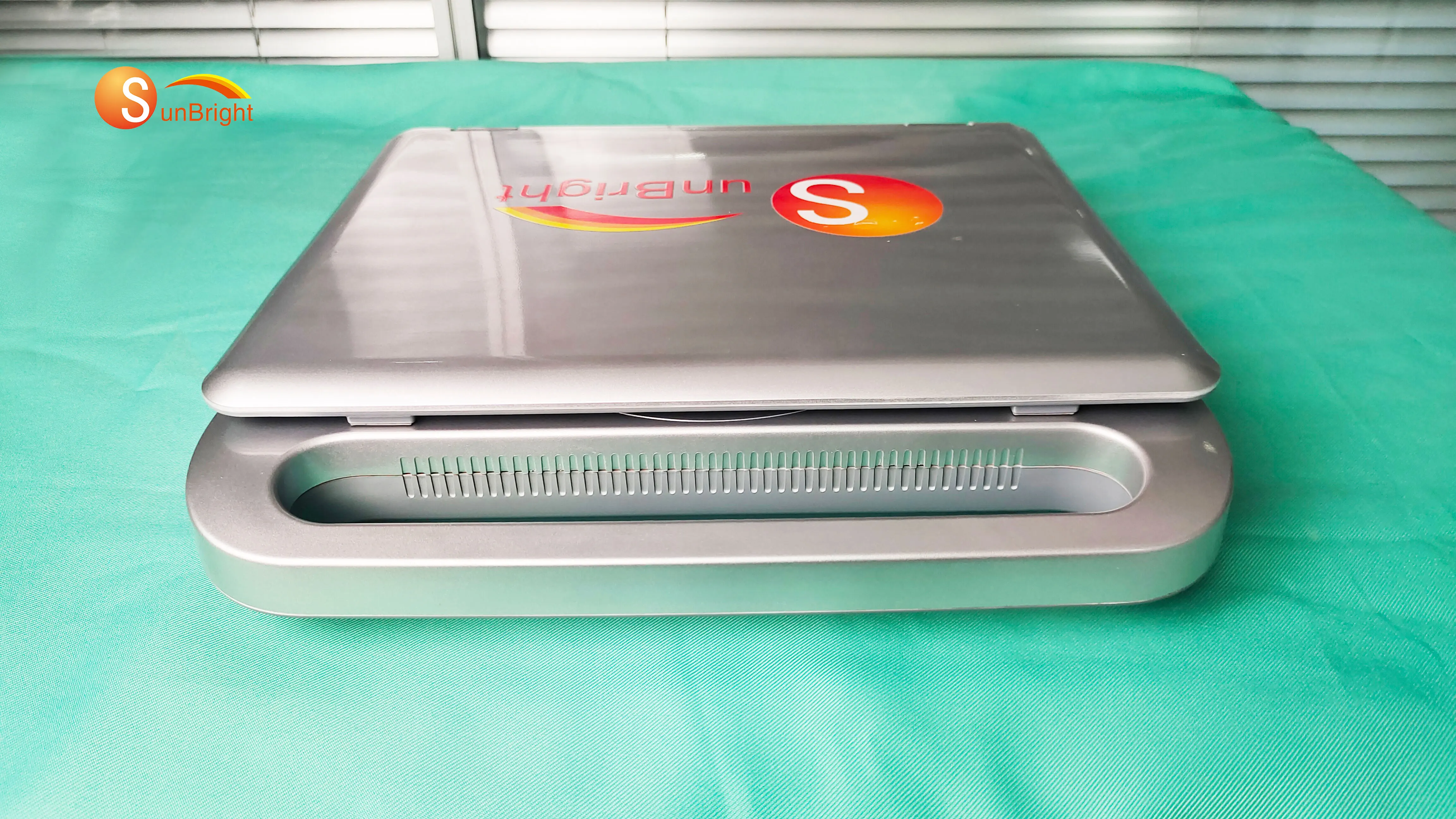

Physical Specifications:
Equipment size | 365mm*300mm*75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |

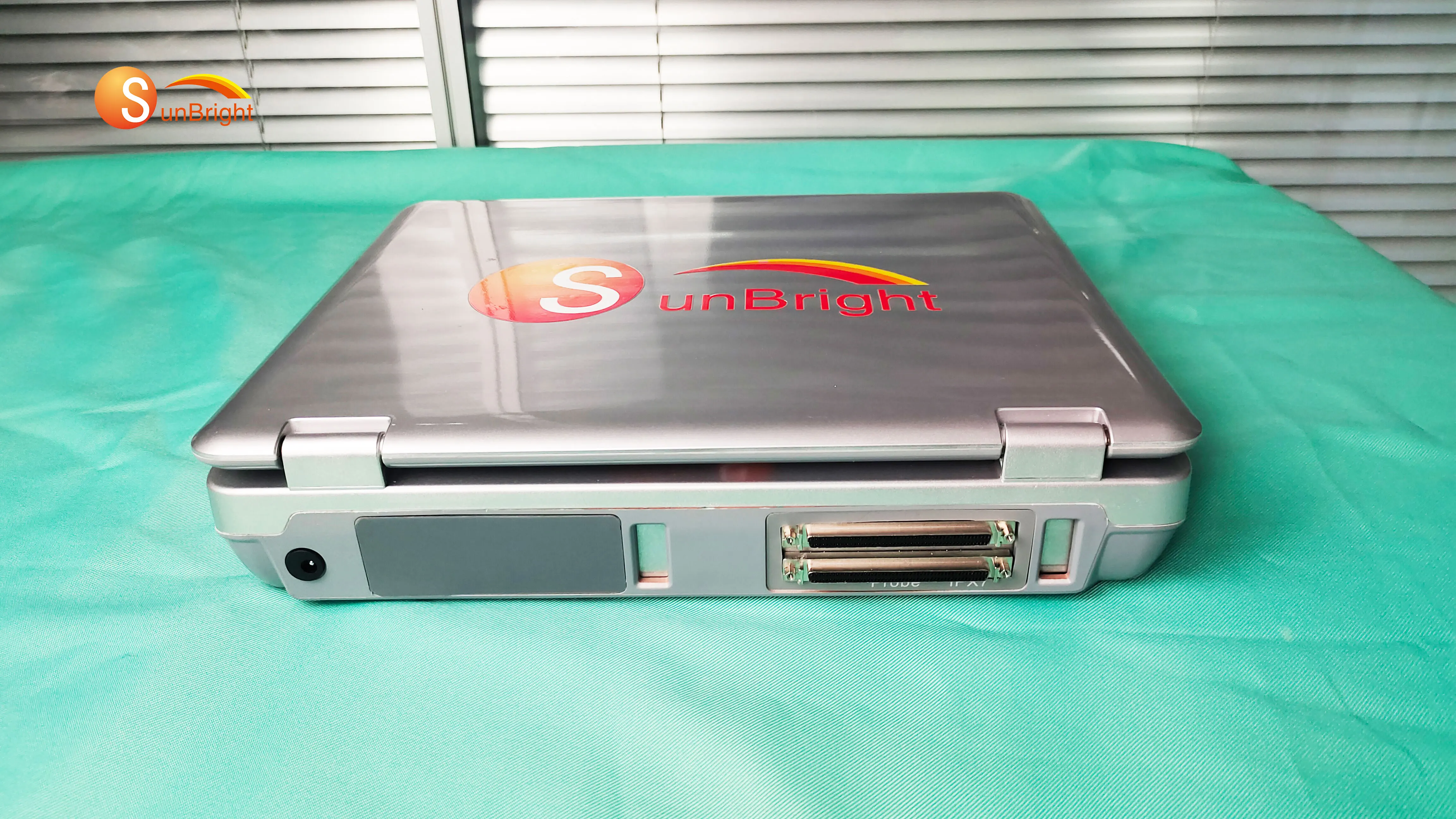

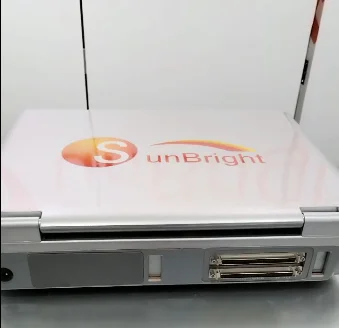

Connectivity/Media/Peripherals
Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 64GB (SSD), 120G/200GB SSD (Optional) |
Printing Area | Image, report, Image+report |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Hardware Specification
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024*768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
DICOM Connectivity
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
General Performance: | Digital Broadband | 12288 channels |
Beam-former | Re-programmable | |
Transmit Voltage | Adjustable (15 steps) | |
Beam-former Frequency Range | 1~40 MHz |
Transducers:
Obstetrics
Applicable to multiple birth measurements.
All general measurements and calculations
Obstetrical data versions to calculate gestational age:
— Two fixed data revisions: Asia & Europe
— One editable data version: User Custom
— Each version can estimate the gestational age and expected date of confinement based on measured gestational sac (GS),
biparietal diameter (BPD), crown-rump length (CRL), femur length (FL), humeral length (HL), abdominal transverse diameter (ATD),
vertebral length (LV), occipitofrontal diameter (OFD), abdominal circumference (AC) and head circumference (HC)
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve
All general measurements and calculations
Obstetrical data versions to calculate gestational age:
— Two fixed data revisions: Asia & Europe
— One editable data version: User Custom
— Each version can estimate the gestational age and expected date of confinement based on measured gestational sac (GS),
biparietal diameter (BPD), crown-rump length (CRL), femur length (FL), humeral length (HL), abdominal transverse diameter (ATD),
vertebral length (LV), occipitofrontal diameter (OFD), abdominal circumference (AC) and head circumference (HC)
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve

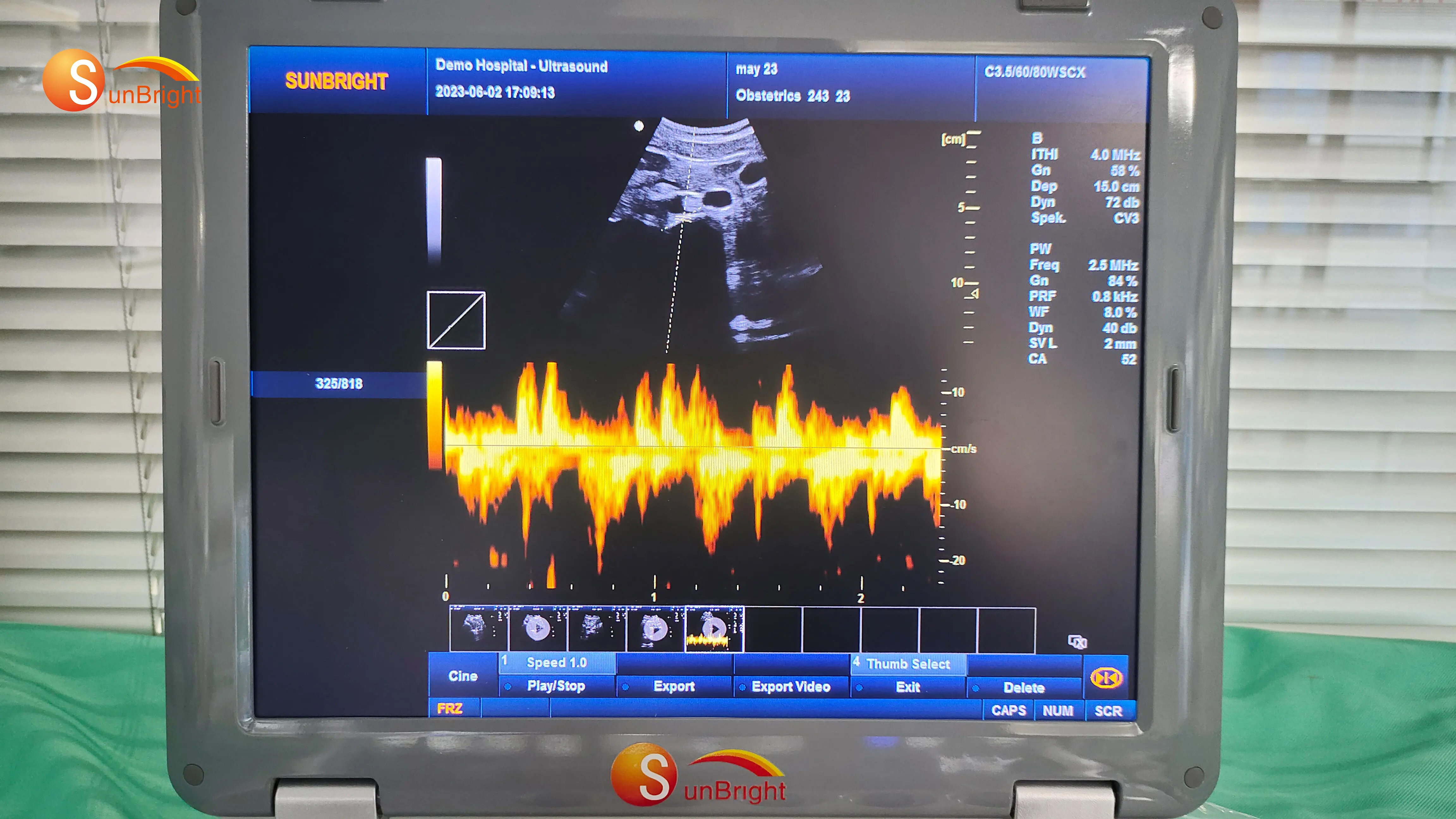

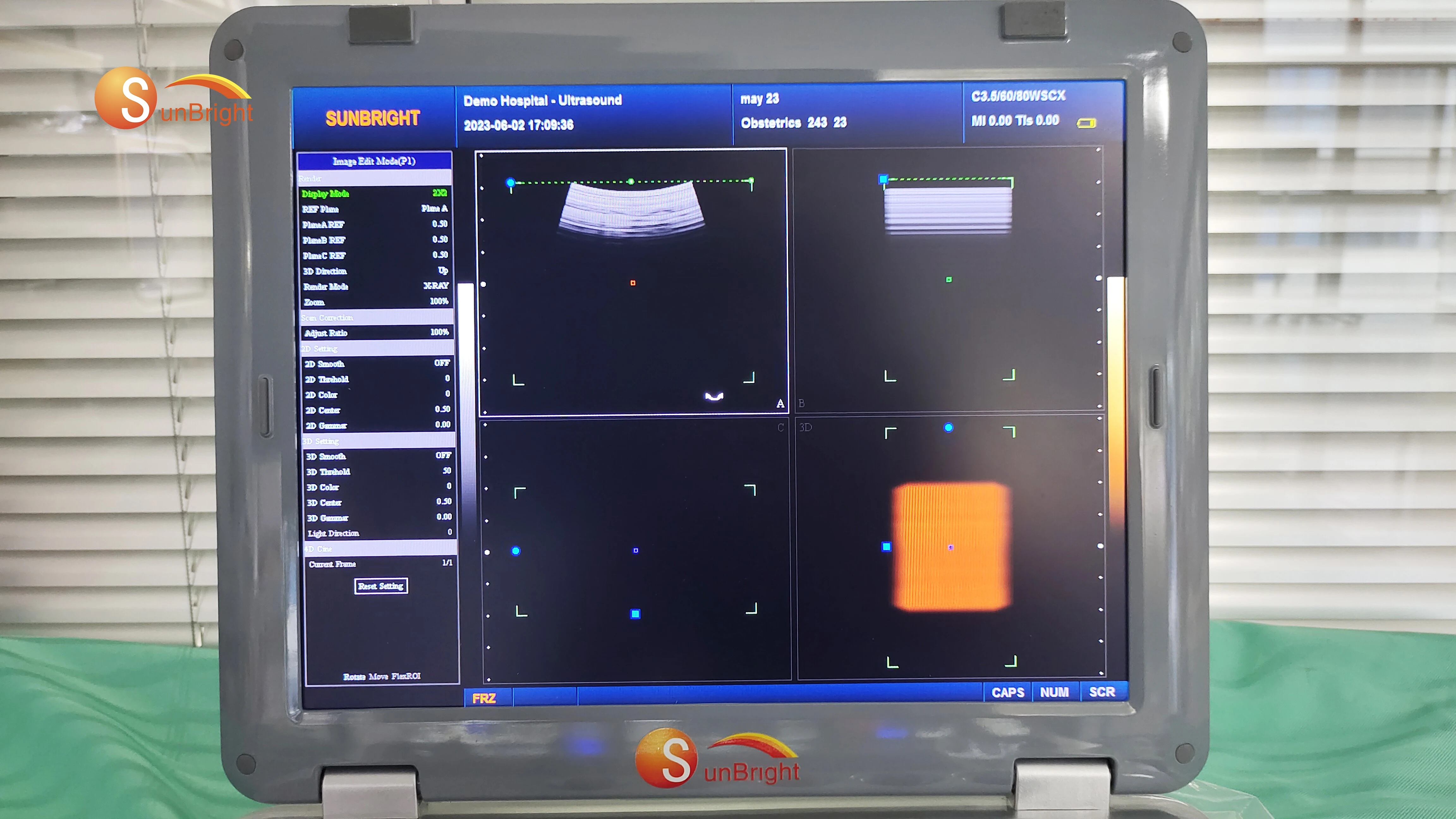

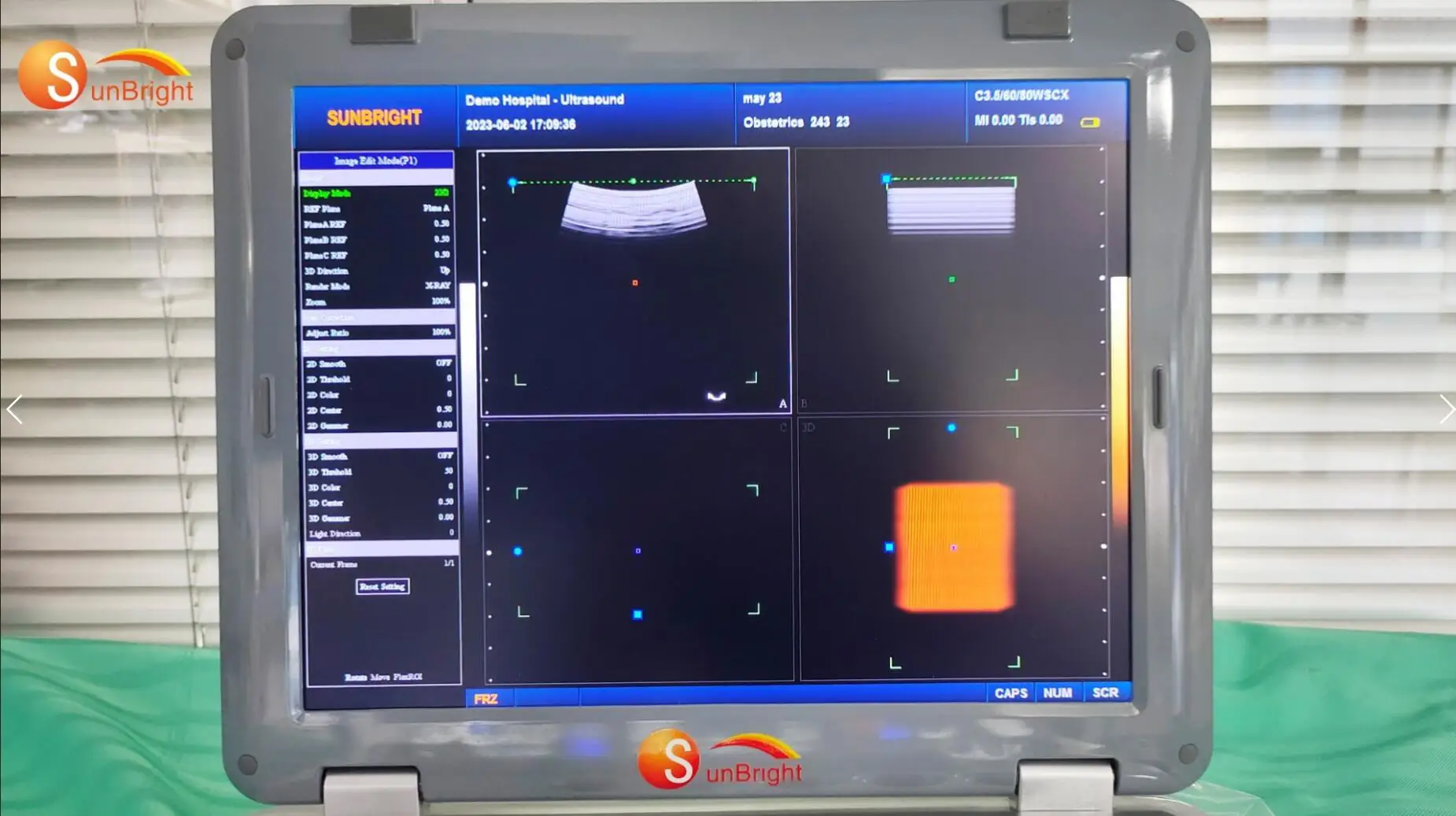

Scanning images
