Perfect Laser Colorful Print on Usb Glass Frames Strap Badge Mobile Phone Cases Small Desktop Uv Inkjet Flatbed Printer for Sale
- Category: >>>
- Supplier: Perfect Laser (wuhan) Co. Ltd.Perfect Ltd.
Share on (1601158790640):
Product Overview
Description
Perfect Laser Colorful Print On Usb Glass Frames Strap Badge Mobile Phone Cases Small Desktop Uv Inkjet Flatbed Printer For Sale
(Model: PE-UV0609)
Contact: Spring Whatsapp: + 86 136 5988 6778
Email: sales011@perfectlaser.net
Product Description

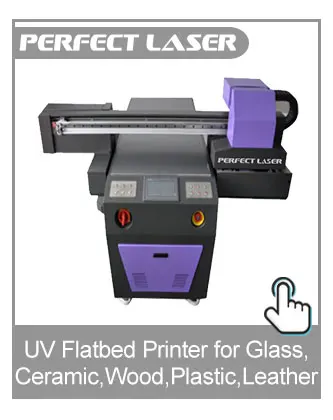

Perfect Laser's PE-UV0609 small uv flatbed printer for sale uses high-speed, high-precision, high-quality double nozzles. With a width of 600*900mm, and the Automatic UV Flat bed Printing Machine 0609 has the advantages of high production efficiency, saving more time and reducing production costs. The desktop uv inkjet printer can achieve excellent production efficiency, rich colorful colors, to meet the various needs of various industries, various materials, color inkjet customers.it is a good choice to buy one.
Deatiled Images
Features of UV Flatbed Printing Machine 0609
1. The flat printer imported well-known brand linear guide rails, long service life, high stability of movement, greatly reduce the noise generated by the equipment during high-speed motion, control within 40 decibels.
2.The uv flatbed printing Using a unique nozzle collision avoidance system, you can easily deal with any material debugging, to prevent accidents caused by human error, better protection of the nozzle.
3. Ink cartridge installation automatic alarm system: When the ink level is less than one-third, the ink cartridge automatically lights up, allowing continuous printing, production smooth.
4.The flat printer has a professional RIP software: The use of domestic famous brand professional color management software to ensure bright color output.
5. The uv flatbed printing equipped with the bi-directional printing to improve the printing speed and efficiency UV lamp alternate curing.
6. The scale is printed on the worktable to increase the speed and accuracy of printing.
2.The uv flatbed printing Using a unique nozzle collision avoidance system, you can easily deal with any material debugging, to prevent accidents caused by human error, better protection of the nozzle.
3. Ink cartridge installation automatic alarm system: When the ink level is less than one-third, the ink cartridge automatically lights up, allowing continuous printing, production smooth.
4.The flat printer has a professional RIP software: The use of domestic famous brand professional color management software to ensure bright color output.
5. The uv flatbed printing equipped with the bi-directional printing to improve the printing speed and efficiency UV lamp alternate curing.
6. The scale is printed on the worktable to increase the speed and accuracy of printing.
Sample & Application
Applications of Perfect Laser Multifunction 600*900Mm Small Format Uv Flatbed Printing Machine Book/Paper/Phone Shell Small Flat Bed Printer
1. Home decoration, shop decoration and other industries: use the flat printer to meet the needs of customers customized.
2. Oil painting wall, decorative painting and other industries:the uv flatbed printing can replace the traditional hand-painted, improve production efficiency.
3. Advertising signage display board display industry: Flat printer can print on the surface of advertising boards of various materials to reduce production costs.
4. Leather textile printing industry: The uv flatbed printing can print on leather and fabric with high precision and high efficiency.
2. Oil painting wall, decorative painting and other industries:the uv flatbed printing can replace the traditional hand-painted, improve production efficiency.
3. Advertising signage display board display industry: Flat printer can print on the surface of advertising boards of various materials to reduce production costs.
4. Leather textile printing industry: The uv flatbed printing can print on leather and fabric with high precision and high efficiency.
Specification
Model type | PE-UV0609 600X900mm High Quality Small UV Flatbed Printer With GH2220 Nozzle | ||||
Print head technology | Drop on-demand pieze head | ||||
NO. of Print heads | 2 | ||||
Print head type | Ricoh | ||||
Printing resolution | 360*360dpi,360*720dpi,360*1080dpi,720*720dpi,720*1440dpi, 720*3600dpi,720*21600dpi | ||||
Printing mode | Uni-direction and Bi-directional | ||||
Printing speed(2 print heads) | 4 PASS | 6 PASS | 8 PASS | ||
8M²/hr | 6M²/hr | 4M²/hr | |||
Media handling | Vacuuming media fixation platform | ||||
File format | TIFF,JPEG,Postscript 3,EPS,PDF,etc | ||||
Color control | Conform to ICC standard,with fuction of curve and density adjustment | ||||
Interface | USB | ||||
Curing lamp | Osram LED lamp | ||||
RIP software | USA PP PHOTOPRINT | ||||
Ink type | UV curable ink | ||||
Print color | Cyan,Magenta,Yellow,Black,White | ||||
Printing size | 600mm*900mm | ||||
Printable products | Arts & Crafts：barrette,USB flash memory,glasses frame,watch belt,cigaret case,lighter,badge,stationery products,toys,cellphone case,etc. | ||||
Media thickness | 100mm（200mm optional） | ||||
Print head and feeding drive | AC high precision servo motor | ||||
Power consumption | 50Hz/60Hz,220V(±10%),>20A | ||||
Operation condition | Temperature 20℃~28℃,Reative humidity 40%`60% | ||||
Dimensions(LxWxH) | 1600mm*1680mm*1000mm | ||||
Net Weight | 200KG | ||||
X shaft belt | Japan Fujifilm industrial wire belt | ||||
X axis /Y axis servo motor | Taiwan Delta | ||||
X axis beam | Two times tempered high strength steel, high hardness, no deformation | ||||
X/Y axis print towline and wire harness | Germany IGUS | ||||
Y shaft drive screw | Imported grinding rod | ||||
Ink car lift rail brand | Taiwan HIWIN mute linear guide rail | ||||

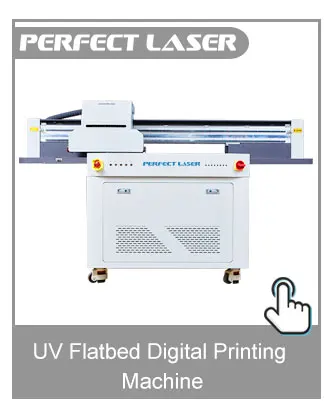

Related Product
Packing & Delivery
FAQ
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Company Profile
Perfect Laser:
* Established in 1995, more than 25 years history and 12 years exporting experience
* 200 workers, 5000 square meters workshop
* Certificate: CE, ISO:9001, RoHs, ects certificate
* Markets: Export to more than 180 different countries
* Total Annual Revenue: US$5 Million - US$10 Million
* Established in 1995, more than 25 years history and 12 years exporting experience
* 200 workers, 5000 square meters workshop
* Certificate: CE, ISO:9001, RoHs, ects certificate
* Markets: Export to more than 180 different countries
* Total Annual Revenue: US$5 Million - US$10 Million
