Product Overview

Description









AUTOMATIC Olive Oil FILLING MACHINE
The automatic olive oil filling machine for oil and liquid quantitative filling machine, suitable for filling all kinds of oil viscous liquid filling, in addition to filling olive oil can also be filled such as sesame oil, edible oil, peanut oil， rapeseed oil, belongs to a multi-functional, composite filling machine. The filling machine has the characteristics of beautiful appearance, high filling precision, convenient adjustment and easy operation.




Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range（ml）
100-500,100-1000,1000-5000
Capacity（bpm）base on 500ml
12-14
24-28
36-42
48-56
60-70
70-80
80-100
Air Pressure（mpa）
0.6
Accuracy（%）
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W


Main features
1.PLC control, operation on touch screen
2.Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users want
To fill 500g olive oil, users just input the number 500, then the machine will automatic adjust

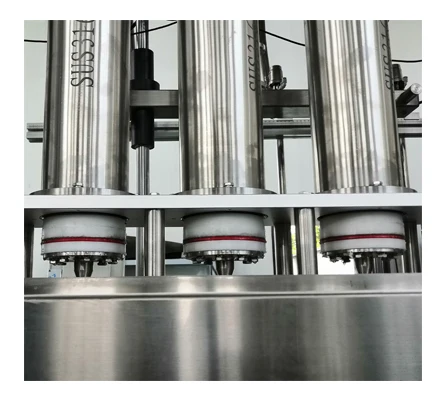

3.It is volumetric by piston, high filling accuracy.
4.Easy adjustment, and tools free
5.The soft tubes or pipes on the filler are adapt world brand Toyox from japan
6.Specially made rotary valve for oil transfer
7.O seals and Rings are specially chosen for oil
8.304 ss contact material
9.Adapts vacuum sucking nozzles, for the last drop sucking.
10.Also the machine adapts drop catcher for further drop-security.

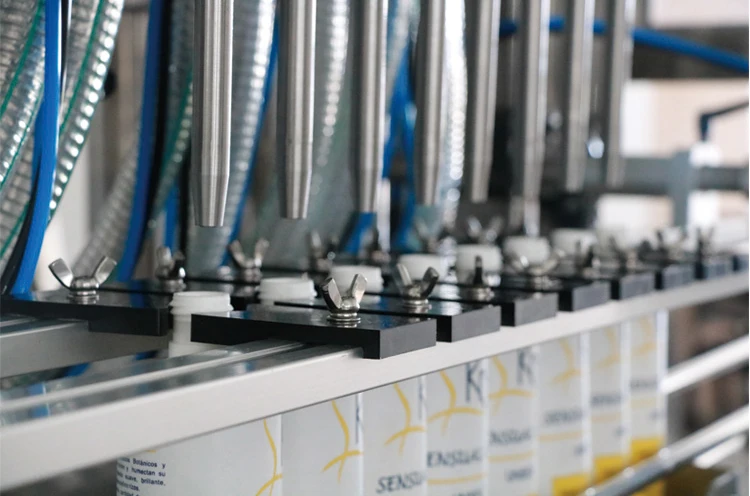

Anti-drop Filling Nozzles
Specially design filling nozzles for oil filling, it is with anti-drop system, and vacuum suction system. And Filling nozzles moving up and down also can control by servo motor

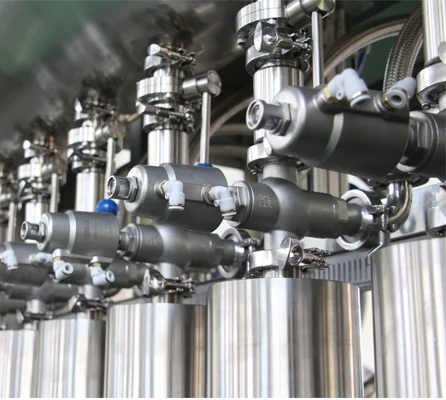

ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Suitable for thin to viscous liquid

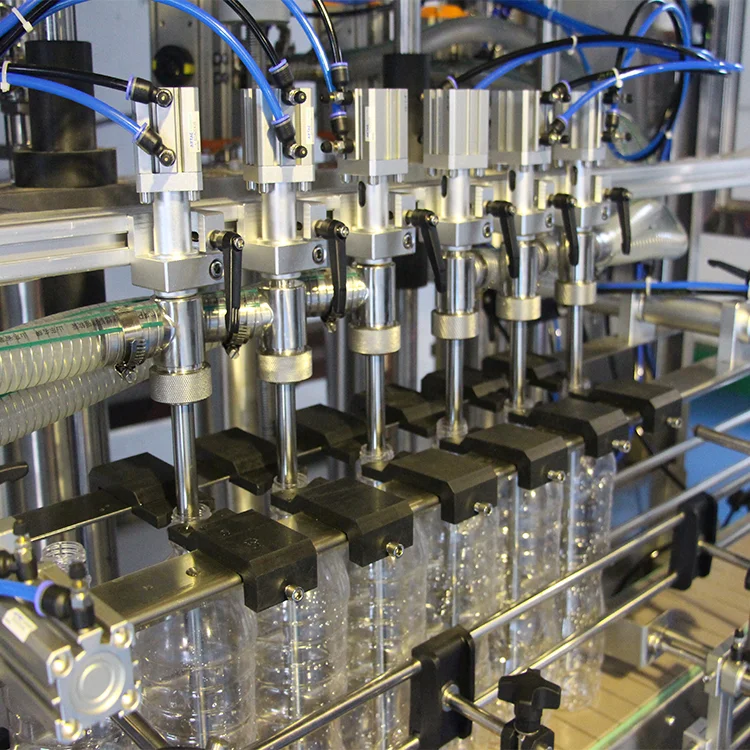

Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen

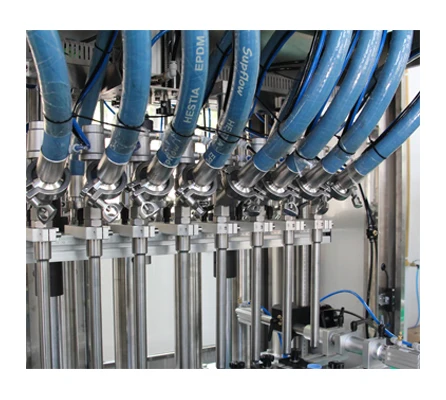

High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)

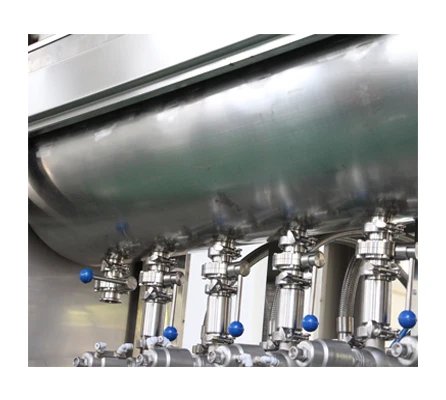

No Dead Corner Top Tank.
The top storage tank volume is from 120L to 220L depends on the filling nozzles,
It is with level sensor for automatic feeding oil if the tanks oil level is low.
