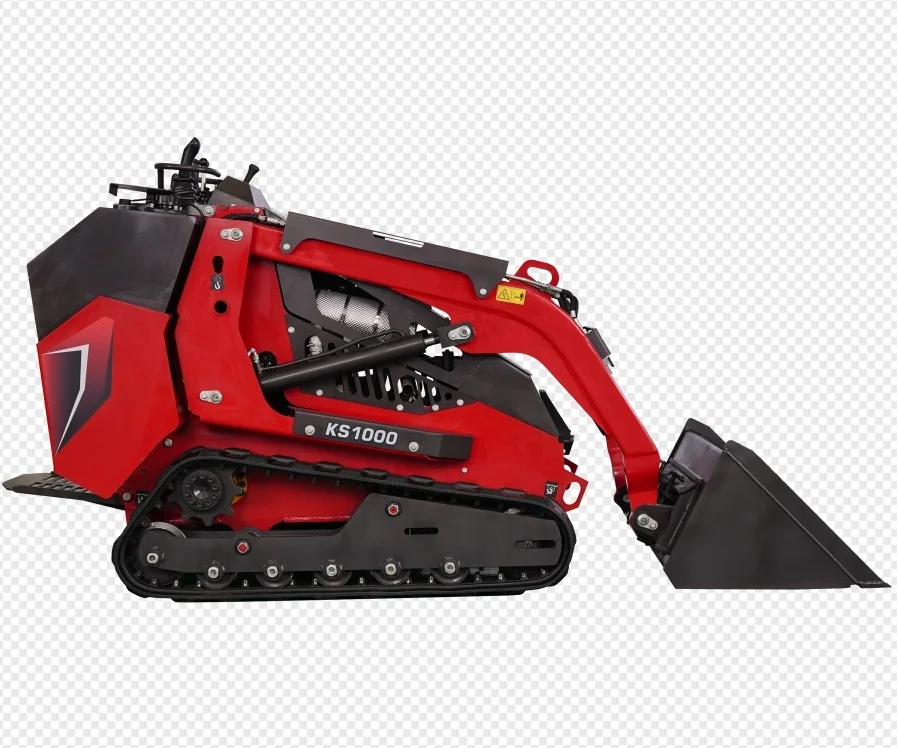

XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components
XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components

XINIU 1.5 Ton KS1000 Skid Steer Loader New Rhinoceros Compact Front Loader with Japanese Engine Crawler Loader Components

Share on (1601159115385):


Price:$13,000.00 - $17,000.00

Quantity:


Product Overview

Description





Product Overview

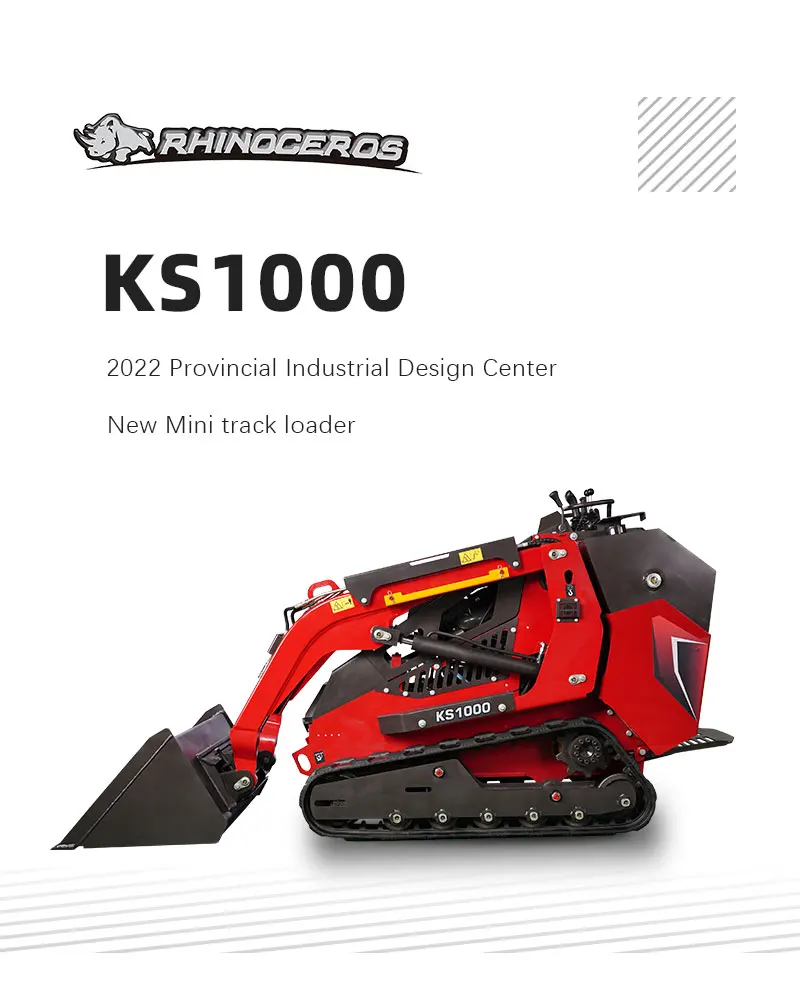

KS1000 1.5 Ton Stand-on compact loader.
Specification:
* Load weight: 1371kg
* Machine weight:1500kg
* Main dimension: 2980x932x1420mm
* Unloading height: 1750mm
* Horizontal pushing depth:90mm
Main configuration:
* Kubota D1703 engine,18.2kw/2200rpm
* Closed traveling system,Italy Bondioli pump + Radial piston traveling motor( Low energy consumption, fast walking speed)
* With double gear pump
* Equipped with two sets of attachment connector, max. flow output can be achieved 55L/min
* The driving wheel with grease ports to lubricate.
* Daily maintenance is convenient, and the cover can be opened. Such as fuses, oil return filters, fill coolant
* Ergonomic design, more comfortable operation
* Multi-functional, equipped with multiple spare hydraulic lines, can be equipped with different tools, such as hammer, auger,


FEATURES AT A GLANCE


COMPACT DIMENSIONS
NEAT AND CLEAR PIPING ARRANGEMENT
SAFETY FRAME

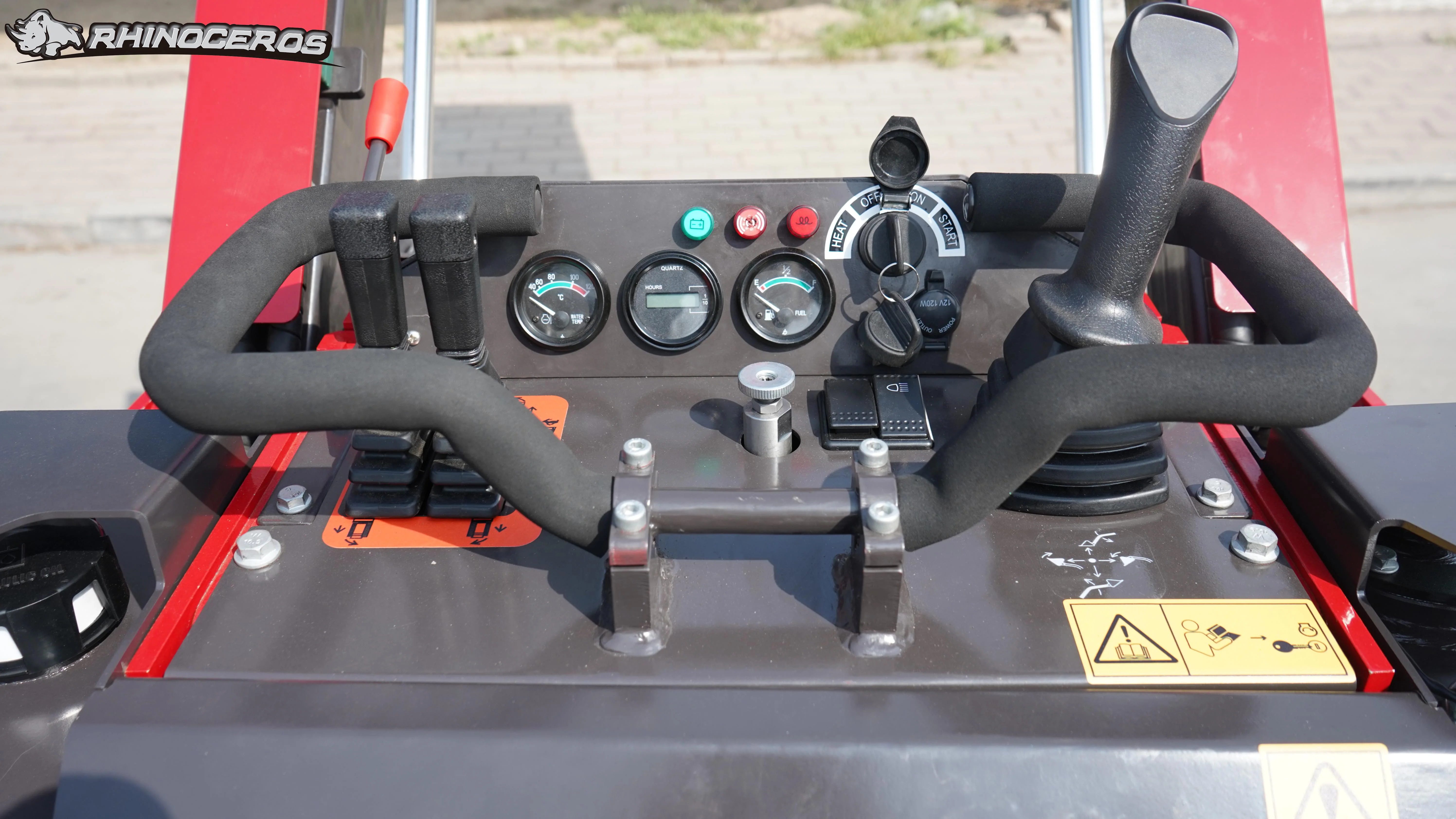

SIMPLE CONTROL
MAINTENANCE EASIER


Right elevation
Left elevation

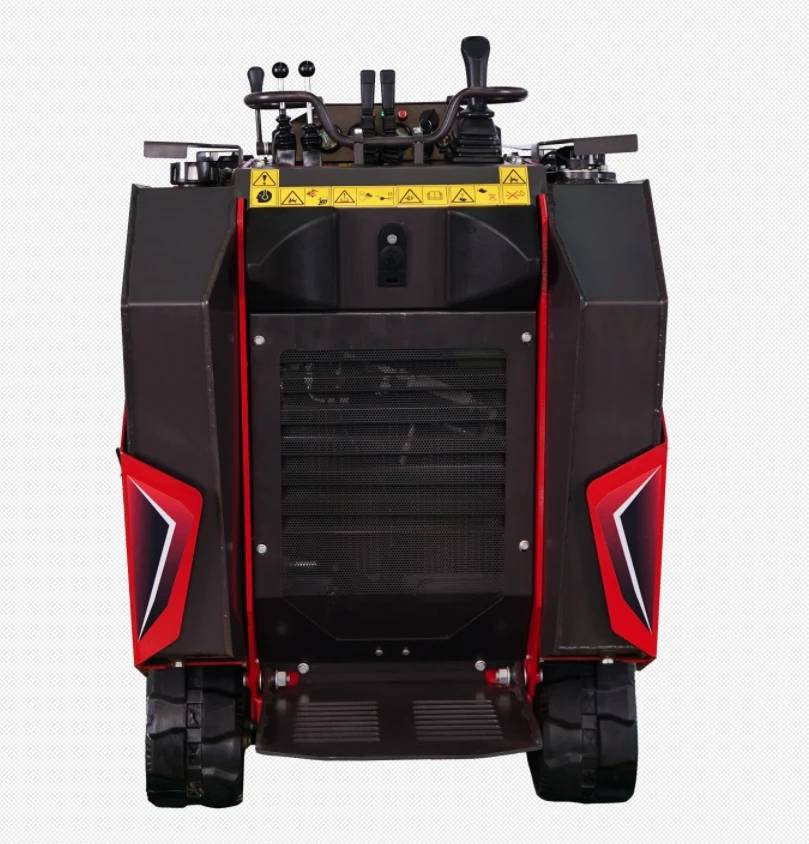

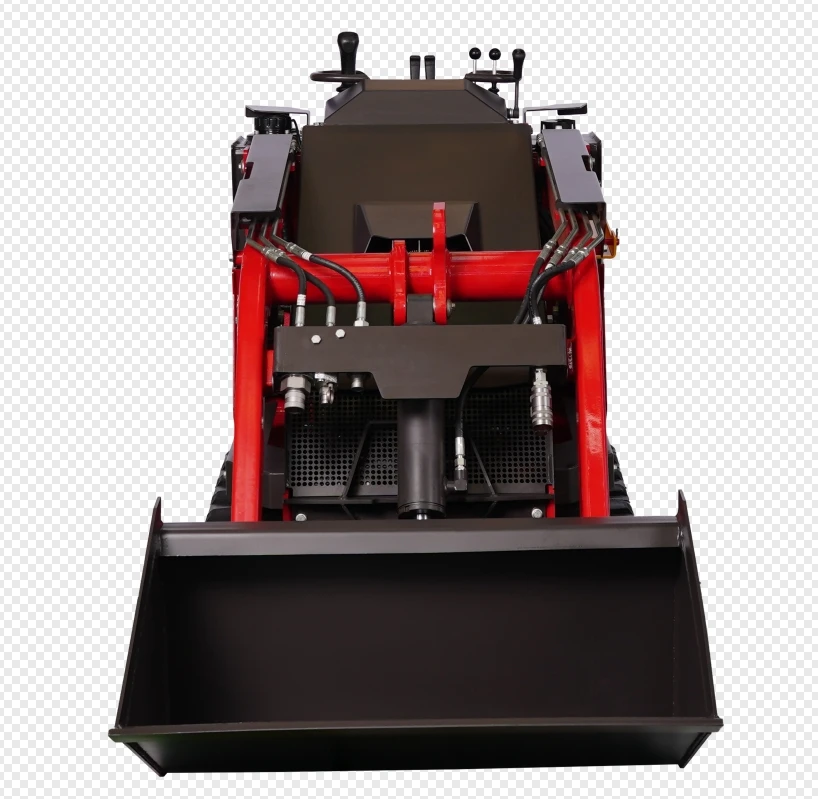

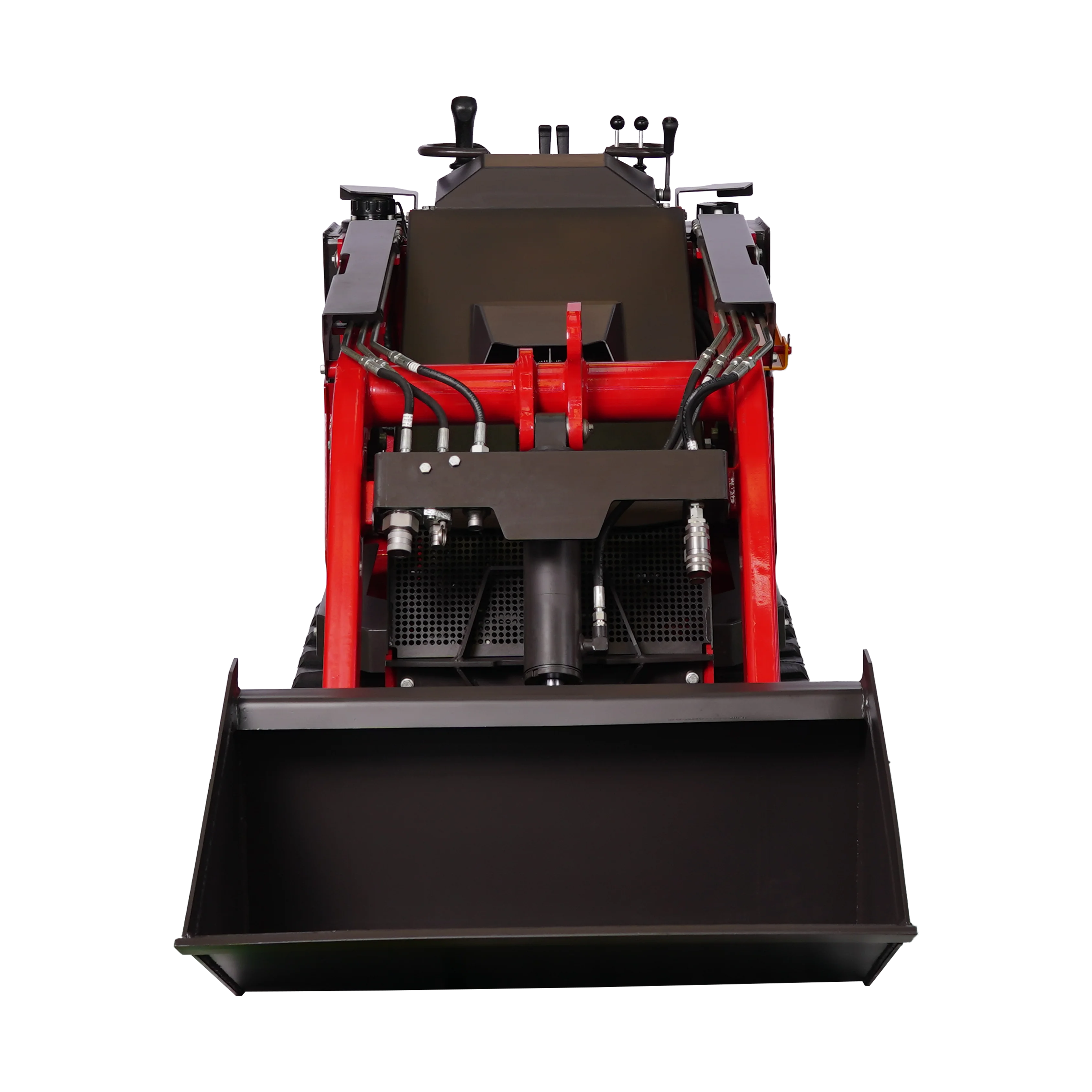

Front elevation










PRODUCT SPECIFICATIONS


No
Item
Data
Max. horizontal pushing depth
90mm
1
Power
D1703   18.2kw
Forward/Reverse
6.5km/h
2
Operating weight
1550kg
7-In(180-mm)tracks
0.31bar
3
Tipping capacity
1371kg
Pressure
200bar
4
Overall demension
2120x920x1420mm
Flow rate (pump #1)
56.8L/min
5
Track width
180mm
Fuel tank capacity
40L
6
Overall width of bucket
932mm
Lubricating oil capacity
5L
7
Min. ground clearance
145mm
Hydraulic reservoir capacity
36L
8
Angle of unloading
25°
Electrical system
12V


Main function:
* Mechanical positioning of joystick for attachment operation,make the working more easier.
* Electric parking
* With the driver presence detection
* The equipment has user-friendlydesign protection device
* Boom float function:Boom float system allows free up and down movements of the boom, which means the attachment follows the contours of ground - a useful feature when levelling the ground with a bucket or working with the dozer blade

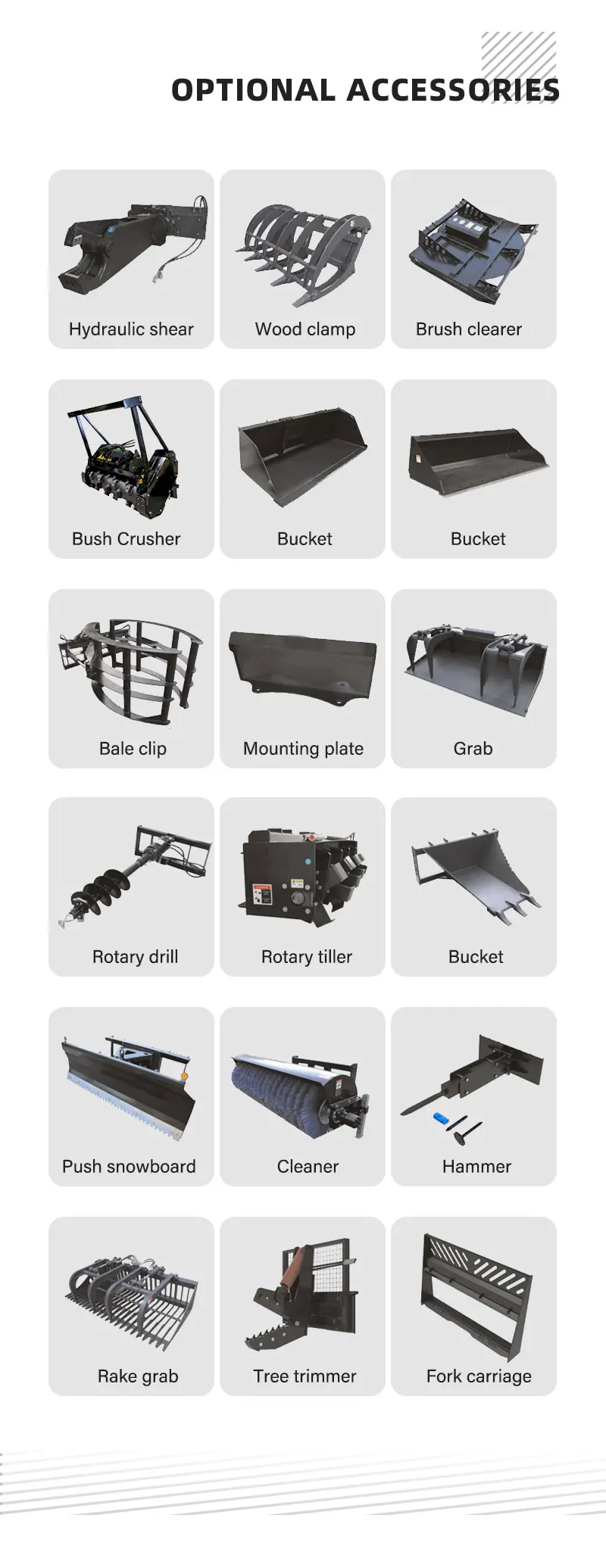

*Multi-functional, equipped with multiple spare hydraulic lines, can be equipped with different tools, such as hammer, auger,ditcher and so on.








PRODUCT CONFIGURATION


Kubota engine
Chinese famous i control valve
Italy pump
