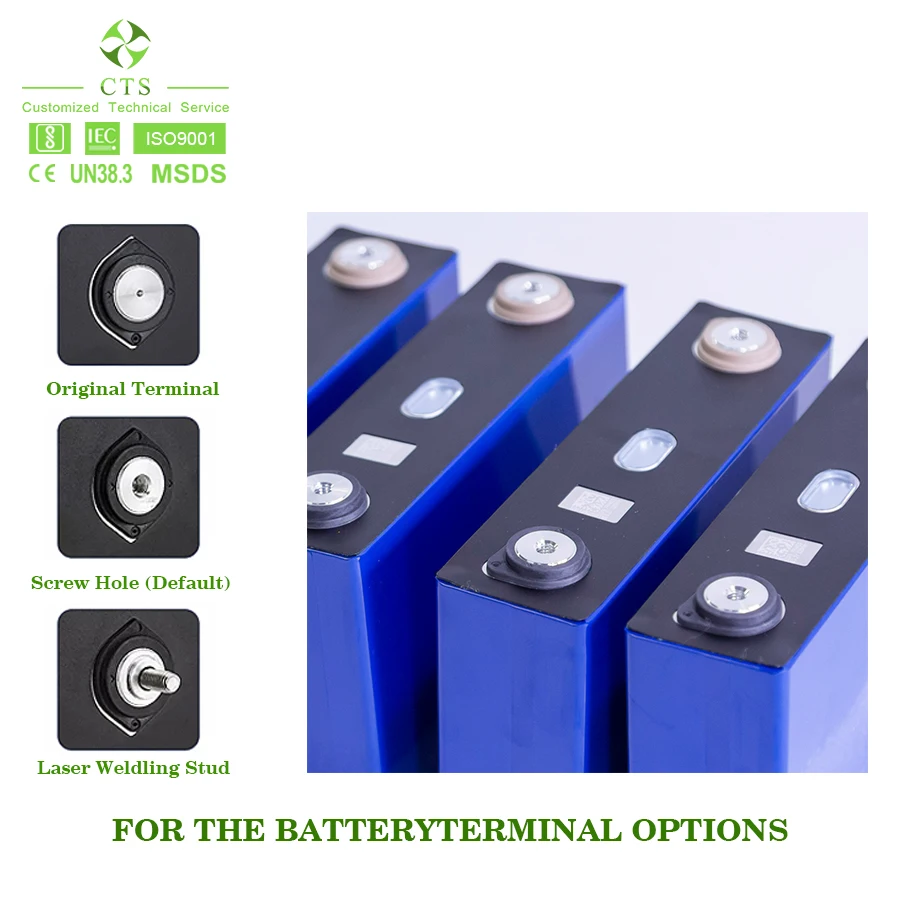

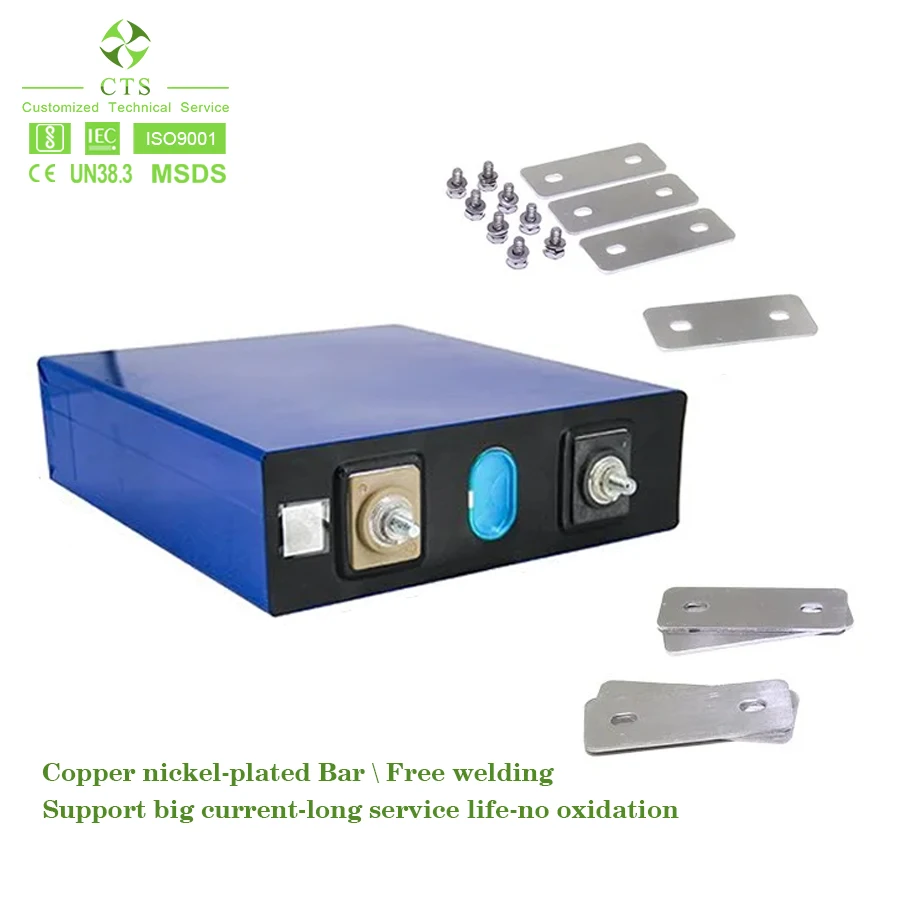

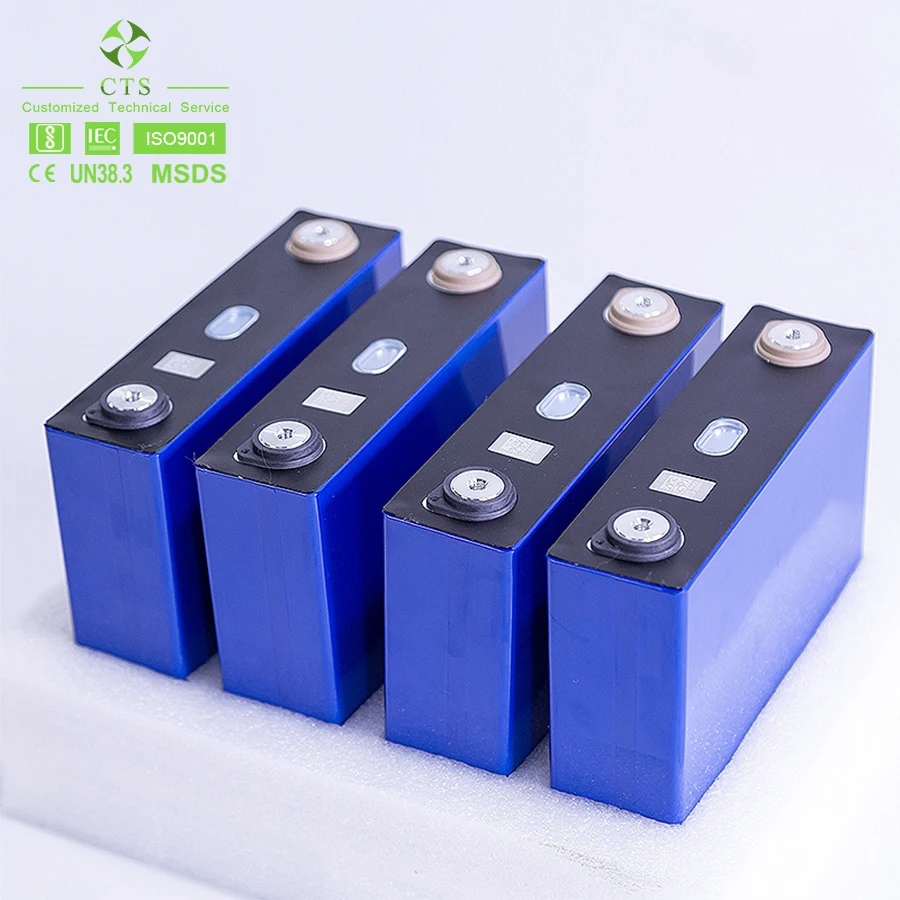

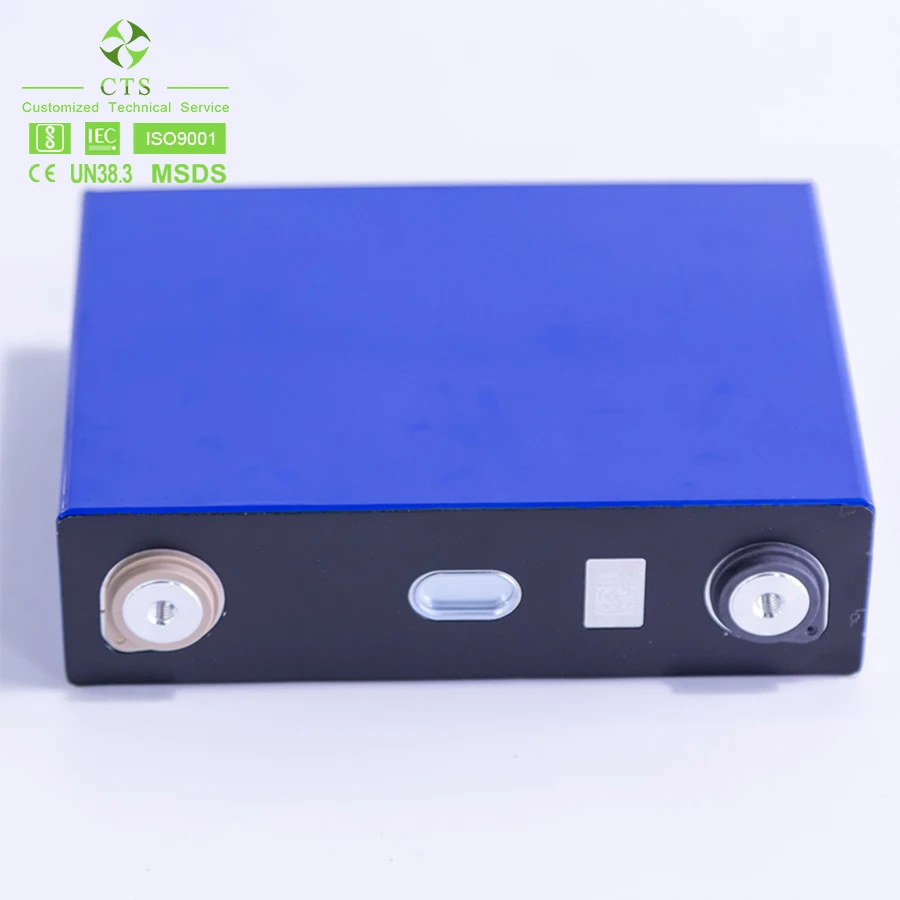

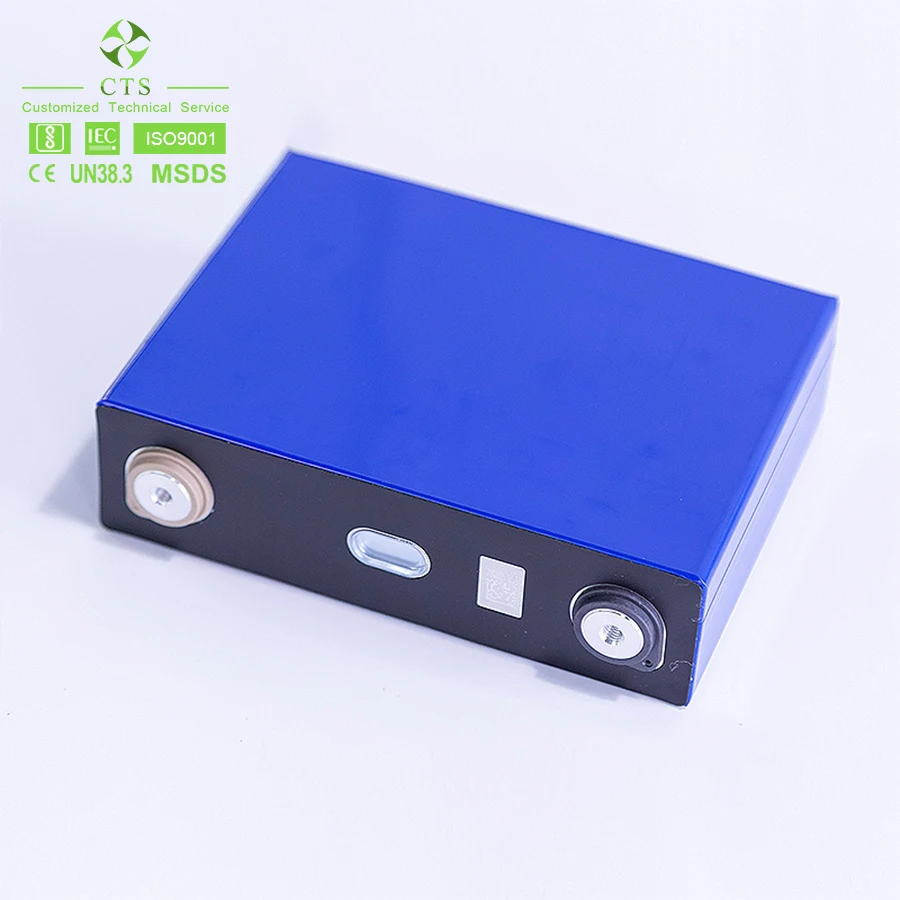

310ah Prismatic LiFePO4 Battery 3.2v Lifepo4 Prismatic Lithium battery cells
- Category: >>>
- Supplier: Hunan Cts Technology Co. Ltd.
Share on (1601159185355):
Product Overview
Description
CTS battery cell 3.2v 80ah 90ah 100ah 200ah 304ah lithium ion battery cell
Welcome to CTS

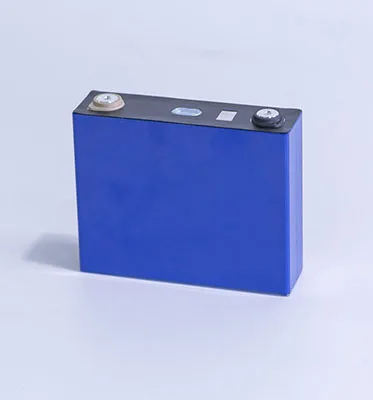

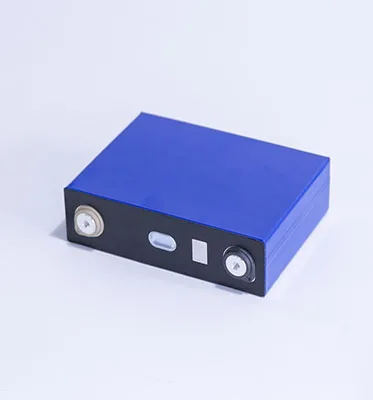

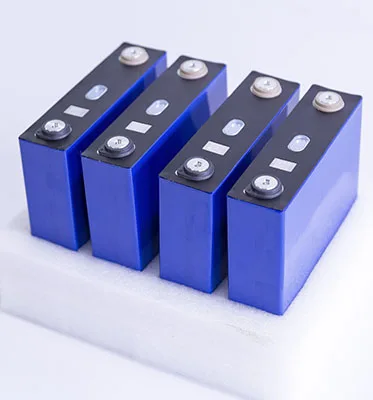

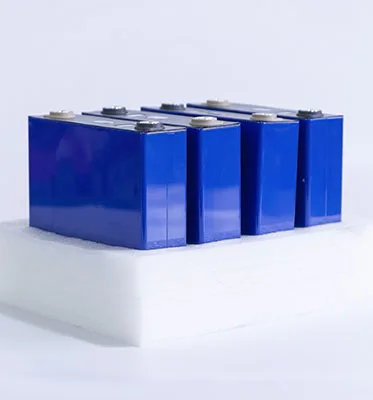

3.2v 100ah lifepo4 prismatic cell
CTS is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system. LiFePO4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc
Specification
Features:
1.High Capacity and Stable Discharge Voltage.
2.Light weight, small size and high performance.
3.Small internal resistance.
4.Outstanding Discharge performance. .
5. long life >6000 cycles.
6.No memory effect.
7.Existing stock for short delivery time.
8.OEM orders are available.
Datesheet:
Item | Specification | Notes |
Cell model | CTS-YD13161227-3.2V50AH | *LFP |
Shell | AL | *Prismatic |
Nominal Capacity | 100Ah | *2.5~3.65V *50A discharge current & Initial Status |
Minimum Capacity | 100Ah | *2.5~3.65V, at 23±2℃ *50A discharge current &Initial Status |
Nominal Voltage | 3.2V | *N.A. |
Operating Voltage Range | 2.50~3.65V | *100%DOD |
Charging Voltage | 3.65V | *N.A. |
Standard Charging Method | CCCV and CC is 0.5C | *N.A. |
Max.Charge Current | 1C/40min | *Temperature 23±2℃ |
Standard Discharging Method | 1C/1h | *Constant Current Discharge with 1C |
Max.Discharge Current | 2C/120s 3C/10s | *Discharge Time: 2C Less than 120 s(at23±2℃) 3C Less than 10 s(at23±2℃) |
Initial Inner Resistance(1KHz) | ≤0.45 mΩ | *Initial Status *50% SOC |
Cell Weight | 2.3Kg±30g | *N.A. |
Self-discharge | ≤4% per month | *25℃/50%SOC/within 3 months since date of manufacture |
Cycle life | About 3000cycles | *at 25℃&0.5C charge and discharge |
Operating Temperature | 0℃～55℃ | *Charging Operating |
-20℃～60℃ | *Discharging Operating |
Correlation graph:
Application
A WIDE RANGE OF APPLICATIONS
Powerful compatibility, widely used Electric vehicles , Energy storgae system, Back-up power, Golf cart,golf cart, fork lift....
Powerful compatibility, widely used Electric vehicles , Energy storgae system, Back-up power, Golf cart,golf cart, fork lift....
Company Profile
10+design and production experience
◆30+R&D team
◆150 employees
◆20000 square meter factory building
◆20000 square meter factory building
◆Focusing on high volt power systems
◆Certified by ISO9001 and IATF16949 systems
◆Certified by R100, IEC62619,CE, BIS, MSDS, UN38.3
Customer feedback
Order information
Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 10 working days for sample order, 35 working days for mass order.

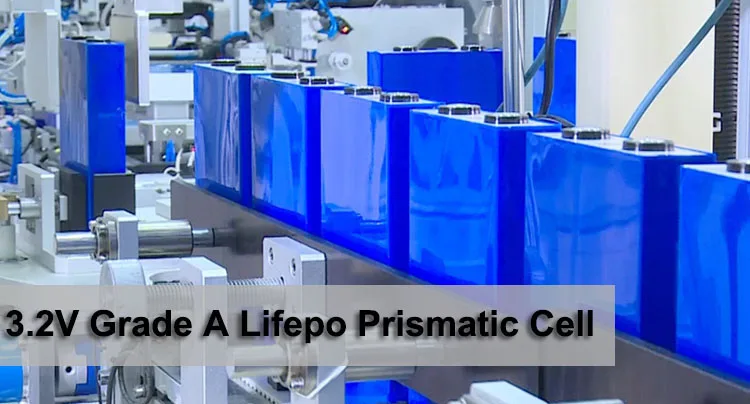

Welcome you to visit our production base and to check our production lines!
If any requirements on this 3.2V 100ah polymer batteries, please feel free to contact me without hesitate.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 10 working days for sample order, 35 working days for mass order.
Welcome you to visit our production base and to check our production lines!
If any requirements on this 3.2V 100ah polymer batteries, please feel free to contact me without hesitate.
